Im replacing a front cam seal on my 98 v70t5
While setting the timing I noticed that when I have my crank marks aligned, my cams are off from the original markings that were already there.
I dont have an issue driving or accelerating but I want to set it back as close as possible. When idling for over 15 minutes I hear a clicking from the rear cam.
My question is :
Should I line up the crank marks at the bottom, then set my cams to what was originally marked? Or should I replace the seal and have the timing serviced professionally later?
Get email notification of topic replies. Log in or register (free). Amazon Link Buy anything with this and it helps MVS!
Quick Timing Belt/ Camshaft question
-
- Posts: 48
- Joined: Fri Mar 11, 2016 12:33 pm
- Year and Model: 1995 850 TURBO
- Location: Dallas
Quick Timing Belt/ Camshaft question
2002 s60 Base - 215k - KIA [08-2014]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
- erikv11
- Posts: 10135
- Joined: Sat Jul 25, 2009 2:03 pm
- Year and Model: 850, V70, S60R, XC70
- Location: Iowa
- Has thanked: 129 times
- Been thanked: 362 times
Re: Quick Timing Belt/ Camshaft question
Since you already have the belt off and the cam sprockets off, I would definitely re-zero the timing yourself now.
1. Put the crank exactly on the mark.
2. Use the slots on the rear of the cams to align them perfectly horizontal (i.e., do your best, doesn't have to be *perfect*).
3. Put the sprockets on so that the marks are right in the notches.
4. TIghten the sprocket, install the belt, wrap things up.
The car isn't due soon for a TB change is it? A timing belt definitely stretches over normal service life, can lead to a 1/2 tooth discrepancy, which would be irksome if you are trying to get the timing back to factory settings.
1. Put the crank exactly on the mark.
2. Use the slots on the rear of the cams to align them perfectly horizontal (i.e., do your best, doesn't have to be *perfect*).
3. Put the sprockets on so that the marks are right in the notches.
4. TIghten the sprocket, install the belt, wrap things up.
The car isn't due soon for a TB change is it? A timing belt definitely stretches over normal service life, can lead to a 1/2 tooth discrepancy, which would be irksome if you are trying to get the timing back to factory settings.
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 293k
'06 S60 R, 167k
'07 XC70, 170k
'99 Camry V6
130k
gone: '96 NA 850 210k, '98 NA V70 182k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 293k
'06 S60 R, 167k
'07 XC70, 170k
'99 Camry V6

gone: '96 NA 850 210k, '98 NA V70 182k
-
- Posts: 943
- Joined: Sat Oct 27, 2012 7:01 pm
- Year and Model: 2000V70XC
- Location: columbus ohio
- Been thanked: 8 times
Re: Quick Timing Belt/ Camshaft question

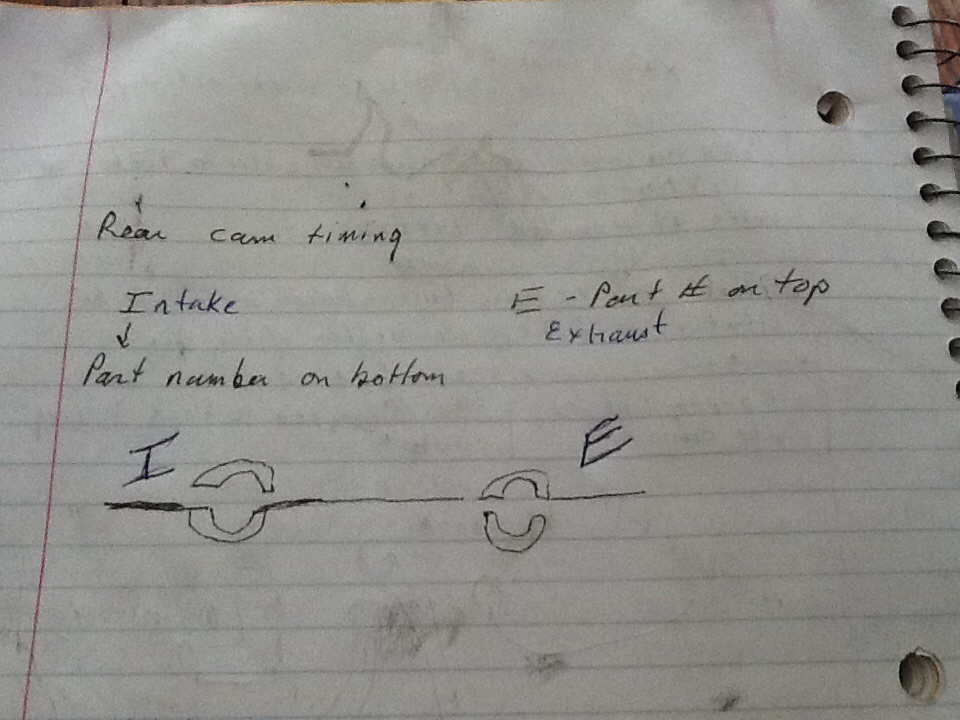

Following up on erikv11 point #2 here is a crude sketch of the rear cams for aligning. I would find some way to lock the rear cams.
-
- Posts: 48
- Joined: Fri Mar 11, 2016 12:33 pm
- Year and Model: 1995 850 TURBO
- Location: Dallas
Re: Quick Timing Belt/ Camshaft question
yeah... im pretty sure its due, so ill just replace only the seal. but now i have a different issue

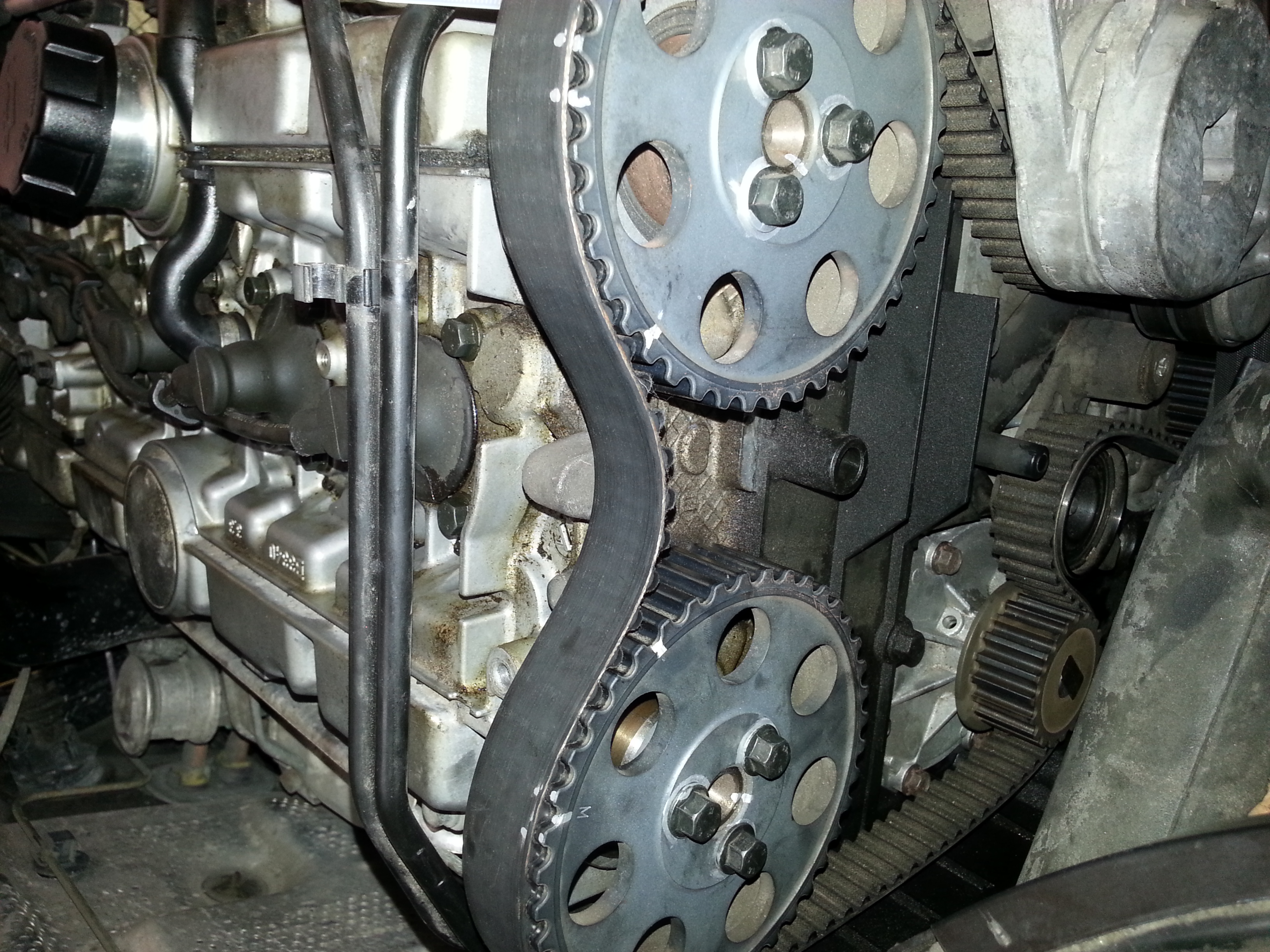

i have not put the hydraulic tensioner back on yet, but my shafts look like this (below)
How do i make sure i can line everything up again? I need to do it before the belt gets tightened again
the exhaust side only wants to move clockwise, i need to go counterclockwise about a notch or two
thanks yall!!
i have not put the hydraulic tensioner back on yet, but my shafts look like this (below)
How do i make sure i can line everything up again? I need to do it before the belt gets tightened again
the exhaust side only wants to move clockwise, i need to go counterclockwise about a notch or two
thanks yall!!
2002 s60 Base - 215k - KIA [08-2014]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
-
- Posts: 48
- Joined: Fri Mar 11, 2016 12:33 pm
- Year and Model: 1995 850 TURBO
- Location: Dallas
Re: Quick Timing Belt/ Camshaft question
what is not shown in the picture is the intake cam has a ziptie where the belt originally started so i know where it should be.
What i want to do is:
- rotate the intake cam proportionate to how the exhaust one moved (a notch or two clockwise)[should eliminate the slack between the cams]
-after, there should be slack created between the intake and crank
-turn the crankshaft until the belt is a bit more fit between the intake and crank
-return the tensioner and let it pick up the last of the slack
does that sound resonable?
What i want to do is:
- rotate the intake cam proportionate to how the exhaust one moved (a notch or two clockwise)[should eliminate the slack between the cams]
-after, there should be slack created between the intake and crank
-turn the crankshaft until the belt is a bit more fit between the intake and crank
-return the tensioner and let it pick up the last of the slack
does that sound resonable?
2002 s60 Base - 215k - KIA [08-2014]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
-
- MVS Moderator
- Posts: 14798
- Joined: Thu Sep 07, 2006 8:24 am
- Year and Model: Many Volvos
- Location: USA Midwest
- Has thanked: 4 times
- Been thanked: 56 times
Re: Quick Timing Belt/ Camshaft question
Just because it was timed one way before doesn't make it correct. About half of the whiteblocks that I have purchased have had the belt off a tooth when I go to change the first belt. They don't run terrible with the timing off but they run better when it is correct.
...Lee
...Lee
'94 850 N/A 5 speed
'96 Platinum Edition Turbo
Previous:
1999 V70XC - Nautic Blue - Totaled while parked.
1999 V70XC - RIP - Wrecked Parts Car.
1998 S70 T5
1996 850 N/A
1989 740 GLT
1986 740 GLT
1972 142 Grand Luxe
'96 Platinum Edition Turbo
Previous:
1999 V70XC - Nautic Blue - Totaled while parked.
1999 V70XC - RIP - Wrecked Parts Car.
1998 S70 T5
1996 850 N/A
1989 740 GLT
1986 740 GLT
1972 142 Grand Luxe
-
- Posts: 48
- Joined: Fri Mar 11, 2016 12:33 pm
- Year and Model: 1995 850 TURBO
- Location: Dallas
Re: Quick Timing Belt/ Camshaft question
Ozark Lee wrote:Just because it was timed one way before doesn't make it correct. About half of the whiteblocks that I have purchased have had the belt off a tooth when I go to change the first belt. They don't run terrible with the timing off but they run better when it is correct.
...Lee
No doubt Lee, I totally agree. When i get a new belt i want to have it timed properly then.
As of right now for what im doing, is it ok to do what i described in my lastest post?
2002 s60 Base - 215k - KIA [08-2014]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
- erikv11
- Posts: 10135
- Joined: Sat Jul 25, 2009 2:03 pm
- Year and Model: 850, V70, S60R, XC70
- Location: Iowa
- Has thanked: 129 times
- Been thanked: 362 times
Re: Quick Timing Belt/ Camshaft question
When the crank is on the mark, both cams can be spun freely in either direction. Well, there is resistance, but there is no risk of damaging anything. Just get a long screwdriver in there between two of the three cam sprocket bolts, and rotate the exhaust cam to exactly where you want it to be. The exhaust cam likes to slip out of place, but just keep putting it back until you can get the belt back on.
Even though you are replacing the belt, attempt to set the timing to factory position, not to where it was. See Lee's comment. Your car's belt will likely do that just fine, or within half a tooth anyway (which is just fine!). If you don't want to eyeball the back of the cams at this time, at least eyeball the lines along the bottom (exhaust) and top (intake) of the triangles formed by the cam sprocket bolts. Each line should be parallel to the engine mating lines, e.g. the line that seals the head to the bock, the cam cover to the head, etc.
Even though you are replacing the belt, attempt to set the timing to factory position, not to where it was. See Lee's comment. Your car's belt will likely do that just fine, or within half a tooth anyway (which is just fine!). If you don't want to eyeball the back of the cams at this time, at least eyeball the lines along the bottom (exhaust) and top (intake) of the triangles formed by the cam sprocket bolts. Each line should be parallel to the engine mating lines, e.g. the line that seals the head to the bock, the cam cover to the head, etc.
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 293k
'06 S60 R, 167k
'07 XC70, 170k
'99 Camry V6
130k
gone: '96 NA 850 210k, '98 NA V70 182k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 293k
'06 S60 R, 167k
'07 XC70, 170k
'99 Camry V6

gone: '96 NA 850 210k, '98 NA V70 182k
-
- Posts: 48
- Joined: Fri Mar 11, 2016 12:33 pm
- Year and Model: 1995 850 TURBO
- Location: Dallas
Re: Quick Timing Belt/ Camshaft question
I appreciate the help guys as I only had some printouts
my crank was not 100% lined up and I have a very slight bumpy idle (my mom rushed me out the garage)
about to tune it to get it as close as I can to the factory settings
Thanks again! Always great advise
my crank was not 100% lined up and I have a very slight bumpy idle (my mom rushed me out the garage)
about to tune it to get it as close as I can to the factory settings
Thanks again! Always great advise
2002 s60 Base - 215k - KIA [08-2014]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
2000 s70 Base - 170k - Traded in [2015-16]
1998 v70 t5 - 232k - KIA [2016-2018]
2000 s70 Base - 180K KIA [2018-2018]
1995 850 TURBO - 77K [2019-]
- bmdubya1198
- Posts: 4592
- Joined: Tue Dec 30, 2014 10:45 am
- Year and Model: 2K V70R M56
- Location: Charlotte, NC
- Has thanked: 51 times
- Been thanked: 201 times
Re: Quick Timing Belt/ Camshaft question
It's hard to see, but those cams will line up at the rear as so nicely illustrated by kahl
. Once it's lined up back there you can loosen the sprocket and slowly turn it to line up with the factory alignment marks on the timing belt cover. It definitely helps to have the cams locked. For something like this you can make your own cam locking tool if you really want to. For me, that's the easiest way to set the timing.
Keep in mind, that is assuming that the cam sprocket was removed at some point. If it is on the camshaft the way it was from the factory, you should be able to turn the sprocket while attached to the camshaft to align it.

Keep in mind, that is assuming that the cam sprocket was removed at some point. If it is on the camshaft the way it was from the factory, you should be able to turn the sprocket while attached to the camshaft to align it.
00 V70R Venetian Red/Charcoal M56 Swapped 200k
03 S60 2.4T Silver/Black 118k
07 XC90 V8 AWD Sport Titanium Grey/Black 174k
92 245 Base White/Beige 249k
98 V70 GLT Black/Beige 205k
99 BMW 528i
84 BMW 318i
01 Mountaineer 5.0
Sold-
00 S70 GLT Mystic Silver/Taupe 253k
91 944 Turbo Dark Green/Beige 175k
93 944 Base Beige/Beige 221k
98 S90- Silver/Gray 207k
95 850 GLT Tropic Green... crushed
01 S60 2.4T Black/Black 230k
88 744 Turbo M46 Beige Metallic/Beige 188k
03 S60 2.4T Silver/Black 118k
07 XC90 V8 AWD Sport Titanium Grey/Black 174k
92 245 Base White/Beige 249k
98 V70 GLT Black/Beige 205k
99 BMW 528i
84 BMW 318i
01 Mountaineer 5.0
Sold-
00 S70 GLT Mystic Silver/Taupe 253k
91 944 Turbo Dark Green/Beige 175k
93 944 Base Beige/Beige 221k
98 S90- Silver/Gray 207k
95 850 GLT Tropic Green... crushed
01 S60 2.4T Black/Black 230k
88 744 Turbo M46 Beige Metallic/Beige 188k
-
- Similar Topics
- Replies
- Views
- Last post
