Volvo Repair Database '99 S70 Non Turbo Vacuum & Related Lines - Different Version

Post by Electrix » Fri Jan 10, 2020 3:01 pm

First, this thread - viewtopic.php?f=1&t=65002 ( 850 AND S/V/C70 NON-TURBO VACUUM LINES) covers quite a lot, but there are differences between what's shown there and what is on my '99 S70 that just add to the overall murky confusion surrounding the layout of the vacuum lines on these cars.
Mine has no vacuum tree, flame trap or nipples on the throttle body as are shown in that guide.
Since the engine is currently partially apart, I've photographed what I believe are all the small vacuum line attachment points aside from the brake booster, fuel pressure regulator and charcoal canister as all are a bit hard to get to (the fuel pressure regulator is underneath the car, near the fuel filter behind the rear passenger side wheel).
These photos have each nipple numbered. What I'd like to do is compile a list of what attaches to each of them so there will be a concise reference for this particular setup.

The connections seem to be as follows. Those with a question mark at the beginning are unconfirmed. Corrections are welcome...
(Revised)

#1) Intake Manifold to Purge Valve, Upper (#7)
#2) White Rigid Line. Intake Manifold to Rear of Air Cleaner, Lower (#9)
#3) Intake Manifold to Vacuum Solenoid On Top of Radiator
#4) Intake Manifold to Brake Booster
#5) To Air Intake, #13 *
#6) Purge Valve, Lower to Fuel Regulator
#7) Purge Valve, Upper To Intake Manifold (#1)
#8) Black Rigid Line to Air Cleaner Air Valve (#11)
#9) White Rigid Line. Rear of Air Cleaner, Lower to Intake Manifold (#2)
#10) Oil Trap to Fresh Air Intake (#12) <There seems to be a missing elbow on this line> *
#11) Black Rigid Line From #8 on Rear of Air Cleaner, Upper
#12) To Oil Trap (#10)
#13) To #5 on Passenger Side of Intake Manifold

* These two (#5 and #10) run inside the same foam sleeve. The #5 hose in not shown in these photos.
Attachments
A .jpg
Photo A - Intake Manifold, Driver's Side
B .jpg
Photo B - Intake Manifold, Passenger Side
C .jpg
Photo C - Purge Valve
D .jpg
Photo D - Air Cleaner, Rear Side
E .jpg
Photo E - Oil Trap
F .jpg
Photo F - Air Cleaner Inlet
G .jpg
Photo G - Fresh Air Hose
Last edited by Electrix on Tue Jan 14, 2020 11:04 pm, edited 1 time in total.
These users thanked the author Electrix for the post:
matthew1

User avatar
Electrix
Posts: 7
Joined: Tue Jan 07, 2020 9:01 am
Year and Model: 1999 S70
Location: Earth
Has thanked: 1 time
Been thanked: 1 time
United States of America
Electrix

Re: '99 S70 Non Turbo Vacuum & Related Lines - Different Version

Post by Electrix » Tue Jan 14, 2020 12:31 pm

For further clarity, here are the part numbers for the some of the relevant components -

Purge Valve - Pierburg PA6-GF30
Intake Manifold - 9434314
Fresh Air Hose - 9155453
Air Cleaner - 9125215
Air Cleaner Valve - PP-GF-30 (This doesn't seem to be the part number, but it was the only one visible)
Oil Trap - Likely 8692211. Unconfirmed

User avatar
matthew1
Site Admin
Posts: 10243
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 506 times
Been thanked: 189 times
United States of America
matthew1

Re: '99 S70 Non Turbo Vacuum & Related Lines - Different Version

Post by matthew1 » Tue Jan 14, 2020 12:36 pm

Beautiful.

Marked for inclusion in the Volvo Repair Database VRD.
Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a kickback.

1997 850 T5, MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace [gone]
2004 V70 R [gone]


User avatar
abscate
MVS Moderator
Posts: 20056
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 274 times
Been thanked: 853 times
Trinidad & Tobago
abscate

Re: '99 S70 Non Turbo Vacuum & Related Lines - Different Version

Post by abscate » Wed Jan 15, 2020 1:12 am

Can you add a picture of your under hood sticker for reference and also add your build date?

I have exactly the same car , by the way, and some different hose routings
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary

User avatar
matthew1
Site Admin
Posts: 10243
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 506 times
Been thanked: 189 times
United States of America
matthew1

Re: '99 S70 Non Turbo Vacuum & Related Lines - Different Version

Post by matthew1 » Wed Jan 15, 2020 8:28 am

Electrix made MVS Contributor
Topic Added to VRD
These users thanked the author matthew1 for the post:
Electrix
Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a kickback.

1997 850 T5, MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace [gone]
2004 V70 R [gone]


User avatar
Electrix
Posts: 7
Joined: Tue Jan 07, 2020 9:01 am
Year and Model: 1999 S70
Location: Earth
Has thanked: 1 time
Been thanked: 1 time
United States of America
Electrix

Re: '99 S70 Non Turbo Vacuum & Related Lines - Different Version

Post by Electrix » Wed Jan 15, 2020 5:00 pm

abscate wrote:
Wed Jan 15, 2020 1:12 am
Can you add a picture of your under hood sticker for reference and also add your build date?

I have exactly the same car , by the way, and some different hose routings

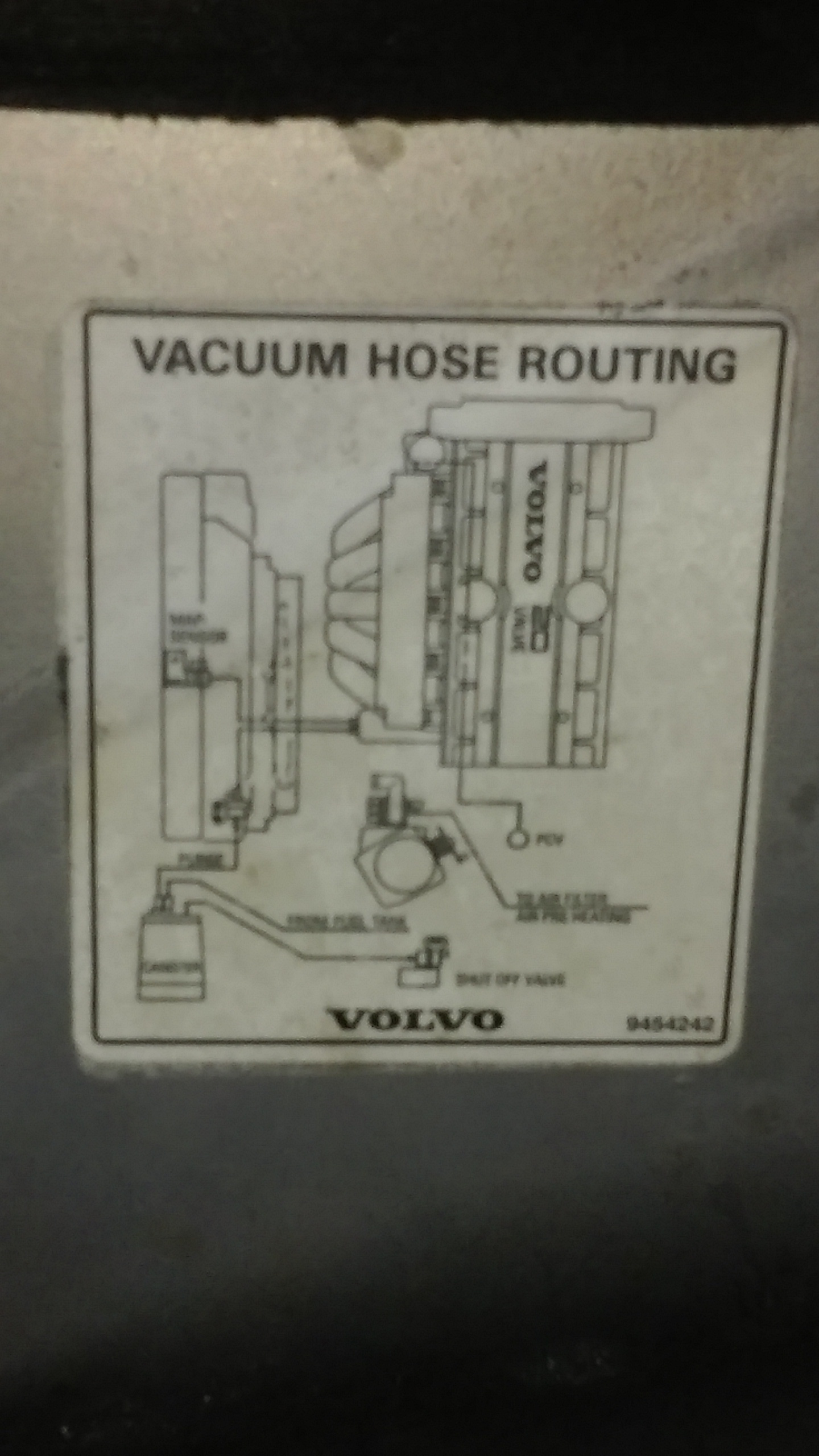

A picture of the vacuum routing sticker from under the hood is attached below

The build date is 10/98 according to the sticker on the driver's door frame.

Some other assorted information from a VIN decoder site -

Engine Model: B5254S
Pretensioner: Yes
NCSA Make: Volvo
NCSA Model: 70 Series (For XC70 for 2014 on, use model code 402)
Other Restraint System Info: Dual Airbags (SRS)
Other Engine Info: w/o EGR, w/o air pump, w/OBDII, w/air-assisted fuel injectors, Denso, w/RuLo, w/ORVR Transmission: auto and manual
Manufacturer Id: 1006

I'd consider the chart I've made tentative until the car is running again and all the lines are attached. It might be another week or two until I've reached that point.
Attachments
Vacuum Routing Sticker.jpg
