98 V70XC Turbo Pic or Diagram on the Exhaust Heat Shields

Grimace · Post by **Grimace** » 07 Mar 2012, 11:01

Hello all, looks like a great forum here, glad to come across it!
I am new to Volvo with my 98 V70XC. I am just finishing up the head gasket, and can't remember how the 2 heat shields go back on. If someone could post a pic or diagram that would be great! I found this, but it isn't enough detail for me to figure out.

Post by **jblackburn** » 07 Mar 2012, 19:59

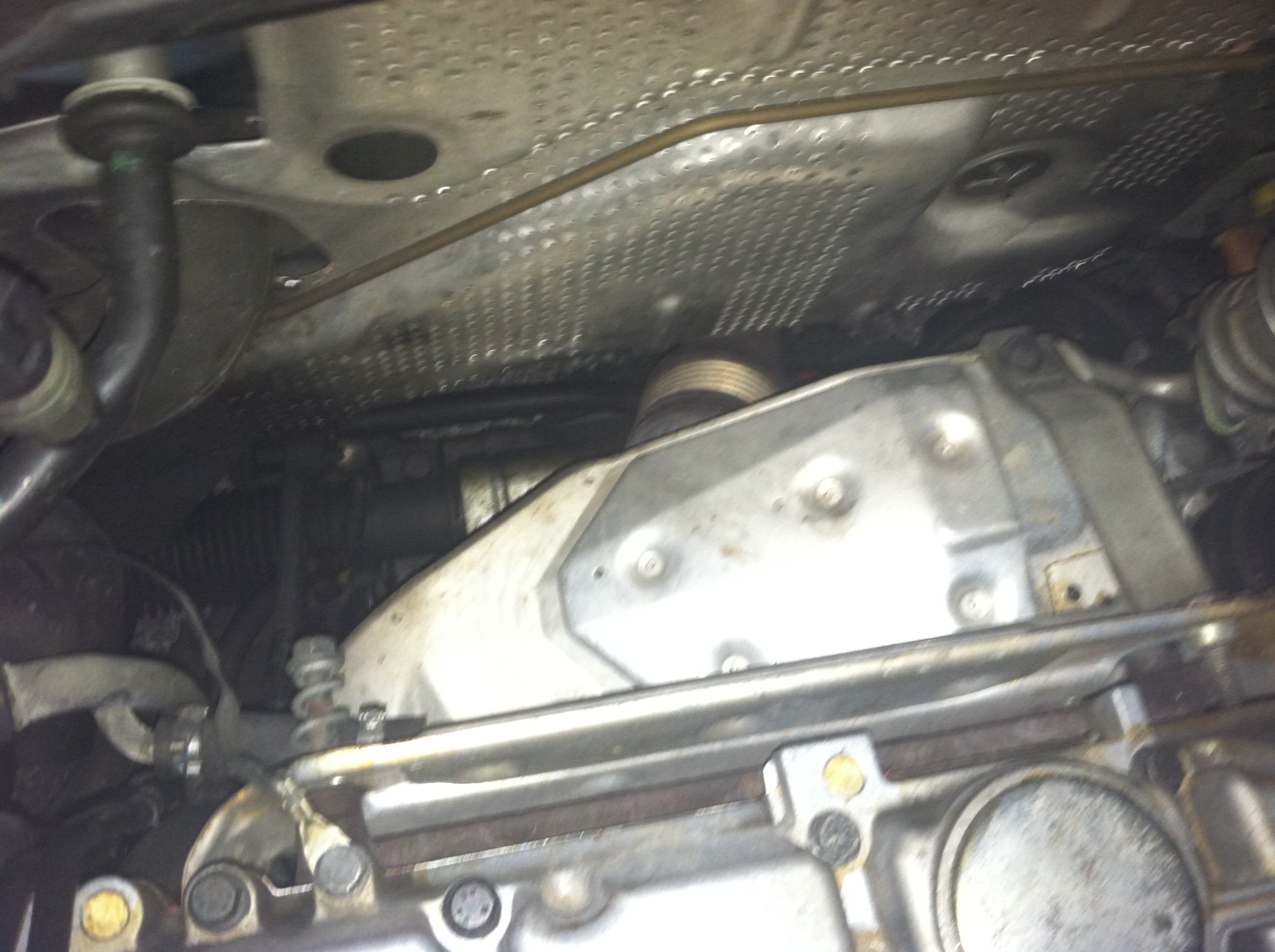

I'm not real sure if this helps you or not, but here's a picture.

That "L" shaped piece has to be shoved up under the other at an angle. The bracket then sits on top of it.

Grimace · Post by **Grimace** » 07 Mar 2012, 20:13

YES! thank you so much! I should be able to get it back in now

mikeym · Post by **mikeym** » 18 Jun 2013, 11:00

[quote="jblackburn"]I'm not real sure if this helps you or not, but here's a picture.

That "L" shaped piece has to be shoved up under the other at an angle. The bracket then sits on top of it.

[attachment=0]photo.JPG[/attachment][/quote]

Hello I keep loging in and out and in again but this site till wont let me see pictures ????? help ??
