Low Volts to Cam Angle Sensor

Gobblin81 · Post by **Gobblin81** » 03 Jan 2016, 19:31

Hi Guys
Im just finishing off an engine swap on my T5R
Went to fire up this morning and No Spark
Have traced the fault to a 2 volt input to the cam angle sensor , by all accounts this should be around battery voltage
Swapping out the ECU has not changed the issue
Can anybody give me a lead as where to look next ? Where is the power put into the ECU Can I meter it ?
Is there an easy way to check the continuity of that CAngle wiring
Thanks

Azik09 · Post by **Azik09** » 05 Jan 2016, 08:10

There are 2 types of camshaft sensors: supply voltage is 12 Volts for both types, and signal voltages are 12 V or 5 V. I need to know your ECU and camshaft sensor part numbers to give you correct answer.

Gobblin81 · Post by **Gobblin81** » 05 Jan 2016, 17:53

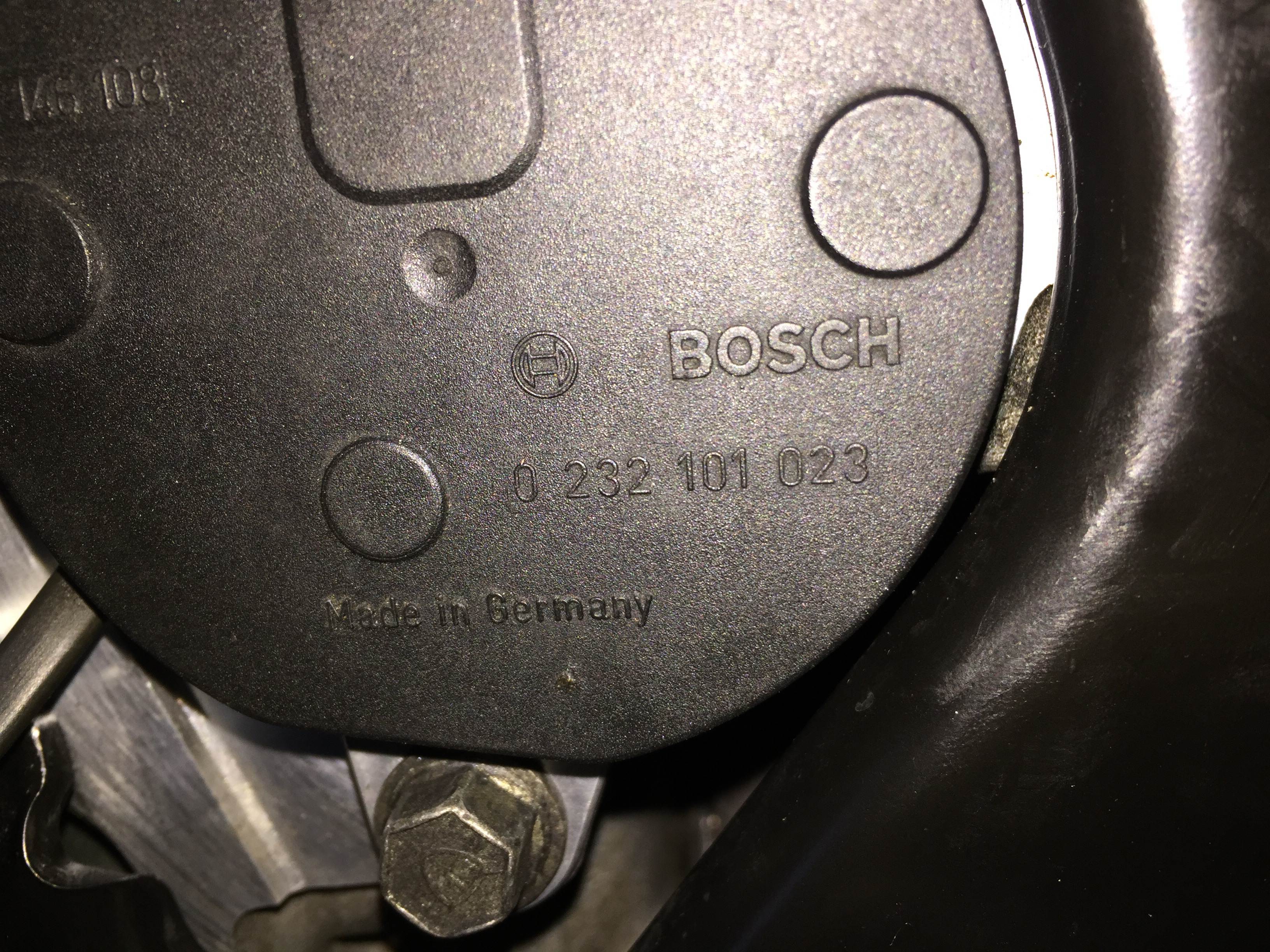

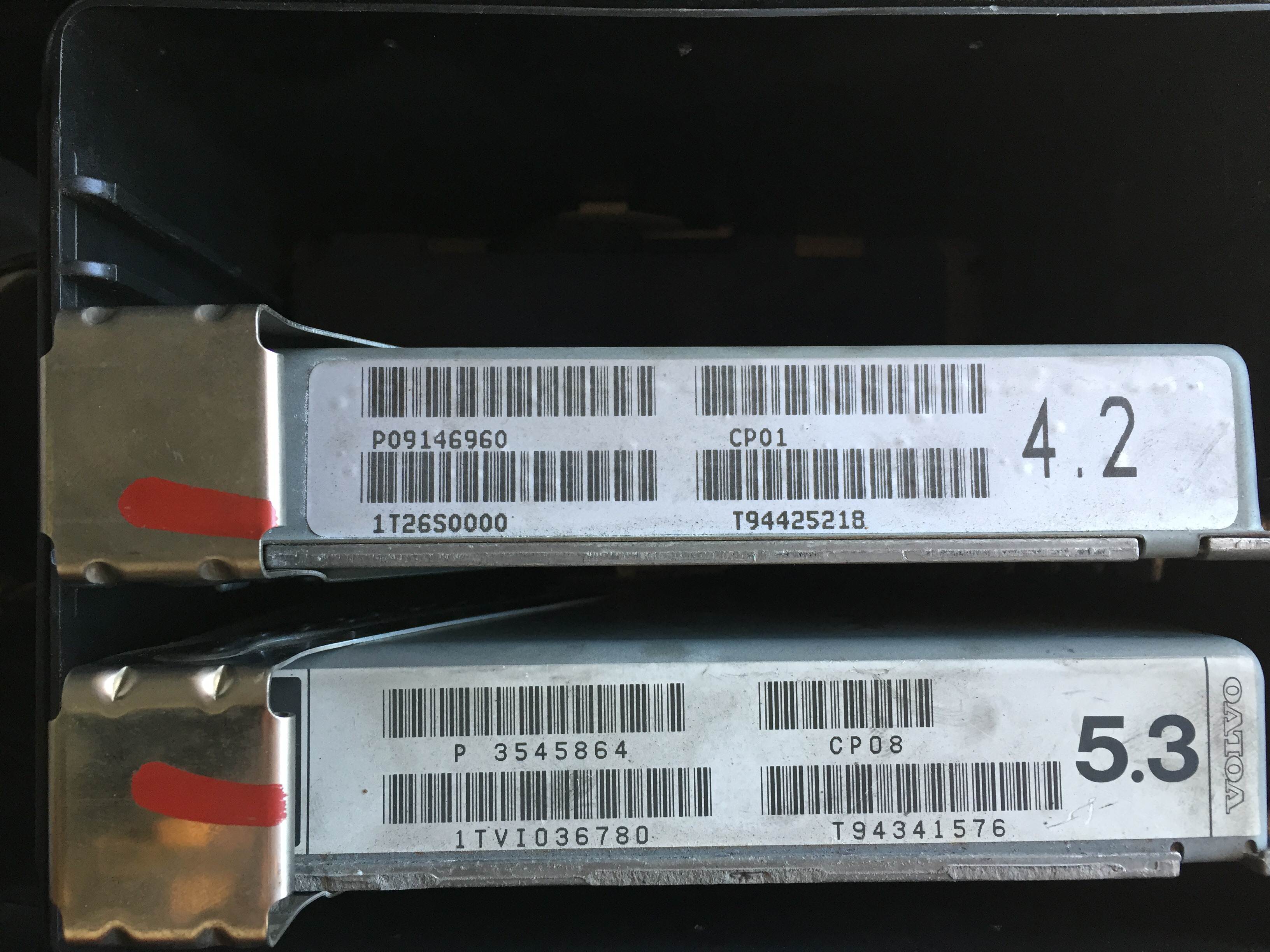

Thanks Azik09 Attached are photos of the hardware
Ive checked the cables from the ecu to the camshaft sensor , there is good continuity and no voltage drop

Even with a spare ecu installed i still get just over 2 volts at pin 3 on the sensor plug and less than half a volt on pin 2

I've been looking for the A6 pin ( ignition system ) on my onboard diagnostic system this seems to be missing
I only have 4 sockets installed on the A receptacle
