Hello, I'm trying to rewire the front dome light. I have already cut most of the wires from the harness (pictures). I have 2x 3 prong rocker switches with LED and I want to wire in LED light strips. I need a picture diagram (not schematic, too complicated for me) with the labeled purpose of the wires so I can do it right.
The diagram of the stereo wiring harness is an example of the type of diagram I'm looking for. I do not want a schematic (open circuit, etc).
Also I would like to know what that flat bulb looking thing is. Pictured below.
V70 xc front dome light- need wiring diagram Topic is solved
-
CIK7
- Posts: 1552
- Joined: 14 January 2019
- Year and Model: 95 854T & V70trailer
- Location: Antlers, Oklahoma
- Has thanked: 318 times
- Been thanked: 86 times
V70 xc front dome light- need wiring diagram
- Attachments
-
- Dome light wiring harness
-

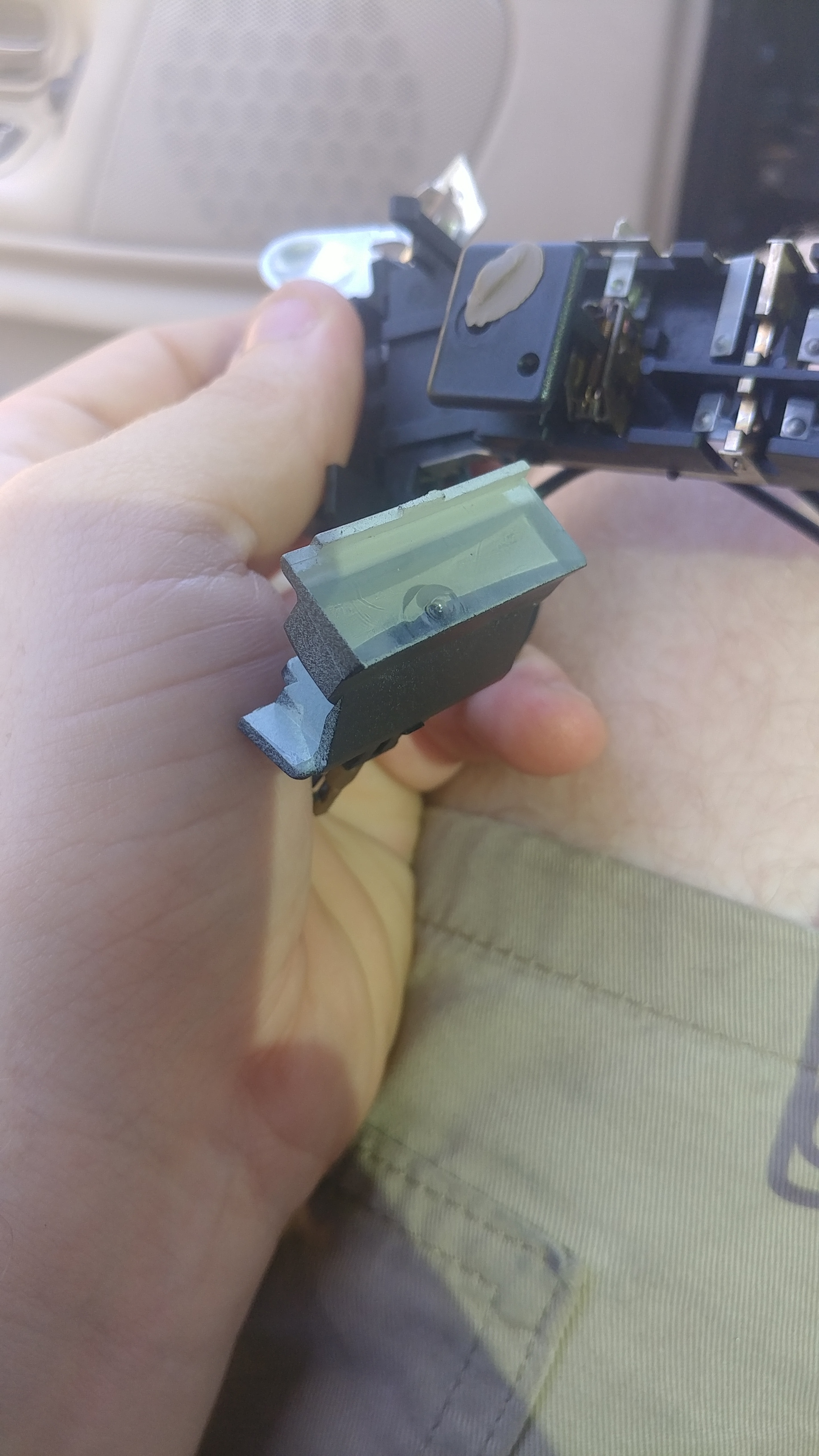

- Flat bulb looking thing
-
- Stereo diagram
