Camshaft Locking Tool Instructions

hans747 · Post by **hans747** » 30 Sep 2021, 14:24

Use a T55 bit to remvoe the big torx screw in the middle of the hub. That screw is basically an oil cap. Then there is another, longer t55 bolt directly behind. Remove that bolt and then you can pull the hub straight off the camshaft end.

Oka · Post by **Oka** » 30 Sep 2021, 23:54

vtl wrote: ↑30 Sep 2021, 08:19 Replacing the cam and VVT hub seals, Volvo cam sprocket hubs, P2 V70, S60, C70, S70, S80, etc.- VOTD

This morning, I had tagged this video to watch later.
Robert showed what am looking for.

Thanks you for the link, well appreciated!

Oka · Post by **Oka** » 02 Oct 2021, 14:31

hans747 wrote: ↑30 Sep 2021, 14:24 Use a T55 bit to remvoe the big torx screw in the middle of the hub. That screw is basically an oil cap. Then there is another, longer t55 bolt directly behind. Remove that bolt and then you can pull the hub straight off the camshaft end.

Yes, that's what I did.
Thanks you.

Oka · Post by **Oka** » 02 Oct 2021, 14:34

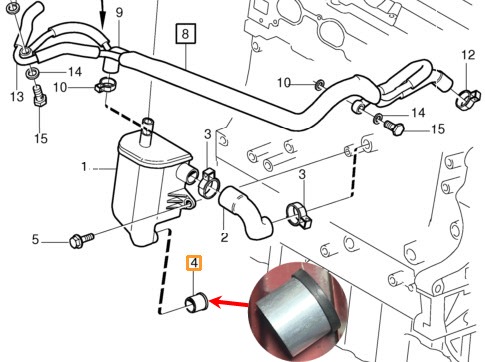

: OilTrap.jpg (50 KiB) Viewed 873 times

1. From the above image, is the adapter (#4) for a different model. My original Oil Trap has a short hose with two torx clamps.

2. This is a good time to ask this question. Coolant. I have different cars that require or originally had different coolant colors from each other. Now that I have the XC am currently working on, with all coolants drained. Can I use a universal/All Model coolant on this Volvo?

Cheers

Oka · Post by **Oka** » 04 Oct 2021, 17:42

Oka wrote: ↑29 Sep 2021, 21:11 The oil pressure release valve (OEM# 463963) in my oil sump, as a valve, when I cleaned and blew on it, on both directions, air went through. Looks like the valve is bad, being a valve. I had wanted to just put it back there and don't worry about it so it won't interrupt my work. Reluctantly, I will order it.

The new valve just arrived. I blew in it and the air went both ways. How come it's called a "valve"?
Does it become a "valve" with temperature; I guess. It means the one in my oil sump is good.
Since I just got a new one, I'll install it and keep the old one for the other '01 XC.
Anyone know why I can blow through it both directions?

Cheers

Oka · Post by **Oka** » 20 Oct 2021, 02:58

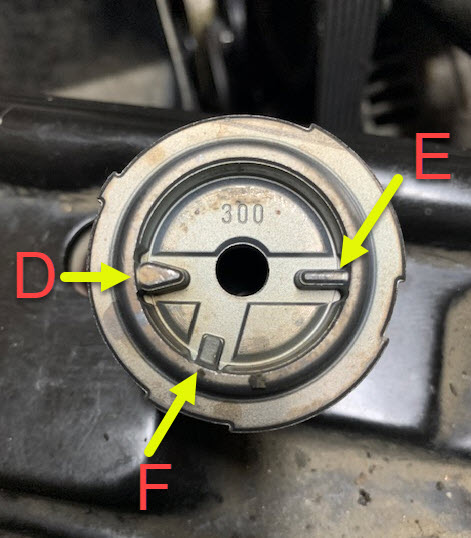

: CamRear1.jpg (87.96 KiB) Viewed 810 times

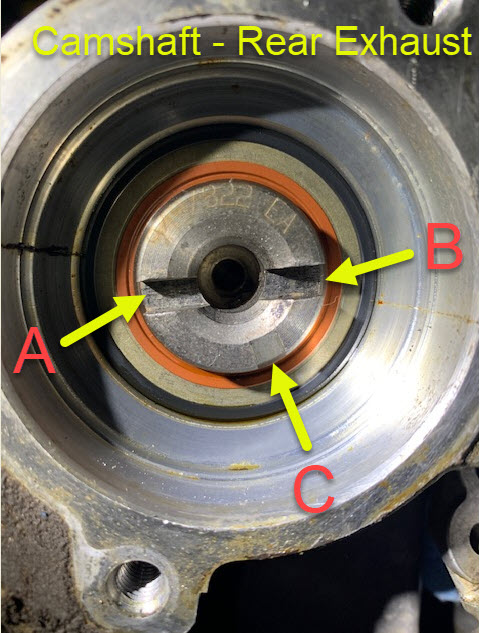

: CamRear2.jpg (54.81 KiB) Viewed 810 times

Hello folks,

Removed the camshaft locking tool. On the rear, exhaust, there is a cup that is screwed into the shaft.
What letter goes where?

Thanks.

Post by **jonesg** » 20 Oct 2021, 05:35

it will self align when correctly positioned.

Oka · Post by **Oka** » 20 Oct 2021, 14:26

jonesg wrote: ↑20 Oct 2021, 05:35 it will self align when correctly positioned.

You said, "when correctly positioned". You mean when the teeth D-E matches groves A-B (or B-A rotated are 180 degrees)?

So you mean, i can install it in the orientation in the picture, or, at 180 degrees of that and it will align itself?
How about the bolt that will be tightened in the middle?

Thanks

Post by **vtl** » 25 Oct 2021, 08:51

Oka wrote: ↑20 Oct 2021, 14:26 You said, "when correctly positioned". You mean when the teeth D-E matches groves A-B (or B-A rotated are 180 degrees)?

So you mean, i can install it in the orientation in the picture, or, at 180 degrees of that and it will align itself?
How about the bolt that will be tightened in the middle?

You will not be able to install the tool incorrectly. You'll see what that means when you try to.

As already suggested, bolt each half onto the camshaft individually and then rotate them to align the halves, then bolt the tool together.

Post by **RickHaleParker** » 25 Oct 2021, 09:33

Oka wrote: ↑20 Oct 2021, 14:26 You said, "when correctly positioned". You mean when the teeth D-E matches groves A-B (or B-A rotated are 180 degrees)?

There is no way to get it wrong except for not getting the tool teeth in the cam notches.
The tool will align the cams correctly upside up or upside down.

Camshaft Locking Tool Instructions

Re: Camshaft Locking Tool Instructions
