Loud noise from transmission 2002 V70II 2.4 Petrol 140PS

Post by HaGii »

Hello fellas,

I’m new to the forum, but read up quite a bit before posting anything.

I’m a car mechanic myself, but was a bit overwhelmed today hence my first posting on this forum.

I bought my V70 a few months ago and it was sitting in a garage as it’s my car for winter time.
I noticed a strange sound from the engine (I supposed) when I took it to the garage.
Today took it to my little workshop and wanted to repair the car, since I was convinced it came from the engine itself an sounded like the o-rings of the oil pan gone bad.

It seems like this is not the case.

You can clearly here a loud ticking noise from the transmission in the video I attached. The sound occurs when the car’s idling and when any gear is put in, but it’s gone when the clutch is open (so when I’m pushing the pedal).
It seemed like the noise came over time, when the oil in the transmission became warm.
Even though I’m not quite certain on this particular detail.

Anyway… I’m thinking about three possible broken things from best to worst:
The release bearing, the dmf (I think it’s called this way) or the transmission itself.

Maybe someone experienced can help me pinpoint the issue since I’d like to know the cause before taking the car apart.

Thank you in advance!

Edit: hopefully my english is good enough for anyone to understand! :D
Attachments
IMG_0515.MOV
(30.16 MiB) Downloaded 53 times

HaGii
Posts: 2
Joined: 28 October 2022
Year and Model: 2002 V70 2.4
Location: Germany
Been thanked: 1 time

Post by HaGii »

Even though nobody answered:
I removed the transmission and saw the clutch release bearing doing this. (Attached video)

This might be the issue.

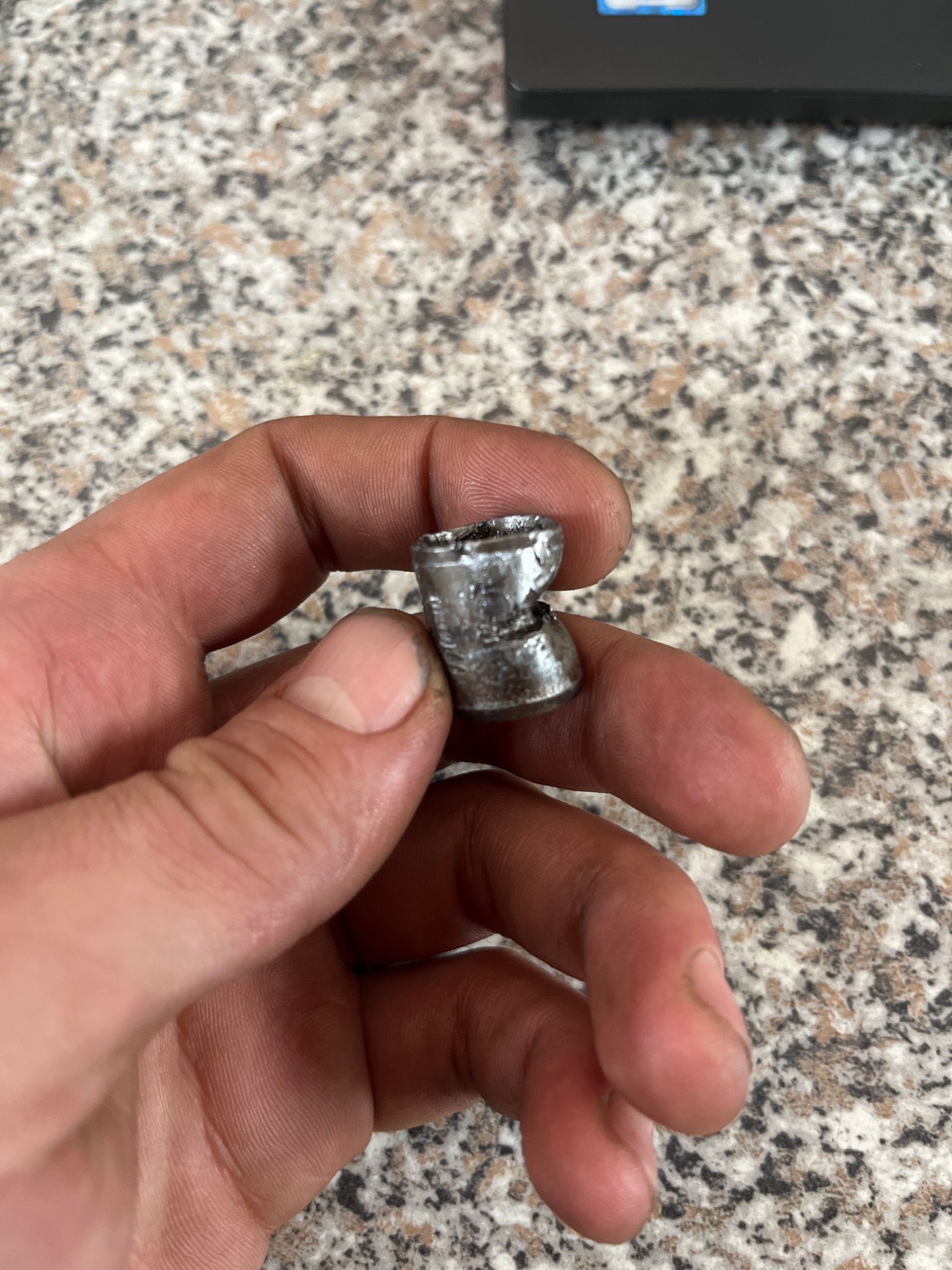

The centering pin (don’t know how it’s called) was damaged when the former owner repaired the transmission himself which caused the transmission to not be aligned to the engine properly. (Picture)
Attachments
IMG_0593.MOV
Release Bearing
(18.89 MiB) Downloaded 52 times
Centering thingy
Centering thingy

dikidera
Posts: 1307
Joined: 15 August 2022
Year and Model: S60 2005
Location: Galaxy far far away
Has thanked: 68 times
Been thanked: 175 times

Post by dikidera »

That is rough. How did you fix this?
