Sc-900 Motherboard pictures

Post by **scot850** » 20 May 2023, 16:53

I was asked to post pictures of an SC-900 motherboard for comparison to an Japanese version of the unit. So here we are:

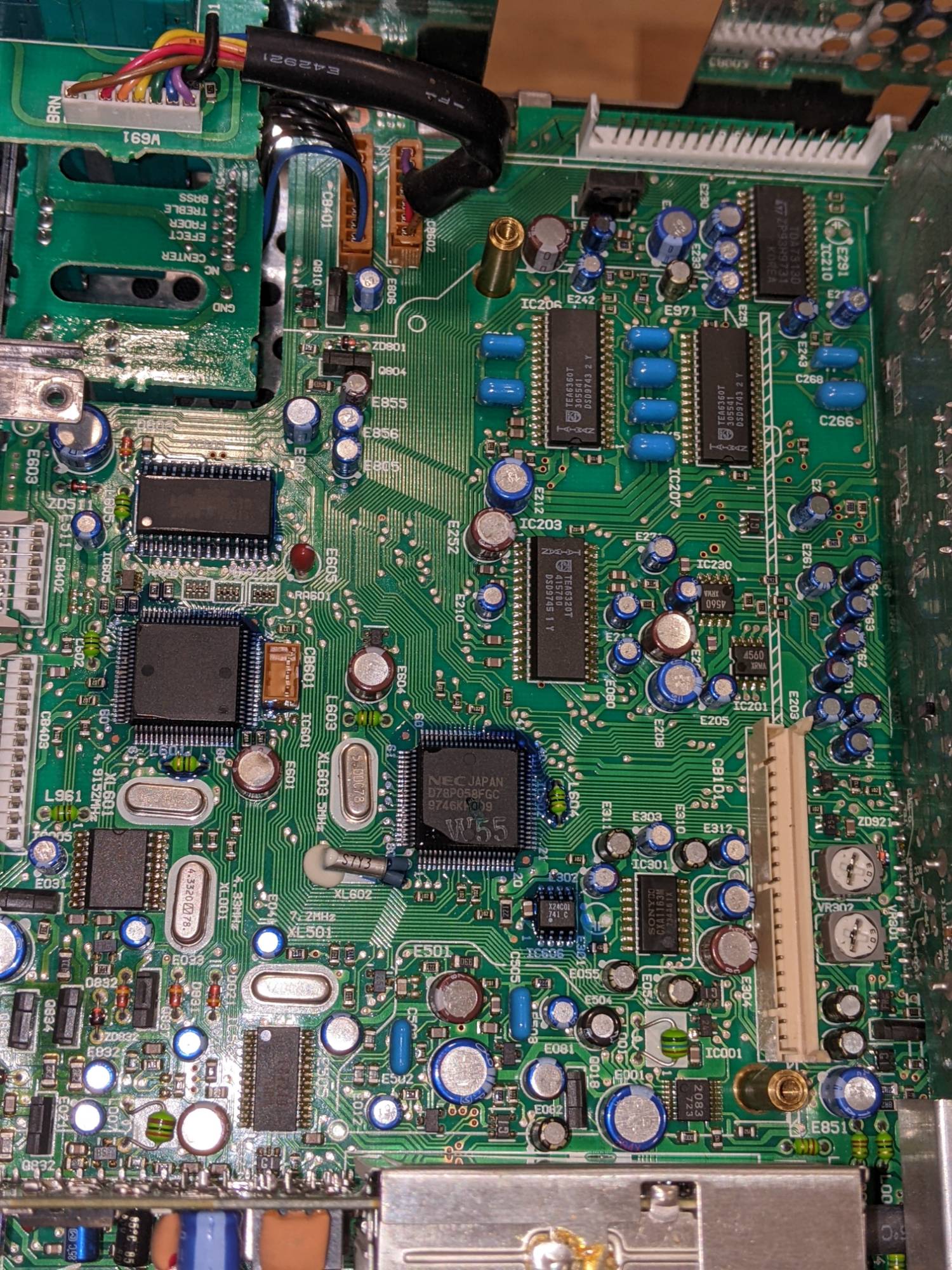

: SC-900 Motherboard; PXL_20230520_222925718.jpg (618.78 KiB) Viewed 180 times

Above is most of the main board

: SC-900 Motherboard detail (1); PXL_20230520_222940217.jpg (596.25 KiB) Viewed 180 times

Above the the lower RH corner of the board as seen in the 1st picture

: SC-900 Motherboard detail (2); PXL_20230520_222947890.jpg (575.56 KiB) Viewed 180 times

Above the the upper RH corner of the board as seen in the 1st picture

: SC-900 Motherboard detail (3); PXL_20230520_222958791.jpg (655.69 KiB) Viewed 180 times

Above the the lower LH corner of the board as seen in the 1st picture

: SC-900 Motherboard detail (4); PXL_20230520_223004303.jpg (642.52 KiB) Viewed 180 times

Above the the upper LH corner of the board as seen in the 1st picture

Hopefully these are of help for comparison

Neil.

Post by **scot850** » 21 May 2023, 10:07

If you need more detail in any areas let me know and I will try to oblige!

Neil.

Nikolaech · Post by **Nikolaech** » 21 May 2023, 10:12

Compared both boards. It turned out to be too difficult to remake the radio.
Express my deep gratitude to you!
mainboard Jpan SC930
