Volvo S70, V70, 850 Dash Removal Noise or Evaporator Repair Topic is solved
Re: Volvo S70, V70, 850 Dash Removal Noise or Evaporator Rep
Well, well...I'm sorry I did not see this post prior to pulling our '99 S70 dash...oddly enough, I did a similar thing with fabricating additional bracing...and will post it here shortly...I also took plenty of photos, and will post them here upon completion of my reply... Very nice! I hope both of our solutions hold up at least as long as the original installs have, if not longer!
okay...i wanted to post photos...what steps do i need to take? have never posted photos before...sorry...i kinda figured it out......although still not quite certain how to upload a bunch all in one post/reply
thank you!
-me
thank you!
-me
Last edited by MESINCITY on 17 Oct 2013, 23:01, edited 1 time in total.
-
rspi
- Posts: 7303
- Joined: 5 November 2011
- Year and Model: 850 T-5R Wagon
- Location: Cincinnati OH
- Has thanked: 34 times
- Been thanked: 72 times
-
Contact:
Contact rspi..
Click QUICK POST then FULL EDITOR, then hit attachments.
I don't need them to hold up for 14 years, just till my daughter is tired of the car. LOL
I don't need them to hold up for 14 years, just till my daughter is tired of the car. LOL
'95 855 T-5R M, Panther - 22/28 mpg, 546,000 miles
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
Some slight variations in the process...ours is a 1999 S70 T5...I assume-and based on your signature-rspi's is a 1998...sorry...the photo order is backwards!!! is there a way to edit and reverse the order without re-attaching?
- Attachments
-
- Marked Location of wiper blade arms prior to removal to make re-install an easier process...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-133556-Tape Markers at Wiper Blades adhered to winshield to remember placement for re-install.jpg (115.99 KiB) Viewed 4122 times
-

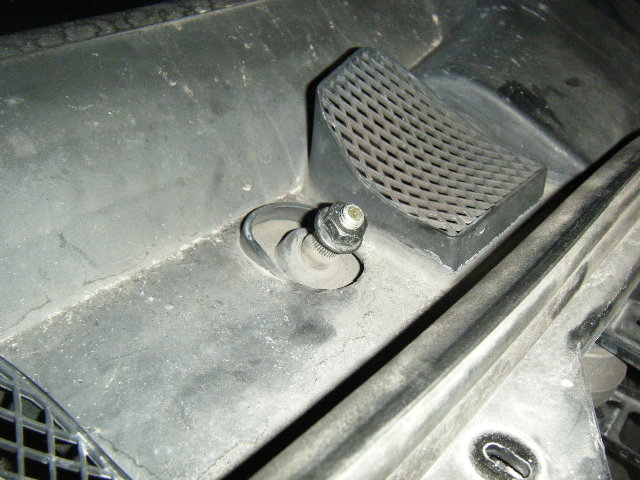

- Wiper blade arms removed to allow removal of cowl, to allow removal of the four (4) carriage bolts, which are supposed to secure the dash through the firewall
- S70 DASH REMOVAL_and_REPAIR-2013_0707-135214-Windshield Wiper mount with Wiper Arm removed-PSGR Side.jpg (117.06 KiB) Viewed 4120 times
-

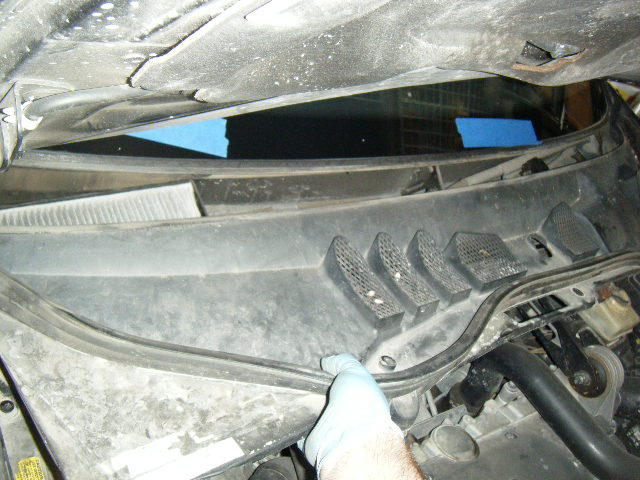

- Pulling the cowl
- S70 DASH REMOVAL_and_REPAIR-2013_0707-143442-Removing Cowl-Cowl pulled back.jpg (111.16 KiB) Viewed 4120 times
-

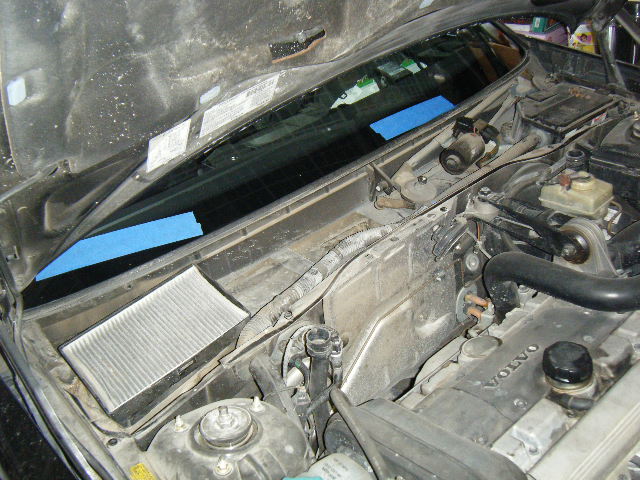

- View of entire under-cowl area, with cowl completely removed...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-144950-Cowl completely removed-Exposing Cabin Air Filter and Wiper Motor.jpg (119.65 KiB) Viewed 4120 times
-
- View from passenger side, with cabin air filter in forefront...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-145000-Cowl completely removed-Exposing Cabin Air Filter and Wiper Motor.jpg (112.81 KiB) Viewed 4120 times
-
- View from driver's side, with fuse compartment and wiper blade arm motor in forefront
- S70 DASH REMOVAL_and_REPAIR-2013_0707-145010-Cowl completely removed-Exposing Cabin Air Filter and Wiper Motor.jpg (116.18 KiB) Viewed 4120 times
-

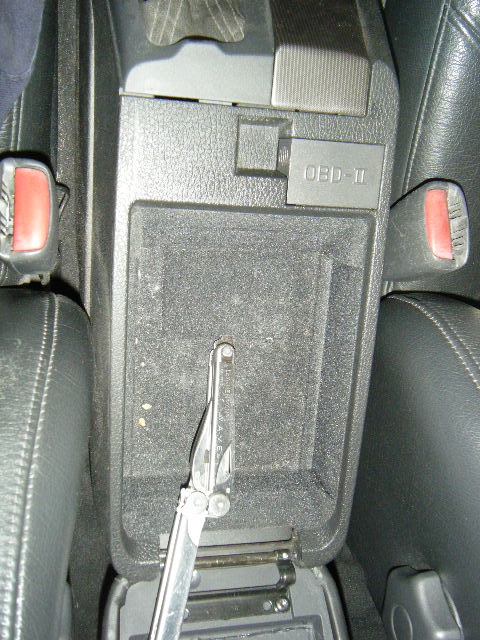

- Getting ready to remove the center console assembly...there are two screws under here which basically secure the entire center assembly in place!
- S70 DASH REMOVAL_and_REPAIR-2013_0707-153050-Center Console under Armrest_Cupholder.jpg (237.56 KiB) Viewed 4120 times
-

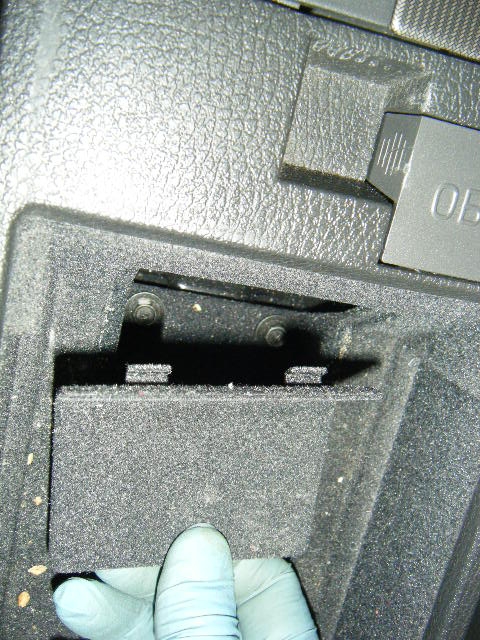

- Accessing the two (2) screws
- S70 DASH REMOVAL_and_REPAIR-2013_0707-153148-Center Console under Armrest_Cupholder-Remove Panel to expose the two screws securing most of the center console assembly.jpg (279.92 KiB) Viewed 4120 times
-

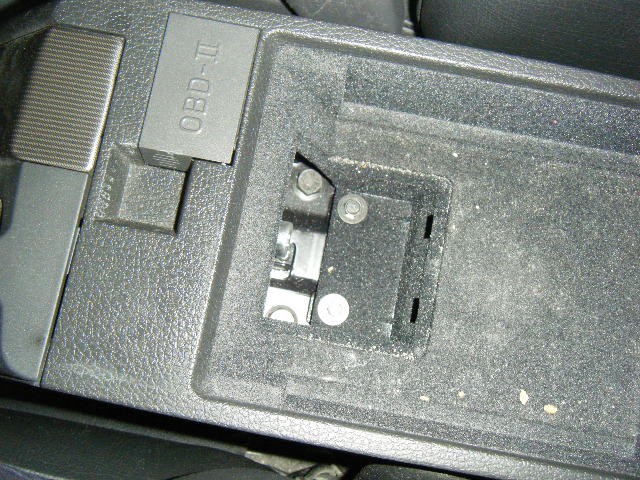

- There they are!
- S70 DASH REMOVAL_and_REPAIR-2013_0707-153210-Center Console under Armrest_Cupholder-Remove Panel to expose the two screws securing most of the center console assembly.jpg (131.56 KiB) Viewed 4120 times
-
- Out they go!
- S70 DASH REMOVAL_and_REPAIR-2013_0707-153802-Center Console under Armrest_Cupholder-Removed Panel-Removing the Screws.jpg (287.01 KiB) Viewed 4120 times
-
- Now, careful disassembly...first, the emergency/parking brake boot...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-155016-Center Console-Removing the Emergency Brake Trim and Boot.jpg (122.45 KiB) Viewed 4120 times
-

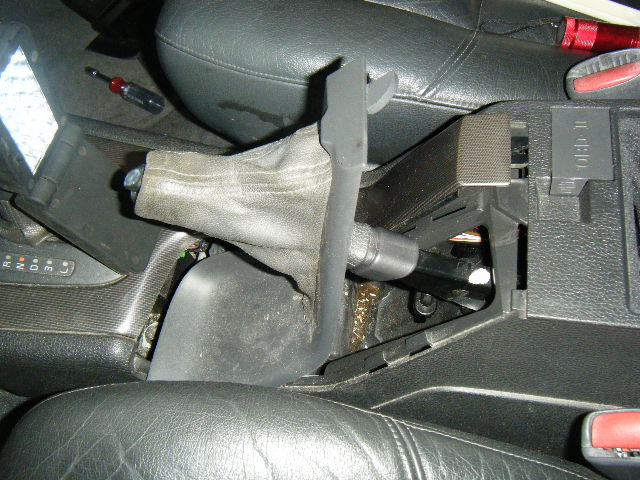

- Slowly...slide it off...and carefully "pop" the rear plastic tab, then slide to the left (looking down) for complete removal...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-155656-Center Console-Removing the Emergency Brake Trim and Boot.jpg (118.45 KiB) Viewed 4120 times
-

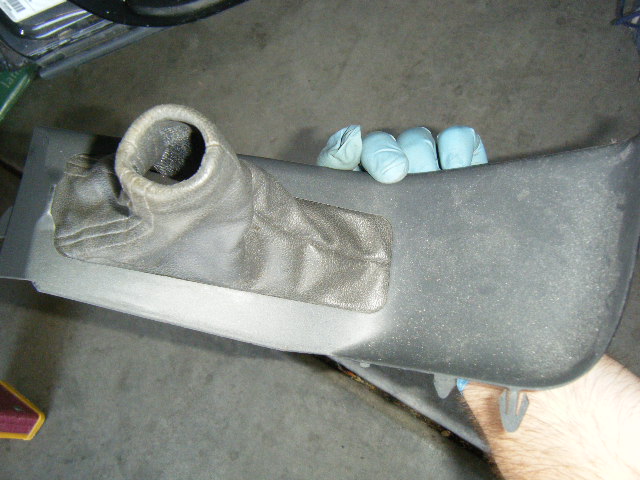

- Voila!
- S70 DASH REMOVAL_and_REPAIR-2013_0707-155738-Center Console-Removed Emergency Brake Trim and Boot.jpg (112.94 KiB) Viewed 4120 times
-

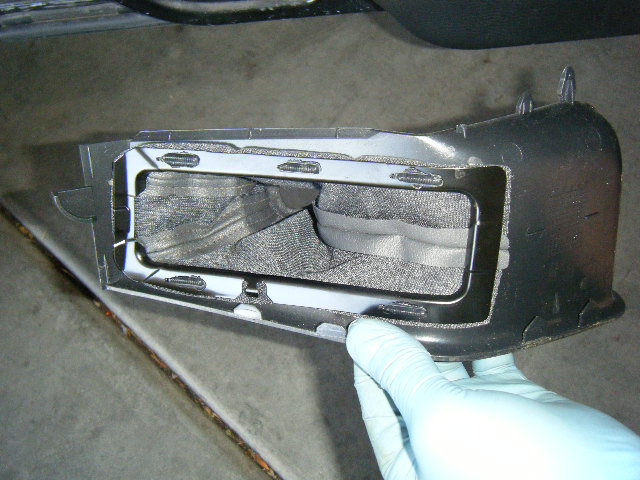

- The side no one ever sees...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-155746-Center Console-Removed Emergency Brake Trim and Boot-Underside.jpg (116.01 KiB) Viewed 4120 times
-

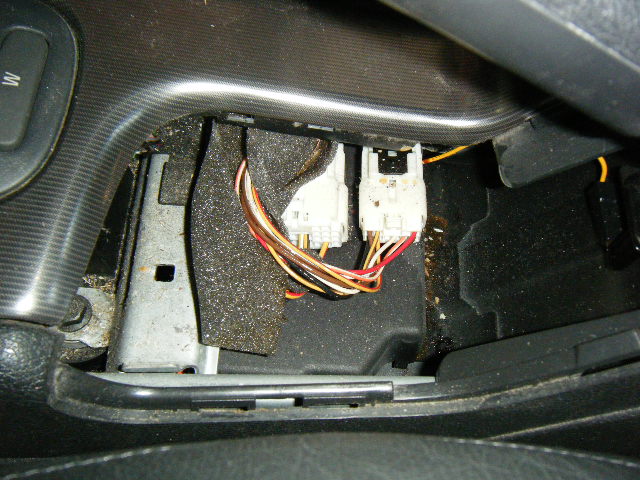

- Two connectors, basically powering everything along the lower center console, must be disconnected...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-155756-Center Console-Plugs requiring disconnect.jpg (119.41 KiB) Viewed 4120 times
-

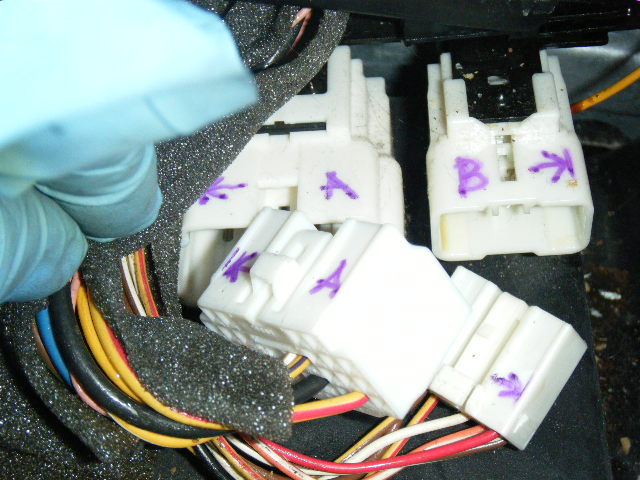

- Although they're unique in shape (idiot-proof for re-assembly), I still labeled them independently...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-162218-Center Console-Plugs disconnected and marked.jpg (109.84 KiB) Viewed 4120 times
-

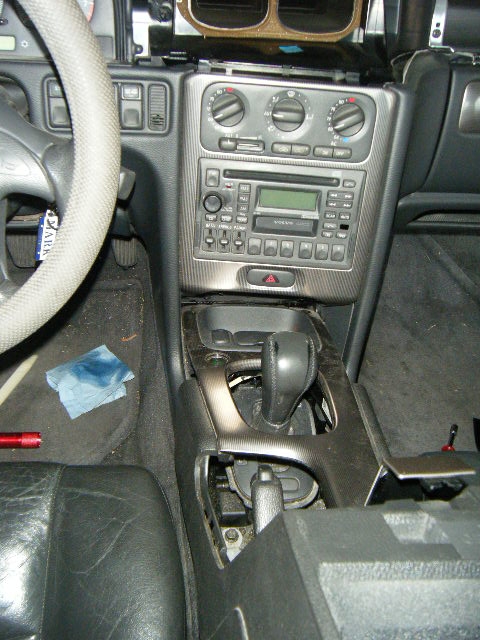

- Slowly easing the lower center console assembly up and out...the way to work this was to tilt up the back end and then gently pull towards the back of the car with the back end still up, as there are some plastic tabs towards the front which help secure the rest of it all in place (aside from the 2 screws originally removed)
- S70 DASH REMOVAL_and_REPAIR-2013_0707-162324-Removing the Center Console-Pull up from the back and back out to Remove.jpg (209.4 KiB) Viewed 4120 times
-

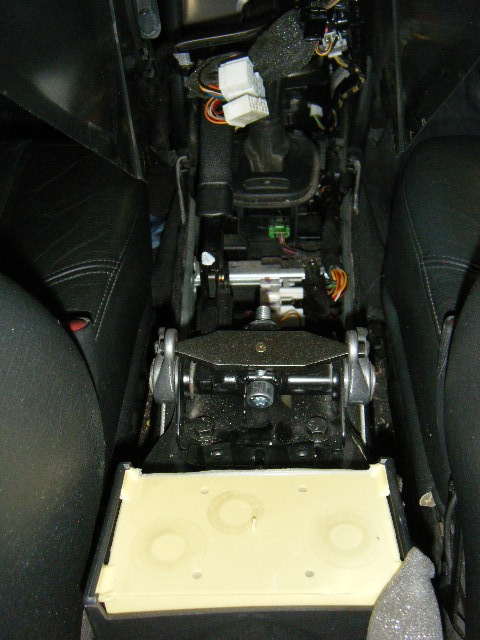

- Lower center console assembly (basically mostly trim) removed!
- S70 DASH REMOVAL_and_REPAIR-2013_0707-162348-Center Console Removed.jpg (187.18 KiB) Viewed 4120 times
-
- Another view, closer to the shifter and emergency/parking brake...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-162630-Center Console Removed.jpg (223.19 KiB) Viewed 4120 times
-
- There it is!
- S70 DASH REMOVAL_and_REPAIR-2013_0707-162714-Removed Center Console.jpg (111.88 KiB) Viewed 4120 times
-

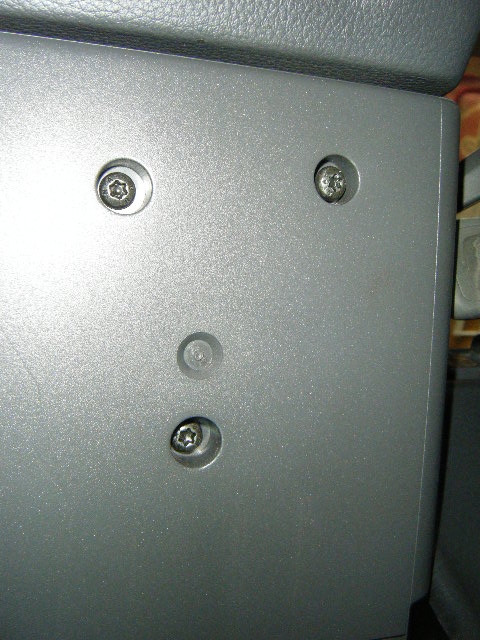

- On to the rest of the dash...These three (3) screws are at the bottom of the plastic trim around the steering column and when removed, aid in removing the two pieces of plastic trim surrounding the steering column...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-172242-Underside Steering Column Trim-Screws to be Removed.jpg (220.99 KiB) Viewed 4120 times
-
- Removing the lower steering column trim piece...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-173134-Steering Column-Removing Trim.jpg (118.11 KiB) Viewed 4120 times
-
- Removing the lower steering column trim piece...
- S70 DASH REMOVAL_and_REPAIR-2013_0707-173154-Steering Column-Removing Trim.jpg (117.85 KiB) Viewed 4120 times
-
- Steering column trim assembly, re-assembled once removed
- S70 DASH REMOVAL_and_REPAIR-2013_0707-173712-Steering Column Trim-Top and Bottom Sections shown assembled.jpg (109.76 KiB) Viewed 4120 times
-

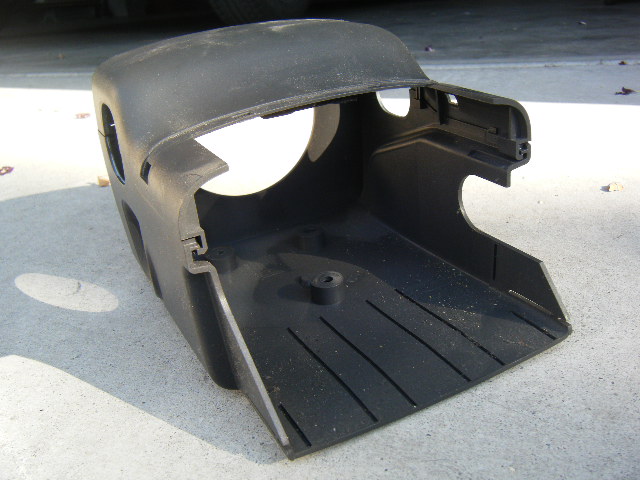

- Steering column trim assembly, re-assembled once removed, "rear view"
- S70 DASH REMOVAL_and_REPAIR-2013_0707-173720-Steering Column Trim-Top and Bottom Sections shown assembled.jpg (108.12 KiB) Viewed 4120 times
-

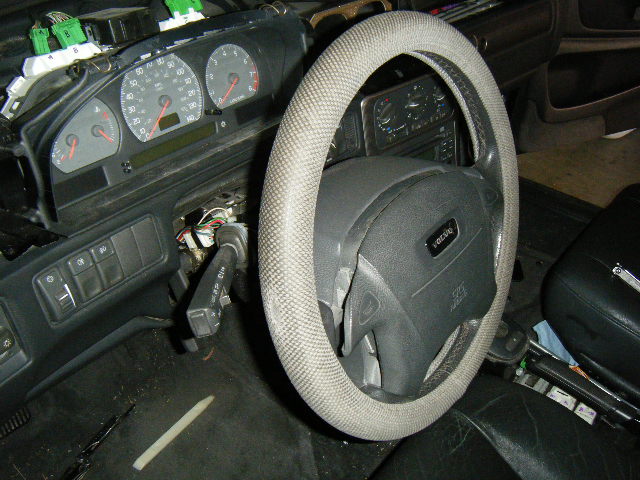

- Time to remove the steering wheel airbag/horn assembly and the steering wheel itself...
- S70 DASH REMOVAL_and_REPAIR-2013_0708-183404Steering Column-Center Airbag_Horn Assembly reset in place prior to stopping work for the day.jpg (114.33 KiB) Viewed 4120 times
-
- There are two (2) long screws holding this in place, screwed in from the back of the steering wheel assembly...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110554-Steering Column-Removal of Center Airbag_Horn Assembly.jpg (119.08 KiB) Viewed 4120 times
-

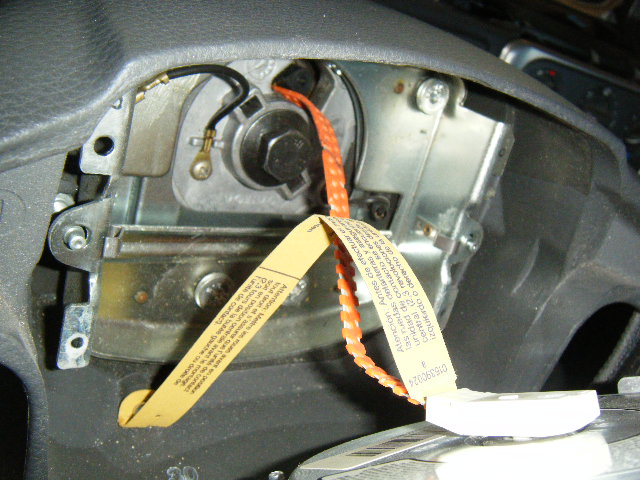

- I'll probably goof up the technical terminology for this, but suffice to say the white tab with the yellow and orange straps is the connector for the airbag in the steering wheel...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110606-Steering Column-Removal of Center Airbag_Horn Assembly.jpg (117.42 KiB) Viewed 4120 times
-

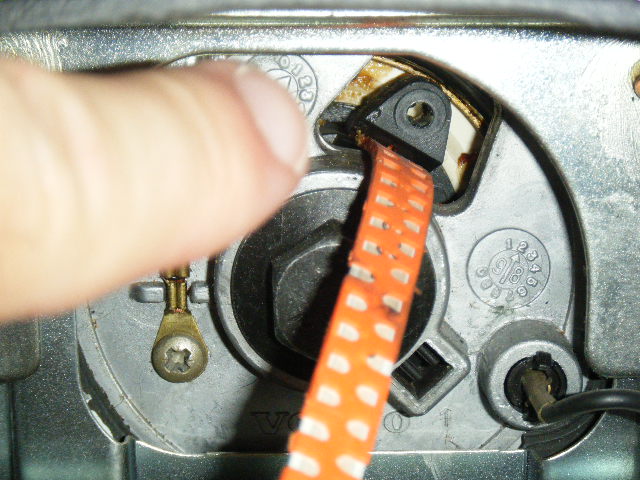

- Additionally, prior to steering wheel removal, this hole I am pointing to must be secured by being "pinned" in place...it relates to a spring-loaded spool in the back that helps actuate the airbag...and if "unspooled", must be re-spooled somehow
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110640-Steering Column-Removal of Center Airbag_Horn Assembly-Closeup of location for screw used to secure airbag reel.jpg (111.51 KiB) Viewed 4120 times
-

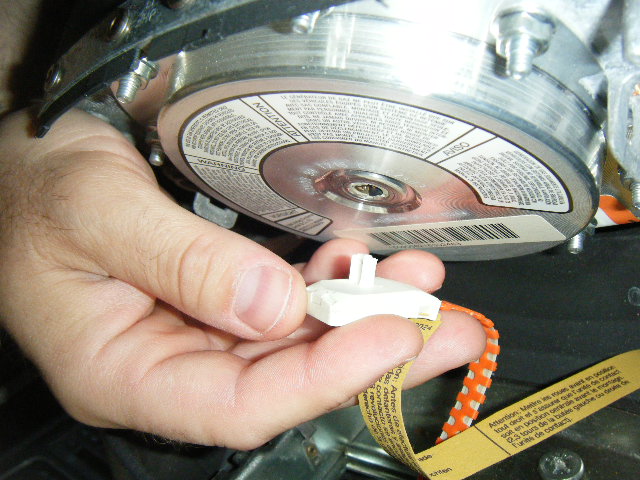

- Actual disconnection of the airbag
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110744-Steering Column-Disconnection of Center Airbag_Horn Assembly.jpg (121.11 KiB) Viewed 4120 times
-

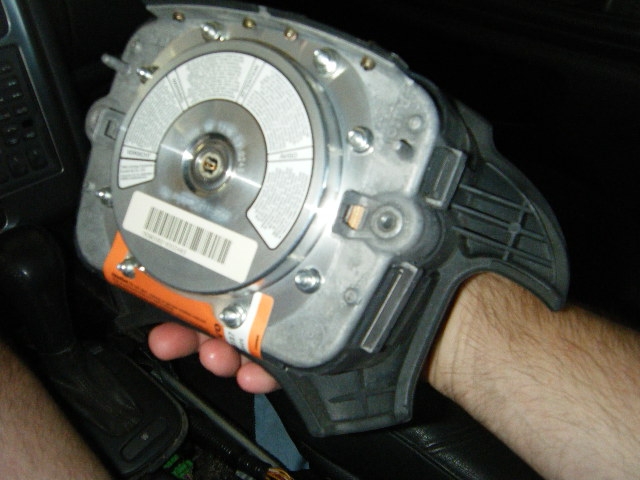

- All alone in it's glory, the steering wheel airbag/horn assembly, from the rear
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110756-Steering Column-Removed Center Airbag_Horn Assembly-Back View.jpg (159.71 KiB) Viewed 4120 times
-
- All alone in it's glory, the steering wheel airbag/horn assembly, typical view from the front, driver's position
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110804-Steering Column-Removed Center Airbag_Horn Assembly-Front View.jpg (182.03 KiB) Viewed 4120 times
-

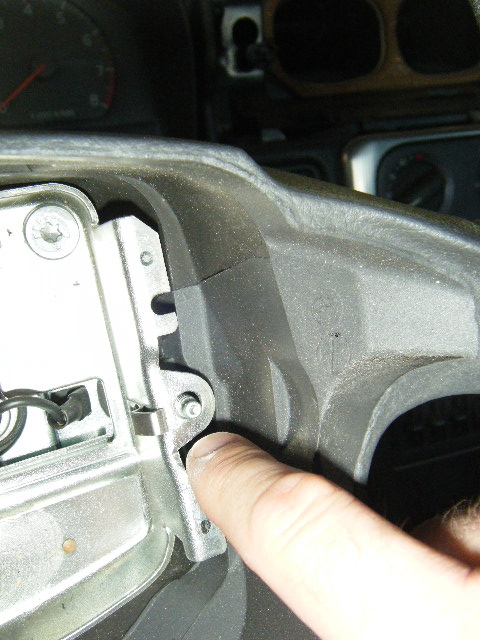

- One of the "long" screws, screwed through from the back to secure the steering wheel airbag/horn assembly
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110842-Steering Column-Removal of Center Airbag_Horn Assembly-Pointing to one of T27 Screws at back requiring removal.jpg (194.37 KiB) Viewed 4120 times
-

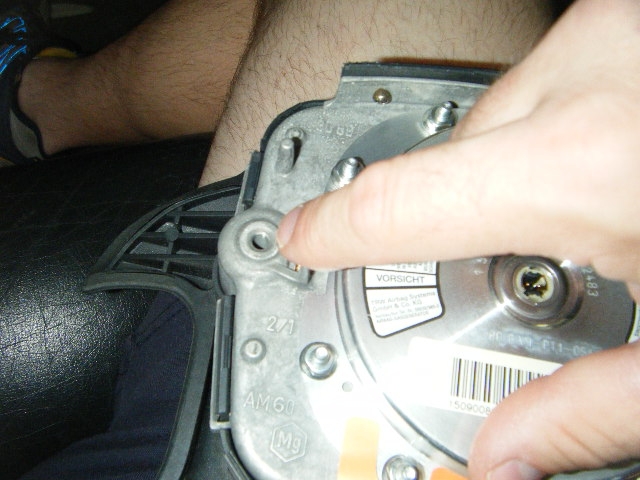

- The location the long screws screw into, on the back side of the steering wheel airbag/horn assembly (one each on either side of the center)
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110852-Steering Column-Removal of Center Airbag_Horn Assembly-Pointing to location of where one of T27 Screws connects at back at back.jpg (180.31 KiB) Viewed 4120 times
-

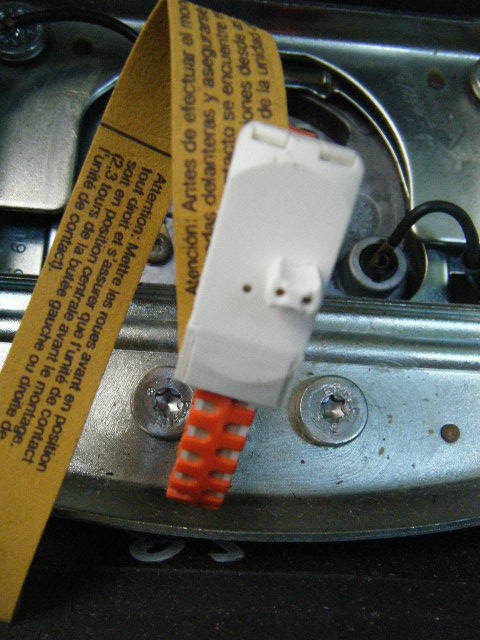

- Close up of the airbag connector
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110932.jpg (107.92 KiB) Viewed 4120 times
-
- Closeup of back side of steering wheel airbag/horn assembly
- S70 DASH REMOVAL_and_REPAIR-2013_0724-110938-Steering Column-Removed Center Airbag_Horn Assembly-Back View-Closeup.jpg (119 KiB) Viewed 4120 times
-

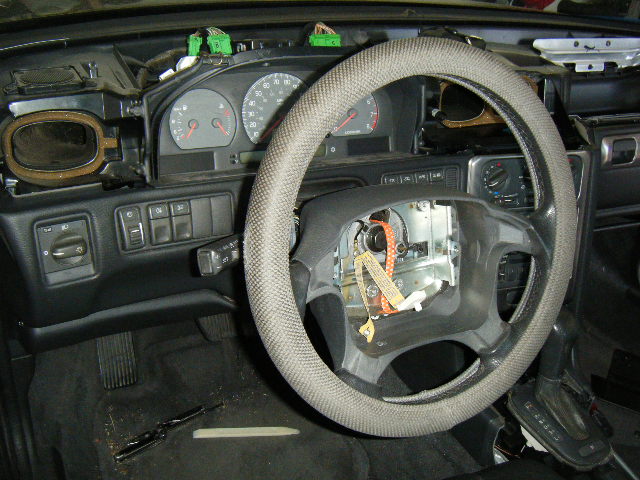

- Steering wheel, soon to be removed
- S70 DASH REMOVAL_and_REPAIR-2013_0724-112258.jpg (114.79 KiB) Viewed 4120 times
-

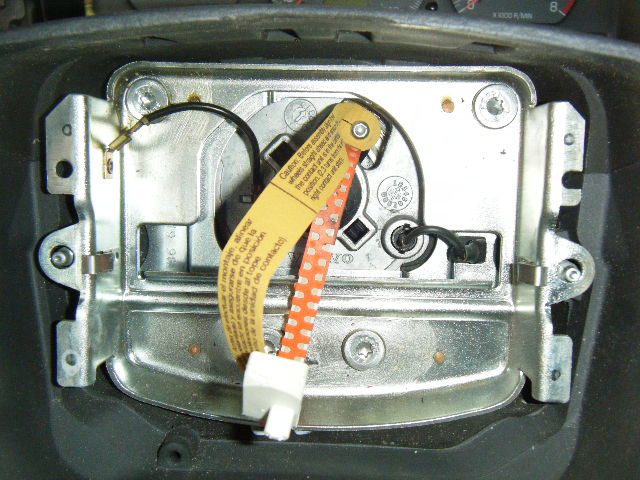

- Screw in place to keep the spool from unwinding...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-114546.jpg (116.19 KiB) Viewed 4120 times
-
- The screw used here was the one originally (if you look at the previous photos) screwed through the tail of the yellow "tape" keeping it secured inside the steering wheel assembly
- S70 DASH REMOVAL_and_REPAIR-2013_0724-114558.jpg (110.53 KiB) Viewed 4120 times
-
- Here we go...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-115426.jpg (113.61 KiB) Viewed 4120 times
-
- 18mm socket required to remove the large steering wheel bolt...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-115448.jpg (97.84 KiB) Viewed 4120 times
-

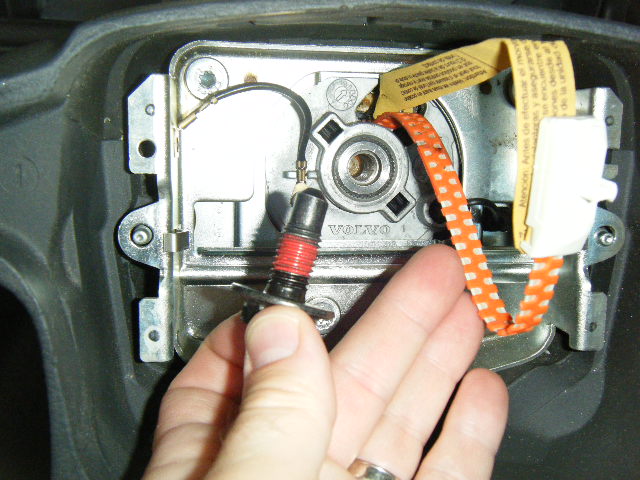

- It's out...that's got to be factory red "thread locker" on there, as I don't believe it's ever been removed...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-115540.jpg (109.49 KiB) Viewed 4120 times
-

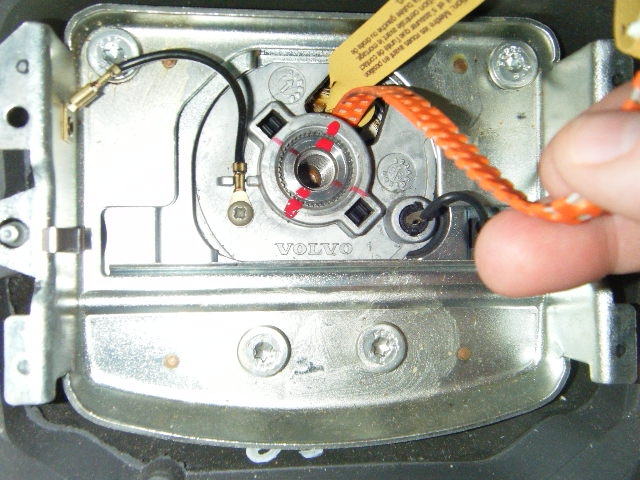

- I marked the position in a couple of locations...again, to aid aid during re-assembly...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-115720.jpg (211.58 KiB) Viewed 4120 times
-

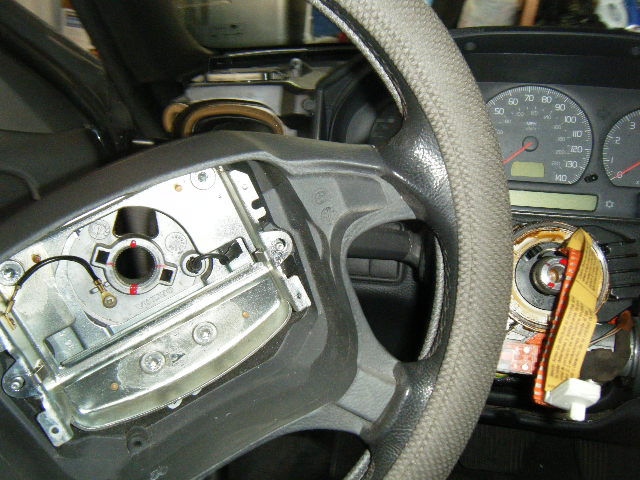

- And...it's...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-115822.jpg (115.57 KiB) Viewed 4120 times
-

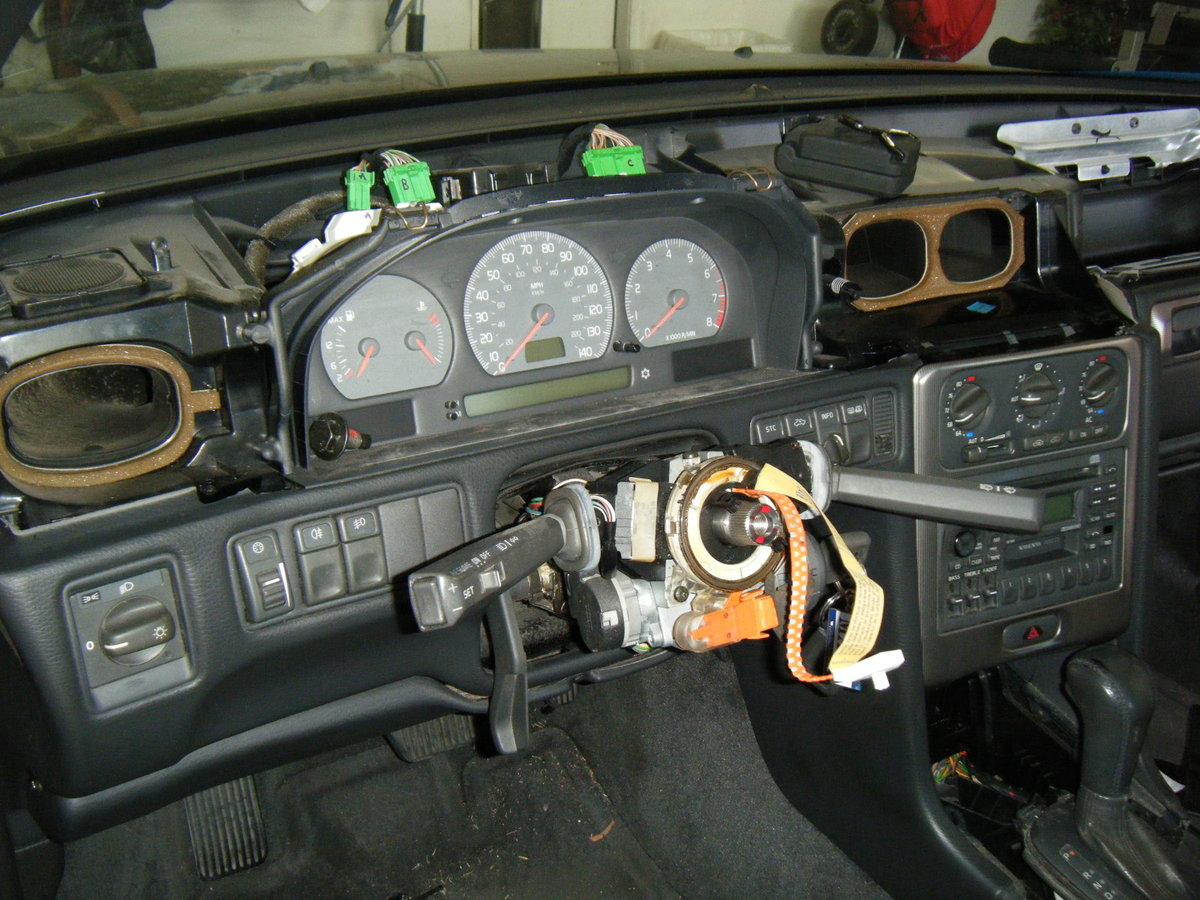

- ...out!
-

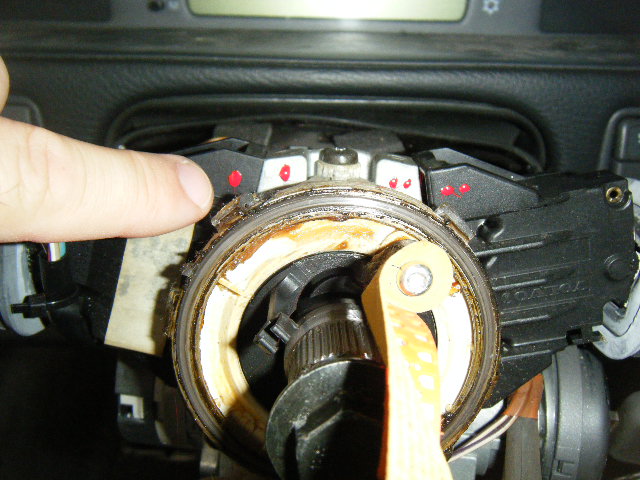

- I also marked the signal and wiper stalks for ease of thought during re-assembly...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-120830.jpg (115.65 KiB) Viewed 4120 times
-

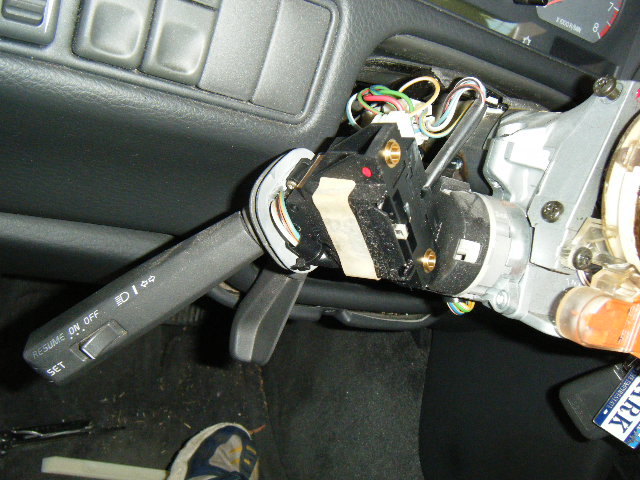

- Left stalk removed...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-121126.jpg (121.89 KiB) Viewed 4120 times
-

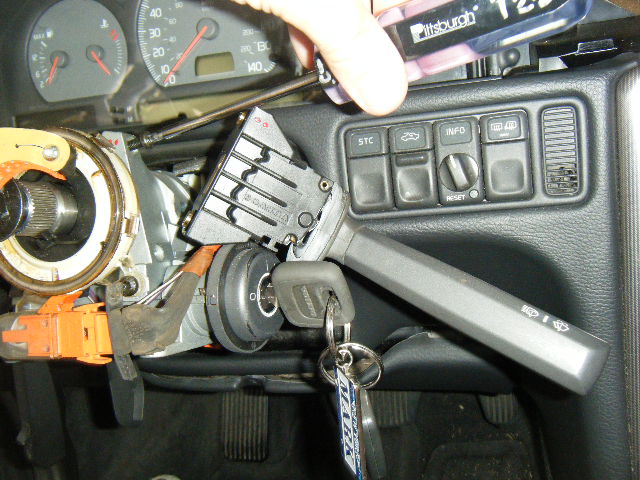

- Right stalk removed...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-121518.jpg (117.26 KiB) Viewed 4120 times
-
- Removing the Driver's Side Lower Dash Panel
- S70 DASH REMOVAL_and_REPAIR-2013_0724-122454.jpg (115.53 KiB) Viewed 4120 times
-

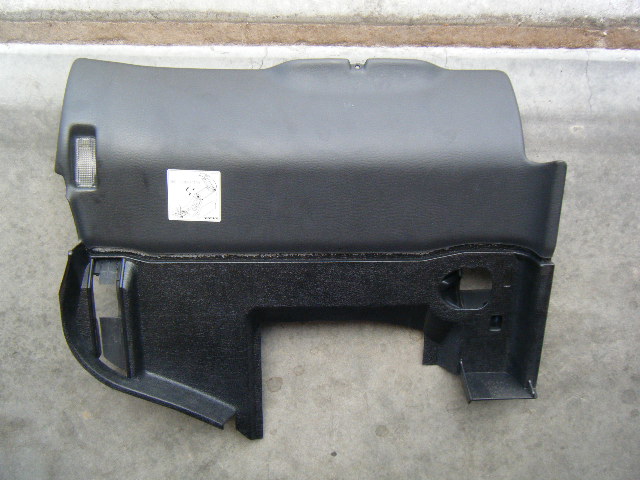

- Driver's Side Lower Dash Panel out, with courtesy light disconnected...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-123200.jpg (112.29 KiB) Viewed 4120 times
-
- Underside of the dash with the panel removed...note the courtesy light connector (marked with one red dot) in the forefront...and the main wiring harness connector (yellow) in the background, which will be disconnected later, to allow removal of the dash...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-123336.jpg (120.67 KiB) Viewed 4120 times
-
- The double-DIN stereo is next...yes, I still have a cassette player...and the removal is relatively simple..."pop" out the pulls...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-181526.jpg (212.2 KiB) Viewed 4120 times
-

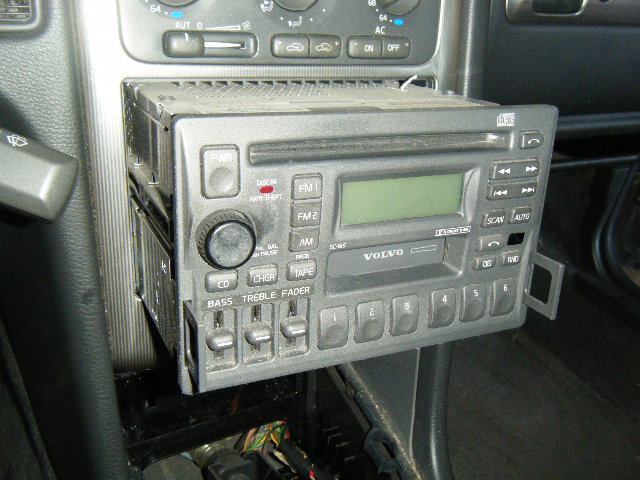

- Pull it out...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-181548.jpg (118.3 KiB) Viewed 4120 times
-

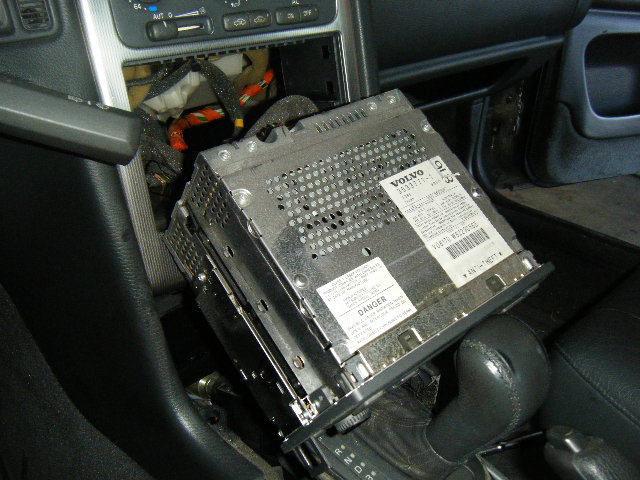

- Disconnect...I believe there were 4 connectors that required release...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-181622.jpg (117.91 KiB) Viewed 4120 times
-

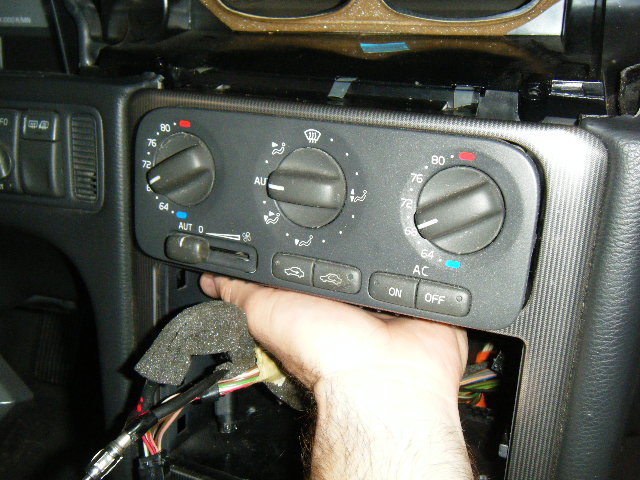

- Next, the climate control unit...again, after requiring a bit of forward pressure be applied to "push" this out from the back...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-191114.jpg (121.84 KiB) Viewed 4120 times
-

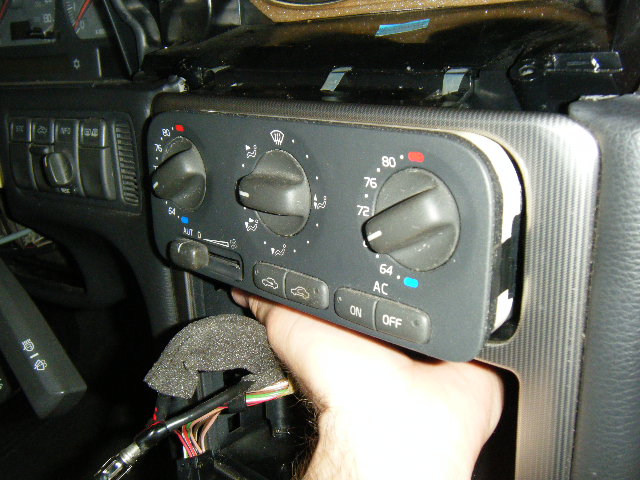

- This wasn't so difficult...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-191122.jpg (114.67 KiB) Viewed 4120 times
-

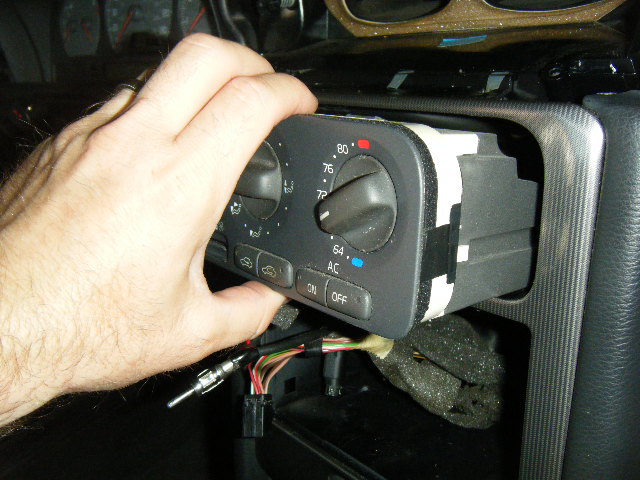

- ...continue to pull out...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-191132.jpg (116.85 KiB) Viewed 4120 times
-

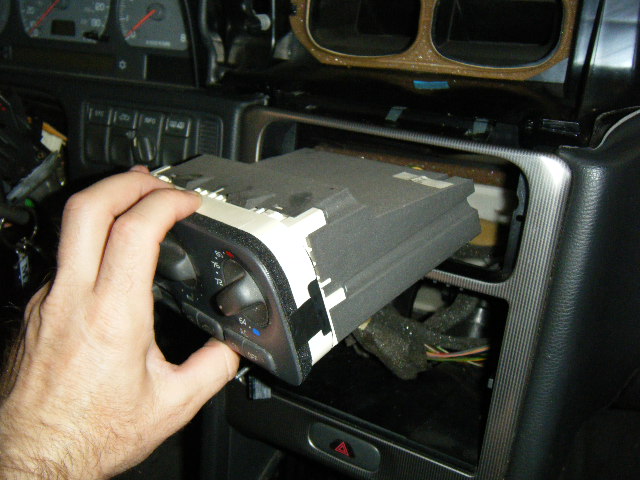

- Remove completely...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-191156.jpg (110.81 KiB) Viewed 4120 times
-
- and...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-191210.jpg (102.35 KiB) Viewed 4120 times
-

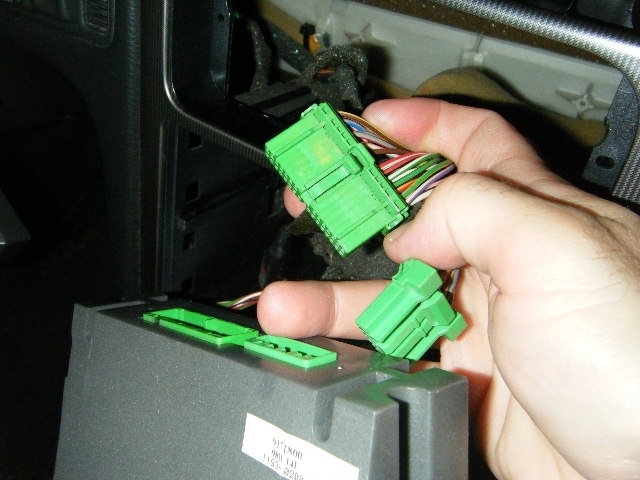

- disconnect...ah, the wonder of magic, electronic black (or in this case, gray!) boxes!...
- S70 DASH REMOVAL_and_REPAIR-2013_0724-191338.jpg (185.63 KiB) Viewed 4120 times
-

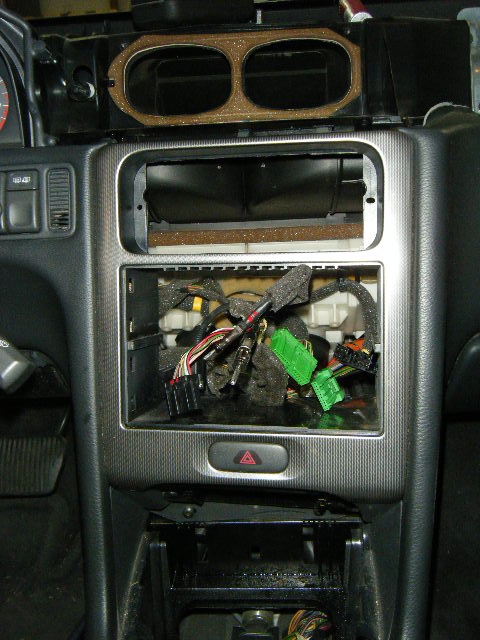

- They're out!
- S70 DASH REMOVAL_and_REPAIR-2013_0724-191402.jpg (203.86 KiB) Viewed 4120 times
-
- Now, back to that main wiring harness connector!
- S70 DASH REMOVAL_and_REPAIR-2013_0728-113828.jpg (120.32 KiB) Viewed 4120 times
-

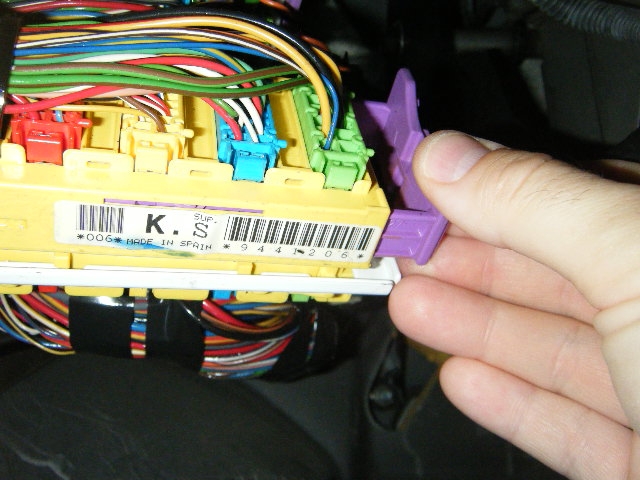

- Pull the purple release tab...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-114008.jpg (196.49 KiB) Viewed 4120 times
-

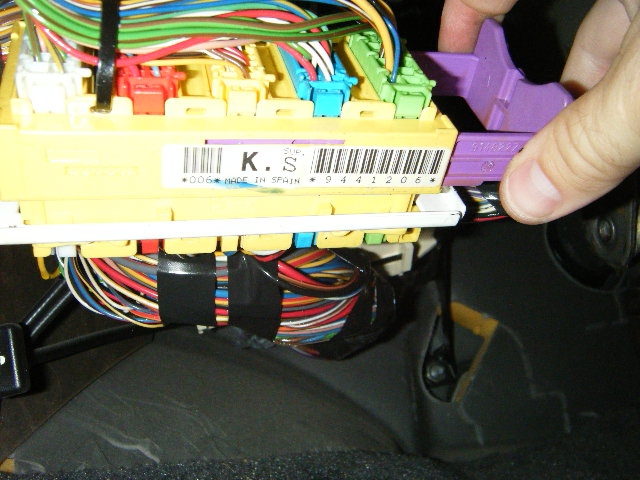

- make...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-114044.jpg (202.41 KiB) Viewed 4120 times
-

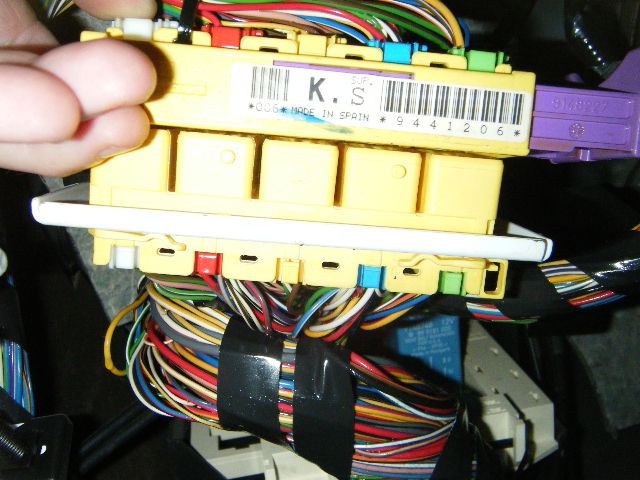

- sure...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-114120.jpg (202.54 KiB) Viewed 4120 times
-
- it's out as far as it can go, and disconnect!
- S70 DASH REMOVAL_and_REPAIR-2013_0728-114146.jpg (198.76 KiB) Viewed 4120 times
-
- Plastic trim at door sills, removed to make it easier to access some of the lower screws keeping the main dash in place...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-153058.jpg (106.94 KiB) Viewed 4120 times
-

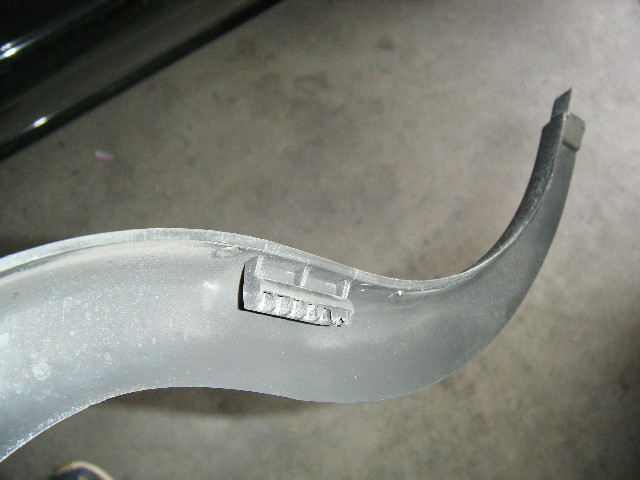

- The sills just pop off of plastic "tabs:...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-153148.jpg (102.6 KiB) Viewed 4120 times
-
- Using the "bone tool" to help get in there...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-154036.jpg (223.49 KiB) Viewed 4120 times
-

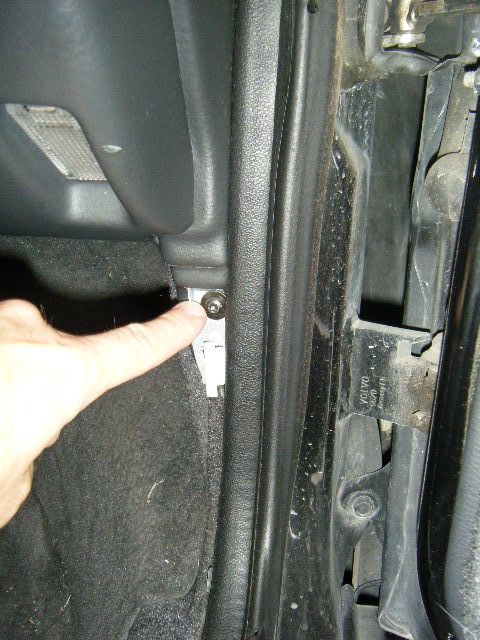

- One of the lower dash retention screws exposed upon removal of the door sill plastic trim...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-154438.jpg (222.53 KiB) Viewed 4120 times
-

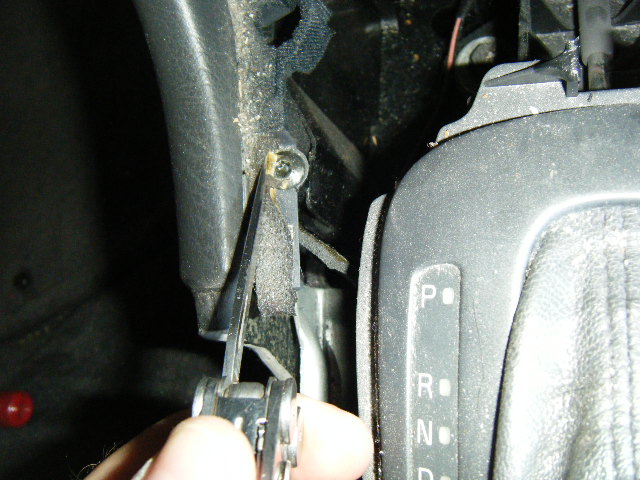

- Another lower dash retention screw to be removed...this one was exposed upon removal of the center console assembly...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-154634.jpg (116.31 KiB) Viewed 4120 times
-

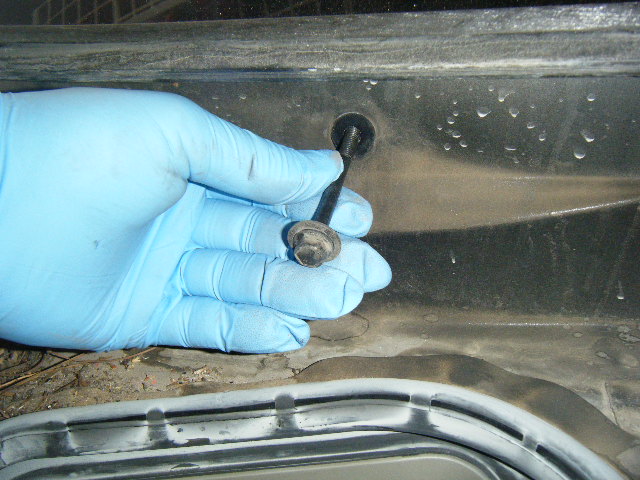

- One of the four (4) primary carriage bolts, which are supposed to secure the dash to/through the firewall...this is back on the engine compartment/under-hood side of the firewall, near where the cabin air filter compartment was located..
- S70 DASH REMOVAL_and_REPAIR-2013_0728-155840.jpg (121.8 KiB) Viewed 4120 times
-

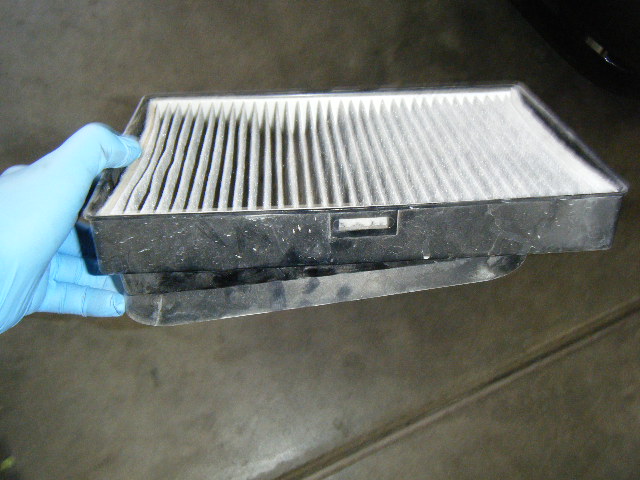

- This is the displaced cabin air filter compartment, along with nasty, needs-to-be-replaced, cabin air filter (it was replaced...really!)
- S70 DASH REMOVAL_and_REPAIR-2013_0728-155902.jpg (114.32 KiB) Viewed 4120 times
-

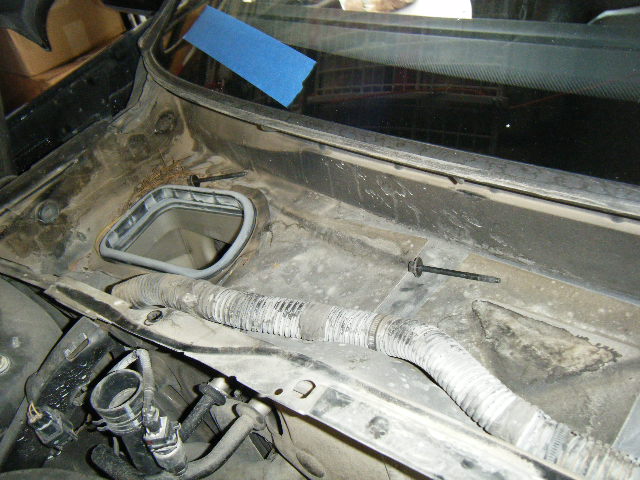

- Carriage bolts out...these two (2) were the easier ones...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-160232.jpg (113.28 KiB) Viewed 4120 times
-

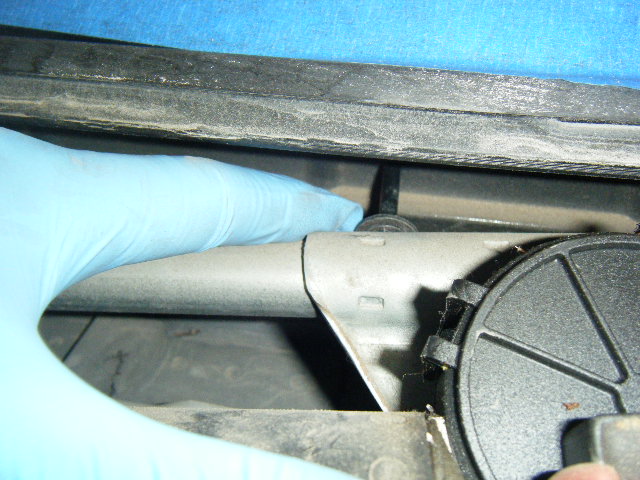

- Nice, eh? Carriage bolts behind the wiper/wiper arm motor assembly...the motor and assembly were eventually pulled out during re-install of the carriage bolts...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-160244.jpg (117.94 KiB) Viewed 4120 times
-
- Back inside the passenger cabin, these two screws also secured the main dash...and sit behind where the ash tray normally resides...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-160530.jpg (113.02 KiB) Viewed 4120 times
-
- Moving along...this is where the glove box/compartment used to be...and these two (2) tabs contain the screws which secure the lower dash panel on the passenger side...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-160926.jpg (114.49 KiB) Viewed 4120 times
-

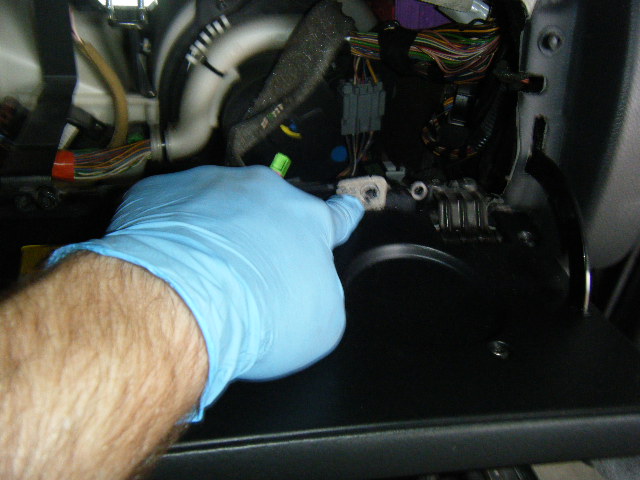

- This is the second screw...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-160932.jpg (103.24 KiB) Viewed 4120 times
-

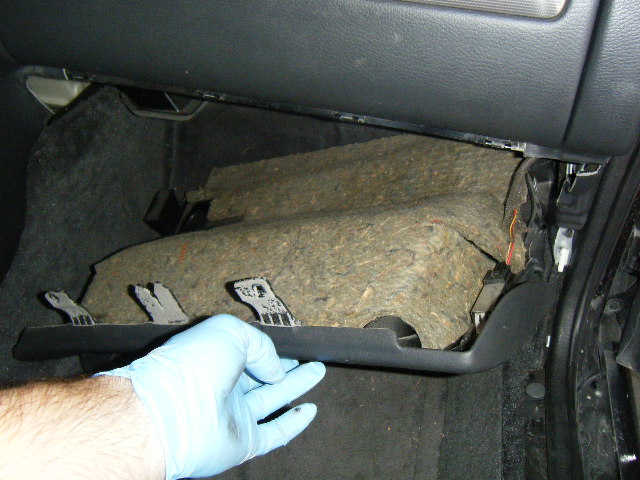

- The lower dash panel (passenger side) being lowered and removed...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-162508.jpg (120.06 KiB) Viewed 4120 times
-
- The lower dash panel...removed...
- S70 DASH REMOVAL_and_REPAIR-2013_0728-163224.jpg (106.83 KiB) Viewed 4120 times
-
- The entire dash removed...thanks to some fantastic assistance by Matthew Harrison
- S70 DASH REMOVAL_and_REPAIR-2013_0728-171512.jpg (199.52 KiB) Viewed 4120 times
-

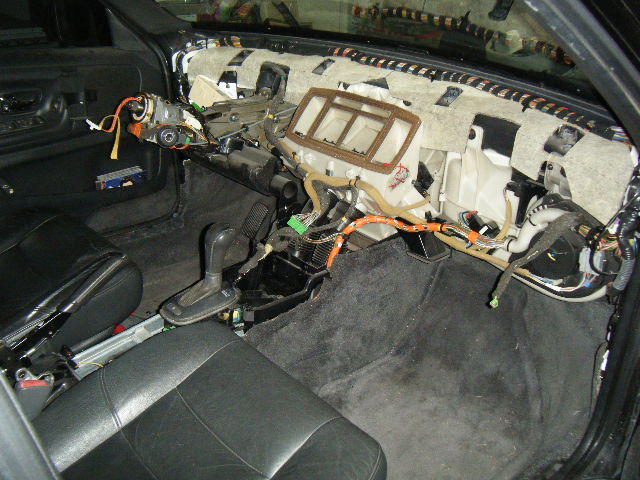

- Now, we're ready to get to work on repairing those dash mounting tabs and making some modifications to hopefully strengthen the mounting points upon re-assembly/re-installation
- S70 DASH REMOVAL_and_REPAIR-2013_0728-192520.jpg (115.12 KiB) Viewed 4120 times
-

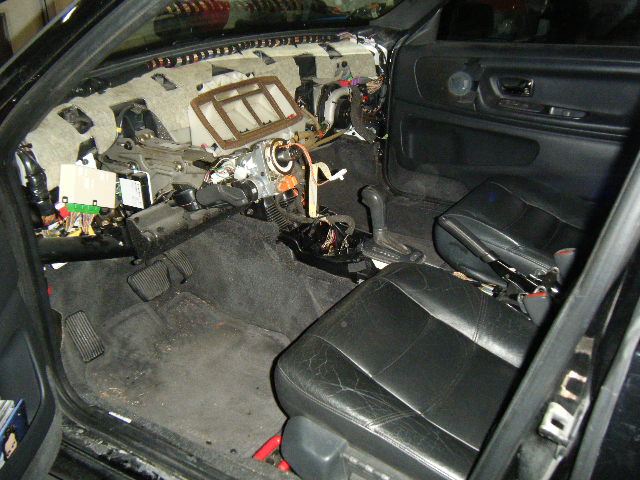

- The view from the driver's side...note the four (4) openings in the upper area of the "felt-like" sound isolation/firewall "pad"...those are the locations of the four (4) primary plastic mounting tabs, where the firewall carriage bolts penetrate through and are supposed to secure the dash
- S70 DASH REMOVAL_and_REPAIR-2013_0728-192544.jpg (115.69 KiB) Viewed 4120 times
-
- And a look from just about the driver's seat...no driving for now...A bit easier the see the dash mounting tab locations in this closeup view...I believe that at this point, the shattered plastic dash mount tabs are still sitting in place against the firewall
- S70 DASH REMOVAL_and_REPAIR-2013_0728-193520.jpg (110.17 KiB) Viewed 4120 times
-
rspi
- Posts: 7303
- Joined: 5 November 2011
- Year and Model: 850 T-5R Wagon
- Location: Cincinnati OH
- Has thanked: 34 times
- Been thanked: 72 times
-
Contact:
Contact rspi..
I think I spent about $35. That included buying the collar that fell apart when I pulled it.
'95 855 T-5R M, Panther - 22/28 mpg, 546,000 miles
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
-
rspi
- Posts: 7303
- Joined: 5 November 2011
- Year and Model: 850 T-5R Wagon
- Location: Cincinnati OH
- Has thanked: 34 times
- Been thanked: 72 times
-
Contact:
Contact rspi..
LOL, If you are a fast worker, you can do it in 3 hours. I'm pretty slow, so it took me about 6, 2 one day and 4 the next. I wasn't 100% sure what I was going to use to fix what was back there. Once I had it off I was surprised of what I was faced with. So I went to the store a time or two to get supplies. Some of my time is consumed with shooting takes for the videos, trying to speak clear English, pronounce words correctly, etc. LOL
'95 855 T-5R M, Panther - 22/28 mpg, 546,000 miles
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
-
- Similar Topics
- Replies
- Views
- Last post
