Re: '96 855R: Where do the injector cushions disappear to?

Post by Ben850 »

Yes, I had learned through that experience.

I have photos, if no one minds.

My first DIY intrusion to the '93.

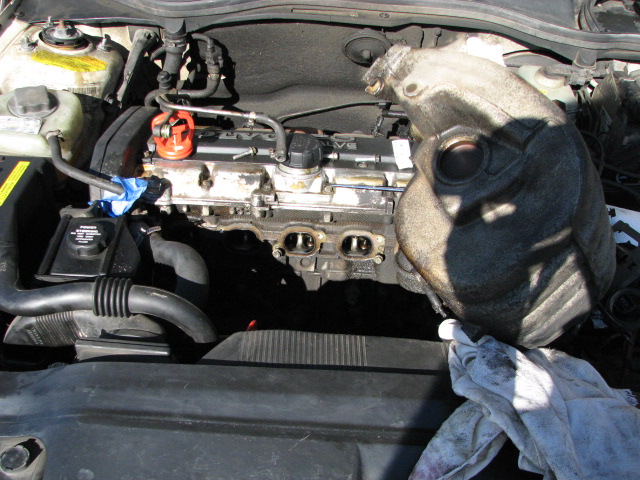

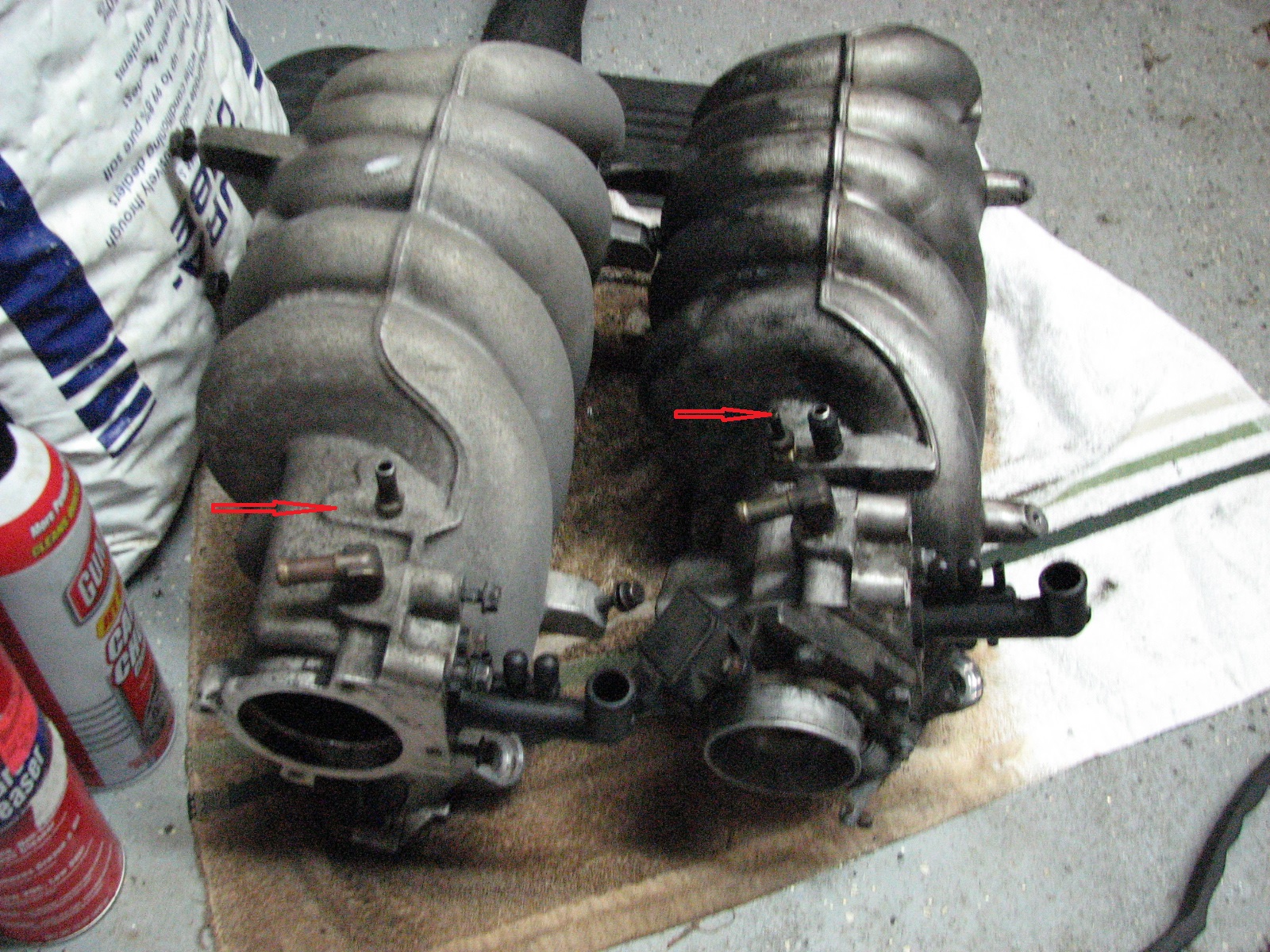

I found the issues.
I found the issues.

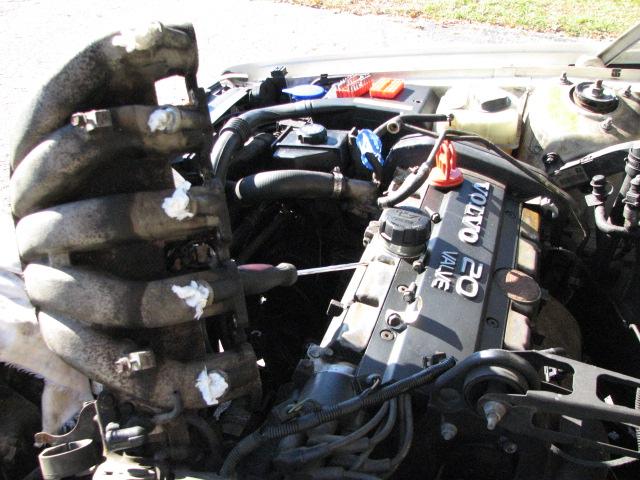

Same day Newb (me)
Same day Newb (me)
PCV day.jpg (67.87 KiB) Viewed 639 times

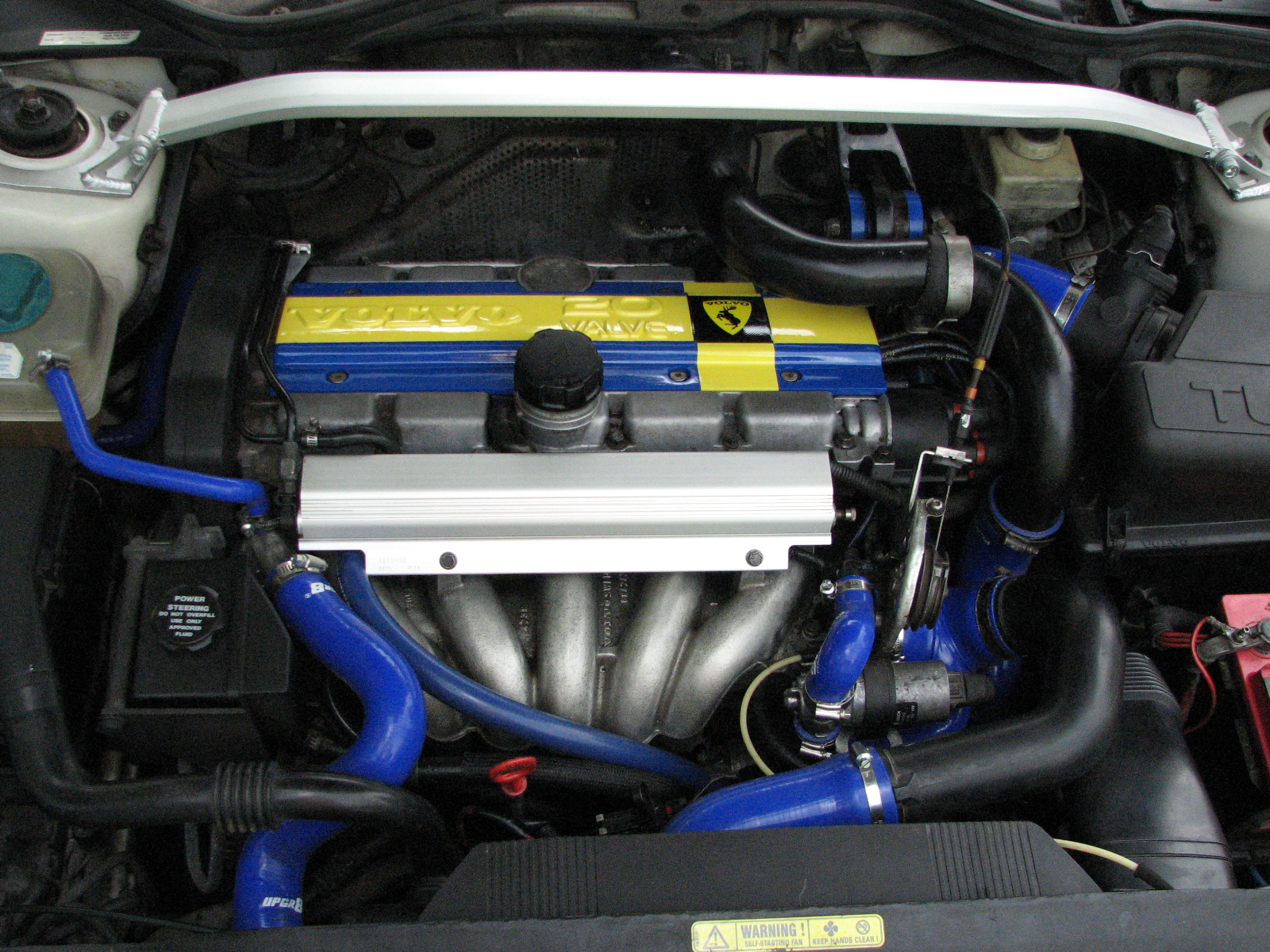

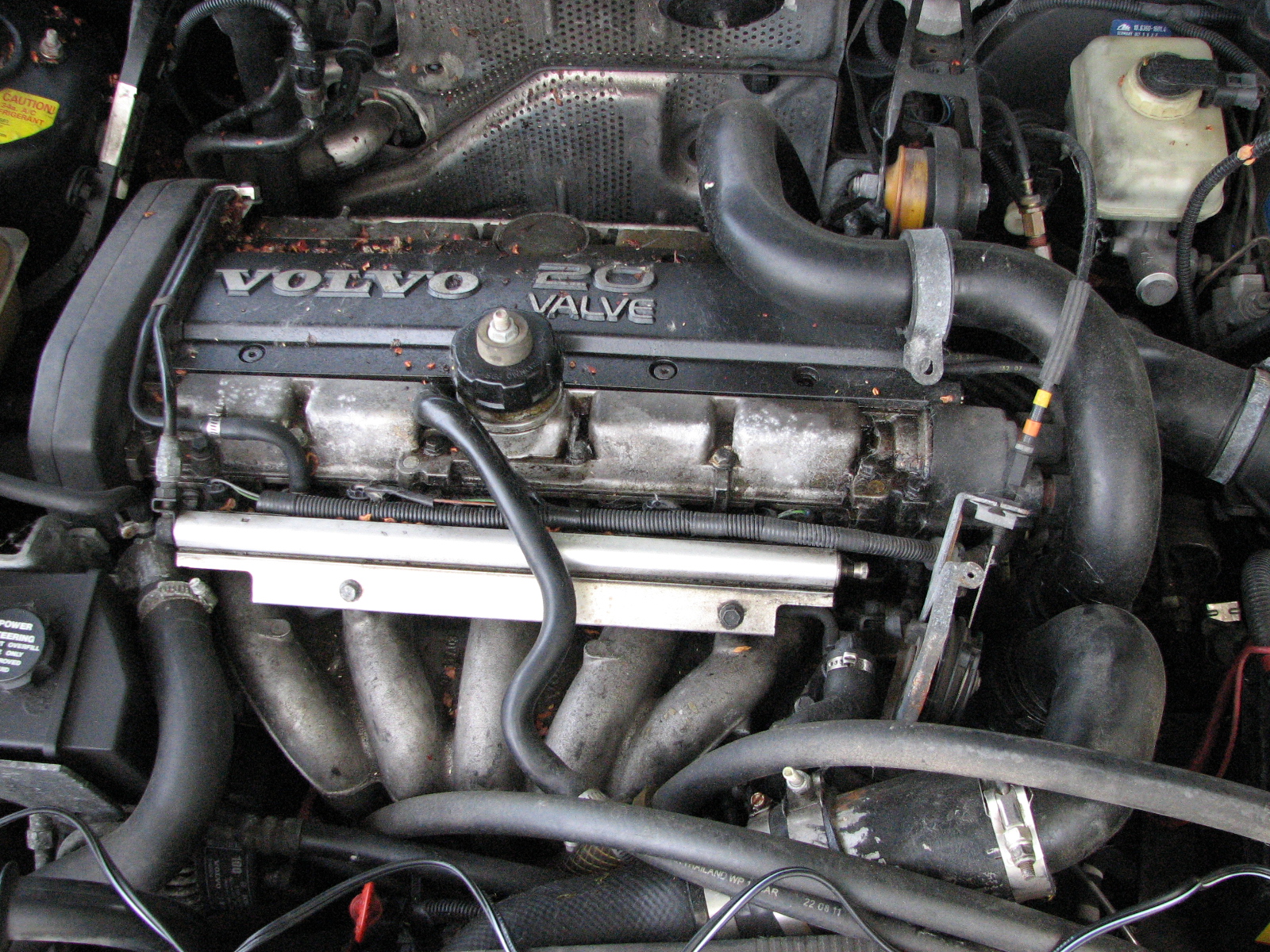

Different day, Turbo wagon More air. Good.
Different day, Turbo wagon More air. Good.
More fuel. More better?
More fuel. More better?
Soon to be dealing with this mess.
Soon to be dealing with this mess.

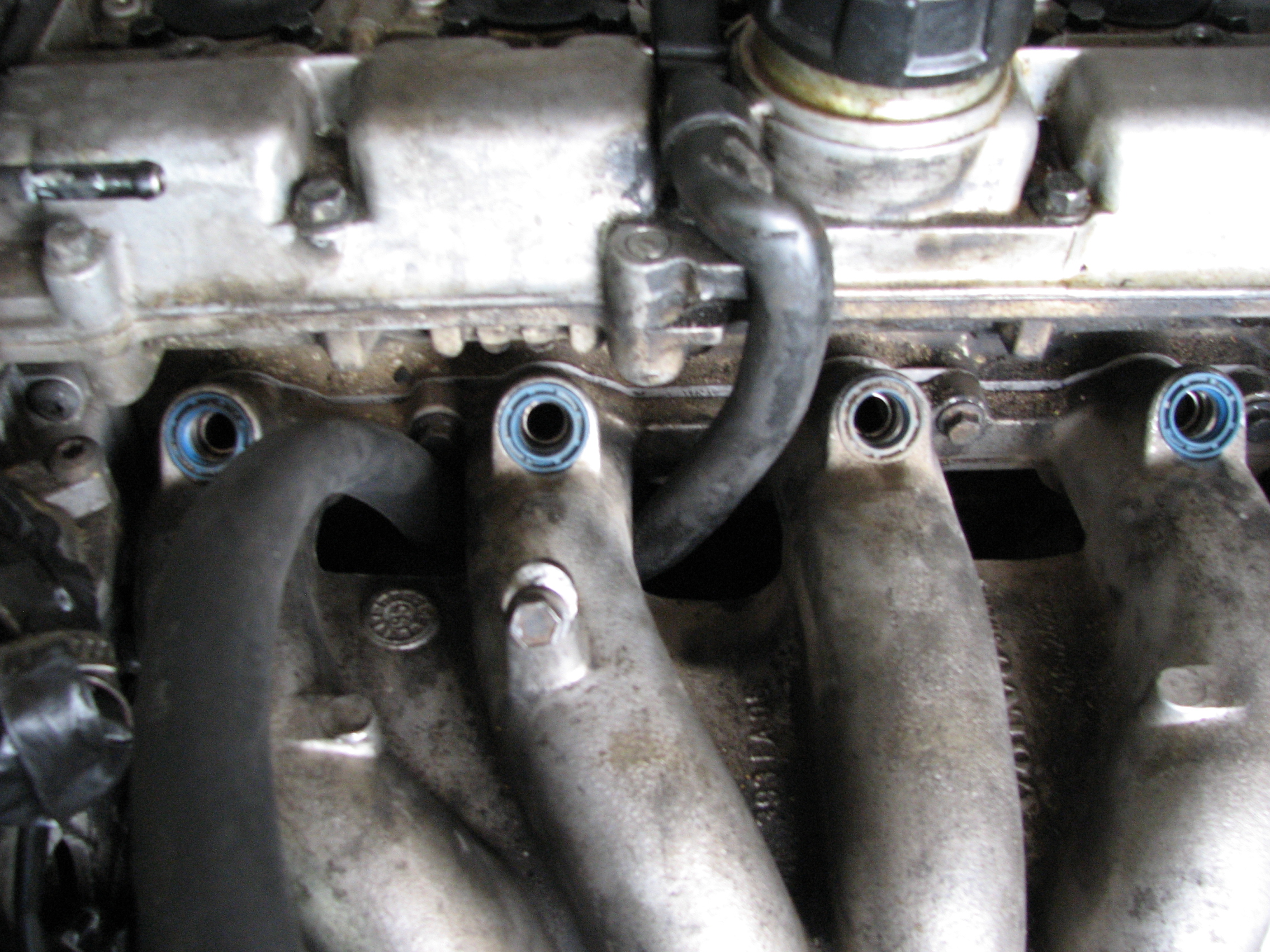

This is working well.
This is working well.
Gratuitous Photo.
Gratuitous Photo.
A Grille day.jpg (55.83 KiB) Viewed 637 times

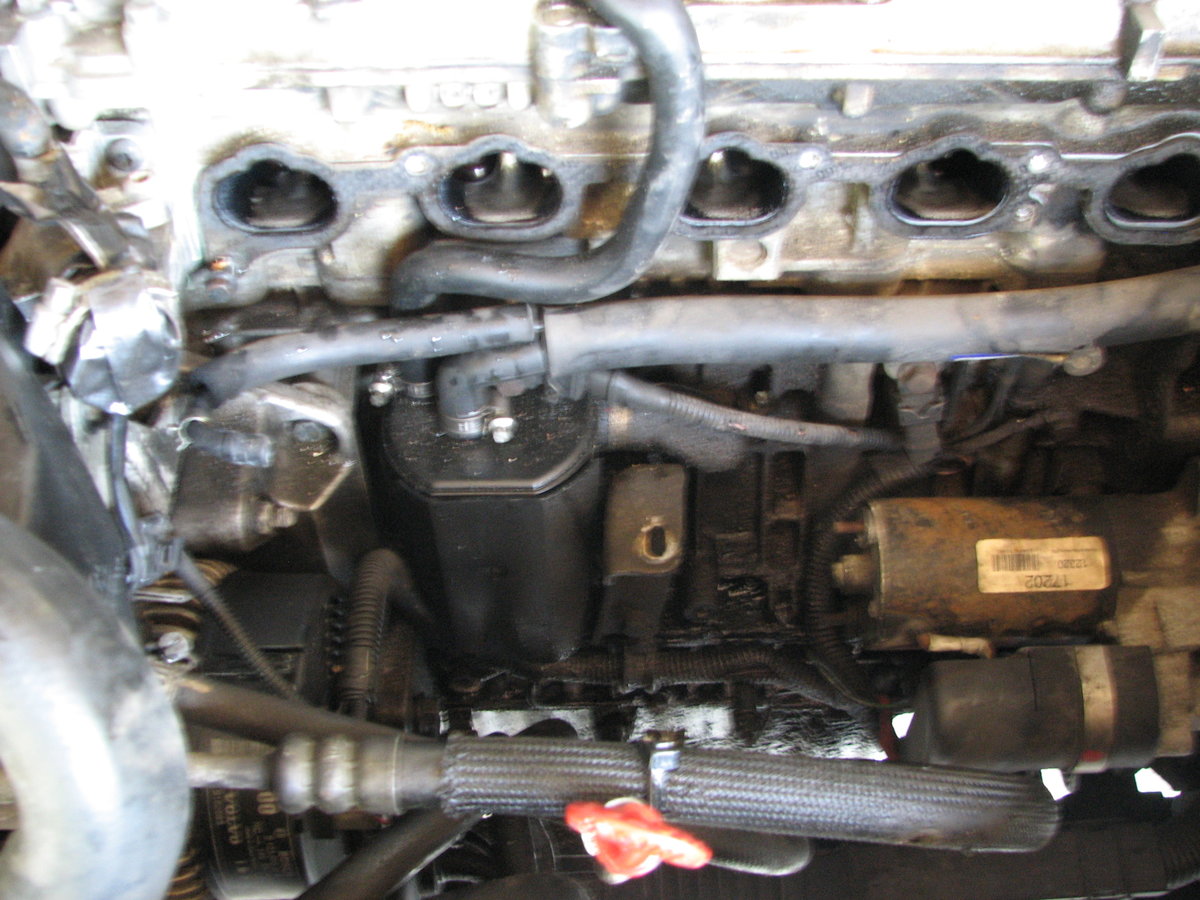

First time Wagon inspection.
First time Wagon inspection.
Yup, I pulled the injectors.
Yup, I pulled the injectors.

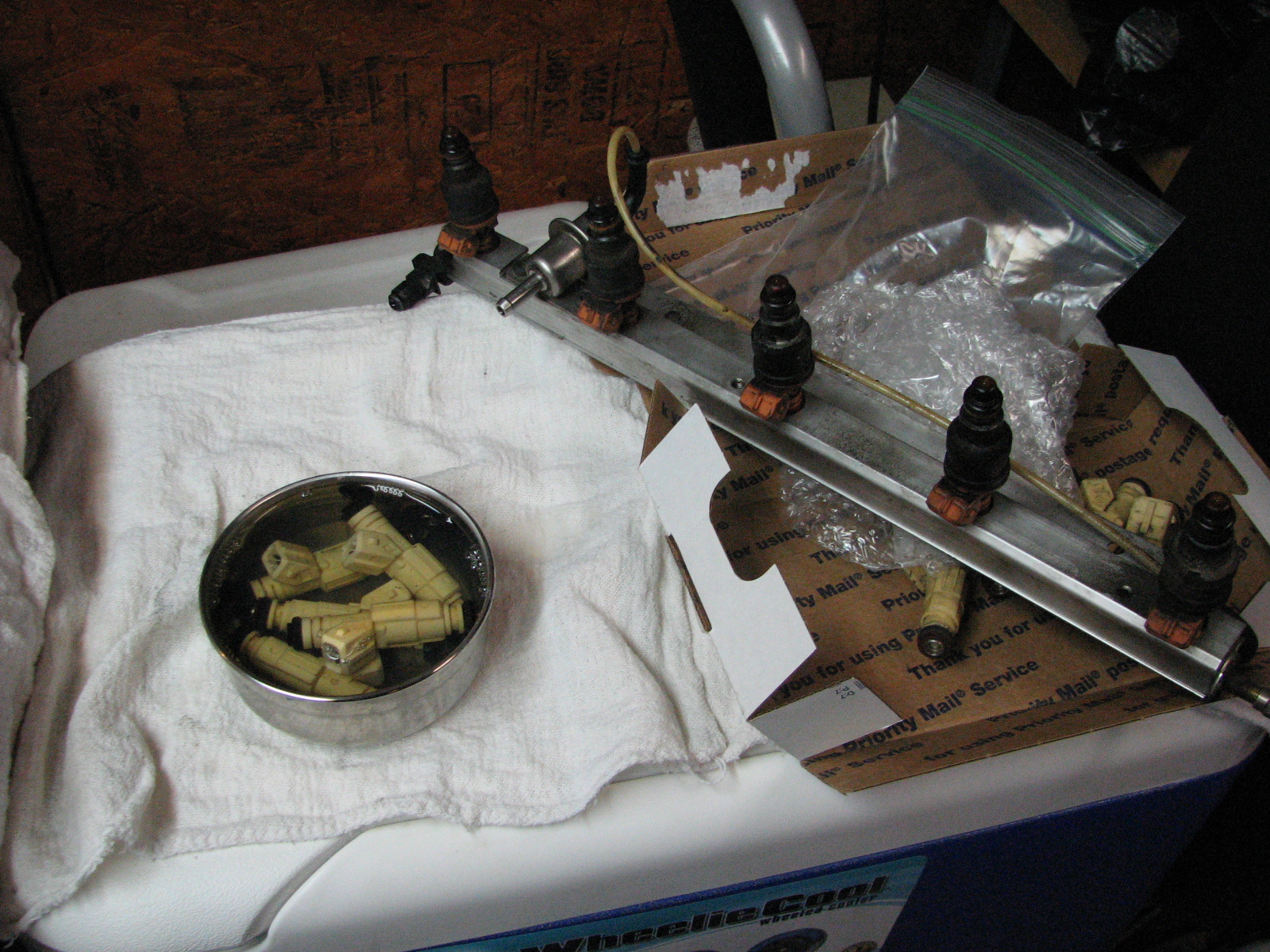

They are now playing well together, and have a new friend.
They are now playing well together, and have a new friend.

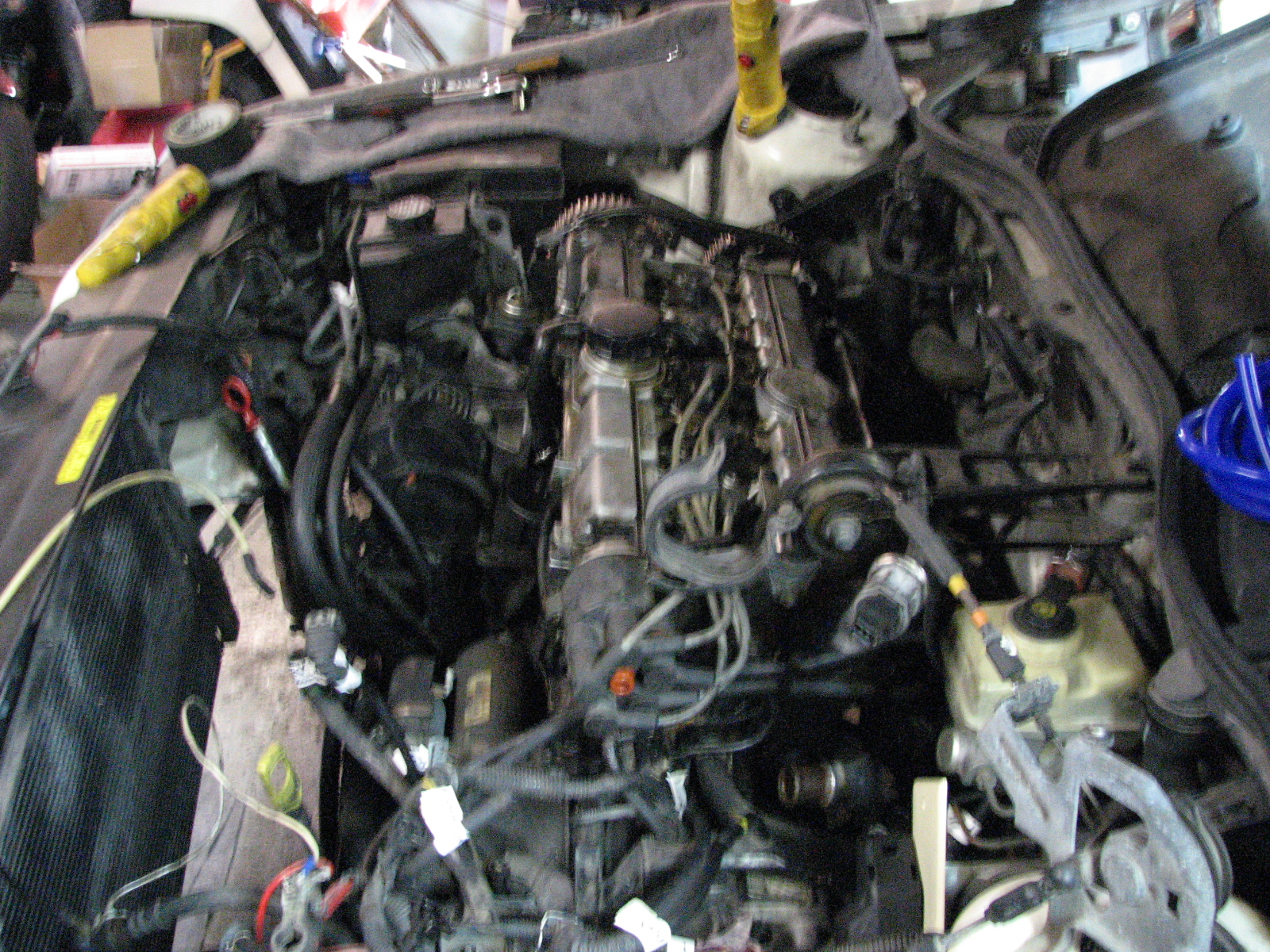

W.I.P.
W.I.P.
Last edited by Ben850 on 09 Jul 2014, 07:26, edited 1 time in total.
1993 850 GLT , You wouldn't know it.
1996 850 Turbo Wagon White.
1995 T-5R Black. New work in progress.
1998 V70 XC Cross Country White.
1994 850 N/A Wagon Black.
1997 850 Sedan Black.
1996 850R Wagon White.
1997 850 Sedan Red ( not white or black!)
Top
User avatar
rspi
Posts: 7303
Joined: 5 November 2011
Year and Model: 850 T-5R Wagon
Location: Cincinnati OH
Has thanked: 34 times
Been thanked: 72 times
Contact:
Contact rspi
..

Post by rspi »

I leave the injectors in the rail and manifold.

'95 855 T-5R M, Panther - 22/28 mpg, 546,000 miles
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
Top
jblackburn
MVS Moderator
Posts: 14043
Joined: 8 June 2008
Year and Model: 1998 S70 T5
Location: Alexandria, VA
Has thanked: 9 times
Been thanked: 19 times

Post by jblackburn »

I leave the injectors in the rail and manifold.
Me too!

Although on earlier models, I'm not sure if you can swing the whole thing up like this with the fuel rail attached - I seem to recall that the fuel line connection is different when I did the job on a 94?

'98 S70 T5
2016 Chevy Cruze Premier

A learning experience is one of those things that says, "You know that thing you just did? Don't do that."

mercuic: Long live the tractor motor!
Top
Ben850
Posts: 1613
Joined: 8 September 2011
Year and Model: 1996 850 R Wagon
Location: Michigan
Been thanked: 7 times

Post by Ben850 »

I do get your point Robert.

I did not know any different at first while doing the PCV and oil trap on my '93 as a complete Volvo newbie.
The last three times I was in that area, I was actually changing injectors.

I must add that it is so much easier to get at the manifold bolts without the fuel rail in the way.
After the initial intimidation of dismantling, just do not forget where you left the pieces.
After the initial intimidation of dismantling, just do not forget where you left the pieces.
I wish it was so easy. Have a plan before you take things apart. That is all.

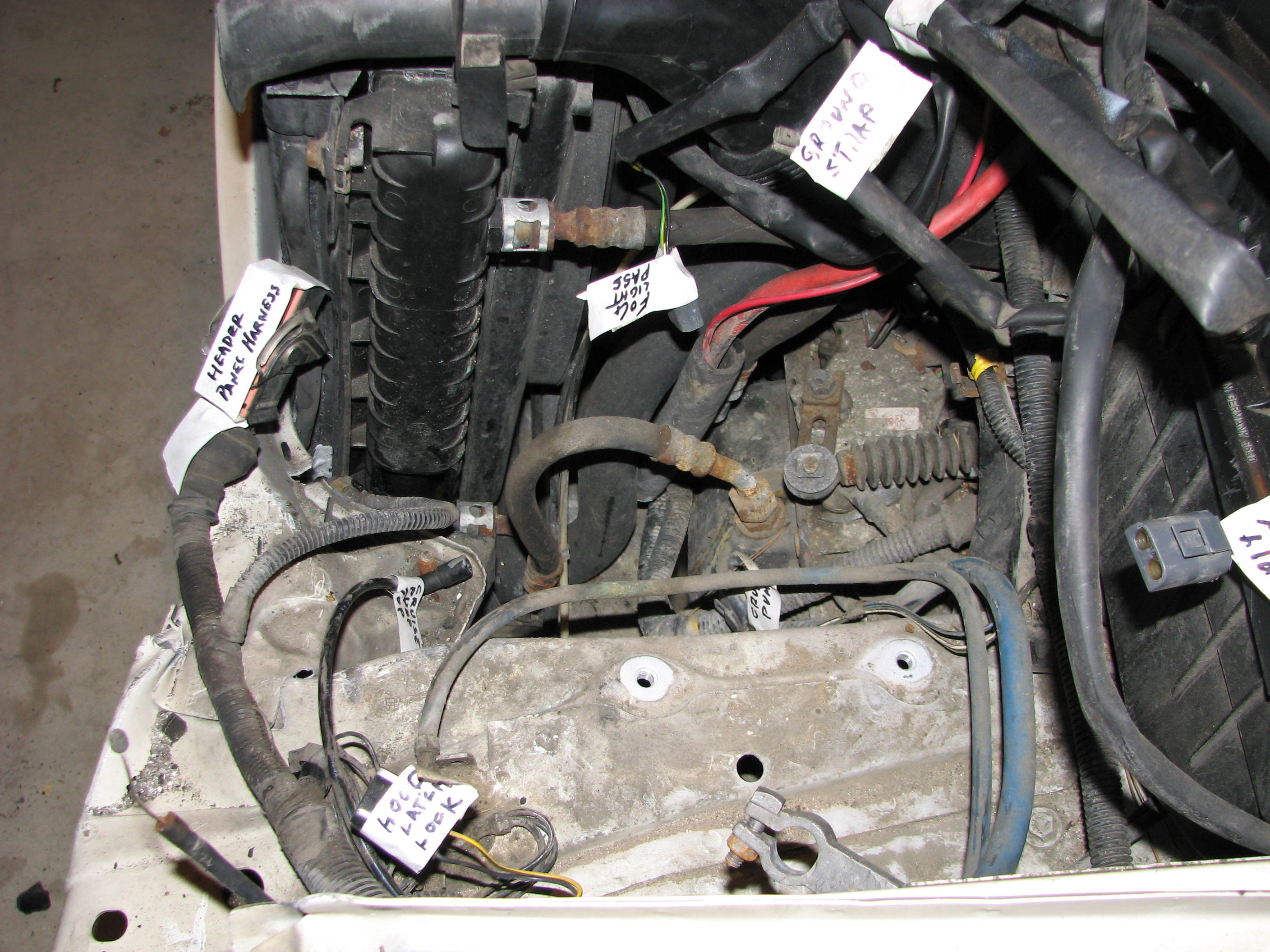

It helps to label things when you want to re assemble.
It helps to label things when you want to re assemble.

There is a complete new idea for a thread. I'll post, possibly a comprehensive of "Not forgetting where this went/goes". Been there.
1993 850 GLT , You wouldn't know it.
1996 850 Turbo Wagon White.
1995 T-5R Black. New work in progress.
1998 V70 XC Cross Country White.
1994 850 N/A Wagon Black.
1997 850 Sedan Black.
1996 850R Wagon White.
1997 850 Sedan Red ( not white or black!)
Top
User avatar
rspi
Posts: 7303
Joined: 5 November 2011
Year and Model: 850 T-5R Wagon
Location: Cincinnati OH
Has thanked: 34 times
Been thanked: 72 times
Contact:
Contact rspi
..

Post by rspi »

I usually cut that rubber fuel line and replace it. The 3" hide is past due replacement anyway.
'95 855 T-5R M, Panther - 22/28 mpg, 546,000 miles
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
Top
Ben850
Posts: 1613
Joined: 8 September 2011
Year and Model: 1996 850 R Wagon
Location: Michigan
Been thanked: 7 times

Post by Ben850 »

rspi wrote:I usually cut that rubber fuel line and replace it. The 3" hide is past due replacement anyway.
Sorry Robert. Please clarify.
There are several lines within the photos.
1993 850 GLT , You wouldn't know it.
1996 850 Turbo Wagon White.
1995 T-5R Black. New work in progress.
1998 V70 XC Cross Country White.
1994 850 N/A Wagon Black.
1997 850 Sedan Black.
1996 850R Wagon White.
1997 850 Sedan Red ( not white or black!)
Top
User avatar
rspi
Posts: 7303
Joined: 5 November 2011
Year and Model: 850 T-5R Wagon
Location: Cincinnati OH
Has thanked: 34 times
Been thanked: 72 times
Contact:
Contact rspi
..

Post by rspi »

On most of the cars there is a rubber fuel line on the passenger side of the rail that I cut so the manifold, rail and all can be lifted off the motor together. I believe it attaches tothe fuel pressure regulator. I replace it every time I do a PCV system replacement because the hose is usually hard and cracked anyway.
'95 855 T-5R M, Panther - 22/28 mpg, 546,000 miles
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
Top
Ben850
Posts: 1613
Joined: 8 September 2011
Year and Model: 1996 850 R Wagon
Location: Michigan
Been thanked: 7 times

Post by Ben850 »

I know the one now.
Yes, the first time I had taken the manifold off the '93 Sedan that tube had basically fallen apart.

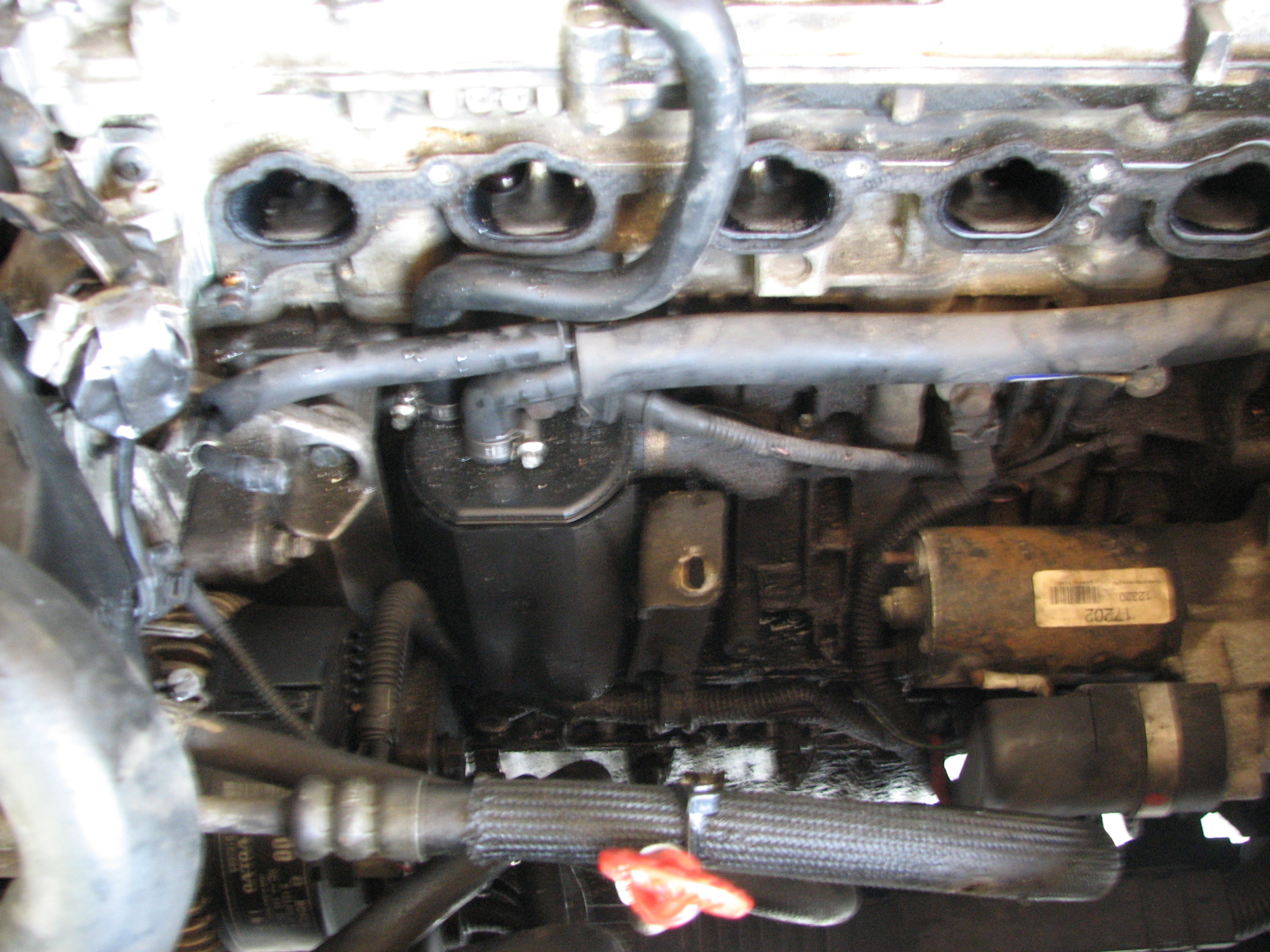

This general vicinity, fuel lines on the left.
