Re: Arduino Volvo Display Thread

Post by npexcept »

Small update to my little custom pcb project:

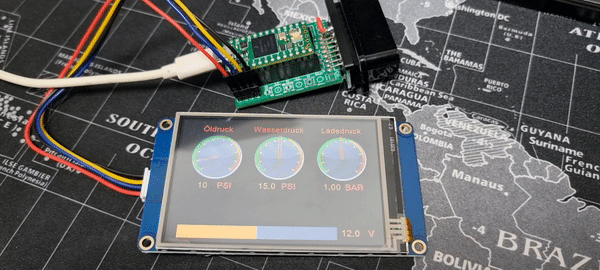

testing/emulating some values for the display to show (the GUI is eeeeeeeaaarly stage)
started to solder some (vital) components on it. the 2 ICs in the middle are the CAN drivers

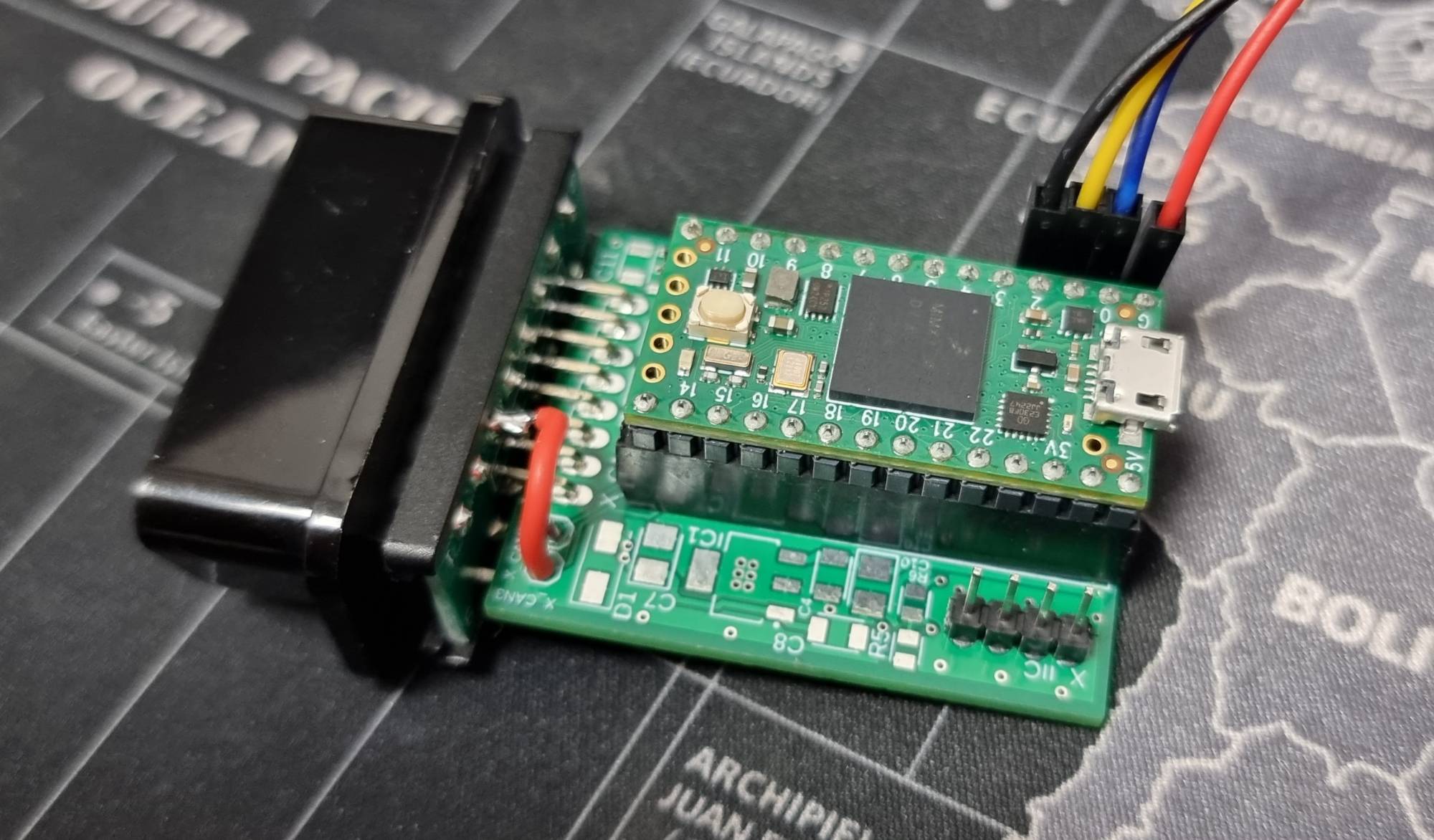

teensy 4.0 plugged in
"on paper" there is already a slightly different PCB with more IO.
Gonna order that once ive tested this revision.
Just because you're trash, doesn't mean you can't do great things.
It's called garbage can, not garbage can not.
Top
vtl
Posts: 4724
Joined: 16 August 2012
Year and Model: 2005 XC70
Location: Boston
Has thanked: 114 times
Been thanked: 605 times

Post by vtl »

Nice!

I did a Teensy version as well. Not fully tested, PCB and code is not finished, but it has a very useful feature: runs ACC power for a few more seconds after the ignition has been switched off. Helps with preventing aftermarket HUs from power cycling during engine start.

https://oshwlab.com/v.mayatskih/volvo-ddd2_copy
