Yellow acc. plug

Post by **Sveedy** » 07 Jun 2022, 08:50

I thought I'd post this for those wanting to tie into the yellow accessories plug up under the left side kick panel.

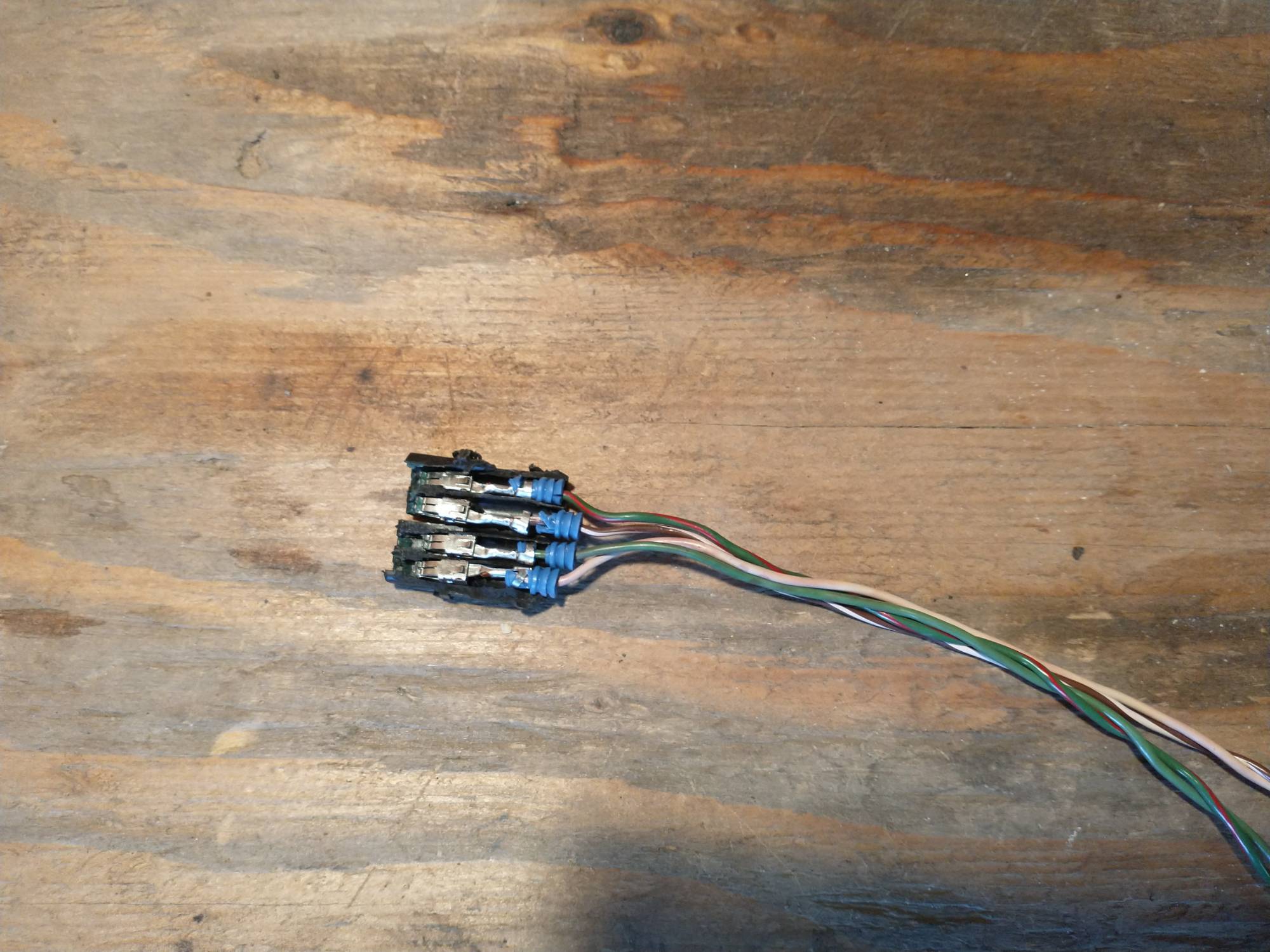

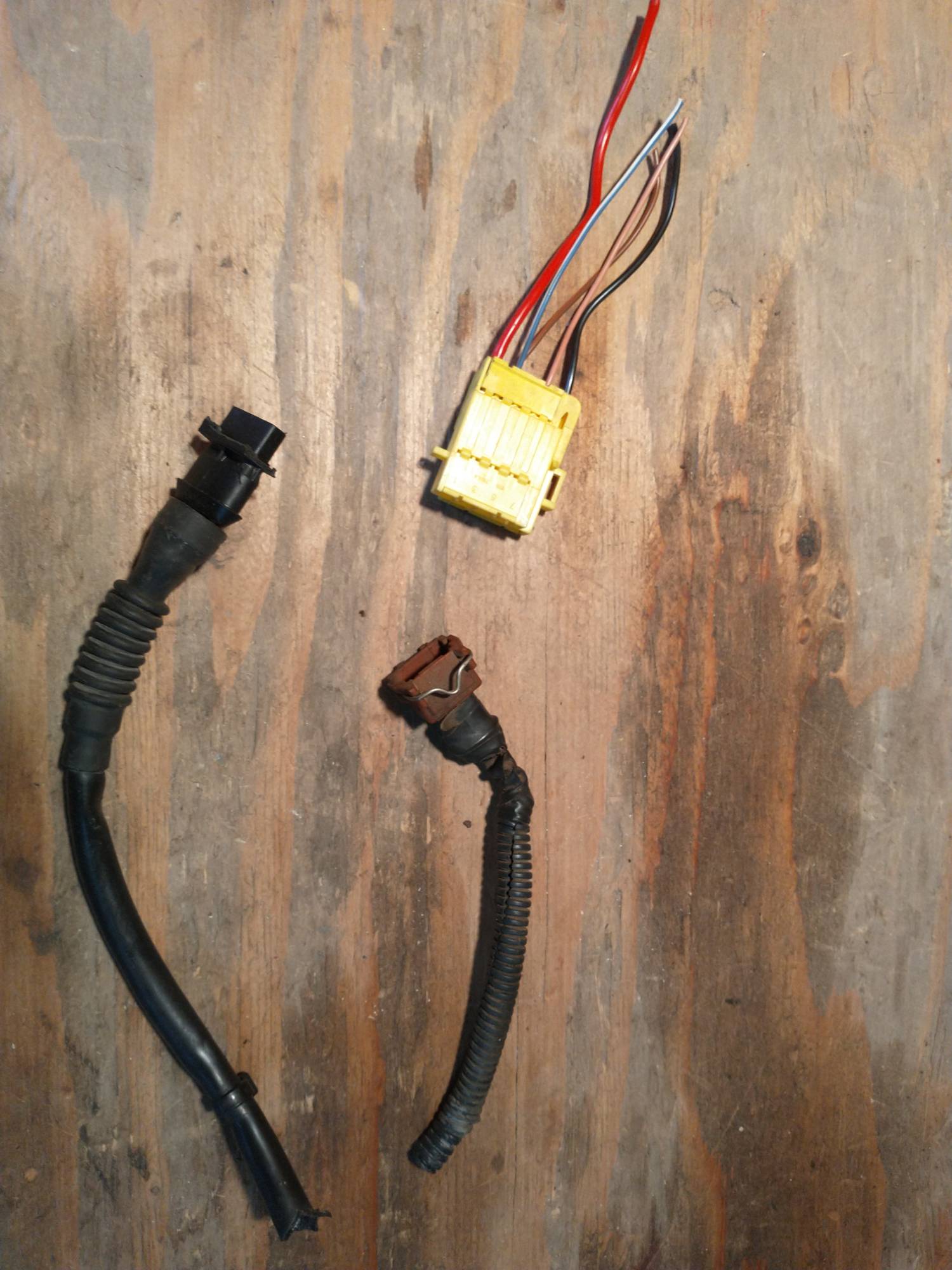

For the male prongs, I cannibalized a couple of random plugs from under the hood of a parts car.

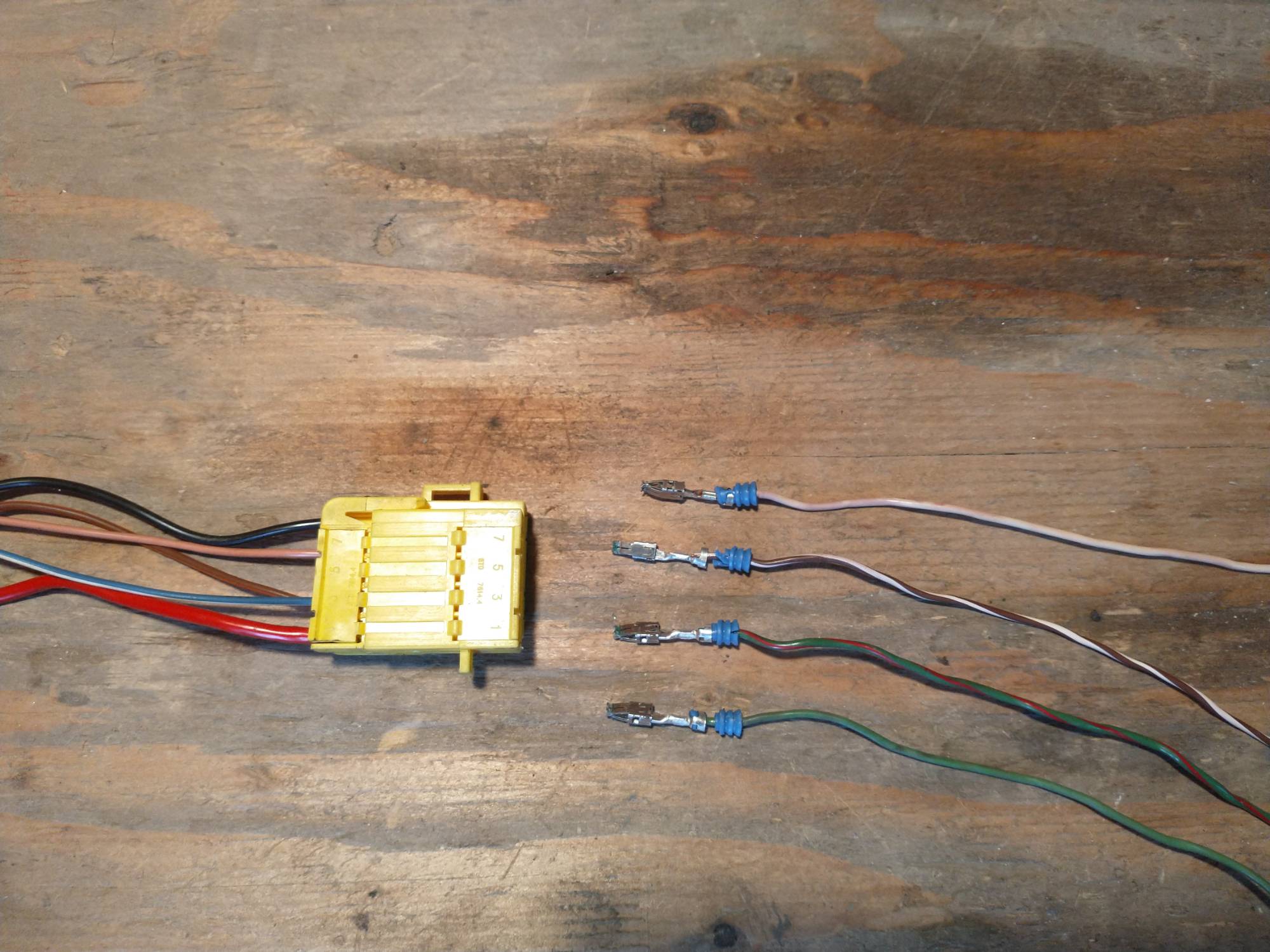

Port # 2 on the plug will give you switched power, and port #8 will give you a ground.

: IMG_20220604_135939780.jpg (428.7 KiB) Viewed 451 times

: IMG_20220604_140106572.jpg (450.39 KiB) Viewed 451 times

: IMG_20220604_140243053.jpg (458.03 KiB) Viewed 451 times

Post by **BlackBart** » 07 Jun 2022, 08:52

Which one for Hyperdrive?

Post by **Sveedy** » 07 Jun 2022, 08:57

^

I've got that covered with Blind Optic Fiber.

Post by **abscate** » 07 Jun 2022, 10:09

Courtesy of our Friend in Fairbanks...

viewtopic.php?t=99074&hilit=accessory+plug

Accessory connector!

How come no one ever remembers the accessory connector?
Right there under the dash, little yellow 8 pin connector clipped
to the steering column just WAITING for a job like this.

It's got to have some pretty serious self-esteem issues by now...

The white arrows are pointing at it ( Ignore the Door Chime legend and it's red circle ) :

Accessory Connectory and Door Chime Locations.jpg

-

98 S-V-C70 Accessory Connector.pdf

-

Accessory Connector - 5 Wire.jpg

-

Looks like some enterprising individual even came up with a kit for
using the empty mating plug that it leaves the factory with - Sweet!
https://www.ebay.com/itm/254614458625?chn=ps
_
You can also scavenge pins from other JY connectors or even
some styles of stereo wiring adapter harnesses to snap in there.

Post by **scot850** » 07 Jun 2022, 10:32

Thanks abscate for the info and Sveedy for the prompt!

Neil.

Post by **erikv11** » 07 Jun 2022, 13:15

Same setup (of course) on an 850, many many posts about this in the archives viewtopic.php?t=69527
