need a inner timing belt case for 89 740 16 b2340f

[198974016v]

Hello, new to the forum. I have an 89 740 16v (b2340f) and looking for an inner timing belt case for it. If anyone has one for sale or can point me in the right direction I would appreciate it. Thanks

[callumalden]

I would love a fresh set of case parts for the interior of my timing belt cover too. Why isn't someone 3D printing these, what is involved? Where is my replicator...

Are we talking about the same parts:

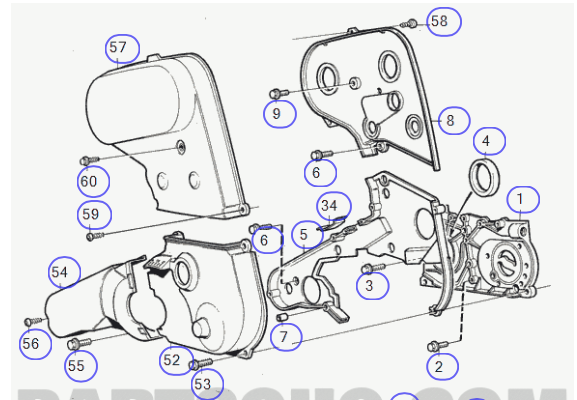

correa tapa.png (163.47 KiB) Viewed 663 times

8 - 3547694 - Timing Belt Top - Inner
57 - 3531269 - Timing Belt Top - Outer
5 - 3531272 - Timing Belt Lower Left & Middle- Inner
52 - 3531270 - Timing Belt Lower Right - Outer
1 - 3507137 - Middle “Sealing Flange” - Timing Belt Bottom Right - Inner

I think you might be in luck, on eBay in the USA a chappy is selling a few parts of a lower B234F case. Perhaps you are looking only for the top inner parts? (57) & (8) in that diagram? Ironically I am looking for the opposite. (5) & (54). Should you find source, or a replicator device let me know.
