What is the size and type of fitting for the hardline going into the rack on a 2006 XC70?
-
xc70VanIsle
- Posts: 6
- Joined: 27 Mar 2025, 19:49
- Year and Model: 2006 xc70
- Location: Victoria
- Has thanked: 3 times
- Been thanked: 1 time

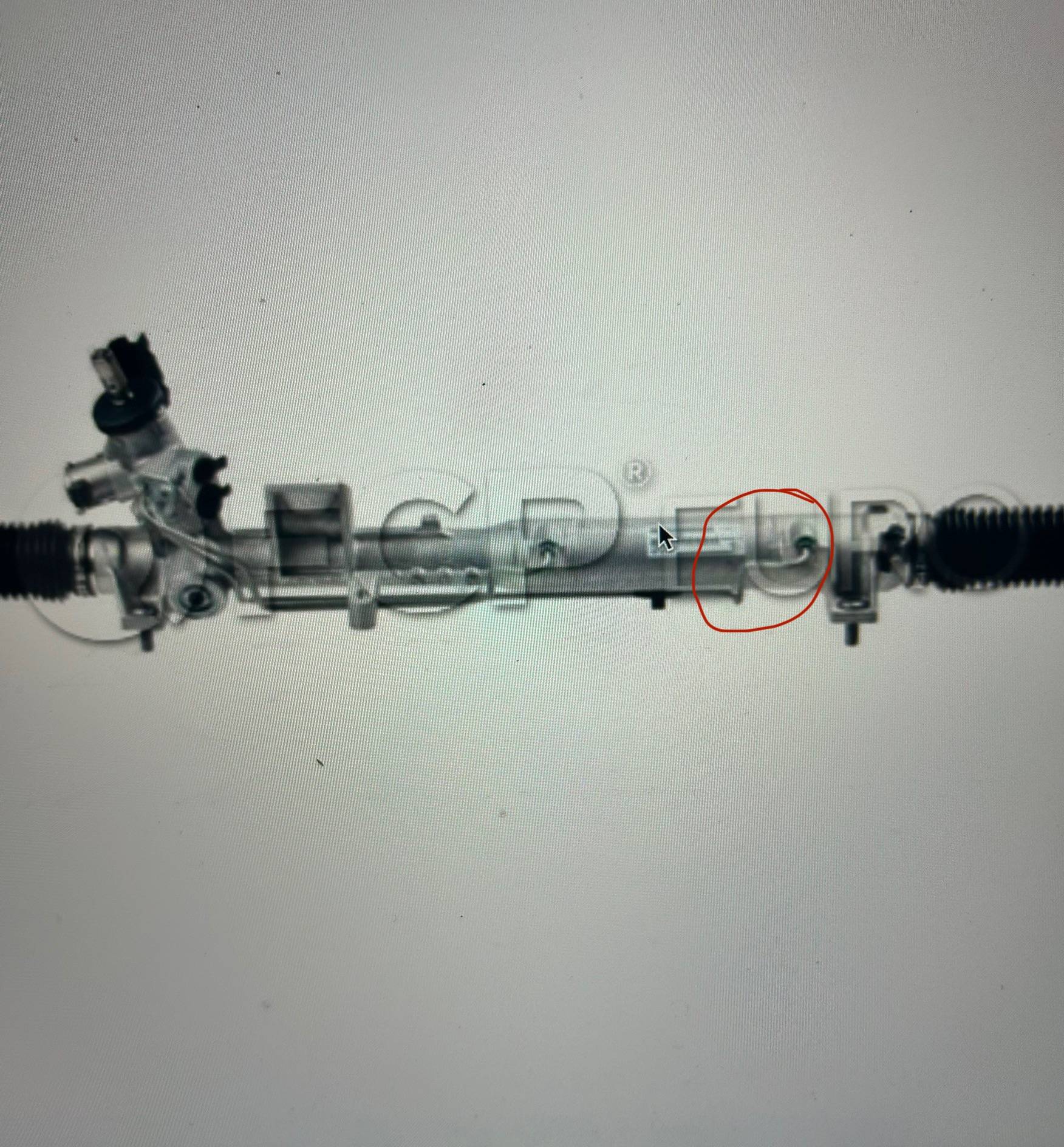

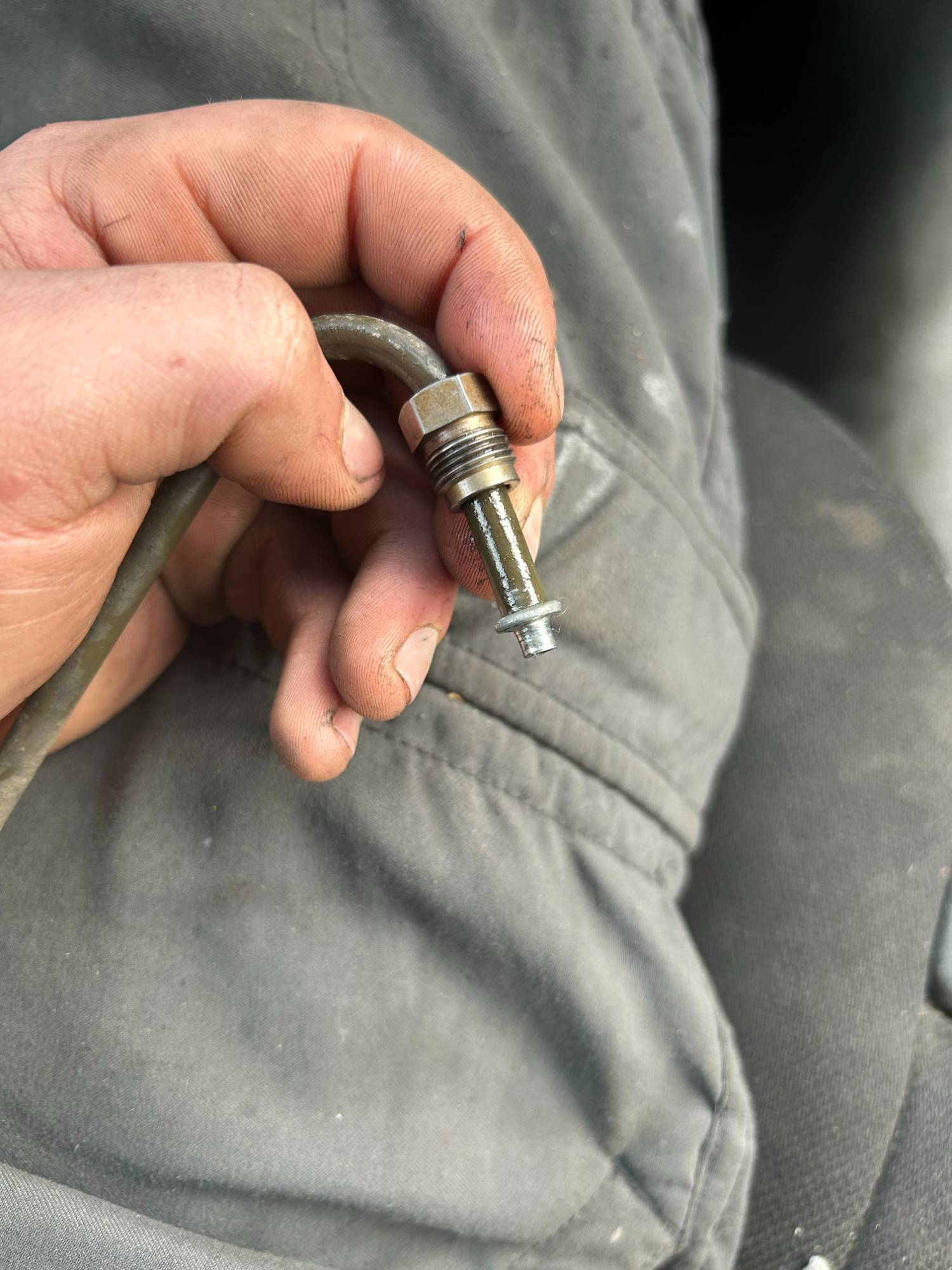

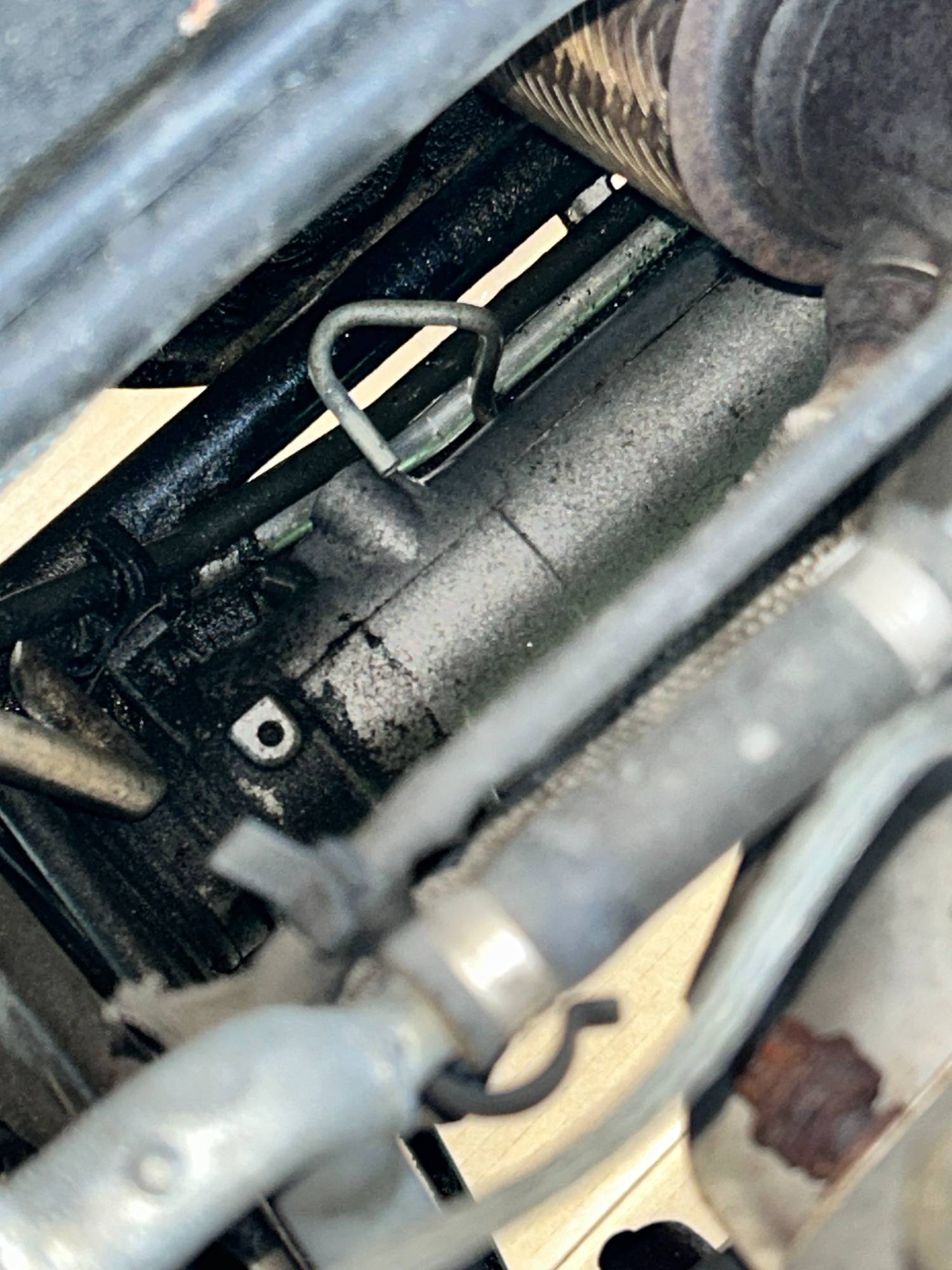

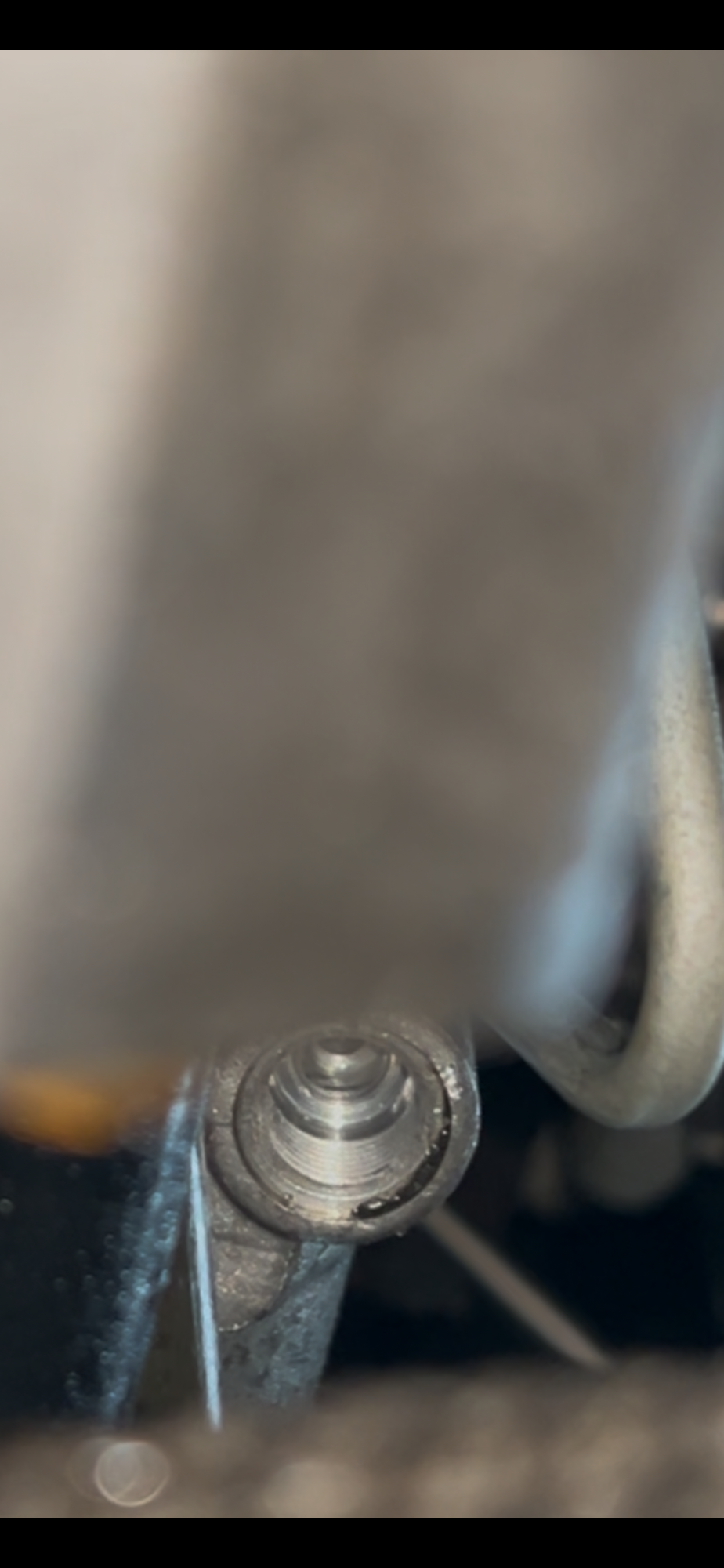

Hello everyone Im looking to find what size and type of fitting I need to reattach a hardline to the power steering rack on my xc70. I believe it may be an m12x1.00 inverted flare but i want to be sure as I only have one shot at this. I have attached photos of what I am talking about.
- Attachments
-
-
-
-
Blacklab467
- Posts: 1139
- Joined: 09 Aug 2016, 16:25
- Year and Model: 2007 xc 70
- Location: Calgary, AB
- Has thanked: 117 times
- Been thanked: 271 times
Maybe you can take a thread pitch gauge to find out for sure, or go to the auto wreckers and get a sample part? You might also get a hold of the manufacturer (SMI or ZF) and see if they can provide that specification.
2003 XC 70 (sold)
2007 XC 70, 1970 Dodge Charger R/T.
2007 XC 70, 1970 Dodge Charger R/T.
-
xc70VanIsle
- Posts: 6
- Joined: 27 Mar 2025, 19:49
- Year and Model: 2006 xc70
- Location: Victoria
- Has thanked: 3 times
- Been thanked: 1 time
May give that a try. The problem is I can't accurately take a thread gauge measurement due to the distance and angle. I know the s60 rack uses an m12x1.00 but not sure if its inverted flare or not. google AI says volvo uses inverted flare but I don't fully trust it.
-
volvolugnut
- Posts: 6502
- Joined: 19 Jan 2014, 09:51
- Year and Model: 2001 V70
- Location: Oklahoma USA
- Has thanked: 987 times
- Been thanked: 1075 times
Can you measure and study the mating line thread? Perhaps order (and return?) a mating hard line to measure?
I would guess all brand racks would use the same connection threads so the hard lines all interchange.
volvolugnut
I would guess all brand racks would use the same connection threads so the hard lines all interchange.
volvolugnut
The Fleet:
Volvo: 2001 V70 T5, 1986 244DL, 1983 245DL, 1975 245DL, 1959 PV544, multiple Volvo parts cars.
Mercedes: 2001 E320, 1973 280, 1974 280C, 1989 300E, 1988 300TE, 1979 300TD, parts cars.
2009 Smart Passion
Ford: 1977 F350, 1964 F150 (2), 1938 Tudor Sedan
Farmall tractors: 1956 400 Diesel, 1946 A
John Deere 214 lawn tractor about 1977 model
And others.
Volvo: 2001 V70 T5, 1986 244DL, 1983 245DL, 1975 245DL, 1959 PV544, multiple Volvo parts cars.
Mercedes: 2001 E320, 1973 280, 1974 280C, 1989 300E, 1988 300TE, 1979 300TD, parts cars.
2009 Smart Passion
Ford: 1977 F350, 1964 F150 (2), 1938 Tudor Sedan
Farmall tractors: 1956 400 Diesel, 1946 A
John Deere 214 lawn tractor about 1977 model
And others.
-
matthew1
- Site Admin
- Posts: 14801
- Joined: 14 Sep 2002, 11:03
- Year and Model: 850 T5, 1997
- Location: Denver, Colorado, US
- Has thanked: 2856 times
- Been thanked: 1332 times
- Contact:
You could make an impression with Blue Tack or something similar, then pull it out and measure that.
Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link. Click that when you go to buy something on Amazon and MVS gets a cut!
1998 V70, no dash lights on
1997 850 T5 [gone] w/ MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace
2004 V70 R [gone]
How to Thank someone for their post
Also -> Amazon link. Click that when you go to buy something on Amazon and MVS gets a cut!
1998 V70, no dash lights on
1997 850 T5 [gone] w/ MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace
2004 V70 R [gone]
How to Thank someone for their post
-
xc70VanIsle
- Posts: 6
- Joined: 27 Mar 2025, 19:49
- Year and Model: 2006 xc70
- Location: Victoria
- Has thanked: 3 times
- Been thanked: 1 time

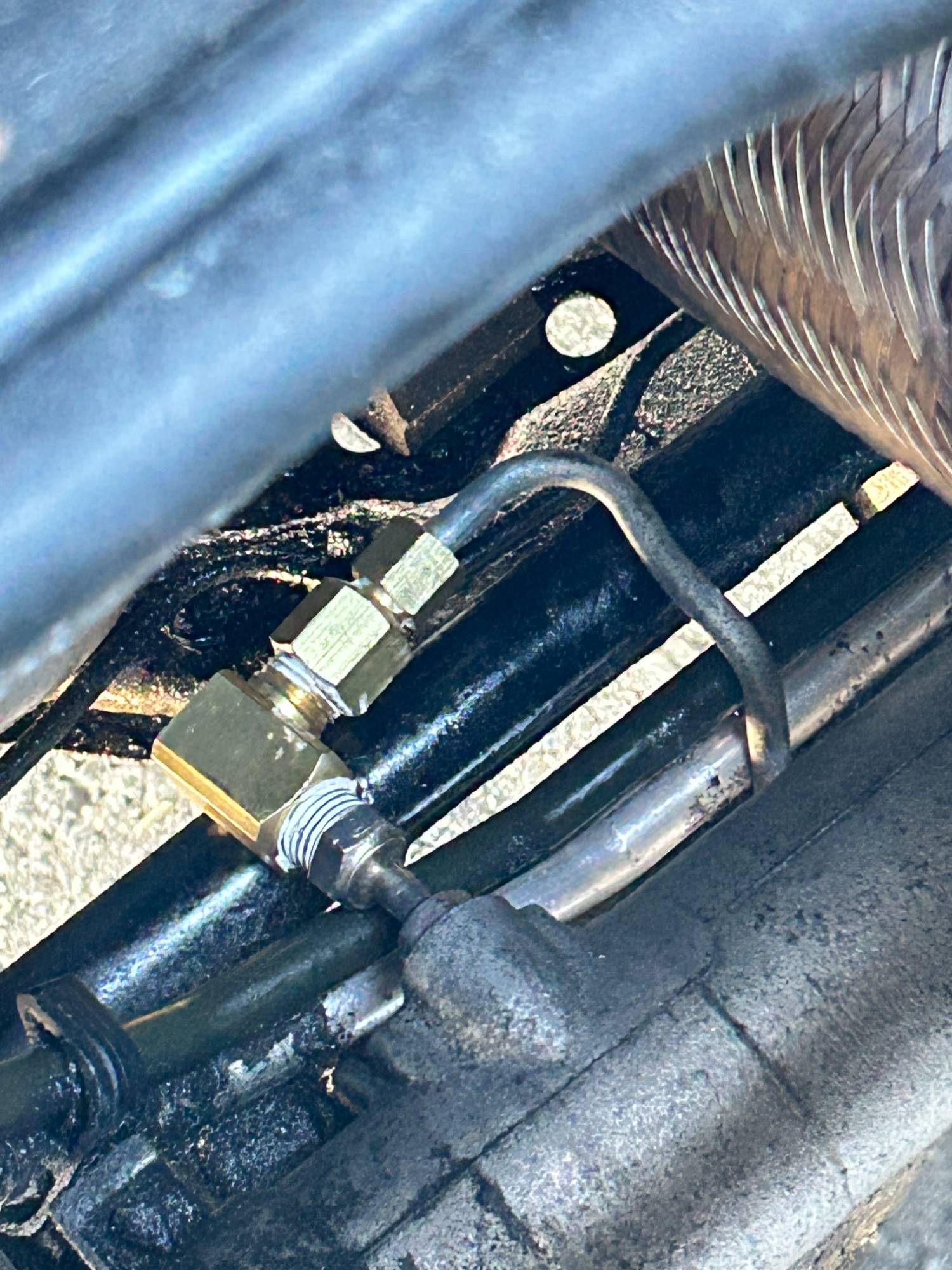

UPDATE: the fitting was m12x1.00 o-ring flare

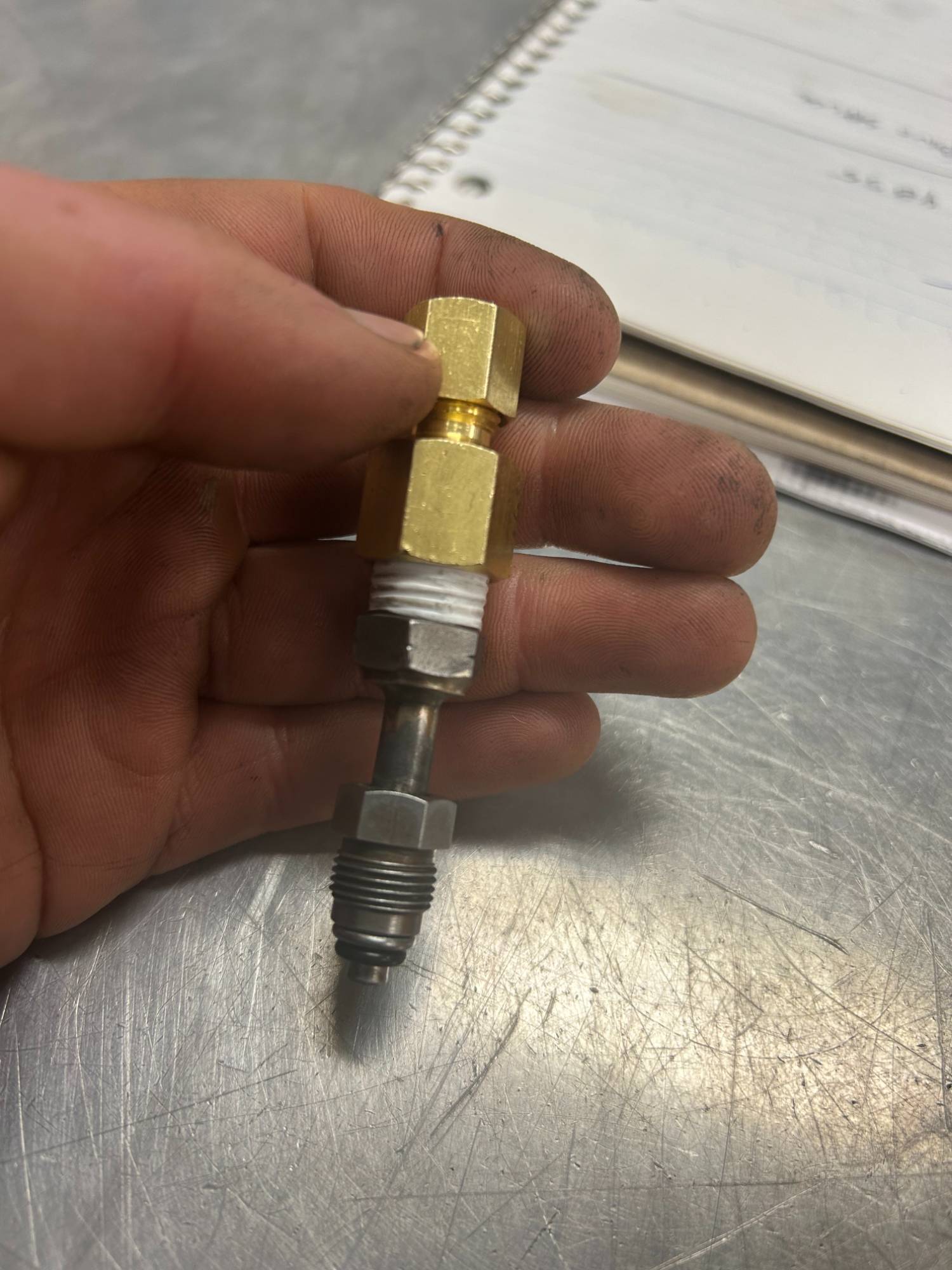

I got my hands on an old chunk of hose from a junkyard and had a hydraulic shop fab it into an adapter which I then attached to the existing hose.
See attached photos
It ended up working with no leaks and my "completely shot and unserviceable" power steering rack lives to see another day.
I got my hands on an old chunk of hose from a junkyard and had a hydraulic shop fab it into an adapter which I then attached to the existing hose.
See attached photos
It ended up working with no leaks and my "completely shot and unserviceable" power steering rack lives to see another day.
- Attachments
-
-
-
-
xc70VanIsle
- Posts: 6
- Joined: 27 Mar 2025, 19:49
- Year and Model: 2006 xc70
- Location: Victoria
- Has thanked: 3 times
- Been thanked: 1 time
Had to use a deep socket with an extension to bend the tube into shape because I couldn't fit a tube bender down there
-
abscate
- MVS Moderator
- Posts: 36145
- Joined: 17 Feb 2013, 17:54
- Year and Model: 99: V70s S70s,05 V70
- Location: Port Jefferson Long Island NY
- Has thanked: 1609 times
- Been thanked: 4065 times
Well done! So many people post those are flare fittings….when they aren’t. AI just follows the false post count, artificial Stupidity at its best.
Put some chafe relief. Old rubber hose, where those metal pieces come close or touch, zip tie chafe relief in place. Inspect annually for renewal.
