850 sunroof headliner repair

Post by **Ozark Lee** » 26 Nov 2006, 13:07

My sunroof shade headliner material had come unglued to the point where it just hung down and hit me in the head if I closed the sunroof shade. Being creative, I shoved the whole mess back into the cover slot and kept the shade open. I think this may be a common problem with many Volvos since I see many of them in this condition.

This is largely a duplication of a Bay 13 post but I picked up a few more tricks and couple of got-ya’s.

The first order of business is to remove the sunroof glass. To do this open the sunroof shade and put the sunroof in the vent position.

: Sunroof-1.jpg (90 KiB) Viewed 11605 times

Sunroof in the vent position.

Note the plastic trim pieces that go along the sunroof glass and the sunroof track. Those pieces need to be removed on both sides of the sunroof. To remove the trim pieces grasp the lower trim piece near the center and pull outward while lifting at the same time, the trim piece will bow and pop out of its slot. On one of mine the upper piece popped out with it. Assuming that the entire trim piece does not come out, once the lower portion is free swivel it upward and slide the trim piece assembly toward the rear of the car. This should release it from the sunroof glass.

: Sunroof-2.jpg (90.81 KiB) Viewed 11605 times

Sunroof track trim removal

Once the trim is removed you will see three T-25 torx bolts, in order to remove the sunroof glass remove the two bolts toward the front of the car on both sides. Leave the rearmost torx screws installed, do not remove it on either side.

: Sunroof-3.jpg (96.07 KiB) Viewed 11605 times

Sunroof glass torx screws.

Once the torx screws are removed the entire sunroof glass will swivel up to a, more or less, level position. Slide the glass back about 3/8” (9 or 10 mm) and then lift it upward and out of the track. I just flipped it over and laid it on a beach towel on the roof of the car.

At this point slide the sunroof shade forward all of the way. This will reveal the four mounting clips that hold the shade in its track. I messed up here and only thought there were two clips toward the front. After releasing them, and while sliding the shade out, the other two clips popped out and fell apart. In my case, add 10 minutes to the project to find the pieces (the hard part) and reassemble the clips (the easy part).

: Sunroof-4.jpg (96.4 KiB) Viewed 11605 times

Sunroof shade mounting clips.

Release all four mounting clips by pressing them toward the middle of the car with a screwdriver. Once they are depressed lift slightly on the shade so that they extend back above the track. Once all four clips are out of the track the sunroof shade can be lifted out from the top.

The next step is to re-glue the headliner material to the shade. To do this I used 3M number 08088 General Trim Adhesive which costs about US $14.00 at just about any auto parts store.

: Sunroof-5.jpg (93.06 KiB) Viewed 11605 times

The droopy sunroof shade.

: Sunroof-6.jpg (96.72 KiB) Viewed 11605 times

3M trim adhesive.

To re-glue the fabric to the shade it is necessary to spray an even coat of adhesive on both the back of the fabric and its mating surface on the shade. It should then be allowed to tack up for 3 to 5 minutes. Be careful not to get any adhesive overspray on the pretty side of the fabric. So as to protect the existing portions of the fabric that had not come unglued I laid a chunk of plywood between the fabric I was spraying and the other portion of the fabric that I wanted to protect.

: Sunroof-7.jpg (94.74 KiB) Viewed 11605 times

After the adhesive tacks up begin the re-gluing by working from the place it is still attached. I worked from the center outward, smoothing the fabric as I went. Try not to let the portions of the fabric that you have not worked to yet come in contact with the shade as it wants to stick on contact.

I got to the edges and found I hadn’t applied enough adhesive near most of the edges. The dilemma now was how to apply more adhesive without spraying it on the face of the fabric. I grabbed a piece of junk mail and a small paint brush and sprayed a big gob of the adhesive onto the paper. I then used the paintbrush to apply the glue to the fabric and the shade. After it tacked, it stuck very well.

: Sunroof-8.jpg (89.79 KiB) Viewed 11605 times

The sunroof shade with the fabric reattached.

From here it is a matter of reinstalling everything. The only problem I ran into was that the shade would not close after I snapped the shade back into its tracks. This problem was solved by releasing the front two clips, sliding the shade back a few inches (a few cm), and then snapping the clips back into their tracks.

This is a very easy project and it only takes an hour or so to complete. Here is the finished product.

: Sunroof-9.jpg (85.88 KiB) Viewed 11605 times

...Lee

Post by **MadeInJapan** » 26 Nov 2006, 14:11

Another Great Write-Up! I'll put this in the maitenance data base as well! Thanks!

Tfor5 · Post by **Tfor5** » 12 Oct 2008, 16:18

Thanks much for the clear explanation and pics to illustrate how to get to the sun roof parts.

I've got a related problem where the roof wont even go to vent position at this time. (It used to, but not to full open. From another discussion, I'm told it may be because the tracks got dirty from being left open.)

Do you have any hints as to how to get it to the vent position "manually"?

mercharch · Post by **mercharch** » 14 Aug 2009, 22:26

I've had the saggy sunroof headliner problem for a few years now, only in my case it was the front half that had come loose.

My solution was more of a kludge, but it actually turned out to be quite an elegant solution, and didn't require the entire sunroof assembly to be taken apart.

Using four ACCO binder clips (small size), I was able to stretch the headliner fabric back over the front edge of the sunshade and secure it in place with the clips. I removed the wire handles, and voila! No more sagging sunshade fabric. The added bonus: the clips are shaped such that they don't interfere with the operation of the sunshade, and when it's closed, you can't even see the clips.

Serendipity, my friends. . .I can't believe it took me so long to think of it! Enjoy :)

felorachart · Post by **felorachart** » 05 Sep 2009, 18:22

any photo of the binder clip repair?

thanks

mercharch · Post by **mercharch** » 11 Sep 2009, 17:29

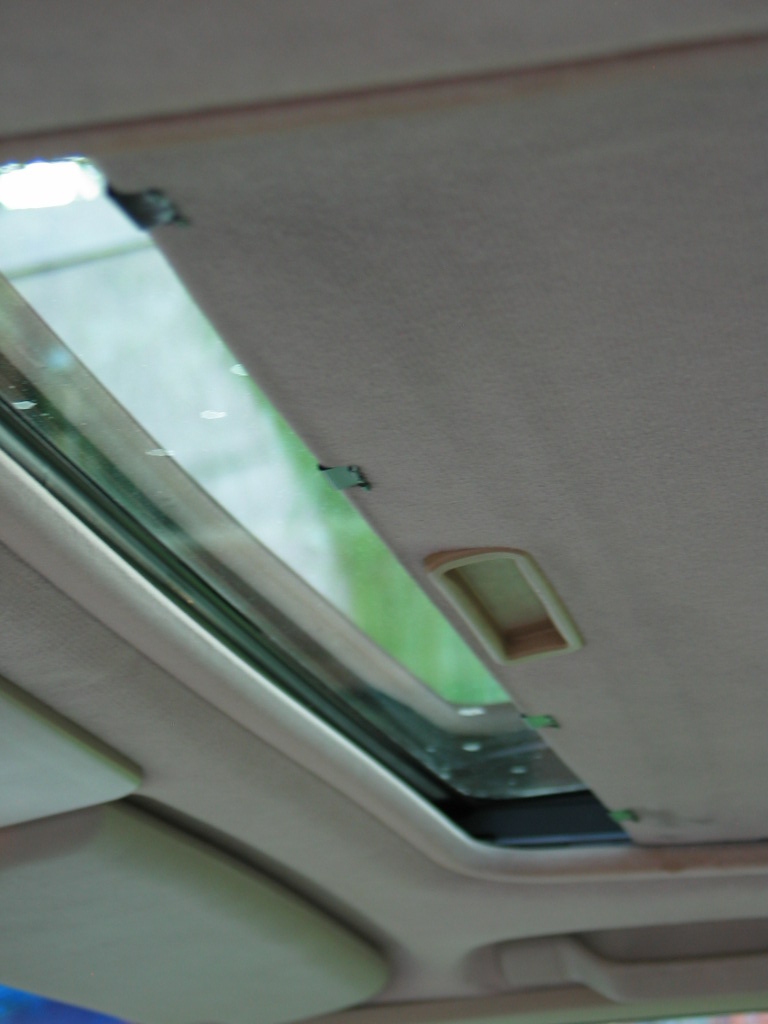

Here are a few photos of my binder clip kludge:

: IMG_3053.JPG (125.46 KiB) Viewed 21170 times

: IMG_3054.JPG (127.28 KiB) Viewed 21169 times

: IMG_3056.JPG (161.8 KiB) Viewed 21169 times

: IMG_3057.JPG (125.97 KiB) Viewed 21169 times

Hope you find it helpful!

::Aaron::

NORTHERNPIKE1 · Post by **NORTHERNPIKE1** » 01 Oct 2009, 05:43

NICE WORK...HUGE HELP!!!!!!

850forum · Post by **850forum** » 09 Oct 2009, 16:14

I can't get the sunroof back onto the rails. I did this job before some years ago.

The major problem is that the "tabs" on the sunroof need to be forward about another inch in order to line up with the screw holes.

I'm trying to find the sweet spot where the rails are "backwards" far enough, and then the upwards angle of the rails is correct, so that the holes will line up.

Can't seem to get it right. What's the trick?

850forum · Post by **850forum** » 09 Oct 2009, 18:25

I have managed to force it; used a lever to pry the 2nd hole into alignment on the right. I had to loosen the rearmost screw on the right.

Now the problem seems to be that it binds before going backwards; it does not seem to "dip" correctly before starting to move backwards.

eoakley · Post by **eoakley** » 29 Jun 2010, 18:57

MadeInJapan wrote:Another Great Write-Up! I'll put this in the maitenance data base as well! Thanks!

very timely info. i have thee same problem on my '94 850 & was leery about the repair.
