DIY: 1997 Volvo 850 - a supplement to Rear End Delta Link...

[xHeart]

Following photos and notes extends the pioneer write up of Ozark Lee https://www.matthewsvolvosite.com/forums/viewtopic.php?f=1&t=9402.

The project included replacing coil springs, delta links, and anchorage mounts - all using new nuts and bolts. There was plenty of room and time to replace muffler too, see https://www.matthewsvolvosite.com/forums/viewtopic.php?f=1&t=61022.

Battery negative terminal was disconnected.

After raising the car, wheels off, springs and socks were removed.
Now the rear spring seat rests on a movable cart.

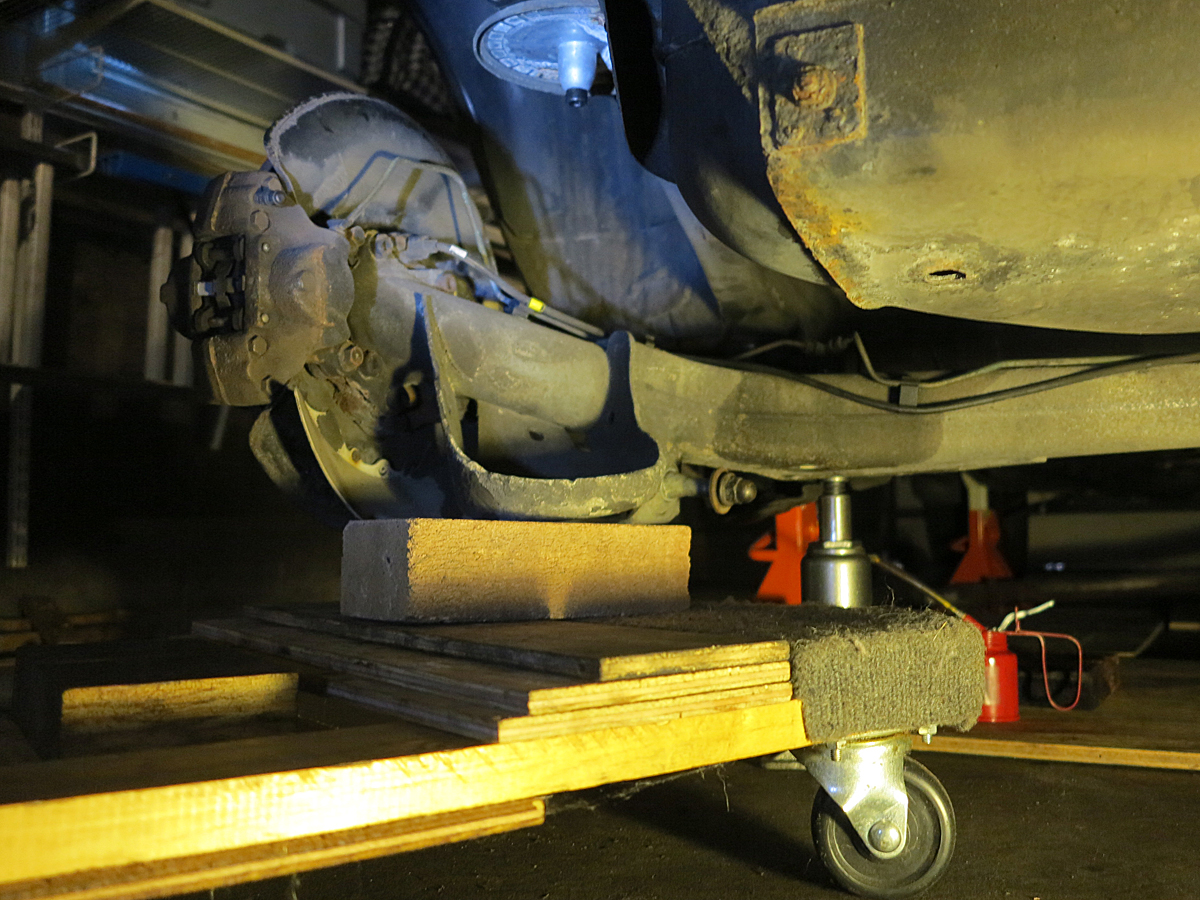

support spring seat at each end - a bottle jack supports the transverse arm


passenger side is supported with floor jack


remove delta mount from the guide pin - unclip brake line


remove T25 to free brake line


remove 10mm screw and free brake line at driver side

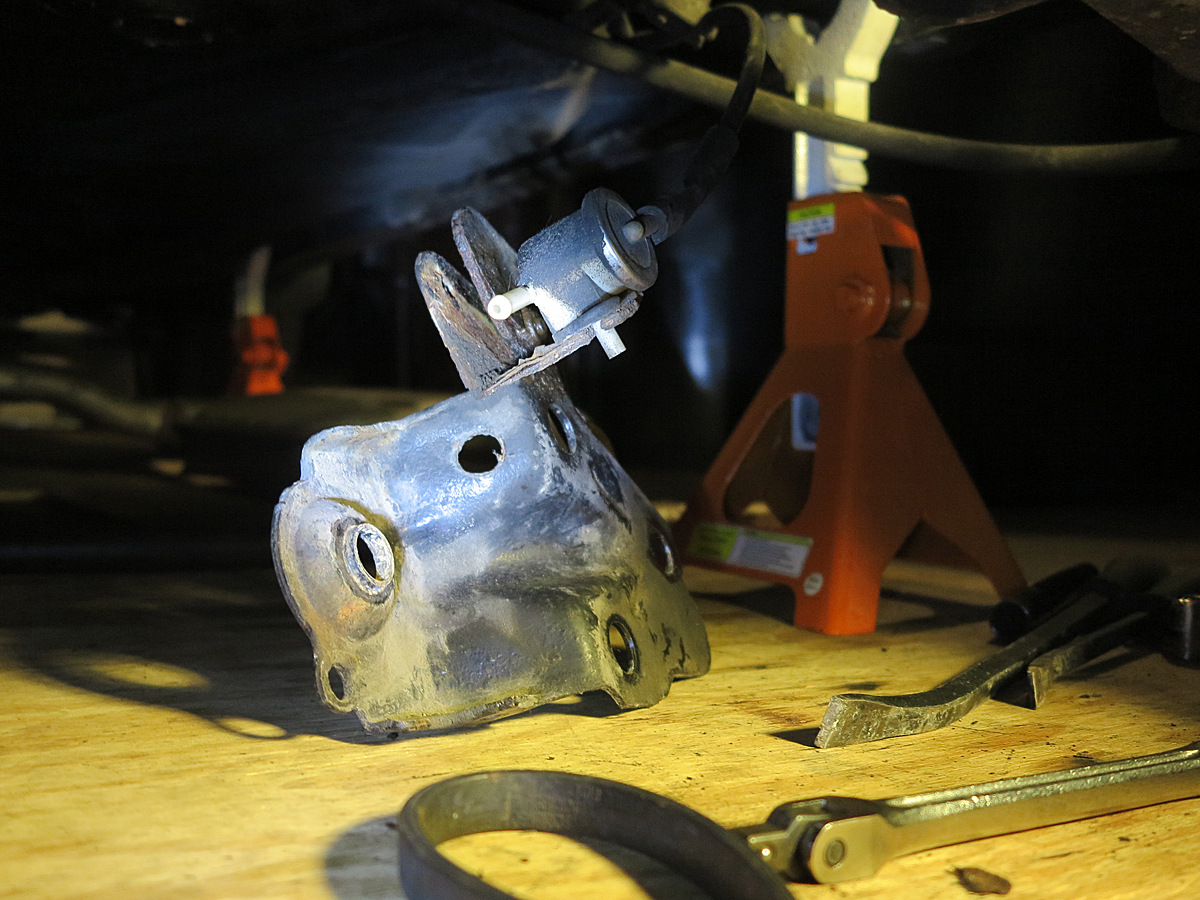

take off 10mm fuel filter bracket screw, pull off valve vacuum hose to the engine, and set the delta mount bracket on the ground at passenger side

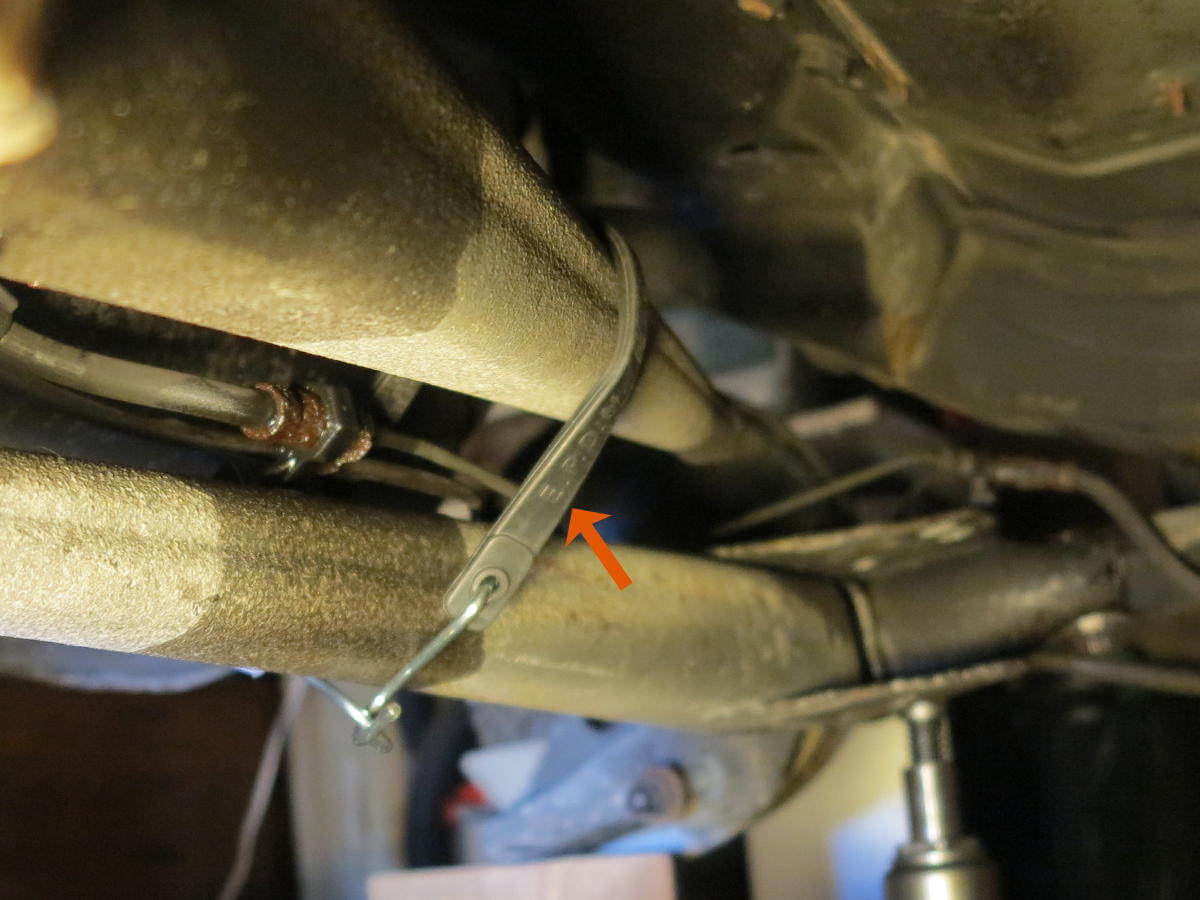

place a bunge cord around the two transverse arm


At this point you have all the fasteners removed, the anchorage mount is marked for alignment, anti-torsion bar removed.

Now pull apart the two transverse arms just far enough that mounts are out of respective mounting points - floor jack and cart will help it walk away.

anchorage mount at driver side


anchorage mount at passenger side - i had to cut-off and then grind the bolt head and stud

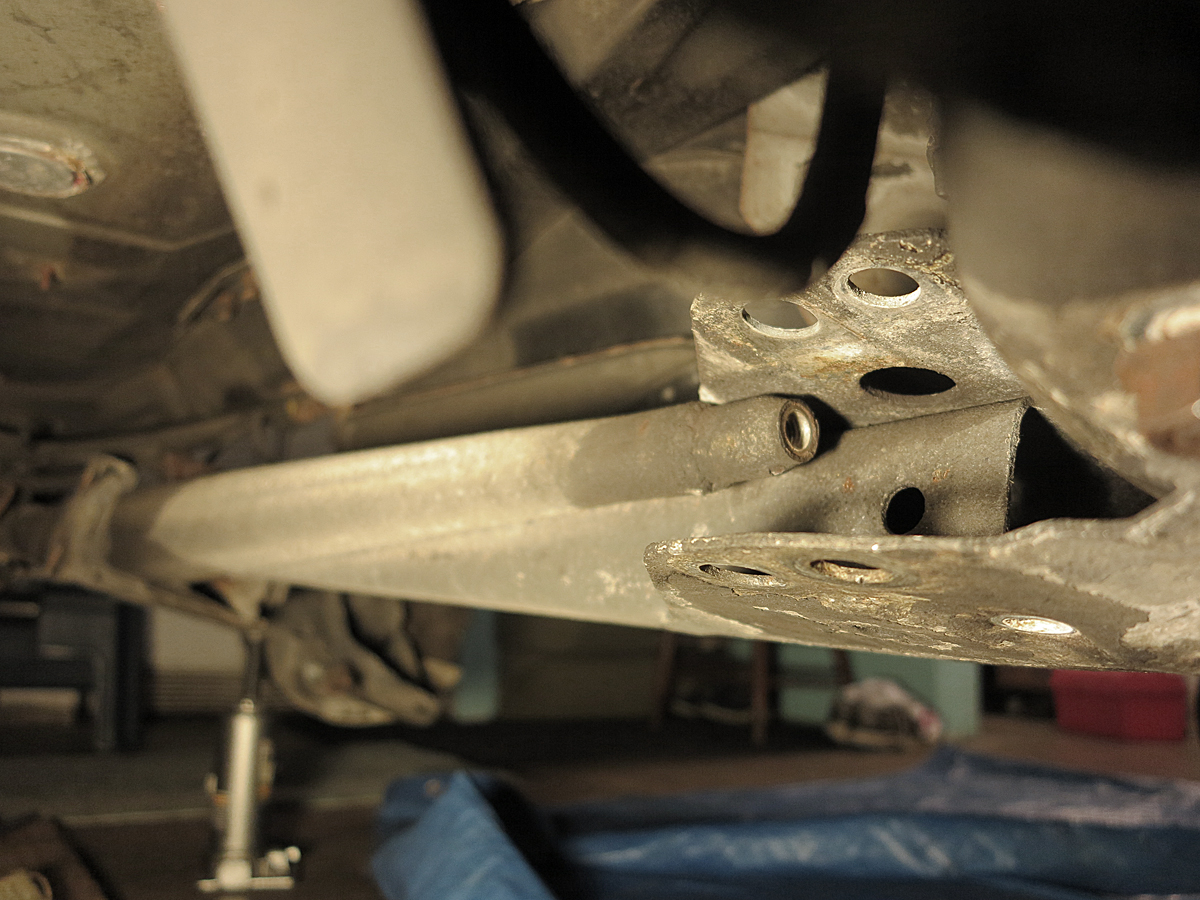

driver side anchorage mount removed - 18mm bolt

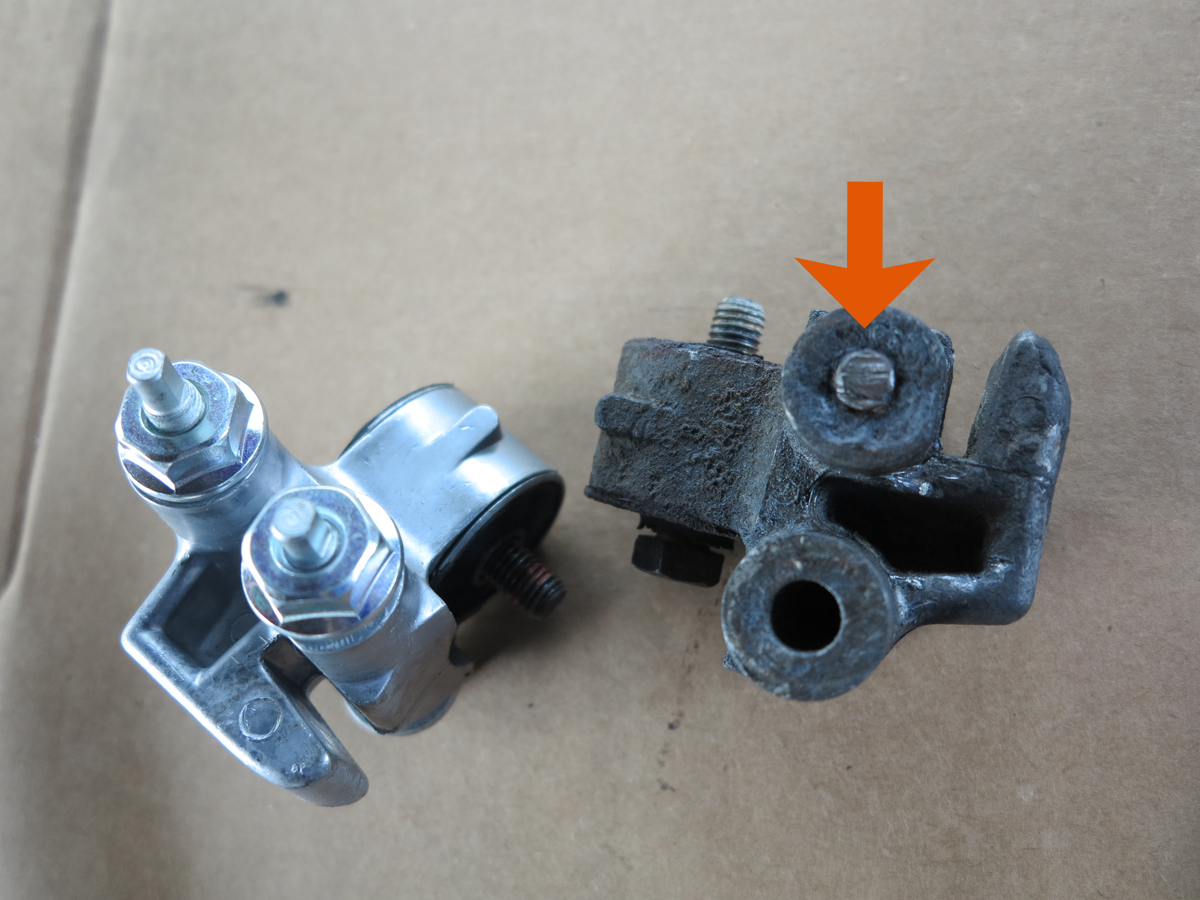

passenger side mount new and old


The delta tool makes removing it a snap

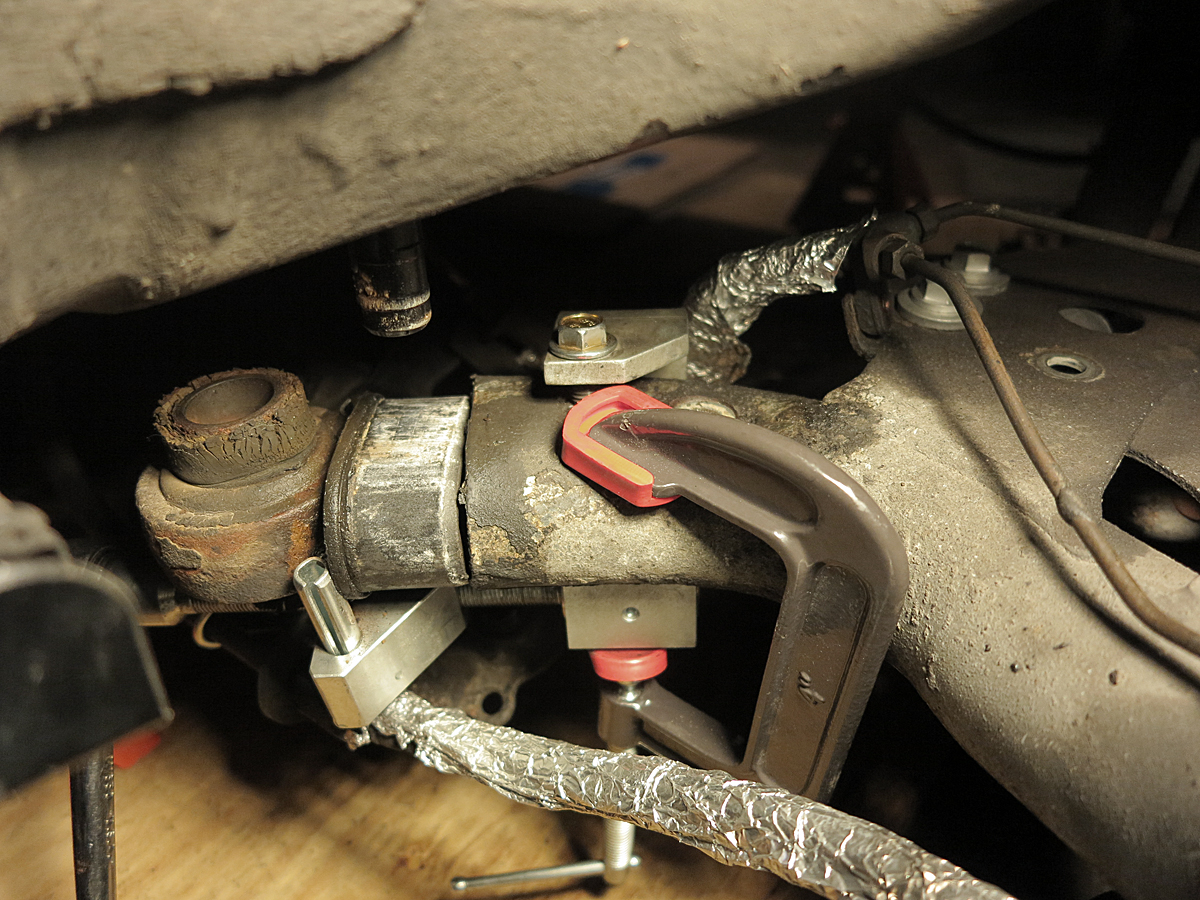

using C clamp to keep the pin in place, else it moves

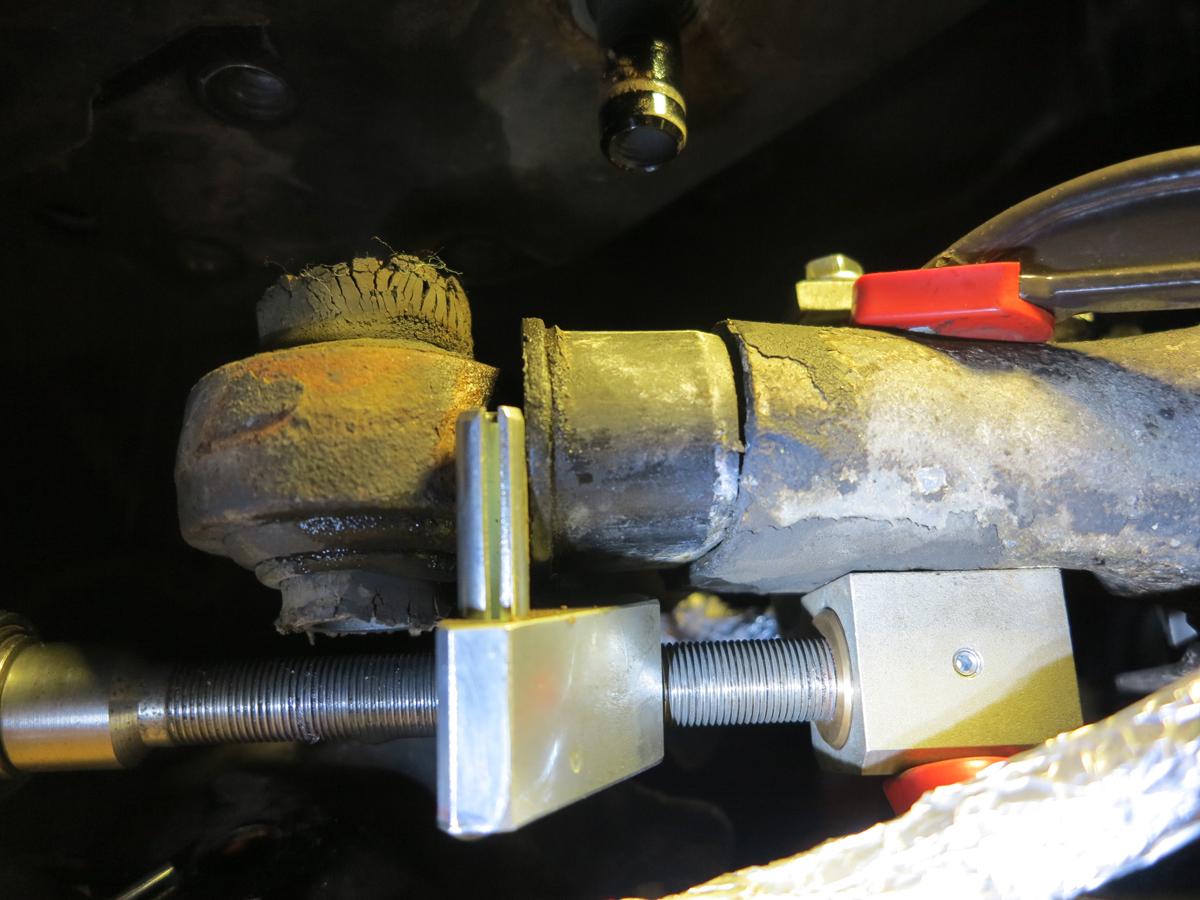

spray bushing with soapy water first...and then turn - it pops out, no heat was necessary


[Baptiste1106]

@ xHeart ....Outstanding write up. Where did you purchase/rent the delta link tool from ? After link is removed, what's the procedure on installing link ? Where did you mark anchorage to retain alignment ?

Please reply w/ photos if you can per question, if not I'll do the best I can to follow your write up photo wise

[xHeart]

@ xHeart ....Outstanding write up. Where did you purchase/rent the delta link tool from ? After link is removed, what's the procedure on installing link ? Where did you mark anchorage to retain alignment ?

Please reply w/ photos if you can per question, if not I'll do the best I can to follow your write up photo wise

I will prepare the answers Baptise1106.
The tool is MVS rental service, more here https://www.matthewsvolvosite.com/mvs-tool-sharing-program -- email Matt at [email protected].

[jreed]

Gorgeous photos with great detail and good lighting! Thanks!

[cn90]

Holy Smoke,

I didn't realize xHeart is such a serious Saturday Mechanic haha!
Great photos...

I have not done this (rear dealta link bushing) yet because the 1998 S70 GLT car is now the kids car using for high school, so...I am slowly losing interest in the 1998 S70; but I just acquired a 2005 XC90 2.5T for the wife, so I am still in the Volvo game lol...

[cn90]

BTW,

Make sure you replace the rubber brake hose that sits on top of the delta link.
It is much much easier now that the delta links are dropped from the car.
Heat will help undo the connection.

[RussB]

Most-excellent write up. My passenger side bushing was busted just like yours...

Some of you may have noticed I just did did the delta links and bushings on my 850 too. It's a monster job. One delta link did not want to come out. and neither bushing was willing be removed. The Sawzall, Kroil, a BFH and much cursing was required!

BTW,

Make sure you replace the rubber brake hose that sits on top of the delta link.
It is much much easier now that the delta links are dropped from the car.
Heat will help undo the connection.

Good advice! If I may add...be sure to open the bleeders at the rear calipers when heating the joints, or else the rubber brake line will explode when the brake fluid in it boils...ask me how I know!

Also be prepared to replace lots of brake parts. Calipers if the bleeders are frozen shut, brake lines if rusted stuck. These cars are old, and for us in the "salted roads" areas there is much corrosion to deal with.

Here's what my old links looked like,

https://www.matthewsvolvosite.com/forums ... =1&t=64918

[RussB]

@ xHeart ....Outstanding write up. Where did you purchase/rent the delta link tool from ? After link is removed, what's the procedure on installing link ? Where did you mark anchorage to retain alignment ?

Please reply w/ photos if you can per question, if not I'll do the best I can to follow your write up photo wise

You need a 4 wheel alignment after all the work. I also have a puller 9995497. I used the puller as a pusher to install the link

[xHeart]

You need a 4 wheel alignment after all the work...

Thank you for sharing your work RussB.

I will add the write up for alignment mark.
Meanwhile, here is the alignment report from a local shop.
What do you guys think?

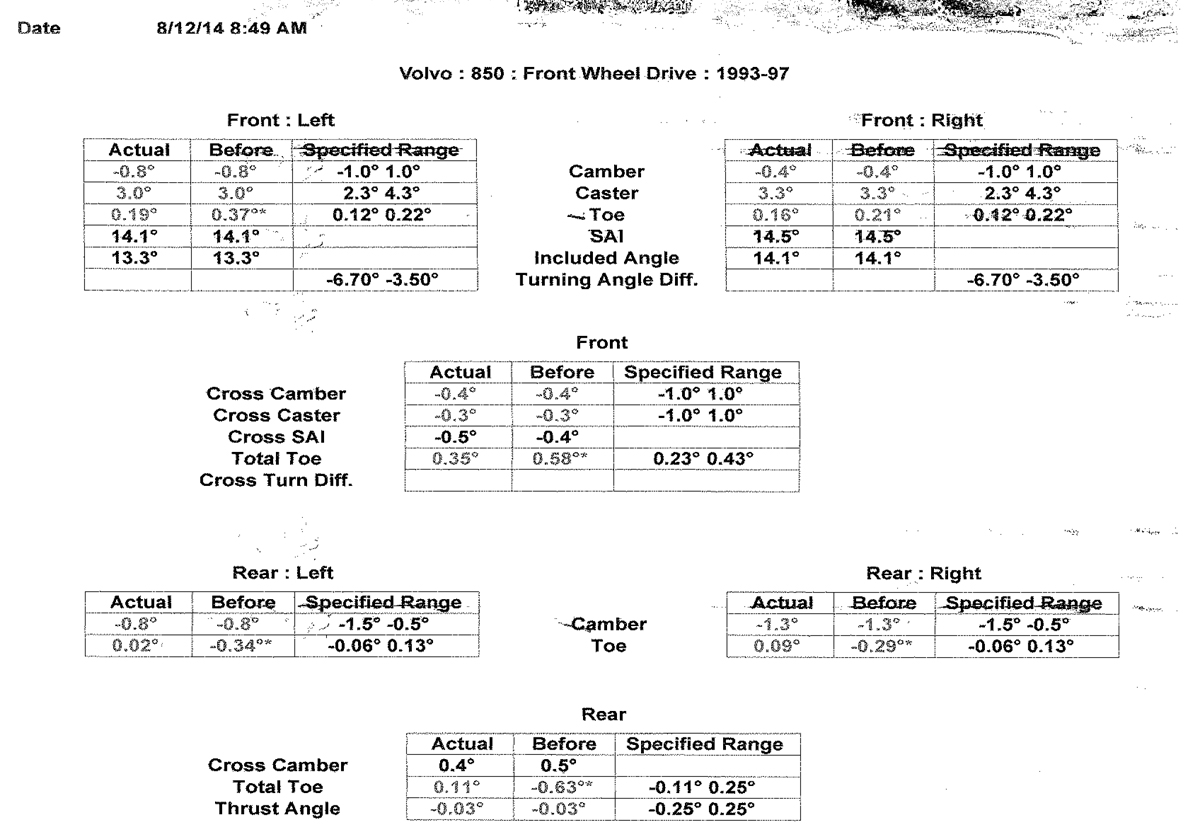

4-wheel alignment after rear delta and anchorage bushing replacement


[skloon]

Wow is that what it looked like, I was too busy under the car swearing and beating on the bolts into the transverse bushings to notice, had to resort to the sawzall great photos
