Volvo Repair Database Interior LED lights upgrade with pictures.

Post by Red-Arrow » Sat Dec 18, 2010 8:42 pm

Well guys the old tungsten bulbs give off a orange glow that is fine but makes the car feel dated when the modern cars come with the crisp white LED lighting.

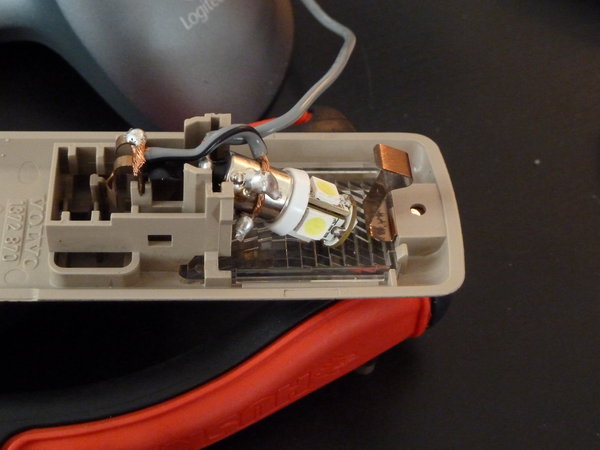

I decide to buy those SMD surface mount diode bulbs on Ebay. The problem was even though they are plug and play the SMD bulbs are polarity directions +- are fixed and they won't work in with -+. Guess what the Volvo's lighting is -+ dam it!

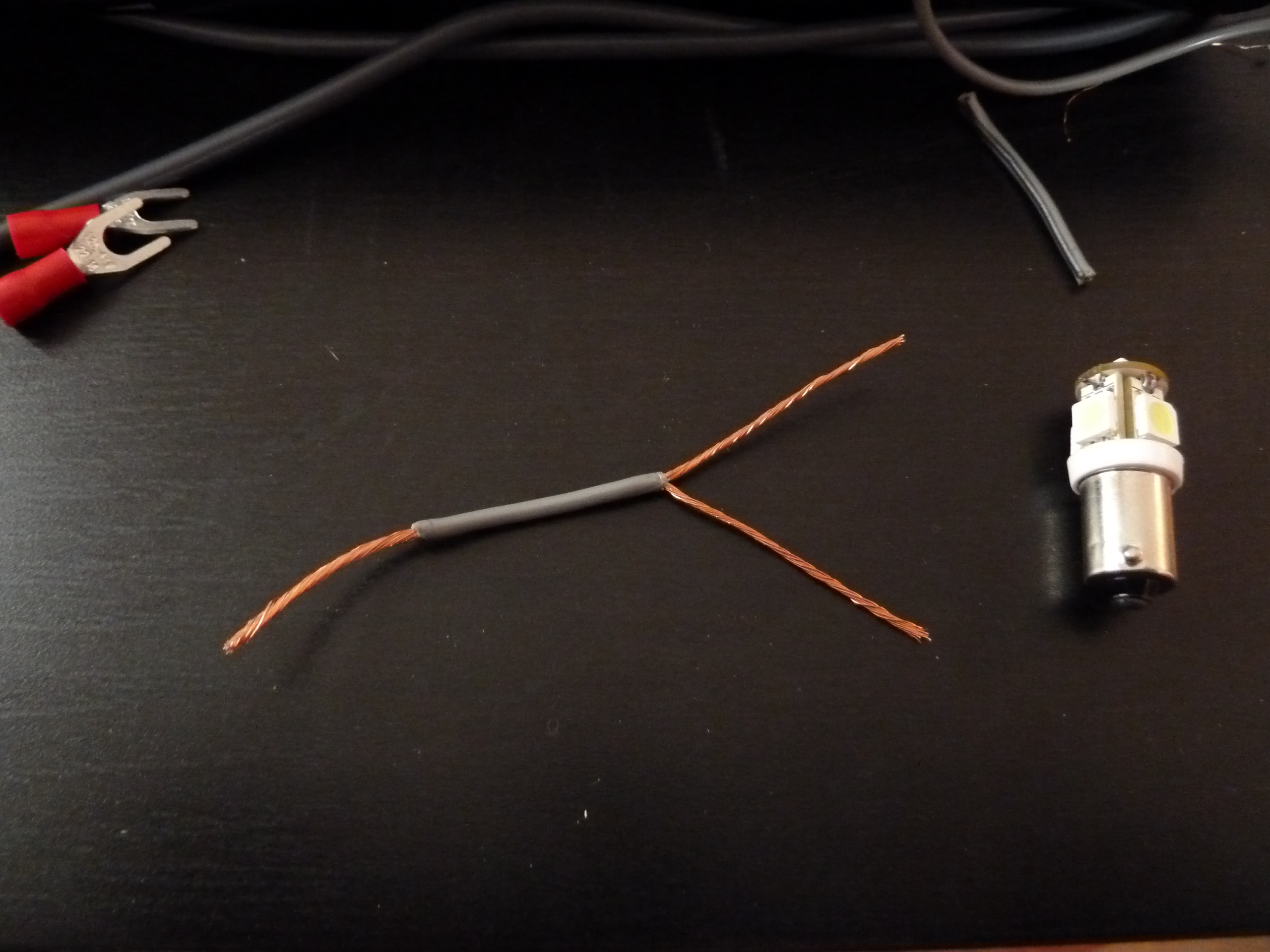

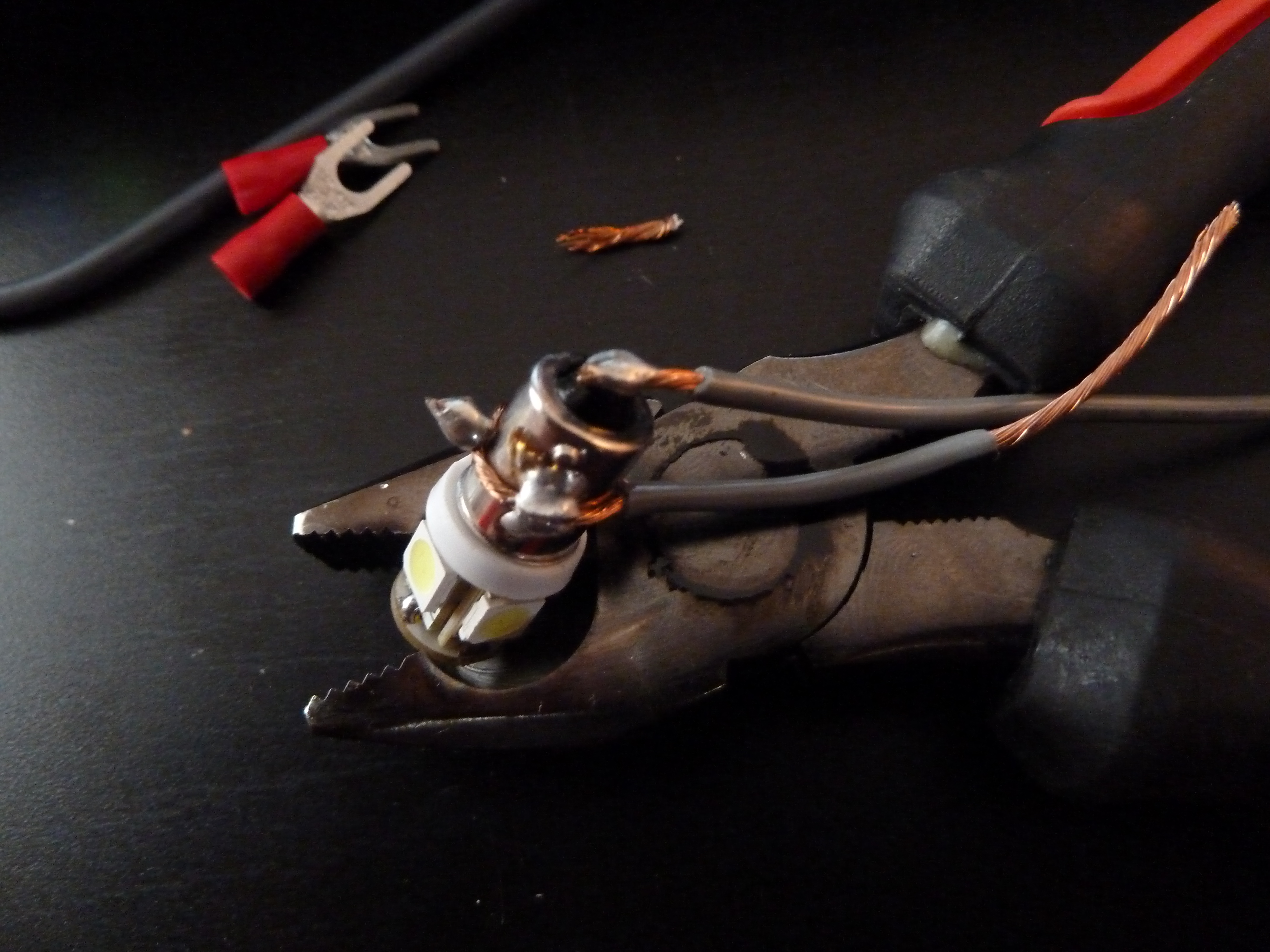

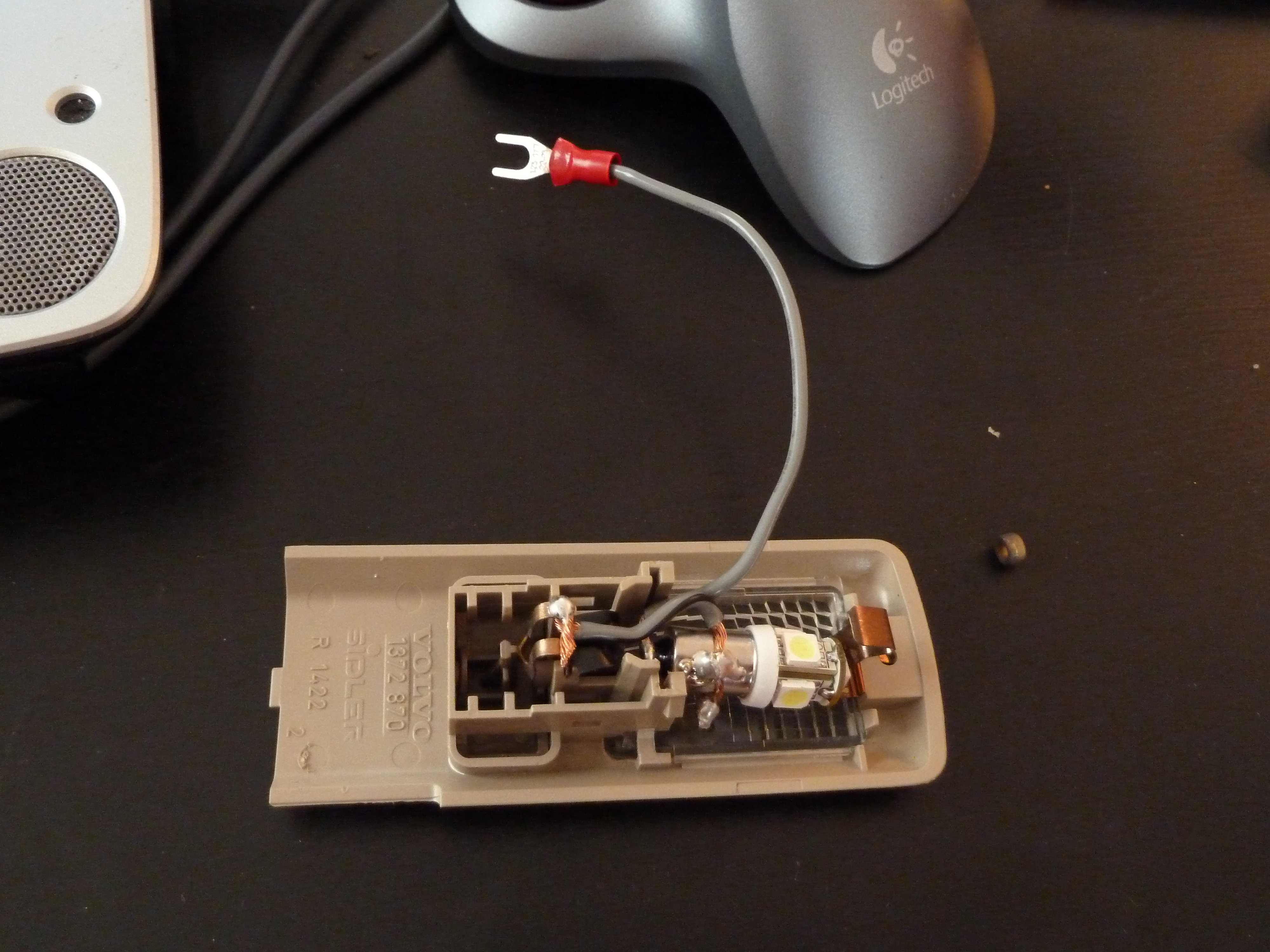

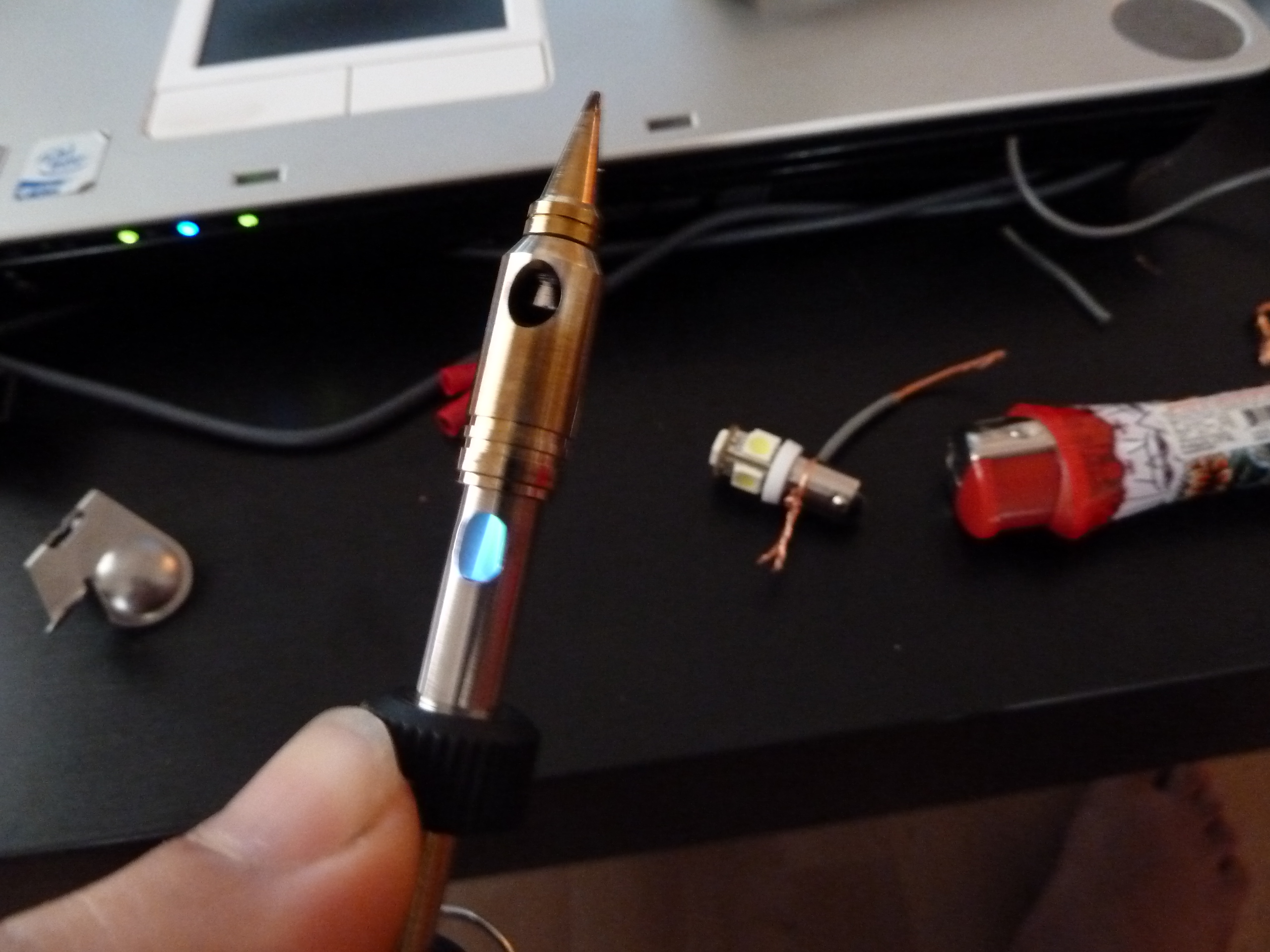

Well It required a rethink and I was going to remake the lamp holders but that was hassle. The simplest solution was to rewire the bulb by flipping the polarity using wires.

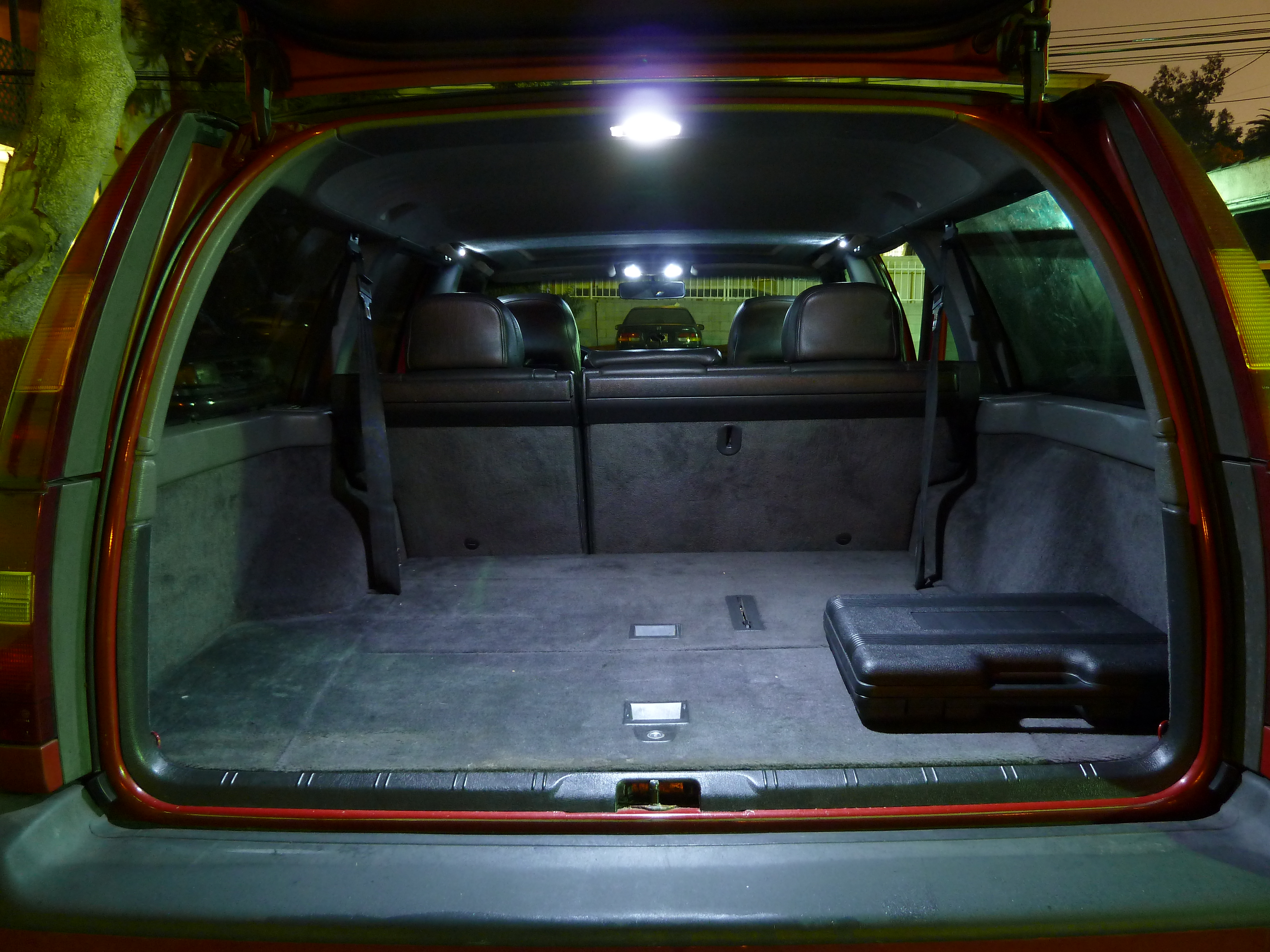

Its self explanatory really once you see the pictures below. The rear trunk SMD was a 16 unit festoon bulb that required no rewiring thankfully. 38mm in length.

These bulbs only cost $5 a pair for the smaller ones and the festoon one cost around $8. bargain! Since doing these mods I did the footwell lights as well and they look great as well.

Again mods of the pictures are out of order please do what you want here to reorder them.
Attachments
smd 1
smd 2
smd 3
smd 4
smd 5

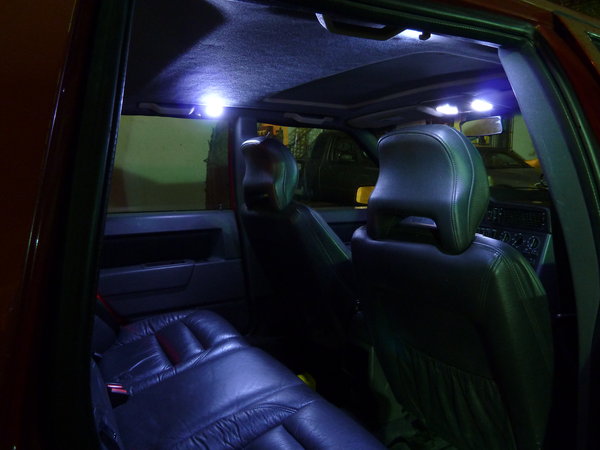

inside

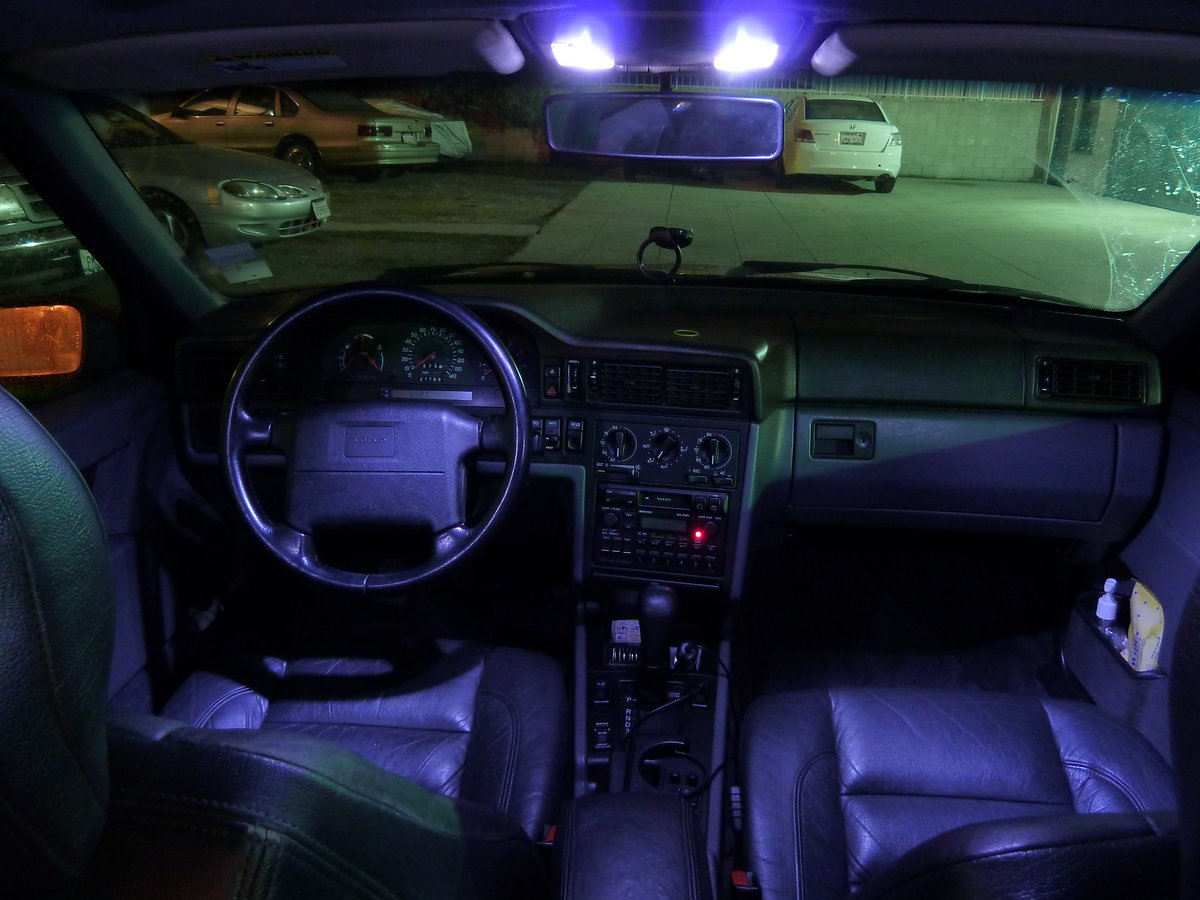

front
rear festoon bulb

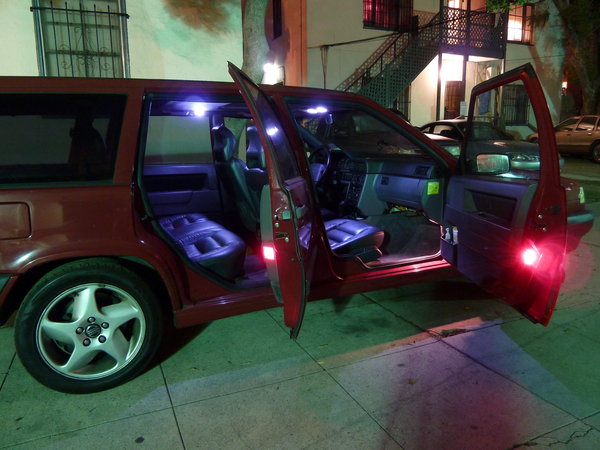

both doors

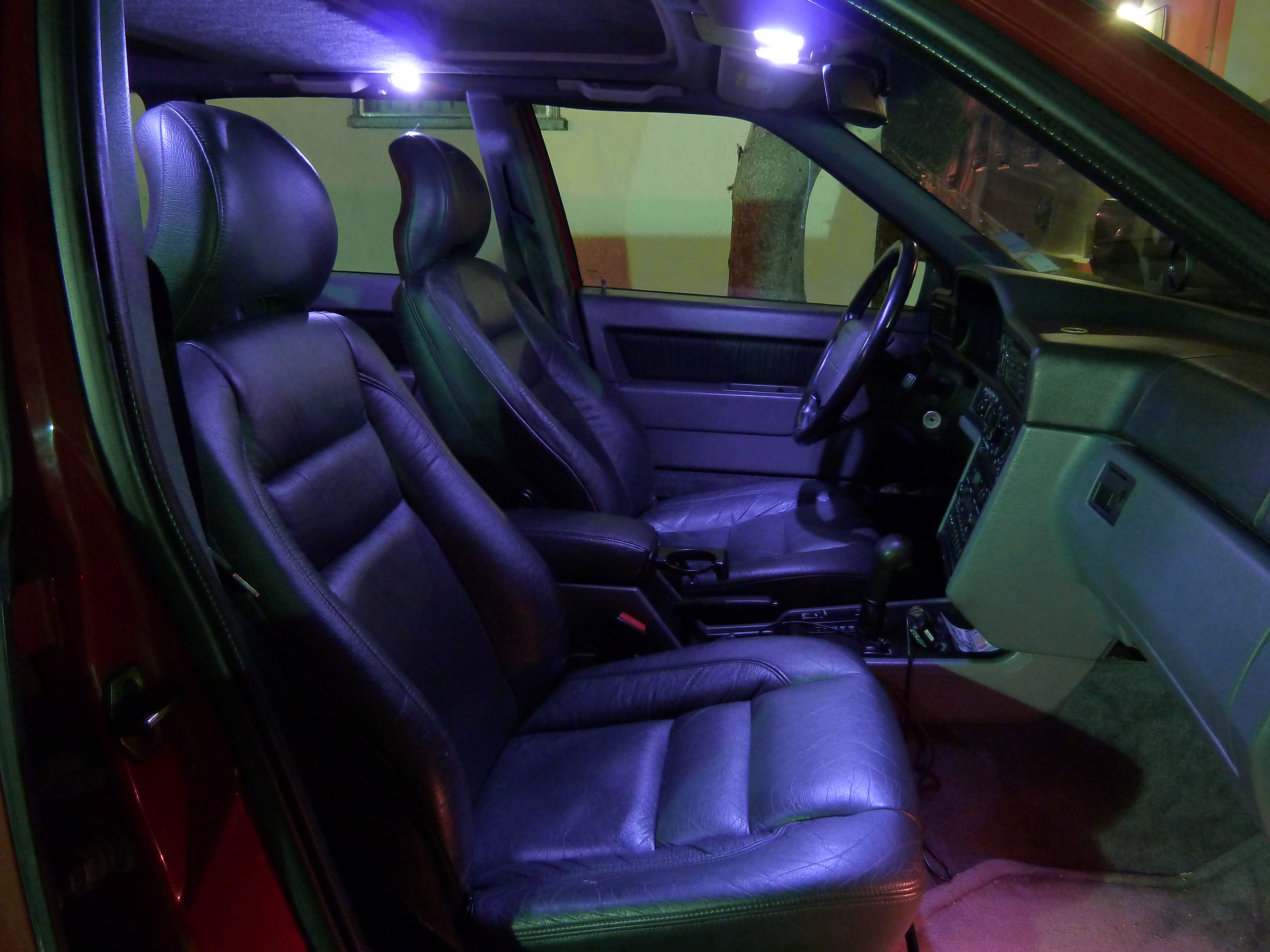

seats

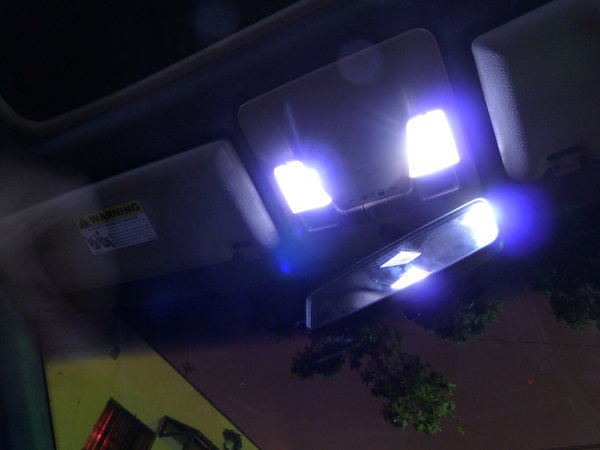

main lamps
