1999 V70T5M56 turbo oil line RR 9458504

Post by **abscate** » Sat Apr 13, 2019 12:54 pm

Prompted by leaks pictured here

viewtopic.php?f=1&t=81390

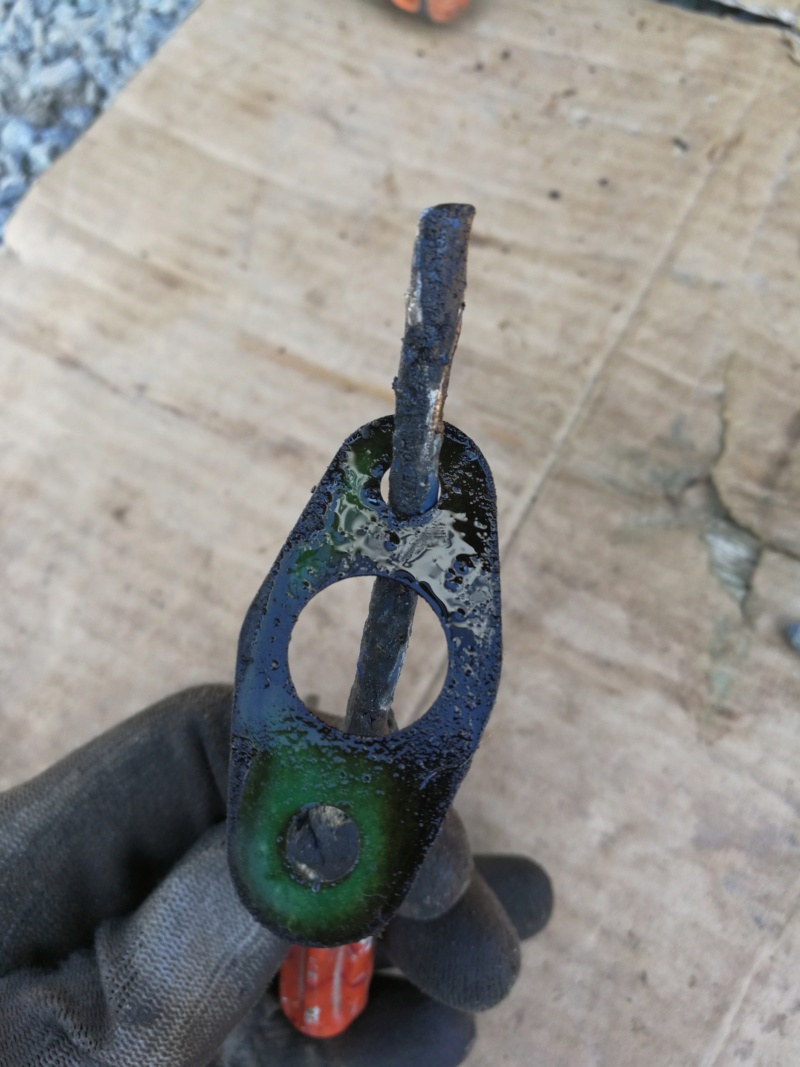

Replaced the turbo oil line, gasket. Clamp. And o-ring on the T5

Chassis break on the oil line, be careful ordering.

These parts hide under lubrication system , not turbocharger category in Volvo parts apps

Post by **abscate** » Sat Apr 13, 2019 1:44 pm

Tools and procedure

5 mm hex head M4 bolt hold flange of pipe to turbo
O-ring end into the crankcase is a hand press fit.
m6 ( 10mm socket) to release flange screw and nut on clamp which holds oil line and coolant line together
Vice grip to help release oil line

Turbo flange bolts released easily
Clamp bolts were very tough

To reinstall, put one bolt through gasket, raise pipe and tool together, hand thread onebolt. Use tang on gasket to set gasket into right place, insert other bolt

Torque on M4 ..I used 6 Nm as I couldn’t find a spec, so used a nominal M4 spec.

Post by **abscate** » Sat Apr 13, 2019 1:44 pm

Picture Gallery

YouTube · Post by **wizechatmgr** » Sun Apr 14, 2019 10:47 pm

Let me know if this cures your intermittent leak on the rear of the block please =)

Post by **abscate** » Mon Apr 15, 2019 2:31 am

Hope so!

One thing about the diagram above. There is a deceptive line between the oil supply line ( double banjo bolt fittings) and the return line (simple flange and flat gasket ) that implies the banjo somehow mates to the flange..it does not These two connections are independent

Redlined it for clarity

tardcart · Post by **tardcart** » Mon Apr 15, 2019 5:10 am

Do they let you drive on the beach there? extreme corrosion. Nice write up on an often out of sight out of mind but important maintenance. now the water line.

Goupil · Post by **Goupil** » Mon Apr 15, 2019 6:59 am

I replaced the gasket a few weeks ago on mine, easy job once the car is on ramps and it fixed one of my oil leaks

I'd recommend fixing it asap when it leaks, p.o drove mine with the leak for a year and since it drops on the driveshaft it covers the whole engine bay in oil

Post by **abscate** » Sat May 16, 2020 12:52 am

Well, power washed the underneath and have a hot run on Tuesday next week, so we will know if that has helped the wet engine back (right side) problem shortly....

Post by **abscate** » Fri Jan 29, 2021 5:00 am

Follow up

This completely fixed this

Those M4, 5 mm hex head bolts can be a pain to release. One of them is obstructed by the drain pipe and is best done with a long hex bit.

Alternatively, release the oil line clamps so that you can pivot the blocking drain tube away from the fastener path, first
