01 V70XC trans - splined sleeve out - big problem

Post by billybobo »

I am replacing the transfer case (angle gear) i pulled the old splined sleeve out. in the process of doing that i messed up and pushed against the inside (where the axle slides in) and pushed the "cup" "seal" (dont know what it is) into the trans. :oops:
from what i can see its just a cup that sits over the spline that the axle slides into and keeps the trans fluid in but i cant seem to find it on and exploded view or figure out how to fix it without taking the whole trans out.
Last edited by matthew1 on Tue Jul 09, 2013 8:47 pm, edited 1 time in total.
Reason: Clarified title. No "Help" in titles please. No "!!!!!!!!!!!" in titles please. Thank you.

xHeart
Posts: 2868
Joined: Sat Dec 03, 2011 8:05 am
Year and Model: 2.0/2.4/3.2
Location: Great Lakes - USA
Has thanked: 32 times
Been thanked: 56 times

Post by xHeart »

Would you take a picture and post here?
--
Golden Retriever | 2014D VIDA DiCE | 2020 V60CC | 2013A XC90 +150mi/241km | 2001 V70XC +200mi/322km
Past: German Shepherd | 1997 Volvo 854 | 1989 Volvo 740 GL | 1979 Volvo 240

User avatar
billybobo
Posts: 20
Joined: Tue Jul 09, 2013 6:42 pm
Year and Model: 2001 V70XC
Location: new jersey

Post by billybobo »

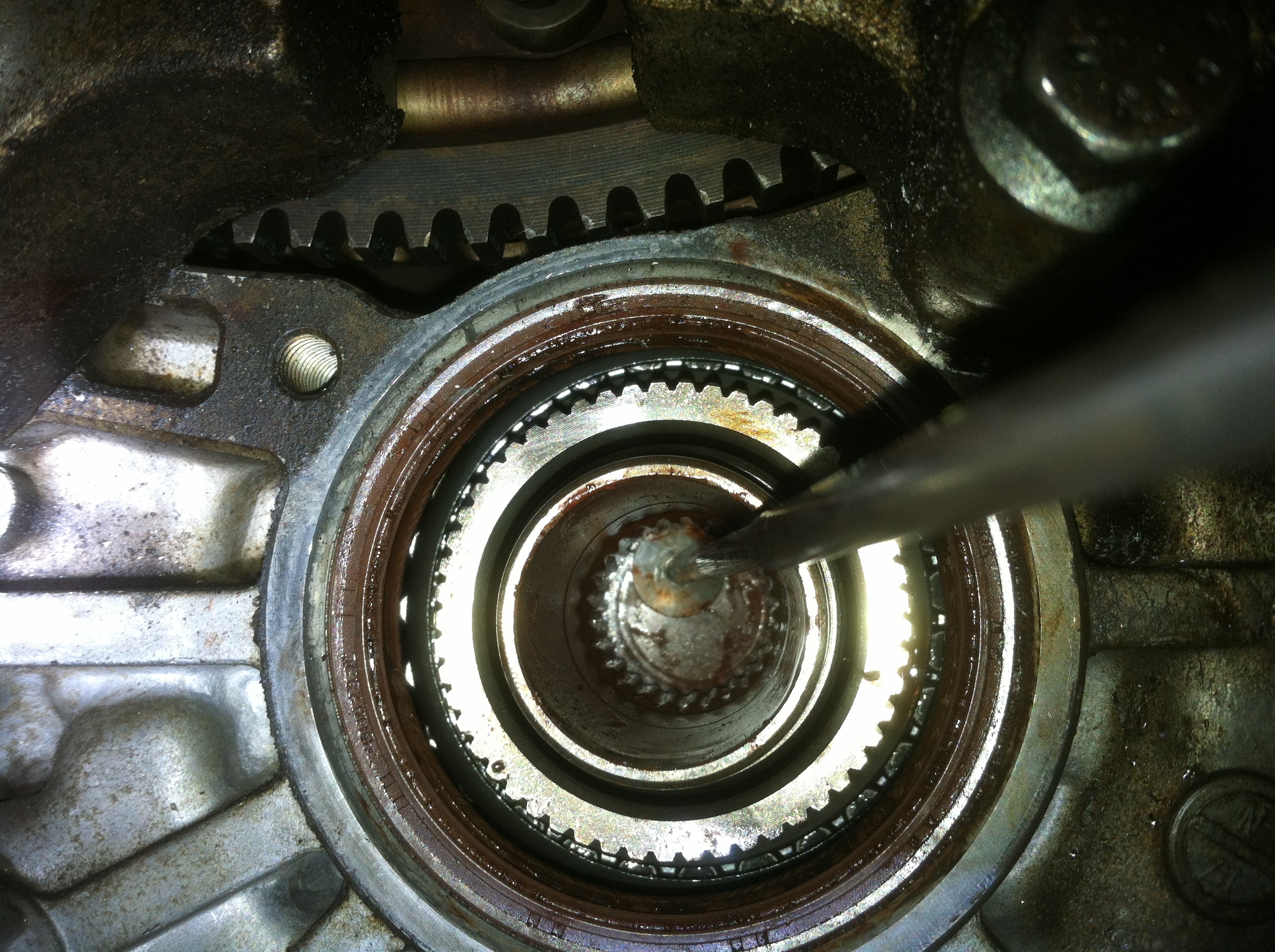

the "cup" in question is attached to the end of the magnet in the pic. the splined sleeve for the angle gear isnt in yet. I took the driver side axle out and there is the same "cup" on that side also.
Attachments
trans photo
trans photo

xHeart
Posts: 2868
Joined: Sat Dec 03, 2011 8:05 am
Year and Model: 2.0/2.4/3.2
Location: Great Lakes - USA
Has thanked: 32 times
Been thanked: 56 times

Post by xHeart »

If it can go in, it would come out the same way.
Use two telescope magnet like a chopstick to help it travel outward few mm at at time.
--
Golden Retriever | 2014D VIDA DiCE | 2020 V60CC | 2013A XC90 +150mi/241km | 2001 V70XC +200mi/322km
Past: German Shepherd | 1997 Volvo 854 | 1989 Volvo 740 GL | 1979 Volvo 240

User avatar
billybobo
Posts: 20
Joined: Tue Jul 09, 2013 6:42 pm
Year and Model: 2001 V70XC
Location: new jersey

Post by billybobo »

The problem isn't getting it out. It's getting it back on the shaft. It doesn't go in the shaft. It goes around the outside of the shaft in the trans.

JDS60R
MVS Moderator
Posts: 3531
Joined: Sat Feb 21, 2009 7:52 pm
Year and Model: 2007 S60R 2007 S60
Location: Mount Juliet, TN
Been thanked: 1 time

Post by JDS60R »

I'm having such a hard time finding this part for you. If you can take it out and take a picture it will help me help you. Anything to show it from angles and where it goes will help.

The picture on post right now makes it look like a beer bottle cap . If you could take it out and place it on or near the shaft it goes on it might make more sense.
Masterworks Complete Auto Services
Volvo Spoken Here !!!
100 Park Circle
Old Hickory, TN 37138

xHeart
Posts: 2868
Joined: Sat Dec 03, 2011 8:05 am
Year and Model: 2.0/2.4/3.2
Location: Great Lakes - USA
Has thanked: 32 times
Been thanked: 56 times

Post by xHeart »

JDS60R wrote:I'm having such a hard time finding this part for you. If you can take it out and take a picture it will help me help you. Anything to show it from angles and where it goes will help.

The picture on post right now makes it look like a beer bottle cap . If you could take it out and place it on or near the shaft it goes on it might make more sense.
+1
--
Golden Retriever | 2014D VIDA DiCE | 2020 V60CC | 2013A XC90 +150mi/241km | 2001 V70XC +200mi/322km
Past: German Shepherd | 1997 Volvo 854 | 1989 Volvo 740 GL | 1979 Volvo 240

User avatar
billybobo
Posts: 20
Joined: Tue Jul 09, 2013 6:42 pm
Year and Model: 2001 V70XC
Location: new jersey

Post by billybobo »

That's the problem...it won't come out. It is IN the trans. Ive talked to 3 different Volvo dealerships and even had them send me exploded views but this cap isn't in any pictures or even listed. I tryed the magnet idea and it went only a 1/2mm or so and won't stay on the shaft. It doesn't fit in the splined sleeve that the axle slides into it fits over it. It "caps" axle sleeve on the inside. At this point the only option I can see is to take the trans out and open it up and tap that cap on unless someone else can steer me in a different direction.
The beer bottle look you are talking about is the spines were the axle sits. The outer spine is where the angle gear sleeve fits.

JDS60R
MVS Moderator
Posts: 3531
Joined: Sat Feb 21, 2009 7:52 pm
Year and Model: 2007 S60R 2007 S60
Location: Mount Juliet, TN
Been thanked: 1 time

Post by JDS60R »

If its the part that the magnet is touching it looks like metal to me. If you have a welder you could use a rod and spot weld it to the piece and pull it out. Technically you could jb weld a piece of rod to it as well.

Also try long needle nose pliers or a hemostat.
Masterworks Complete Auto Services
Volvo Spoken Here !!!
100 Park Circle
Old Hickory, TN 37138

JDS60R
MVS Moderator
Posts: 3531
Joined: Sat Feb 21, 2009 7:52 pm
Year and Model: 2007 S60R 2007 S60
Location: Mount Juliet, TN
Been thanked: 1 time

Post by JDS60R »

AH haaa- I blew up the picture. I can see a flat metal piece below the teeth.
Is it connected to the teeth in any way?
Masterworks Complete Auto Services
Volvo Spoken Here !!!
100 Park Circle
Old Hickory, TN 37138
