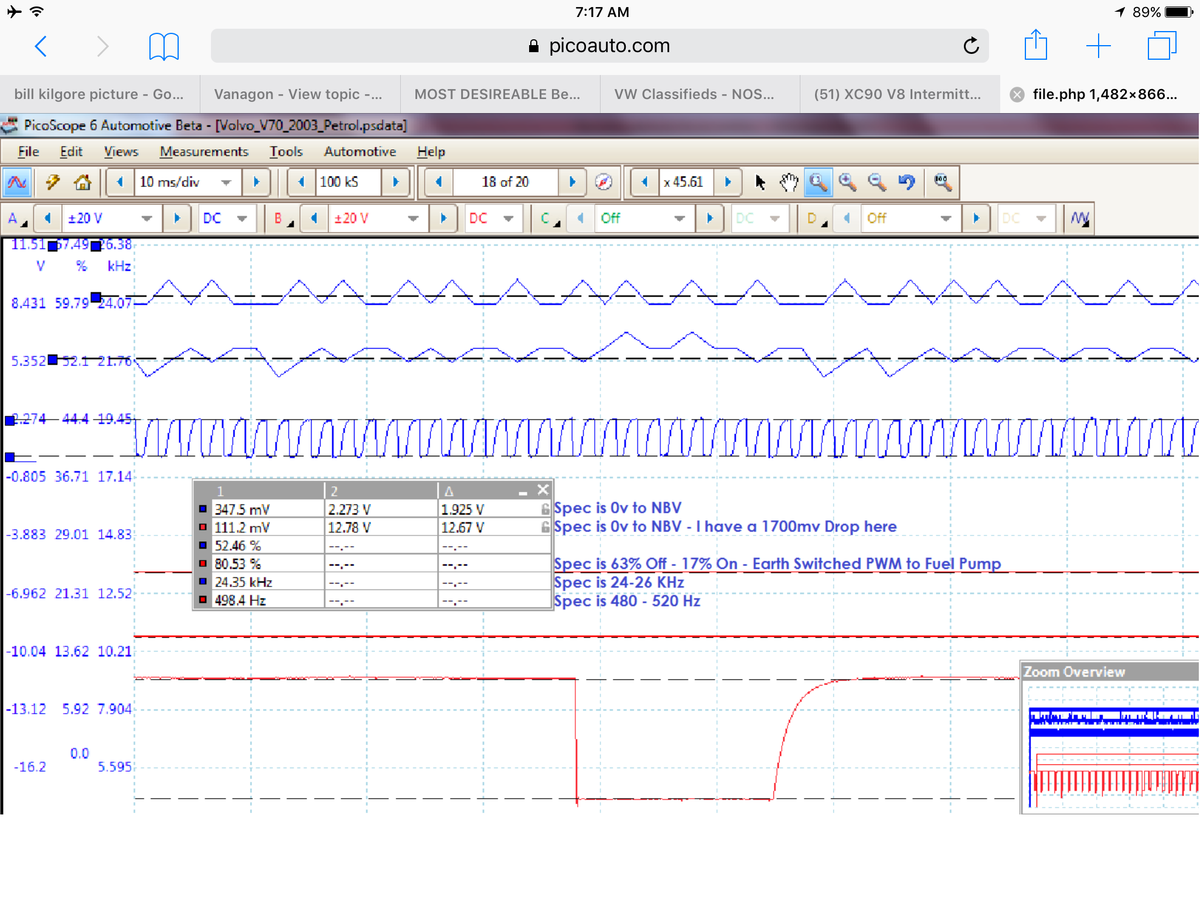

P2 link to ECU PEM 8634953 control waveforms for fuel delivery troubleshooting
-
abscate
- MVS Moderator
- Posts: 36138
- Joined: 17 Feb 2013, 17:54
- Year and Model: 99: V70s S70s,05 V70
- Location: Port Jefferson Long Island NY
- Has thanked: 1609 times
- Been thanked: 4064 times
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
-
mrbrian200
- Posts: 1554
- Joined: 20 Jan 2016, 08:47
- Year and Model: 2006 S60 2.5T FWD
- Location: Northern Indiana/Chicago
- Has thanked: 7 times
- Been thanked: 84 times
That's awesome. I've always been somewhat perplexed why the PEM wasn't designed to communicate over CAN to monitor ECU duty cycle input and pump PWM control /supply voltages and report basic faults. When you open the thing up the board certainly appears to be far more complex than what, quite frankly, need merely be a relatively simple solid state PWM current signal relay. I find it interesting that Bosch/Ford/Volvo designed this critical system so that proper diagnostics in every single case requires aftermarket tools as the DICE units don't have external probe/scope functions.
-
