Vacuum Elbow/Lines Question

Post by rmmagow » Tue Mar 13, 2012 11:26 am

98 V70 AWD LPT
Back where the turbo lurks there's a thing that looks like a small covered can (what's the name of this thing). There's a purple hard vacuum line connected to it with a rubber elbow. I think the elbow is starting to crumble on my car. A couple of questions:

1. Is this elbow in anyway related to boost control, P0243 CEL once in a while.

2. I would like to replace this elbow with a silicon replacement. At IPD I see elbow kits, blue silicone. Do any of those kits have what I need?

I would like to do a comprehensive vac line replacement using the brightly colored silicon lines as long as these perform better than the regular rubber ones. Are there kits available for doing essentially the whole engine compartment?

Being an AWD will I be able to find hoses/elbows in back, EVAP related lines?

Thanks Much


1998 V70 AWD 228K - Daily Driver
1985 Mercedes Benz 300D - 197K Off Road For Now Brakes Failed
1998 S70 135K - FOR SALE
2003 GMC Sonoma - 114K - POS
1958 Mercedes Benz 220S 66K Original and never to be restored.
2006 Saturn ION 5-Speed - 150K Son's weird little easy to fix car

jblackburn
MVS Moderator
Posts: 14049
Joined: Sun Jun 08, 2008 3:54 pm
Year and Model: 1998 S70 T5
Location: Alexandria, VA
Has thanked: 8 times
Been thanked: 6 times
United States of America
jblackburn

Re: Vacuum Elbow/Lines Question

Post by jblackburn » Tue Mar 13, 2012 11:30 am

That's the air pump valve. Just get some vacuum hose (silicone or not, doesn't matter) and replace the whole length up to the radiator SAS valve.

Boost control, no. Not related to this, but may be related to the vacuum lines coming off the turbocharger.

I don't see any point in the silicone hose. The vacuum lines have lasted 13 years at this point; are you going to have that car in another 13 years? Just regular rubber hoses will do you fine, unless you really do just want the colored hoses.


'98 S70 T5
2016 Chevy Cruze Premier


A learning experience is one of those things that says, "You know that thing you just did? Don't do that."

mercuic: Long live the tractor motor!

rmmagow
Posts: 2024
Joined: Sat Mar 11, 2006 7:29 pm
Year and Model: V70 1998
Location: Rhode Island USA
Has thanked: 0
Been thanked: 0
rmmagow

Re: Vacuum Elbow/Lines Question

Post by rmmagow » Tue Mar 13, 2012 11:41 am

Actually, I was thinking of colored simply so I know what I replaced. I anticipate a lot of rubber line related problems even though I can tell some are new. Hate to say it, if it keeps running, I'll still have it in 13 years. I have an old Mazda 929 that I've been driving for 20+, not to mention an old MB diesel at 26 years and another old MB at 55 yrs. Hell, the Volvo's the baby :-)


1998 V70 AWD 228K - Daily Driver
1985 Mercedes Benz 300D - 197K Off Road For Now Brakes Failed
1998 S70 135K - FOR SALE
2003 GMC Sonoma - 114K - POS
1958 Mercedes Benz 220S 66K Original and never to be restored.
2006 Saturn ION 5-Speed - 150K Son's weird little easy to fix car

User avatar
matthew1
Site Admin
Posts: 9992
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 411 times
Been thanked: 155 times
United States of America
matthew1

Re: Vacuum Elbow/Lines Question

Post by matthew1 » Tue Mar 13, 2012 12:08 pm

That Mazda 929 have the solar-powered ventilation system when the car's sitting? If so, does it still work?

Anyway, I've been getting tired of Volvo's dainty vac hoses and elbows. I've been replacing lines lately with heavy duty Gates vac line, about $1.40/foot if I recall. Re-routing if necessary to bypass the fragile OEM setup, like the one that goes from the PTC nipple to the Super Evil™ passenger side (North America) manifold nipple. The one that throws a P0172 if it's not on.

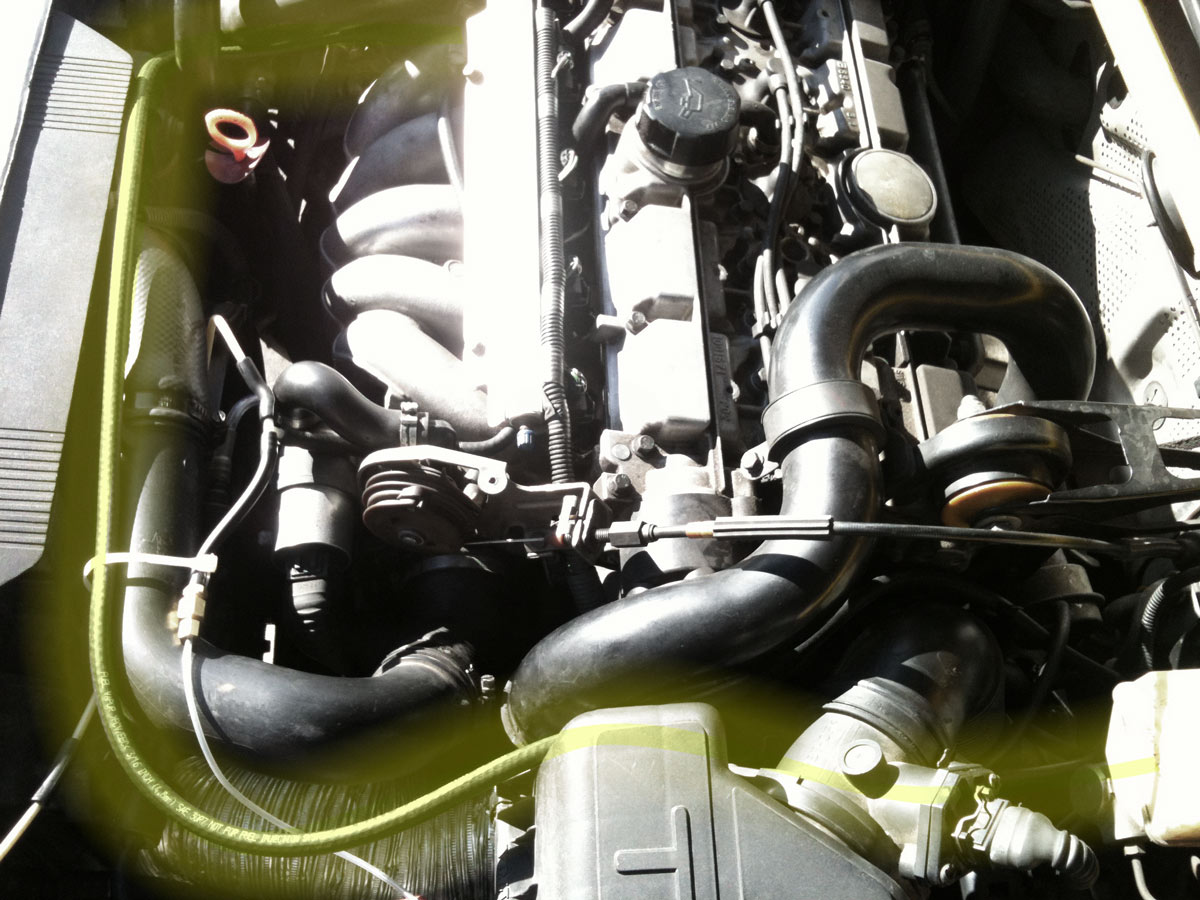

The factory routing is under the intake manifold. Pretty, but not functional. Mine's functional, but not pretty. See below.

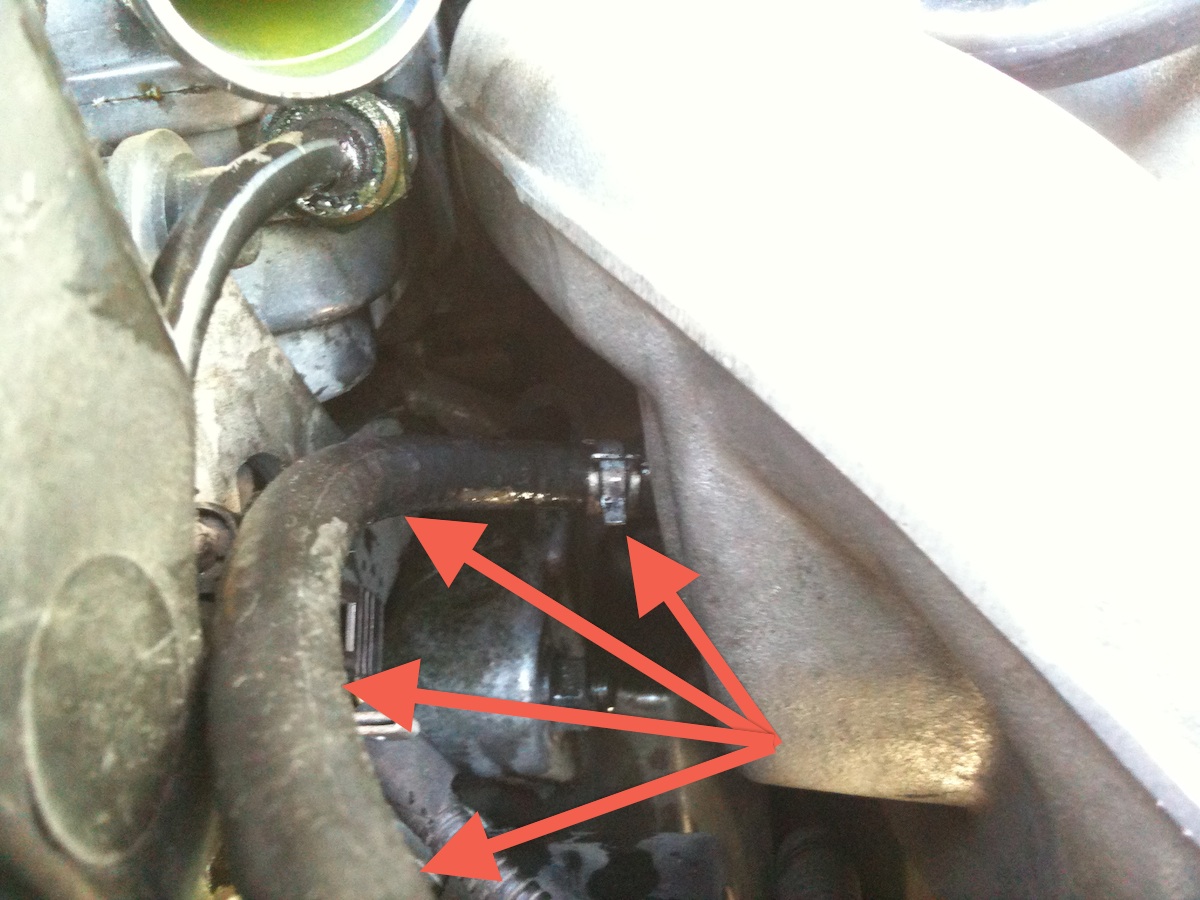

No elbows needed so far, just nipple-hose-nipple, but I have a set of fresh replacement elbows I got from one of my sponsors just in case.
You do not have the required permissions to view the files attached to this post.


Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a kickback.

1997 850 T5, MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace [gone]
2004 V70 R [gone]

User avatar
erikv11
Posts: 9287
Joined: Sat Jul 25, 2009 2:03 pm
Year and Model: 850, S/V70, 06 S60R
Location: Iowa
Has thanked: 65 times
Been thanked: 216 times
United States of America
erikv11

Re: Vacuum Elbow/Lines Question

Post by erikv11 » Wed Mar 14, 2012 8:33 pm

I like this fix. Nice one!


'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 140k
'98 S70 NA, 210k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 280k
'06 S60 R, 160k
gone: '96 NA 850 210k, '98 NA V70 182k

User avatar
matthew1
Site Admin
Posts: 9992
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 411 times
Been thanked: 155 times
United States of America
matthew1

Re: Vacuum Elbow/Lines Question

Post by matthew1 » Wed Mar 14, 2012 10:19 pm

Thanks. Fewer failure points = win.


Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a kickback.

1997 850 T5, MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace [gone]
2004 V70 R [gone]

User avatar
pkc303
Posts: 584
Joined: Thu Apr 30, 2009 5:32 pm
Year and Model: 1995 T-5R Yellow
Location: Houston, Texas
Has thanked: 0
Been thanked: 0
United States of America
pkc303

Re: Vacuum Elbow/Lines Question

Post by pkc303 » Thu Mar 15, 2012 8:46 pm

Good idea Matthew. I think I'll do the same when the time comes. Is the i.d. the same as the original hose, and just have a thicker outer layer, or is the hose actually larger?


1995 Volvo 850 T-5R Yellow
1997 Volvo 850R (sold)
2003 Volvo V70 2.4T, K&N air filter, (sold)
1996 Volvo 940 (sold)
1992 Volvo 740 Turbo (sold)
1990 Volvo 240 Wagon (sold)
1987 Volvo 240 Wagon (sold)
1982 Volvo DL (sold)

User avatar
matthew1
Site Admin
Posts: 9992
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 411 times
Been thanked: 155 times
United States of America
matthew1

Re: Vacuum Elbow/Lines Question

Post by matthew1 » Thu Mar 15, 2012 10:57 pm

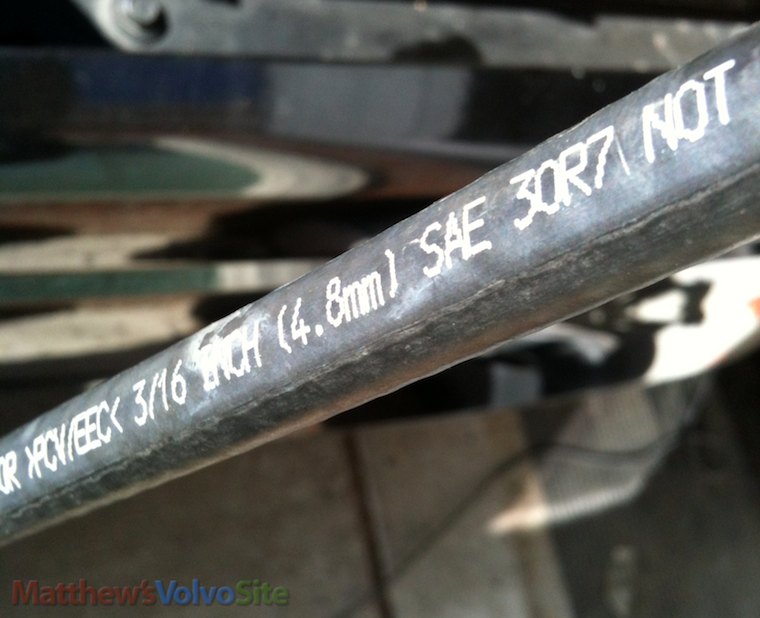

Inner is the same* -- 3/16ths inch I believe. And yes, outer is thicker than other vac hose I've seen. I'll see if I can dig up a closeup of the branding on the hose itself.
