Dim not responding 2005 V70 2.4 NA

Help, Advice, Owners' Discussion and DIY Tutorials on Volvo's stylish, distinctive P2 platform cars sold as model years 2001-2007 (North American market year designations).

2001 - 2007 V70
2001 - 2004 V70 XC (Cross Country)
2004 - 2007 XC70 (Cross Country)
2001 - 2009 S60
2003 - 2007 S60 R
2004 - 2007 V70 R
Post Reply
Rvolvos
Posts: 213
Joined: 1 April 2018
Year and Model: 2006 xc70
Location: Nevada
Has thanked: 73 times
Been thanked: 23 times

Re: Dim not responding 2005 V70 2.4 NA

Post by Rvolvos »

Speedo/ tach are working , dim display is working. 😀

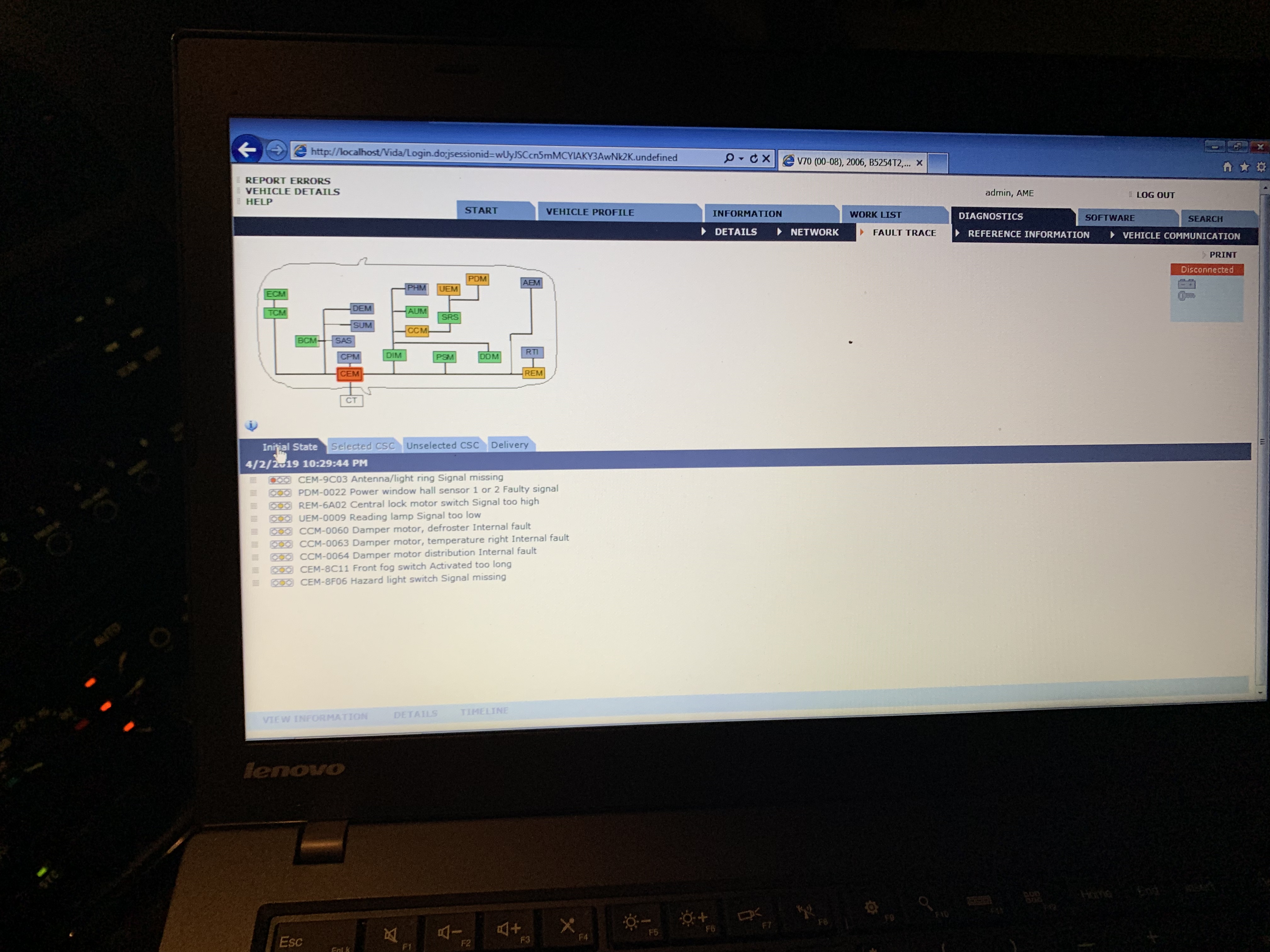

I cannot reset the service reminder and the dim does not respond in VIDA. Showing red in network tab and cannot be accessed. First picture in the post.
Thanks for all the suggestions, will connect to Vida tonight and report back.

Milage 141k

No service history and replacement of cem or dim
2006 XC70 2.5T 238k


2012 S60T6 95k rip
2011 C30 T5 M66 105k Totalled RIP
2006 V70 2.5T 184k RIP
2011 C30 T5 AW55-50SN 99k sold
Top
Rvolvos
Posts: 213
Joined: 1 April 2018
Year and Model: 2006 xc70
Location: Nevada
Has thanked: 73 times
Been thanked: 23 times

Post by Rvolvos »

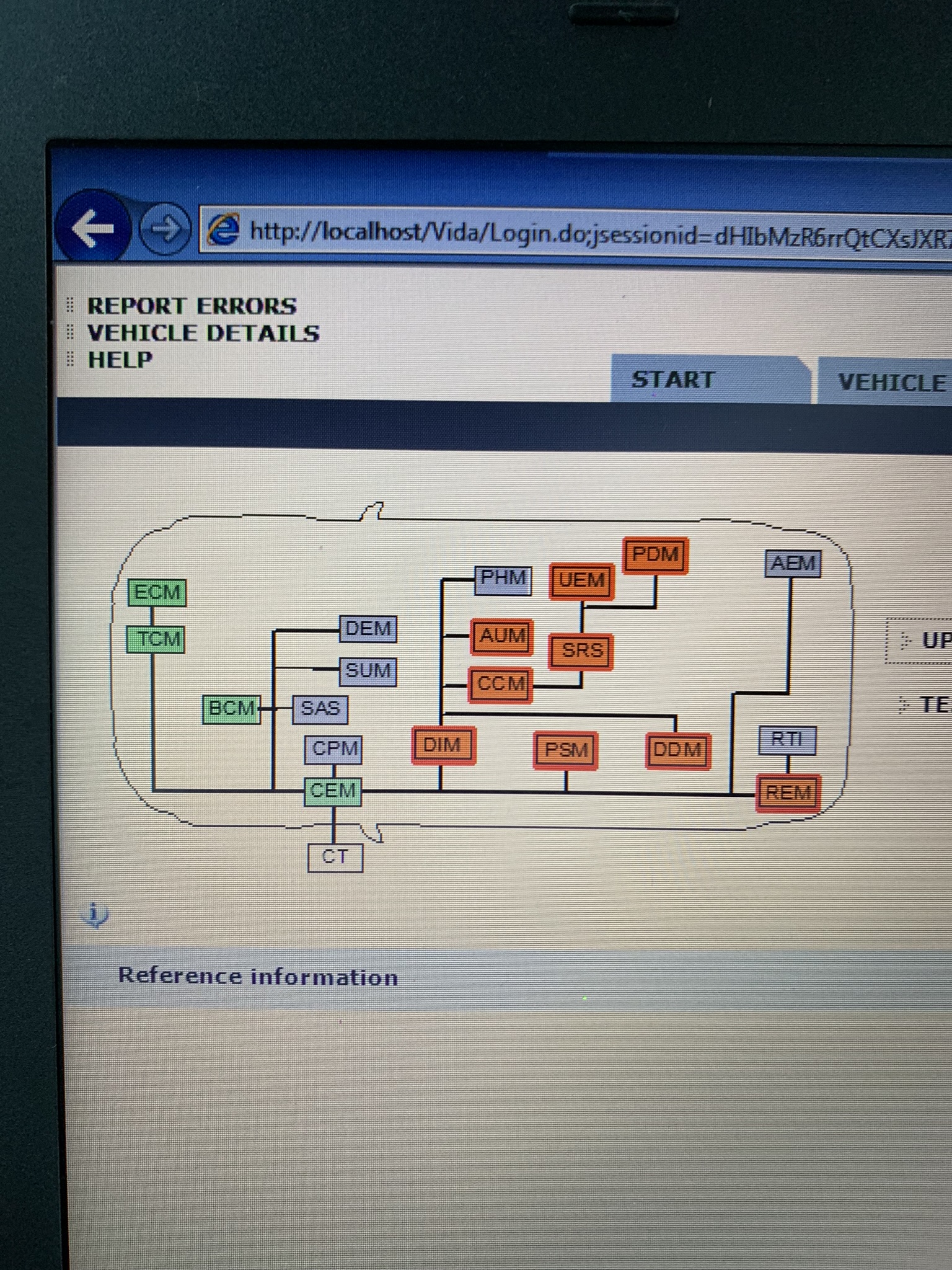

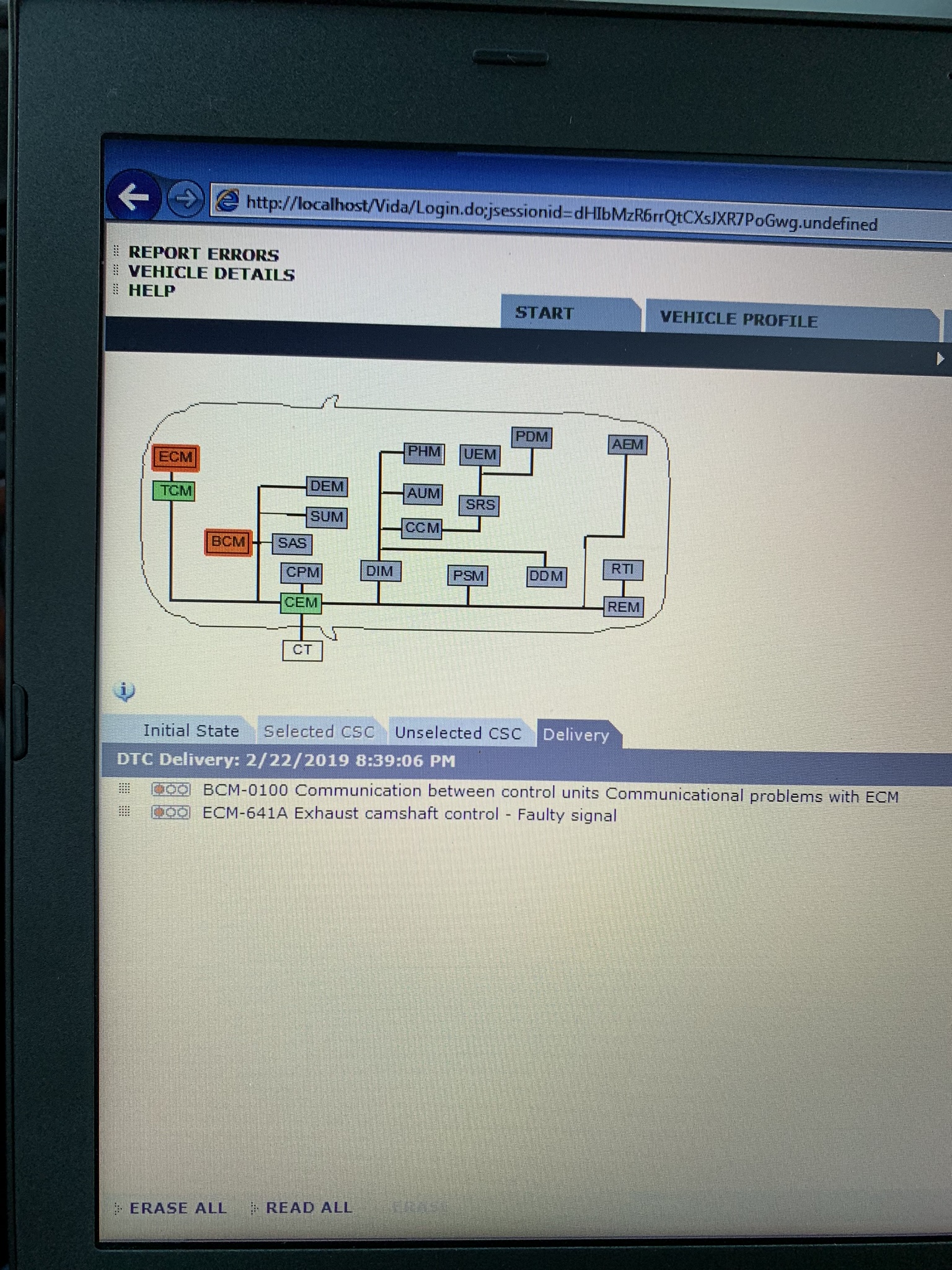

Checked the DTC with VIDA; one more code showed up BCM-0100. This appeared after driving 50 miles. I have attached both screen shots and DIM still not responding.
I went through the maintenance records and learned that the BCM has been replaced. PO stated that ABS light was on.
While I was driving to monitor transmission oil temperature and topping of the transmission, I was able to reset the service minder with VIDA! Problem solved for now.
Attachments
2006 XC70 2.5T 238k


2012 S60T6 95k rip
2011 C30 T5 M66 105k Totalled RIP
2006 V70 2.5T 184k RIP
2011 C30 T5 AW55-50SN 99k sold
Top
User avatar
RickHaleParker
Posts: 7129
Joined: 25 May 2015
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 958 times

Post by RickHaleParker »

With as many communication problems as you got. I would pull the CEM, clean and check the connectors. Look for Damaged CAN bus cables as you go.
⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.
Top
precopster
Posts: 7543
Joined: 21 August 2010
Year and Model: Lots
Location: Melbourne Australia
Has thanked: 8 times
Been thanked: 128 times

Post by precopster »

I don't think I've ever seen so many modules off the Network yet so few fault codes.

This IS an odd one. Canbus is the biggest suspect here. It wouldn't hurt to use a test lamp of at least 20W (don't use a multimeter as this doesn't draw enough current) to check for voltage at fuses.
Current cars VW Transporter 2.5TDI, 2010 XC90 D5 R Design
Top
Rvolvos
Posts: 213
Joined: 1 April 2018
Year and Model: 2006 xc70
Location: Nevada
Has thanked: 73 times
Been thanked: 23 times

Post by Rvolvos »

Thanks much for all the advice.
I am a bit overwhelmed with all the work needed to be done to the car We have just moved and have to divide my attention.

I was able to work on it last Sunday. Cleaned the battery post and removed ecm and tcm and cleaned the contacts. They looked ok, no visable corrosion. Removed the air let tube to be able to monitor if the thermostat is working, per advise.

Hooked up Vida and put it in shift indicator mode and went for a test ride.
After I stopped to check the transmission fluid level I drove off and it went into limp mode. Restarted the car and transmission service light and check engine light came on. I was able to clear the codes and did another reset adaption.
Drove home and when home Vida did no longer connect with the car.

I was able to verify that it is harsh shifting from 3-2 and slightly from 2-3 but that’s another topic.

Still have the same dtc’s and will report back when I have chance to pull the ecm and test power at the fuses. In the meantime I continue to work on the tune up and transmission drain and fill or flush. I continue to use it as my daily driver until it is safe and reliable for my son to drive.
Thanks for all the advice.
2006 XC70 2.5T 238k


2012 S60T6 95k rip
2011 C30 T5 M66 105k Totalled RIP
2006 V70 2.5T 184k RIP
2011 C30 T5 AW55-50SN 99k sold
Top
Rvolvos
Posts: 213
Joined: 1 April 2018
Year and Model: 2006 xc70
Location: Nevada
Has thanked: 73 times
Been thanked: 23 times

Post by Rvolvos »

Last Saturday I was able to test power at the fuse locations of the CEM. I have used a test light and replaced the bulb with a 5W festoon type bulb.

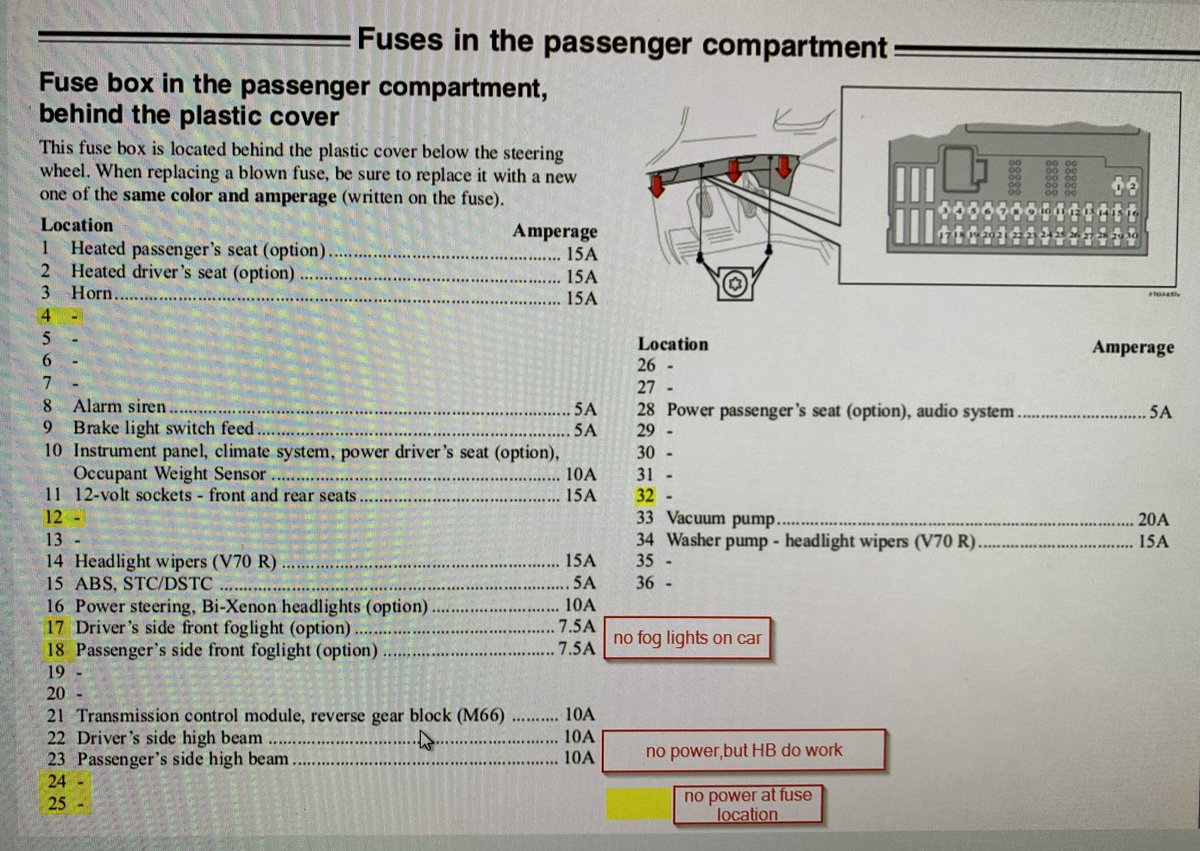

Almost all fuses do get power. I have attached a marked-up picture of the fuse box layout. This matches with my expectations, all the modules are in working order. Expect for the vacuum pump. Fuse was burned and pump shorted, just makes a clicking sound when hooked up to 12V.
One observation which I have double checked on both V70’s when connecting Vida/dice I do not get any longer a voltage reading/ disconnect. Please refer to the first picture. Dice tests OK.
Attachments
2006 XC70 2.5T 238k


2012 S60T6 95k rip
2011 C30 T5 M66 105k Totalled RIP
2006 V70 2.5T 184k RIP
2011 C30 T5 AW55-50SN 99k sold
Top
Rvolvos
Posts: 213
Joined: 1 April 2018
Year and Model: 2006 xc70
Location: Nevada
Has thanked: 73 times
Been thanked: 23 times

Post by Rvolvos »

Just an update; after replacing the front brakes, replacing the pcv system, vacuum pump, vacuum switch, blower motor resistor, engine oil and another drain and fill of the transmission with half a bottle of transtune. The car is running ok. So far we have put on 2100 miles on car.
Checked the DTC’s yesterday and none found and all modules are online.👍

VVT is working again it was hesitating at 3000rpm and would reluctantly rev up. The synthetic oil cleans out the engine pretty good and solved the associated DTC’s.
Transmission shifts much better if needed I will replacing the shift solenoids in the future.

Does anyone know the TBS for sealing the CEM? I would like prevent water egress.
2006 XC70 2.5T 238k


2012 S60T6 95k rip
2011 C30 T5 M66 105k Totalled RIP
2006 V70 2.5T 184k RIP
2011 C30 T5 AW55-50SN 99k sold
Top
User avatar
oragex
Posts: 5347
Joined: 24 May 2013
Year and Model: S60 2003
Location: Canada
Has thanked: 102 times
Been thanked: 352 times
Contact:
Contact oragex
..

Post by oragex »

May as well check the connector behind the DIM

For the CEM, if I'm not wrong, I think the water ingress happened from a harness gasket passing outside the firewall above the CEM, somewhere under the windshield cowl. Maybe lifting the cowl (the wiper arm is hard to remove) and look underneath to clean and seal a little around. The CEM on these 04-up (a different design than the 01-03) is quite tricky to remove from under the dash, those connectors are tricky, plus that bracket has to rotate somehow, anyway here's a video, the rotation thing is at 3:18

.
