Re: Vida CEM swapping

Post by Alucard666 »

RickHaleParker wrote: 12 Jul 2021, 15:42 What is the Volvo Part Number on the CCM?
Also get the chassis number. Which is the last six digits of the VIN number ( Vehicle Identification Number ).
Post both here.
Chassis number (last six digits of VIN): 019838
In VIDA i see several number for CCM:
serial number 000072052445
hardware number 0008651247 A
diagnostic number 08651251 A
Or should I disassemble CCM and read part number on it?

User avatar
RickHaleParker
Posts: 7129
Joined: 25 May 2015
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 958 times

Post by RickHaleParker »

Alucard666 wrote: 12 Jul 2021, 23:41 Or should I disassemble CCM and read part number on it?
Just remove it from the dash. Part Number should be on the backside.
⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.

bosse
Posts: 19
Joined: 15 January 2021
Year and Model: V50 -11
Location: Limmared
Has thanked: 8 times
Been thanked: 1 time

Post by bosse »

Regarding CCM.
They break. Temp sensor.
I managed to get them to work.
Enter program mode and exit. And they jump to live.
But for die again..

Alucard666
Posts: 5
Joined: 23 May 2021
Year and Model: 2001
Location: Russia

Post by Alucard666 »

RickHaleParker wrote: 13 Jul 2021, 01:11
Alucard666 wrote: 12 Jul 2021, 23:41 Or should I disassemble CCM and read part number on it?
Just remove it from the dash. Part Number should be on the backside.

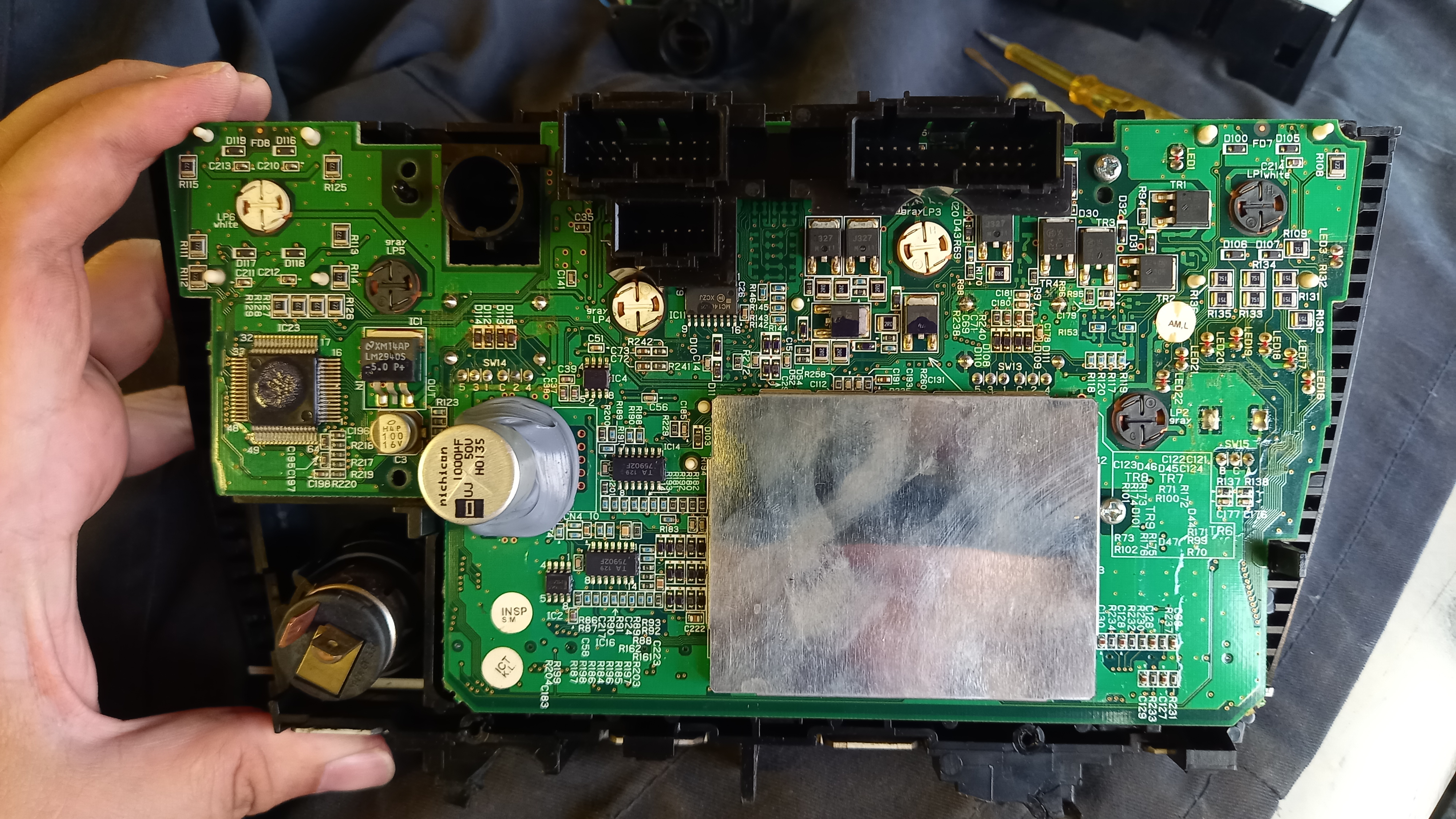

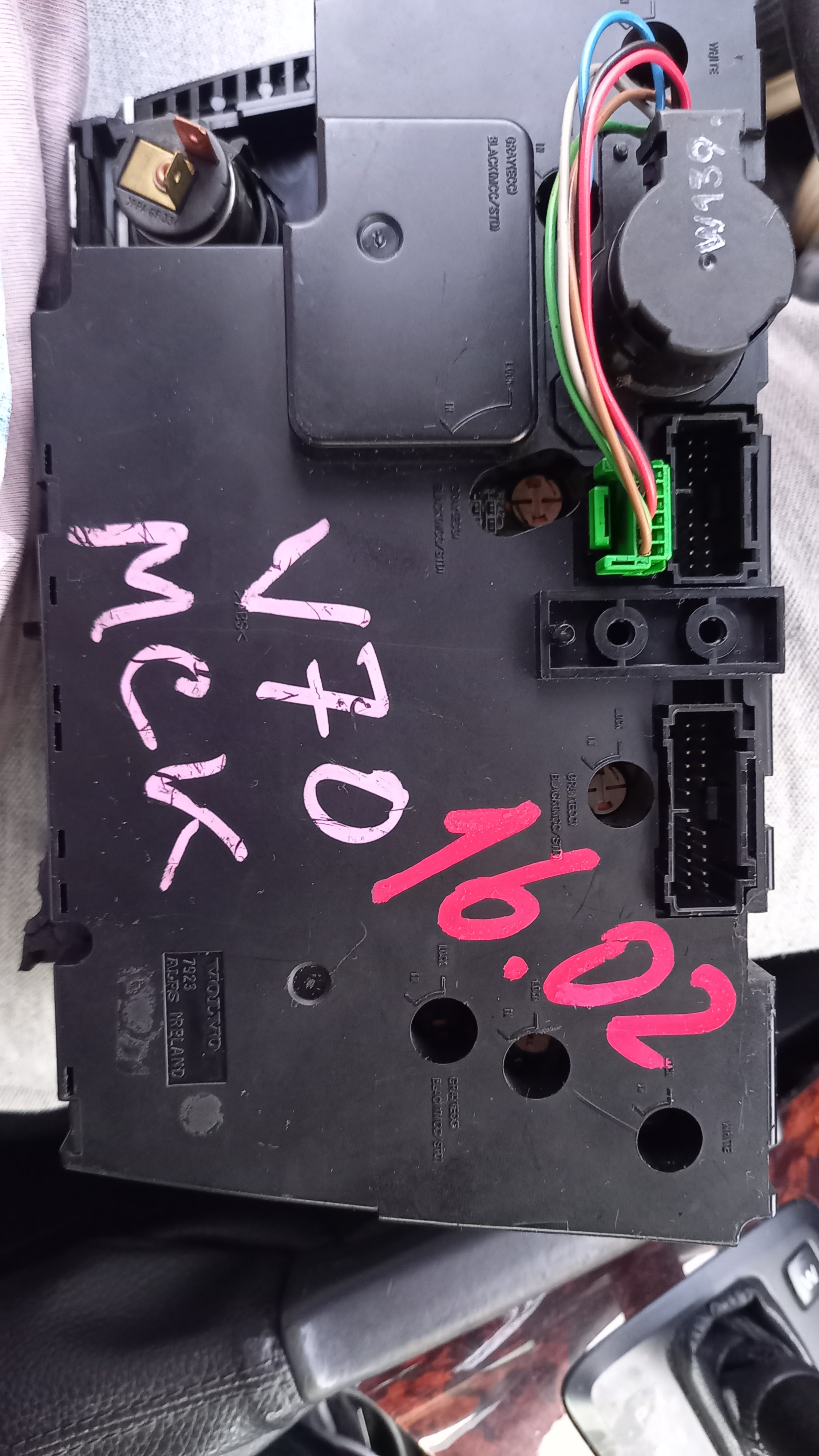

Where is part number? On the backside there is no stickers.
Attachments

User avatar
RickHaleParker
Posts: 7129
Joined: 25 May 2015
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 958 times

Post by RickHaleParker »

Alucard666 wrote: 13 Jul 2021, 11:47 Where is part number? On the backside there is no stickers.
Look right below the Volvo imprint on the black case. Looks like there was a label glued there.

Paint markings are a dead give away that the CCM has been replaced with one from a salvage yard.

Looks like you got two options.
1. Get a hold of Yagger and find out if the one you have can be reprogrammed.
2. Get a 8691950 from a car with a chassis number no higher then 314999.
⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.

vtl
Posts: 4727
Joined: 16 August 2012
Year and Model: 2005 XC70
Location: Boston
Has thanked: 114 times
Been thanked: 606 times

Post by vtl »

Something to look for when you debug the hw part of the cracker. At 500K baud the CAN tick happens every 2 us. Teensy running at 600 MHz is capable of detecting the signal level transition in about 100 ns (0.1 us).

The clean signal spread over latency buckets looks like that:

Code: Select all

                   us:    83    84    85    86    87    88    89    90    91
[ 00 -- -- -- -- -- ]:     0   194     1  1303     0  1319     0   183     0
[ 01 -- -- -- -- -- ]:     0   195     0  1314     0  1286     0   205     0
[ 02 -- -- -- -- -- ]:     0   155     0  1394     0  1246     0   203     0
Notice the odd buckets are almost always 0. Could be even buckets, but you get the idea: either odd or even.

This is an example of the bad signal:

Code: Select all

                   us:    83    84    85    86    87    88    89    90    91
[ 00 -- -- -- -- -- ]:   312   236   561  3966  1446  2811   327   339     0
[ 01 -- -- -- -- -- ]:   258   189   552  4255  1404  2772   267   301     0
[ 02 -- -- -- -- -- ]:   250   201   522  4196  1461  2802   274   292     0
[ 03 -- -- -- -- -- ]:   267   190   552  4106  1492  2866   272   253     0

User avatar
RickHaleParker
Posts: 7129
Joined: 25 May 2015
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 958 times

Post by RickHaleParker »

Anybody wanting to try a different CAN transceiver. Somebody in Texas has some Bosch CF160 for sale on eBay. 10 for $9.99.
⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.

urosm
Posts: 29
Joined: 24 May 2012
Year and Model: 2015 Volvo XC70 D5
Location: Montenegro
Has thanked: 10 times

Post by urosm »

Hello, I made a cem cracker.
Programmed it and connect it to the car, but it doesn't work. When I start the serial monitor without connecting to the car, the serial monitor starts to work, but when I connect it to the car, the serial monitor won't start.

What could be a problem?

Thanks in advance!
Volvo 744 TDIC SOLD, 1989. ; 1997. - 2000.
Volvo 855 GLT + LPG Estate SOLD, 1996. ; 1998. - 2020.
Volvo V70 D5 SOLD, 2004. ; 2013. - 2021.
Volvo XC70 D5 SOLD, 2007. ; 2017. - 2021.
Nissan Pathfinder DRIVING, 2007. ; 2019. -
Volvo XC70 D5 DRIVING, 2015. ; 2021. -
Volvo XC90 D5 DRIVING, 2008. ; 2022. -

vtl
Posts: 4727
Joined: 16 August 2012
Year and Model: 2005 XC70
Location: Boston
Has thanked: 114 times
Been thanked: 606 times

Post by vtl »

Make sure you have common ground with the OBD-II connector.

User avatar
RickHaleParker
Posts: 7129
Joined: 25 May 2015
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 958 times

Post by RickHaleParker »

urosm wrote: 24 Jul 2021, 01:08 What could be a problem?
Post the schematic, your parts list and pictures of your build. So we can see what you have.
⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.
