P80 AWD fuel tank plate hardware, photo needed 9463159

Post by **abscate** » 08 Mar 2022, 19:15

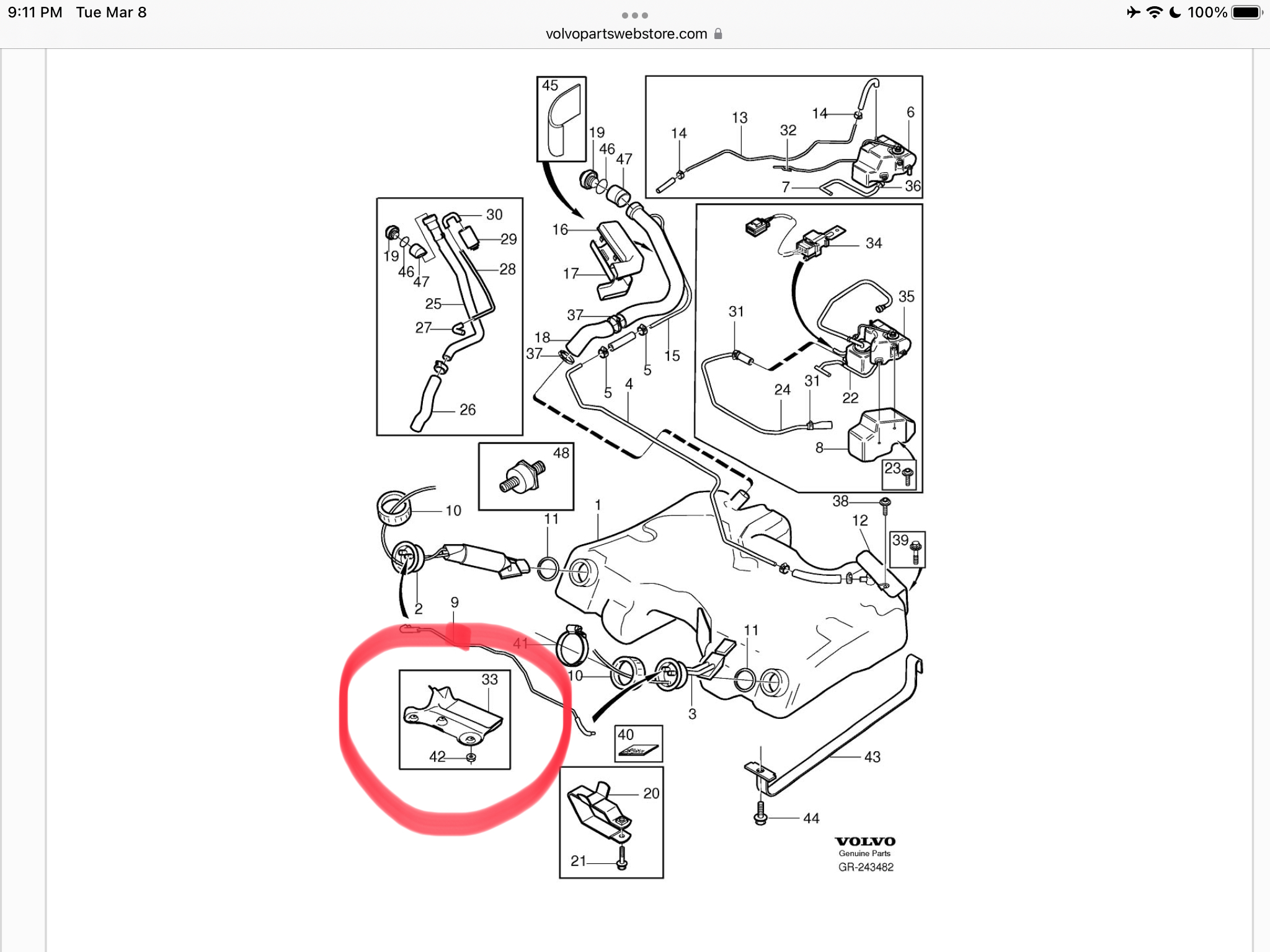

Can someone o the AWD club get me a pic of how these go on? I have to do this in driveway so it’s hard to get these sorted…

Post by **scot850** » 08 Mar 2022, 20:02

You ask and you shall receive! Fortunately the 'R' is tucked up in the warm garage and is nice and dry!

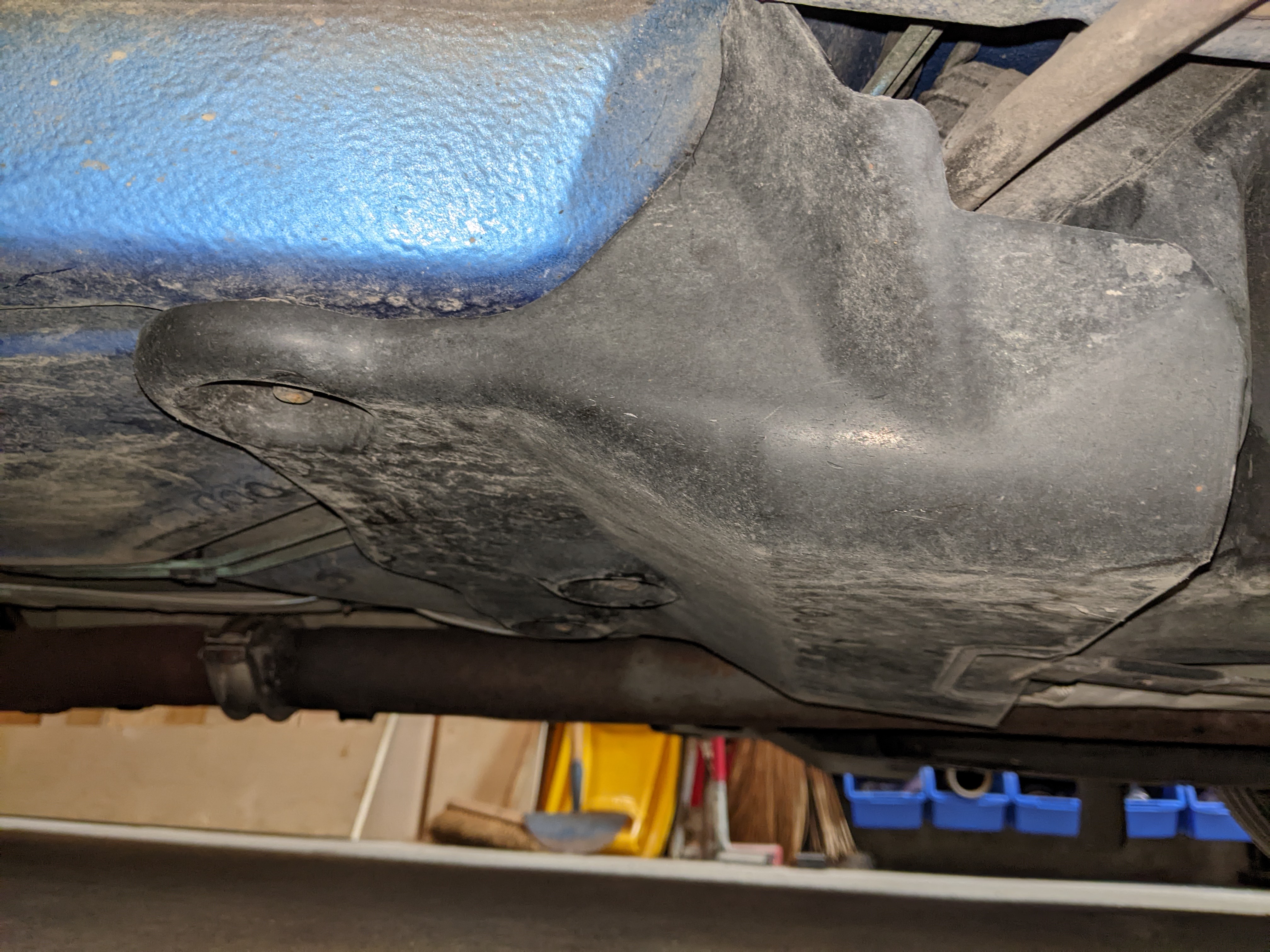

: Rock shield (1); PXL_20220309_024133904.jpg (2.62 MiB) Viewed 1255 times

: Rock Shield (2); PXL_20220309_024144039.jpg (2.67 MiB) Viewed 1255 times

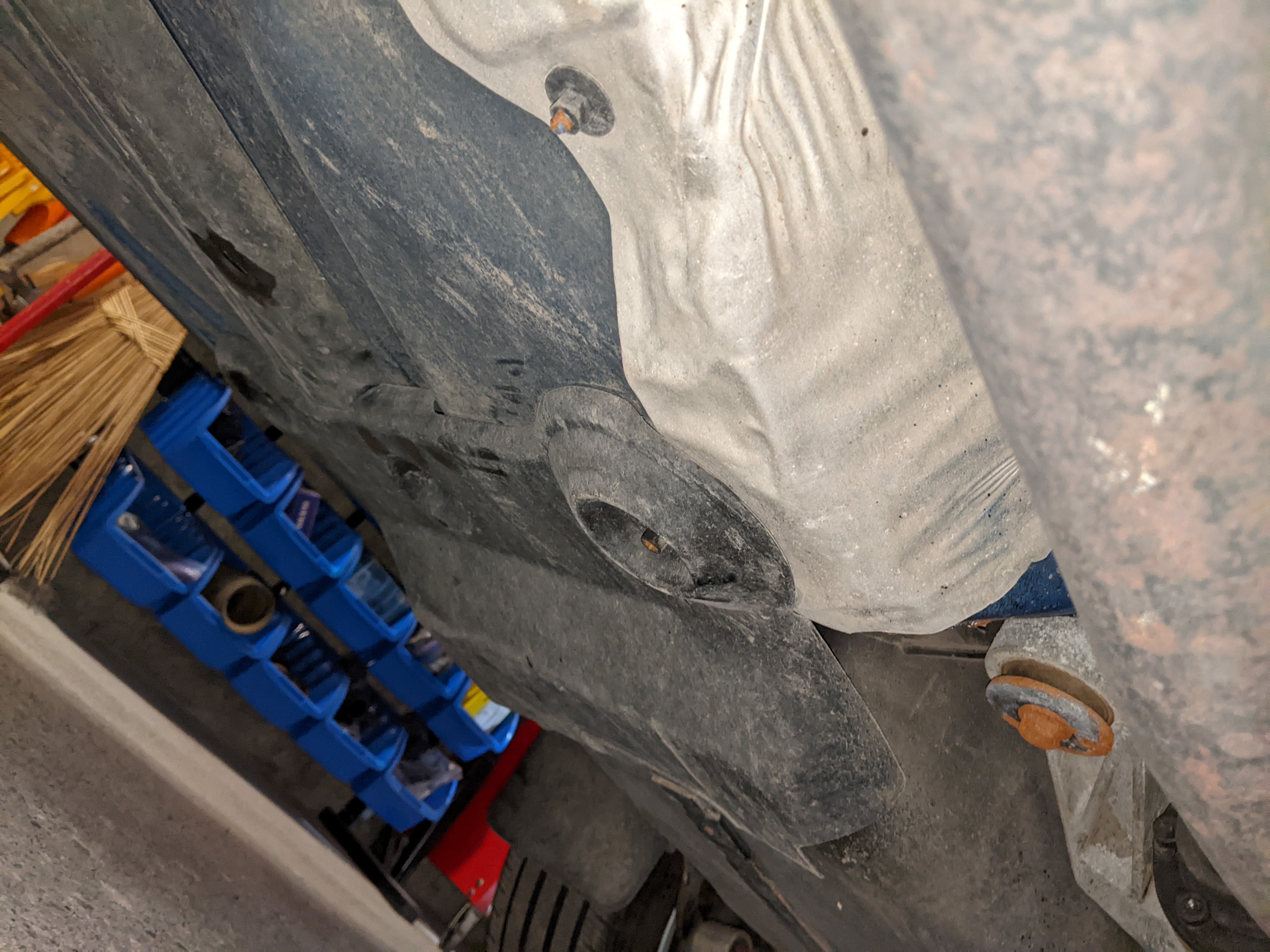

: Rock shield (3); PXL_20220309_024703141.jpg (2.44 MiB) Viewed 1255 times

: Rock shield (4); PXL_20220309_024721645.jpg (2.41 MiB) Viewed 1255 times

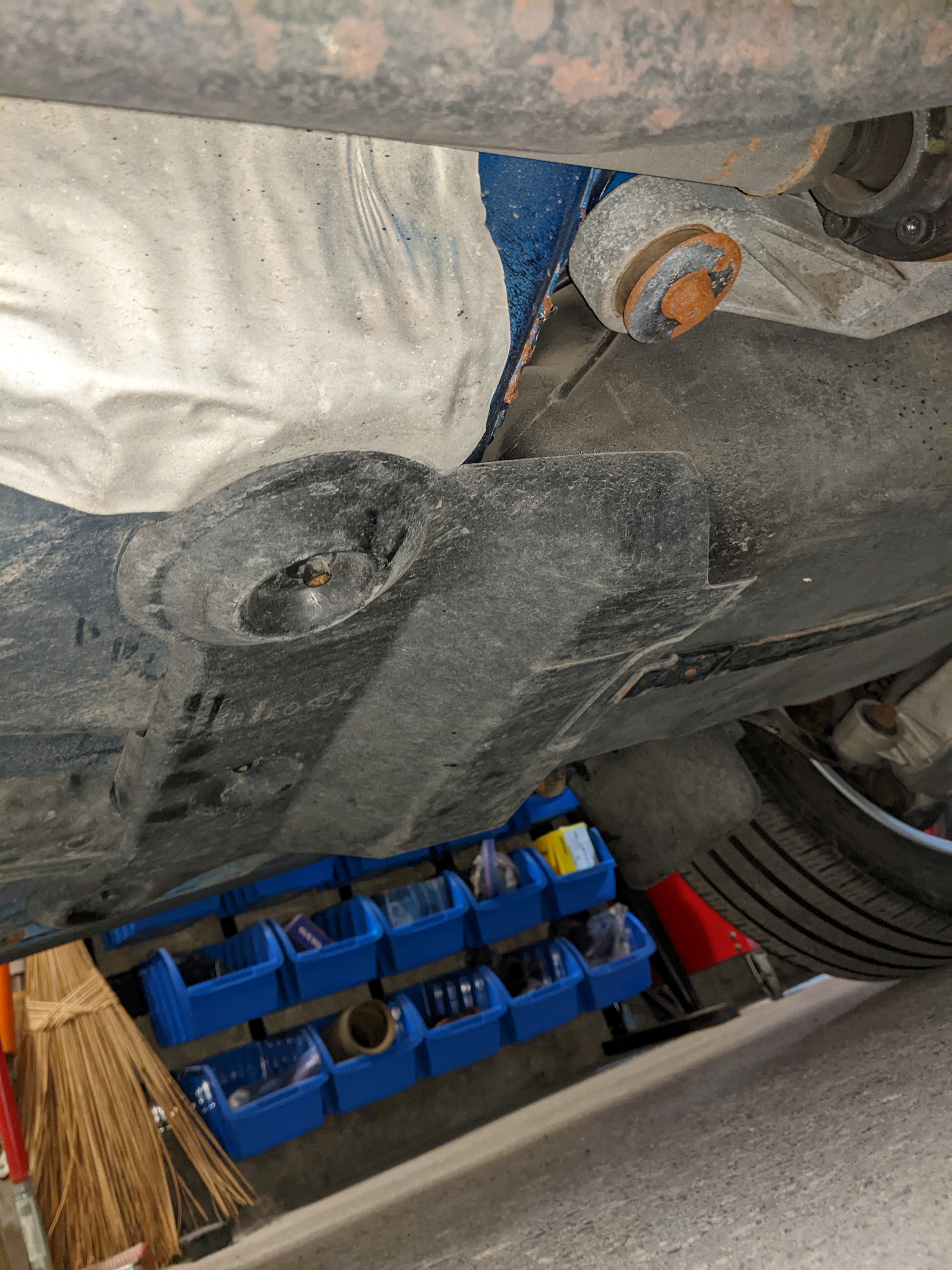

: Rock shield (5); PXL_20220309_024712966.jpg (2.42 MiB) Viewed 1255 times

I do remember it is fiddly to fit as you have to make sure the rear edge fits in the fuel tank strap slot and in my case it only just reached. It should also just clear the parking brake cables on the side. They are held on with those plastic nuts like for the fender liners.

Hope this helps!

Neil.

Post by **abscate** » 09 Mar 2022, 01:17

Merci buckets, Neil

Post by **scot850** » 09 Mar 2022, 16:31

Always welcome!

Hope they went back on ok.

Neil.

Post by **manovlov** » 11 Mar 2022, 04:40

scot850 wrote: ↑09 Mar 2022, 16:31 Always welcome!

Hope they went back on ok.

Neil.

... Again... Neil... 10 MVS points !

Post by **abscate** » 11 Mar 2022, 06:07

It’s obvious looking at the shape, but I have to lie in water to do this job. Once it Soaks through th coveralls life gets unseemly. I get about 30 minutes before I’m swimming

Post by **volvolugnut** » 11 Mar 2022, 09:10

Use cardboard covered by garbage bag moisture barrier. Bag will be reusable, cardboard not so much.
volvolugnut

Post by **abscate** » 11 Mar 2022, 09:29

volvolugnut wrote: ↑11 Mar 2022, 09:10 Use cardboard covered by garbage bag moisture barrier. Bag will be reusable, cardboard not so much.
volvolugnut

Excellent. Amazon keeps sending me cardboard In perpetuity

Post by **abscate** » 21 Jun 2022, 03:38

Update, I got these back on but didn’t like the condition of the hardware on the car, so some holes and zip ties were used. I’ll add pictures here. In short , a nice zip tie around the gas tank strap and one on the side picked up support around the brake cables.

Post by **scot850** » 21 Jun 2022, 13:04

I had a pair of nicely refurbished tank straps but they went to a needy V70R my friend in Germany has a couple of years ago.

Sorry!

Neil.
