I modded the power steering reservoir.

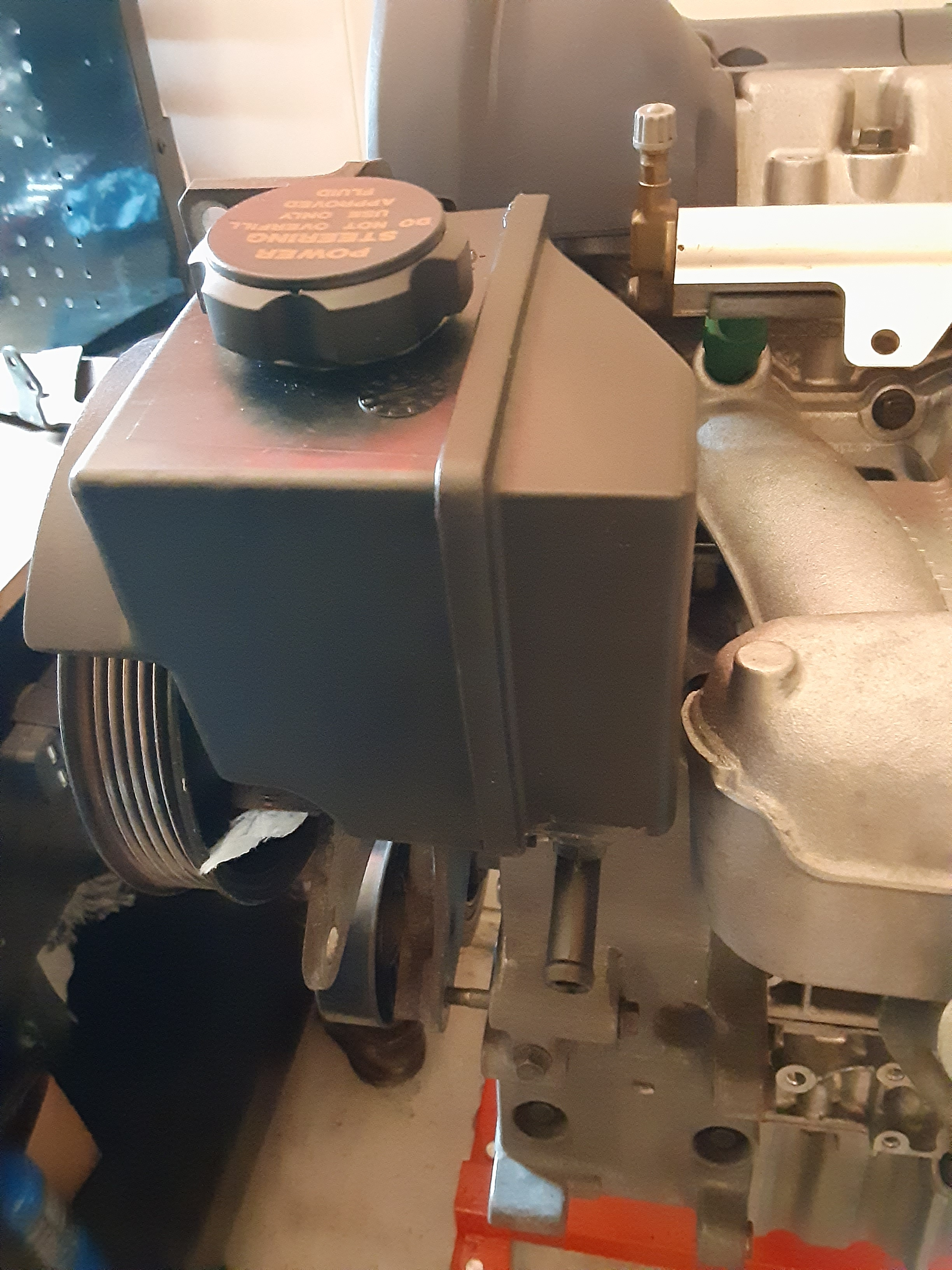

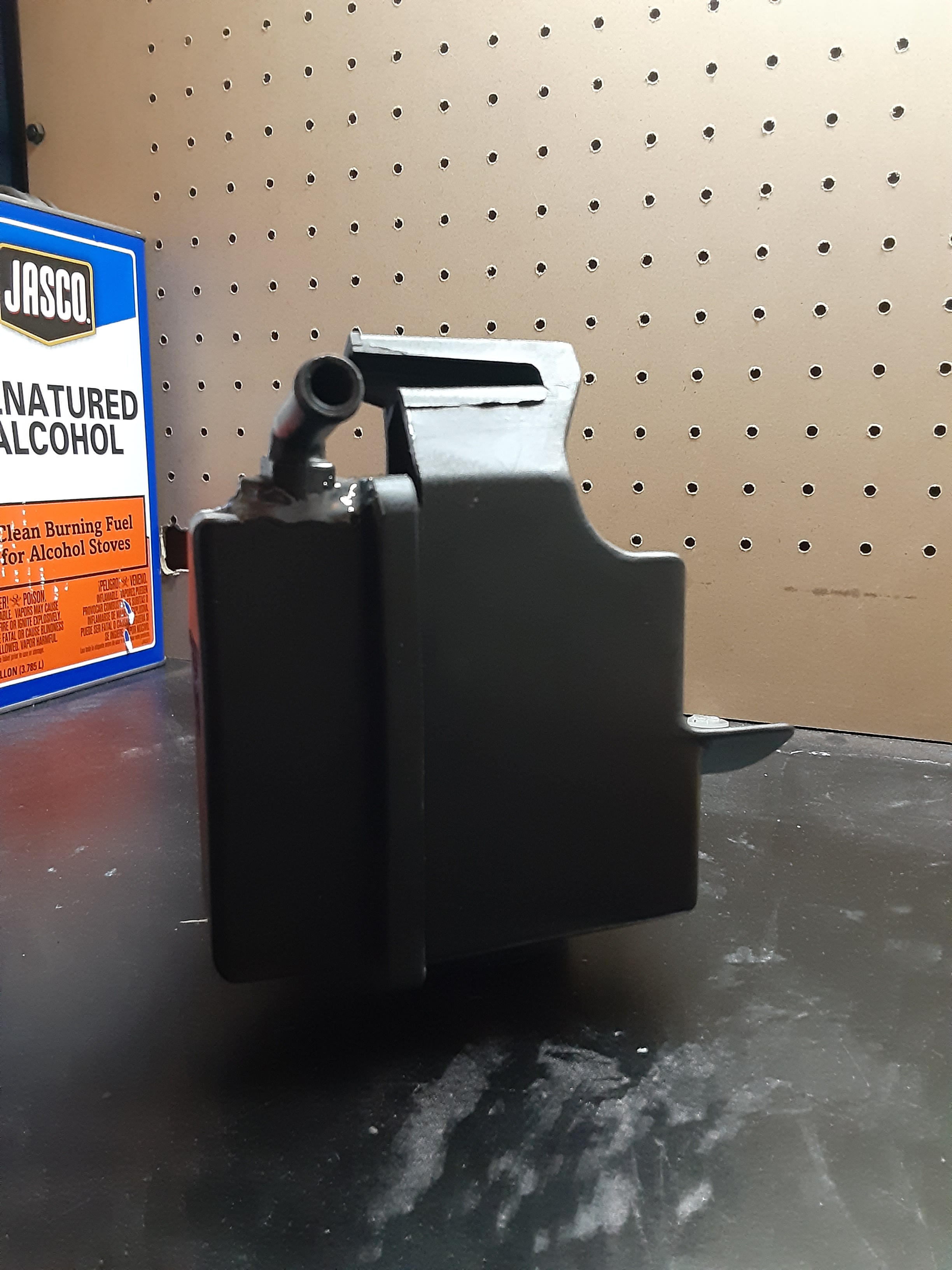

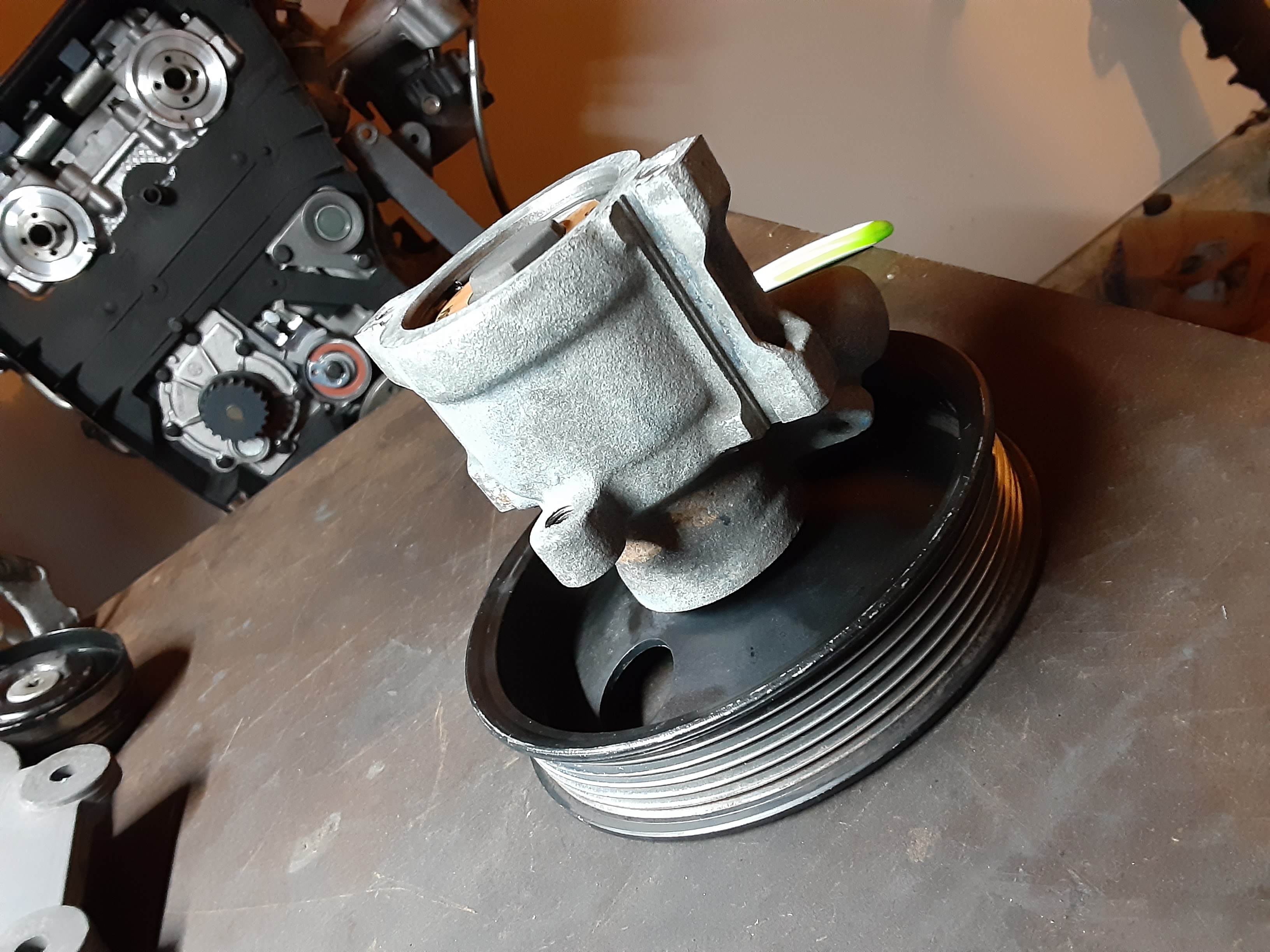

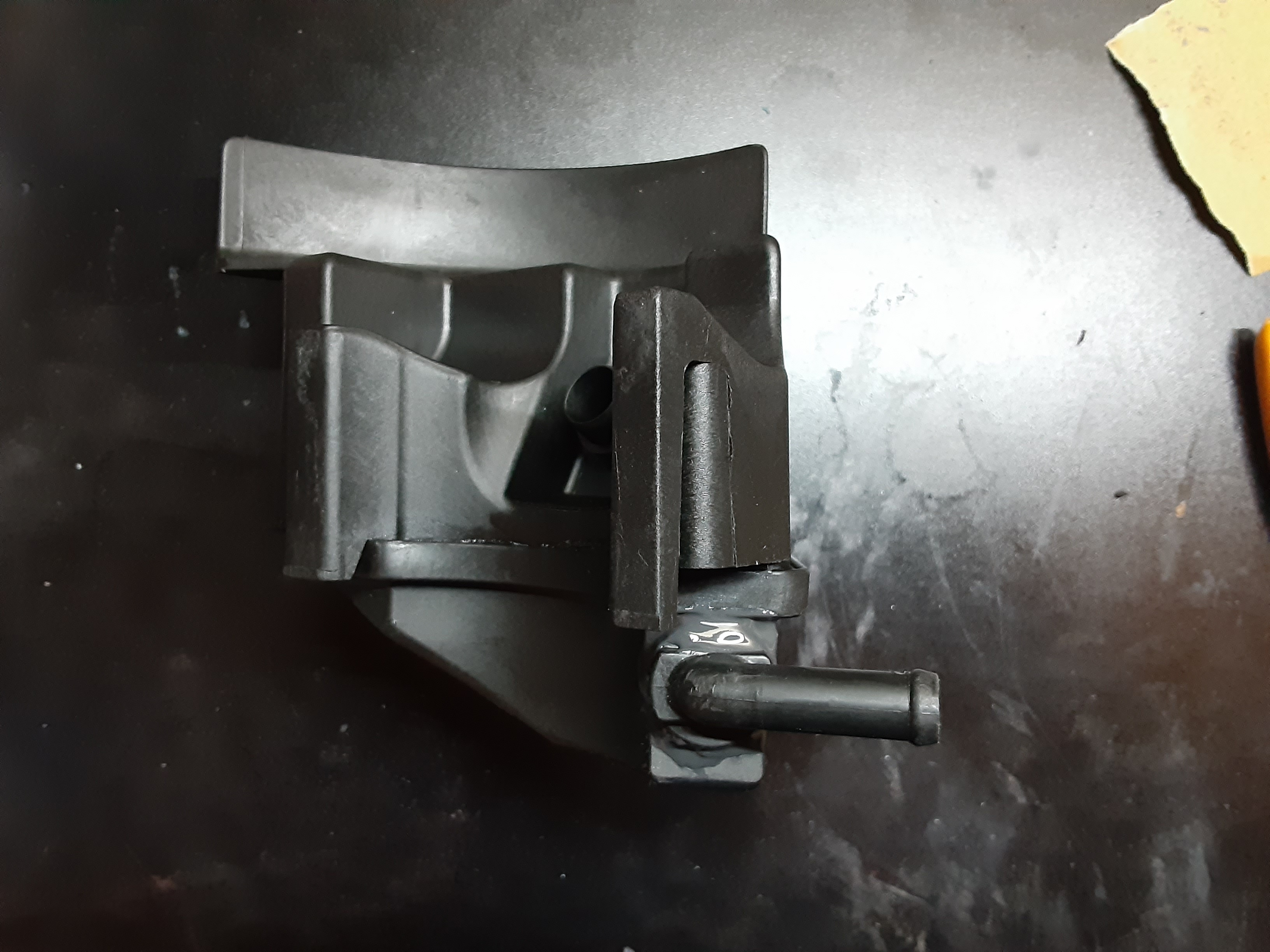

I'm reusing the 850's power steering pump, along with its reservoir. The problem is that the return line nipple fouls on the S60R's intake manifold:

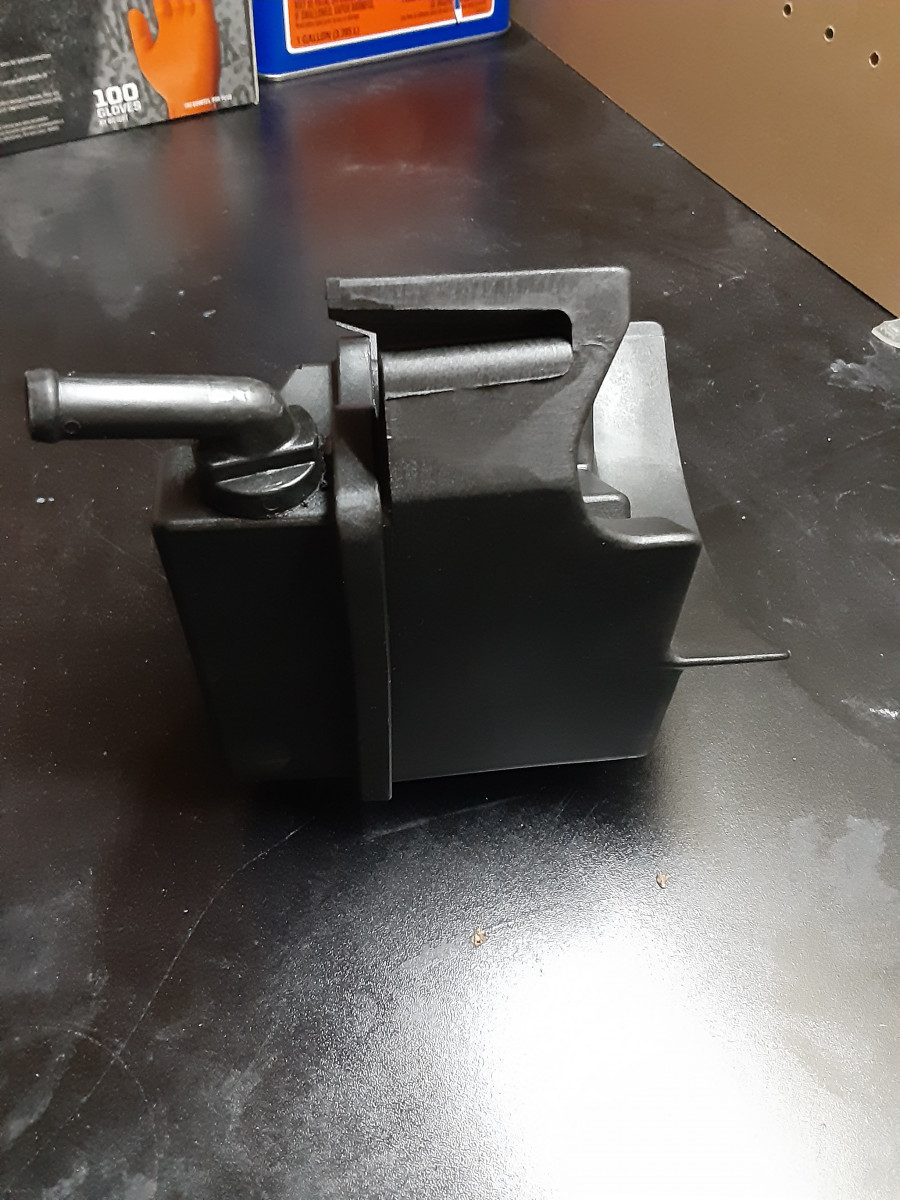

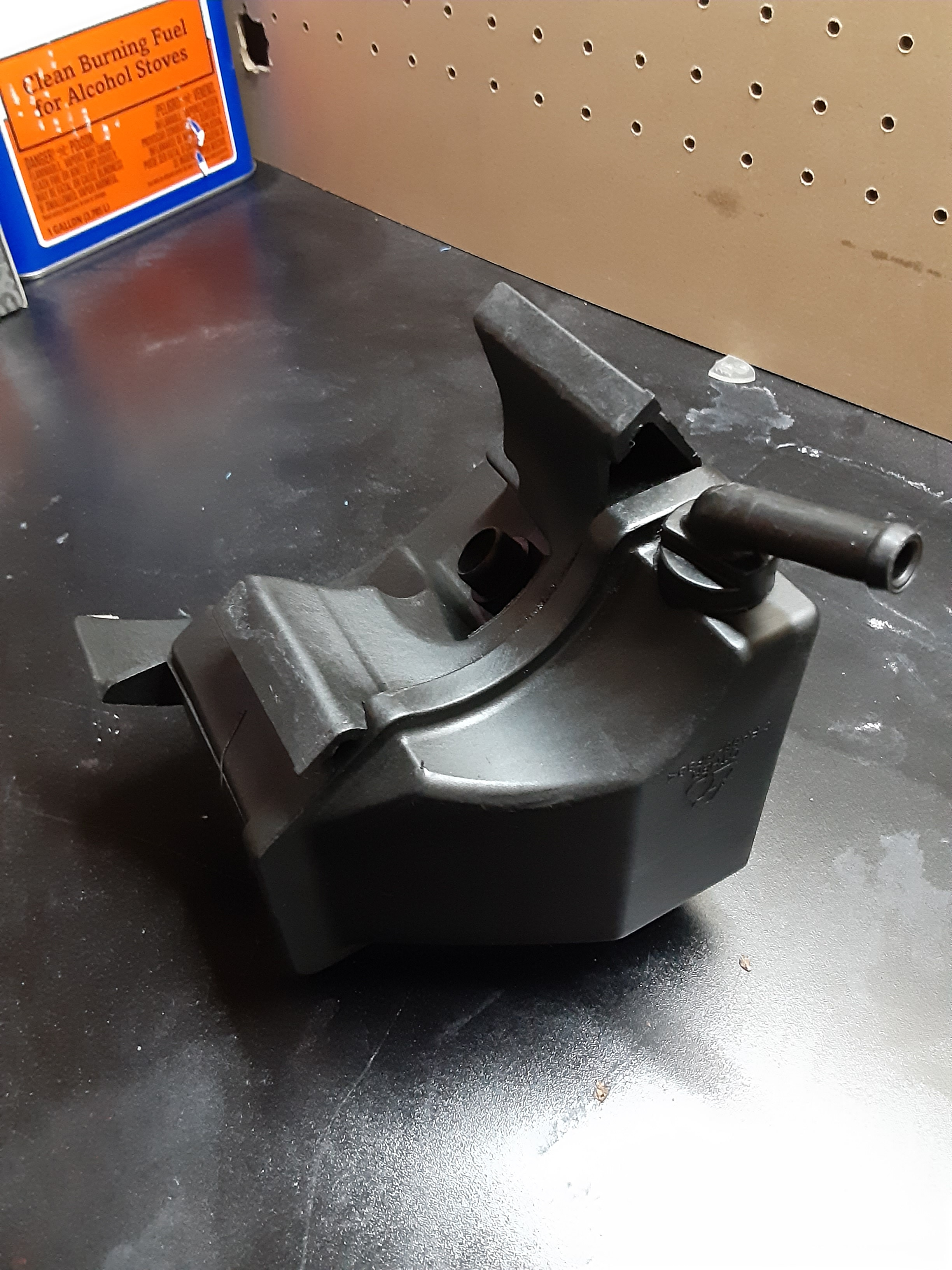

Obviously not gonna work. Here's how I fixed it.

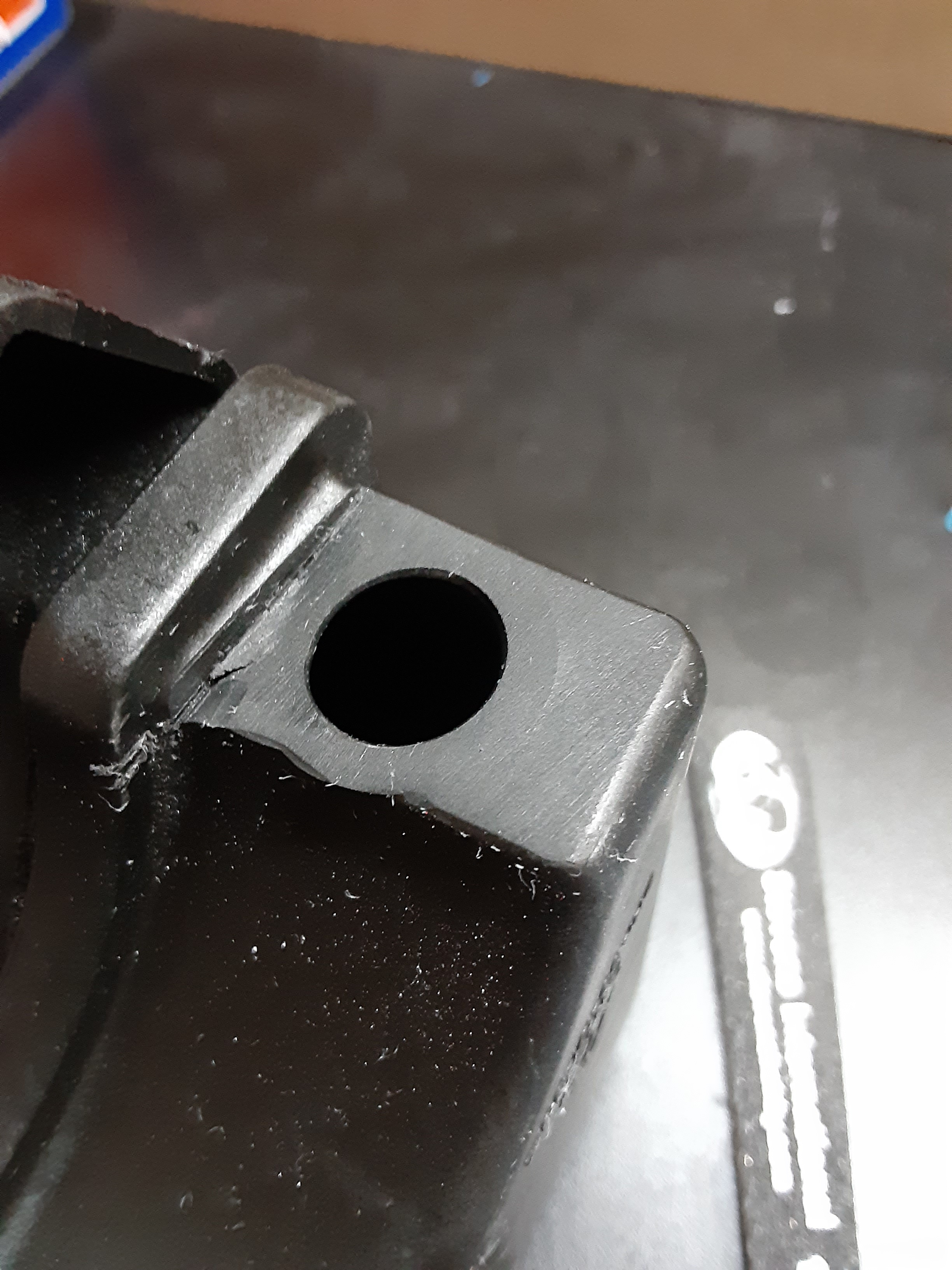

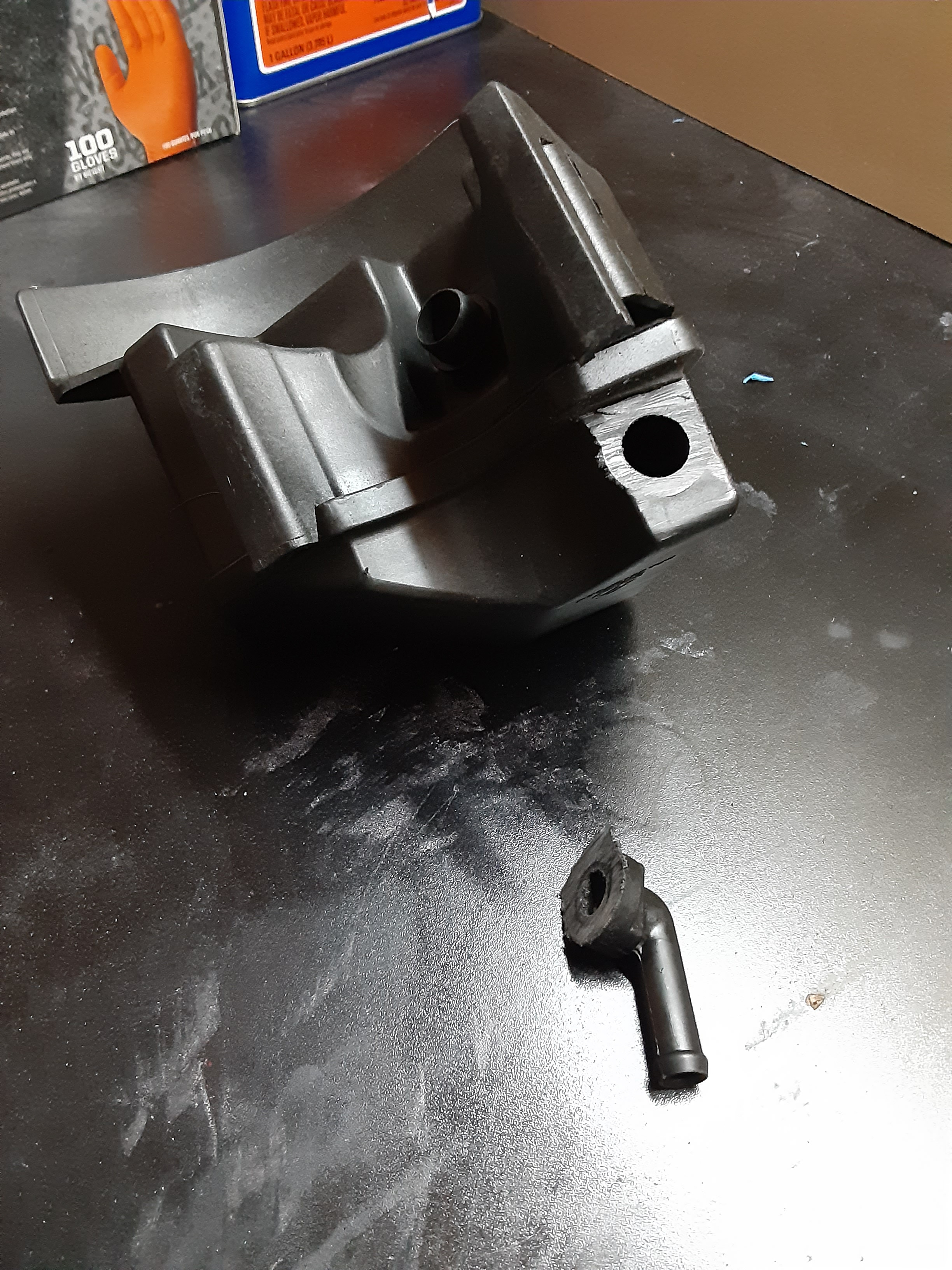

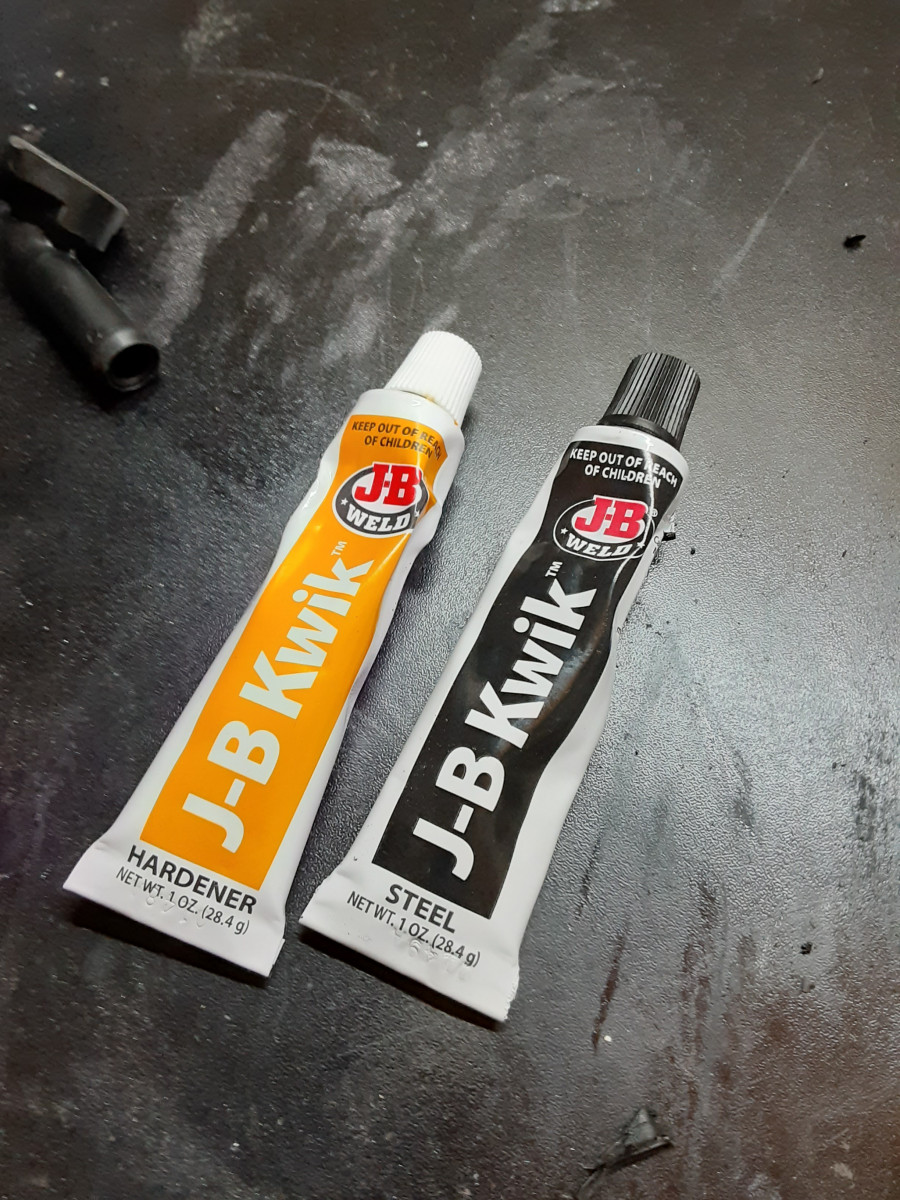

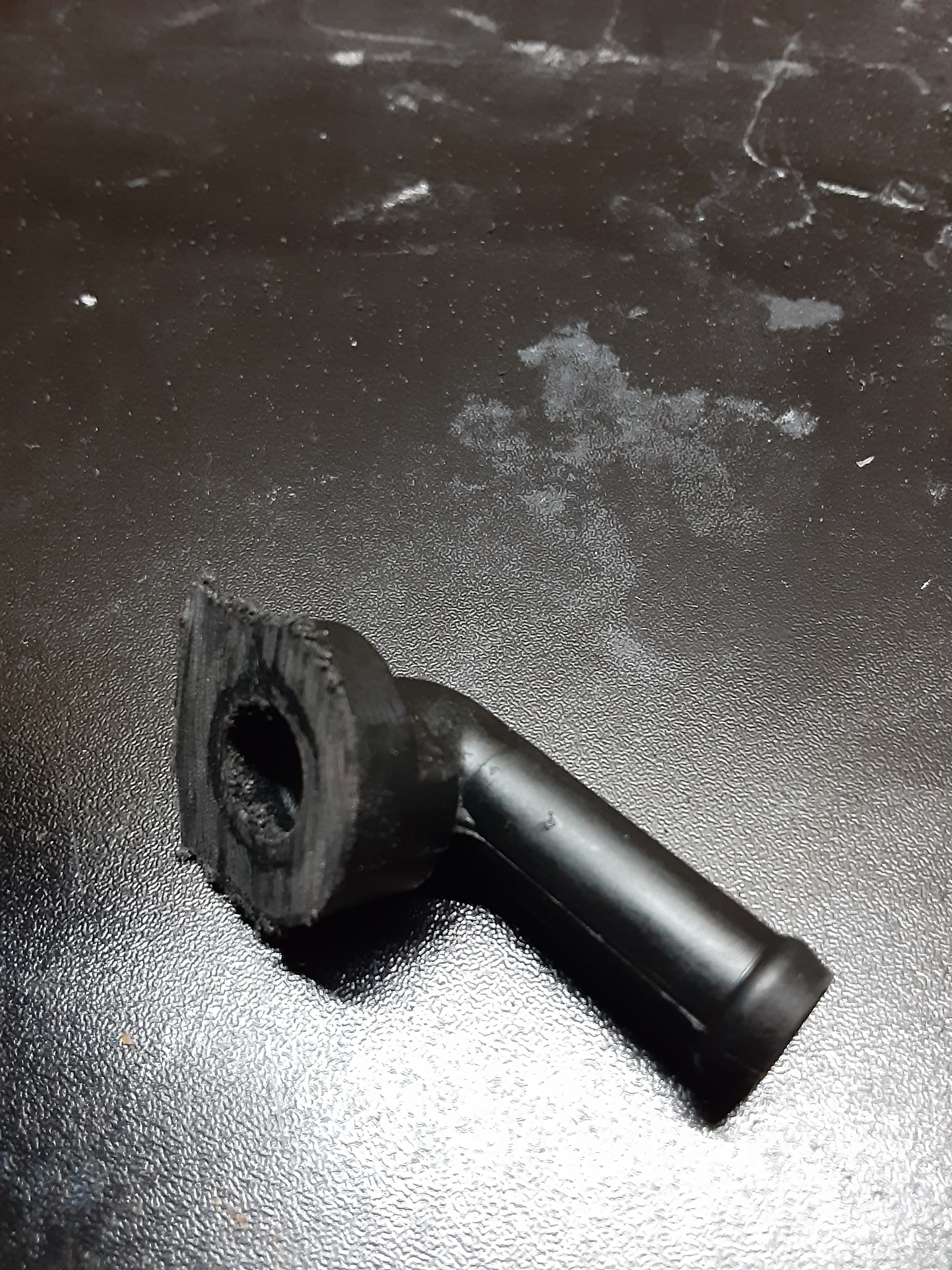

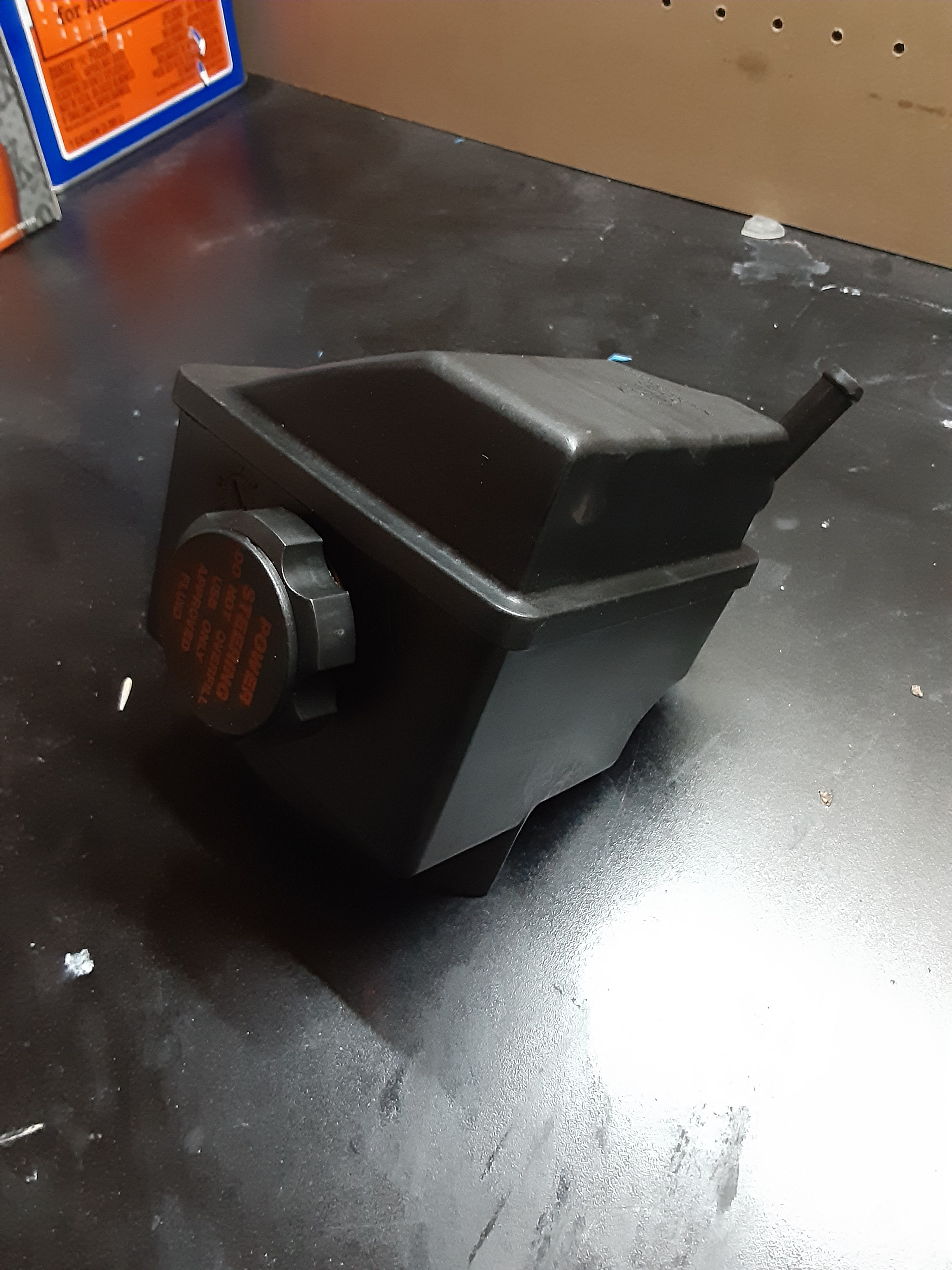

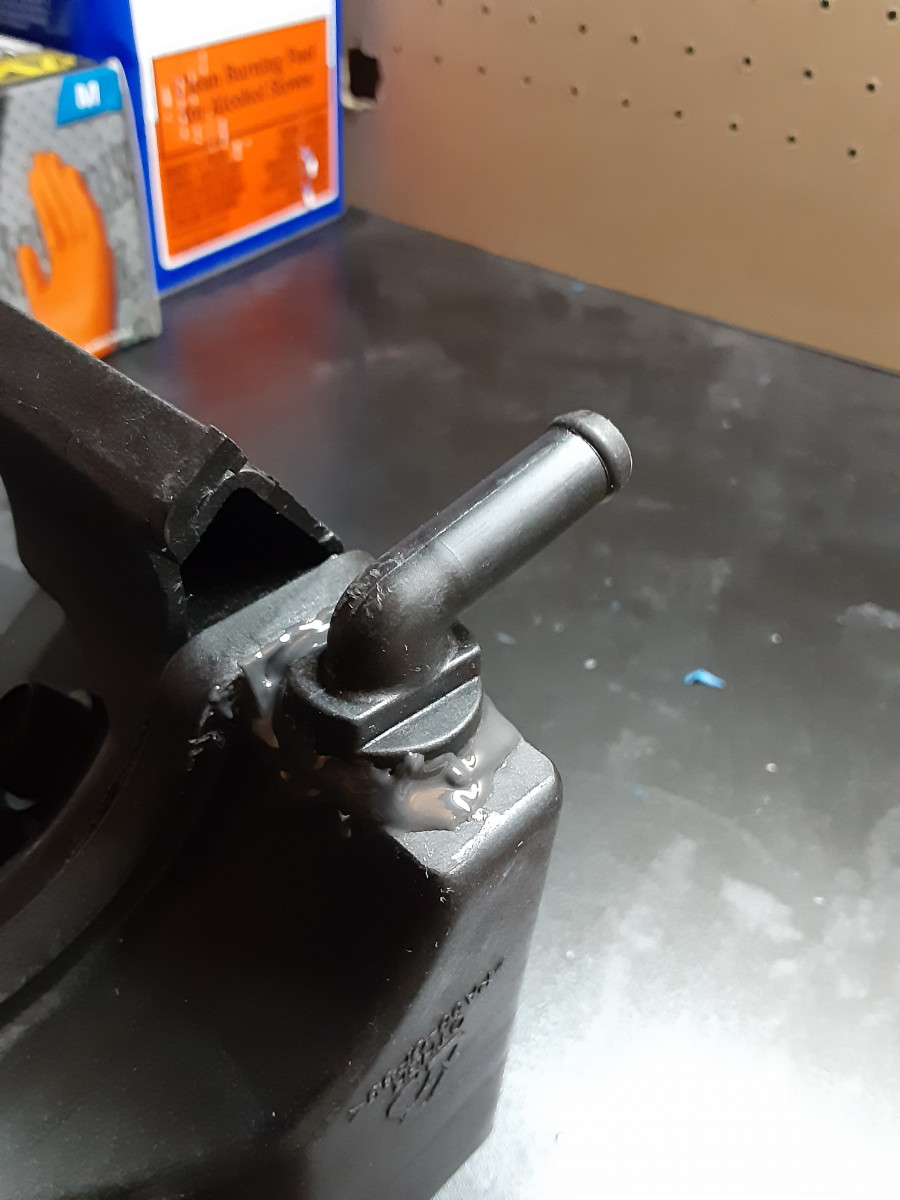

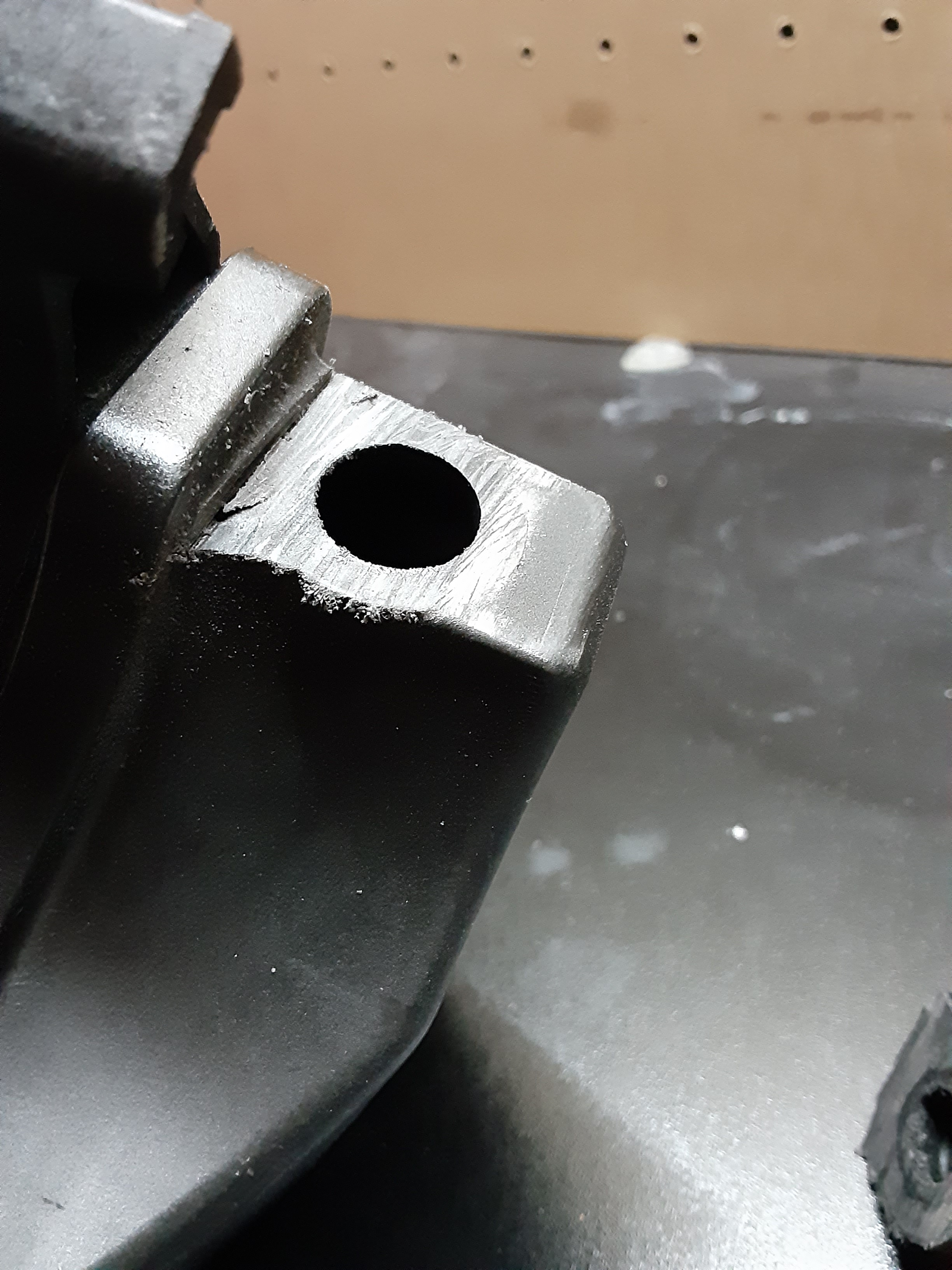

I cut the return nipple off the reservoir with a razor saw, sanded the cut areas on both parts flat, deburred them with an X-Axcto knife, cleaned them both with alcohol and J-B Welded them back together at the correct angle.


I have no idea if this will hold. If it works, great. If not, I'll figure something else out.
"Maturity is when you realize that the overbearing high school principal or villainous college dean from your favorite 80s movie is actually the hero of the story."

1995 860R (854 + B5254T4 + M56)

User avatar
abscate
MVS Moderator
Posts: 35275
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1500 times
Been thanked: 3810 times

Post by abscate »

Should hold ok. It’s Better to use the JB regular stuff, it cures longer but about 2-3x stronger
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread

User avatar
Nevada1906
Posts: 273
Joined: 7 September 2011
Year and Model: 1995 850 Turbo
Location: Virginia
Has thanked: 4 times
Been thanked: 30 times

Post by Nevada1906 »

abscate wrote: 16 Oct 2021, 15:11 Should hold ok. It’s Better to use the JB regular stuff, it cures longer but about 2-3x stronger
Agreed, but this is what I had, and it's too late now.

However, I've been building models for about four decades now and one of the things I do religiously is to CLEAN, CLEAN, CLEAN any surface that'll get glue or paint. I use the same methodology on functional prototypes, which this basically is. I spent 10 minutes scrubbing and wiping down the reservoir and nipple with alcohol to make sure there was nothing present to impede the glue bond.

That was after I sanded the mating joints on both parts flat with a fresh 100-grit sanding stick.
"Maturity is when you realize that the overbearing high school principal or villainous college dean from your favorite 80s movie is actually the hero of the story."

1995 860R (854 + B5254T4 + M56)

User avatar
Nevada1906
Posts: 273
Joined: 7 September 2011
Year and Model: 1995 850 Turbo
Location: Virginia
Has thanked: 4 times
Been thanked: 30 times

Post by Nevada1906 »

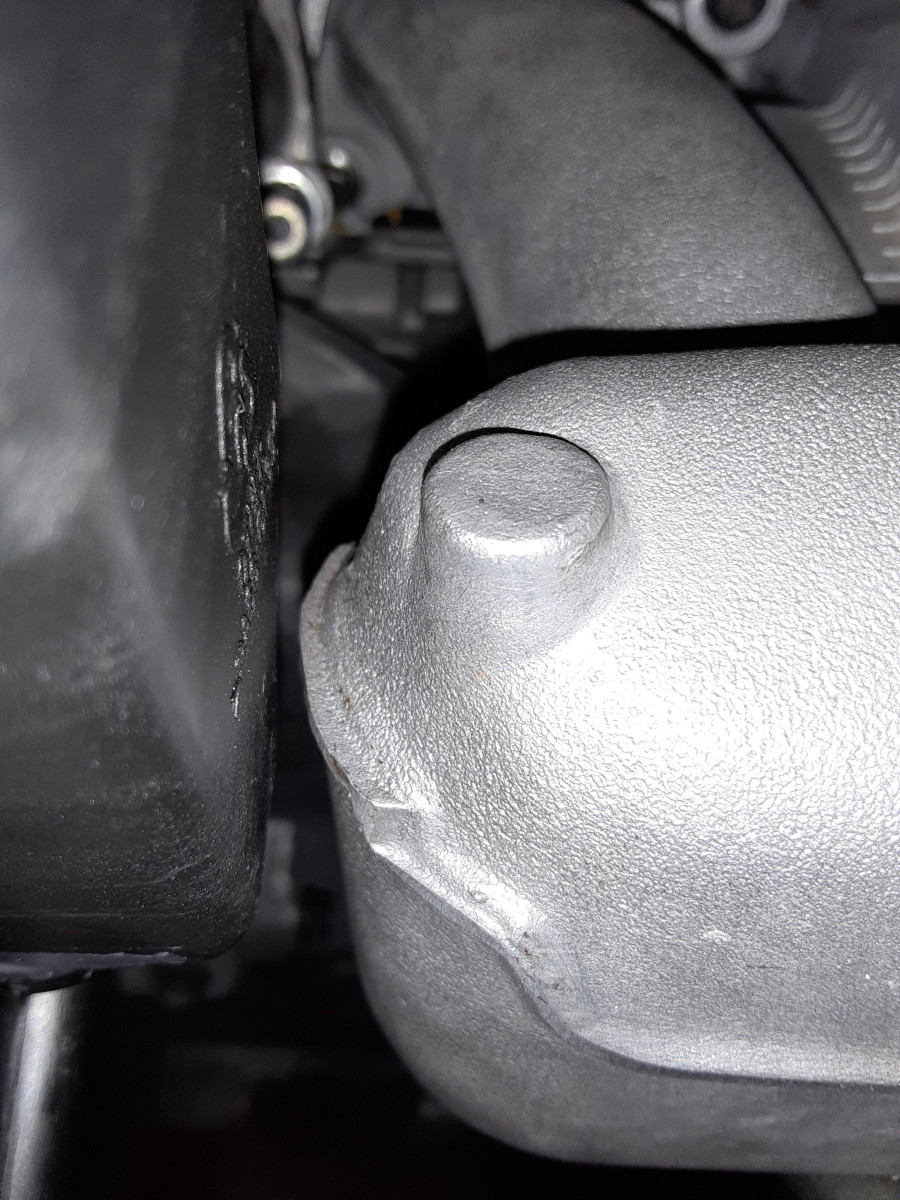

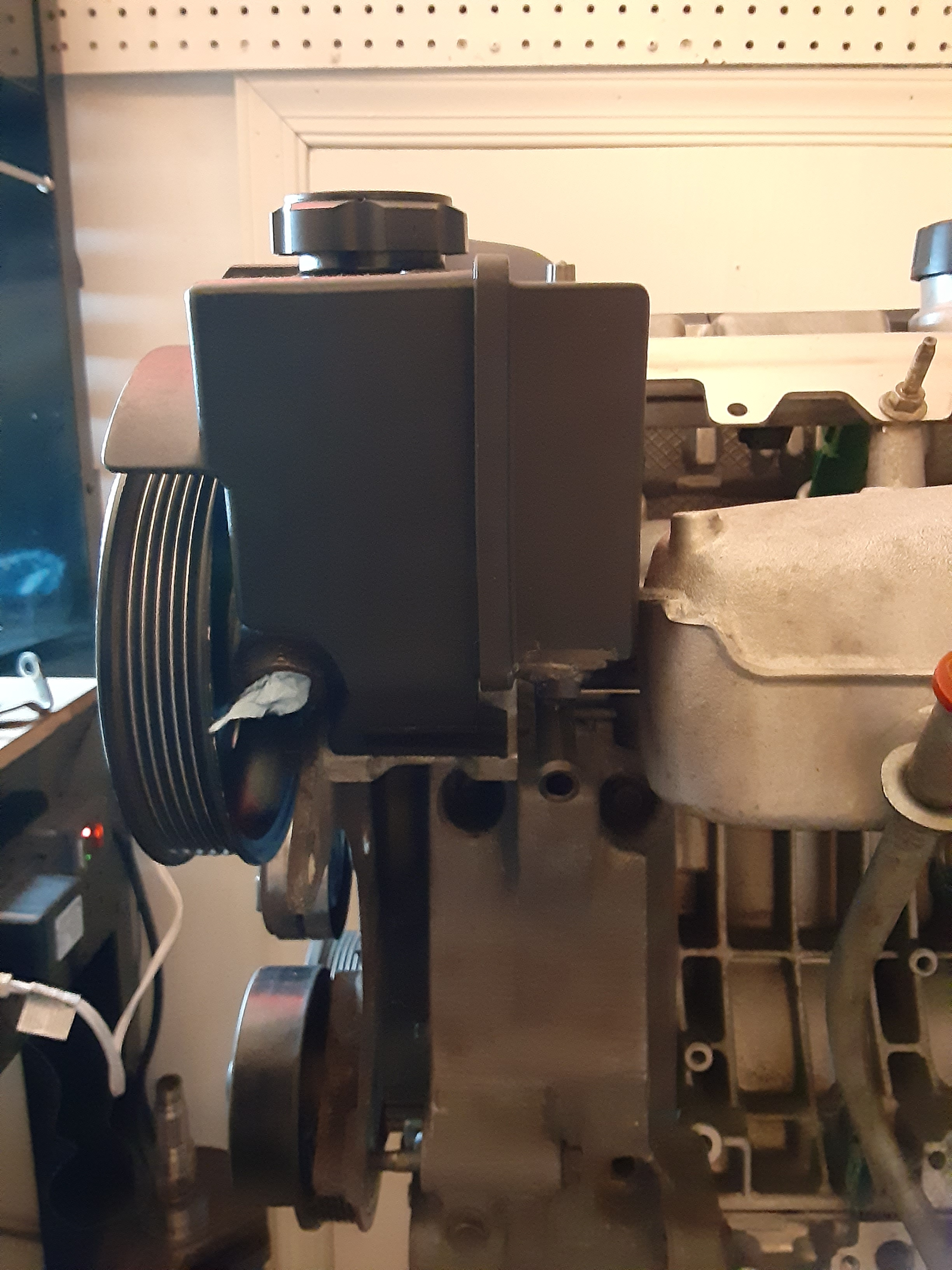

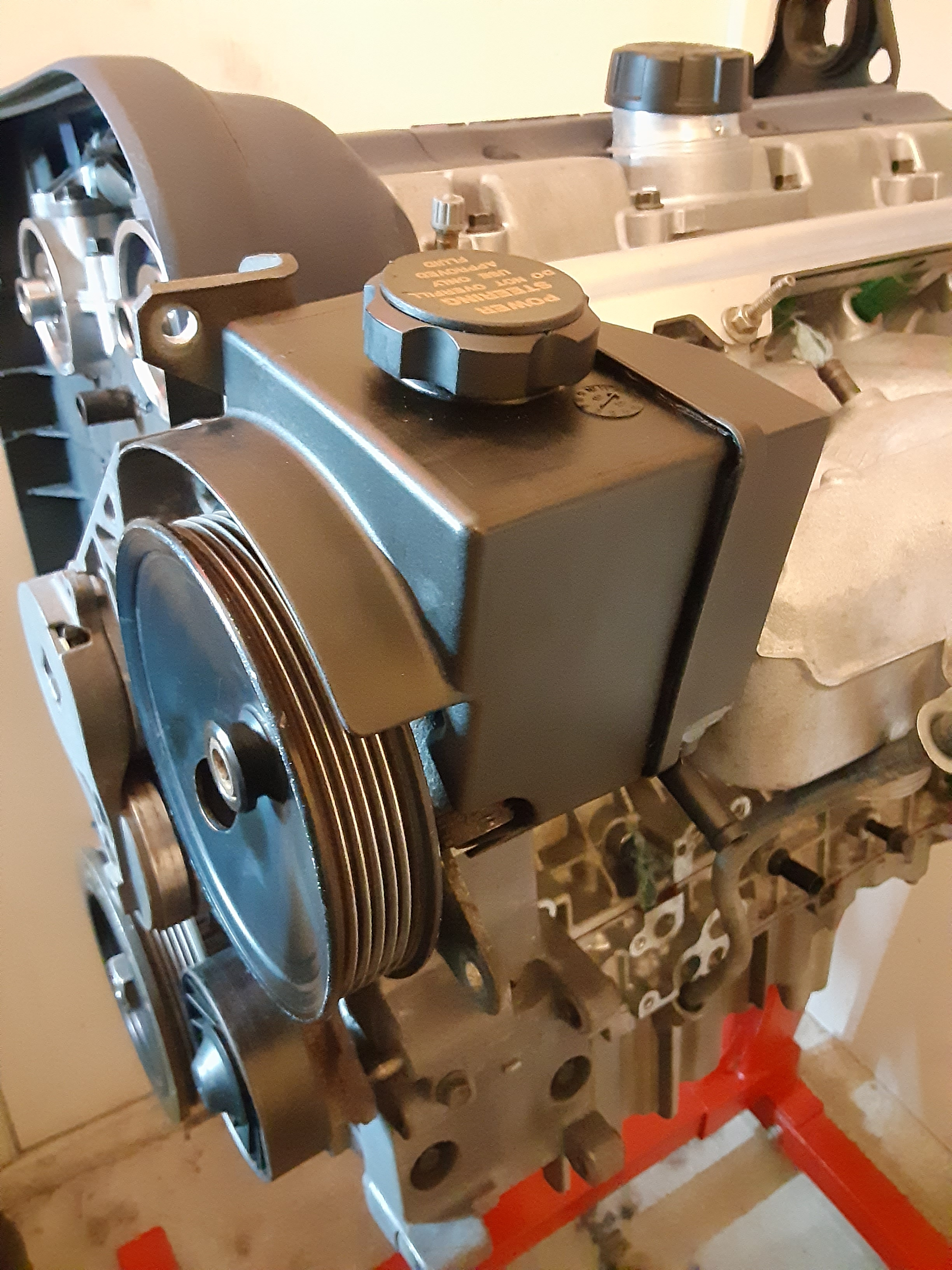

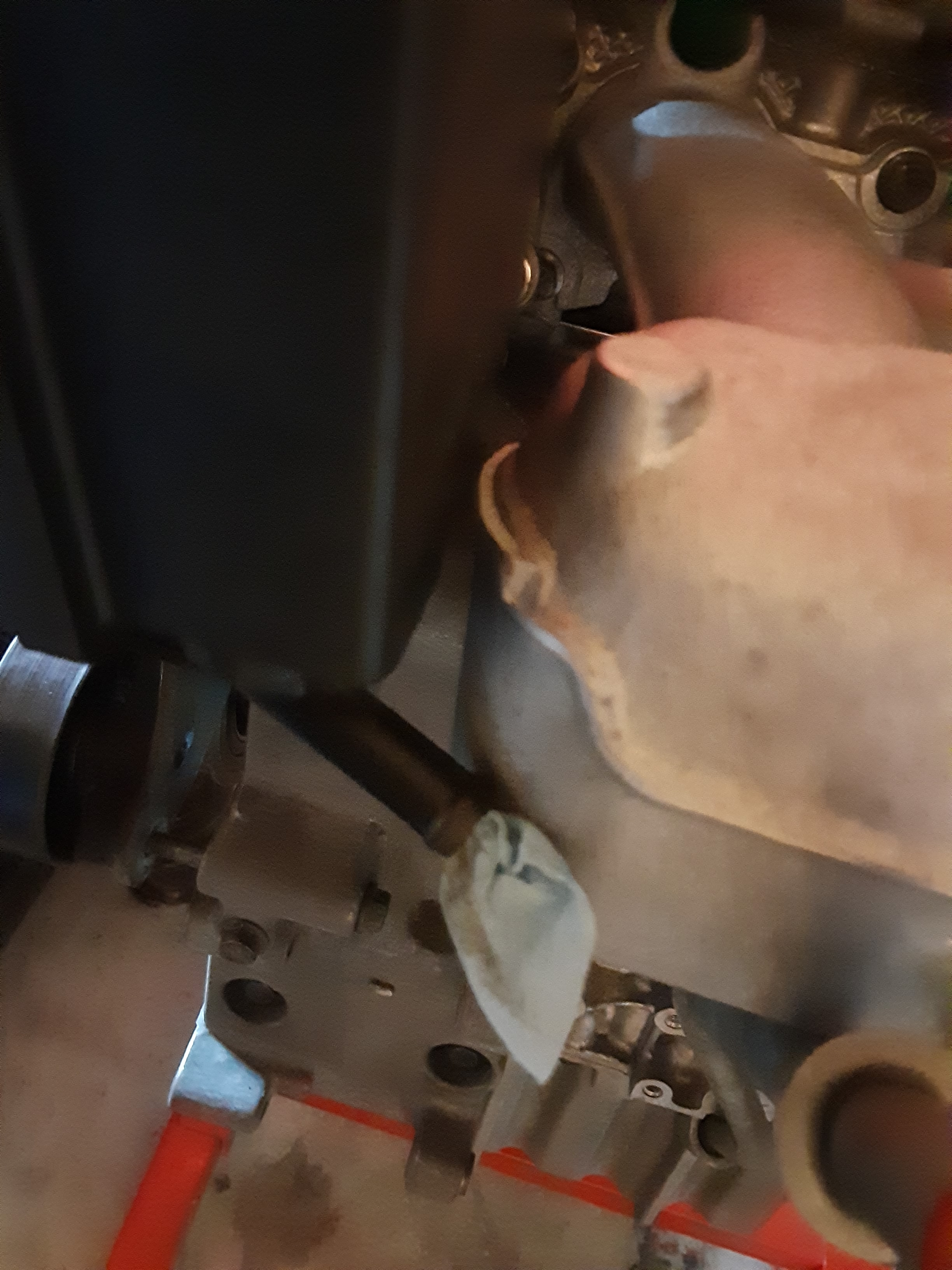

Test fit says we're clear.


"Maturity is when you realize that the overbearing high school principal or villainous college dean from your favorite 80s movie is actually the hero of the story."

1995 860R (854 + B5254T4 + M56)

User avatar
Nevada1906
Posts: 273
Joined: 7 September 2011
Year and Model: 1995 850 Turbo
Location: Virginia
Has thanked: 4 times
Been thanked: 30 times

Post by Nevada1906 »

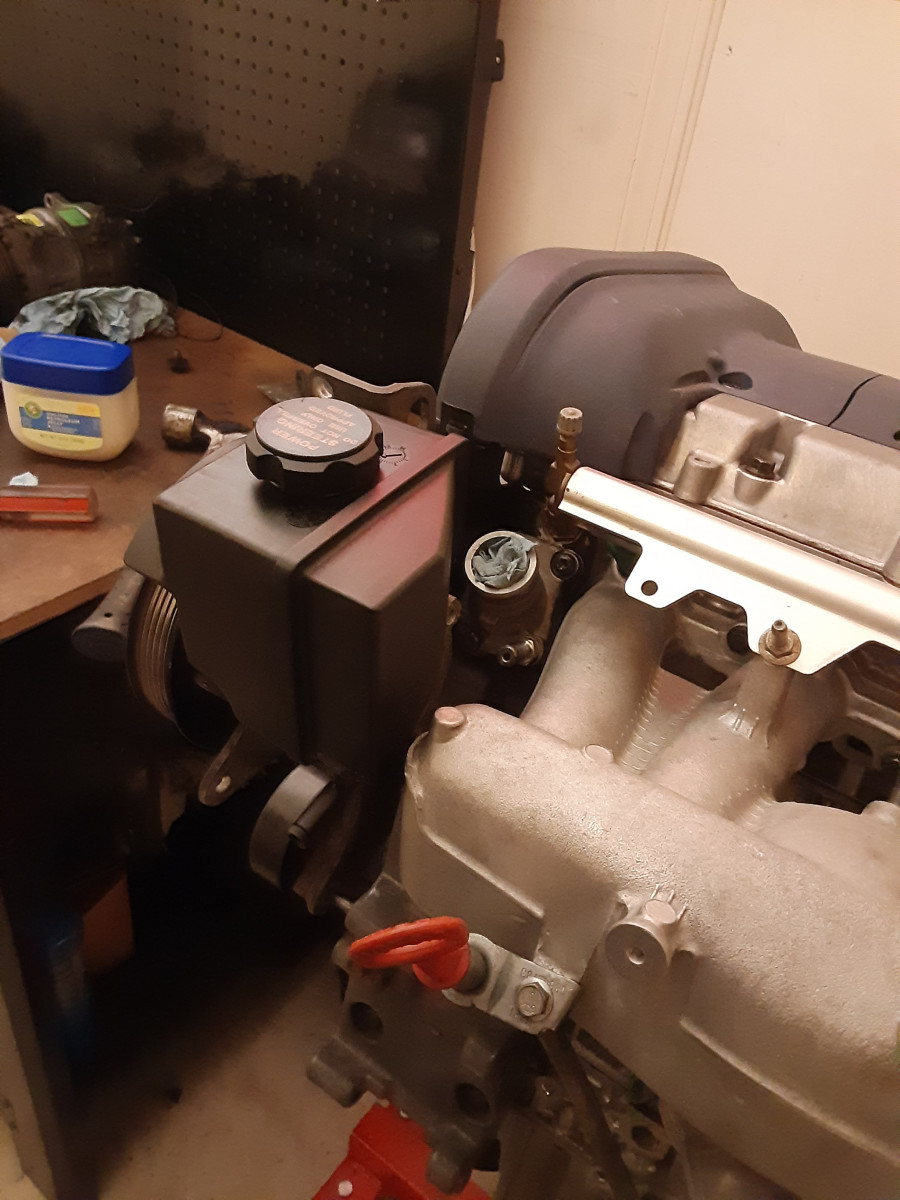

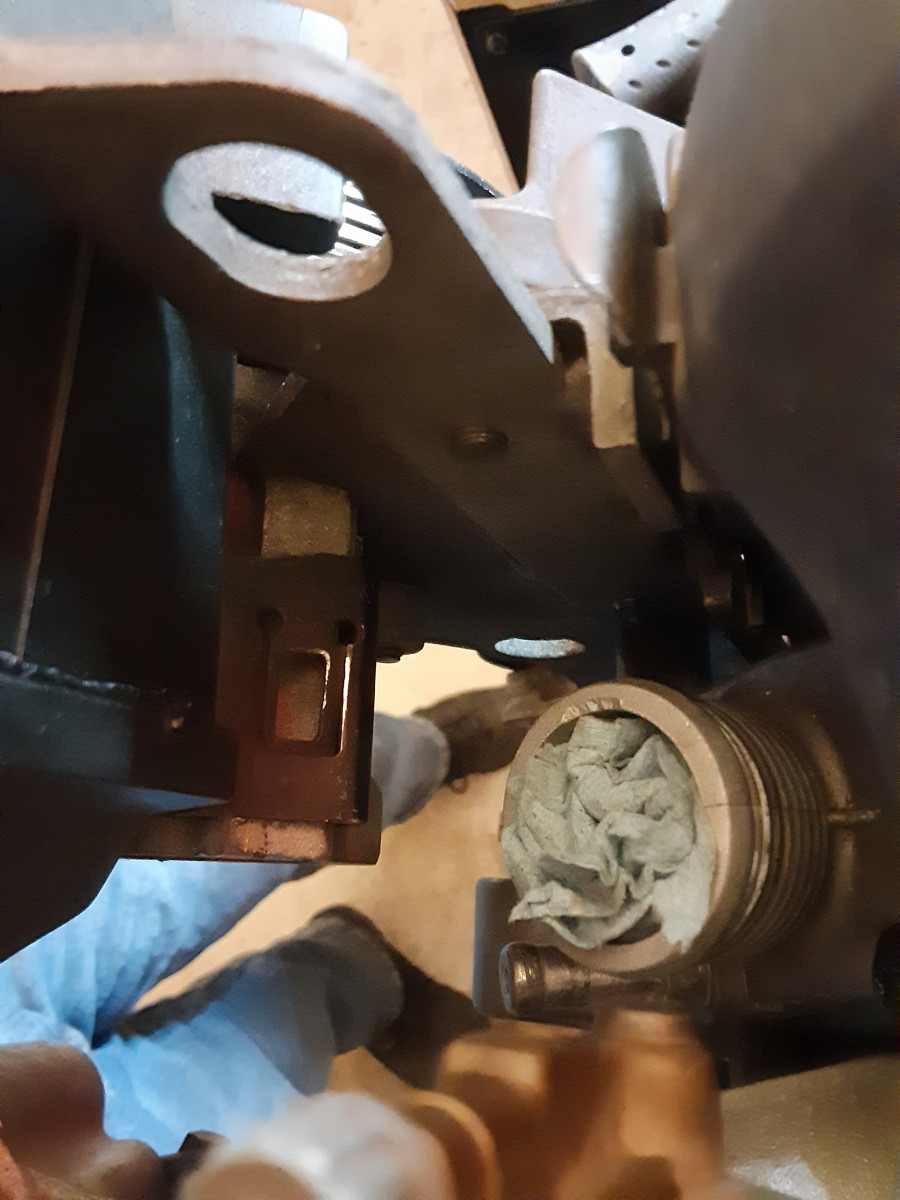

The reservoir is now permanently clamped in place, with a new O-ring. There's a whole 1/8" of clearance between it and the intake, but that's not a zero or a minus.

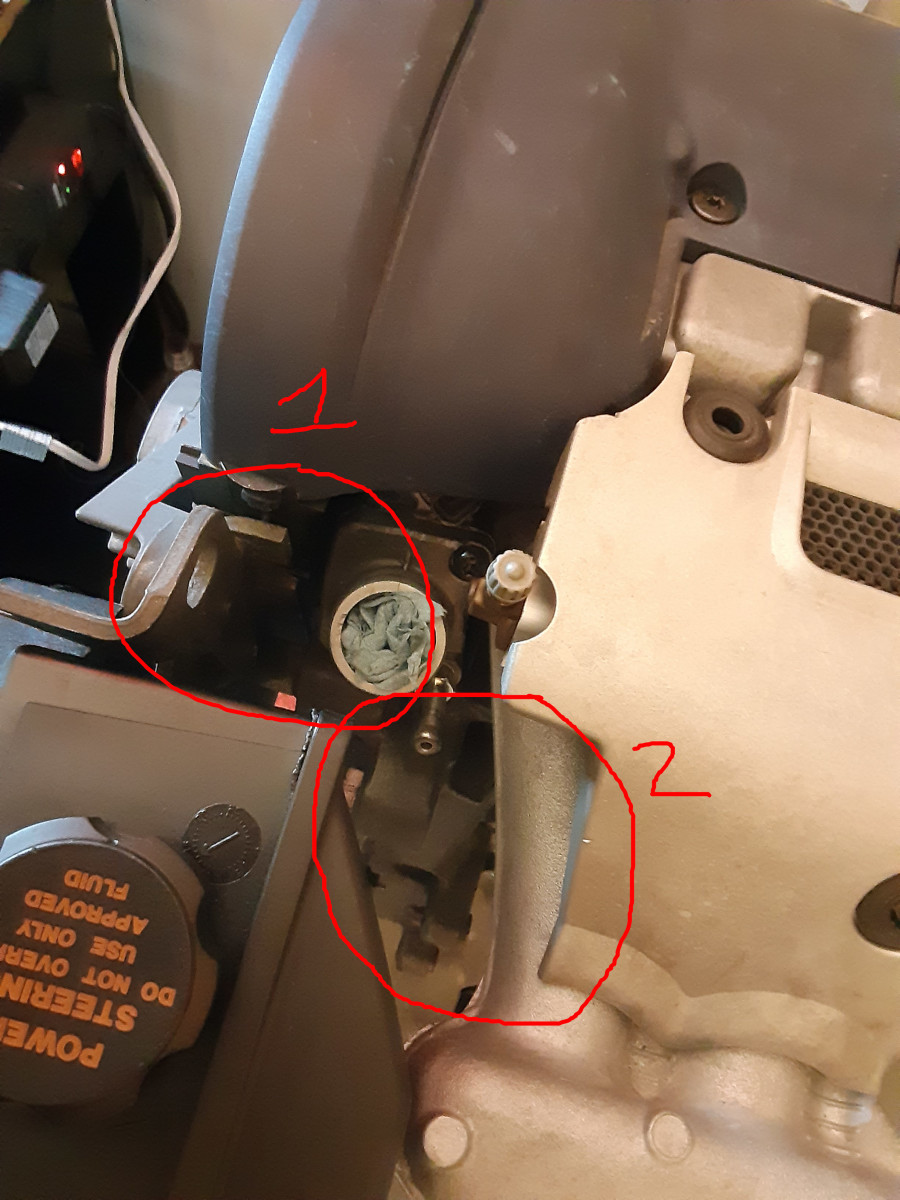

I'm not sure if I'm gonna run the new, custom upper hose through Gap #1 or #2.
