Question about a couple of brackets

Blkwidow · Post by **Blkwidow** » 28 Feb 2013, 10:32

Just finishing ulp a headgasket job on a 98 v70 turbo.

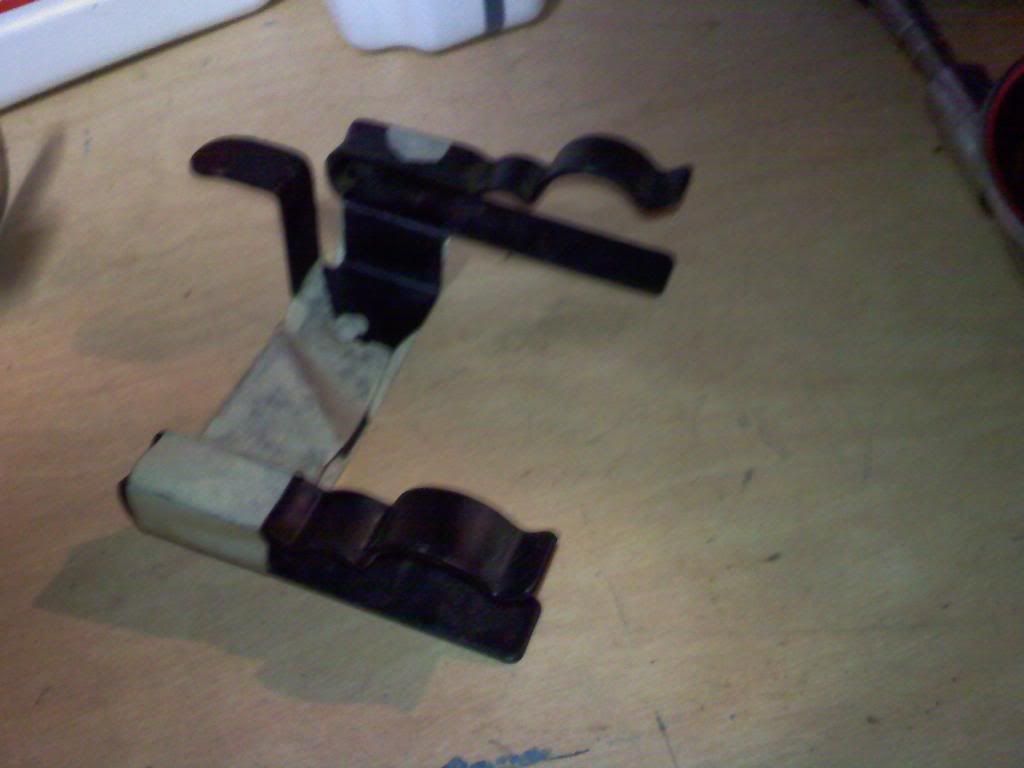

A little confused as to where these brackets go.

I know they go on the driver side of the engine. and hold the wiring and hoses over there. But what goes where? Anyone have a picture of them mounted in their car, or can anyone take a picture of them?

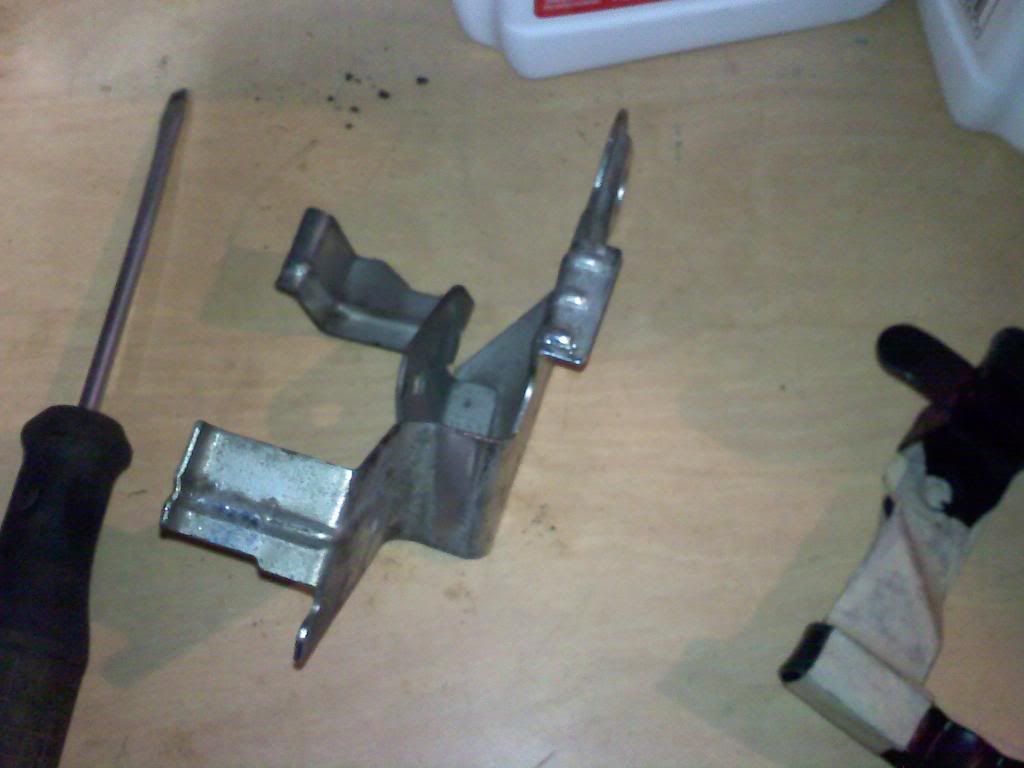

I know the silver one mounts to the front lower bolt of the upper engine torque mount bracket however i do not know which wiring is secured to it.

TIA

Post by **abscate** » 28 Feb 2013, 19:58

The silver one looks like the bracket holding the purge valve on the radiator on my 1999 T5???

Post by **erikv11** » 01 Mar 2013, 01:42

The black one holds the small vacuum lines form the turbo as they pass underneath the CPS.

Blkwidow · Post by **Blkwidow** » 06 Mar 2013, 21:41

erikv11 wrote:The black one holds the small vacuum lines form the turbo as they pass underneath the CPS.

how does it mount?

Post by **erikv11** » 07 Mar 2013, 07:20

uses the bottom screw on the CPS. Here are a few pics, the bracket comes in different styles on diff models:

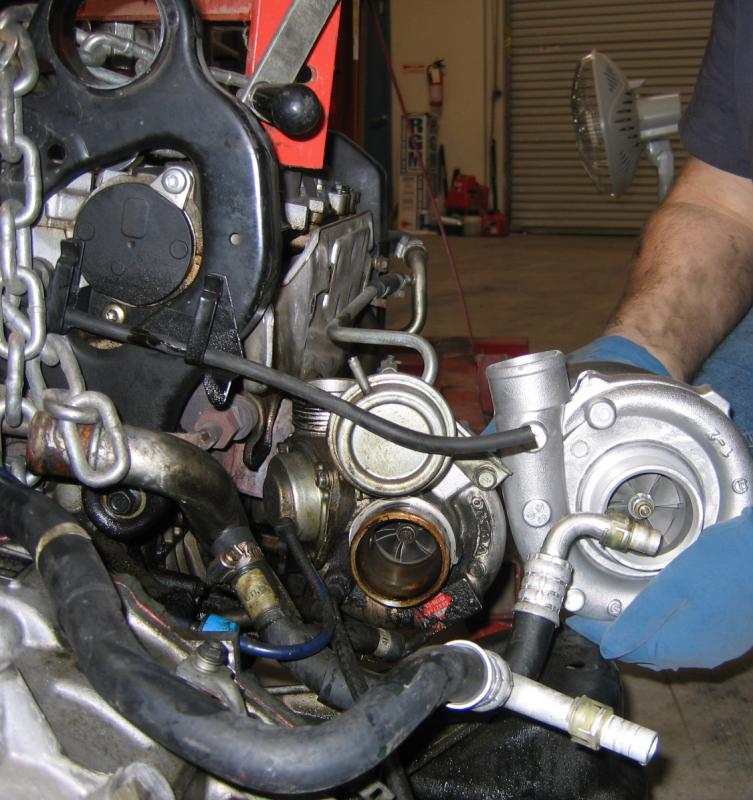

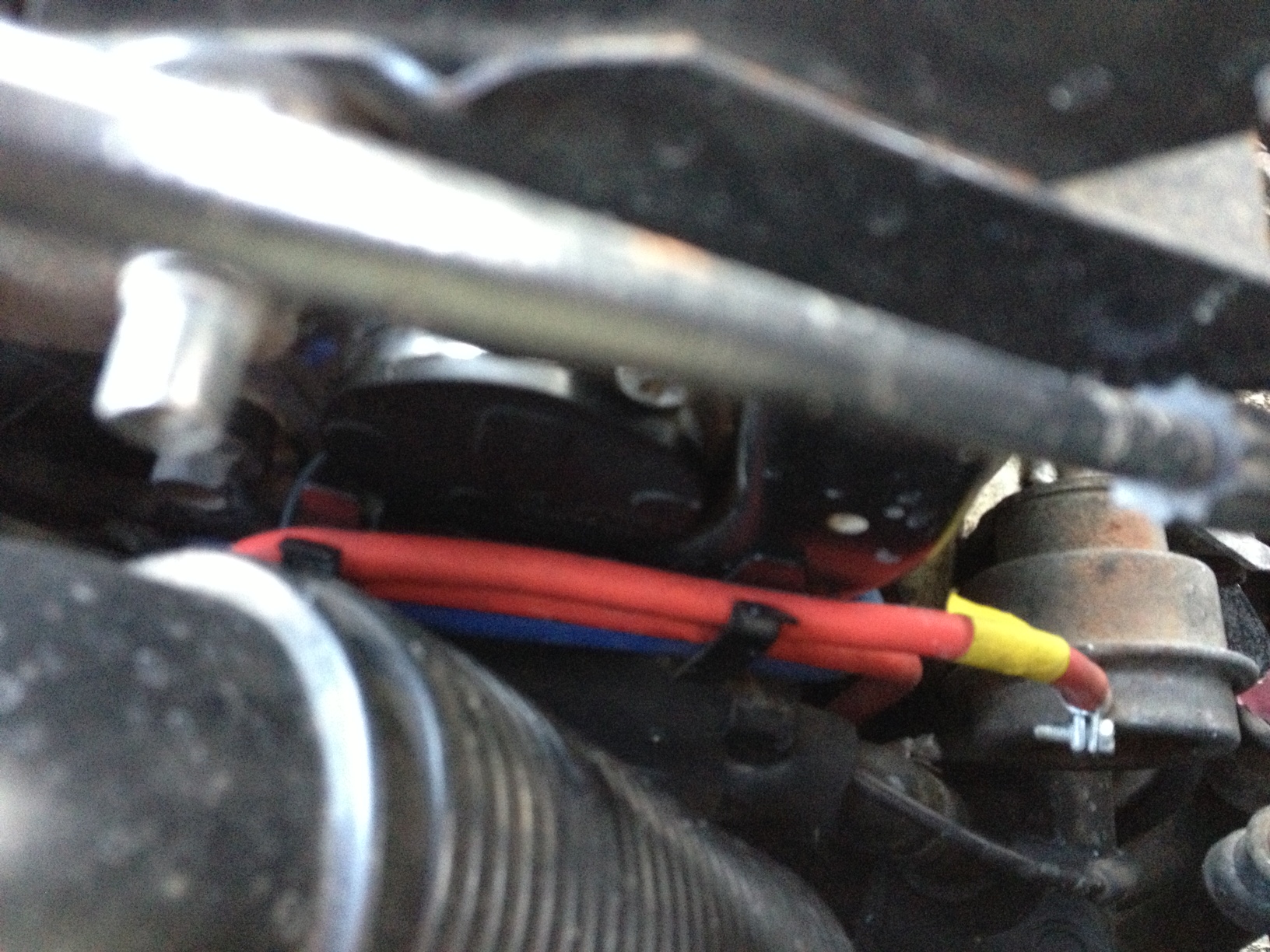

: CPS side.jpg (95.92 KiB) Viewed 526 times

: MBC_to_WG.jpg (162.41 KiB) Viewed 526 times
