1998 Volvo V70XC - Help me find the right place for hoses

Volvo742 · Post by **Volvo742** » 19 May 2014, 11:47

Hello!

I have a problem. I bought a Volvo V70XC AWD Machine that was broken, but I've cooked it is broken. I got the engine down dismounted.

Anyway, I need some help with the hoses.
Can you help me to pair the hose and the holes?

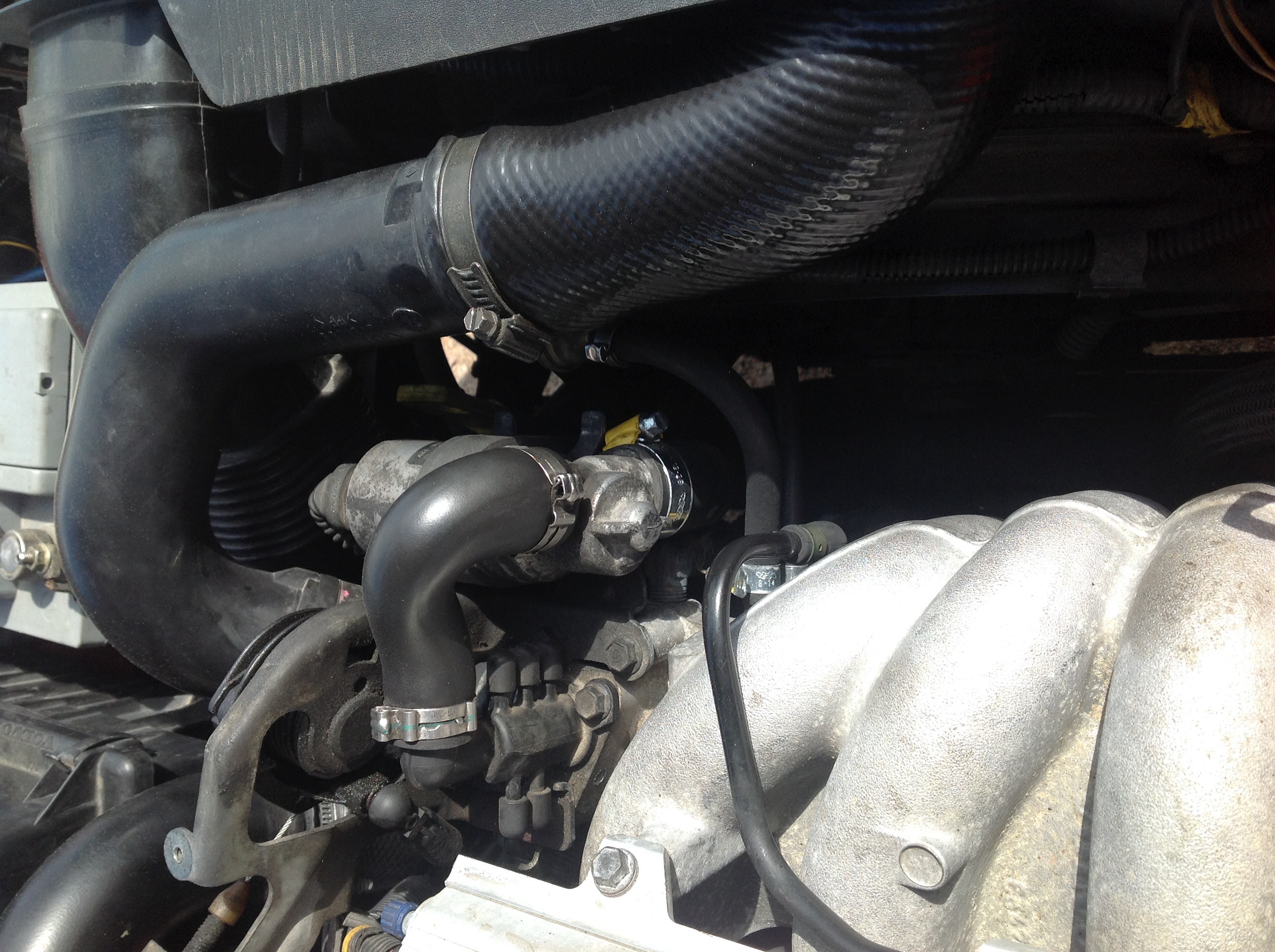

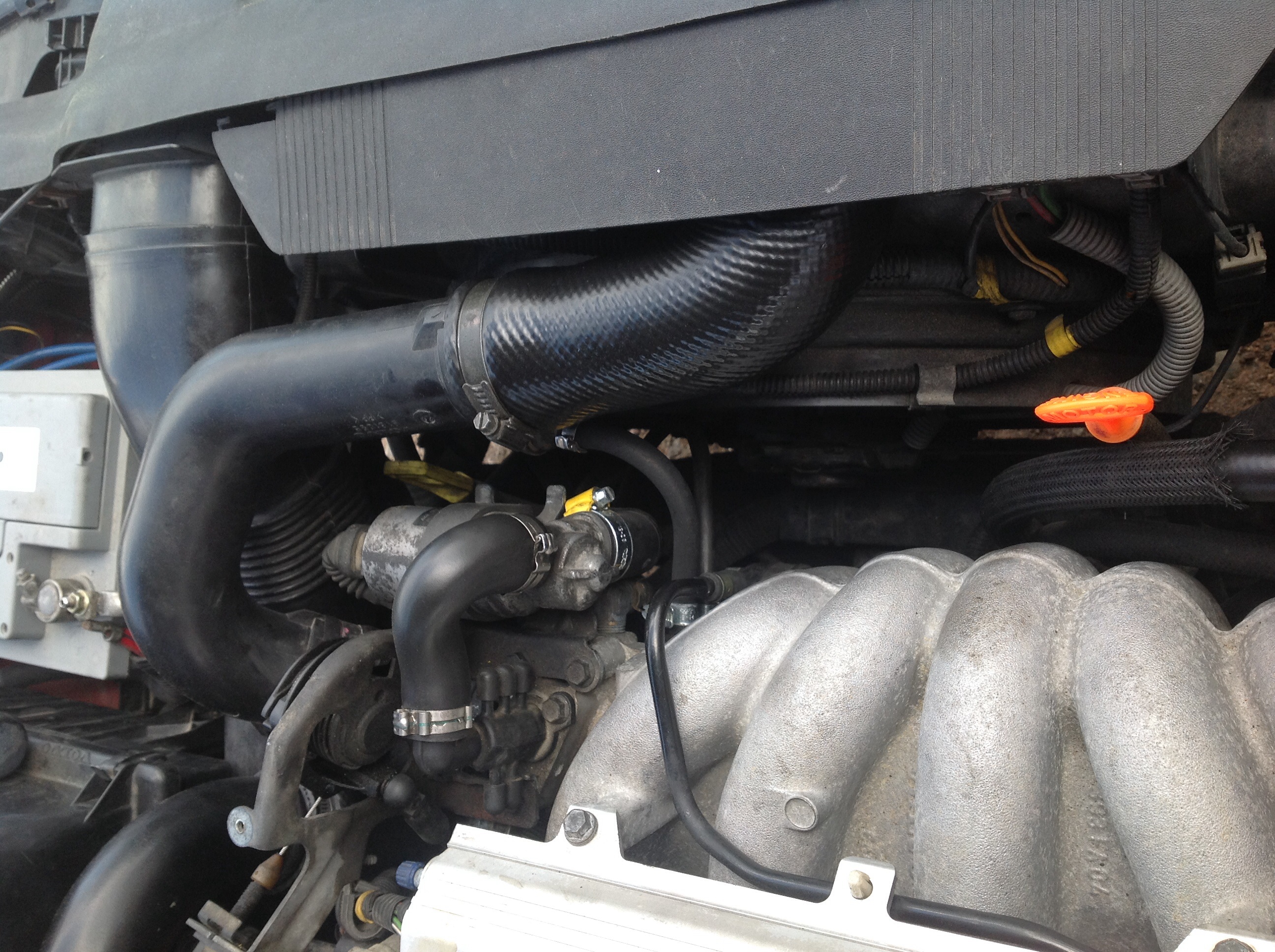

I have uploaded pictures.
The green arrow, you need not bother about.

I know that 1 is going to 16 and 12 is going to 17 and 6 going to 14.
According to this picture:

Volvo742 · Post by **Volvo742** » 20 May 2014, 02:58

Nobody who knows?

drgswede1978 · Post by **drgswede1978** » 20 May 2014, 03:34

You've got a job lol. Here it is
1-16
2- return on fuel pressure regulator
3-10
4-13
5- brake booster
6-19
7-12
8-14
9-17
11-18
20-15
Don't think I've missed any. Good luck.

Volvo742 · Post by **Volvo742** » 20 May 2014, 03:46

Tackar för informationen! Ska det inte vara någon backventil också där?

Exempel: Om du tar och titta längst ned till höger.

drgswede1978 · Post by **drgswede1978** » 20 May 2014, 04:03

Det kanske hjälpa dig
