1994 volvo 850 turbo wagon - ptc valve

Post by southofmotown » Fri Aug 21, 2015 10:50 pm

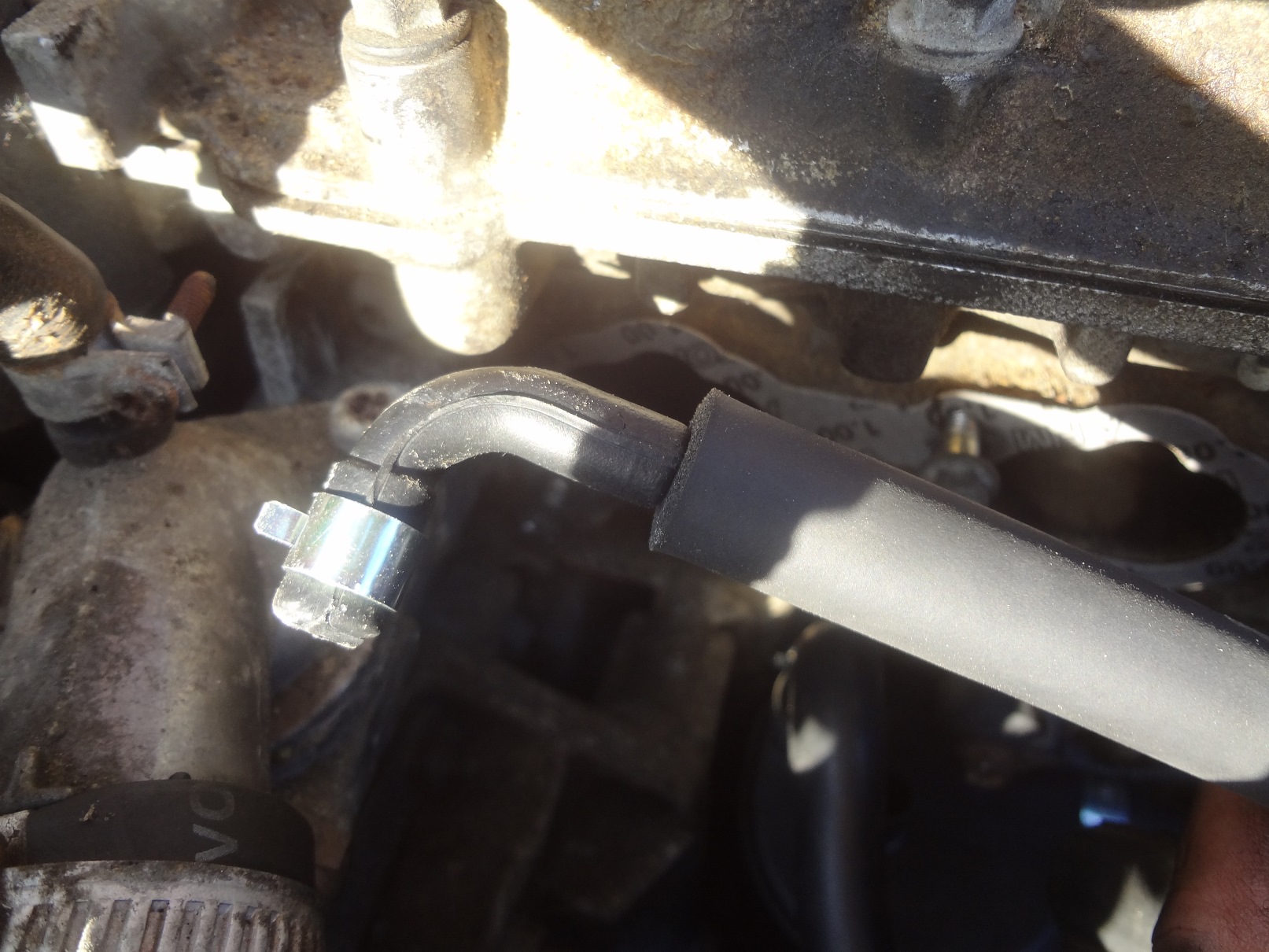

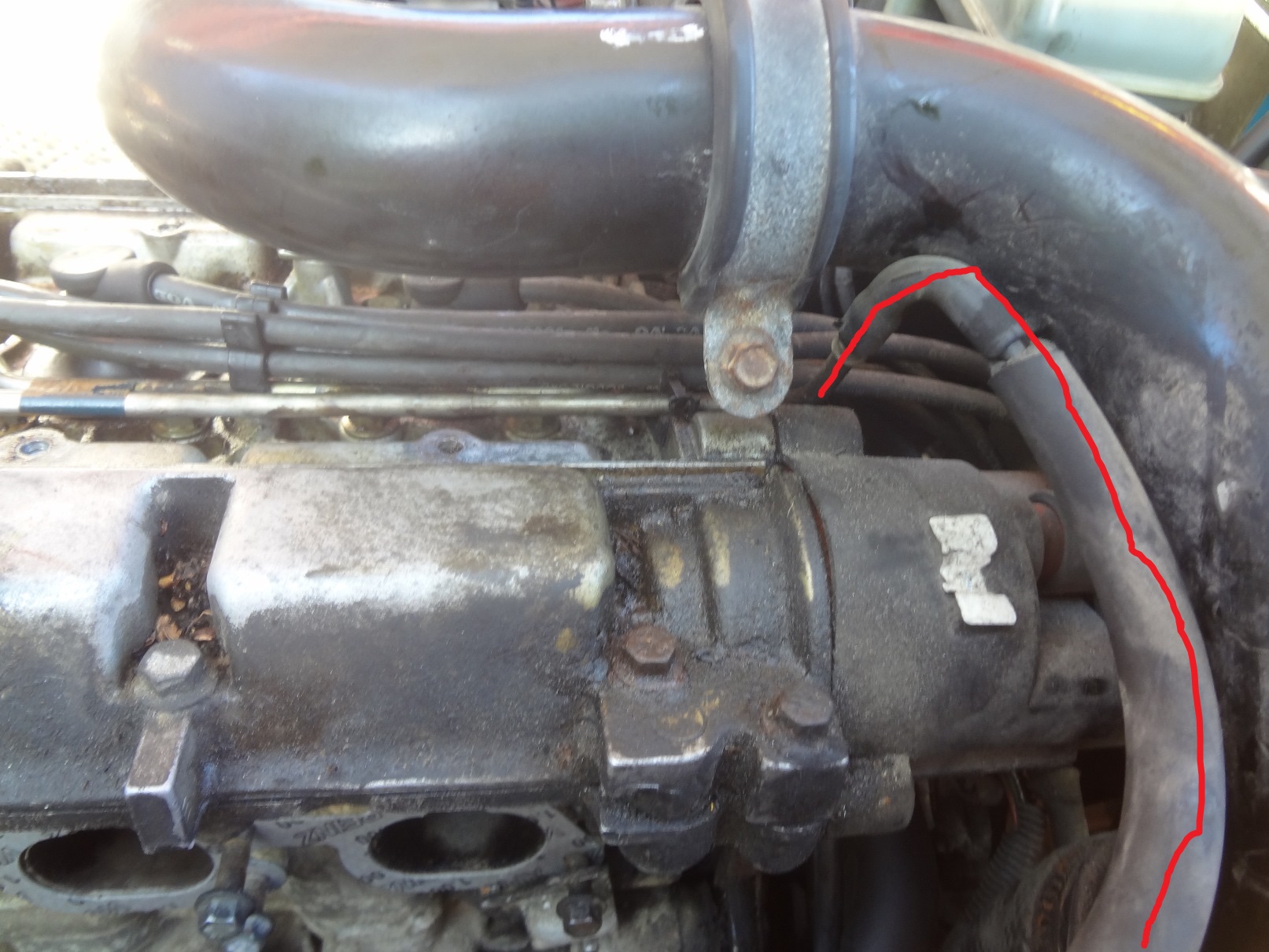

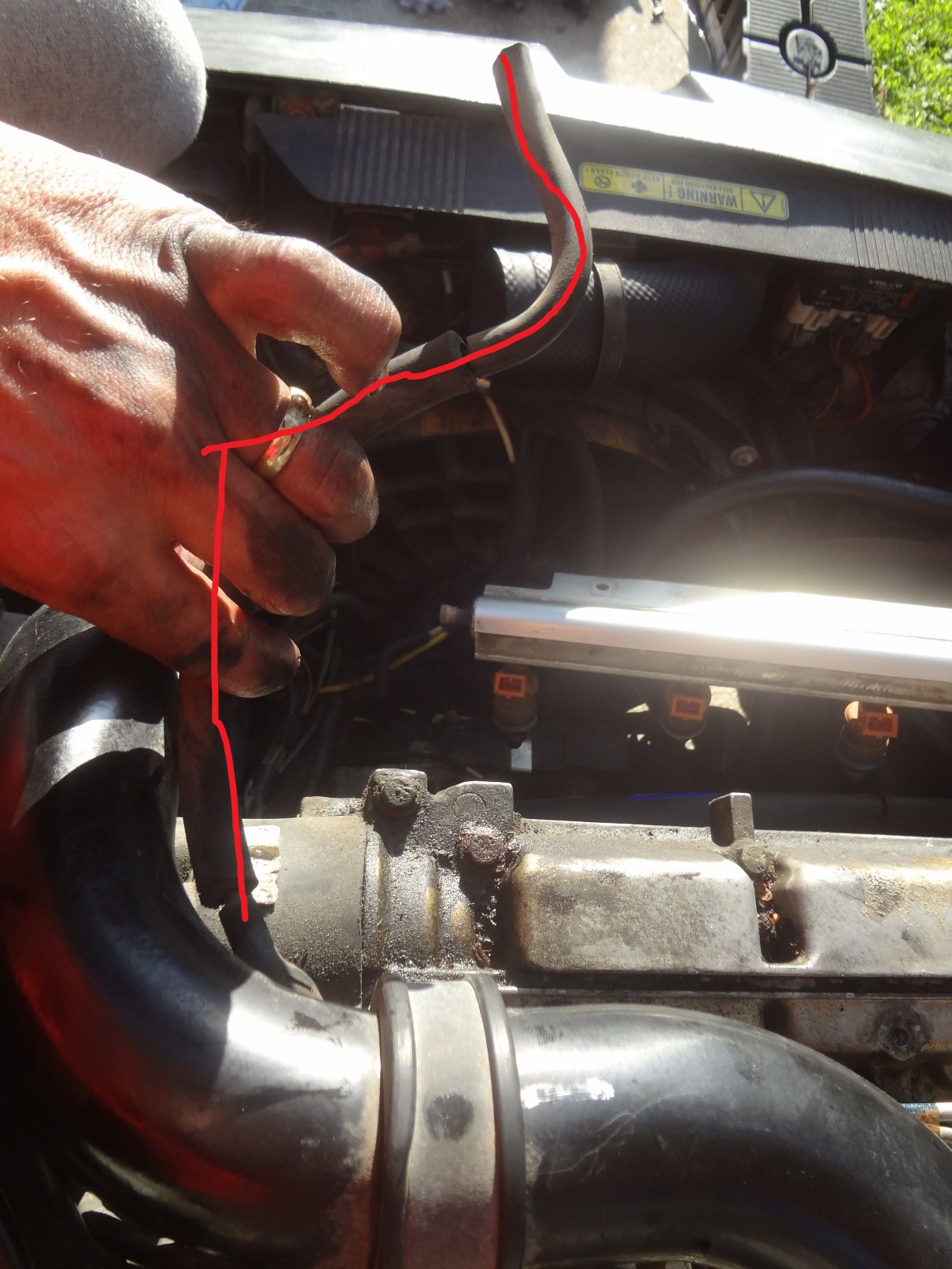

Can anyone tell me what this hose is (outlined in yellow)? I have it connected my PTC valve, which I assume is proper placement. Thanks.
You do not have the required permissions to view the files attached to this post.

scot850
Posts: 5607
Joined: Mon Apr 05, 2010 2:46 pm
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 9 times
Been thanked: 154 times
Canada
scot850

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by scot850 » Fri Aug 21, 2015 11:15 pm

From your other post, this pipe should run to the RH end of the inlet manifold and is the smaller pipe of the 2 you show in the other post. (RH is passenger side just behind the rear of the power steering pump and alternator.

Neil.
2000 V70 R - still being an endless PITA
2006 XC70
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - New project and test bed - Sold

southofmotown
Posts: 36
Joined: Sun Aug 09, 2015 11:58 am
Year and Model: 1994 850 turbo
Location: Toledo
Has thanked: 0
Been thanked: 0
southofmotown

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by southofmotown » Fri Aug 21, 2015 11:28 pm

So bottom line is it should NOT be connecting to the PTC valve?

Sommerfeldt
Posts: 1113
Joined: Tue Jul 29, 2008 1:25 pm
Year and Model: 1996 850 T5
Location: Oslo Area, Norway
Has thanked: 50 times
Been thanked: 30 times
Norway
Sommerfeldt

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by Sommerfeldt » Sat Aug 22, 2015 3:06 am

ONLY the 2 hoses in the foam sleeve should be connected to the PTC. The big one on top, and the one with the elbow on the connection in your first pic.

- S
'96 855 T5, R bumper and spoiler, Koni Yellows & blue H&R springs all 'round.

southofmotown
Posts: 36
Joined: Sun Aug 09, 2015 11:58 am
Year and Model: 1994 850 turbo
Location: Toledo
Has thanked: 0
Been thanked: 0
southofmotown

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by southofmotown » Sat Aug 22, 2015 7:33 am

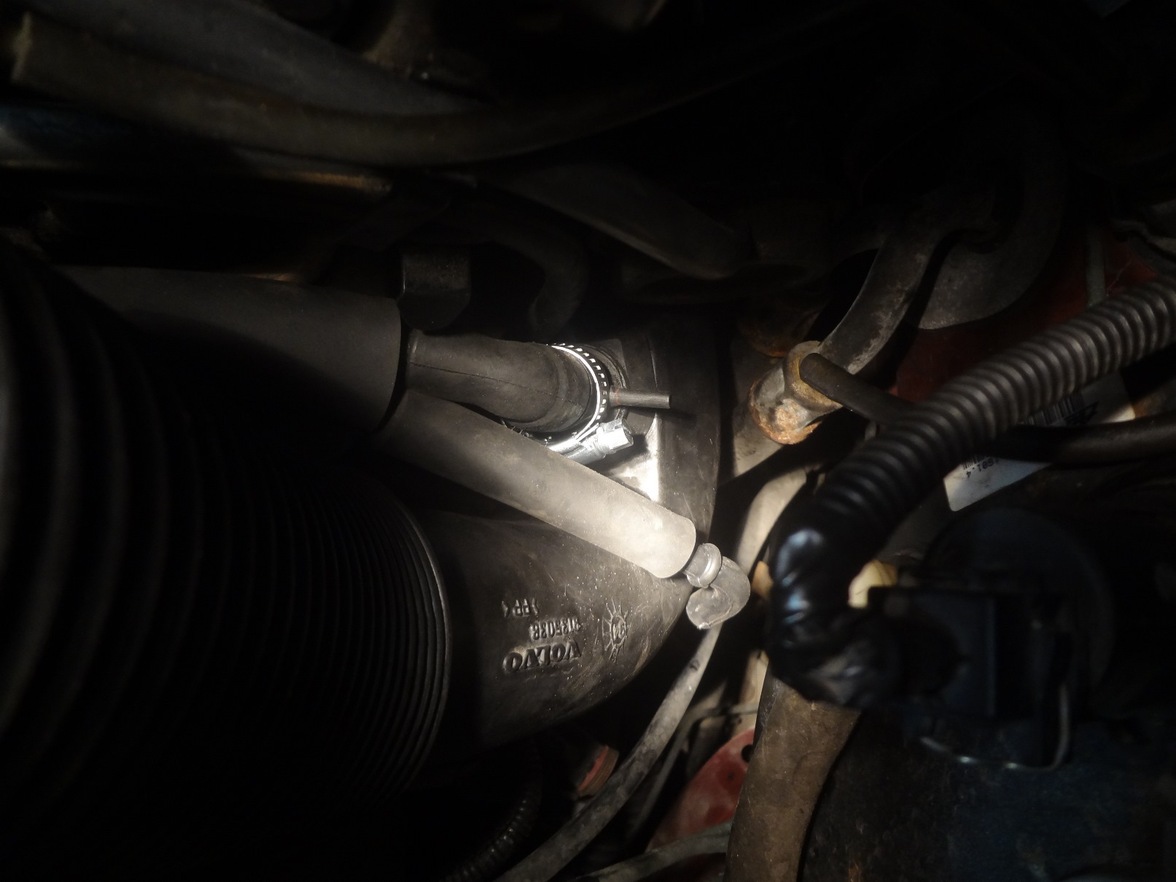

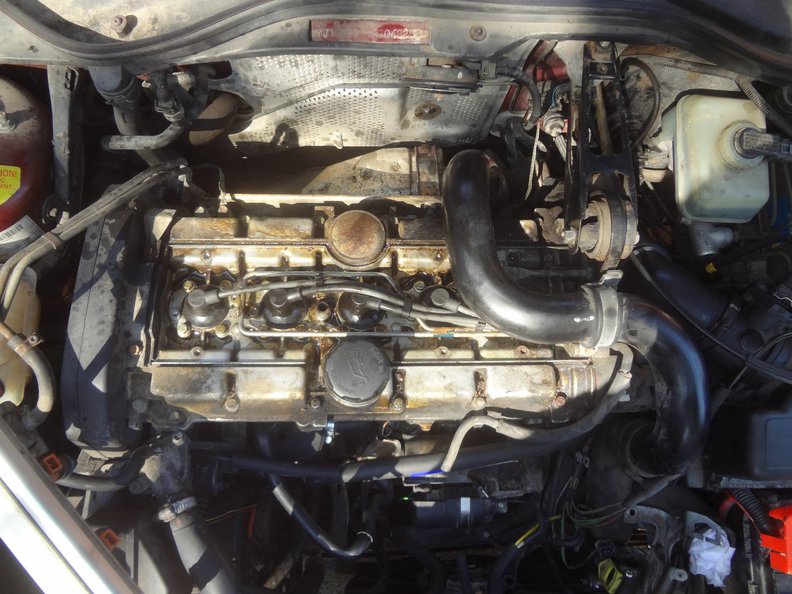

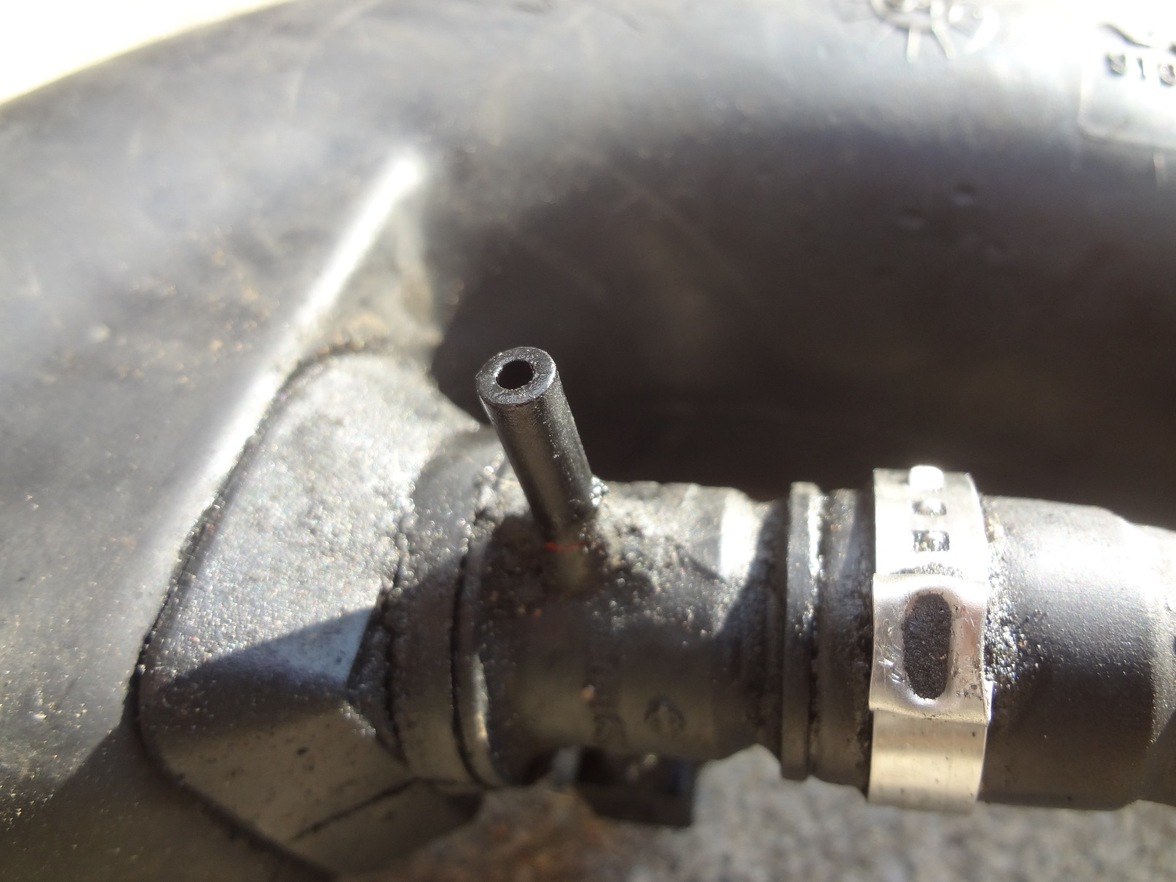

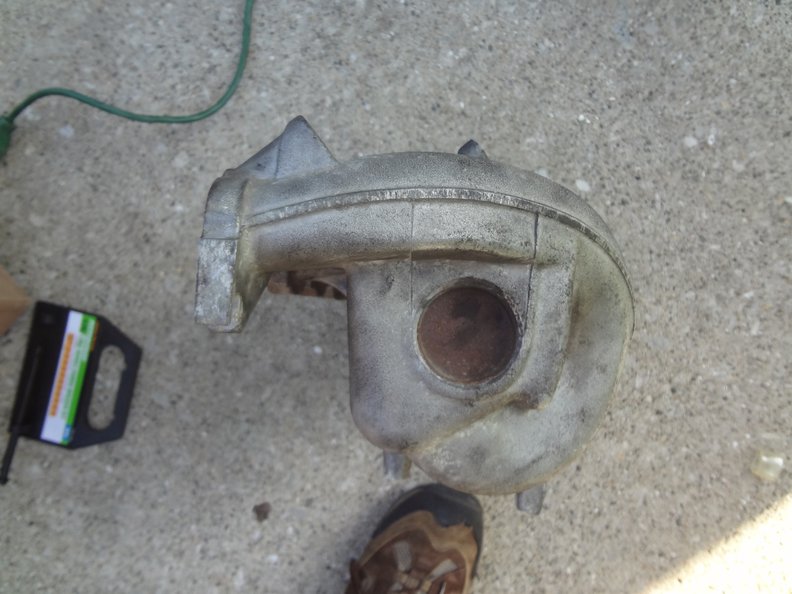

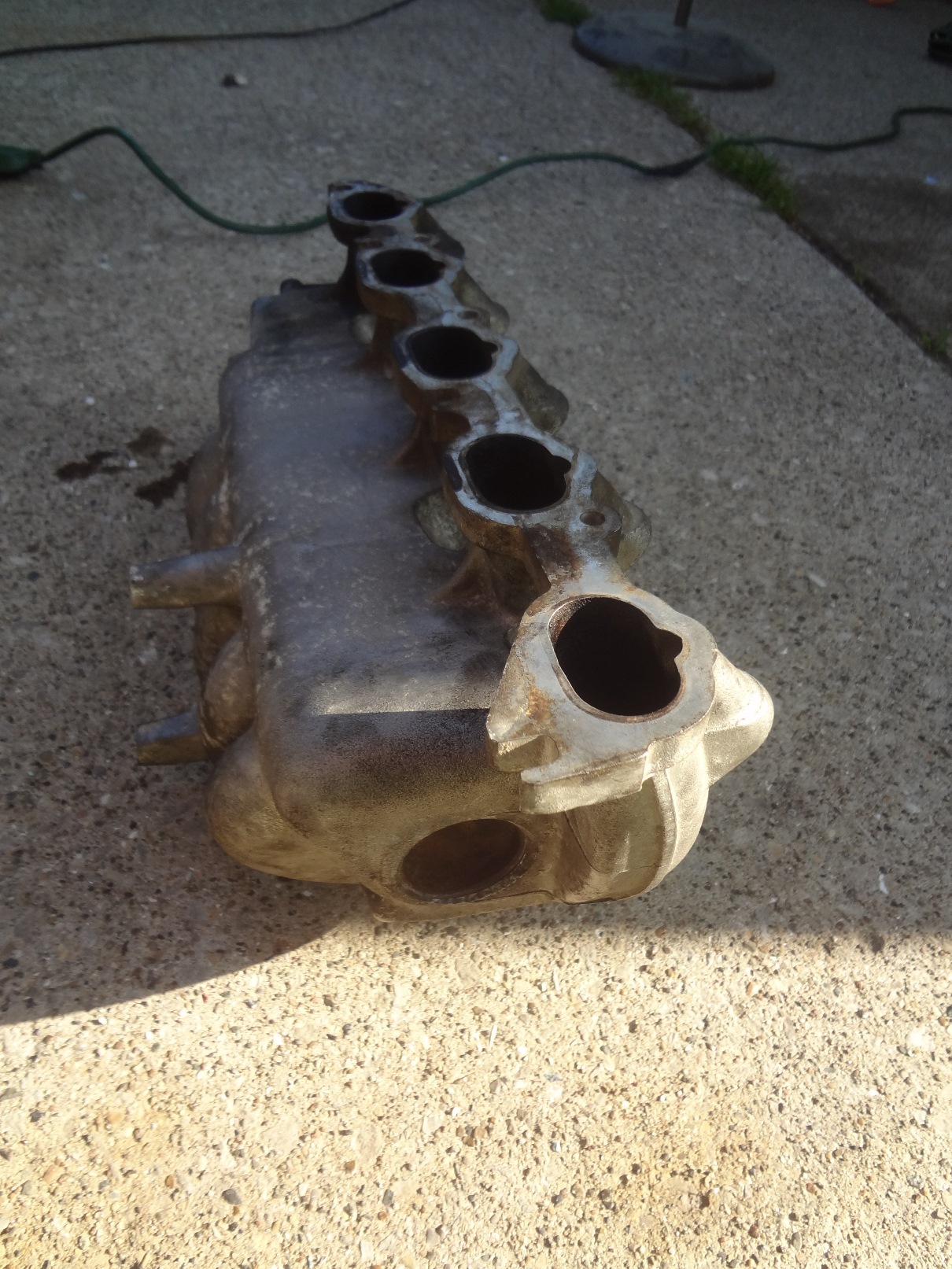

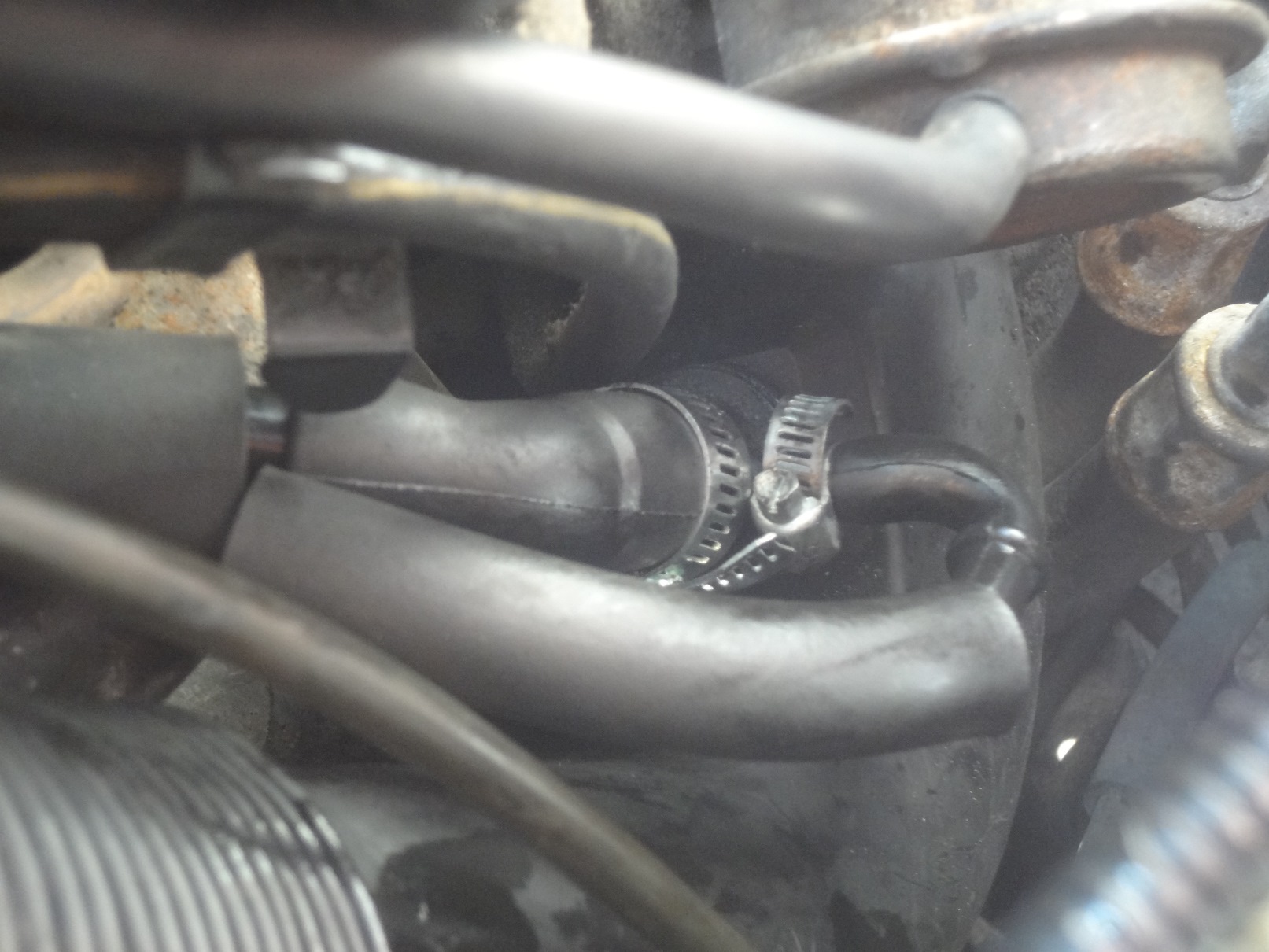

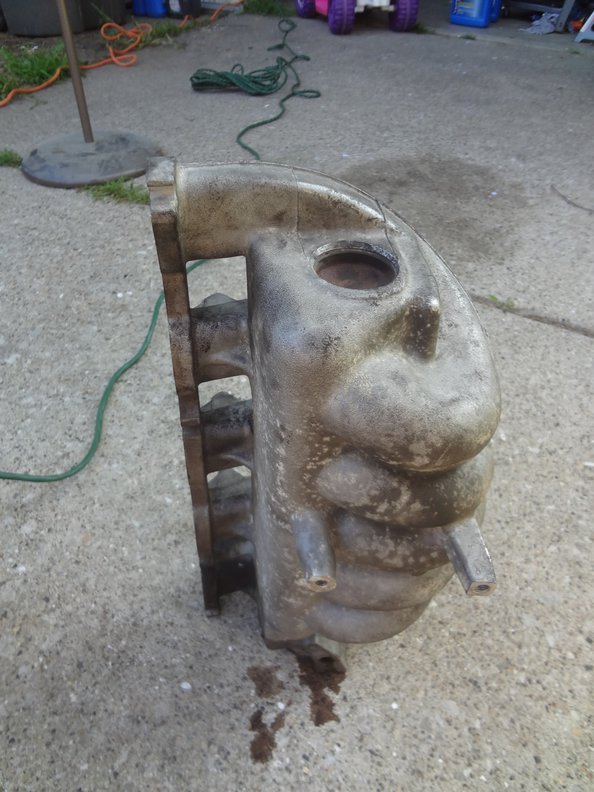

Okay I attached both breather hoses to the PTC valve (see pics). On the other side, the larger hose attaches to the oil trap, but I don't know where to put the smaller hose. My intake manifold does not appear to have an connection for it (see pics). Thanks.
You do not have the required permissions to view the files attached to this post.

Sommerfeldt
Posts: 1113
Joined: Tue Jul 29, 2008 1:25 pm
Year and Model: 1996 850 T5
Location: Oslo Area, Norway
Has thanked: 50 times
Been thanked: 30 times
Norway
Sommerfeldt

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by Sommerfeldt » Sat Aug 22, 2015 8:12 am

Well... there should be a connector for it. I can see that you don't have one... But it would be helpful to see what connections you have on the other side. Have someone been tinkering with you intake manifold, to your knowledge?

Anyway, seems this chap has the same problem you do, if I'm not mistaken: http://volvoforums.com/forum/volvo-850- ... ump-24402/

- S
'96 855 T5, R bumper and spoiler, Koni Yellows & blue H&R springs all 'round.

User avatar
rspi
Posts: 7247
Joined: Sat Nov 05, 2011 10:40 am
Year and Model: 850 T-5R Wagon
Location: Albuquerque, NM
Has thanked: 19 times
Been thanked: 40 times
United States of America
rspi

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by rspi » Sat Aug 22, 2015 8:42 am

The vehicle is a '94 model and probably has tubes running along the top of the head under the spark plug cover. Different from most.
'95 855 T-5R M, Panther - 22/28 mpg
'98 S70 GLT, Lil' Red 25/32 mpg
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos

Sommerfeldt
Posts: 1113
Joined: Tue Jul 29, 2008 1:25 pm
Year and Model: 1996 850 T5
Location: Oslo Area, Norway
Has thanked: 50 times
Been thanked: 30 times
Norway
Sommerfeldt

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by Sommerfeldt » Sat Aug 22, 2015 8:48 am

rspi wrote:The vehicle is a '94 model and probably has tubes running along the top of the head under the spark plug cover. Different from most.
Yeah...could be. But isn't it still supposed to have the manifold connector? To me it kind of looks like someone's put a plug in that whole side of the manifold.

- S
'96 855 T5, R bumper and spoiler, Koni Yellows & blue H&R springs all 'round.

southofmotown
Posts: 36
Joined: Sun Aug 09, 2015 11:58 am
Year and Model: 1994 850 turbo
Location: Toledo
Has thanked: 0
Been thanked: 0
southofmotown

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by southofmotown » Sat Aug 22, 2015 9:26 am

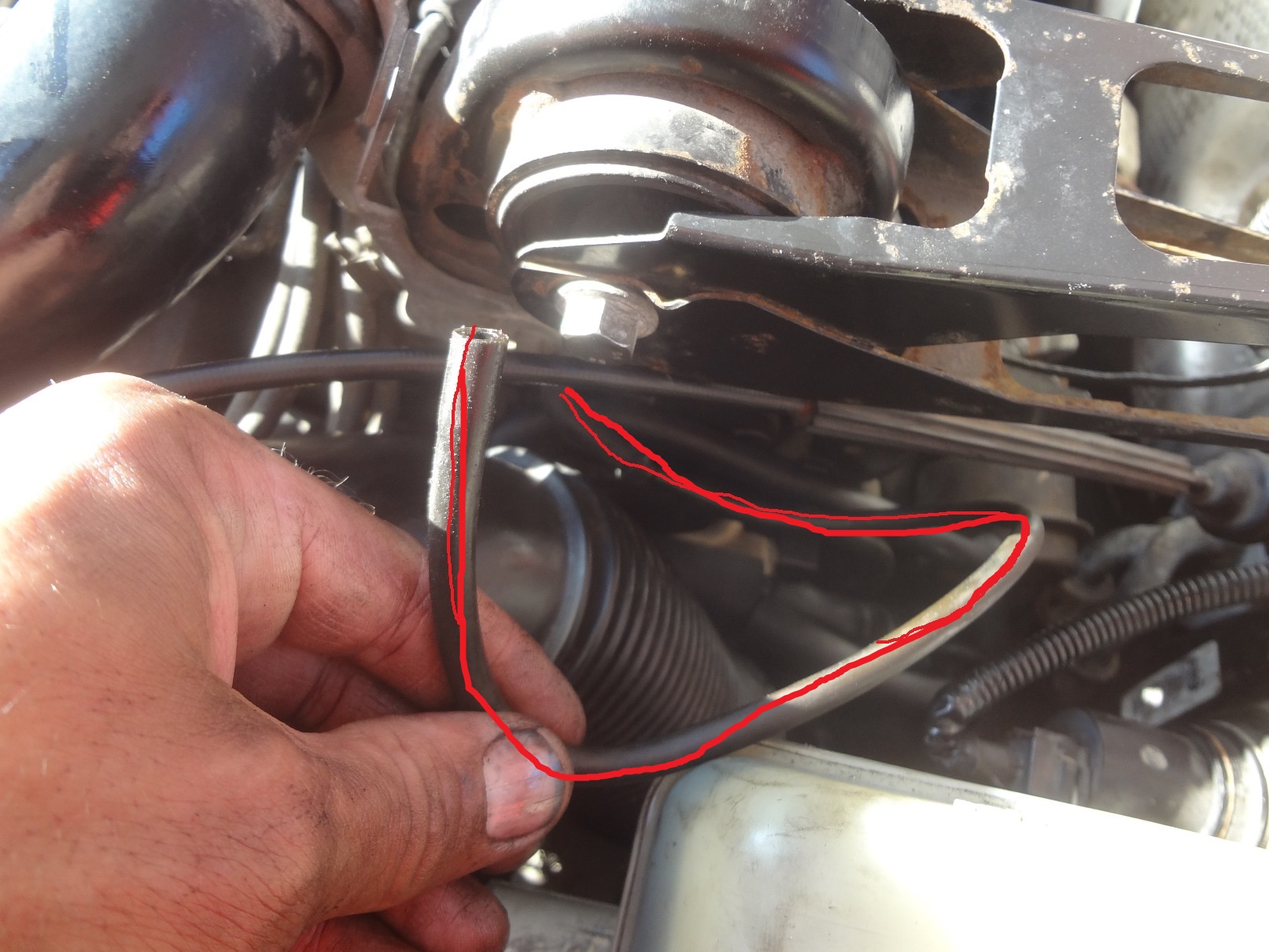

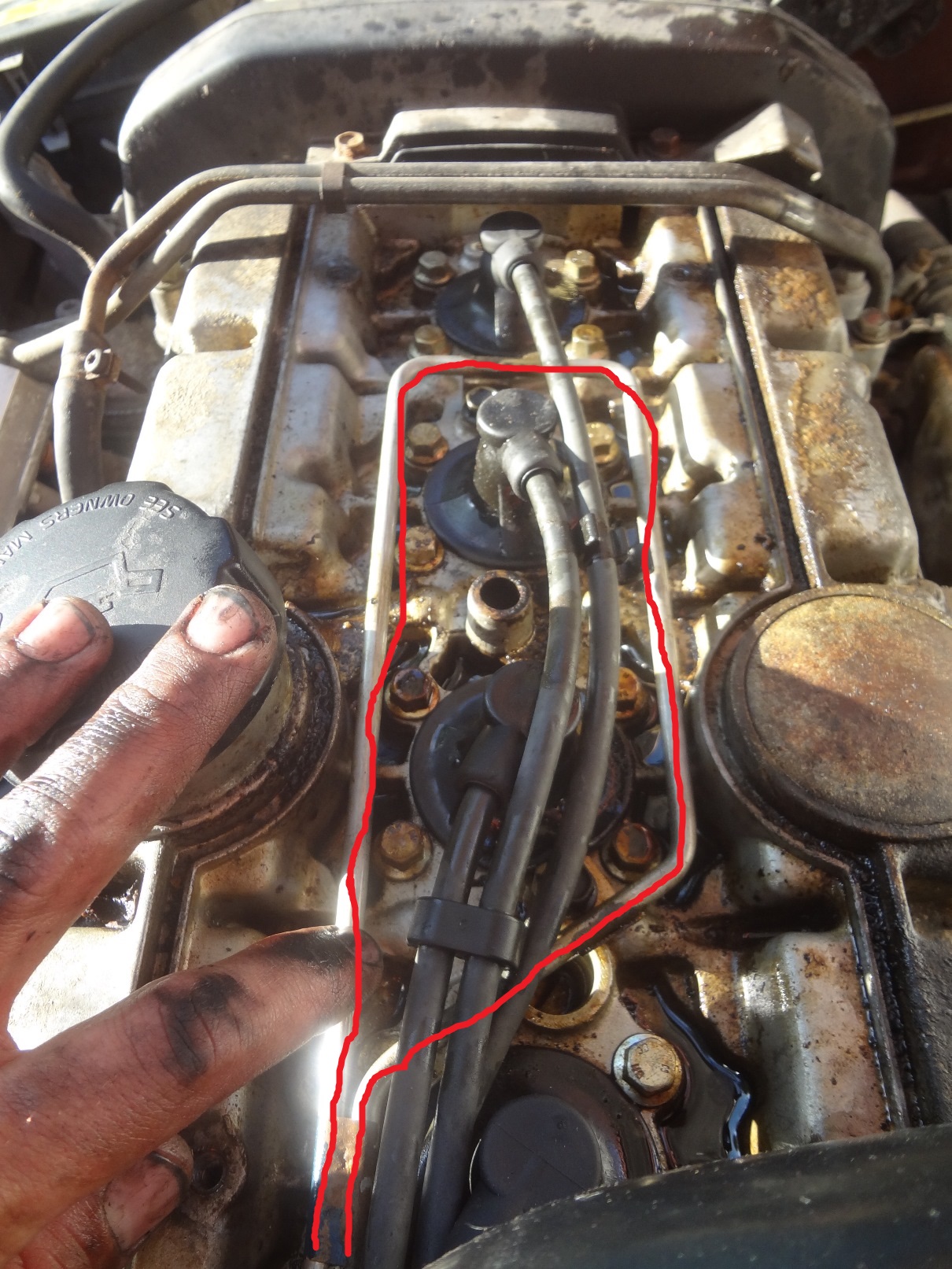

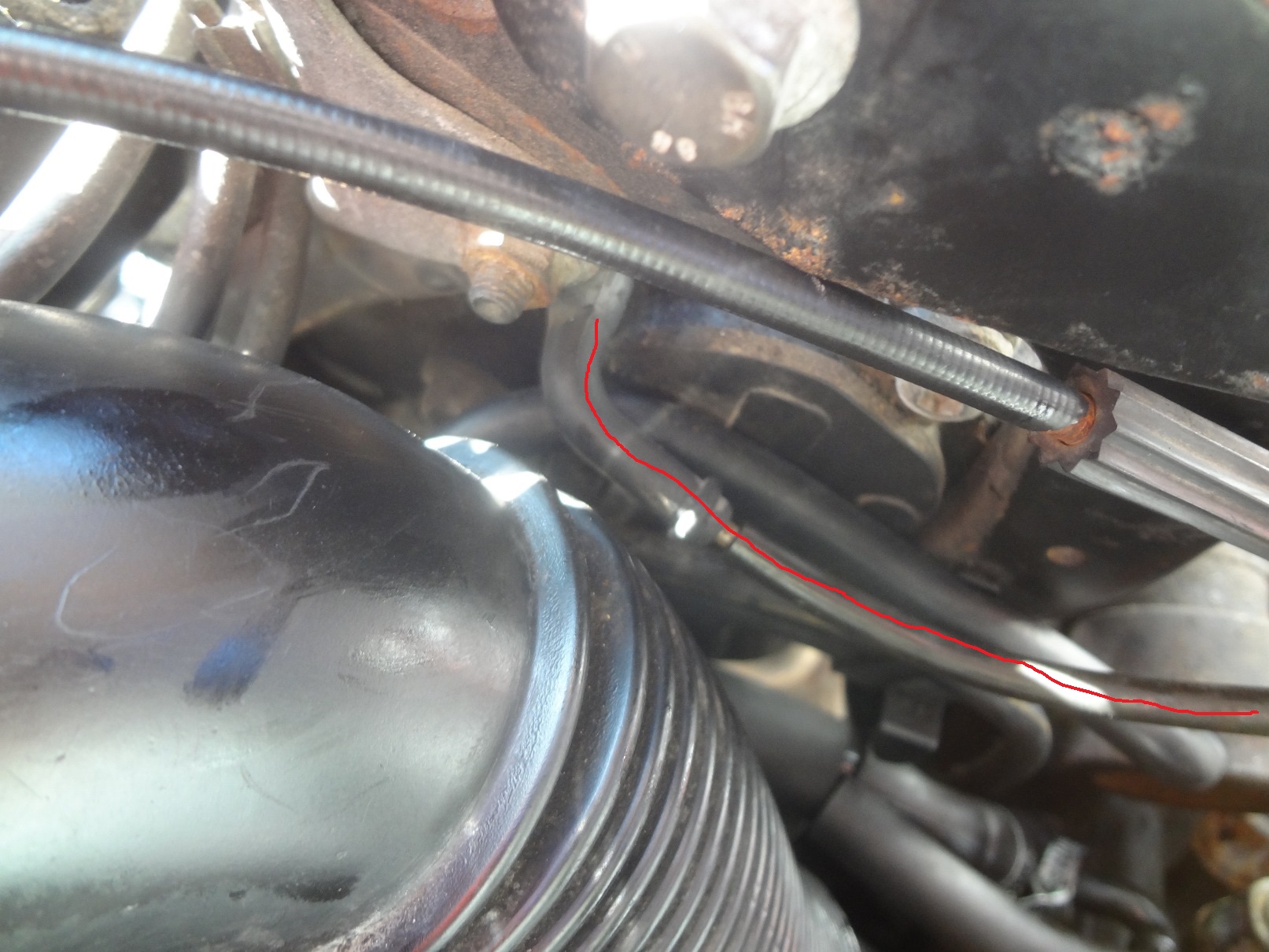

No I can't see that anyone has tinkered with the intake manifold - it was owned by a lady and then a younger guy who I don't think did much maintenance. As far as Robert's explanation, I've attached a pic of under the spark plug cover (if this view is helpful). Also, there is a hose that I don't know where it connects. I've outlined it in red so you can follow it. Can you tell me what it is and where it should connect? Thanks.
You do not have the required permissions to view the files attached to this post.

User avatar
abscate
MVS Moderator
Posts: 19662
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 247 times
Been thanked: 805 times
Trinidad & Tobago
abscate

Re: 1994 volvo 850 turbo wagon - ptc valve

Post by abscate » Sun Aug 23, 2015 4:33 am

Can you put up a picture of your vacuum hose diagram..sticker under the hood?
