'88 760 Transmission AW71

88760RICH · Post by **88760RICH** » 17 Jan 2016, 15:54

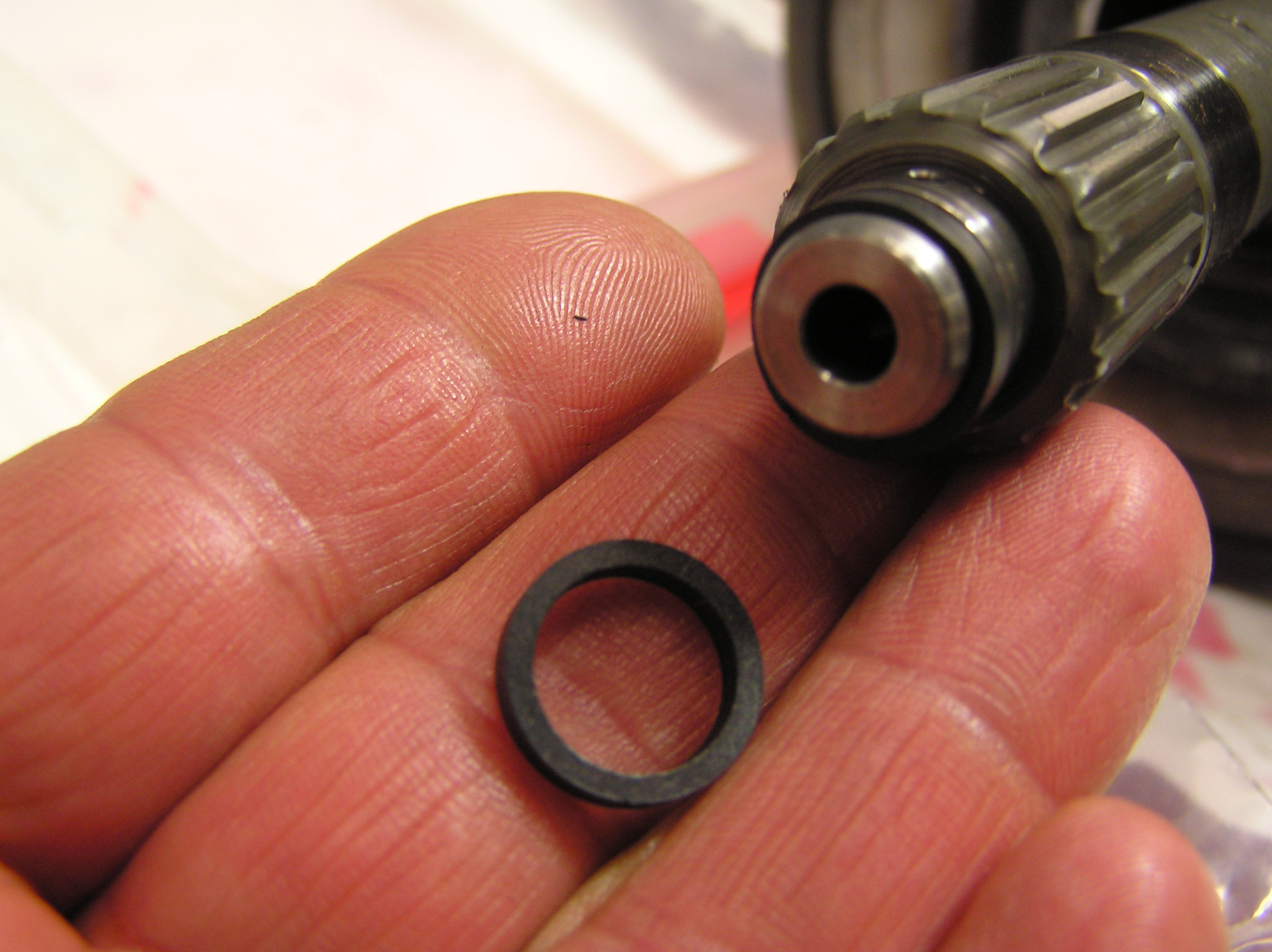

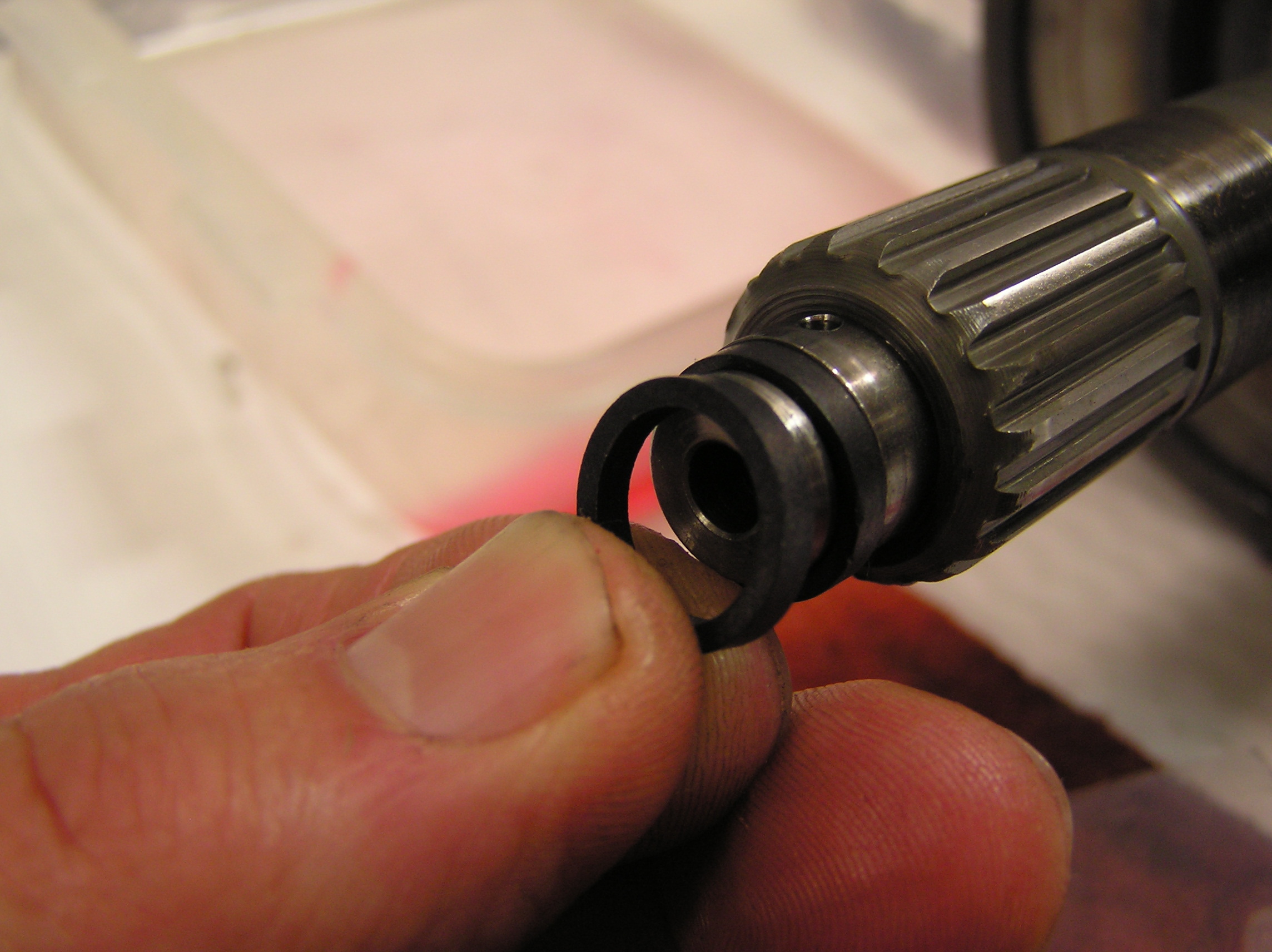

I am rebuilding this AW71 transmission and wondering how to remove and install the ring on the inner end of the output shaft. The ring appears to be hard carbon and approximately 12mm in diameter and square cut. Photos are attached showing the old ring still on the shaft and new ring in my hand.



.

93Regina · Post by **93Regina** » 17 Jan 2016, 16:23

88760RICH wrote:Photos are

Where?

88760RICH · Post by **88760RICH** » 17 Jan 2016, 19:12

93Regina · Post by **93Regina** » 17 Jan 2016, 19:50

RE: "ring on the inner end of the output shaft. The ring appears to be hard carbon"

After years of heat, rubber becomes hard. Getting underneath it with a small screw-driver or pick, and then moving upwards should break it. I'd put some tranny oil on new one, and slide it over shaft.

Green Book Manual

Volvo AW-70 Series Transmission Rebuild PDF

88760RICH · Post by **88760RICH** » 20 Jan 2016, 13:44

Thank you for the replay and the link /pdf. They are very much appreciated!
