hoses on purge canister

jeffstuckinpa · Post by **jeffstuckinpa** » 21 Apr 2019, 16:44

Hello All, Im taking the brief little time I have on Easter Sunday to ask a brief question..

been chasing a CEL for a couple of weeks now, I have a small leak somewhere in the evap system. I changed the gas cap, I also swapped out the purge valve and checked all the hoses there they seemed "fine", next up the canister!

I found one little hose that seemed to have a crack coming out of the canister and what seemed to be a return towards the gas cap area... Im afraid pull it off and drive to the parts store only to have to wait a couple of days and not be able to get it back on...

anyone have a canister layout with hose information??

thanks ahead of the answers!

Post by **RickHaleParker** » 21 Apr 2019, 18:44

Which number?

jeffstuckinpa · Post by **jeffstuckinpa** » 21 Apr 2019, 19:49

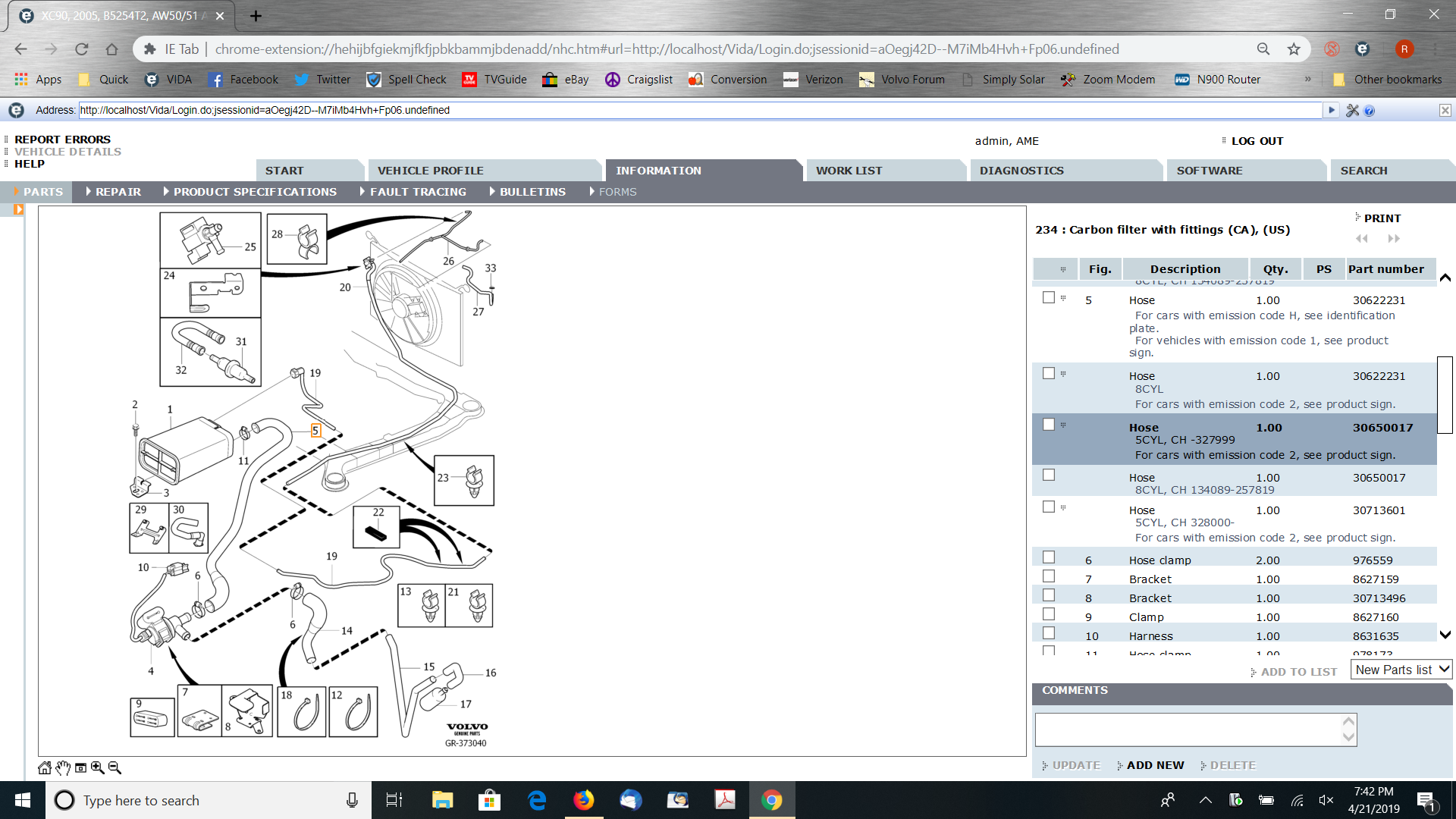

I can only assume it’s number 5 on the diagram... here’s where the double verification comes into play!

I’d love to see a photo of the undercarriage if at all possible.. scale is throwing my mind off!

I’m climbing under my car right now and gonna take a photo to place all the details on the table..

jeffstuckinpa · Post by **jeffstuckinpa** » 21 Apr 2019, 20:39

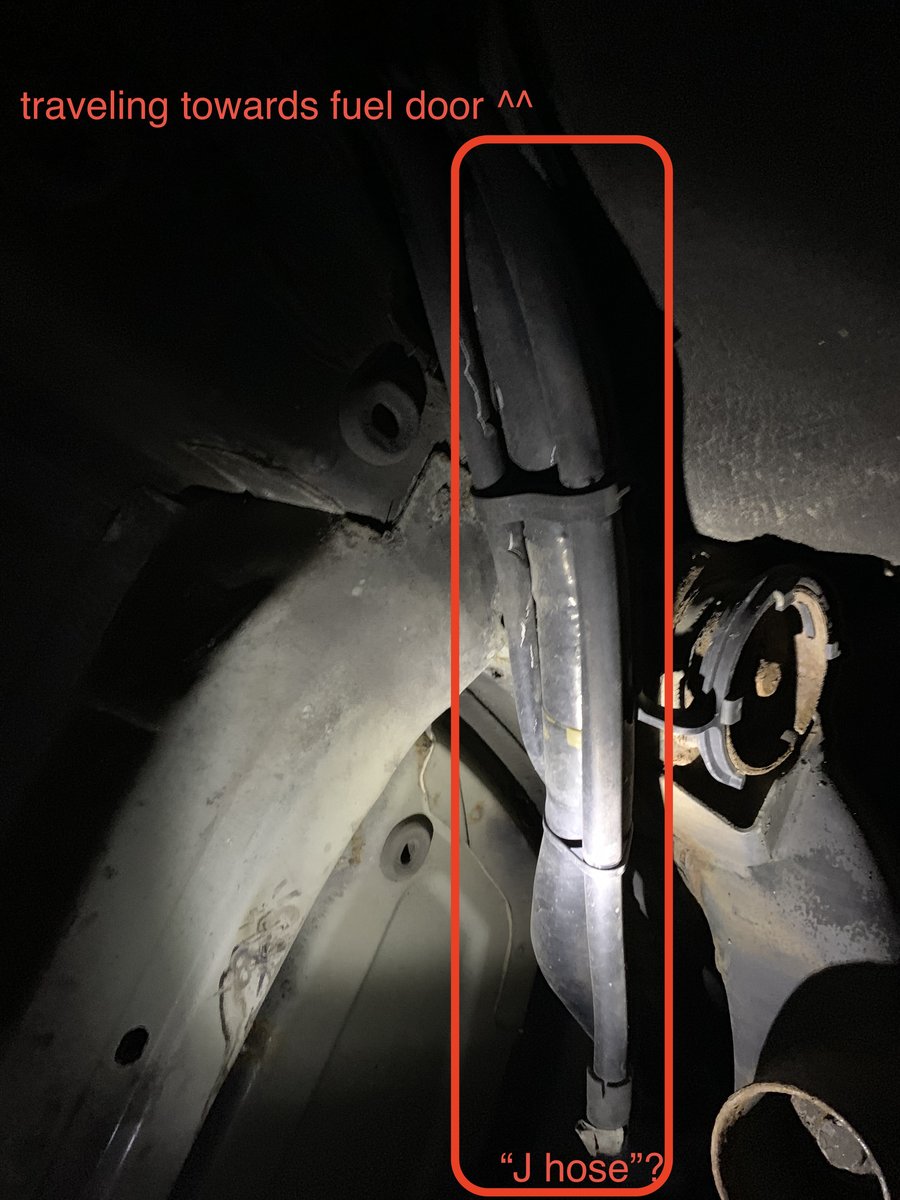

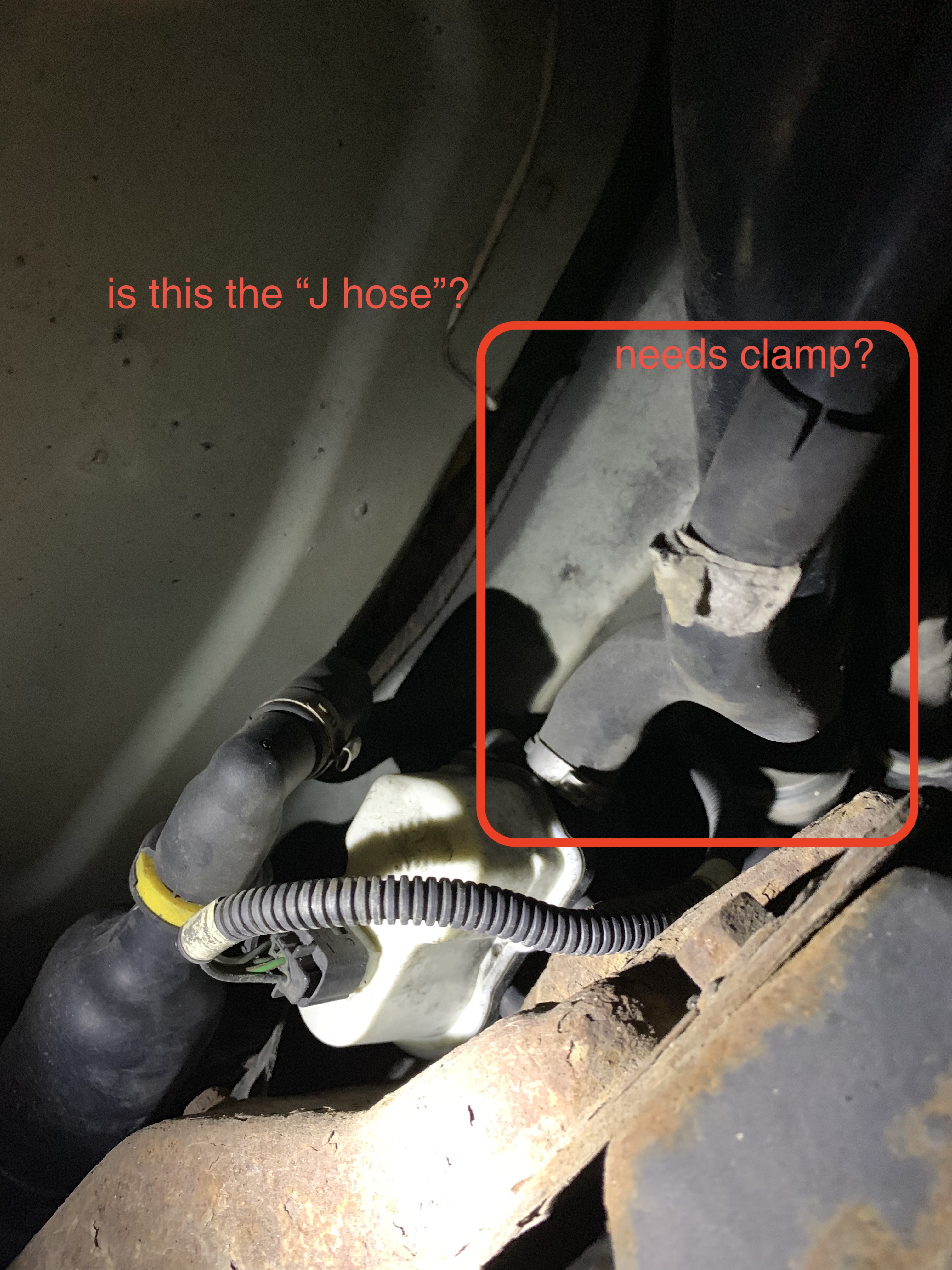

please see the photos.. im just at a loss trying to figure out what hose this is!

jeffstuckinpa · Post by **jeffstuckinpa** » 22 Apr 2019, 15:13

I realize this might not actually be the canister but didn't know what else it might have been... thanks

jeffstuckinpa · Post by **jeffstuckinpa** » 24 Apr 2019, 08:32

any body able to help me identify this hose.. ??

jeffstuckinpa · Post by **jeffstuckinpa** » 24 Apr 2019, 10:09

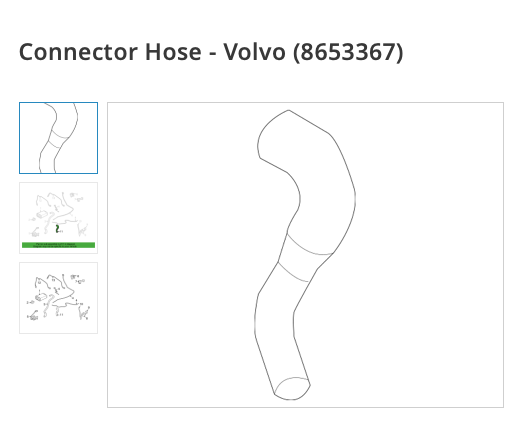

I think I found it... thanks
