Thats how I read it but wanted another opinion..ty

Is it safe to assume that since most part numbers for the s60 use a 6digit chassis number (CH) that if in the case where it only shows 5digits that a "0" should be infront of the remaining 5digits? So this position sensor would fit 092352 and above chassies?

Is a NA non turbo engine, I read the same about turbo version but unfortunately doesn't apply to my application

What would cause no injector pulse on 3 cylinders? Also if you watch cyl 5 injector cuts out once in a while..

This runs from the injector harness into the manifold benith the radiator hose.. Can't figure out what sensor this is

Have a fuel pressure gauge at the rail.. I have a rough idle I'm trying to troubleshoot.. I'm curious why my rule pressure jumps instead of being at 55lbs? I can feel when holding the hose the change in pressure as it feels like a jolt on the hose to the gauge.. Can see the fluctuation and hear the ...

VVT is on intake only on my NA engine.. I've got a rough idle /hunting and trying to ftrach down the cause.. A bad VVT shouldn't cause bad idle swould it? Ive taken it off and cleaned it, wasn't clogged..

2002 s60 NA engine.. Just rather ask than try it and bend some valves...

Ty

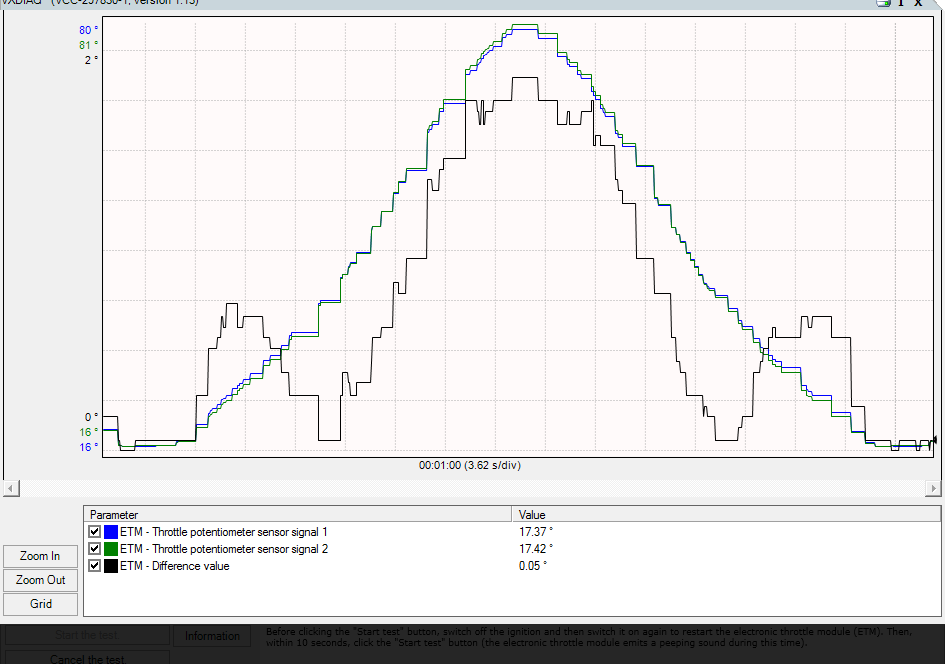

i will check later.. but i believe during the test it stated i had the correct (2006+) software version installed... here is the etm test... seem ok on the surface..

Still trouble shooting my 2002 s60 non turbo.. VIDA is showing ETM at 20% at idle.. Seems a bit high.. Also performed the ETM test and is never went below 16° (I can't remember if that was degs).. Etm reading from both sides was within spec (less than 13° different) it was only max 2° different.. Th...
