There were a couple of good photos in a VRD piece on soldering in a plug connection for AUX input from an iPhone. I’ll try to find it and link here Thank you for trying to help. I need a full photo of the SC-816 motherboard. I searched on Google and on the site, but found only 805, 810, 836. P.S. P...

Hello! Need good photos of the motherboard of the Volvo SC 816. From both sides. No need to unsolder the board to take a good photo from above. Whatever works out. Thanks in advance.

You have +12V power - OK
Speakers - OK
Processor-OK
Connection - sound blocking? (Tel. Mute)
if connected, disconnect and insulate this wire.

Standard connection from the manufacturer.
The color of the wires may vary.
Check.

After checking for continuity on the cable loom and testing with a spare loudspeaker, I determined that the processor was to blame. Sadly I could not find a second hand processor for this system, so I decided to keep it simple and install a basic radio. Today I installed it on the car and finally I...

According to the description, it should work.
https://aliexpress.ru/item/100500755093 ... 607aeep3vB

If it's important, cheap and cheerful.
SC9xx & SC816 remove the cassette mechanism, solder AUX - R, L, GND.

Hi All!
Doesn't work for P80. AUX can be made, you need to assemble an arduino. There is a description on the forum.

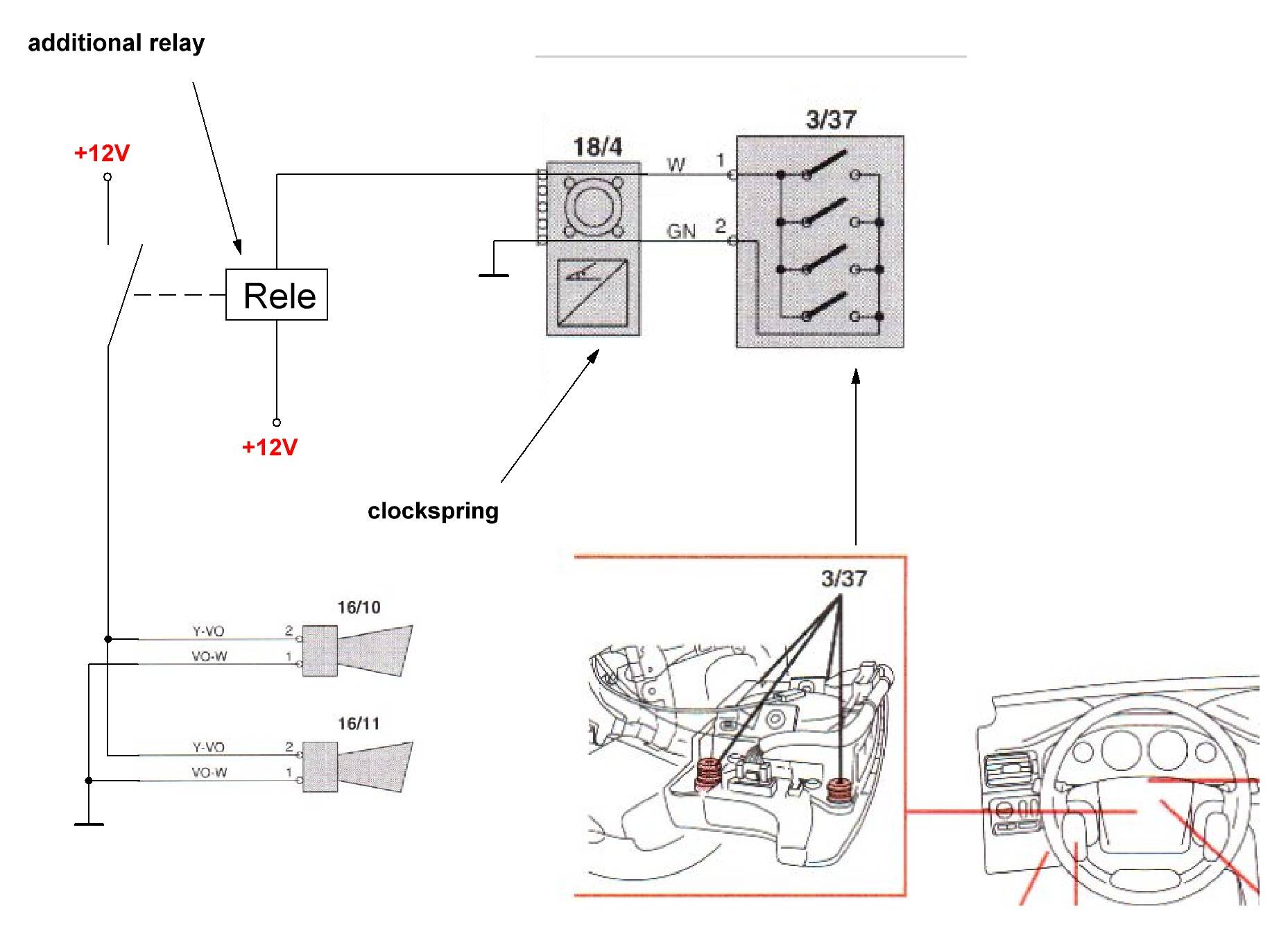

Horn. Be sure to use an additional relay! If this is not done, the flexible cable of the clockspring will burn out.

Old amp, will work. Connection is not difficult. Connect the line output cable SC9xx to the old amp, that's it.

To find out exactly how good it is, you will have to do this. If the The stock speakers are in good condition think you will like it.

If everything worked for your friend, it will work for you too. All standard amplifiers Volvo P80 have the same pinout of the linear input/output and minor changes in the power part of the connector.

Yes, it will work. The soundstage will shift forward. Of course, the absence of a central speaker strongly affects the sound stage. I prefer the standard solution.
Do you install SC9xx on Volvo 850?
