by Chuck W
Tue Sep 15, 2020 7:31 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

ZionXIX wrote: Tue Sep 15, 2020 6:54 am Sure looks curvy for an 850....but gorgeous none the less
'97 850 with an XC70 snout on it.
by Chuck W
Tue Sep 15, 2020 6:30 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

850 LPT wrote: Tue Sep 15, 2020 5:30 am Awesome looking emerald S70, love it!
Thanks!

It's actually an 850. ;)
by Chuck W
Tue Sep 15, 2020 4:29 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

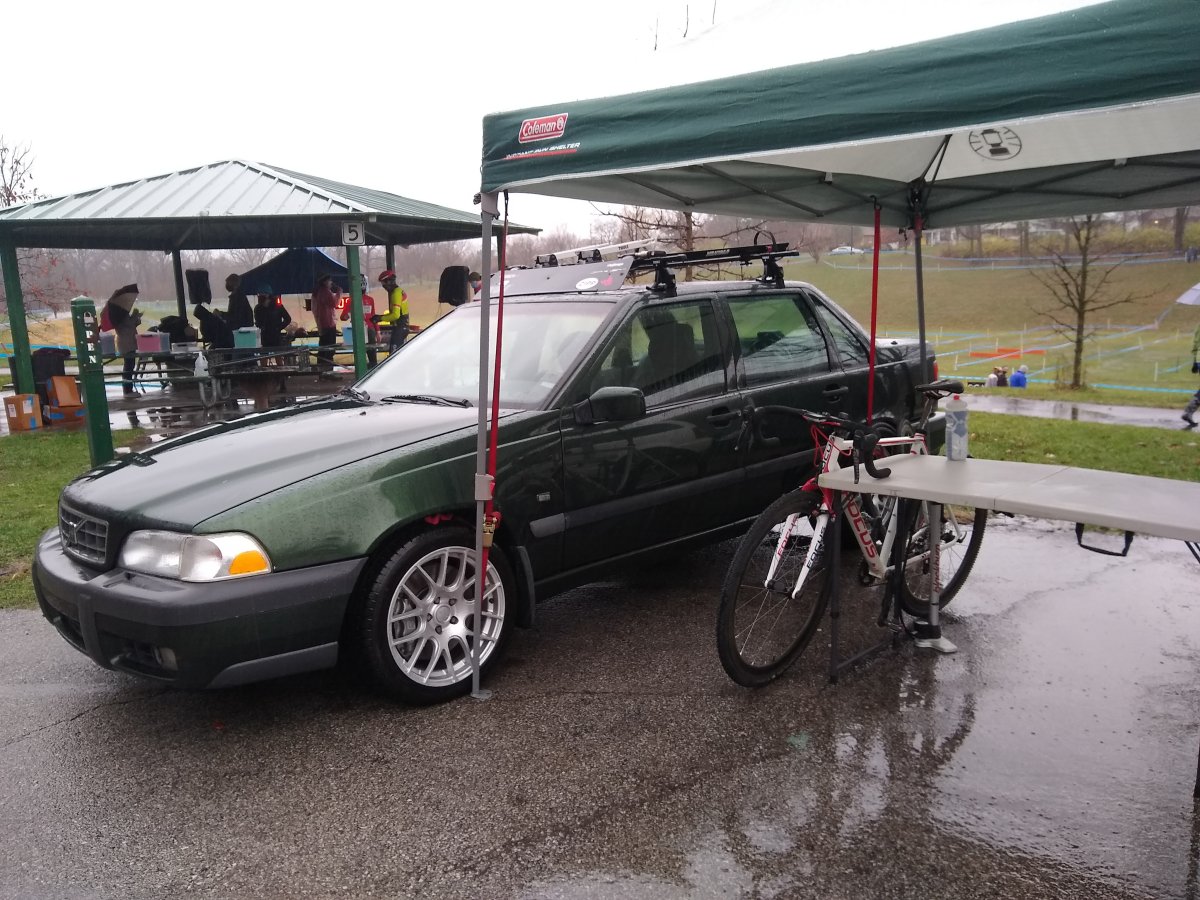

Threw the Thule roof rack back on the car for the CX season.

by Chuck W
Sat Sep 12, 2020 12:57 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

My brake master cylinder reservoir only has 1 outlet port on it, and it is on the left side, back towards the brake booster. That should be the one you use for the clutch. I don't know why you have 3 ports on yours and what other systems might be using brake fluid. You can barely see the connection ...
by Chuck W
Fri Sep 11, 2020 10:20 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Issue with 96 850R Starting Not Turning Over
Replies: 52
Views: 1072

Re: Issue with 96 850R Starting Not Turning Over

ECT sensor = engine coolant temperature sensor.

It's the sensor threaded into the lower portion of the thermostat housing. A little bit of a bugger to get to to replace. Even a corroded connector can cause hard-start issues, but will not cause a no-crank condition.
by Chuck W
Fri Sep 11, 2020 5:40 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Issue with 96 850R Starting Not Turning Over
Replies: 52
Views: 1072

Re: Issue with 96 850R Starting Not Turning Over

I am in south Florida but if it comes down to it, I can bring it up! I have not changed that. What is involved? The ECT is another thought. These cars are VERY susceptible to oddness from them being out of range, even if they're not throwing a code for it or showing other symptoms. However, this wo...
by Chuck W
Tue Sep 08, 2020 9:26 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Exhaust tunnel crossmember captive nuts broken. Now what? Topic is solved
Replies: 4
Views: 275

Re: Exhaust tunnel crossmember captive nuts broken. Now what? Topic is solved

They are M8x1.25 thread. I used appropriate metric inserts.

That kit I bought from Amazon was under $50, and came with a bunch of inserts. I'll find many uses for it in the future, so adding a new tool to the inventory was a no-brainer.
by Chuck W
Tue Sep 08, 2020 8:07 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

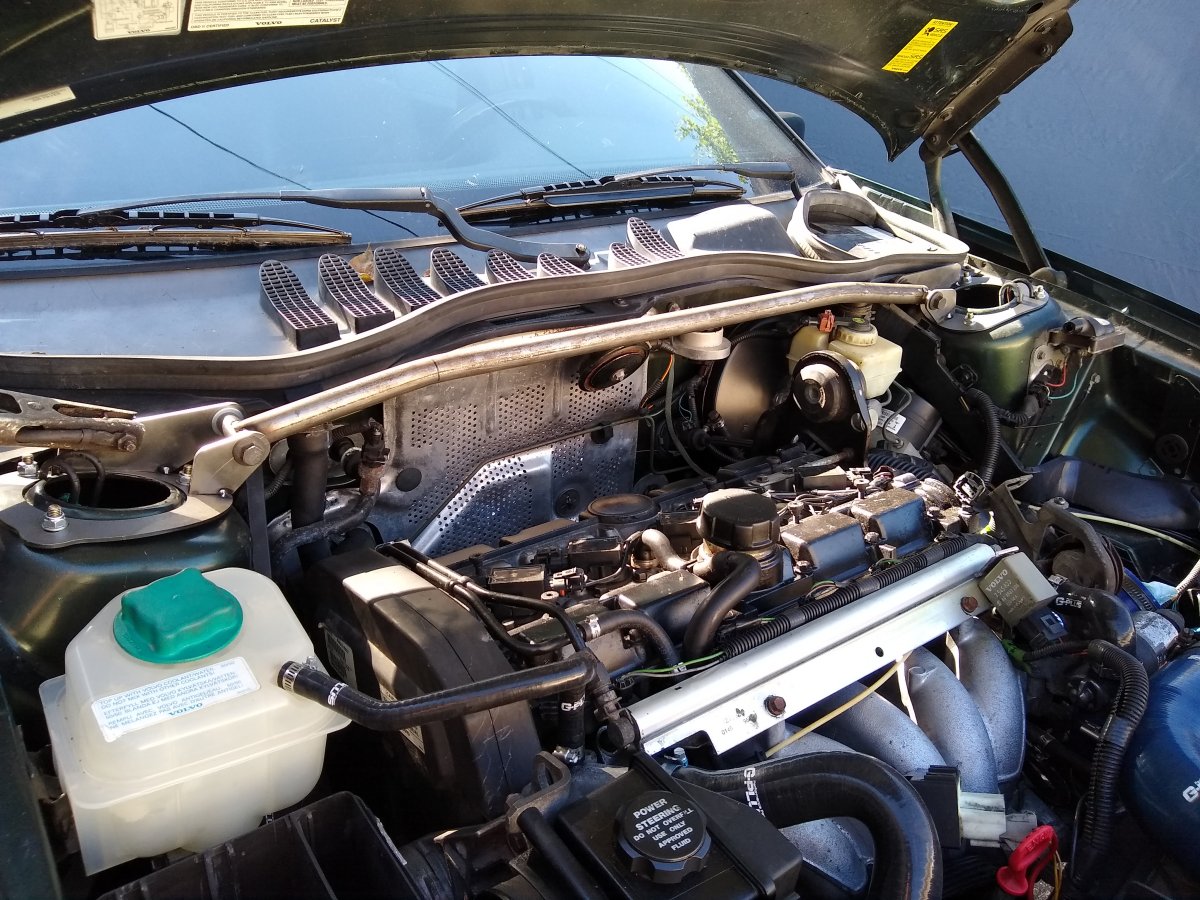

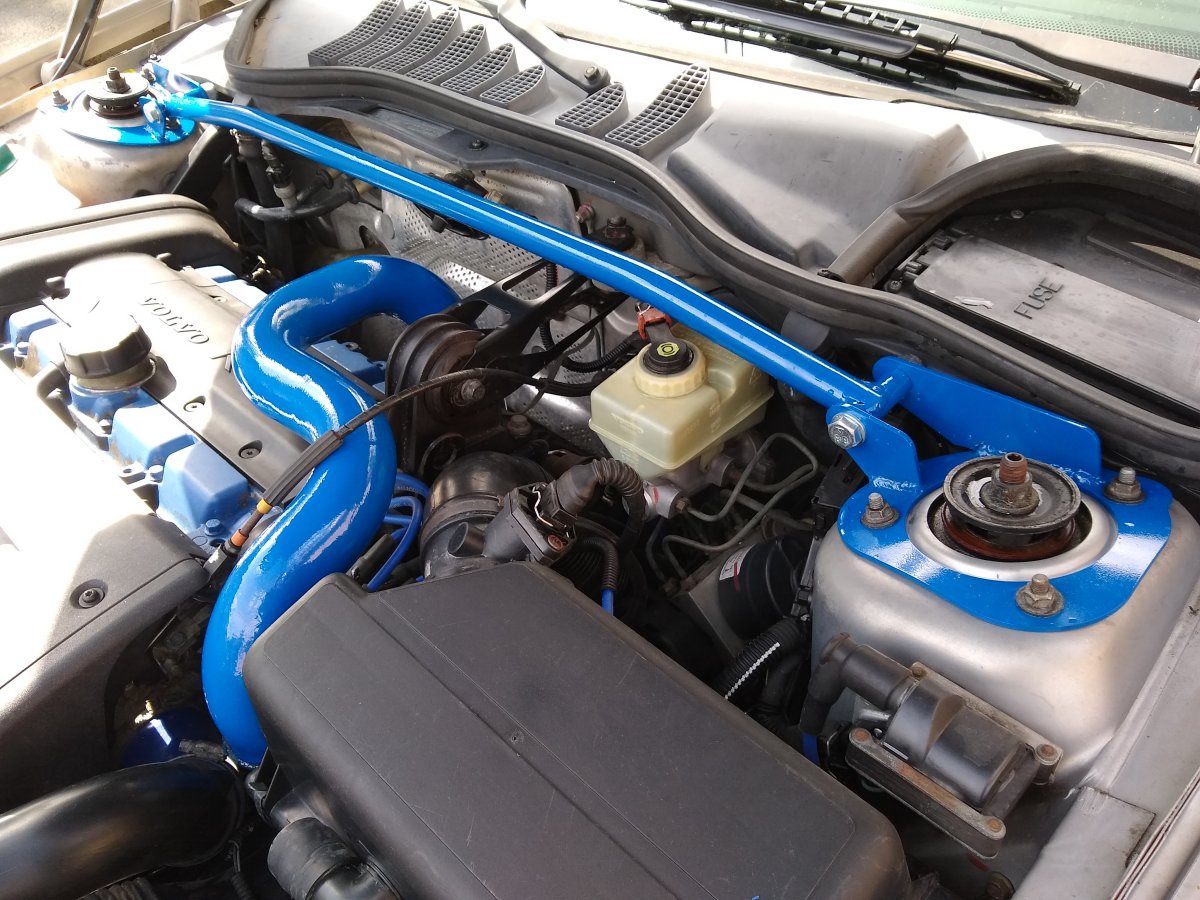

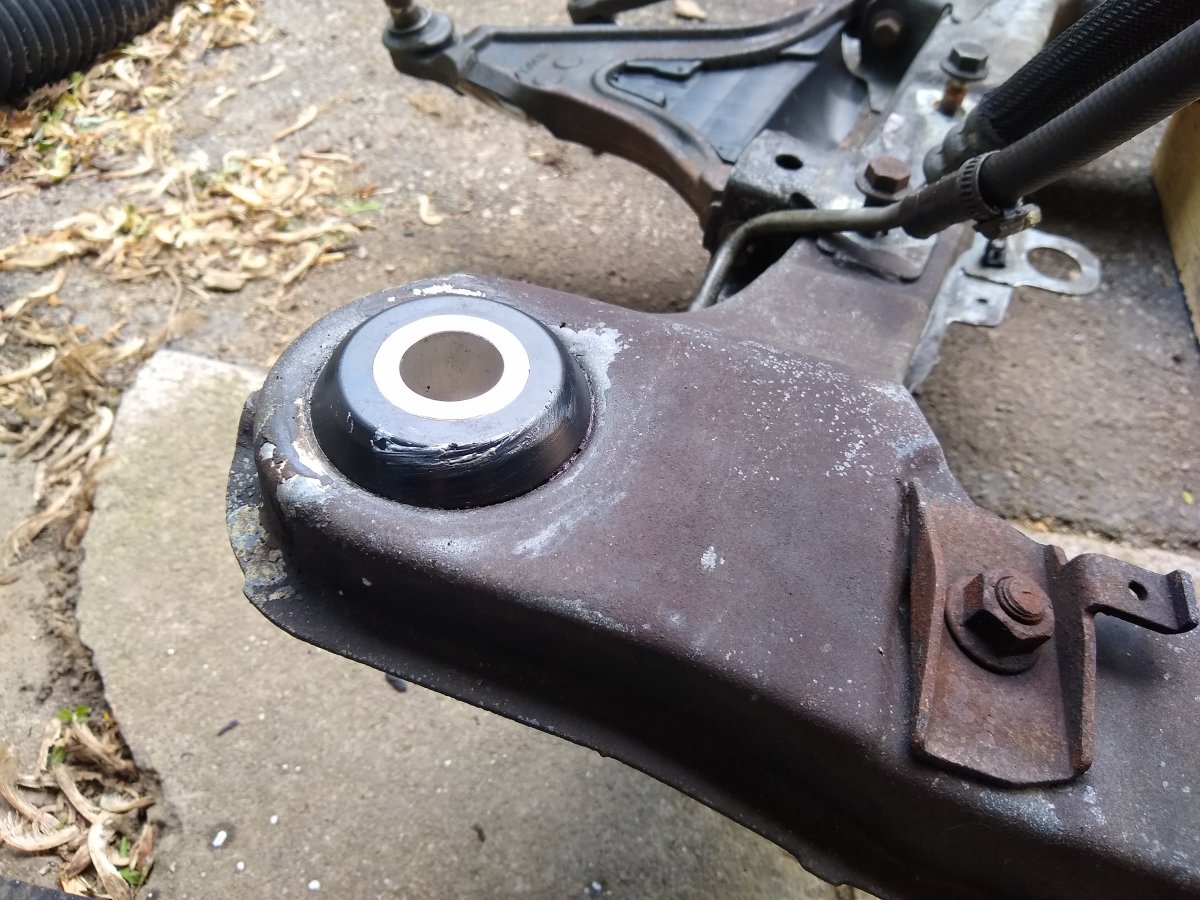

As above, joins the rear mounts on the front subframe to the centre brace under exhaust mid-section. I'm hoping that it will cut down on scuttle flex and reduce twisting in cornering. I'm not sure if it would impact NVH at all (my car is a daily for 15k mi a year), though realistically I can't see ...
by Chuck W
Tue Sep 08, 2020 5:36 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Where does that U brace go , Alistair? It mounts in place of the small mid-brace under the exhaust, and goes forward to attach to the rear locations for the front subframe mounts. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/2019susp/vertbrace.jpg You can barely see it in thi...
by Chuck W
Mon Sep 07, 2020 8:51 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

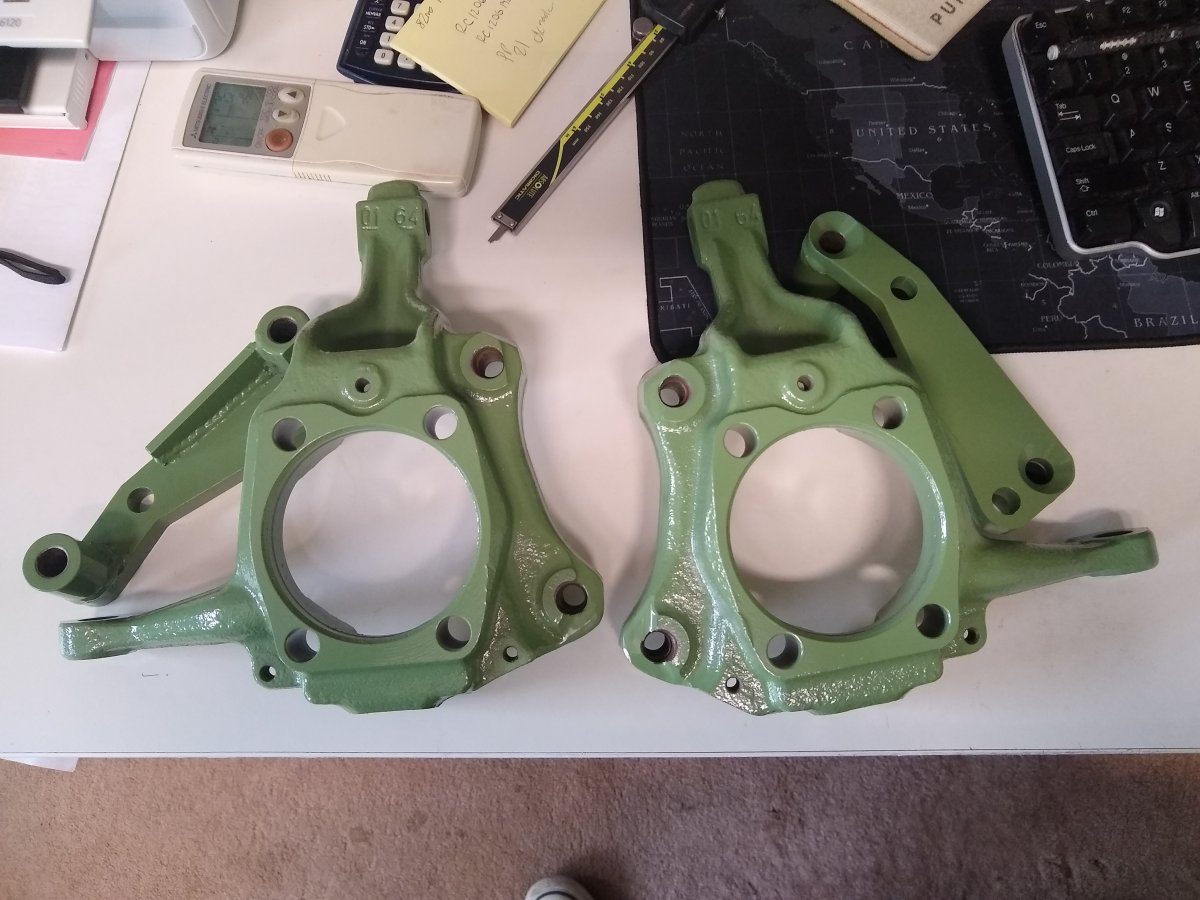

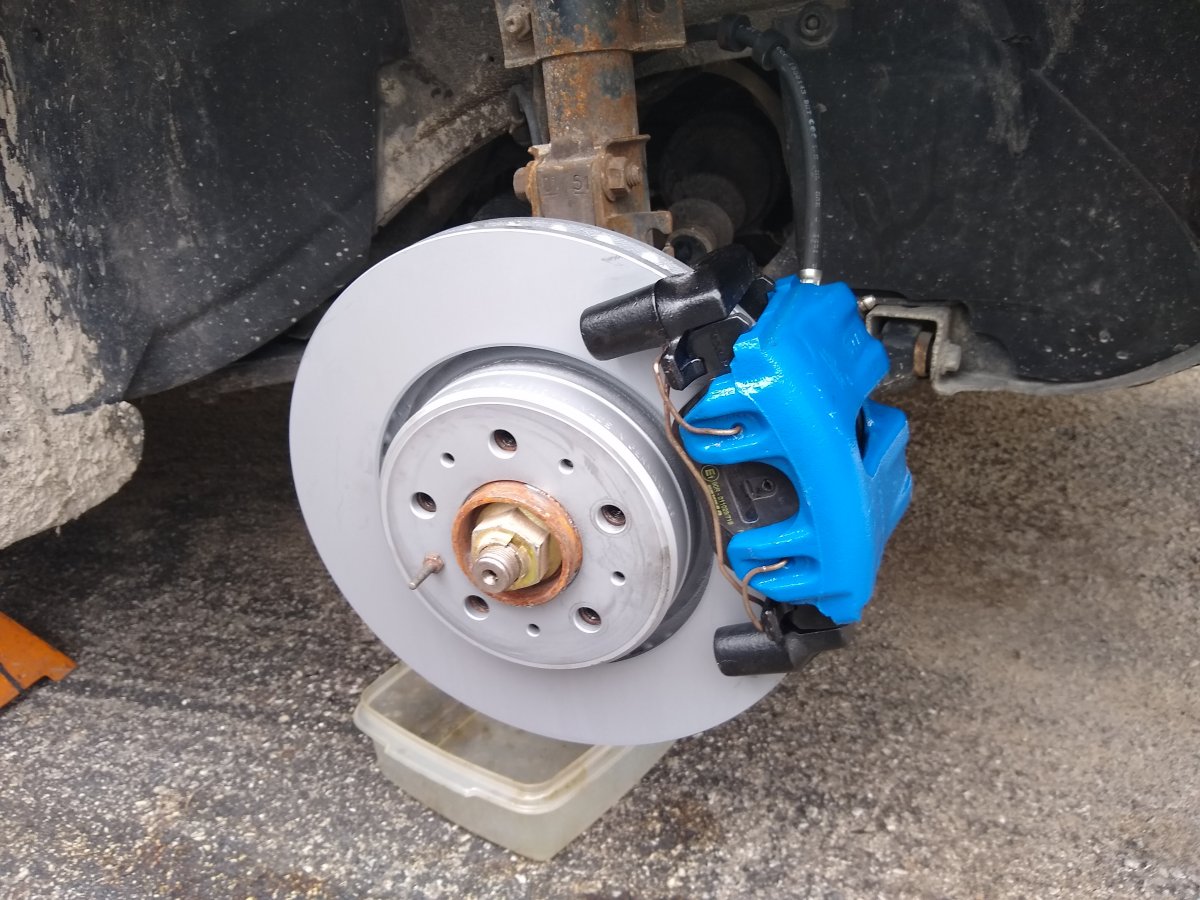

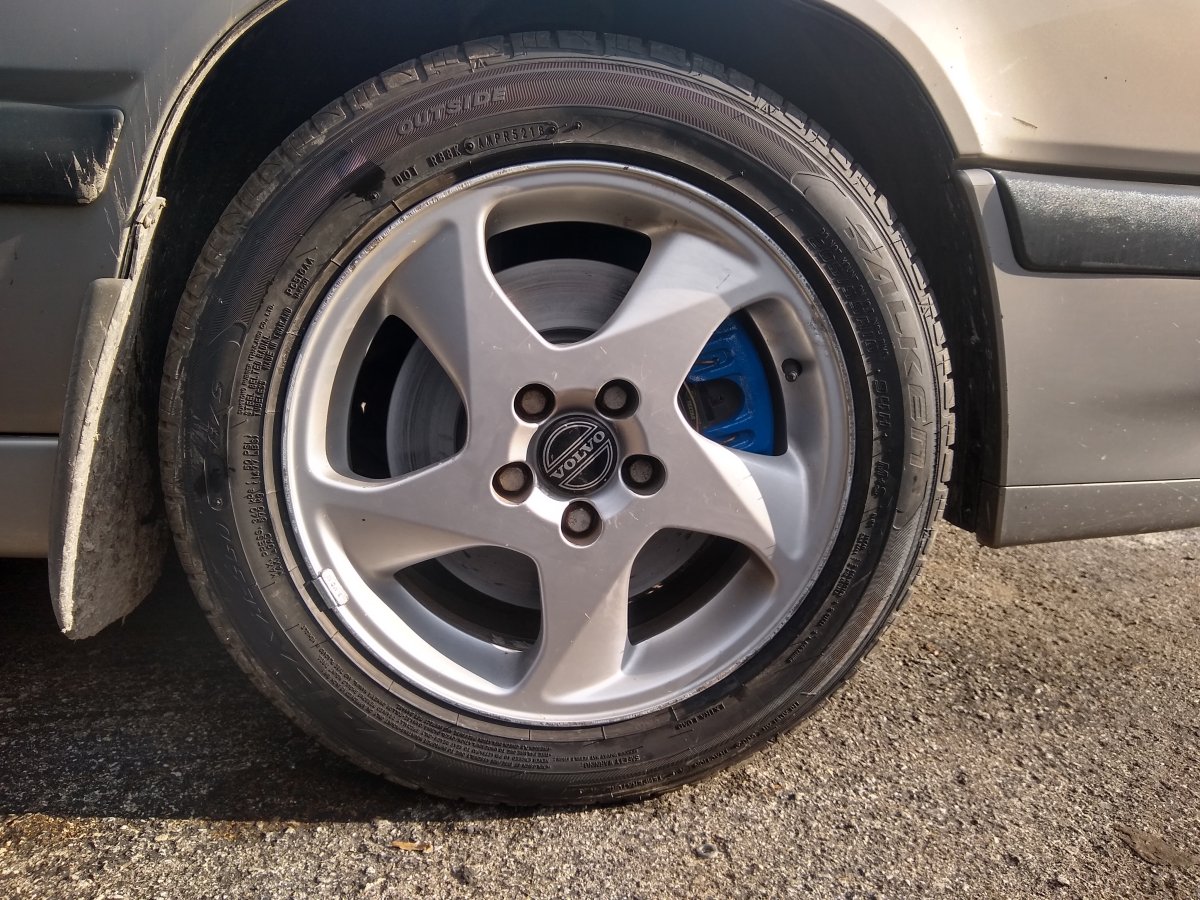

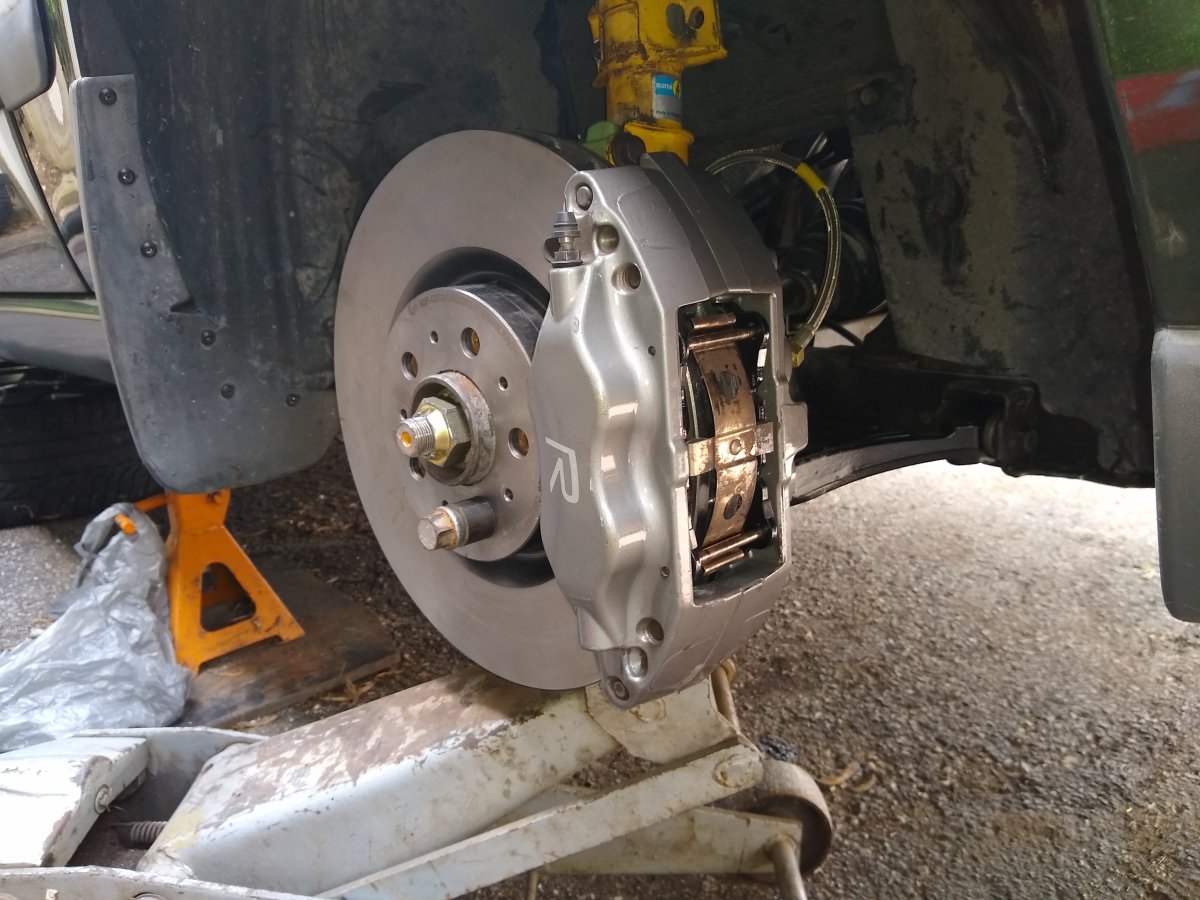

The "EXTRA" was: - COP conversion - P2R Big brake conversion, front and rear. - Built a couple chassis stiffening braces (that are currently off for coating) Super interested in these! - How does the COP conversion work? Presumably you have to teach the ECU how to use the coils. - I love the look o...
by Chuck W
Mon Sep 07, 2020 5:27 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

By the time the rocker cover is back on, it won't really even be noticeable. Good work! Not sure if I would've taken that on.
by Chuck W
Mon Sep 07, 2020 4:52 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

smacknab wrote: Mon Sep 07, 2020 4:39 pm

Sick!

Thats some nice coolant you got there
Thanks!

It's very blue.
by Chuck W
Mon Sep 07, 2020 4:07 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Finished up the manual swap( PLUS EXTRA) on my '97 T5 https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/2020/Manual%20Swap/9_7_20_1.jpg https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/2020/Manual%20Swap/manualin.jpg https://turbochuckcom.ipage.com/webimages/...
by Chuck W
Sun Sep 06, 2020 6:29 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Exhaust tunnel crossmember captive nuts broken. Now what? Topic is solved
Replies: 4
Views: 275

Re: Exhaust tunnel crossmember captive nuts broken. Now what? Topic is solved

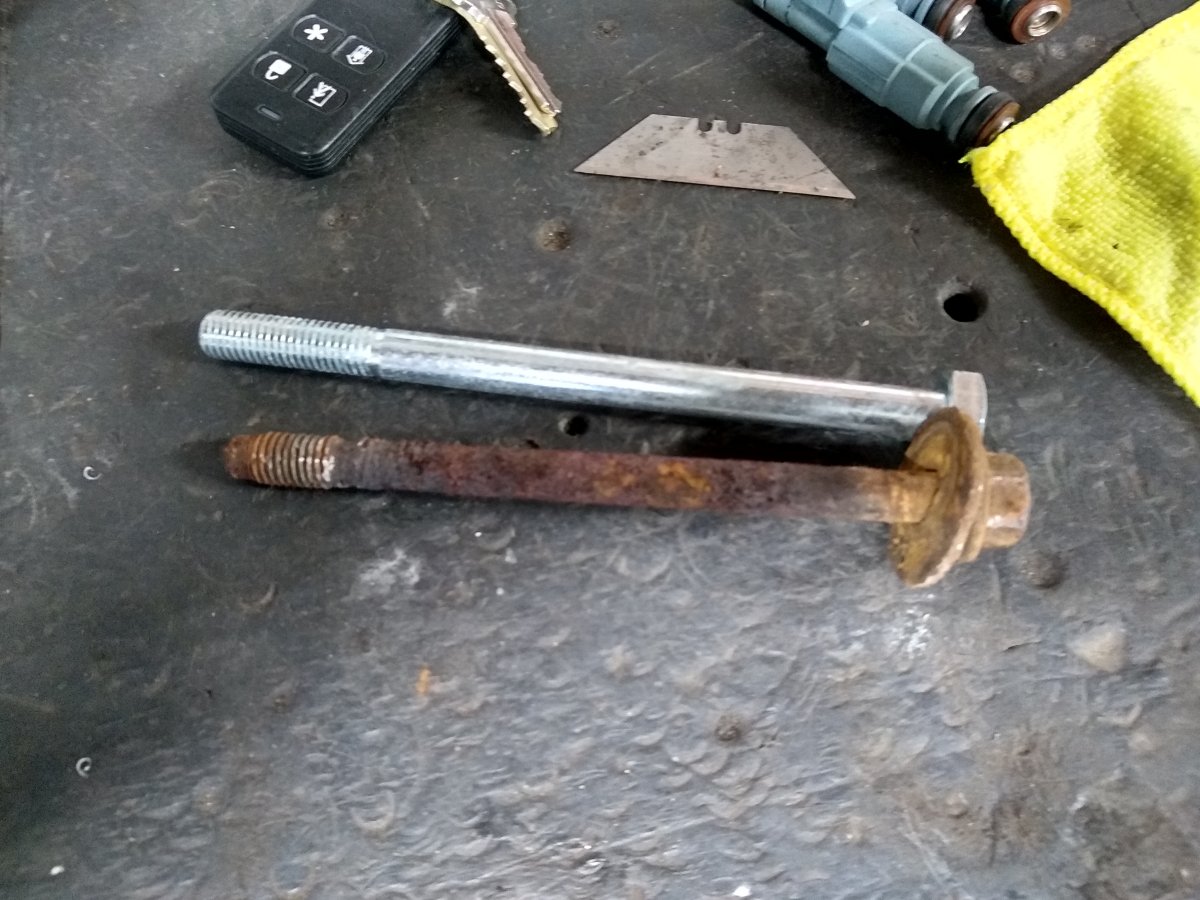

I had one break loose on my '97. I cut the bolt and was able to work the captive nut out through one of the open holes on the body. The one towards the other end of the body panel has a large enough hole to fish them out. I bought a riv-nut tool and installed a new threaded insert. https://turbochuc...
by Chuck W
Sun Sep 06, 2020 10:50 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

You should invest in a set of the c-clip pliers. It looks like you probably damaged the c-clip trying to lever it on there without the proper tools.
by Chuck W
Sun Sep 06, 2020 8:09 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

The seal just happened to get forced out by the pressure without the piston there to retain it. You can pull the piston and check the seal(s) for any damage. They may be usable, as long as they're not cut/deformed in anyway. That c-clip groove looks fine to me. It doesn't take much of a lip for the ...
by Chuck W
Sun Sep 06, 2020 7:42 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

@Chuck W : Yes, it seems to be what happens.The part is called by Skandix a "Pro version" on their catalog. I'm leaning towards the idea of the throat holding the c-clip not deep enough to keep it in place, a manufacturing defect. Your explanation sounds a good track to me. I'm not going to re inst...
by Chuck W
Sat Sep 05, 2020 8:33 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

It looks more like that c-clip is not staying seated. That's why it looks over-extended. I've had that happen to me on my current manual swap in my '97. Got it bled, pumped things a couple times, then *clink* *pop* mess all over. My suggestion (After cleaning everything up :( ) is to reinstall the s...
by Chuck W
Fri Sep 04, 2020 12:34 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

Don't try and bleed it like that. Put a hose on the bleeder on the slave and open the bleed nipple. Let it gravity bleed (Do not mess with the pedal) a bit into a jar or other container under the car. That will work most of the air out. Close the bleed nipple. Switch to the reverse pressure bleed wi...
by Chuck W
Thu Sep 03, 2020 6:59 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Tips on attaching my old Yakima rack?
Replies: 10
Views: 324

Re: Tips on attaching my old Yakima rack?

Late to the party, but we have 2 of these kits, well Thule, for our 850s. They attach the same way as the Yakima ones do. I have one I normally run on my '97 854 during track and cyclocross season, and we picked up a spare, in case we needed something on the wife's car. Evidently I have only one (bl...
by Chuck W
Thu Sep 03, 2020 6:11 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

I realized that I somehow managed to get the #3 exhaust gasket turned around, thus further delaying getting my manual swap done and getting the car back on the ground... https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/2020/EnginePrep/exderp.jpg I even managed this while install...
by Chuck W
Thu Sep 03, 2020 6:09 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

Not having a clamp on that hose at the reservoir shouldn't have been an issue. There is no pressure in that line, or the reservoir itself. It just gravity-feeds the clutch master.


A clamp out it would mainly be to avoid accidentally knocking it off and losing brake/clutch fluid.
by Chuck W
Thu Sep 03, 2020 10:17 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Hydraulic clutch Issue
Replies: 52
Views: 997

Re: 850 Hydraulic clutch Issue

I think you may have gotten a bad unit, which is why the seal was pushed out. The only thing the reservoir does is keep the clutch master cylinder supplied with fluid. Mine only has a single nipple on the reservoir to feed the clutch system. It points straight down. Again, as long as the reservoir i...
by Chuck W
Wed Aug 26, 2020 6:31 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: T-5R's at local PnP
Replies: 7
Views: 144

Re: T-5R's at local PnP

FLXC90 wrote: Wed Aug 26, 2020 4:10 pm go for a little ride and pull from this https://row52.com/Vehicle/Index/YV1LW5823T2221299
I see at least 3 possible good DS front corner light housings... :(
by Chuck W
Wed Aug 26, 2020 8:16 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: T-5R's at local PnP
Replies: 7
Views: 144

Re: T-5R's at local PnP

Not sure about specific T5-R parts (Aside from the ECUs, maybe), but if you find a good DS front corner light housing, we need one for the wife's '97.
by Chuck W
Mon Aug 24, 2020 12:58 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Engine Fitment Question
Replies: 11
Views: 188

Re: Engine Fitment Question

What year is the C70?
by Chuck W
Mon Aug 24, 2020 11:01 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Engine Fitment Question
Replies: 11
Views: 188

Re: Engine Fitment Question

Looks like from 2000+ the NA engines get intake VVT. I wonder if I could just buy a donor car and retrofit. There's a HPT C70 by me for a couple hundred bucks with only 100k miles on it What engine management is on your '95? I know in '96 they got the Motronic M4.4. 99+ would have the ME7. (Again, ...
by Chuck W
Mon Aug 24, 2020 7:39 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Engine Fitment Question
Replies: 11
Views: 188

Re: Engine Fitment Question

Do the later engines have VVT on them for the NA? I would think any of the "N" engines would be sufficient. There are improvements for the turbo engines with the RN motors, but I don't think anything would be of great benefit or applicable on an NA. I would stay away from the turbo engines, manly du...
by Chuck W
Thu Aug 20, 2020 7:30 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Engine comparison 2.3T vs 2.5T Topic is solved
Replies: 8
Views: 216

Re: Engine comparison 2.3T vs 2.5T Topic is solved

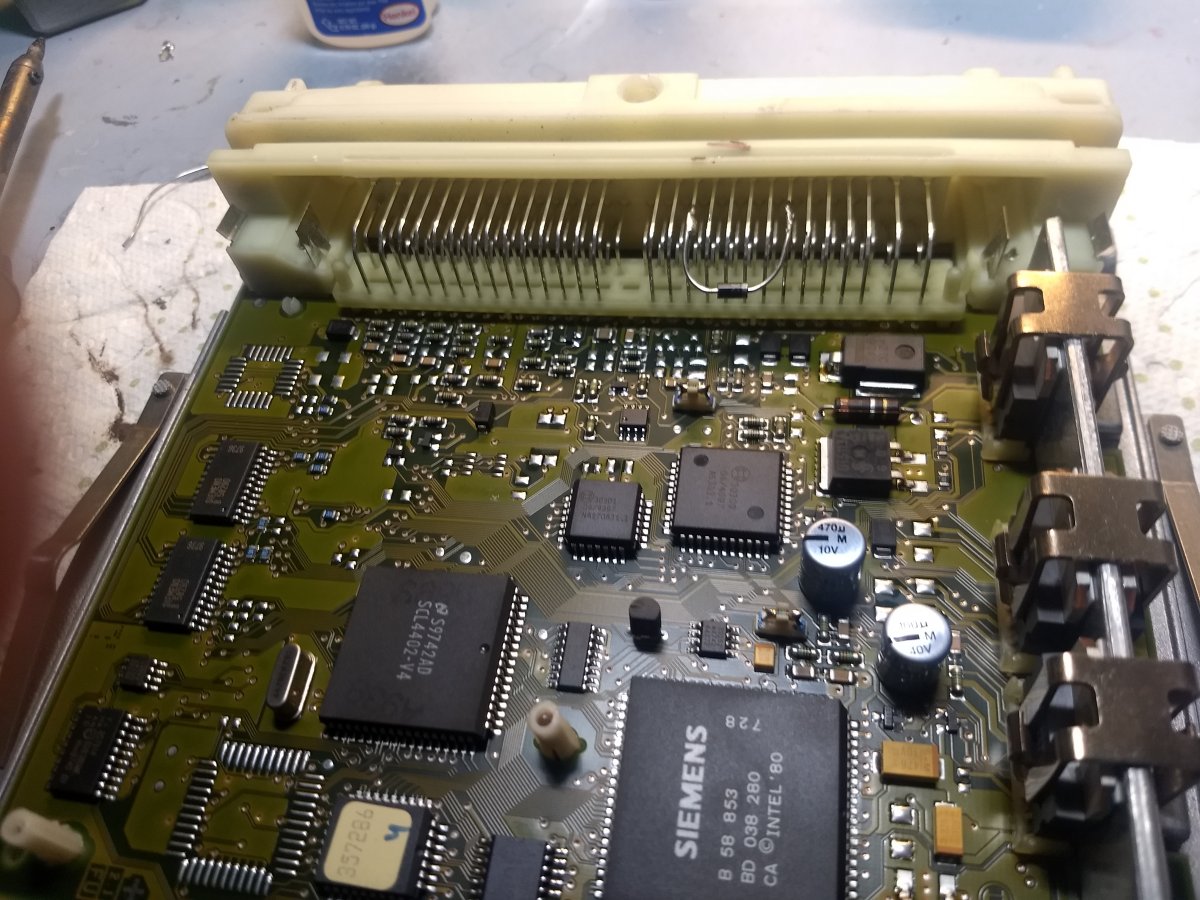

I would still open that ECU (Pretty easy to do) and see if any non-stock items are in there.
by Chuck W
Thu Aug 20, 2020 6:26 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Engine comparison 2.3T vs 2.5T Topic is solved
Replies: 8
Views: 216

Re: Engine comparison 2.3T vs 2.5T Topic is solved

It is possible an LPT motor was swapped in at some point in the car's history. The compression difference, (9:1 vs 8.5:1) isn't all that much, and as stated, it would probably run mostly OK on the T5-R ECU. However...Looking at that "SAM" sticker on the ECU and a quick Google shows that *may* be a t...
by Chuck W
Wed Aug 12, 2020 7:30 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Finished the mock-up fab on my copy of the Ultra Performance rear lower chassis brace for my 854. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/2020/chassis%20stuff/rrlwrbracefab.jpg Also finished the install (save for bleeding) of my P2 R Brembos on the car. https://turbochu...
by Chuck W
Wed Aug 12, 2020 6:53 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Engine swap question: from automatic to manual
Replies: 12
Views: 621

Re: Engine swap question: from automatic to manual

A course of action that may work is to find a 96/97 turbo manual (sedan or wagon) to pick engine management pieces from. I haven't done the research for you, but if the 96 turbo cars used Motronic 4.4, then you could use the ECU, engine wiring harness and sensors maybe. 97 turbo cars were M4.3, but...
by Chuck W
Tue Aug 11, 2020 6:37 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Engine swap question: from automatic to manual
Replies: 12
Views: 621

Re: Engine swap question: from automatic to manual

There's a lot to unpack here. Firstly, yes the engine will fit in the car. But that's the easy part. The hard part is integrating the wiring and engine management. Secondly, I have no idea if the manual trans from your 2.0 will fit the 2.3. I would think it *should*, since they are from the same mod...
by Chuck W
Mon Aug 10, 2020 9:41 pm
Forum: Volvo Classifieds
Topic: Volvo Findings! (What have you found on Craigslist?)
Replies: 1212
Views: 42807

Re: Volvo Findings! (What have you found on Craigslist?)

https://newyork.craigslist.org/lgi/cto/d/massapequa-park-99-volvo-v70/7170934412.html I didn't know you could put a s60 engine in a 99.. maybe that's why it isn't running. but the post says it's a manual and it looks pretty clean with some apparently expensive bits on it. The '04 S60 engine is a dr...
by Chuck W
Sat Aug 08, 2020 6:41 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Need roof hatch "bezel" that secures the roof lining
Replies: 29
Views: 1029

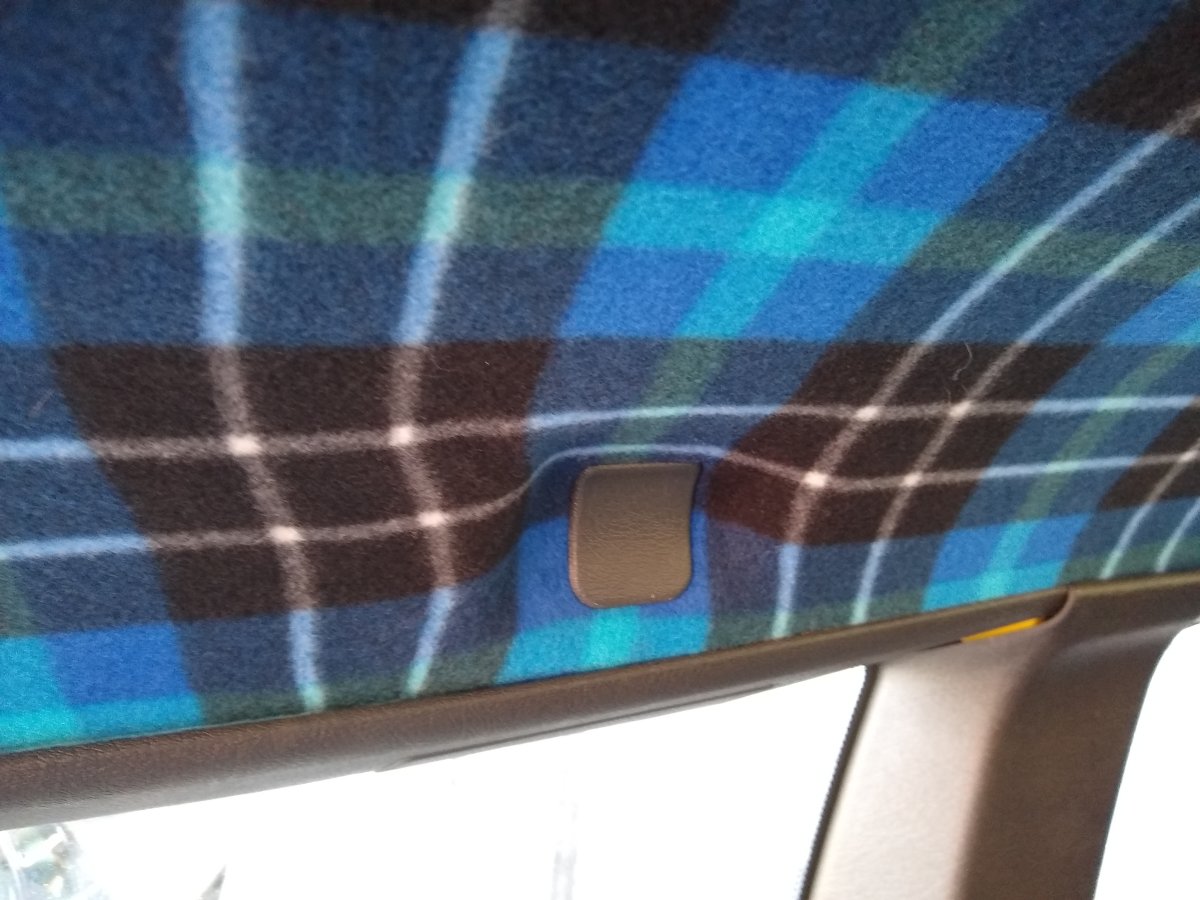

Re: Need roof hatch "bezel" that secures the roof lining

Sorry, I was away for a bit today.

I never paid attention to which side was up. Mine installed in about 5 minutes, but I also wasn't messing around with loose fabric. It was all glued in place, and the channel fit over it with ease.
by Chuck W
Sat Aug 08, 2020 7:00 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Does someone have Tuned .Bin file S70 T5?
Replies: 14
Views: 302

Re: Does someone have Tuned .Bin file S70 T5?

The M4.4 ECUs are pretty easy to write in boot mode. As I know, it is write only mode. Does anybody know, is there a way to read flash content through K-line? I don't like to solder out and back flash chip every time I need to save original file. There is no way (currently) to read what is on the f...
by Chuck W
Fri Aug 07, 2020 10:08 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Does someone have Tuned .Bin file S70 T5?
Replies: 14
Views: 302

Re: Does someone have Tuned .Bin file S70 T5?

Ah. The M4.4 Wiki link covers the conversion of an M4.3 car to an M4.4 ECU, but also the main purpose is for being able to adjust settings and parameters and flash a new tune file to the ECU. The focus is on the M4.4 units. The Bosch M4.4 code has been cracked pretty well, and the -607/-608 files li...
by Chuck W
Fri Aug 07, 2020 3:13 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Does someone have Tuned .Bin file S70 T5?
Replies: 14
Views: 302

Re: Does someone have Tuned .Bin file S70 T5?

manovlov wrote: Fri Aug 07, 2020 4:53 am Hy Chuck W, Manov here.

I would like to ask you a question. Could you light me about what this forum user want to do ? it seems to matter with the ecu but what for, more Hp ?

Thanks.

Manov
Hi. Not sure exactly what he wants...
by Chuck W
Thu Aug 06, 2020 5:57 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Does someone have Tuned .Bin file S70 T5?
Replies: 14
Views: 302

Re: Does someone have Tuned .Bin file S70 T5?

The -607 .bin is right HERE on the Wiki.

You keep saying "edit". For what mods?

Or, you can contact VAST Tuning, you can pay him for whatever file you want.
by Chuck W
Thu Aug 06, 2020 4:58 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Does someone have Tuned .Bin file S70 T5?
Replies: 14
Views: 302

Re: Does someone have Tuned .Bin file S70 T5?

? thats not a .bin file thats a how to. How did you plan on using the .bin? That "how to" also shows you how to flash your own .bin. A .bin file alone is useless. It's not like it will magically make it's way your ECU. You can also try VAST Tuning . He has a couple of options for "canned" tune file...
by Chuck W
Wed Aug 05, 2020 6:39 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

amblerman wrote: Wed Aug 05, 2020 5:19 pm
what coating did you use for that green?
-A
They're powdercoated. My buddy had some left-over powder from a previous project of mine, so I just had him shoot them with that.
by Chuck W
Wed Aug 05, 2020 2:41 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Got one side of the front of the R brakes installed on my '97 T5 today.

by Chuck W
Sun Aug 02, 2020 4:59 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Engine Skid plate Steel Topic is solved
Replies: 18
Views: 402

Re: 850 Engine Skid plate Steel Topic is solved

ZionXIX wrote: Sun Aug 02, 2020 2:00 pm I never find IPD stuff in the junkyard here. I'm always hopeful for some HD rear springs.
I got lucky. I almost didn't look under the car, as it wasn't outfitted with anything special.

It's a bit battered, but will clean up OK. Especially for $10.
by Chuck W
Sun Aug 02, 2020 12:15 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Engine Skid plate Steel Topic is solved
Replies: 18
Views: 402

Re: 850 Engine Skid plate Steel Topic is solved

The IPD one is aluminum.

I found one under a car in the junkyard a couple weeks ago.
by Chuck W
Fri Jul 31, 2020 11:53 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Ac compressor removal
Replies: 8
Views: 249

Re: Ac compressor removal

I waited on both my wife's car, as well as my current T5 project to do the "proper" shim adjustment when I had the engine out of the car, so I could just let the AC compressor hang down a bit to get access from below. After reattaching the compressor to my engine the other day (didn't crack open the...
by Chuck W
Thu Jul 30, 2020 6:03 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: need some info about a popular p80 engine upgrade Topic is solved
Replies: 17
Views: 673

Re: need some info about a popular p80 engine upgrade Topic is solved

CIK7 wrote: Wed Jul 29, 2020 3:23 pm The reason abscate mentioned wisconsin is because im planning to go on a road trip in 2-3/2021 from oklahoma where i live to wisconsin. Coldest air might make my car even more fun; which would be the point of going hoodless.
This makes no sense. :? Leave the hood on.
by Chuck W
Wed Jul 29, 2020 6:54 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Mocked up the STB for my '97 854 (and one for the wife's 855).

by Chuck W
Wed Jul 29, 2020 6:37 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: need some info about a popular p80 engine upgrade Topic is solved
Replies: 17
Views: 673

Re: need some info about a popular p80 engine upgrade Topic is solved

For most purposes Blue/green injectors will work interchangeably, Blues and whites are the "interchangeable" ones. Greens are bigger than both (By about 20% flow rate). yep, my bad. 310cc (orange) - 1995 T5R, 96-97 850R 350cc (white) - 98 T5 models 395cc (blue) - 99+ T5 models 465cc (green) - S60 R...
by Chuck W
Wed Jul 29, 2020 6:35 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Need roof hatch "bezel" that secures the roof lining
Replies: 29
Views: 1029

Re: Need roof hatch "bezel" that secures the roof lining

The liner is only falling loose around the opening, I can tack it pretty easily. That flexible edge piece looks like a workable solution. Did it bend around the corners, or did you have to cut 4 "straight" pieces? How many feet did it need - 10 feet enough? It's flexible. I bought the 10' section a...
by Chuck W
Tue Jul 28, 2020 10:07 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: need some info about a popular p80 engine upgrade Topic is solved
Replies: 17
Views: 673

Re: need some info about a popular p80 engine upgrade Topic is solved

FLXC90 wrote: Mon Jul 27, 2020 9:42 pm For most purposes Blue/green injectors will work interchangeably,
Blues and whites are the "interchangeable" ones. Greens are bigger than both (By about 20% flow rate).
by Chuck W
Thu Jul 23, 2020 5:54 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: turbo comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved
Replies: 25
Views: 512

Re: turbo comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved

If you're going to actually get a tune, go with Aaron at VAST. If you're not, follow Erik's advice and find an ECU first and then get the turbo/injectors to match.

At this point, I'd just stay with the 16T.
by Chuck W
Tue Jul 21, 2020 10:13 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: turbo comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved
Replies: 25
Views: 512

Re: turbo comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved

FLXC90 wrote: Tue Jul 21, 2020 10:02 pm Continue to check on the ECU, seems to me all US 98 Rs had 16Ts on them, went up to 18T for 99 and 19T for 00. 98 Manual Rs got the 18T but that was not over here. But I don't have an R so I can't tell you for sure.
The '98 V70R AWD had a B5234T4 with an 18T.
by Chuck W
Tue Jul 21, 2020 8:53 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: turbo comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved
Replies: 25
Views: 512

Re: turbo comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved

1998 V70R AWD with the last 3 of the ECU being -455

It would probably be fine if you run it FWD.
by Chuck W
Tue Jul 21, 2020 6:43 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: turbo comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved
Replies: 25
Views: 512

Re: turbo model comp chart, core interchangeable? 16t vs 18t vs 19t Topic is solved

lol im flaking on the manual swap. the 13g engine is dead. right now im focused on a new engine with fresh parts. im thinking about buying b523t3 engine, replacing 16t with 18t, swapping the blue injectors for white injectors. What ECU would I need with this setup? T5 or R? I dont want to stance it...
by Chuck W
Mon Jul 20, 2020 10:14 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 swaybar bushings 9173983
Replies: 12
Views: 273

Re: P80 swaybar bushings 9173983

scot850 wrote: Mon Jul 20, 2020 1:55 pm Energy no longer list the P80's for sway bar bushes. I bought one for my IPD sway-bar as it was a a universal 1"/25mm unit.
Yeah, I just have used the universal type from ES.
by Chuck W
Mon Jul 20, 2020 11:44 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 swaybar bushings 9173983
Replies: 12
Views: 273

Re: P80 swaybar bushings 9173983

I just ground off the old rubber bushings and used Energy Suspension universal poly sway bar bushings. Did it on the old '96 GLT when I installed the R-bars. Swapped those to the wife's GLT when we did the RN swap. Doing the same on my '97 T5 with the 21.5mm XC front bar. We added some collar clamps...
by Chuck W
Sun Jul 19, 2020 5:42 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Recovered a set of door cards in the wife's 855 to match the headliner.

by Chuck W
Thu Jul 16, 2020 5:13 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Tachymeter Instrument Cluster replacement
Replies: 8
Views: 153

Re: 850 Tachymeter Instrument Cluster replacement

I *think* the connector for it should be yellow or green. (Whatever the color of the back of the dash switch is)
by Chuck W
Wed Jul 15, 2020 8:56 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)
Replies: 9
Views: 179

Re: Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)

The trip computer will reset itself when the key is just turned to the "ON/RUN" position, just before going to start/crank. We haven't watched to see if the cluster issue happens then, as it's only happened a couple times now. The battery, etc appear to be in good shape, but it might be worth a chec...
by Chuck W
Wed Jul 15, 2020 5:20 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Tachymeter Instrument Cluster replacement
Replies: 8
Views: 153

Re: 850 Tachymeter Instrument Cluster replacement

You mean the trip computer? The car *should* be pre-wired for it. I know on 2 of our cars that came without it, the plug for the panel switch was behind one of the blank spots on the dash. There should also be a connection on the back of the instrument cluster (at least there is on the VDO ones) ( T...
by Chuck W
Wed Jul 15, 2020 2:30 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Ideas for parts cars and project
Replies: 13
Views: 245

Re: Ideas for parts cars and project

Yeah, I was more meaning comparing the diagrams for the 98MY cars. I know the 99-00MY will be different from the 98MY. This was the suggestion if you want to pursue the M4.4 route. I'd look more at wiring diagrams themselves than comparing part numbers, anyway. If you just want to swap the manual in...
by Chuck W
Wed Jul 15, 2020 11:26 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Ideas for parts cars and project
Replies: 13
Views: 245

Re: Ideas for parts cars and project

If you're looking at M4.4 tuning, VAST is the way to go. Really, just dumping a manual tune onto a M4.4 is easy business, but adding COP and VVT functionality is another layer. A layer that's not needed initially, though. The wife's car is still currently running a distributor and the exVVT is left ...
by Chuck W
Wed Jul 15, 2020 8:44 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 97` 850 R manual swap, long crank intermittent spark/start Topic is solved
Replies: 29
Views: 3634

Re: 97` 850 R manual swap, long crank intermittent spark/start Topic is solved

I'm in the middle of my manual swap on the '97 T5 and wonder if this is going to be an issue. My car is no longer an M4.3 (Swapped M4.4 a while back) and it's going COP in the process. I know the M4.4 started quicker, due to the system remembering where is was and not having to find #1 first (like t...
by Chuck W
Wed Jul 15, 2020 5:20 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Ideas for parts cars and project
Replies: 13
Views: 245

Re: Ideas for parts cars and project

PS: the simplest implementation of this may require swapping the full interior into the 98 parts car, RN swap and tune it for the turbo. Yes, turbo into non-turbo car aside, this would be the simplest option. The '99-00 ETM's are a real deal-breaker for me, personally. As asked; is this a street ca...
by Chuck W
Tue Jul 14, 2020 9:04 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)
Replies: 9
Views: 179

Re: Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)

Yeah, I did some digging around before I posted here, and didn't find anything definitive on PN's or any clues to a MY for cluster. I did find that the early cars pulled the speedo signal from the gearbox and the later ones from the ABS. Late cluster-->early car works if you tap into one the ABS sen...
by Chuck W
Tue Jul 14, 2020 4:11 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)
Replies: 9
Views: 179

Re: Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)

Chuck, post a photo of the cluster you have. this should help identify it. So, it looks pretty much like all of the clusters I've seen. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/2020/Cluster/cluster_1.jpg https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/...
by Chuck W
Mon Jul 13, 2020 8:14 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 XC vs T5 vs R engine and drive system
Replies: 8
Views: 159

Re: 98 XC vs T5 vs R engine and drive system

I'm still confused, if this is going to be your "driver" car and you're going to build a Hi-Po 850, why not just get another LPT motor, N or RN and call it a day?
by Chuck W
Mon Jul 13, 2020 8:13 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 V70 xc engine weight and recommendations
Replies: 16
Views: 308

Re: 98 V70 xc engine weight and recommendations

erikv11 wrote: Mon Jul 13, 2020 7:58 am
. You can also just swap in the RN oil pan and coolant pipes, just to get the cooler on an N setup.
That is what's happening on my N motor. With that and the manual swap, I'll have NO oil/trans lines out to the radiator from the engine.
by Chuck W
Mon Jul 13, 2020 5:14 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 XC vs T5 vs R engine and drive system
Replies: 8
Views: 159

Re: 98 XC vs T5 vs R engine and drive system

They don't list the engine B-code in either ad?
by Chuck W
Sun Jul 12, 2020 10:19 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 XC vs T5 vs R engine and drive system
Replies: 8
Views: 159

Re: 98 XC vs T5 vs R engine and drive system

The '98 V70R AWD is not the same tune as the T5 or the FWD R. It should be a B5234T4 with an 18T turbo on it.(247hp/260tq) -455 ECU code (Last 3 digits). The engines themselves would be the same, but the turbo/injectors/tune are different. It depends on whether it's the B5234T3 or B5234T4. For the s...
by Chuck W
Sun Jul 12, 2020 10:05 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)
Replies: 9
Views: 179

Identifying 850 instrument cluster? (Intermittent no gauge and trip computer reset issues)

We've been having an issue with the trip computer, and now the instrument cluster not working or resetting over the past few months. First it was the trip computer resetting when she would go to start the car. It wouldn't do it every time, but enough to be annoying. Recently, I replaced the ignition...
by Chuck W
Sun Jul 12, 2020 6:54 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 XC vs T5 vs R engine and drive system
Replies: 8
Views: 159

Re: 98 XC vs T5 vs R engine and drive system

The T5 motor will fit, and the T5 ECU would work, but it's probably not going to be ideal for the AWD. Who knows.

The '98 V70R ECU (-455) would be an option, but you'd want to upgrade the turbo and injectors to that spec. They are also hard to find. Both the T5 and the V70R are HPT engines.
by Chuck W
Sun Jul 12, 2020 6:46 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 V70 xc engine weight and recommendations
Replies: 16
Views: 308

Re: 98 V70 xc engine weight and recommendations

It's located on the oil pan on the back of the engine. No silly lines to/from the engine to the radiator. You can see it here on my current engine going back into my '97 T5. (Doing a manual swap, and also doing an RN oil pan upgrade) https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%2085...
by Chuck W
Sat Jul 11, 2020 9:39 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 V70 xc engine weight and recommendations
Replies: 16
Views: 308

Re: 98 V70 xc engine weight and recommendations

You missed the point of my post. I know you have an N engine. You can use an RN engine in place of your N engine without having to add any of that stuff. You can swap the engine. Gain the better RN oil cooler set-up. Keep all of your current engine controls and ignition. Hell, you can keep the crapp...
by Chuck W
Sat Jul 11, 2020 6:09 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 V70 xc engine weight and recommendations
Replies: 16
Views: 308

Re: 98 V70 xc engine weight and recommendations

Just do a built FWD 850 and install a Quaife differential. You can find a JY LPT engine pretty easily and drop it in your XC. Even a P2 LPT works fine. You just need to make a couple considerations for the N vs RN engine differences. N RN? From the Wikipedia page In 1998, with the introduction of t...
by Chuck W
Sat Jul 11, 2020 3:05 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: rebuild or replace engine: opinions? please recommend online engine shop
Replies: 9
Views: 176

Re: rebuild or replace engine: opinions? please recommend online engine shop

If this car is just going to be your "back-up car", grab a used JY 2.4 engine. P2 LPT engines are pretty inexpensive. We have an '01 LPT motor in the wife's '97 GLT. Had 145K on it, which is half of what her old one did. I think I am just going to buy an engine and get this car going again. Oklahom...
by Chuck W
Sat Jul 11, 2020 10:54 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: rebuild or replace engine: opinions? please recommend online engine shop
Replies: 9
Views: 176

Re: rebuild or replace engine: opinions? please recommend online engine shop

If this car is just going to be your "back-up car", grab a used JY 2.4 engine. P2 LPT engines are pretty inexpensive.

We have an '01 LPT motor in the wife's '97 GLT. Had 145K on it, which is half of what her old one did.
by Chuck W
Sat Jul 11, 2020 10:52 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 V70 xc engine weight and recommendations
Replies: 16
Views: 308

Re: 98 V70 xc engine weight and recommendations

Just do a built FWD 850 and install a Quaife differential.

You can find a JY LPT engine pretty easily and drop it in your XC. Even a P2 LPT works fine. You just need to make a couple considerations for the N vs RN engine differences.
by Chuck W
Sat Jul 11, 2020 8:42 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 V70 xc engine weight and recommendations
Replies: 16
Views: 308

Re: 98 V70 xc engine weight and recommendations

M56 is the 5 spd. M66 is a 6spd

There were FWD and AWD versions of each. Looks like the P2Rs got the 6spds. Non-R P2's got the 5's.

Your post is kind of confusing.

Are you wanting to pull the engine from the XC and put it in an 850? And then adapt an AWD P2 set-up to it?
by Chuck W
Fri Jul 10, 2020 9:35 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Hole in my valve cover (not PCV) and oil leak
Replies: 20
Views: 433

Re: Hole in my valve cover (not PCV) and oil leak

Cookeh wrote: Fri Jul 10, 2020 4:47 pm
To throw a spanner in the works, my 96 850 T5 has that hole.
As does my '97 T5.

Like has been mentioned, there is nothing behind it on the head.

They changed the head, but didn't change the cam cover casting.
by Chuck W
Thu Jul 09, 2020 8:50 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Volvo 850 vs 70 series dash interchangeable?
Replies: 5
Views: 189

Re: Volvo 850 vs 70 series dash interchangeable?

RickHaleParker wrote: Thu Jul 09, 2020 6:18 pm A P80 70 series dash will fit in a 850 but you will need to change the door panels also. The P80 70 series is a face lifted 850.
Pretty sure the '98-'00 door panels don't fit the 850 doors.
by Chuck W
Thu Jul 09, 2020 5:01 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Hole in my valve cover (not PCV) and oil leak
Replies: 20
Views: 433

Re: Hole in my valve cover (not PCV) and oil leak

I know I replied to this last night... That hole is normal and as you guessed, there seal on the cam cover has failed, for whatever reason. There is another THREAD on this forum discussing the same issue. I read a long thread on it and searched on some others a while back, but can't remember where i...
by Chuck W
Wed Jul 08, 2020 6:49 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 70 series auto transmission rebuild?
Replies: 6
Views: 171

Re: 98 70 series auto transmission rebuild?

Here is an older catalog that has some rebuild kit PN's

Parker-Hannifin

Plus a link to a place with rebuild kits.

KITS
by Chuck W
Wed Jul 08, 2020 6:45 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 70 series auto transmission rebuild?
Replies: 6
Views: 171

Re: 98 70 series auto transmission rebuild?

I just found this on the 50-42LE trans, which is what you're looking at from the '98 FWD. 50-42 manual I'm doing a manual swap in my '97 T5 and am wanting to save the old trans for the wife's '97 GLT, just in case we need it. Her car has 300K+ miles and this is just under 200K. Thought about a rebui...
by Chuck W
Tue Jun 23, 2020 8:26 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Picking a 2004 C70 Conv, what parts to get?
Replies: 12
Views: 292

Re: Picking a 2004 C70 Conv, what parts to get?

You might take a tape measure and see if it has the 302mm (~12") front brakes on it. The caliper mounting brackets are the only pieces you *really* need, if everything else is junk. Rotors can be bought new, and the calipers are the same as the 280mm ones. Even if you don't want to do the brake upgr...
by Chuck W
Tue Jun 16, 2020 11:01 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Sveedy wrote: Tue Jun 16, 2020 9:30 am I just picked up a used 20 ton shop press yesterday, so I'm already looking for things to press :)
That is WAAAAAAYY overkill for this, and not even worth the hassle of trying to figure out how to make it work. ;)
by Chuck W
Tue Jun 16, 2020 8:50 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

I used a 1# sledge to knock 2 of them out. The other two required 20 seconds with a recip saw to cut part of the way through the plastic outer cup (stuck the saw in the gap in the bushing and cut from the inside, out. Not all the way through the shell), then whacked them out with a hammer. You can h...
by Chuck W
Tue Jun 16, 2020 8:11 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Got the Delrin bushings installed into the T5's subframe, while prepping for the manual install.

by Chuck W
Sun Jun 14, 2020 9:52 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: AC Cuts out after about 15 minutes....
Replies: 13
Views: 317

Re: AC Cuts out after about 15 minutes....

This reminds me to actually fix the spacing on my '97 T5 AC compressor while things are apart for the manual swap.

I've been using the "wire mod" instead of bread clips or zip ties.

I made a "puller plate" when I did the same on the wife's car during the RN swap.
by Chuck W
Sun Jun 14, 2020 2:24 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Need roof hatch "bezel" that secures the roof lining
Replies: 29
Views: 1029

Re: Need roof hatch "bezel" that secures the roof lining

Sounds like it's time to pull the headliner and install new material before you put that new trim in place.(Unless it's only loose around the sunroof)

I used THIS STUFF when we redid the headliner in the wife's 855. Spray dyed it to the color we needed.
by Chuck W
Wed Jun 10, 2020 8:32 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Running rough in cold weather - suspect cooling system?
Replies: 7
Views: 249

Re: Running rough in cold weather - suspect cooling system?

Check your coolant temp sensor and connector.

Could be corrosion on the connector pins causing an errant reading, or a bad sensor.
by Chuck W
Tue Jun 09, 2020 9:09 am
Forum: Volvo Classifieds
Topic: 2000 V70 XC part out June 2020 SOLD Topic is solved
Replies: 5
Views: 453

Re: 2000 V70 XC part out Topic is solved

I'm not familiar with the V70 headliner retention, but does it use these retainers on the side towards the rear?

I'm in need of a couple for an 850.
by Chuck W
Sun Jun 07, 2020 10:32 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Any luck at replacing low-side AC schrader?
Replies: 7
Views: 147

Re: Any luck at replacing low-side AC schrader?

The pictures I linked in the first post show the two types. What's in there is the large bore "euro type" with the purple seal and tail on the seat. The other ones offered have a flat bottom, and are obviously shorter. My kit came with one of the longer ones, so I can use that to help rig up a solut...
by Chuck W
Sun Jun 07, 2020 9:17 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Any luck at replacing low-side AC schrader?
Replies: 7
Views: 147

Re: Any luck at replacing low-side AC schrader?

Chuck, I’m having trouble with the visual here. Here's a video. https://www.youtube.com/watch?v=emV7jyaO7vA The part where you close the shut off valve (after the plunger and valve are pushed up) is where the hang up is. The bottom of the valve core (see the pic of the one with the "tail" on the bo...
by Chuck W
Sat Jun 06, 2020 8:48 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Any luck at replacing low-side AC schrader?
Replies: 7
Views: 147

Re: Any luck at replacing low-side AC schrader?

The question was more in having luck swapping out the longer type with the no-loss tools. It's an easy enough process IF you can get the valve to clear the shut-off. Her car leaks down enough about every couple years, and it's most likely coming from the service port valve. I doubt OE or AM parts fo...
by Chuck W
Fri Jun 05, 2020 9:14 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Any luck at replacing low-side AC schrader?
Replies: 7
Views: 147

Any luck at replacing low-side AC schrader?

Working in the wife's '97 GLT, I've been noticing a slight leak at the low-side service port. (Minor bubbling) I picked up one of the "no-loss" replacement kits, and it would work great....if the valve in the car was about 6mm shorter. As it is, I can't get the shut-off valve to close after the old ...
by Chuck W
Tue Jun 02, 2020 6:19 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '97 855 GLT Can you help me find the for source of oil leak near exhaust manifold on passenger side?
Replies: 25
Views: 560

Re: '97 855 GLT Can you help me find the for source of oil leak near exhaust manifold on passenger side?

nmontague81 wrote: Tue Jun 02, 2020 1:41 am I had a leak similar to what you described, turned out the rear main seal needed to be replaced.
How can a rear main seal leak be causing his problem?


If you haven't yet,clean everything down. Let it dry, take a couple pics. Drive for a day and get back under there and examine everything.
by Chuck W
Sun May 31, 2020 6:11 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Got started on the manual swap on my '97 T5.

by Chuck W
Wed May 27, 2020 7:23 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: How do my Delta Link Bushings look to you?
Replies: 20
Views: 542

Re: How do my Delta Link Bushings look to you?

They say not to use an impact driver on those tools... I run a drill bit through the plastic bushing sleeve on the top of the bushing. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/2019susp/ihaveyounow.jpg It allows the shell to break away from the arm. Also, it leaves no melte...
by Chuck W
Tue May 26, 2020 5:43 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 XC: My first accident
Replies: 7
Views: 183

Re: 98 XC: My first accident

10-to-1 she was on her phone...
by Chuck W
Sun May 24, 2020 9:18 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: How do my Delta Link Bushings look to you?
Replies: 20
Views: 542

Re: How do my Delta Link Bushings look to you?

The rubber looks a little old, but they appear to actually be in one piece.

Unless they are broken, or your in replacing the outer link bushings, I would just leave them.
by Chuck W
Sat May 23, 2020 6:30 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 855 rear bumper question
Replies: 11
Views: 260

Re: 855 rear bumper question

Long term maintenance .....it might be worth dropping those long bolts once A year and anti seizing them. One of mine was seized in the threaded insert (DS), so I just wound up sourcing (non-original) bolts.They got a judicious coating of anti-seize going back in. We've got to find a new rear bumpe...
by Chuck W
Fri May 22, 2020 9:17 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 855 rear bumper question
Replies: 11
Views: 260

Re: 855 rear bumper question

Had to take care of this a couple months ago on the wife's '97 GLT. The DS bracket was basically non-existent, due to corrosion. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/Body/droopybutt.jpg https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/Body/rustybrkt_...
by Chuck W
Wed May 20, 2020 3:20 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Radiator Fans Not Working
Replies: 11
Views: 329

Re: Radiator Fans Not Working

Clean that ECT connector.
by Chuck W
Mon May 18, 2020 6:28 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: headliner fabric recommendation?
Replies: 17
Views: 336

Re: headliner fabric recommendation?

Does the beige color match up pretty well? I couldn't tell you, as I absolutely HATE that light color of the upper interior on these things, so I ditched it for a dark grey/charcoal color and also dyed the upper plastics that needed to match. They do have a wide offering though, and will send you s...
by Chuck W
Sun May 17, 2020 3:47 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: headliner fabric recommendation?
Replies: 17
Views: 336

Re: headliner fabric recommendation?

850oldschool wrote: Sun May 17, 2020 2:32 pm Chuck, nice looking job on the sedan! That looks like standard foam backed headliner. Where did you source that?
Thanks. It is. I've usually bought material from https://www.yourautotrim.com/, but there are several sources.
by Chuck W
Sun May 17, 2020 1:33 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: headliner fabric recommendation?
Replies: 17
Views: 336

Re: headliner fabric recommendation?

From the reading I did, the 3M Super 77 seems to hold out better in the heat than the 3M headliner adhesive. So that's what I used. Only been six months though, so no longevity report yet. Chuck, that's a very impressive job you did of lining up the pattern! How long since you did it? Is it holding...
by Chuck W
Sat May 16, 2020 9:13 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: headliner fabric recommendation?
Replies: 17
Views: 336

Re: headliner fabric recommendation?

I would also suggest the 3M "Headliner Adhesive" over the Super 77.
by Chuck W
Sat May 16, 2020 6:02 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: headliner fabric recommendation?
Replies: 17
Views: 336

Re: headliner fabric recommendation?

What we did in the wife's '97 GLT

by Chuck W
Fri May 15, 2020 4:27 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Fixing rocker panel rust - 99 s70
Replies: 35
Views: 1158

Re: Fixing rocker panel rust - 99 s70

Erg...

I would just find another car at that point.
by Chuck W
Thu May 14, 2020 4:43 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 94 850T check engine light while accelerating
Replies: 35
Views: 755

Re: 94 850T check engine light while accelerating

I guess it's also possible that you had low voltage going to your ignition system, which could cause an issue when the engine was under load.
by Chuck W
Thu May 14, 2020 1:24 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 94 850T check engine light while accelerating
Replies: 35
Views: 755

Re: 94 850T check engine light while accelerating

How long have you been driving it since the battery disconnect? It could clear up after the ECU readjusts a bit. You could have a sensor that is out of spec, enough to cause an issue when the ECU is reset, but will then clear up after a while. My M4.4/green injector-swapped '97 does the same thing. ...
by Chuck W
Fri Apr 10, 2020 6:52 am
Forum: Volvo V70 & XC-70 2001-2007, S60 2001-2009
Topic: 2004 S60R B8444S (V8) conversion (Previously : Exhaust Manifold removal.)
Replies: 236
Views: 6680

Re: 2004 S60R Exhaust Manifold removal.

abscate wrote: Fri Apr 10, 2020 6:04 am Rick - are the pistons in my 1998 parts car block of any use here?

Engine is out, I can strip for less than it costs to bribe a politician, as long as I am at least 500 feet from a school.
Unlikely that those will work. The 04-07 R motors B5254T4 had an 83mm bore.
by Chuck W
Thu Apr 09, 2020 7:08 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

sventastic wrote: Thu Apr 09, 2020 6:51 pm Redid the headliner! I don't have a good before pic, but the whole back half sagged down
Looks good!

Just did the headliner in the wife's 855 this past week. (See a few posts up).
by Chuck W
Tue Apr 07, 2020 8:50 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Got the 302s installed on the front of the wife's '97 855 GLT.

by Chuck W
Fri Apr 03, 2020 1:39 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Cookeh wrote: Fri Apr 03, 2020 1:19 pm
Chuck W wrote: Fri Apr 03, 2020 6:03 am We also dyed all of the upper interior pieces to the dark grey.
What dye did you use? I've been tempted to do similar!
I've been using the SEM ColorCoat stuff. I used the "Graphite" color on these.
by Chuck W
Fri Apr 03, 2020 6:03 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Replaced the nasty, sagging headliner in the wife's 855 GLT yesterday. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/2020/Headliner/headliner_1.jpg https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/2020/Headliner/headliner_5.jpg I let her pick the material. We...
by Chuck W
Mon Mar 30, 2020 3:12 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Junkyard find
Replies: 1
Views: 142

Re: Junkyard find

I'd be yanking that dash pad from that thing...
by Chuck W
Mon Mar 23, 2020 6:22 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Help a former V70 brother out w/ recommendation
Replies: 4
Views: 111

Re: Help a former V70 brother out w/ recommendation

therangerstation.com is about the only one that I spend any time on if I need anything for my '89, but to be honest, I haven't been there much. A Google search may prove to be more helpful than trying to ask on a forum. I usually wind up with several posts to investigate for whatever info I'm lookin...
by Chuck W
Tue Mar 17, 2020 8:03 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 XC brake fit: 302mm rotor/caliper on Persus (16")
Replies: 3
Views: 104

Re: 98 XC brake fit: 302mm rotor/caliper on Persus (16")

Yeah, I was originally going to grind down some calipers and use the Columbas for our project, but decided just to try and source a set of wheels.
by Chuck W
Mon Mar 16, 2020 9:56 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 98 XC brake fit: 302mm rotor/caliper on Persus (16")
Replies: 3
Views: 104

Re: 98 XC brake fit: 302mm rotor/caliper on Persus (16")

I think I read that the Persus is the other wheel, aside from the Columbas, that the 302 brakes do not fit.

I just picked up a set of Perfos (similar to the Columbas) for the wife's 855 GLT today.
by Chuck W
Sun Mar 15, 2020 8:45 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Serp belt alignment off after alt install
Replies: 2
Views: 133

Re: Serp belt alignment off after alt install

Looks like a spacer missing on the bottom back side of the Alternator. Looked at my '98, the lower bolt does not stick out pass the Alternator housing like it does in your picture. That looks like a alternator case bolt, not a mounting bolt. The long,lower alternator bolt, that's a big pain in the ...
by Chuck W
Tue Mar 10, 2020 7:35 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Sway bar bushing replacement
Replies: 21
Views: 2385

Re: 850 Sway bar bushing replacement

So, as a follow-up to this. I purchased a set of those collars linked above and installed them on the wife's car over the weekend. When we did the engine swap, I installed an "R" front bar with some poly bushings. Over the past couple of months I've noticed a rattle on the pass side from time to tim...
by Chuck W
Mon Mar 09, 2020 9:44 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Broke lower Shock stud - seeking info on delta link/trailing arm
Replies: 18
Views: 345

Re: Broke lower Shock stud - seeking info on delta link/trailing arm

I'm pretty sure there's a DIY for replacing the Delta Link bushings (inner and outer) on this site, which pretty much gets you to the point of removing them (aside from popping brake lines and ABS wiring out of their clips). You can probably remove the brake calipers/lines from the arms and just car...
by Chuck W
Sun Feb 23, 2020 6:31 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: best 850 heater core?
Replies: 13
Views: 206

Re: best 850 heater core?

Did a Swedish Car Parts heater core not too long ago. No smell on this one.
by Chuck W
Wed Feb 05, 2020 4:56 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 dash warning lights Topic is solved
Replies: 28
Views: 488

Re: 850 dash warning lights Topic is solved

Hey misha! I measured 7.5 volts on the thin wire with key pos II. Not sure if that means anything. FCEuro alternator is being shipped here. Thanks again. Carl Since you said that you didn't have a "Battery" light on, did you try grounding that this wire? Doing so should cause the battery(and other ...
by Chuck W
Mon Feb 03, 2020 3:48 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Replacing passenger side seal on steering rack
Replies: 2
Views: 114

Re: Replacing passenger side seal on steering rack

Turn it until the pin is fully out. The cover won't be able to be removed until the pin is fully removed from the housing.

"Keep it aside" means to just save it, as you may need it for re-installation, if the new seal kit doesn't come with a new one. Kind of bad wording, really.
by Chuck W
Thu Jan 30, 2020 9:33 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 dash warning lights Topic is solved
Replies: 28
Views: 488

Re: 850 dash warning lights Topic is solved

Now that you say that you don't have a Battery light on with key on, I just went through a similar issue on my '97 T5. You probably also have a couple more lights that aren't coming on. From my post on it. I had gotten some weird dash lights on Wed (Low Fuel and SRS lights would flash on the interst...
by Chuck W
Wed Jan 29, 2020 2:12 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: ECC Unit Removed (After Dash Removal), 1996 850 Turbo Topic is solved
Replies: 20
Views: 343

Re: ECC UNIT WILL NOT COME OUT, 1996 850 Turbo Topic is solved

I've used plastic putty knives or the like as prying implements on the front sides of the unit, to get really stubborn ones to move.

You just have to use a light touch, so as to not damage the dash surround.
by Chuck W
Tue Jan 28, 2020 8:52 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: ECC Unit Removed (After Dash Removal), 1996 850 Turbo Topic is solved
Replies: 20
Views: 343

Re: ECC UNIT WILL NOT COME OUT, 1996 850 Turbo Topic is solved

Yeah, they're stubborn, but they just pop out of the dash as you push them from behind.
by Chuck W
Thu Jan 23, 2020 6:24 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Sway bar bushing replacement
Replies: 21
Views: 2385

Re: 850 Sway bar bushing replacement

Thanks for that link. Those are cheaper than the pieces I was just going to pick up from McMaster -Carr.
by Chuck W
Wed Jan 22, 2020 6:40 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850 Sway bar bushing replacement
Replies: 21
Views: 2385

Re: 850 Sway bar bushing replacement

The IPD front bars have stops welded onto them and are supplied with poly bushings. I have poly bushings on the R bars in the wife's 855. I've noticed a knocking sound that I've traced to the sway bar translating a bit in the bushings. I'm going to grab some 2-piece shaft clamp collars and install t...
by Chuck W
Tue Jan 21, 2020 8:40 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Messed around in the cold and dark (also not feeling well myself) getting the alternator reinstalled after the hardware arrived today. I get it together and something with the idler pulley just is not right. After putting things away for the night and thawing out a bit over dinner, I realized my mis...
by Chuck W
Sat Jan 18, 2020 7:07 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Been there, done that! Except I think I had left out that top bolt... still, less than ideal. It made nasty noises. I ended up fixing that a few days later. M8x120mm sounds right, I know for sure it's M8. It's a long one, I know that much! This is probably the same person who didn't tighten any of ...
by Chuck W
Sat Jan 18, 2020 3:37 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Well, I tried to repair/replace the alternator on the '97 T5 today, after it stopped charging. I had gotten some weird dash lights on Wed (Low Fuel and SRS lights would flash on the interstate, and eventually came on when I got off the highway). When I got home I checked and I had no Battery light o...
by Chuck W
Fri Jan 17, 2020 7:11 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '98 V70 T5 won't start, P0301 & P0304
Replies: 27
Views: 604

Re: '98 V70 T5 won't start, P0301 & P0304

That's exactly what mine did when it did the pop and smoke show.

Have you checked out that ECT sensor connector yet? Those suckers are a notorious trouble spot.
by Chuck W
Wed Jan 15, 2020 4:16 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 Volvo 850 GLT Engine Swap
Replies: 14
Views: 355

Re: 1997 Volvo 850 GLT Engine Swap

Did the '95 have the OBDII port in the car, or were the diagnostics under the hood?
by Chuck W
Tue Jan 14, 2020 7:39 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '98 V70 T5 won't start, P0301 & P0304
Replies: 27
Views: 604

Re: '98 V70 T5 won't start, P0301 & P0304

When you do the ignition tune up, check behind the dist rotor plate to make sure the cam seal is still place.

I missed it when was messing with mine, and then discovered a bad oil leak... Had to go back in and replace the seals. They were hard and weren't doing much anyway. I bet yours are similar.
by Chuck W
Sun Jan 12, 2020 6:41 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '98 V70 T5 won't start, P0301 & P0304
Replies: 27
Views: 604

Re: '98 V70 T5 won't start, P0301 & P0304

So, did you ever check out the coolant temp sensor? I don't see that as causing the car to die while running, but I had one give me fits on my '97 T5. (EDIT - thinking back, it did stumble and die on me once, before I fixed it) Car was hard to start, would run rough, etc. It eventually backfired/pop...
by Chuck W
Thu Jan 09, 2020 5:03 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Going to the junkyard for...
Replies: 13
Views: 256

Re: Going to the junkyard for...

Sveedy wrote: Thu Jan 09, 2020 4:19 pm So question about the cams - Any concerns about them coming out of a 200k mile vehicle ?
You won't know until you put eyes on them.
by Chuck W
Wed Jan 08, 2020 7:35 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '98 V70 T5 won't start, P0301 & P0304
Replies: 27
Views: 604

Re: '98 V70 T5 won't start, P0301 & P0304

Pull the dist cap and check the cap/rotor. While you're in there, make sure the cam seal isn't leaking/seeping oil all over the place. If they're old and dry and the PCV system isn't up to snuff, a boosted run could push oil past them, or push the seal out of place. Oil inside the cap would cause is...
by Chuck W
Tue Jan 07, 2020 7:17 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: S70 Engine
Replies: 24
Views: 624

Re: S70 Engine

Pick up a good-running used motor. Swap it, and be on your way.
by Chuck W
Mon Jan 06, 2020 6:48 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Hot Wheels 850 BTCC Estate - Who thinks these are cool? Topic is solved
Replies: 60
Views: 1750

Re: Hot Wheels 850 BTCC Estate - Who thinks these are cool? Topic is solved

I've been waiting for some to drop at our usual spot and have told the wife to keep an eye out. No luck yet.

I think they'll also be available later in the non-race trim.
by Chuck W
Wed Jan 01, 2020 11:59 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1998 V70 GLT 19T Build
Replies: 86
Views: 2445

Re: 1998 V70 GLT 19T Build

Yes, B5254T. This is the original '98 motor, if yours is a '99 should be a B5244T with single VVT. That'll be awesome in a 240, my cousin really wants to do that with his. Really not too hard, just use an adapter plate and a Ford T5 or CD009 trans and a 960 subframe. Then get a shortened white bloc...
by Chuck W
Wed Jan 01, 2020 9:36 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1998 V70 GLT 19T Build
Replies: 86
Views: 2445

Re: 1998 V70 GLT 19T Build

Is this a B2524T motor? I've got one that's supposedly a '99 motor. (They used them for 97-99) going into my '78 240. How do you plan to mount a white block in the 240? Rear or front drive? Transmission? volvolugnut I won't hijack his thread with details, but it's not too terribly difficult to moun...
by Chuck W
Wed Jan 01, 2020 9:09 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1998 V70 GLT 19T Build
Replies: 86
Views: 2445

Re: 1998 V70 GLT 19T Build

Is this a B2524T motor?

I've got one that's supposedly a '99 motor. (They used them for 97-99) going into my '78 240.
by Chuck W
Mon Dec 16, 2019 6:19 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Wiper Blades: Two Lengths?
Replies: 13
Views: 302

Re: Wiper Blades: Two Lengths?

I've just been buying the Volvo ones for our P80's from FCP the past couple of years. I think they're the same length in that set, but I haven't fretted over it. Just recently bought new sets and sent the old ones back for their "Lifetime Warranty". Doesn't make them free, but when it's all said and...
by Chuck W
Wed Dec 11, 2019 9:47 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 V70 side marker light Topic is solved
Replies: 27
Views: 467

Re: P80 V70 side marker light Topic is solved

abscate wrote: Wed Dec 11, 2019 9:44 pm Are those Adaro or Stylla wheels? Great look.
Neptunes.
by Chuck W
Wed Dec 11, 2019 9:10 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 V70 side marker light Topic is solved
Replies: 27
Views: 467

Re: P80 V70 side marker light Topic is solved

When I put the XC70 nose on my '97 850, I installed the side repeaters.


I had to splice in at the wiring at the front corner lights.

If I recall correctly, your wire colors are correct.
by Chuck W
Tue Dec 10, 2019 12:28 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 Volvo 850 GLT Engine Swap
Replies: 14
Views: 355

Re: 1997 Volvo 850 GLT Engine Swap

According to most my sources the ARD tune should work fine. Unless the sources are specifically referencing a '97 GLT, don't bank on it. Everything I read when we did the engine and ECU (M4.4) swap let me to believe it would be "fine", but no one had an answer to why it didn't work. Like I said, I ...
by Chuck W
Tue Dec 10, 2019 11:33 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 Volvo 850 GLT Engine Swap
Replies: 14
Views: 355

Re: 1997 Volvo 850 GLT Engine Swap

Was the AC working on the '97 GLT with the ARD tune? Was it actually an M4.4 upgrade? When we were doing an ECU swap in the wife's '97 GLT (Which is actually M4.4) using the VolvoSpeed 98MY M4.4 flashable bins, there were AC issues (As in it didn't work). The '97 GLT AC routines were different from ...
by Chuck W
Mon Dec 09, 2019 8:16 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Turns over and stalls within a few minutes
Replies: 5
Views: 93

Re: Turns over and stalls within a few minutes

An intermittant start then no-start with good cranking does sound like fuel isnt being metered correctly I would first measure fuel pressure at the rail, with a gauge, to make sure fuel delivery is good. Remove distributor cap and rotor and make sure everything is shiny and clean in there, like shi...
by Chuck W
Mon Dec 09, 2019 6:22 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Turns over and stalls within a few minutes
Replies: 5
Views: 93

Re: Turns over and stalls within a few minutes

Have you looked at the coolant temp sensor? Checked its connector for corrosion?
by Chuck W
Mon Dec 09, 2019 5:48 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Turns over and stalls within a few minutes
Replies: 5
Views: 93

Re: Turns over and stalls within a few minutes

Have you looked at the coolant temp sensor?

Any CEL or codes?

Did you try disconnecting the battery and letting the ECU reset?
by Chuck W
Fri Dec 06, 2019 1:38 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Removing rear delta link end link bushing, jack up one side of the car?
Replies: 15
Views: 648

Re: Removing rear delta link end link bushing, jack up one side of the car?

Drilling has worked better for me than heat/melting.
Also less messy option.
by Chuck W
Fri Dec 06, 2019 9:47 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Removing rear delta link end link bushing, jack up one side of the car?
Replies: 15
Views: 648

Re: Removing rear delta link end link bushing, jack up one side of the car?

You can jack one side of the car and do one side at a time. Both rear wheels don't need to be off the ground to replace a delta link. I guess was never answered. :P To avoid fighting the the rear sway bar, you might loosen/disconnect it on the PS side of the car, but other than that, one side at a ...
by Chuck W
Fri Dec 06, 2019 8:03 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Removing rear delta link end link bushing, jack up one side of the car?
Replies: 15
Views: 648

Re: Removing rear delta link end link bushing, jack up one side of the car?

Installing wasn't really an issue. The bushing has a tendency to drive in crooked regardless, so I would just get it going and stop when I saw it looking crooked. A couple taps on that side of the bushing flange would allow it to even up. Tighten up a bit more, a couple taps, and so on. Use careful ...
by Chuck W
Thu Dec 05, 2019 4:21 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Removing rear delta link end link bushing, jack up one side of the car?
Replies: 15
Views: 648

Re: Removing rear delta link end link bushing, jack up one side of the car?

I plan to use heat together with the tool. My second question after reading about this operation: You need to undo the lower shock absorber mounting, right? Don't bother with the heat. It has never worked for me. Attacking it with a drill across the top is usually enough to get it to break free. (I...
by Chuck W
Fri Nov 29, 2019 7:33 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 850: Split rivits, fender liners, mud flaps and rocker panels
Replies: 22
Views: 522

Re: 850: Split rivits, fender liners, mud flaps and rocker panels

. I am replacing both rocker panels on my 95, I bought these: https://www.amazon.com/gp/product/B07BHCYFDW/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1&tag=matthewsvolvo3-20 I actually haven't tried the push rivets yet. I had enough factory fasteners to do one side, ordered the Rexka parts for ...
by Chuck W
Sat Nov 23, 2019 6:55 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: M4.3 to M 4.4: Really that simple?
Replies: 12
Views: 273

Re: M4.3 to M 4.4: Really that simple?

OK, you've got different files than the 607rev5b I downloaded a couple years ago. Good to know this has been monkeyed with. Not a wise "update" to the baseline file considering that no HPT/m4.4 vehicle ever shipped with orange injectors. Just as any unmodified m4.4 (non-R) HPT ECU will be set up fo...
by Chuck W
Fri Nov 22, 2019 11:15 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: M4.3 to M 4.4: Really that simple?
Replies: 12
Views: 273

Re: M4.3 to M 4.4: Really that simple?

I'll add that yes adjusting the injector constant is easy but even easier is to just get white injectors, which the 98 m4.4 bins are written for. The only potential issue is if the Euro hardware is somehow different for AC as Clemens suggested. I actually doubt that to be the case since the AC mod ...
by Chuck W
Fri Nov 22, 2019 7:30 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: M4.3 to M 4.4: Really that simple?
Replies: 12
Views: 273

Re: M4.3 to M 4.4: Really that simple?

Is there a good guide on how to change all these things somewhere? So far I found the Wiki44 but I would like some more knowledge or guidance on how tho change injector constant and disabling possible DTCs without having to go and learn all the basics about tuning and remapping. I can follow instru...
by Chuck W
Fri Nov 22, 2019 1:37 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: M4.3 to M 4.4: Really that simple?
Replies: 12
Views: 273

Re: M4.3 to M 4.4: Really that simple?

For your '95, it should be an easy flash and go. -607 bin if auto -608 bin if manual Do the software AC mod. Go. The VS 607 and 608 flashable bins are '98 Euro T5 spec. 16T would work fine, and you might need to change the injector constant (orange-tops are the default) and perhaps disable some diag...
by Chuck W
Fri Nov 22, 2019 12:28 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '97 850 GLT ECU swap to T5
Replies: 13
Views: 296

Re: '97 850 GLT ECU swap to T5

All 97 GLT were Motronic 4.4, as per earlier posts. But yes, it is possible a 97 m4.3 T5 is set up properly for the 97 GLT AC wiring. Yeah, I suppose that's possible, as there are no wiring differences in the HVAC systems between the GLT or other models (NAs were also M4.4 since '96), but as you me...
by Chuck W
Fri Nov 22, 2019 10:14 am
Forum: Volvo Classifieds
Topic: 1998 Volvo V70 "Clarke" l - Black 019 body parts ALBANY NY
Replies: 23
Views: 918

Re: 1998 Volvo V70 "Clarke" l - Black 019 body parts ALBANY NY

abscate wrote: Fri Nov 22, 2019 10:02 am
Ill evaluate and let you know, Chuck.

Has anyone managed to source new pistons or seals for these?
Thanks.

I have seal kits (Purchased from FCP), but the pistons are less than ideal.
by Chuck W
Fri Nov 22, 2019 9:20 am
Forum: Volvo Classifieds
Topic: 1998 Volvo V70 "Clarke" l - Black 019 body parts ALBANY NY
Replies: 23
Views: 918

Re: 1998 Volvo V70 "Clarke" l - Black 019 body parts ALBANY NY

What's the condition on the front calipers?
(Really just looking for a decent pair of pistons)
by Chuck W
Thu Nov 21, 2019 5:49 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '97 850 GLT ECU swap to T5
Replies: 13
Views: 296

Re: '97 850 GLT ECU swap to T5

Chuck either I forgot or I never understood your solution: how did you make the AC work, was there some additional coding to an m4.4 bin? Erik. It took buying another -936 (97 GLT) ECU. Pulling the chip out of it. Buying the proper holder. Sending it to someone in Sweden who offered to read the bin...
by Chuck W
Wed Nov 20, 2019 9:49 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '97 850 GLT ECU swap to T5
Replies: 13
Views: 296

Re: '97 850 GLT ECU swap to T5

The problem isn't running the AC/Defrost. It's the fact that the compressor will most likely NOT shut off when it should, especially at higher RPM/WOT.
Seeing as you use/want the AC to function, put the original ECU back in.
by Chuck W
Wed Nov 20, 2019 9:47 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: '97 850 GLT ECU swap to T5
Replies: 13
Views: 296

Re: '97 850 GLT ECU swap to T5

Yeah, we have a '97 GLT and dealt with this stuff. The '97 GLT is an M4.4 ECU, but is an oddball in regards to the AC command routines with the other M4.4 (98MY) units. They are coded differently. It's not worth the risk to the AC to drop the '97 T5 M4.3 ECU in there. You'd be better off with one fr...
by Chuck W
Thu Nov 14, 2019 7:51 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Cold weather start but won't stay running...CTS ?
Replies: 17
Views: 435

Re: Cold weather start but won’t stay running...CTS ??

Have you checked the CTS plug for corrosion? That could be causing a false reading also.

Had this issue with my '97 T5 last winter.
by Chuck W
Wed Nov 06, 2019 6:12 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 97 855R PCV 5/8 hose mod, what vacuum hose?
Replies: 6
Views: 336

Re: 97 855R PCV 5/8 hose mod, what vacuum hose?

None. I added a clamp on the manifold side, just to keep it in place. I think on the PTC side I just used a zip tie as a clamp (Didn't have any better options that I was happy with).
by Chuck W
Wed Nov 06, 2019 1:03 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 97 855R PCV 5/8 hose mod, what vacuum hose?
Replies: 6
Views: 336

Re: 97 855R PCV 5/8 hose mod, what vacuum hose?

I just used some 5mm silicone tubing.

by Chuck W
Sun Oct 27, 2019 6:02 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today?

Replaced the heater core in the wife's '97 GLT today. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/2019susp/Misc/htrcr_1.jpg Used the ebay one that I've had on the shelf for a while, after we started to get slight whiffs of coolant from the vents occasionally. Easy job. About ...
by Chuck W
Fri Oct 25, 2019 6:22 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 850 rear bumper bracket bolts (982831, M10x130mm)
Replies: 38
Views: 790

Re: 850 rear bumper bracket bolts

I'll be interested to see how those work, also.

I need to replace inner fender liners and a driver rocker cover on the 854, but I should have plenty of the plastic-coated ones on-hand for that.
by Chuck W
Fri Oct 25, 2019 10:25 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 850 rear bumper bracket bolts (982831, M10x130mm)
Replies: 38
Views: 790

Re: 850 rear bumper bracket bolts

I've been using these rivets for my cars. Regular ones work, but the plastic-coated ones are nice.

EBAY LINK
by Chuck W
Fri Oct 25, 2019 7:26 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 850 rear bumper bracket bolts (982831, M10x130mm)
Replies: 38
Views: 790

Re: 850 rear bumper bracket bolts

I just used some long M10's I had purchased a long while ago from McMaster for another project.(Have had that bag in the garage for about 8 years now...)

by Chuck W
Tue Oct 22, 2019 7:26 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Rear bumper bracket, Rear Sway bar information
Replies: 19
Views: 522

Re: rear bumper sagging - info on bracket?

850forum wrote: Tue Oct 22, 2019 3:51 pm How do I remove the bumper -
https://youtu.be/PeZIocSPVAA
by Chuck W
Tue Oct 22, 2019 7:57 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Just Bought My first Volvo for 600 bucks!
Replies: 19
Views: 612

Re: Just Bought My first Volvo for 600 bucks!

Sounds like a good buy for $600.
by Chuck W
Mon Oct 21, 2019 9:44 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 Volvo 850 Vacuum Hose Routing Questions
Replies: 17
Views: 595

Re: 1997 Volvo 850 Vacuum Hose Routing Questions

Yeah, no need for a $75 hose assembly...

When we did the engine swap in the wife's '97 GLT, I replaced all of that nonsense with silicone hoses anyway.
by Chuck W
Mon Oct 21, 2019 2:02 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 Volvo 850 Vacuum Hose Routing Questions
Replies: 17
Views: 595

Re: 1997 Volvo 850 Vacuum Hose Routing Questions

Some pics from my '97 T5. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/Misc/vac_1.jpg https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/Misc/vac_2.jpg https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/Misc/vac_3.jpg https://turbochuckc...
by Chuck W
Sun Oct 20, 2019 6:47 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 Volvo 850 Vacuum Hose Routing Questions
Replies: 17
Views: 595

Re: 1997 Volvo 850 Vacuum Hose Routing Questions

If I get a chance tomorrow, I'll take some pics of my '97 T5.

Your post is all over the place and it's giving me a headache. :)
by Chuck W
Fri Oct 18, 2019 6:58 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Solved [seized AC compressor]- Car Stranded - Won't start, no click, lights on, no push start - 99 s70 base manual trans Topic is solved
Replies: 17
Views: 698

Re: Car Stranded - Won't start, no click, lights on, no push start - 99 s70 base manual trans Topic is solved

Had it been hard/slow to start previously? It could be a bad starter/solenoid. We had the main power wire between the solenoid/starter motor go bad and eventually split on my old '96NA. It's kind of a short wire that's hard to see in the car. The car would crank slowly, especially more so when cold,...
by Chuck W
Mon Oct 07, 2019 1:02 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Driver Side rear banging noise Topic is solved
Replies: 14
Views: 296

Re: Driver Side rear banging noise Topic is solved

While you're under there, I would take a look at those inner DL bushings anyway.
by Chuck W
Mon Oct 07, 2019 6:39 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 delta link time 3516122
Replies: 20
Views: 478

Re: P80 delta link time 3516122

A quick tip for making the old Delta Link bushings easier to remove. I just did all of the DL bushings in the wife's 855 a coupe months back. Run a drill bit along the top of the old bushing to break apart the (plastic) sleeve. (It was 5/16-ish, I think). Then it comes out with minimal fuss. Even ha...
by Chuck W
Mon Oct 07, 2019 6:29 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Driver Side rear banging noise Topic is solved
Replies: 14
Views: 296

Re: Driver Side rear banging noise Topic is solved

It is also possible that the inner Delta Link bushing has failed. The one that connects the DL arms to each other. They usually split the bracket around the bushing and can rattle around.
by Chuck W
Tue Sep 24, 2019 7:15 am
Forum: Volvo Classifieds
Topic: WTB- 850 (Wagon)Parts in Pewter Silver Metallic (419)
Replies: 0
Views: 91

WTB- 850 (Wagon)Parts in Pewter Silver Metallic (419)

While the majority of the wife's '97 GLT is in pretty good shape, there are a few body pieces we're looking for to replace some of the "worn" bits. We're looking for the following parts in Pewter Silver Metallic (419): - Passenger fender - Front and rear bumper covers - Hood The hood is really low o...
by Chuck W
Fri Sep 20, 2019 5:04 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Problems after fuel filter replacement
Replies: 37
Views: 628

Re: Problems after fuel filter replacement

I guess I also missed the "month ago" part. Yes, I would expect it to adjust by now, if it was possible. I was going to suggest an R&R of the fittings again, but you also mentioned that priming the system multiple times before trying to start the car doesn't improve things, so it seemed moot. Have y...
by Chuck W
Fri Sep 20, 2019 11:56 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Problems after fuel filter replacement
Replies: 37
Views: 628

Re: Problems after fuel filter replacement

I guess I should've specified fuel trim and not necessarily fuel pressure.

I've only recently started messing with M4.4 tuning/flashing, so I'm still learning details here and there.
by Chuck W
Fri Sep 20, 2019 6:55 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Problems after fuel filter replacement
Replies: 37
Views: 628

Re: Problems after fuel filter replacement

You know more about the Motronic M4.4 than I do, I imagine, but is there a chance that the ECU adjusted starting parameters based on fuel delivery with the old filter? Would an ECU reset help?
by Chuck W
Fri Sep 06, 2019 7:32 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Rear swaybar 850 turbo.
Replies: 7
Views: 171

Re: Rear swaybar 850 turbo.

The wife's '97 GLT didn't have a rear bar on it. The rear end always felt a bit "wollowy".

It has a set of 850R bars on it now.
by Chuck W
Tue Sep 03, 2019 6:36 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Overheating - 1997 850 GLT
Replies: 8
Views: 191

Re: Overheating - 1997 850 GLT

Is it leaking coolant onto the ground? Is it blowing white smoke? Is the radiator fan coming on? Sounds like you have an external leak (hose, etc) that was never addressed, and now you've overheated it a few times. If it wasn't a headgasket initially, it probably is now. FIRST, find where that coola...
by Chuck W
Tue Aug 27, 2019 6:37 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky)

Used the 850 OBD-II app to verify that my auto trans mode switch is actually working, even though there are no lights on the switch, and the shift arrow is not working (even though I checked the bulb and it was good). The app "Live" function showed the mode change from all 3 settings on the switch, ...
by Chuck W
Thu Aug 22, 2019 8:08 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Ard green stage 2 ecu question
Replies: 4
Views: 205

Re: Ard green stage 2 ecu question

That ECU is from a '97 GLT, which is an M4.4 ECU. Your stock ECU in the '98 is also an M4.4., which means it should run fine. However, I have been messing with using flashed M4.4 ECUs in the wife's '97 GLT, and we did find out that the AC routines for the '97 GLT were different from the other M4.4's...
by Chuck W
Wed Aug 21, 2019 6:55 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Rubber coated roof rails?
Replies: 8
Views: 206

Re: Rubber coated roof rails?

I found a set in the JY for my '97 854 in good shape.

The ones on the wife's '97 855 have had the covering removed and looks like an attempt to paint them happened at one time. We're just going to shoot them with some PlastiDip, instead of paint.
by Chuck W
Sun Aug 18, 2019 12:43 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1996 850 Low speed radiator fan not turning on [Bad ECT sensor] Topic is solved
Replies: 18
Views: 472

Re: 1996 850 Low speed radiator fan not turning on [Bad ECT sensor] Topic is solved

I'm pretty sure the low speed fan is supposed to turn on with the AC (when required) and the high speed with the engine temp. If you get NO (low speed) cooling fan when the engine isn't "hot" and the AC has been turned on, your high pressure switch is most likely bad. (This assumes that you have a g...
by Chuck W
Fri Aug 16, 2019 8:35 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Volvo Camshaft Locking Tool Front (850 S70 V70) - CTA 2883
Replies: 7
Views: 332

Re: Volvo Camshaft Locking Tool Front (850 S70 V70) - CTA 2883

I forgot about replacing the seals (which I did). The matchmarking was done to get things back together properly. You can just see my yellow mark on the VVT solenoid in this pic. There were 2 corresponding marks on the back of the pulley. One for with the belt installed and one for where it winds up...
by Chuck W
Thu Aug 15, 2019 4:08 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Volvo Camshaft Locking Tool Front (850 S70 V70) - CTA 2883
Replies: 7
Views: 332

Re: Volvo Camshaft Locking Tool Front (850 S70 V70) - CTA 2883

I aligned the timing marks. Installed the crank holder in the block. Installed the rear cam lock tool. Marked the exhaust cam sprocket and made a match mark on the back of it and the block. When the belt was removed, the sprocket rotated. When I put the belt back on, I rotated the sprocket back to t...
by Chuck W
Thu Aug 15, 2019 1:32 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Something dangling under front bumper. What is it?
Replies: 3
Views: 153

Re: Something dangling under front bumper. What is it?

Wiring/connector for fog lamps, most likely.

Should have a spot/tab on the body for it to attach to. Poke your head under there and look around to see what's close.
by Chuck W
Thu Aug 15, 2019 8:58 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1996 850 Low speed radiator fan not turning on [Bad ECT sensor] Topic is solved
Replies: 18
Views: 472

Re: Low speed radiator fan not turning on Topic is solved

My AC is working. Does that suggest a functioning high pressure switch? I was expecting a quick turn of the fan, should I be listening for the relay to click? Am I just checking the AC high pressure switch for corrosion or is there an ohm value I need to check too? Nope. The switch was bad on the w...
by Chuck W
Thu Aug 15, 2019 5:53 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1996 850 Low speed radiator fan not turning on [Bad ECT sensor] Topic is solved
Replies: 18
Views: 472

Re: Low speed radiator fan not turning on Topic is solved

Also check your AC high pressure switch. It's what allows the ECU to signal the low speed fan to turn on. Still not sure why using the app didn't trigger the fans. It's independent of all of the sensors/switches. Did they even act like they triggered at all? It doesn't turn them on to run, it just p...
by Chuck W
Wed Aug 14, 2019 9:57 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Volvo Camshaft Locking Tool Front (850 S70 V70) - CTA 2883
Replies: 7
Views: 332

Re: Volvo Camshaft Locking Tool Front (850 S70 V70) - CTA 2883

I just used the rear locking tool when I did the timing belt on the new motor ('01 LPT with EVVT) for the wife's car.

The front lock would keep the pulley from rotating, but the cam may not be in the "proper" orientation, which the rear lock takes care of.
by Chuck W
Wed Aug 14, 2019 8:16 am
Forum: Events, Car Talk, General Discussion & MVS Forum
Topic: Let's see your Volvo (The Photo Thread)
Replies: 1146
Views: 430159

Re: Let's see your Volvo (The Photo Thread)

We have 4 The wife's Turbo Momcar™ ('97 GLT with mods) https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/TMC_08_19_18.jpg My '97 T5 w/ XC70 nose https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/2019/Neptunes_1.jpg My 80 264 GLE (B21FT/MS) https://turbochuckcom....
by Chuck W
Tue Aug 13, 2019 7:03 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1996 850 Low speed radiator fan not turning on [Bad ECT sensor] Topic is solved
Replies: 18
Views: 472

Re: Low speed radiator fan not turning on Topic is solved

That is odd that grounding the trigger wires to the relay switches on the fan, but the app test trigger from the ECU didn't (seeing as you supposedly have good wiring from the ECU to the relay). What if you ground the trigger wires back at the ECU plug? That will certainly rule out the wiring. Do yo...
by Chuck W
Mon Aug 12, 2019 9:40 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky)

It's worth it to check the sensor wiring. They can be finicky.

I don't remember where in the app the fan test was, but basically all it does it ping the fan relay from the ECU. It only activates the relay for a second each time you test it. That will at least rule out the ECU and it's wiring.
by Chuck W
Mon Aug 12, 2019 7:58 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky)

Spent the afternoon trying to diagnose why my low speed fan doesn't seem to work. Things I've tested: Low speed and high speed both come on if I ground out the yellow wires on the relay. The yellow wires correspond to A7 and A22 of the ECU. I am measures 3-5 ohms for both wires up to the ecu. I tri...
by Chuck W
Sun Aug 11, 2019 7:49 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky)

Finished up the delta link bushing refresh on the wife's '97 GLT. Both of the inner bushings were broken. https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20855/2019susp/oops.jpg Figured out the quick way to do the outer bushings. Even with the tool, they can be a bear. Just drill throu...
by Chuck W
Fri Aug 02, 2019 2:13 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: S70 and 850 body parts
Replies: 1
Views: 92

Re: S70 and 850 body parts

There is no commonality between the 850's and the '98-00 S/V 70's front end. I did an XC70 swap on the front of my '97 850 I needed the following parts. -Hood, fenders, bumper cover. -Header panel (headlight mount, etc). You may need some slightly longer bolts for the lower attachment, as the 850's ...
by Chuck W
Wed Jul 31, 2019 6:11 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Trying to confirm part compatibility 70 series vs 850
Replies: 10
Views: 253

Re: Trying to confirm part compatibility 70 series vs 850

Pretty sure if both cars have TRACS, that '98 ABS module should work on your '96.

Cam position sensor should swap, as well.
by Chuck W
Thu Jul 25, 2019 8:51 pm
Forum: Volvo Classifieds
Topic: FS - Set of 4 17x7 Arrakis Wheels - $100 - IN
Replies: 0
Views: 190

FS - Set of 4 17x7 Arrakis Wheels - $100 - IN

Anyone interested in a set of 17" Arrakis wheels? (ET49) Went a different route on my '97 T5 and are doing something else on the wife's '97 GLT. Not perfect, but straight and only minor scuffs on a couple of the lips and a couple dings on the spokes on one of the wheels. https://turbochuckcom.ipage....
by Chuck W
Thu Jul 25, 2019 4:07 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: EFI 225 - "ac pressure sensor signal" - DTC Topic is solved
Replies: 2
Views: 109

Re: EFI 225 - "ac pressure sensor signal" - DTC Topic is solved

Following up. Since the new Hi-pressure switch is taking the long way here, I swapped out the one from my '97 T5, which I know works. (The car is sitting for a few days while I do some exhaust work anyway). The fan comes on/off when it should (I think). I had the blower fan on about mid and what sou...
by Chuck W
Thu Jul 25, 2019 5:55 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1998 s70 t5 EVAP P0445
Replies: 11
Views: 749

Re: 1998 s70 t5 EVAP P0445

Pretty sure the '98 doesn't have that banjo connector. Didn't think that came in until the later style intake in '99.
by Chuck W
Wed Jul 24, 2019 10:31 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: When it's time to move on (and what did you buy?)
Replies: 78
Views: 2586

Re: When it's time to move on (and what did you buy?)

Just wait for her to say it's time. Unless money is no object, then let her keep it. If not she will decide sooner or later that it is not economical to keep it. Then she will tell you she wants a new car. In my case a good part of my raising my children I spent driving them in my S80. So I have a ...
by Chuck W
Wed Jul 24, 2019 7:44 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: When it's time to move on (and what did you buy?)
Replies: 78
Views: 2586

Re: When it's time to move on (and what did you buy?)

I don't think my wife will let us "move on" from her '97GLT.
by Chuck W
Sun Jul 21, 2019 6:08 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: engine not sitting right in engine bay
Replies: 10
Views: 395

Re: engine not sitting right in engine bay

We dropped an '01 motor into a '97 855 and only had to change the PS mount to the later 9480189 (Like your car uses), and I left the bracket that was on the '01 engine in place, as the N motor one did not work. We also needed to replace the front mount engine bracket with one from the 99-00 cars, wh...
by Chuck W
Sun Jul 21, 2019 4:07 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 96 850GLT dash vents ECC
Replies: 10
Views: 236

Re: 96 850GLT dash vents ECC

Read THIS

There are also a couple threads on this forum on making your own DIY code reader.
by Chuck W
Sun Jul 21, 2019 1:06 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: EFI 225 - "ac pressure sensor signal" - DTC Topic is solved
Replies: 2
Views: 109

Re: EFI 225 - "ac pressure sensor signal" - DTC Topic is solved

OK, well I went back to this today and tested the operation of both the HI and LO speed fans. First I tested them by directly grounding the relay and both worked. I then used the 850 OBDII app to test them, and the ECU engaged them properly, so the wiring is fine. I have a new AC High Pressure (line...
by Chuck W
Sat Jul 20, 2019 10:37 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: EFI 225 - "ac pressure sensor signal" - DTC Topic is solved
Replies: 2
Views: 109

EFI 225 - "ac pressure sensor signal" - DTC Topic is solved

Doing a scan with the 850 OBDII app, this code comes up. (Haven't seen it put up a CEL, however). Would this be the high pressure one behind the PS headlight? Dealing with an issue that the cooling fan isn't coming on when the AC compressor is commanded, but unless the engine is at operating temp an...
by Chuck W
Tue Jul 16, 2019 6:08 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Comparing ECU’s (96 850 vs 98 V70)
Replies: 9
Views: 234

Re: Comparing ECU’s (96 850 vs 98 V70)

Ok so just a couple of follow up questions related to my original pictures: The consensus is that even though the part numbers are different they are both 4.4 systems. How can you tell? What is the deciding factor to determine this? The 98 is the one going to the junkyard, the 96 is the keeper. I’m...
by Chuck W
Mon Jul 15, 2019 6:40 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Comparing ECU’s (96 850 vs 98 V70)
Replies: 9
Views: 234

Re: Comparing ECU’s (96 850 vs 98 V70)

So, I can't give you any definite info but the '96 NA ECU is M4.4. One thing that may be an issue is control of the AC. The TL;DR version is that while both the ECUs are M4.4, the AC routines are different due to the different ECC modules between the 850 and V70's. You may wind up with non-working A...
by Chuck W
Tue Jul 09, 2019 11:15 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: car won't start and run
Replies: 12
Views: 203

Re: car won't start and run

A little more info would be useful.
by Chuck W
Tue Jul 09, 2019 6:38 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Downpipe compatibility for a 16T?
Replies: 2
Views: 99

Re: Downpipe compatibility for a 16T?

You need a DP for a FWD P80.

Is your 16T angled-flange?

Sometimes you can find folks selling their "extra" DP's from the OBX kits, as they come with 2.
by Chuck W
Mon Jul 08, 2019 7:05 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 850 GLT Engine Swap (M4.3 M4.4 AC compatability issue)
Replies: 20
Views: 566

Re: 1997 850 GLT Engine Swap (M4.3 M4.4 AC compatability issue)

One of the benefits of the RN swap is getting rid of the early oil cooler/lines. I was VERY happy about that when we swapped motors on the wife's car. No more leaky oil lines/connections. Even if you stay with an N engine, I would suggest the RN oil pan/cooler swap. I'll be doing that on my '97 T5 w...
by Chuck W
Sun Jul 07, 2019 7:29 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 850 GLT Engine Swap (M4.3 M4.4 AC compatability issue)
Replies: 20
Views: 566

Re: 1997 850 GLT Engine Swap

Did you not read my post? ;) I recently went through ALL of this on a '97GLT. The AC issues on an 97 GLT are for sure part of the tune ECU. I went through ALL of that thread, and the Wiki.Tried several ECUs, as we were planning upgrades on the car and wanted the tuning capabilities. If he doesn't c...
by Chuck W
Sat Jul 06, 2019 5:11 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 850 GLT Engine Swap (M4.3 M4.4 AC compatability issue)
Replies: 20
Views: 566

Re: 1997 850 GLT Engine Swap

You should be able to have your current ECU tuned for this setup. It's not the ECU you're changing, it's the engine. Honestly I wouldn't bother finding another 2.4 if you want the HPT, the engine itself shouldn't cause an issue with the right tune. You have more room for power with the 2.3 with its...
by Chuck W
Sat Jul 06, 2019 2:08 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 850 GLT Engine Swap (M4.3 M4.4 AC compatability issue)
Replies: 20
Views: 566

Re: 1997 850 GLT Engine Swap

The AC in the '97 GLT doesn't play nice with any other M4.4 ECUs. At least not that I discovered.

If you don't care about AC, and are planning on using an N HPT engine, then just throw a '98 HPT ECU in there.
by Chuck W
Fri Jul 05, 2019 5:17 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 850 GLT Engine Swap (M4.3 M4.4 AC compatability issue)
Replies: 20
Views: 566

Re: 1997 850 GLT Engine Swap

Another thing I discovered was that the -936 ECUs do not like having another (M4.4) bin flashed to them. As least not that I found. Flashing that extracted -936 bin to another M4.4 ECU or even another -936 ECU resulted in a non-start situation. The guess was maybe there is an immobilizer or somethin...
by Chuck W
Fri Jul 05, 2019 8:47 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 850 GLT Engine Swap (M4.3 M4.4 AC compatability issue)
Replies: 20
Views: 566

Re: 1997 850 GLT Engine Swap

So, we had to replace the engine in my wife's '97 GLT last year. We went with another LPT engine ('01 RN motor) with half the miles on it. The N->RN swap wasn't that big of a deal. We stayed with the dist ignition (for now) and didn't mess with the VVT (yet), and just left it unplugged. We added a 1...
by Chuck W
Thu Jun 27, 2019 6:02 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: B5254T 99 engine in a 98 S70.
Replies: 7
Views: 371

Re: B5254T 99 engine in a 98 S70.

That’s great info Chuck. I never would have though the hub locks on one place and gives solid timing but that kind of makes sense. As long as you leave the solenoid in place, it will stay locked. It's good we're having this conversation, but the OP never did clarify that the S70 was a turbo, nor ha...
by Chuck W
Wed Jun 26, 2019 4:38 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: B5254T 99 engine in a 98 S70.
Replies: 7
Views: 371

Re: B5254T 99 engine in a 98 S70.

A turbo in 1999 has variable valve timing on the exhaust cam, so its a big project to make your 1998 ECM figure out how to run that. You want to source a 1998 turbo motor for that swap Or you can just leave it unplugged. We put an '01 RN LPT motor(Long block) in the wife's '97GLT, and it has the ex...
by Chuck W
Sun Jun 23, 2019 7:35 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky!!)

Installed a new SS Maximizer exhaust on the wife's '97 855GLT, along with a used Viva rear chassis brace we had re-coated.

by Chuck W
Mon Jun 17, 2019 2:25 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Any good 850 techs out there? Got a challenge for you
Replies: 18
Views: 865

Re: Any good 850 techs out there? Got a challenge for you

Did you check your ECT sensor connector yet?

Seriously, check it/clean it.
by Chuck W
Sat Jun 15, 2019 10:03 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Any good 850 techs out there? Got a challenge for you
Replies: 18
Views: 865

Re: Any good 850 techs out there? Got a challenge for you

scot850 wrote: Sat Jun 15, 2019 3:54 pm check the coolant temp sensor.
This. Primarily, check the connector for corrosion.
by Chuck W
Fri May 31, 2019 7:20 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky!!)

I thought about my Volvos while I'm on the other side of the planet from them.

Would rather be wrenching on and driving them.
by Chuck W
Thu May 30, 2019 8:26 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Went to start my 850 after the winter -- lights on on but no starter at all!
Replies: 12
Views: 317

Re: Went to start my 850 after the winter -- lights on on but no starter at all!

The shifter in my T5 was like that when I bought it, and it always needed the Manual Override button depressed to shift it out of Park. Then one day, it decided to work properly, and I only need to use the Override button maybe once every 100 times. Won't be an issue when I get the manual trans inst...
by Chuck W
Sun May 19, 2019 10:42 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky!!)

Got the Neptunes mounted on the T5

by Chuck W
Wed May 15, 2019 7:39 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky!!)

(Mostly) finished up the XC front end swap on my '97 T5.

Have a few small things to address, but it's all in place and the car is mobile again.
by Chuck W
Tue May 07, 2019 7:42 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: LED code reader/ECC help
Replies: 27
Views: 842

Re: LED code reader/ECC help

The LED code readers work for reading ECC codes on the '97 850's. It doesn't care whether the ECU is 4.3 or 4.4. The LED doesn't care but some of the 4.4 have the flash code routine some do not. He would be better off with a ELM327 and 850 OBD-II . Which was developed for the Volvo 850. For engine ...
by Chuck W
Mon May 06, 2019 7:00 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: LED code reader/ECC help
Replies: 27
Views: 842

Re: LED code reader/ECC help

I posted in here because it’s for a 97 850, not the 09 I have listed in my profile. Motronic 4.4 started showing up in some '96 850s. "97 is pretty much the year they moved to Motronic 4.4. The LED code readers work for reading ECC codes on the '97 850's. It doesn't care whether the ECU is 4.3 or 4...
by Chuck W
Mon Apr 29, 2019 12:28 pm
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: 1997 850: throws DTC P0410 between 87-90 miles of drive Topic is solved
Replies: 48
Views: 1863

Re: 1997 850: throws DTC P0410 between 87-90 miles of drive Topic is solved

I did the SAS delete on the wife's '97 GLT. I cracked open the ECU and just added the diode there. Easy enough.
by Chuck W
Mon Apr 29, 2019 6:34 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: What did you do to your Volvo today?
Replies: 4034
Views: 375415

Re: What did you do to your Volvo today? (now Sticky!!)

Finally swapped out the last of tan interior (busted, broken dash) https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/2019/olddash_2.jpg https://turbochuckcom.ipage.com/webimages/projects/97%20Volvo%20854T5/2019/newdash_2.jpg and began the *70 nose swap (Car has been bumped twice ...
by Chuck W
Tue Apr 16, 2019 9:10 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: P80 Positive Temp Coefficient Nipple "PTC VALVE" To drill, or not to drill
Replies: 18
Views: 1263

Re: P80 Positive Temp Coefficient Nipple "PTC VALVE" To drill, or not to drill

erikv11 wrote: Tue Apr 16, 2019 9:00 am

The grommet for the base of the PTC is available separately from Volvo as part number 3507985, about 4 bucks. Very worthwhile to replace that!
Thanks for that PN. When I did the PCV refresh on both cars, that grommet was pretty soft and I wondered if a replacement was available.
by Chuck W
Tue Apr 16, 2019 7:36 am
Forum: Volvo 850, S70, V70, C70, XC models 1992-2000
Topic: Service light mystery Topic is solved
Replies: 22
Views: 1179

Re: Service light mystery Topic is solved

For your '96 you should be able to use the "850 OBDII" app on your phone to clear it.

Used it once on my old '96 GLT and have used it on both of our current '97 850's.
