Fix a Volvo flip/switchblade key - DIY, pics and advice Topic is solved

Help, Advice, Owners' Discussion and DIY Tutorials on Volvo XC90s. The XC90 proved to be very popular, and very good for Volvo's sales numbers, since its introduction in model year 2003 (North America).
Loompia
Posts: 2
Joined: Mon Mar 23, 2015 9:05 am
Year and Model: XC90 2.5T 2004
Location: Tallahassee FLORIDA
Has thanked: 0
Been thanked: 0
Loompia

Re: Fix a Volvo flip/switchblade key - DIY, pics and advice

Post by Loompia » Thu Apr 02, 2015 8:44 am

If i gave you $50 would you do this for me? Thanks!



bigk
Posts: 2
Joined: Sat Mar 28, 2015 10:27 am
Year and Model: XC90 V6 3.2 AWD 7sea
Location: Quebec, Canada
Has thanked: 0
Been thanked: 0
bigk

Re: Fix a Volvo flip/switchblade key - DIY, pics and advice  Topic is solved

Post by bigk » Sat Apr 11, 2015 1:48 pm

Thanks Song Huang for this outstanding complete DIY topic. I am sure many people pay over 300 bucks / 150 quids to get a fixable key like this at the dealer. When people are still thanking you 5 years after you post a topic like this it means it is a darn good one. =)

I did the repair (with a couple alternatives) I will share here the details in order to build on your great repair.

Here is the kit I purchased for $4.22 USD: http://www.ebay.com/itm/251877616896

The parts I threw away on this kit are the friction ring and the phillips 0 screw. I reused the originals here (Torx 8 screw, longer) just because the usual whatever is OEM volvo, keep until it breaks.

Since I didn't have a razor saw handy I used a rotary tool with a cutting disc. I used your cut pattern to figure out where the transponder was located.

Winding process
For those who are struggling with the "winding process" (excluding the transponder and epoxy part), the way it worked best for me once the spring and button are in place was to:
• turn the button counterclockwise until I felt the button 'hang on' to the spring
• then, with the key blade in place in the open position, rotate the button until it lines up with the key
• then rotate it 360 degrees and hold it in the keyblade
• Hold it from the lower part of the button that lines up with the blade with your finger tip (not the one my priers are not, see picture)
Winding pic 1
• Pass a pencil with a pink eraser through the hole
• (the tricky part) hold on the top part of the button with the pink eraser
Winding pic 2
• then you can easily slide the top case part in place into the bottom of the case (see picture)

No epoxy and willing to waste some time?
The other thing I did not have was the black epoxy. Instead, I did something I don't recommend to those who want a clean good looking internals solution: I made a retaining ring with a old thumb tack I found lying around. To make it fit I had to shape it and had to dig into the keyfob cover material to make it close properly. Pictures below are self explanatory. The key cover wall is really thin now. I definitely recommend Song's method!
Thumb Tack Ring
Thumb Tacks
Rotary tool tip to dig polymer materials
Immobilizer
When I tried to start my car, it didn't work and I had a "start prevented" message. Don't panic if you get that! All there is to do is to reset the immobilizer. To do this, simply lock and unlock a total of 5 times.

Good luck to the others willing to execute this repair!


XC90 V6 3.2 AWD 7 seats 2007
S80 1999 - Crashed
S80 T6 2000 - Sold

bigk
Posts: 2
Joined: Sat Mar 28, 2015 10:27 am
Year and Model: XC90 V6 3.2 AWD 7sea
Location: Quebec, Canada
Has thanked: 0
Been thanked: 0
bigk

Re: Fix a Volvo flip/switchblade key - DIY, pics and advice

Post by bigk » Sat Apr 11, 2015 2:27 pm

Thanks Song Huang for this outstanding complete DIY topic. I am sure many people pay over 300 bucks / 150 quids to get a fixable key like this at the dealer. When people are still thanking you 5 years after you post a topic like this it means it is a darn good one. =)

I did the repair (with a couple alternatives) I will share here the details in order to build on your great repair.

Here is the kit you can get for $4.22 USD: http://www.ebay.com/itm/251877616896

The parts I threw away on this kit are the friction ring and the phillips 0 screw. I reused the originals here (Torx 8 screw, longer) just because the usual whatever is OEM volvo, keep until it breaks.

Since I didn't have a razor saw handy I used a rotary tool with a cutting disc. I used your cut pattern to figure out where the transponder was located.

For those who are struggling with the "winding process" (excluding the transponder and epoxy part), the way it worked best for me once the spring and button are in place was to:
• turn the button counterclockwise until I felt the button 'hang on' to the spring
• then, with the key blade in place in the open position, rotate the button until it lines up with the key
• then rotate it 360 degrees and hold it in the keyblade

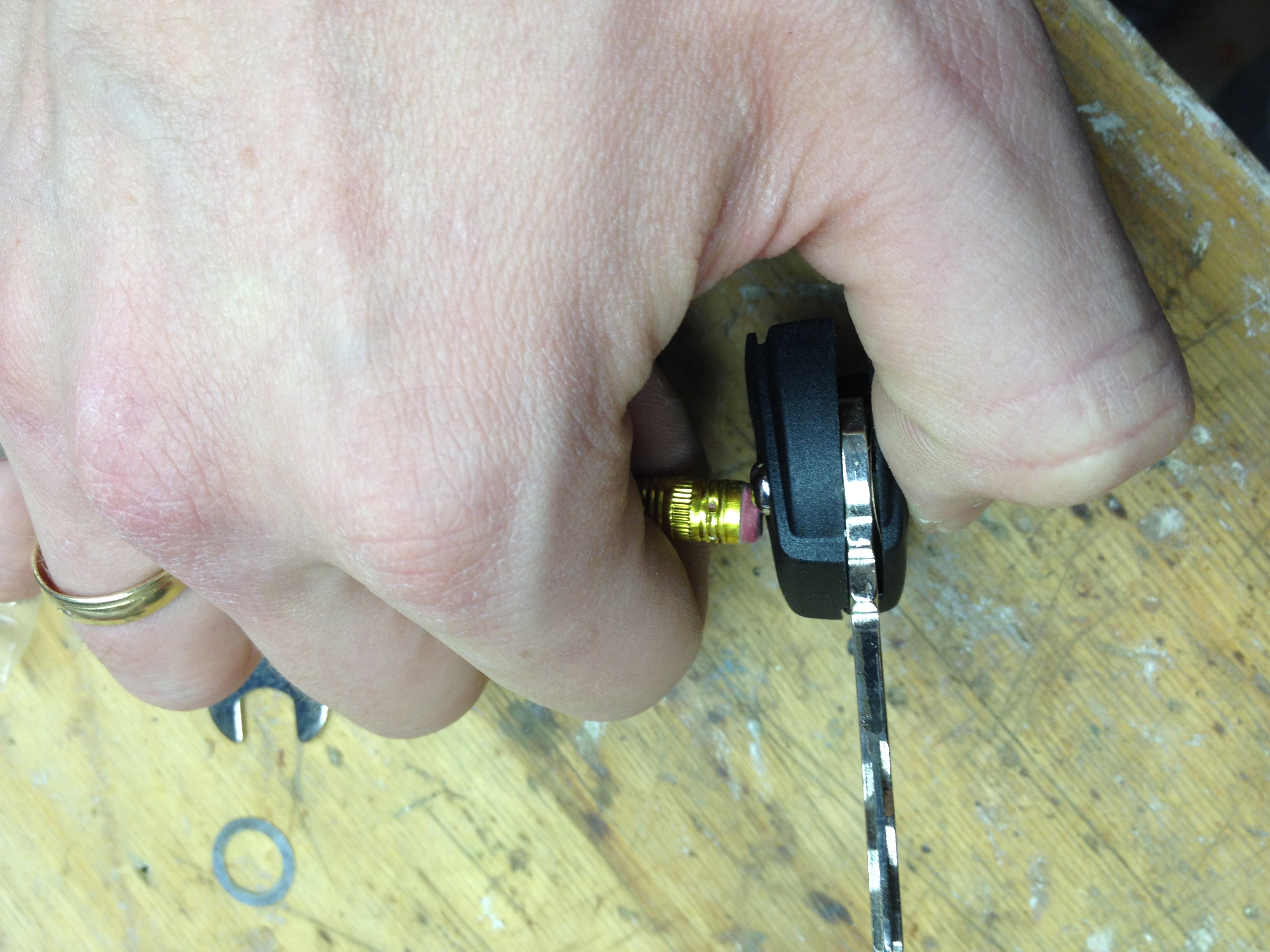

• Hold it from the lower part of the button that lines up with the blade with your finger tip (not the one my priers are not, see picture)
Winding Process 1
• Pass a pencil with a pink eraser through the hole
• (the tricky part) hold on the top part of the button with the pink eraser
• then you can easily slide the top case part in place into the bottom of the case (see picture)
Winding process 2


The other thing I did not have was the black epoxy. Instead, I did something I don't recommend to those who want a clean good looking internals solution: I made a retaining ring with a old thumb tack I found lying around. To make it fit I had to shape it and had to dig into the keyfob cover material to make it close properly. Pictures below are self explanatory. The key cover wall is really thin now. I definitely recommend Song's method!

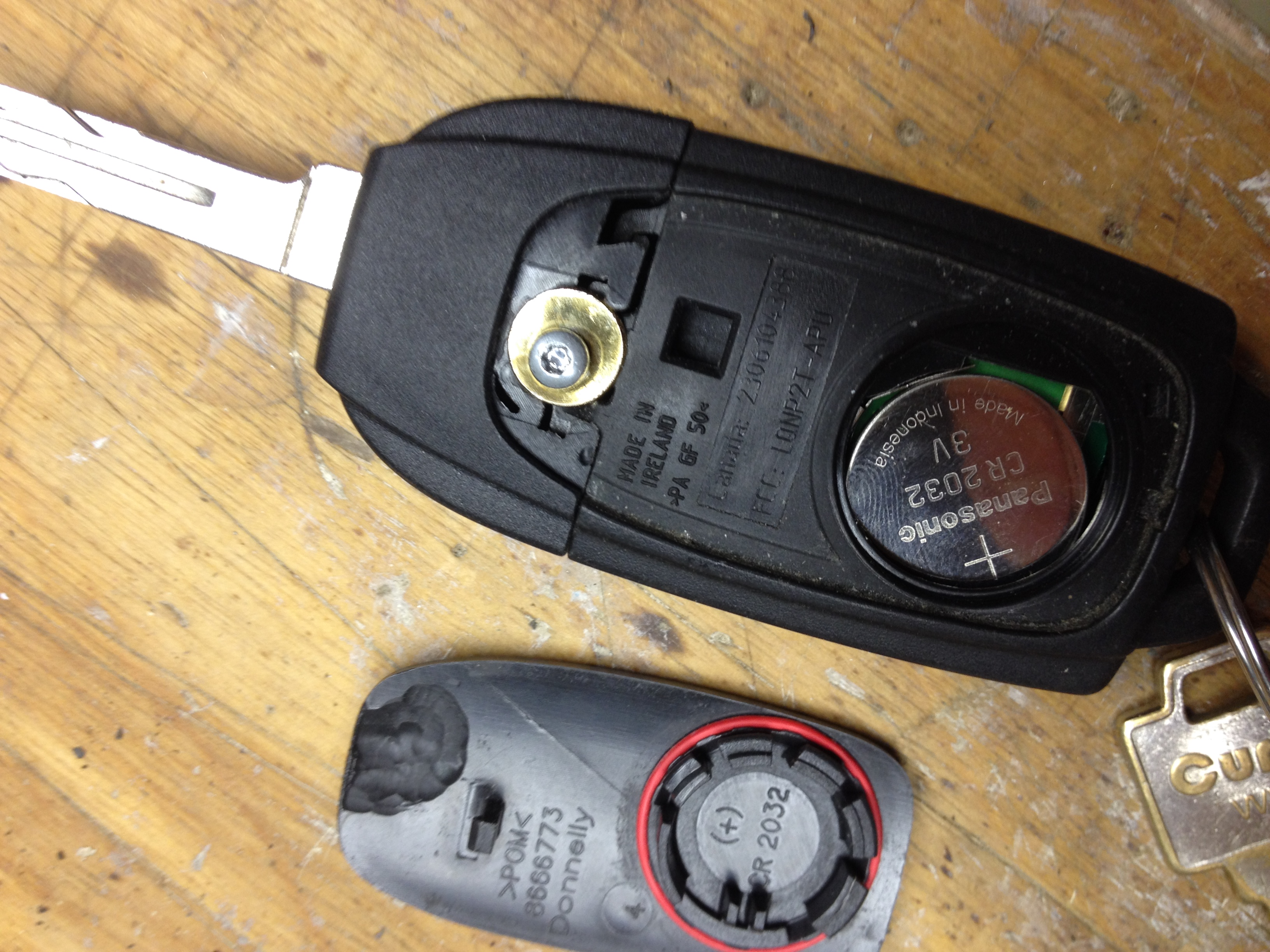

Finished product with ring
rotary tip used for removing polymer material from cover

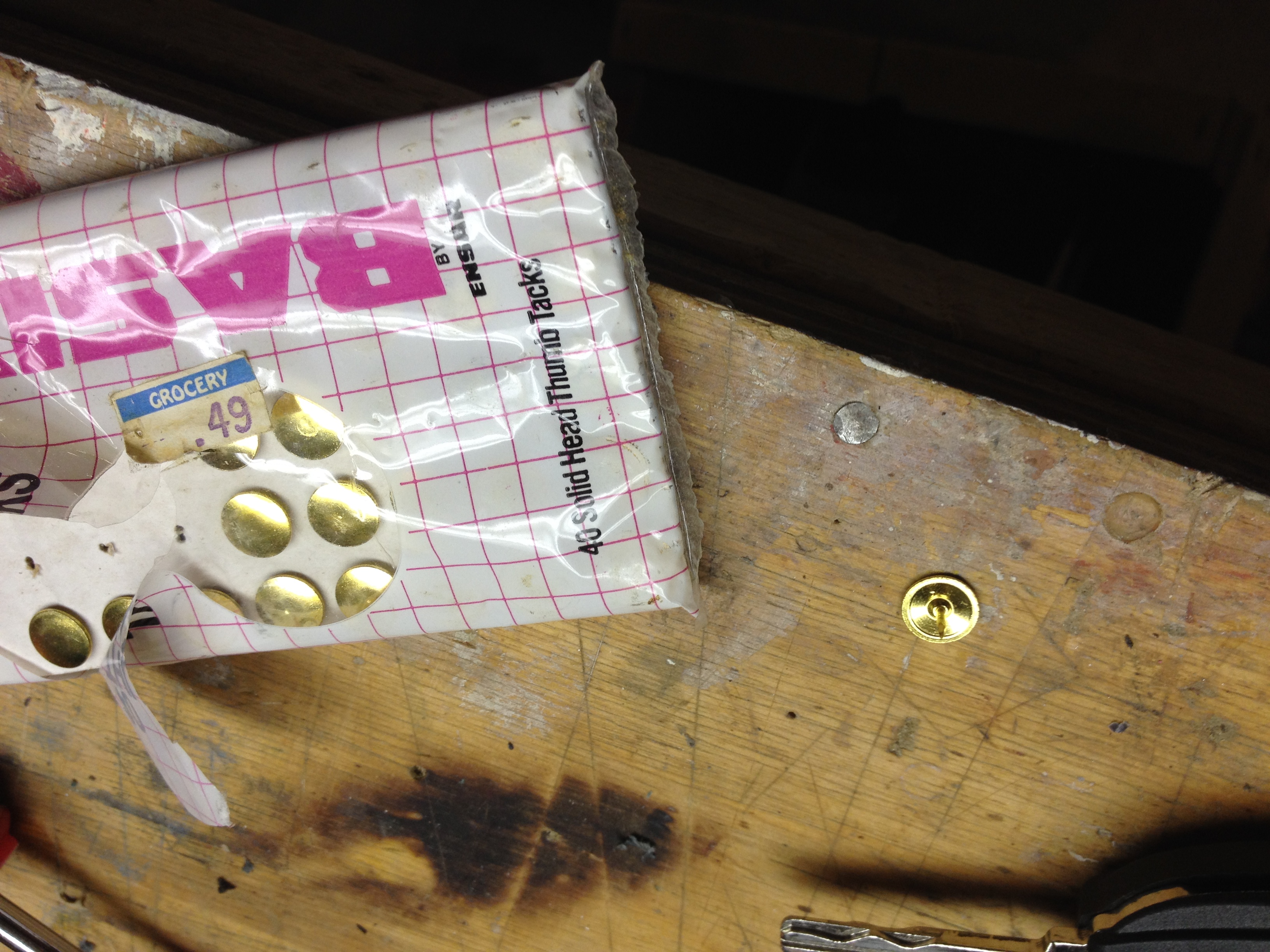

For the youngsters that don't know what thumb tacks are. Or for the folks who like to reminice it used to cost 49 cents.

When I went to try my key after the fix, it wouldn't start and display message "start prevented". If this happens to you, don't panic. Simply lock and unlock the car with your remote 5 times total. What this does is restart your immobilizer so that it can recognize your transponder again.

Good luck with those who attempt this little tricky repair!


XC90 V6 3.2 AWD 7 seats 2007
S80 1999 - Crashed
S80 T6 2000 - Sold

User avatar
matthew1
Site Admin
Posts: 9570
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 287 times
Been thanked: 113 times
United States of America
matthew1

Re: Fix a Volvo flip/switchblade key - DIY, pics and advice

Post by matthew1 » Sat Apr 11, 2015 8:52 pm

Thanks BigK!
