Vida CEM swapping

matija0610 · Post by **matija0610** » 05 Dec 2021, 03:57

these days I will switch the program to English and upload it to github, I have to enable/create user Connection String modification, now it is hard coded and useless because it is related only to my computer.
I don't know where Luke is, it was very good that he was here,
Before I started coding, I tried to contact him by private message, but I was too young on the forum and I didn't have the opportunity to contact anyone. so after I successfully contacted vtl trough gmai things became clear.
I will not write novels anymore, dirtying this useful topic, in the future only concrete, useful things from me
I'll need your help, a diagram of how to connect Teensy4.0 and Bosch CF160, once they arrive

Post by **RickHaleParker** » 05 Dec 2021, 07:11

matija0610 wrote: ↑05 Dec 2021, 03:57 I'll need your help, a diagram of how to connect Teensy4.0 and Bosch CF160, once they arrive

The Bosch CF160 is straight forward. Pin to pin no extra components. See attached file.

matija0610 · Post by **matija0610** » 05 Dec 2021, 07:36

RickHaleParker wrote: ↑05 Dec 2021, 07:11
matija0610 wrote: ↑05 Dec 2021, 03:57 I'll need your help, a diagram of how to connect Teensy4.0 and Bosch CF160, once they arrive
The Bosch CF160 is straight forward. Pin to pin no extra components. See attached file.

thank you,
I do not understand: U3 STMicroelectronics L9637D

Post by **vtl** » 05 Dec 2021, 08:34

I pinged T5Luke via email a month ago or so, he didn't reply. Hope, he's doing well, just no free time.

Post by **RickHaleParker** » 05 Dec 2021, 08:56

matija0610 wrote: ↑05 Dec 2021, 07:36 thank you,
I do not understand: U3 STMicroelectronics L9637D

Ignore reference to U3. I forgot to delete it when editing this one from another build version. Or you can download the cleaned up schematic from github. You can find it in my fork or VTL's after he does a merge.

Post by **RickHaleParker** » 05 Dec 2021, 19:20

Anybody figured out how to power up a CEM-B ( 1999 - 2004 P2s ) for bench testing?
I have 30+ ( V-Battery ) to E:3 & E:6. E:1 is grounded, no current draw.

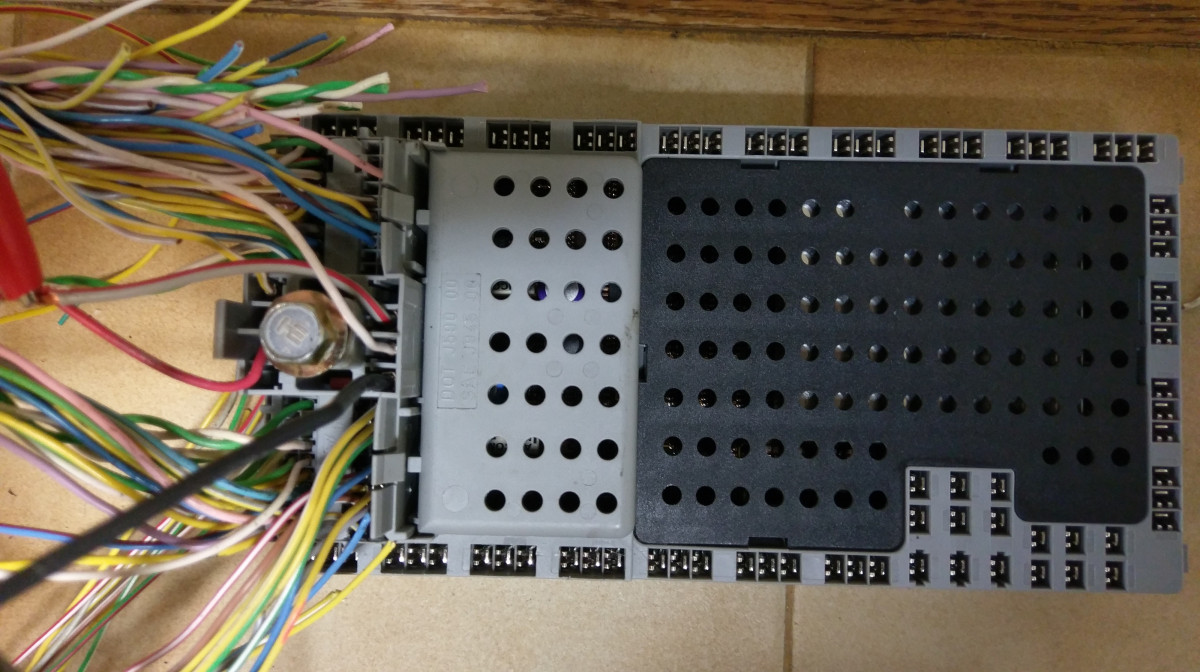

Tired applying 30+ to the Ignition switch pins B:1 ( S ), B:2 ( X ) & B:3 ( 15 ) and still no current draw.

Missing something ... Is there a back door for the 30+ ? Hidden ground ?

matija0610 · Post by **matija0610** » 06 Dec 2021, 03:46

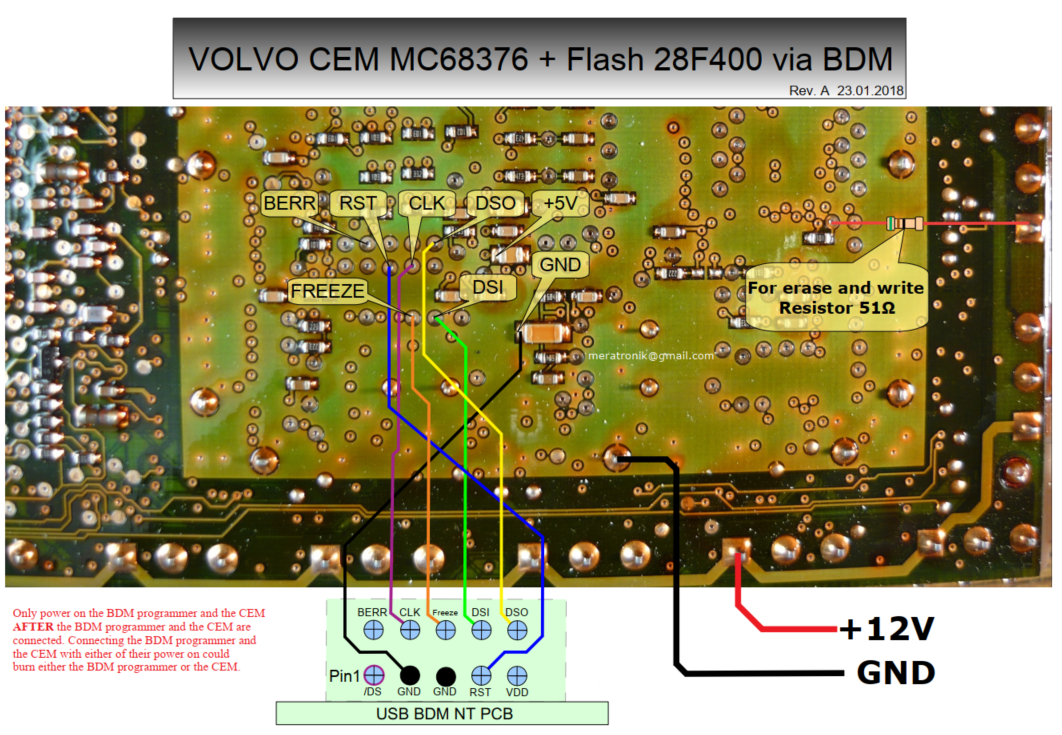

give him power on the board ?

: Screenshot_2.png (1.56 MiB) Viewed 545 times

and maybe you need this too https://www.youtube.com/watch?v=B9JPOznpo7I

Post by **vtl** » 06 Dec 2021, 07:54

It goes into power-saving mode quickly, you need to send it into programming mode quickly. I usually power it on only after the cracker started sending the "go to prog mode" messages.

matija0610 · Post by **matija0610** » 06 Dec 2021, 11:28

i'm looking at .bin i read last week ..
is it possible that pin is 0 0 0 0 0 0?
i'm not sure if anyone touched CEM before me.
and I'm not sure if I'm at the right address 0x6000?

: Screenshot_1.png (32.98 KiB) Viewed 522 times

Post by **RickHaleParker** » 06 Dec 2021, 11:34

vtl wrote: ↑06 Dec 2021, 07:54 It goes into power-saving mode quickly, you need to send it into programming mode quickly. I usually power it on only after the cracker started sending the "go to prog mode" messages.

I am not getting any current for any length of time. Monitored the current as I connected the bench power supply .. nothing.
What pins did you use to power the CEM? Trying to sort out if the CEM is dead or I am missing something.

Vida CEM swapping

Re: Vida CEM swapping
