2001 V70XC - tie rod replacement Topic is solved

Post by **xHeart** » 13 Mar 2019, 10:59

DrDan wrote: 12 Mar 2019, 16:53 Wow, the 9997019 is super expensive given that you can buy a functional equivalent of it for about 30 bucks on ebay.
9997020 though is nonstandard, not much/any choice on the market for this one.
I recall that, for other models (V40?), the same counterhold is used along with a spacer which compensates the smaller diameter of the rack. Is that the 9997021 spacer on your list?

The VIDA instruction says to use spacer PN 9997021. Was there deflection limiter in yours?

Post by **Antoine240bk** » 13 Mar 2019, 11:11

xHeart wrote: 13 Mar 2019, 10:54
Antoine240bk wrote: 13 Mar 2019, 10:42 Definitely worth the job. The inner tie rods will last longer, i expect doing the outer tie rods in 40.000Km at the earliest.
A Volvo SMI rebuilt is available for $300 - it comes with inner tie rod?
My steering gear is just above 300,000km, will I get another 80,000km after the tie rod job?

On the V70 2000 the steering gear was at 277.000km and still strong with no leaks. Inner & Outer tie rods were done, no problem after 30.000km. I know bad roads and pot holes tend to kill faster the front end...
If the rebuild comes with the inner and outer rods might be worth too, but i believe it is a lot of work

DrDan · Post by **DrDan** » 13 Mar 2019, 12:47

xHeart wrote: 13 Mar 2019, 10:59
DrDan wrote: 12 Mar 2019, 16:53 [...]
I recall that, for other models (V40?), the same counterhold is used along with a spacer which compensates the smaller diameter of the rack. Is that the 9997021 spacer on your list?
The VIDA instruction says to use spacer PN 9997021. Was there deflection limiter in yours?

I'm not sure. I think there was a white plastic part on the rack which would stop the sideways motion of the rack, limiting, urm, steering deflection. That could have been it.

Anyway, if you look at this VCC document <https://accessories.volvocars.com/Insta ... 3-)%202017> (instruction no. 31373967, Version 1.2) describing the installation of a steering deflection limiter on a V40, step 19, that's what I meant: tool 9997021 is a distance ring of sorts, allowing the use of the counterhold on the rack of the V40, which must be smaller in diameter than that of the V70, as we did not need it on the 2002 V70 of mine. That's why I mentioned it, I thought you would not need it.

Post by **xHeart** » 14 Mar 2019, 07:20

DrDan wrote: 13 Mar 2019, 12:47 [...] step 19, that's what I meant: tool 9997021 is a distance ring of sorts, allowing the use of the counterhold on the rack of the V40, which must be smaller in diameter than that of the V70, as we did not need it on the 2002 V70 of mine. That's why I mentioned it, I thought you would not need it.

It is then possible to homemade a spacer/sleeve/insert using pvc or cooper pipe material as a buffer against damage to the machined surface of the gear shaft. And then placing a grip type plier to simulate counterhold 9997020.

Would CTA tool work as a counterhold using a spacer/sleeve/insert? DrDan what is the (ID) diameter of the tool?

DrDan · Post by **DrDan** » 15 Mar 2019, 07:03

I estimate that the inner diameter is about 28mm
(the two parts of the tool don't combine to form perfectly cylindrical cavity, so the diameter can't be measured directly).

Using copper tubing is probably a good idea, too soft to damage the surface, but won't crack like plastic.

Post by **xHeart** » 18 Mar 2019, 14:32

DrDan wrote: 15 Mar 2019, 07:03 I estimate that the inner diameter is about 28mm
(the two parts of the tool don't combine to form perfectly cylindrical cavity, so the diameter can't be measured directly).

Using copper tubing is probably a good idea, too soft to damage the surface, but won't crack like plastic.

Helpful DrDan.
Preparing for the task, wheels are off.
Perpetual repairs, I may need to reboot and grease inner CV at passenger side axle too.

: MVS_TieRod_3034.jpg (196.18 KiB) Viewed 1190 times

Post by **xHeart** » 22 Mar 2019, 20:39

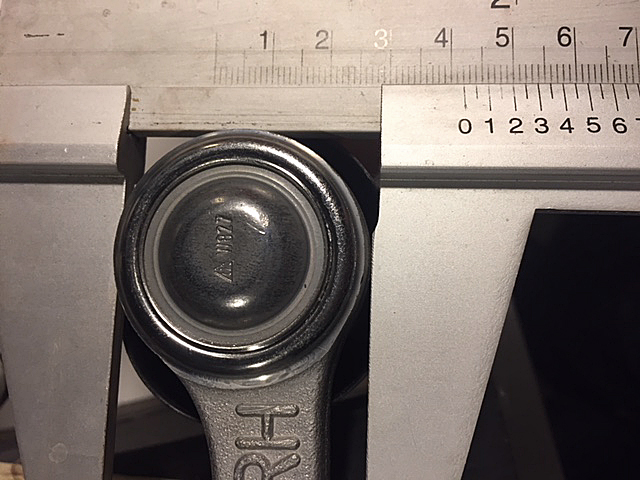

LEMFORDER arm is sculpted but the ball joint is substantially larger than the OE TRW.

: MVS_TieRod_3041.jpg (224.8 KiB) Viewed 1142 times

: MVS_TieRod_3056.jpg (207.59 KiB) Viewed 1142 times

Post by **xHeart** » 23 Mar 2019, 18:33

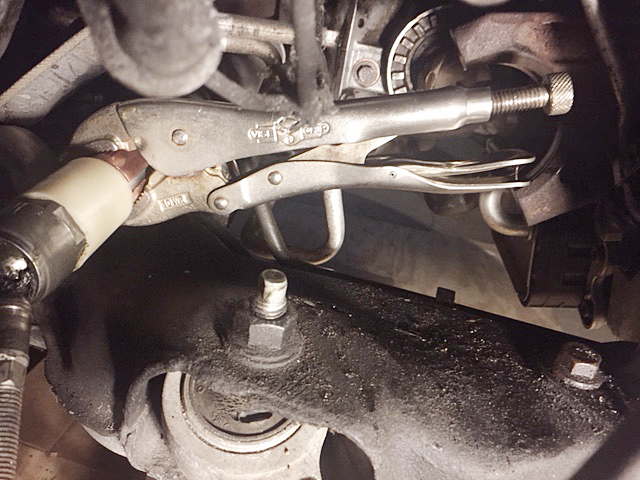

Counterhold installed. 1" copper coupler sliced into two pieces provides buffer against the vise grip bite.

: MVS_TieRodCounterhold_3059.jpg (270.21 KiB) Viewed 1145 times

Post by **abscate** » 24 Mar 2019, 04:55

+1000 pints for the “ real” Vice Grip (tm). It’s a much better tool than the Knock offs

Post by **xHeart** » 24 Mar 2019, 07:45

abscate wrote: 24 Mar 2019, 04:55 +1000 pints for the “ real” Vice Grip (tm). It’s a much better tool than the Knock offs

Is the 2" ivory color sleeve over the shaft, butting with inner tie rod, deflection limiter - device prevents tires from rubbing the wheel well liner from over steering?

Does the deflection limiter cracks or split when unscrewing/screwing inner tie rod under torque? Here is a pix from our '97 850 (from 2012) where the deflection limiter is missing, is it:
