Vida CEM swapping

Post Reply
solitaire
Posts: 18
Joined: 19 Mar 2021, 11:33
Year and Model: v40 2016
Location: Jonava
Has thanked: 3 times
Been thanked: 6 times

Post by solitaire »

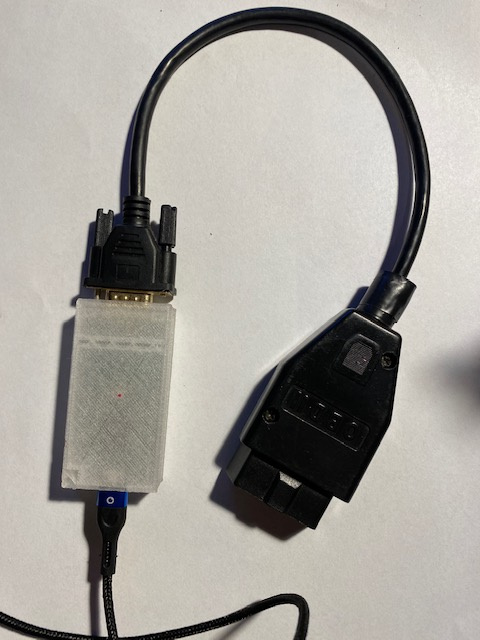

excellent cracker, now with new code P1 work too




Top
vtl
Posts: 4934
Joined: 16 Aug 2012, 13:35
Year and Model: 2005 XC70
Location: Boston
Has thanked: 130 times
Been thanked: 686 times

Post by vtl »

Nice! ;)
Top
User avatar
RickHaleParker
Posts: 7203
Joined: 25 May 2015, 14:30
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 979 times

Post by RickHaleParker »

solitaire wrote: 19 Mar 2021, 11:57 excellent cracker, now with new code P1 work too
Neat package! What is that CAN BUS Transceiver board you used?

Welcome to MVS.
Active
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2017 Ford PIU. 3.5l, Twin Turbo, 365 Hp.
............................
Past
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000. ( Killed by a plastic radiator. )
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion ( I moved, the project did not )
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0. ( Transmission dead after sitting for a winter )
Top
solitaire
Posts: 18
Joined: 19 Mar 2021, 11:33
Year and Model: v40 2016
Location: Jonava
Has thanked: 3 times
Been thanked: 6 times

Post by solitaire »

RickHaleParker wrote: 19 Mar 2021, 12:47
Neat package! What is that CAN BUS Transceiver board you used?

Welcome to MVS.

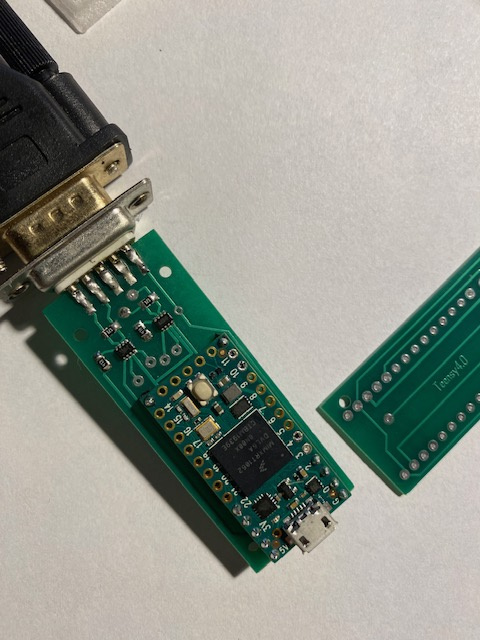

"home made" :D
Top
User avatar
RickHaleParker
Posts: 7203
Joined: 25 May 2015, 14:30
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 979 times

Post by RickHaleParker »

solitaire wrote: 20 Mar 2021, 04:32 "home made" :D
Are you going to contribute a Gerber file to the project?

What chips did you use?

Looks like you are drawing power from Vusb. In the current schematic that is listed as an unknown. Can you confirm Vusb has significant power to run the assembly?
Active
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2017 Ford PIU. 3.5l, Twin Turbo, 365 Hp.
............................
Past
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000. ( Killed by a plastic radiator. )
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion ( I moved, the project did not )
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0. ( Transmission dead after sitting for a winter )
Top
solitaire
Posts: 18
Joined: 19 Mar 2021, 11:33
Year and Model: v40 2016
Location: Jonava
Has thanked: 3 times
Been thanked: 6 times

Post by solitaire »

RickHaleParker wrote: 20 Mar 2021, 12:13 Are you going to contribute a Gerber file to the project?

What chips did you use?

Looks like you are drawing power from Vusb. In the current schematic that is listed as an unknown. Can you confirm Vusb has significant power to run the assembly?


for CAN I use max3051 (3.3V), powered direct from teensy (max 250mA), https://www.pjrc.com/teensy/card10a_rev2_web.pdf
max3051 maximum current 70mA x 2 = 140mA (https://datasheets.maximintegrated.com/ ... AX3051.pdf)

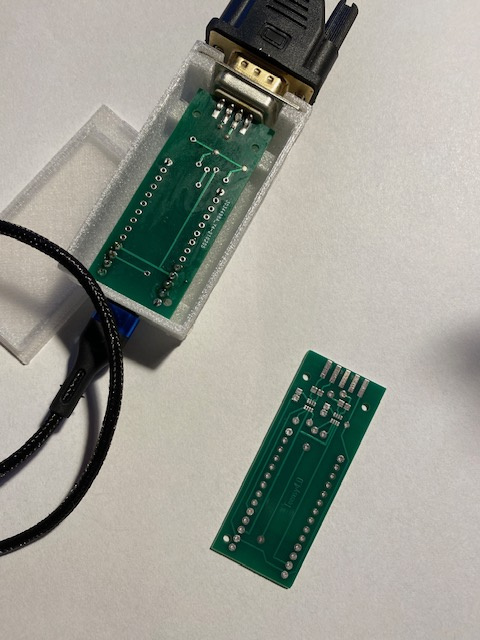

gerber and box for 3D attached
Attachments
gerber_teensy__4.rar
(3.33 KiB) Downloaded 327 times
korpusas.rar
(3.89 KiB) Downloaded 301 times
Top
User avatar
RickHaleParker
Posts: 7203
Joined: 25 May 2015, 14:30
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 979 times

Post by RickHaleParker »

solitaire wrote: 21 Mar 2021, 09:33
for CAN I use max3051 (3.3V), powered direct from teensy (max 250mA), https://www.pjrc.com/teensy/card10a_rev2_web.pdf
max3051 maximum current 70mA x 2 = 140mA (https://datasheets.maximintegrated.com/ ... AX3051.pdf)
USB 5V 500ma is standard.
Teensy 4.0 current is ~100ma.
~100ma + 140MA = ~250ma.
~ 50% of the minimum standard.
No risk of overloading the USB port or coming up short on power.
Active
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2017 Ford PIU. 3.5l, Twin Turbo, 365 Hp.
............................
Past
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000. ( Killed by a plastic radiator. )
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion ( I moved, the project did not )
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0. ( Transmission dead after sitting for a winter )
Top
User avatar
ZionXIX
Posts: 1316
Joined: 11 Aug 2014, 14:47
Year and Model: 1996 850 Turbo S/W
Location: Texas
Has thanked: 66 times
Been thanked: 195 times

Post by ZionXIX »

Is this intended for swapping CEM modules with used ones without dealer involvement?
Scarlett: 1996 850 Turbo Wagon in Reagent Red Pearl ~210K mi
Norman: 2012 F150 XLT Crew Cab in Oxford White ~110K mi
Ember: 2005 XC90 2.5T FWD in Ruby Red Metallic ~83K mi *Newest addition to the fleet*
Ruby: 1997 850 Turbo Wagon in Reagent Red Pearl - parts car
Rose: 2020 Ram 1500 in Delmonico Red Pearl - SWMBO's Vehicle
Top
vtl
Posts: 4934
Joined: 16 Aug 2012, 13:35
Year and Model: 2005 XC70
Location: Boston
Has thanked: 130 times
Been thanked: 686 times

Post by vtl »

ZionXIX wrote: 21 Mar 2021, 14:32 Is this intended for swapping CEM modules with used ones without dealer involvement?
A part of that, yes. We miss acloning software that pulls the flash and EEPROM from damaged CEM over CAN and writes it to the donor CEM.
Top
zajcis
Posts: 5
Joined: 01 Feb 2021, 01:48
Year and Model: 2019 V60, 1997 850
Location: Latvia

Post by zajcis »

solitaire wrote: 19 Mar 2021, 11:57 IMG_0181.jpg
Would you like to make some functional copies and sell them to a neighbor country prie Mažeikių?
Top
