Using keys from one car on another: CEM/UEM reading/copy

[WhizzMan]

Since this is not part of the CEM swapping subject, I decided to open a new one.

I have a 2001 XC70 that I only have one key and one fob for. I found a donor car (2003) and pulled the UEM and CEM and have 2 flip keys with it. I can either swap the actual locks or cut blades for my own car, but is it possible to read the donor UEM and/or CEM to copy the key information and add these to my own car?
I am assuming I will need to read/write the two modules from both cars, find key/fob info edit binaries for the target vehicle, correct checksums and write the CEM/UEM for the target vehicle.
Has anyone done this? What hardware and software do I need? Is there a good procedure for this? Obviously, the goal is to do research and get this well documented, find the cheapest reliable option just like the CEM swapping project is doing.

[vtl]

In the donor chassis to which I transplanted the whole drivetrain and interior from my crashed XC70, I detached the immobilizer antenna from the steering column, glued the only donor's key I've had to it and had it hidden under the dash. Next thing is I drilled the ignition lock security bolts out and replaced it with the my lock, which had a full set of 3 keys. Then I swapped UEM for remotes.

The valet key I put in engine compartment, inside a fuse box. Just in case the doors become locked (though I never do it) I attached a pair of steel cables to both hood locks, so the hood could be opened by pulling the cables. Even if that is not possible for some reason, the door glass can be broken, the ignition switch can be unscrewed and the car started with a screwdriver, or knife, or anything.

I think I'm all set Though I'd love to disable immobilizer permanently, it's a single choking point that may leave me or my kid stranded. Old Volvo itself is a sufficient car theft deterrent.

[WhizzMan]

While I see the practicality of your solution, I am hoping to get to a point where "ordinary folks" no longer have to resort to this sort of a solution.

My 850T5 got stolen (because it didn't have an immobilizer) by a bunch of white trash that first "drove it like they stole it" until it was almost out of oil and then stole my R wheels, left driver door (!!???), my luggage cover, portable toolcase and my stereo. Police incompetence and legal limits made them get away with the crime, even though I knew exactly who stole the car (don't lose your debit card and letters from your social worker in a vehicle you have stolen. Police did a "forensic examination" of the car but other than dust the steering wheel and handles for prints they apparently didn't do a search).

Since then, I really appreciate having a working immobilizer and the odd tracking device(s) somewhere hidden in my vehicles.

Any information helping getting the dumps of the CEM, UEM and the ECM and decoding the immo/fob bits so they can be edited and reprogrammed would be helpful. I can re-read the CEM swapping topic and copy/paste everything relevant I find here. There are commercial solutions to do this, several enterprising individuals have made their own private tools already to do at least part of this. This ain't rocket surgery! I am hoping that others will add to this so we can as a community get somewhere with this. the CEM swapping topic is a succesful example of what a community can do, I am hoping to see a repeat here.

[vtl]

I don't do anything related to Volvo software reprogramming, so I can't add anything to that thread, but I think you have to start in that long CEM cracker thread. It simply gets the attention of all the right folks over there, who do it for life. Then, as you said, you could distill the essential bits in this thread. Or not. You may be taking bread and butter away from these folks

[matthew1]

My 850T5 got stolen (because it didn't have an immobilizer) by a bunch of white trash that first "drove it like they stole it" until it was almost out of oil and then stole my R wheels, left driver door (!!???), my luggage cover, portable toolcase and my stereo. Police incompetence and legal limits made them get away with the crime, even though I knew exactly who stole the car (don't lose your debit card and letters from your social worker in a vehicle you have stolen. Police did a "forensic examination" of the car but other than dust the steering wheel and handles for prints they apparently didn't do a search).

I'm sorry to hear this. You have my sympathy. My 850 got stolen also, about 10 years ago. I wrote about it in the 850 forum.

Sorry I can't help with the P2 key question.

[WhizzMan]

Thanks to LukeT5, arduino code to dump the CEM firmware. Will post the schematic to go with this later.

Here have fun with it:

Code: Select all

#define BKPT 4
#define RESET 5
#define FREEZE 6
#define DSI 7
#define DSO 8

static word CMD_READ = 0x1940;
static word CMD_GO = 0x0C00;
static word CMD_WRITEM = 0x1840;

char command;
int n_line;

void setup() {
  // put your setup code here, to run once:
  pinMode(BKPT, OUTPUT);
  digitalWrite(BKPT, HIGH);
  pinMode(RESET, OUTPUT);
  digitalWrite(RESET, LOW);
  pinMode(FREEZE, INPUT);
  pinMode(DSI, OUTPUT);
  digitalWrite(DSI, LOW);
  pinMode(DSO, INPUT);
  Serial.begin(57600);
  while(!Serial){
  }
  Serial.println(F("Arduino CEM Reader, press:"));
  Serial.println();
  Serial.println(F("e: enter BDM Mode"));
  Serial.println(F("l: leave BDM (experimental)"));
  Serial.println(F("r: read complete memory"));
  Serial.println(F("b: read Boot 0-3FFF"));
  Serial.println(F("s: read security block 4000-7FFF"));
  Serial.println(F("d: read car data 8000-1FFFF"));
  Serial.println(F("f: read firmware 20000-7FFFF"));
  Serial.println(F("c: BD32 Command Mode"));



}

void loop() {
  // put your main code here, to run repeatedly:
    if (Serial.available()) {
      command = Serial.read();
      switch (command)
      {
        case 'e':
        Serial.println("Enter BDM");
        digitalWrite(BKPT, LOW);
        delay(10);
        digitalWrite(RESET, HIGH);
        delay(100);
        Serial.println(digitalRead(FREEZE));
        break;

        case 'l':
        Serial.println("leave BDM");
        shift_BKPT_up();
        digitalWrite(RESET, LOW);
        delay(10);
        digitalWrite(RESET, HIGH);
        wait_openchannel();
        bdm_command(CMD_GO);
        digitalWrite(DSO, LOW);
        shift_BKPT_up();


        Serial.println(digitalRead(FREEZE));
        break;

        case 'r':
        Serial.println("Read FLASH");

        for (unsigned long offset = 0x0000; offset<=0x7FFFF; offset = offset + 0x02)
        {
           shiftRWord(offset);
        }
        break;

        case 'b':
        Serial.println(F("Read bootblock"));

        for (unsigned long offset = 0x0000; offset<=0x3FFF; offset = offset + 0x02)
        {
           shiftRWord(offset);
        }
        break;

        case 's':
        Serial.println(F("Read securityblock"));

        for (unsigned long offset = 0x4000; offset<=0x7FFF; offset = offset + 0x02)
        {
           shiftRWord(offset);
        }
        break;

        case 'd':
        Serial.println(F("Read cardata"));

        for (unsigned long offset = 0x8000; offset<=0x1FFFF; offset = offset + 0x02)
        {
           shiftRWord(offset);
        }
        break;

        case 'f':
        Serial.println(F("Read firmware"));

        for (unsigned long offset = 0x10000; offset<=0x7FFFF; offset = offset + 0x02)
        {
           shiftRWord(offset);
        }
        break;

        case 'c':
        Serial.println(F("BD32 Command Mode"));

        serialFlush();
        while(!Serial.available());
        {
        }
        break;

        default:
        break;

        case 'i':
        Serial.println("wipe");
        for (int i=0; i<=250; i++)
        {
          digitalWrite(BKPT, LOW);
          delay(1);
          digitalWrite(BKPT, HIGH);
          delay(1);
        }
        break;
      }
    }

}


void shiftRWord(unsigned long val)
{
    word i;
    word lowbyte = val;
    word hibyte = val >> 16;

    //Wait for DSO to get 0 => gets ready
   wait_openchannel();

    bdm_command(CMD_READ);
    shift_BKPT_up();
    shift_BKPT_up();



     for (i = 0; i < 16; i++)  {  //HighByte


        digitalWrite(DSI, !!(hibyte & (1 << (15 - i))));
        shift_BKPT_up();
    }
        digitalWrite(DSI, LOW);
        delayMicroseconds(1);
        shift_BKPT_up();



     for (i = 0; i < 16; i++)  {  //LowByte


        digitalWrite(DSI, !!(lowbyte & (1 << (15 - i))));
        shift_BKPT_up();
    }
    digitalWrite(DSI, LOW);
    delayMicroseconds(1);


    word W_Read;

    for (i= 0; i < 1; i++)   //Read Status Byte
    {
      //digitalWrite(BKPT, HIGH);
      //delayMicroseconds(1);
      digitalWrite(BKPT, LOW);
      delayMicroseconds(1);
      //Serial.print(digitalRead(DSO));
    }

    for (i= 0; i < 16; i++) //Read back
    {
      digitalWrite(BKPT, HIGH);
      delayMicroseconds(1);
      digitalWrite(BKPT, LOW);
      delayMicroseconds(1);
      //Serial.print(digitalRead(DSO));
       bitWrite(W_Read,(15-i),digitalRead(DSO));
    }

    check_lzero(W_Read);

    if (n_line <=6)
    {
       Serial.print(W_Read,HEX);
       Serial. print(" ");
       n_line++;
    }else{
      Serial.println(W_Read,HEX);
      n_line = 0;
    }


    //return W_Read;
}


 void write_Register(word cmd, unsigned long addr)
 {
    word lowbyte = addr;
    word hibyte = addr >> 16;

    wait_openchannel(); //Wait for DSO to get 0 => gets ready
    bdm_command2(cmd);
    shift_BKPT_up();

    for (int i = 0; i < 16; i++)  {  //HighByte OFFSET
        digitalWrite(DSI, !!(hibyte & (1 << (15 - i))));
        shift_BKPT_up();
    }
    digitalWrite(DSI, LOW);
    delayMicroseconds(1);
    shift_BKPT_up();

    for (int i = 0; i < 16; i++)  {  //LowByte OFFSET
        digitalWrite(DSI, !!(lowbyte & (1 << (15 - i))));
        shift_BKPT_up();
    }
    digitalWrite(DSI, LOW);
    delayMicroseconds(1);
 }


 void check_lzero(word W_Read){
      if (W_Read < 0x10)
      {
        Serial.print("000");
        return;
      }

      if (W_Read < 0x100)
      {
        Serial.print("00");
        return;
      }
      if (W_Read < 0x1000)
      {
        Serial.print("0");
        return;
      }
     }

 void shift_BKPT_up()
 {
      digitalWrite(BKPT, LOW);
      delayMicroseconds(1);
      digitalWrite(BKPT, HIGH);
      delayMicroseconds(1);
 }

 void wait_openchannel()
 {
      while(digitalRead(DSO)!=0)
    {
      shift_BKPT_up();
    }
     while(digitalRead(DSO)!=1)
    {
      shift_BKPT_up();
    }
 }

 void bdm_command(word command)
 {
  for (int i = 0; i < 15; i++)  {
        digitalWrite(DSI, !!(command & (1 << (15 - i))));
        shift_BKPT_up();
    }
  digitalWrite(DSI, LOW);
 }

  void bdm_command2(word command)
 {
  for (int i = 0; i < 16; i++)  {
        digitalWrite(DSI, !!(command & (1 << (15 - i))));
        shift_BKPT_up();
    }
  digitalWrite(DSI, LOW);
 }

 void serialFlush(){
  while(Serial.available() > 0) {
    char t = Serial.read();
  }
}

[WhizzMan]

Once again, thanks to LukeT5:



Here...

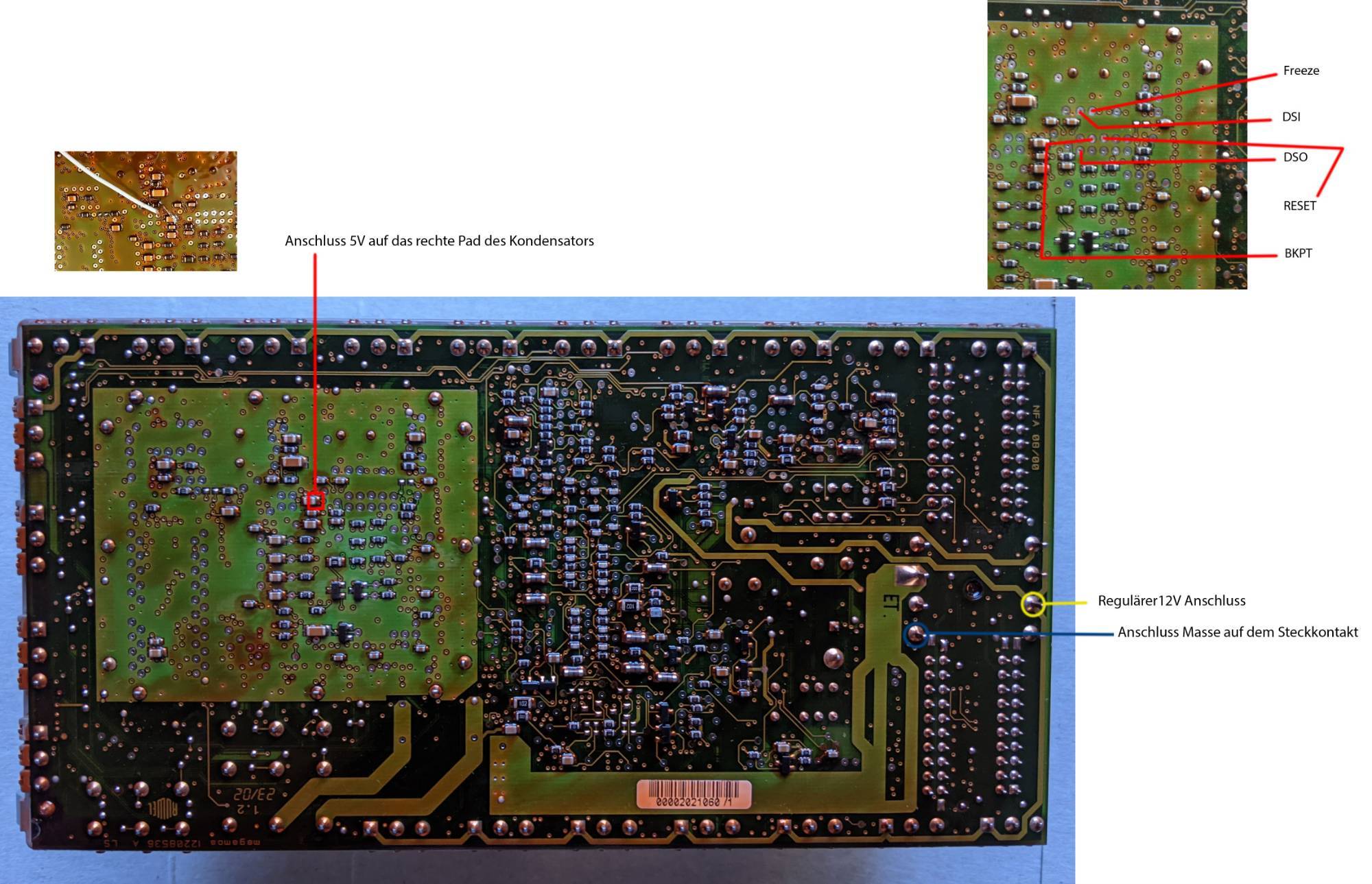

2 options, connect the 5V line at the capacitor, or connect the 12V at the CEMs main connector. Both connections 5V and +12V are not needed together...

Masse means GND
If you use 12V power supply connect GND from it also to arduios GND, so they should have common GND.

[WhizzMan]

The UEM MCU is apparently a Motorola HC12. Still need to verify this though

Motorola HC 12 mask 0K75F.jpg (248.64 KiB) Viewed 1140 times
