850 rear end restoration

Postby Covert » Wed Apr 19, 2017 5:59 pm

So 200k later the back end of my 850 is very tired.

So decided to do a bit of a restoration.


Still lots to do , going to replace the exhaust and stone chip the rear end while ive got it all apart
Basically replacing all bushes , shocks , springs , brakes , handbrake cables etc etc

Does anyone know what size the rear brake pipe union that goes to the rear caliper is?
Thanks in advance Mark.

850 LPT
Posts: 726
Joined: Fri May 27, 2011 2:05 pm
Year and Model: '98 V70XC
Location: CT
Flag: United States of America

Re: 850 rear end restoration

Postby 850 LPT » Wed Apr 19, 2017 6:19 pm

Wow, very impressive work. I'm sure the bunnies would agree with that too :lol:
98' V70 XC, white/ charcoal, 165k miles
04' V70, auto, ash gold/ tan, 195k miles
05' V70, 5-speed, loaded, mistral green/ tan, 126k miles
79' Ford Capri S, 5-speed
58' Porsche Diesel Junior
13' Honda Odyssey

Covert
Posts: 93
Joined: Sat Jul 30, 2016 5:25 pm
Year and Model: 1997 850
Location: Northampton
Flag: Great Britain

Re: 850 rear end restoration

Postby Covert » Wed Apr 19, 2017 6:23 pm

Ha yes he is a big fan!

Covert
Posts: 93
Joined: Sat Jul 30, 2016 5:25 pm
Year and Model: 1997 850
Location: Northampton
Flag: Great Britain

Re: 850 rear end restoration

Postby Covert » Wed Apr 19, 2017 6:36 pm

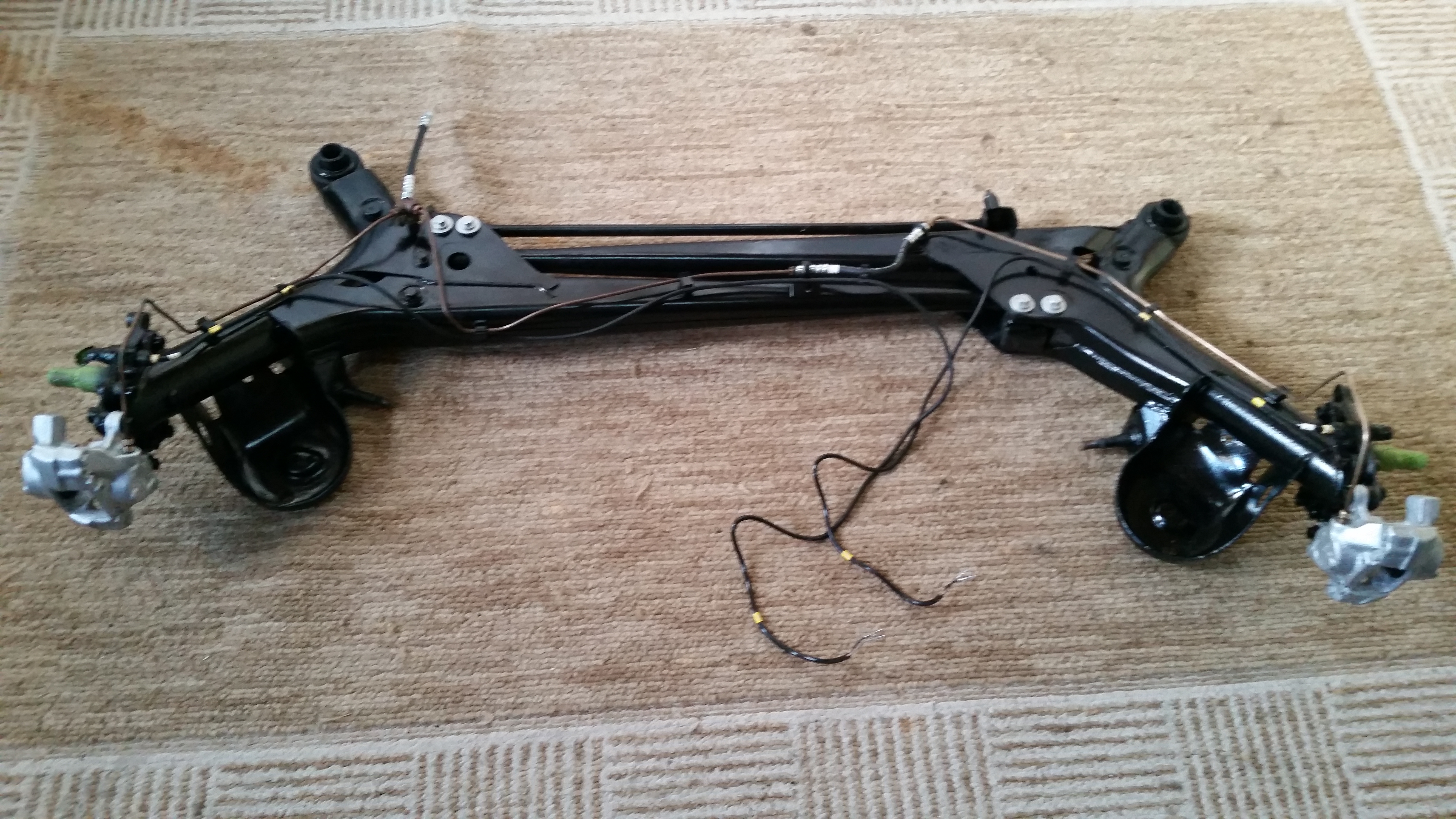

Some more pics



Rear spring top plates were a bit rotten !

New hubs, fitting kit for brake shoes , still many more parts to order

Ordered this today

http://www.partsforvolvosonline.com/pro ... ts_id=8283

Covert
Posts: 93
Joined: Sat Jul 30, 2016 5:25 pm
Year and Model: 1997 850
Location: Northampton
Flag: Great Britain

Re: 850 rear end restoration

Postby Covert » Wed Apr 19, 2017 6:50 pm

These are the buggers im on about need to know what thread / size they are as im going to have to replace most of the brake pipes as well.


850 LPT
Posts: 726
Joined: Fri May 27, 2011 2:05 pm
Year and Model: '98 V70XC
Location: CT
Flag: United States of America

Re: 850 rear end restoration

Postby 850 LPT » Thu Apr 20, 2017 12:36 pm

You're not fooling around, aren't you?

That rear axle looks better than when it left the factory!

Your brake lines are all standard European fare, the nuts are M10 x 1.0 fine thread and the lines are 4.75mm with DIN/ ISO flare.
This is a good reference:

http://www.fedhillusa.com/webnuts/common%20flares6.pdf
98' V70 XC, white/ charcoal, 165k miles
04' V70, auto, ash gold/ tan, 195k miles
05' V70, 5-speed, loaded, mistral green/ tan, 126k miles
79' Ford Capri S, 5-speed
58' Porsche Diesel Junior
13' Honda Odyssey

Covert
Posts: 93
Joined: Sat Jul 30, 2016 5:25 pm
Year and Model: 1997 850
Location: Northampton
Flag: Great Britain

Re: 850 rear end restoration

Postby Covert » Thu Apr 20, 2017 12:43 pm

Awesome thanks matey , that's really helpful.
Well my thought is do it once do it well , helps that it's a winter car so can take my time and do it right. Next summer is a rebuild on the front end

User avatar
chrafael
Posts: 87
Joined: Sun Feb 16, 2014 3:39 pm
Year and Model: 1998 V70 GLT
Location: Mandeville, La.
Flag: United States of America

Re: 850 rear end restoration

Postby chrafael » Thu Apr 20, 2017 1:51 pm

Nicely done. I did mine in a similar fashion about a year ago and never regretted it. What kind of paint is that? Mine is starting to peel off. My steel pieces appeared to be hot dipped galvanize coated but I painted them anyway. If I had to do it again I would probably use a good undercoating instead.
Attachments

User avatar
abscate
MVS Moderator
Posts: 9561
Joined: Mon Feb 18, 2013 12:54 am
Year and Model: 1999 V70T5, 2005 V70
Location: NYC
Flag: Trinidad & Tobago

Re: 850 rear end restoration

Postby abscate » Thu Apr 20, 2017 3:56 pm

Im only an hour west of Northampton in NY - Ill pop in and have a butchers this weekend, covert...
"Its not your ECU, ECM, nor your computer"

1999 V70 T5 M56
2003 Beetle Conv M5
2002 Eurovan
2005 V70 NA M5
2006 BMW X3 E83
Air cooled VW WIP

A houseful of young ladies seats 7
Shepard Husky, Lab
Grey, ginger,black cats

Lots of boats

Covert
Posts: 93
Joined: Sat Jul 30, 2016 5:25 pm
Year and Model: 1997 850
Location: Northampton
Flag: Great Britain

Re: 850 rear end restoration

Postby Covert » Fri Apr 21, 2017 8:21 am

thanks Chrafael , mine seemed to be galvanised too although I had them shot blasted as they were covered in 20 years worth of crap .
im using this paint.
https://www.smithandallan.com/products/ ... l-colours/
ive used it in the past for lathe/milling machine restorations and it seems to hold up well.
although grey wasn't my first choice I had a large tin of it so that's the colour it turned out lol.

thanks for the offer Abscate but im in Northampton in the UK~! still welcome in for a brew anytime you are passing! :D
seem to get better responses to questions on this forum to "other" Volvo forums so I tend to use this more .

new rear discs turned up yesterday , and got all the brake pipes changed to new, waiting on rear suspension kit , rear shoes .
and the shot blaster to tell me he has finished my delta mounts .

all the best Mark.
