I've done this job on my old ford falcon XR6 but to be basic the reason people replace the control arm is because its alot less work. removing a ball joint requires a special tool to push on the outside rim of the ball joint and it requires alot of pressure as its a very tight area. I used my anger ...

You can always get a Volvo Code reader to read the OBDI 2 codes or go to a dealer and ask if any codes are on it. Better yet just get a normal cheap code reader for a OBDI 2 port and erase the codes on the ECU and then search again. You won't be able to read to codes as just any OBDI 2 scanner won't...

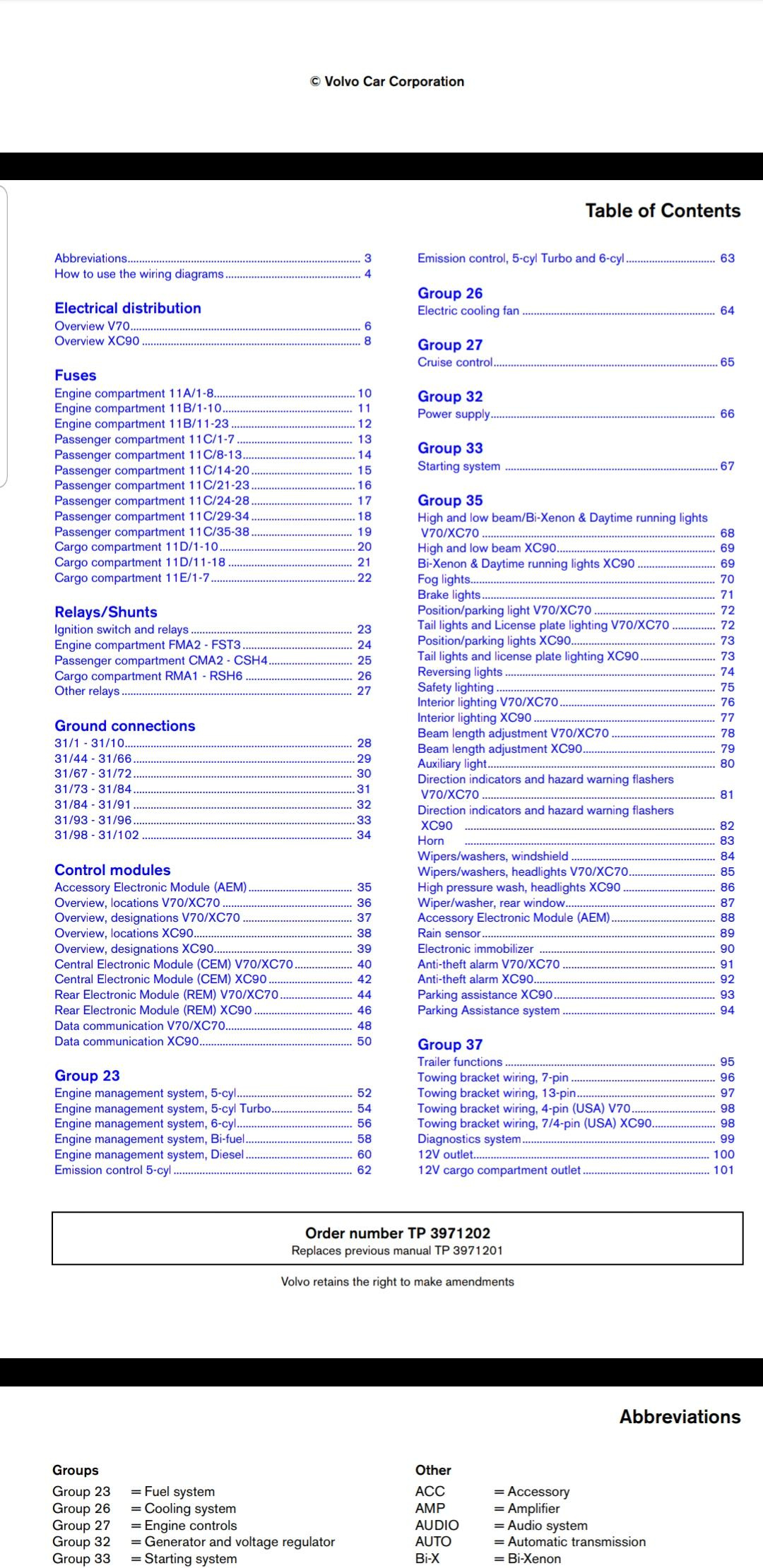

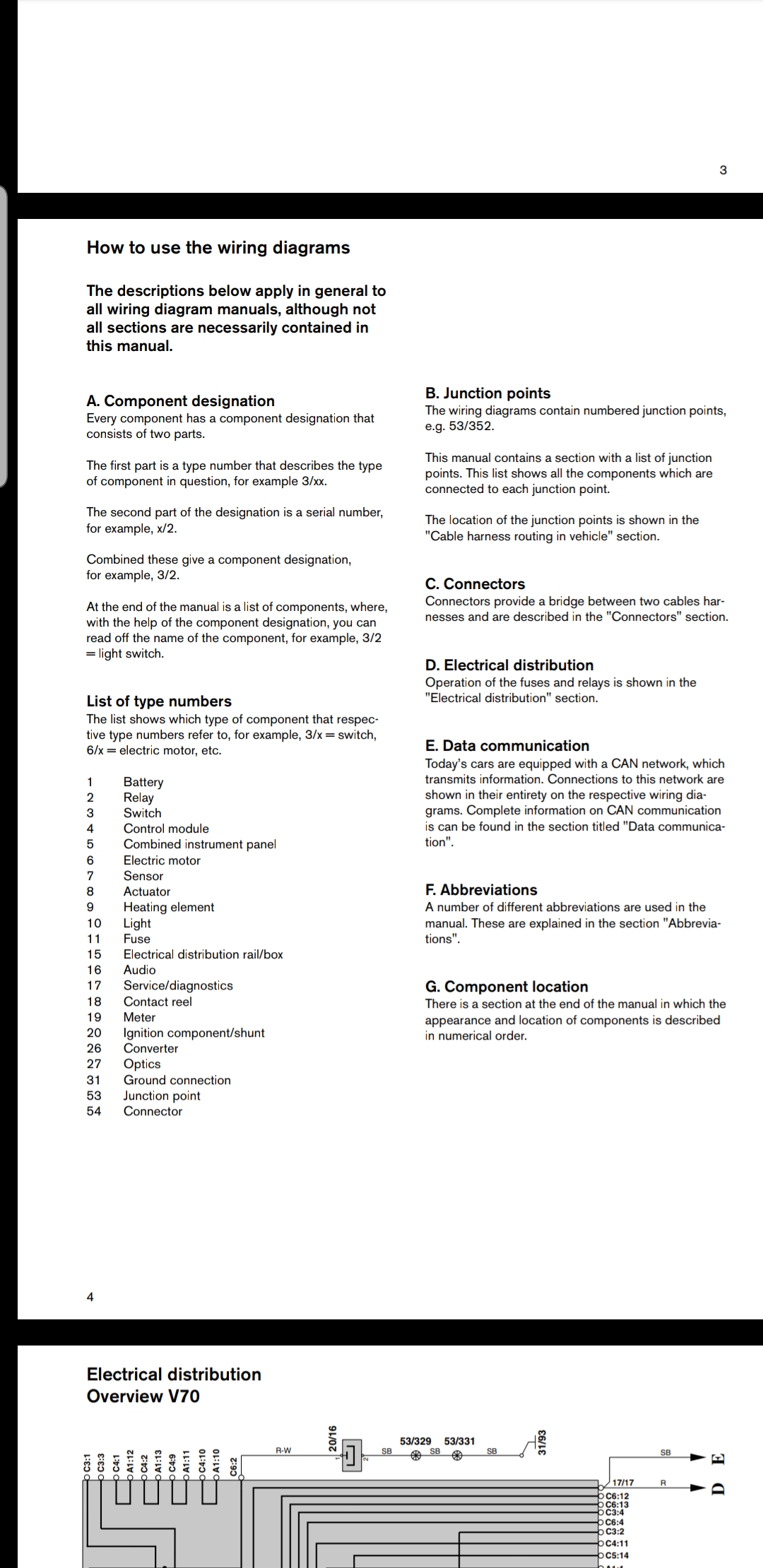

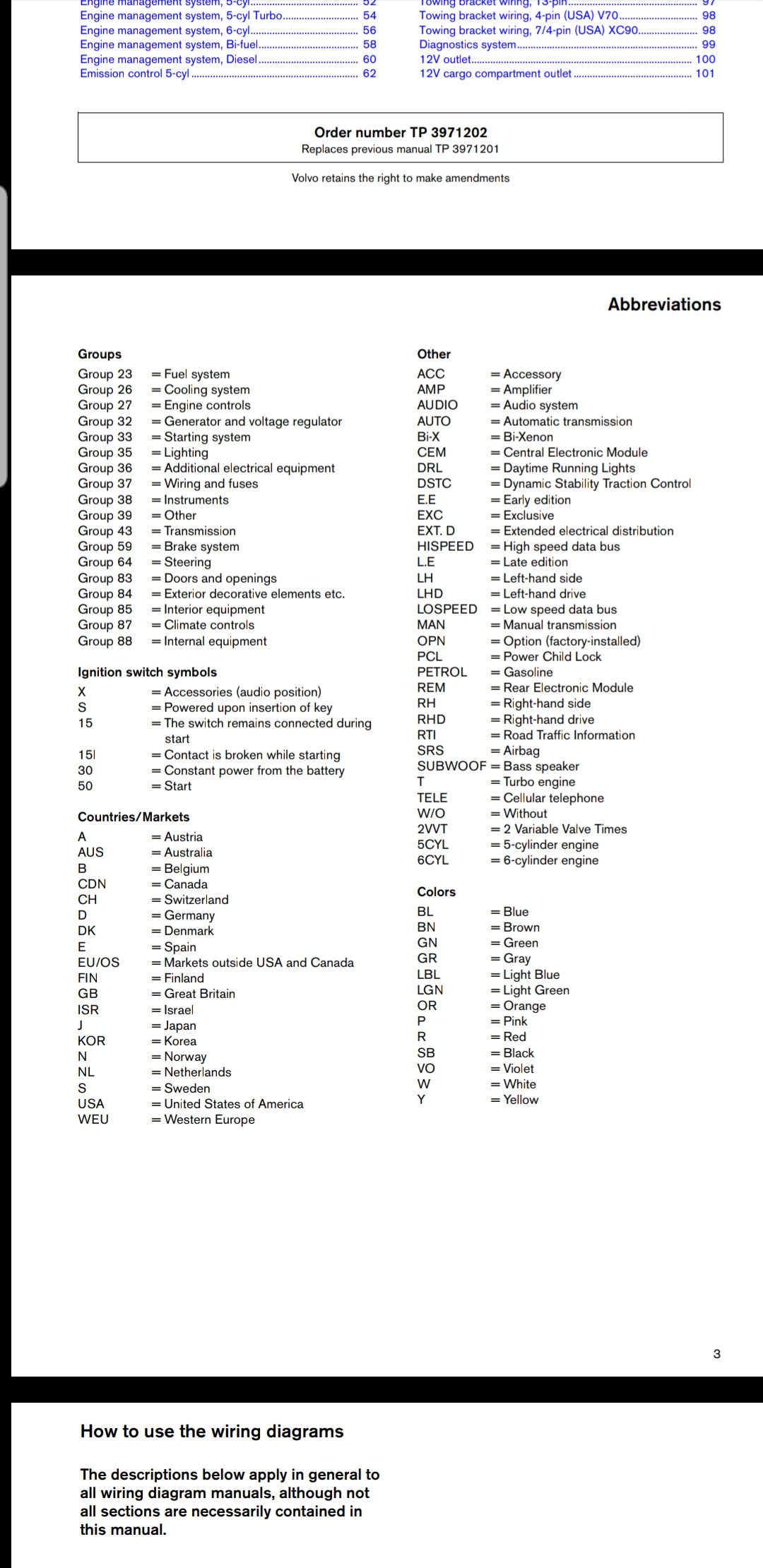

Hopefully this helps and this is from the emanual i was suggesting earlier.

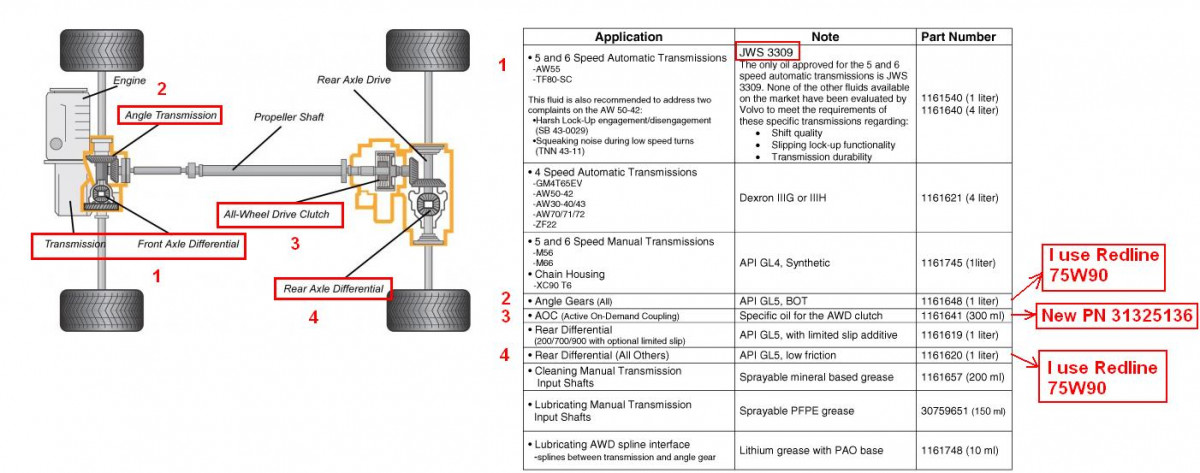

The image is what i am going off by how the AWD is setup on the 2.5T.

I am just hoping i can still use the CV on the current setup to minimize costs.

I bought one from here - https://www.emanualonline.com/Cars/Volvo/XC90/Volvo-XC90-2003_2010-Full-Service-%252526-Repair-Manual-pdf-Download.html?currency=AUD&gclid=EAIaIQobChMInozaupSx6QIVgg4rCh3u1wwSEAYYASABEgLbF_D_BwE comes with all the wiring diagrams you need. You got to be kidding. eManual...

I bought one from here - https://www.emanualonline.com/Cars/Volv ... gLbF_D_BwE

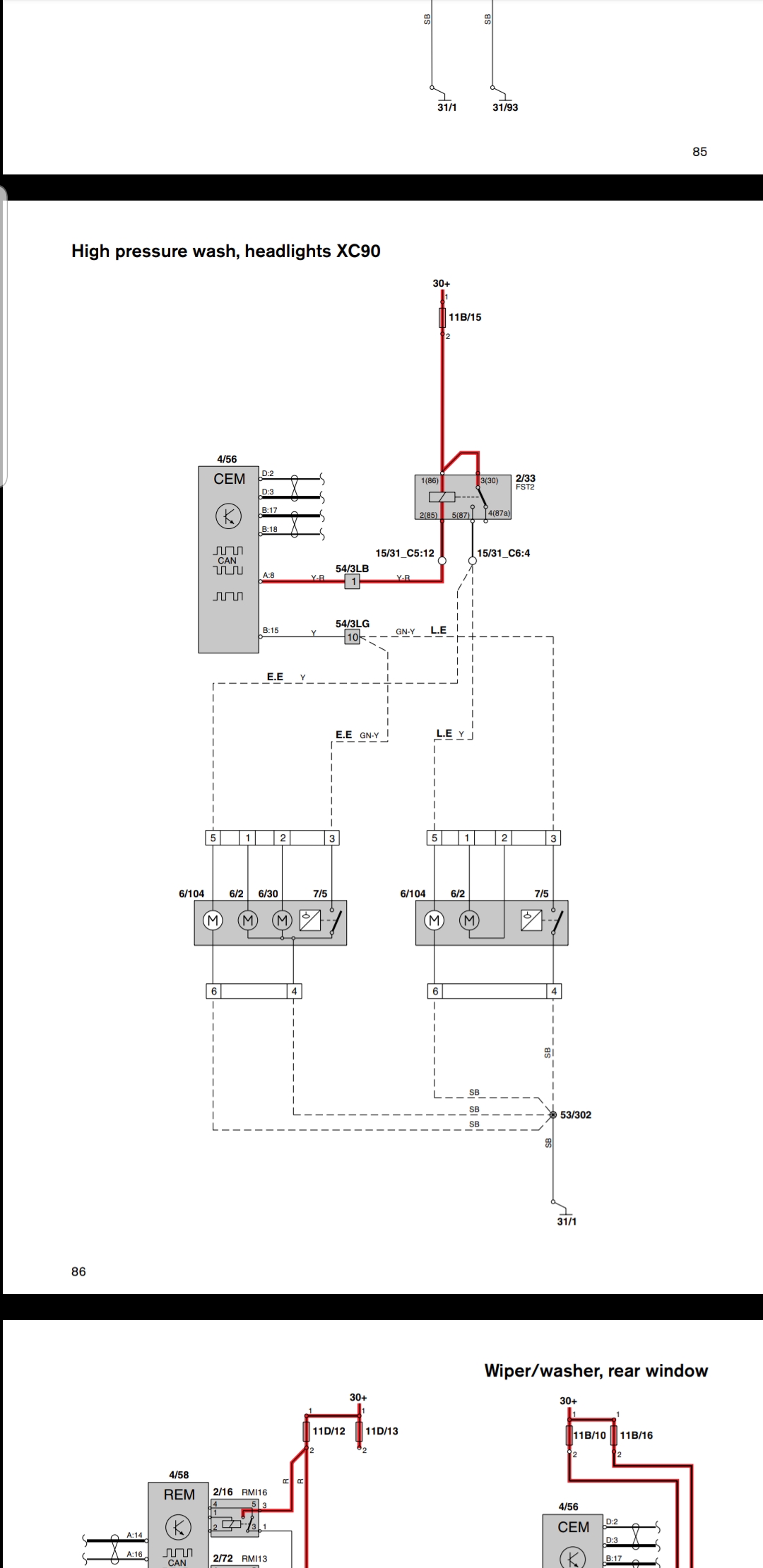

comes with all the wiring diagrams you need.

Sounds like a solenoid for 3rd gear isn't working correctly. Most transmission rebuilds require the valve cover replaced.

No the 2.9 had a chain drive transfer case, the 2.5 has an angle gear. So from some images and research and quote me if i am wrong. The angle gear is bolted to the side of the transmission and the Haldex AWD system is the rear diff and basically the angle gear is connected to the drive shaft that s...

So the transfer case will be fine ? just gotta swap the differentials ?

Sorry for leaving out some additional details. Donor car is a 2004 Le 2.5T Volvo XC90 AWD. Complete car that i am swapping things into including the new trans and engine is a 2005 LE 2.9T Volvo XC90 AWD. Both are auto. I have already summed up that the drive shaft is 4 inches short for the 2.5T whic...
