Broke air cleaner base retainer clip during ABS...

Post by xHeart » Sat Jan 21, 2012 4:19 pm

Tight spaces.

Wiggled a bit harder to pull the air cleaner base out, i guess. When putting the air cleaner base back, noticed the retaining male pin, closer to the ABS module, was broken, partly peeled-off. Forcing the box back to snap-on further deteriorated the retaining pin. Now the pin is attached to the air cleaner base, but not attached to the seat, its base. The plastic piece has broken-off.

Is there a replacement part - or a simple fix?

The air cleaning unit is intact though. However, it rocks/yaws a bit between the battery and the brake fluid reservoir. It appears, the engine vibration is making the air cleaner's hose to front grill come loose, and the positive (+) battery post cover often comes off in rubbing against another hose. I check it after each ride, and wiggle it back to normal.

I can't be asking my wife for the hot glue-gun for this repair. :D

Thanks!


--
Golden Retriever | 2014D VIDA DiCE | 2013A XC90 +140mi/225km | 2001 V70XC 1st Owner +190mi/ +305km | 1997 Volvo 850 NA 1st Owner +180mi/ +289km
Past: German Shepherd | 1989 Volvo 740 GL | 1979 Volvo 240

User avatar
rspi
Posts: 7242
Joined: Sat Nov 05, 2011 10:40 am
Year and Model: 850 T-5R Wagon
Location: Albuquerque, NM
Has thanked: 18 times
Been thanked: 37 times
United States of America
rspi

Re: Broke air cleaner base retainer clip during ABS...

Post by rspi » Sat Jan 21, 2012 4:28 pm

I guess you can go to the junk yard and get one.


'95 855 T-5R M, Panther - 22/28 mpg
'98 S70 GLT, Lil' Red 25/32 mpg
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos

keepersboy
Posts: 107
Joined: Tue Jun 28, 2011 1:00 pm
Year and Model: v70 1998 850t 1994
Location: Gunnison Colorado
Has thanked: 0
Been thanked: 0
keepersboy

Re: Broke air cleaner base retainer clip during ABS...

Post by keepersboy » Sun Jan 22, 2012 3:21 pm

One of my cars has had this broken for years, without any problem. If your worried just put an elastic cord or something to hold it in tight, but I don't think its going anywhere. I'm sure the new base would cost a fortune from volvo.



xHeart
Posts: 2436
Joined: Sat Dec 03, 2011 8:05 am
Year and Model: 1997 854 NA
Location: Great Lakes - USA
Has thanked: 16 times
Been thanked: 24 times
United States of America
xHeart

Re: Broke air cleaner base retainer clip during ABS...

Post by xHeart » Wed Feb 08, 2012 2:25 pm

Air Cleaner Box Parts
The junkyard visit was disappointing. However, I found the part number, see item #8 in the above diagram. I will order item 8 and rubber cushion #11 this weekend.

What to watch for when I do this part replacement?

Thanks for your help, All!


--
Golden Retriever | 2014D VIDA DiCE | 2013A XC90 +140mi/225km | 2001 V70XC 1st Owner +190mi/ +305km | 1997 Volvo 850 NA 1st Owner +180mi/ +289km
Past: German Shepherd | 1989 Volvo 740 GL | 1979 Volvo 240

xHeart
Posts: 2436
Joined: Sat Dec 03, 2011 8:05 am
Year and Model: 1997 854 NA
Location: Great Lakes - USA
Has thanked: 16 times
Been thanked: 24 times
United States of America
xHeart

Re: Broke air cleaner base retainer clip during ABS...

Post by xHeart » Sat Feb 11, 2012 12:47 pm

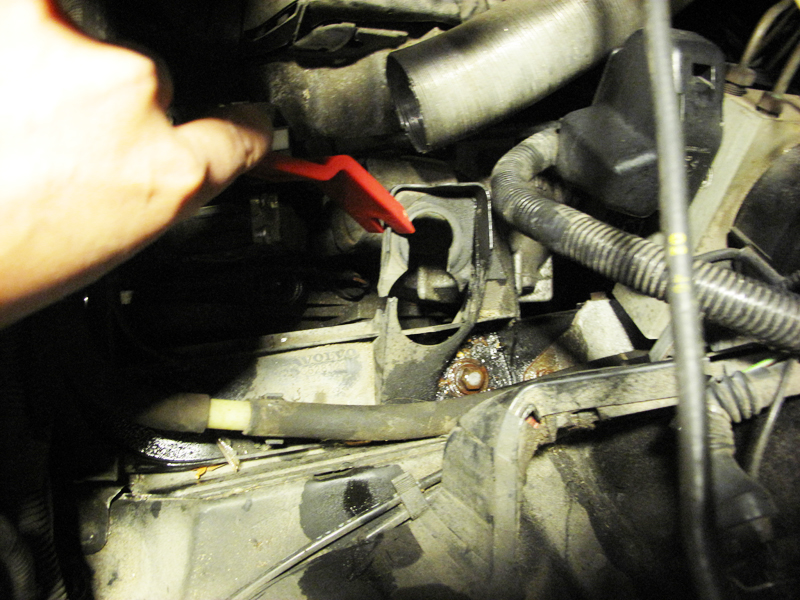

preparing to replace broken bracket.
Today is Sat 2/11. I now have the replacement bracket and rubber cushions. The air box cleaner base is removed. With the help of WD40, I have successfully unscrewed the two 1/2" bolts holding the bracket in place.

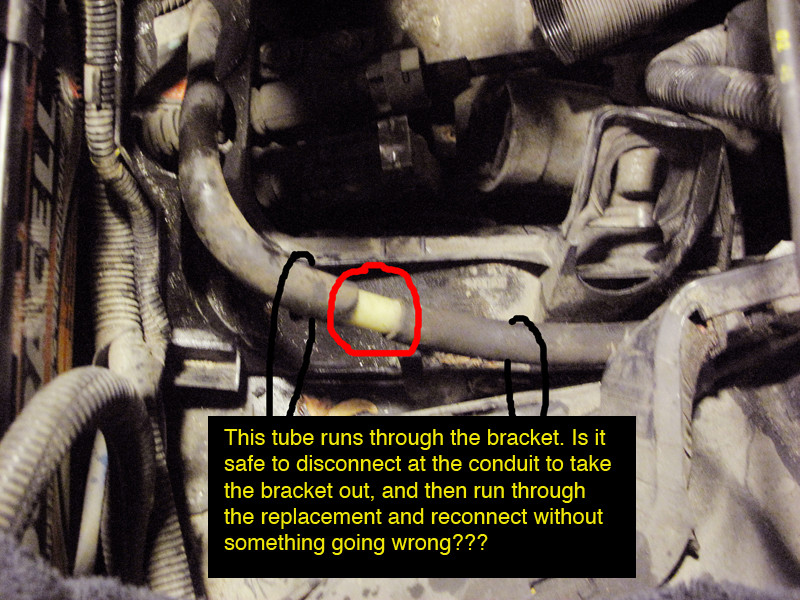

Is it safe to disconnect and connect the tube back again? what is its purpose?
I am not sure now how to proceed with the hose. It goes through the bracket like thread through a needle. Therefore, I ask, could I disconnect and reconnect the hose at the conduit (circled in red)? Should i expect fluid come out? Please help!

Thanks so much.


--
Golden Retriever | 2014D VIDA DiCE | 2013A XC90 +140mi/225km | 2001 V70XC 1st Owner +190mi/ +305km | 1997 Volvo 850 NA 1st Owner +180mi/ +289km
Past: German Shepherd | 1989 Volvo 740 GL | 1979 Volvo 240

User avatar
rspi
Posts: 7242
Joined: Sat Nov 05, 2011 10:40 am
Year and Model: 850 T-5R Wagon
Location: Albuquerque, NM
Has thanked: 18 times
Been thanked: 37 times
United States of America
rspi

Re: Broke air cleaner base retainer clip during ABS...

Post by rspi » Sat Feb 11, 2012 1:04 pm

I believe it's just some kind of air/vacuum line. I have watched a guy disconnect that thing about 5 times working on his PNP switch.


'95 855 T-5R M, Panther - 22/28 mpg
'98 S70 GLT, Lil' Red 25/32 mpg
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos

xHeart
Posts: 2436
Joined: Sat Dec 03, 2011 8:05 am
Year and Model: 1997 854 NA
Location: Great Lakes - USA
Has thanked: 16 times
Been thanked: 24 times
United States of America
xHeart

Re: Broke air cleaner base retainer clip during ABS...

Post by xHeart » Sat Feb 11, 2012 1:56 pm

The hose to the right of the conduit flexes, but to the left it is firm-fix. I am preparing to pull it off after a quick prayer.
It is 7:00 p.m. job is done. Also replaced the two worn rubber cushions. Air box now sits the way it should, firm.
Trans D&F is next.

Thank you R!


--
Golden Retriever | 2014D VIDA DiCE | 2013A XC90 +140mi/225km | 2001 V70XC 1st Owner +190mi/ +305km | 1997 Volvo 850 NA 1st Owner +180mi/ +289km
Past: German Shepherd | 1989 Volvo 740 GL | 1979 Volvo 240

xHeart
Posts: 2436
Joined: Sat Dec 03, 2011 8:05 am
Year and Model: 1997 854 NA
Location: Great Lakes - USA
Has thanked: 16 times
Been thanked: 24 times
United States of America
xHeart

Re: Broke air cleaner base retainer clip during ABS...

Post by xHeart » Tue Feb 14, 2012 2:07 pm

Oops!
Wait... the fuel guage needle is not where it should three days after the fix.
Searching MVS for fuel guage malfunction on 1997 850 2.5l base.


--
Golden Retriever | 2014D VIDA DiCE | 2013A XC90 +140mi/225km | 2001 V70XC 1st Owner +190mi/ +305km | 1997 Volvo 850 NA 1st Owner +180mi/ +289km
Past: German Shepherd | 1989 Volvo 740 GL | 1979 Volvo 240
