1998 S70 turbo GLT PCV kit done, not sure which tubes/ports

Help, Advice and DIY Tutorials on Volvo's P80 platform cars -- Volvo's 1990s "bread and butter" cars -- powered by the ubiquitous and durable Volvo inline 5-cylinder engine.

1992 - 1997 850, including 850 R, 850 T-5R, 850 T-5, 850 GLT
1997 - 2000 S70, S70 AWD
1997 - 2000 V70, V70 AWD
1997 - 2000 V70-XC
1997 - 2004 C70
Post Reply
curveball
Posts: 4
Joined: 23 November 2014
Year and Model: 1998 S70
Location: home

1998 S70 turbo GLT PCV kit done, not sure which tubes/ports

Post by curveball »

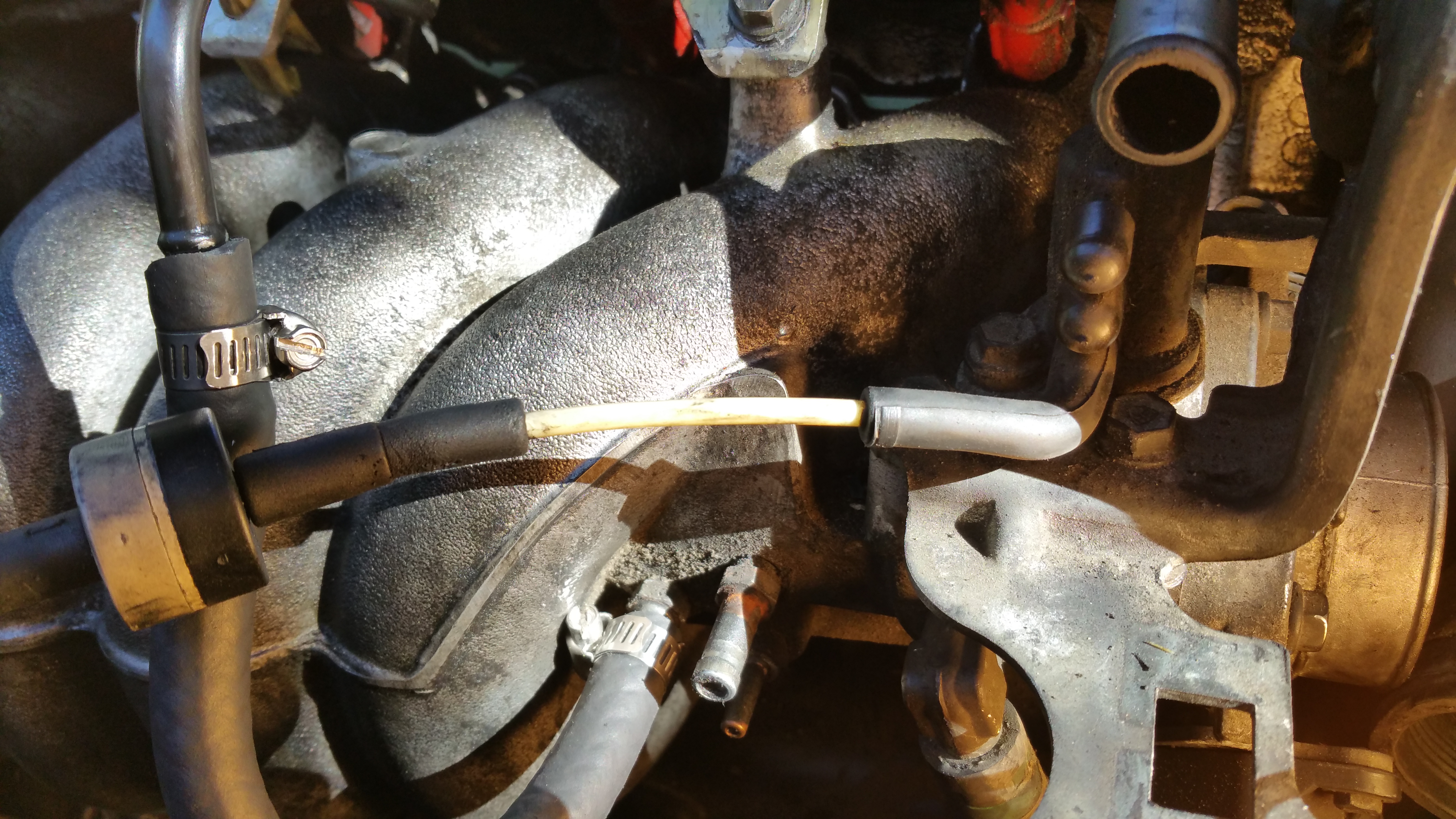

I took photos along the way but this very important one didn't come out well. I'm looking for a photo showing which tubes go to which ports on the front right side of the intake manifold. I'm attaching one I took. I have connected the fuel return line where I think it goes but that might not be right. I also need to know the connections for the two smaller ports under and to the right of that one.
Attachments
intake manifold ports - Copy.jpg
Top
cn90
Posts: 8249
Joined: 31 March 2010
Year and Model: 2004 V70 2.5T
Location: Omaha NE
Has thanked: 4 times
Been thanked: 466 times

Post by cn90 »

https://www.matthewsvolvosite.com/forums ... hp?t=63615
2004 V70 2.5T 100K+
2005 XC90 2.5T 110K+
Top
