Passenger Axle Seals - 04 XC70

Post by br0dy519 »

Hi guys.

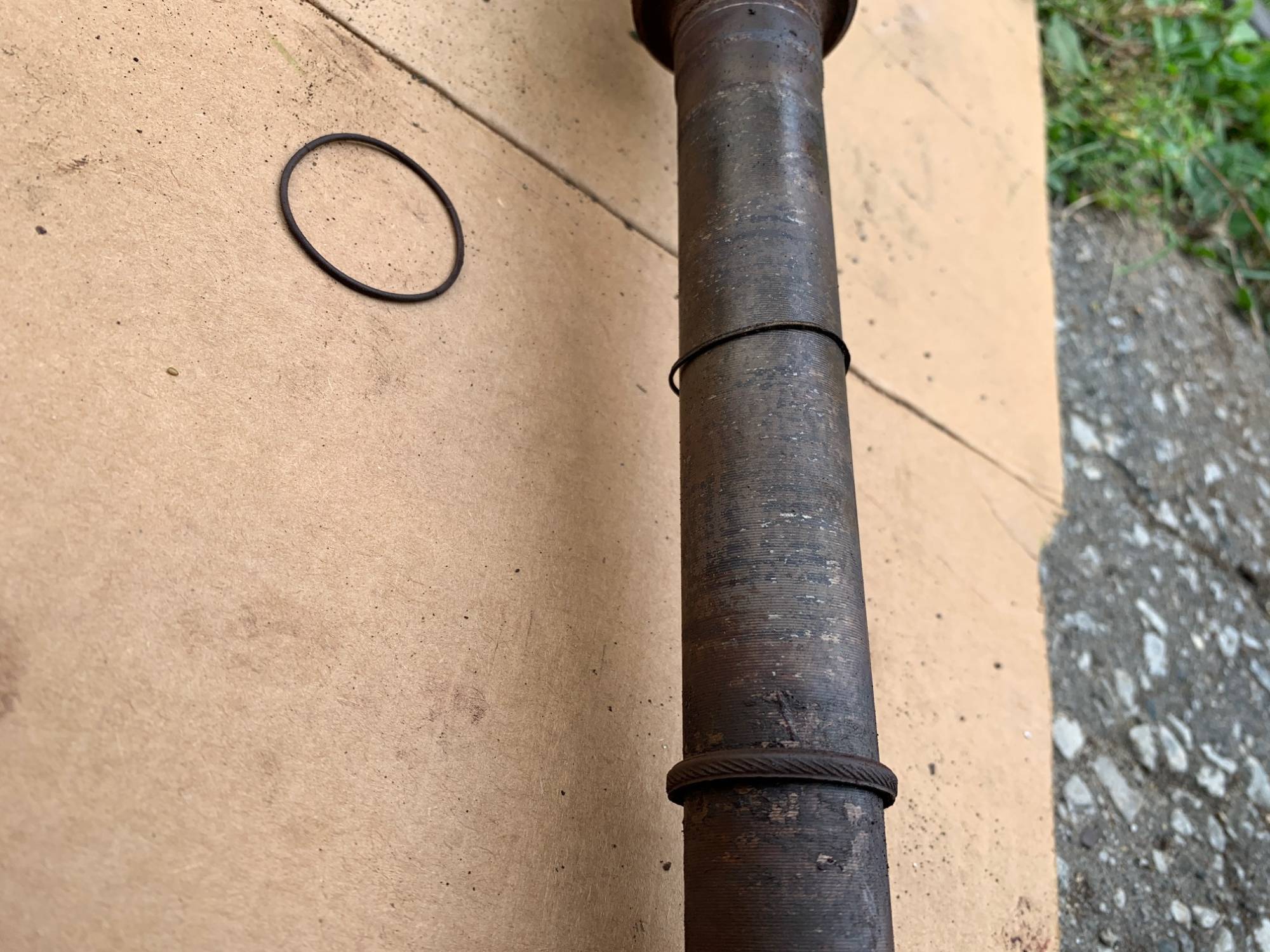

Why do I do jobs on Sundays? I'm doing the passenger side balljoint, wheel bearing, and CV axle today. The CV axle came out so easily I was surprised. Problem is it took three seals/orings with it it looks like. When I look inside the bevel gear, it looks like there are two wells for the two smaller seals. Any idea on these? I'm booting up VIDA now but if someone has a quick answer it would be great. Need the vehicle tomorrow :cry: wonder how screwed I am

Attachments
04s60 2.4
04xc70 2.5t
prwood wrote:I wish I had a permanent car repair area that was covered, had a level surface, lighting and fans, a workbench, and tool cabinets. You know,like a garage. Much of my time during the job is spent hauling things up and down the stairs to the basement or in and out of the storage shed, or running back downstairs when I realize I need something else,or taking a break from standing out in the sun,or using flashlights or work lamps when it gets dark.

User avatar
abscate
MVS Moderator
Posts: 35327
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1509 times
Been thanked: 3827 times

Post by abscate »

I’ll guess someone left an old oring on the axle..

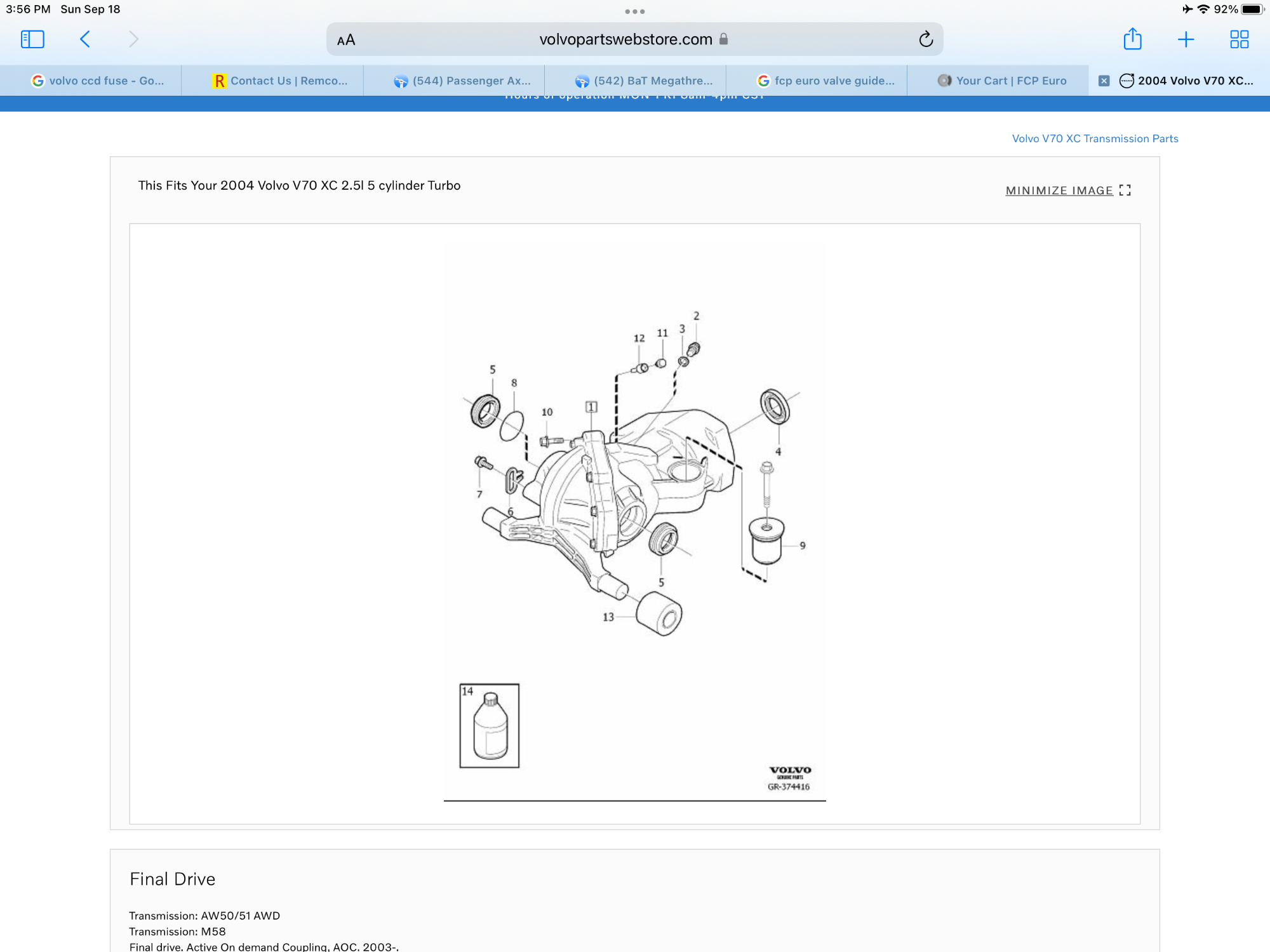

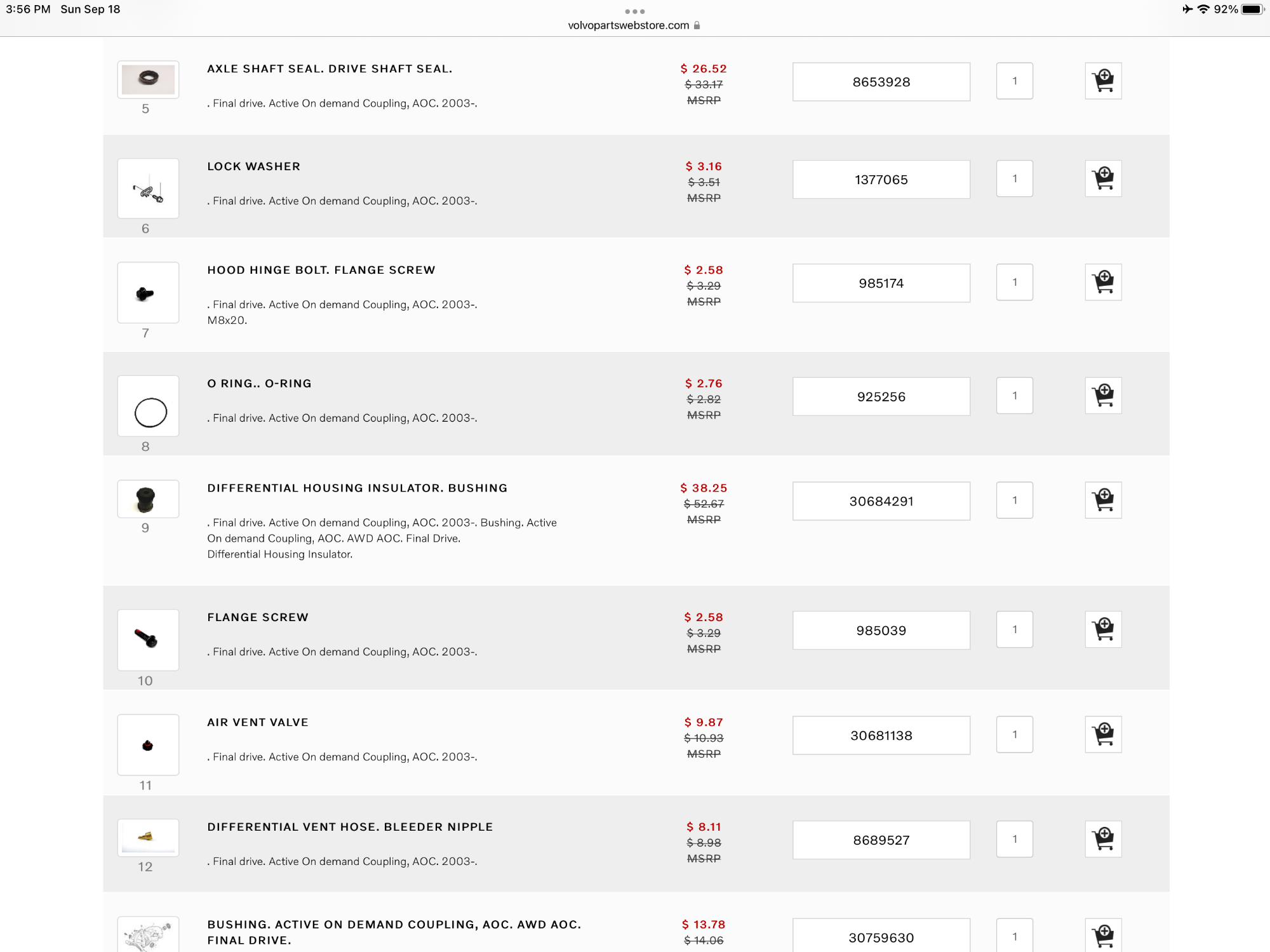

Parts 5 and 8
Attachments
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread

User avatar
br0dy519
Posts: 750
Joined: 17 December 2019
Year and Model: 2004 XC70
Location: Windsor, ON
Has thanked: 126 times
Been thanked: 116 times

Post by br0dy519 »

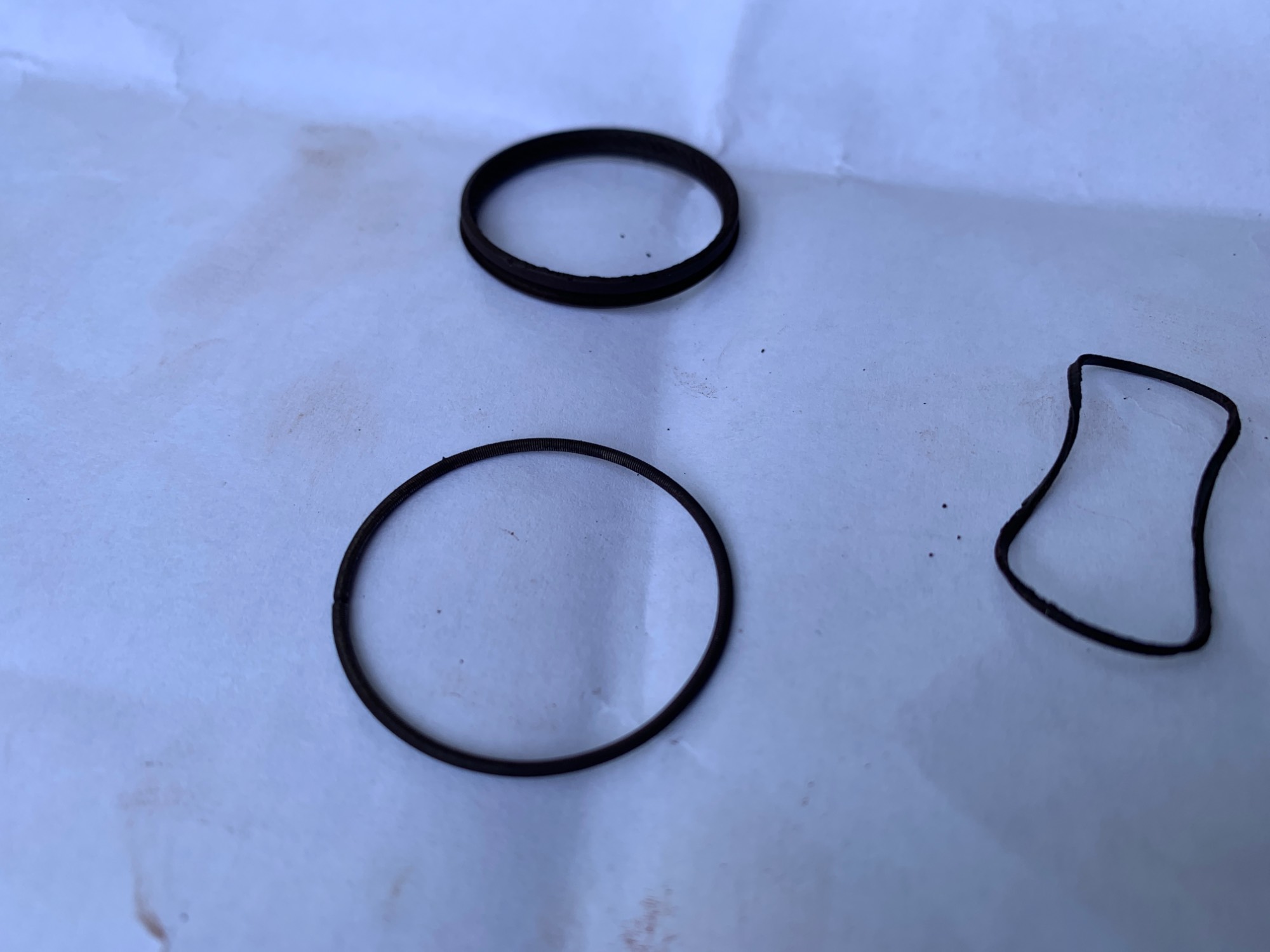

Upon closer inspection.. it looks like it may be one seal teared to bits. The one piece is a big circular spring
Attachments
04s60 2.4
04xc70 2.5t
prwood wrote:I wish I had a permanent car repair area that was covered, had a level surface, lighting and fans, a workbench, and tool cabinets. You know,like a garage. Much of my time during the job is spent hauling things up and down the stairs to the basement or in and out of the storage shed, or running back downstairs when I realize I need something else,or taking a break from standing out in the sun,or using flashlights or work lamps when it gets dark.

User avatar
br0dy519
Posts: 750
Joined: 17 December 2019
Year and Model: 2004 XC70
Location: Windsor, ON
Has thanked: 126 times
Been thanked: 116 times

Post by br0dy519 »

Oh you look to be right abscate. Isn’t this seal very dodgy to replace. I’ll look into it. Thank you.
04s60 2.4
04xc70 2.5t
prwood wrote:I wish I had a permanent car repair area that was covered, had a level surface, lighting and fans, a workbench, and tool cabinets. You know,like a garage. Much of my time during the job is spent hauling things up and down the stairs to the basement or in and out of the storage shed, or running back downstairs when I realize I need something else,or taking a break from standing out in the sun,or using flashlights or work lamps when it gets dark.

User avatar
br0dy519
Posts: 750
Joined: 17 December 2019
Year and Model: 2004 XC70
Location: Windsor, ON
Has thanked: 126 times
Been thanked: 116 times

Post by br0dy519 »

Correct P/N : 9143885 , Corteco 1034061 available at 1/4 cost of the Volvo P/N.

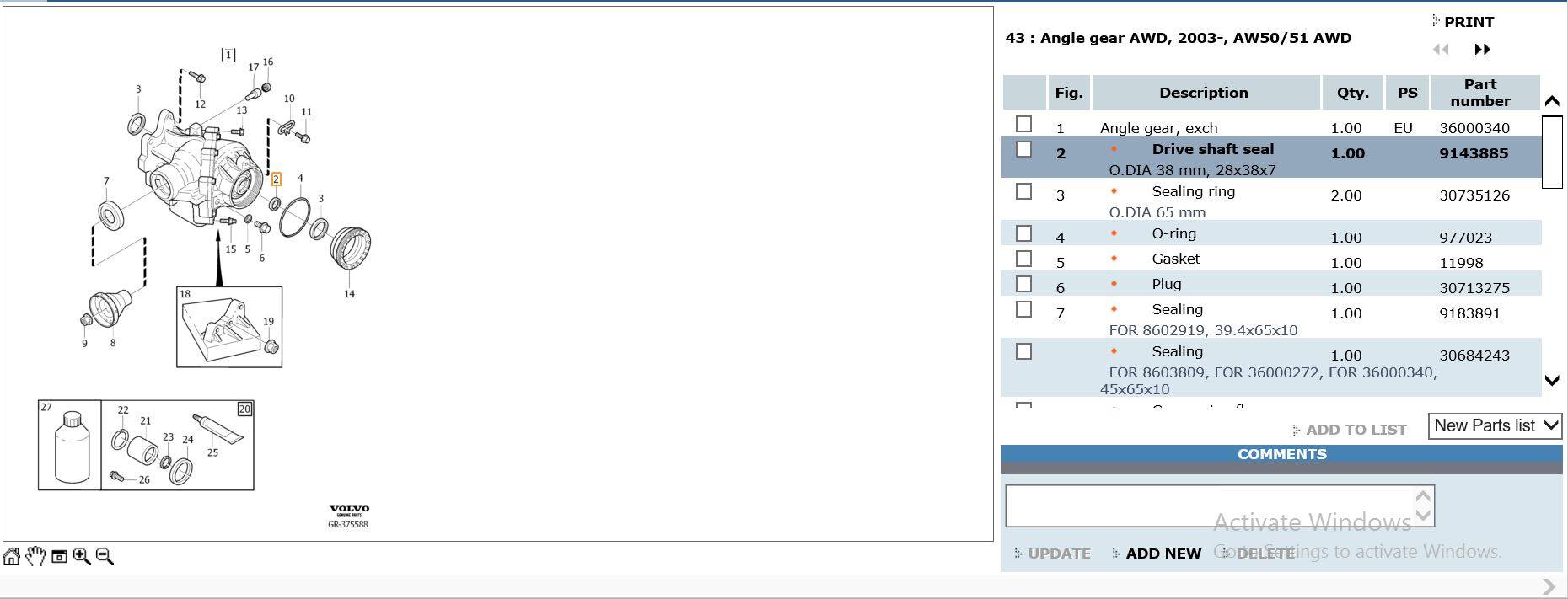

abscate's post is at the rear diff. I was replacing the front passenger CV when it happened, so here is the diagram and correct number for the front. This guide helped me : https://www.matthewsvolvosite.com/angle-gear-leak-fix/

VIDA repair instructions show the job is an easy 2 minute fix. Pry old one out with screwdriver. Grease and set new one in. Easy peasy. Car will be back on the road Tuesday as long as I can source the seal locally.

Thanks!
Attachments
04s60 2.4
04xc70 2.5t
prwood wrote:I wish I had a permanent car repair area that was covered, had a level surface, lighting and fans, a workbench, and tool cabinets. You know,like a garage. Much of my time during the job is spent hauling things up and down the stairs to the basement or in and out of the storage shed, or running back downstairs when I realize I need something else,or taking a break from standing out in the sun,or using flashlights or work lamps when it gets dark.
