96 850 Turbo - Identify part & routing hoses

neworleans · Post by **neworleans** » 02 Jun 2014, 20:48

Hello All,

I am working on another project 850 turbo.

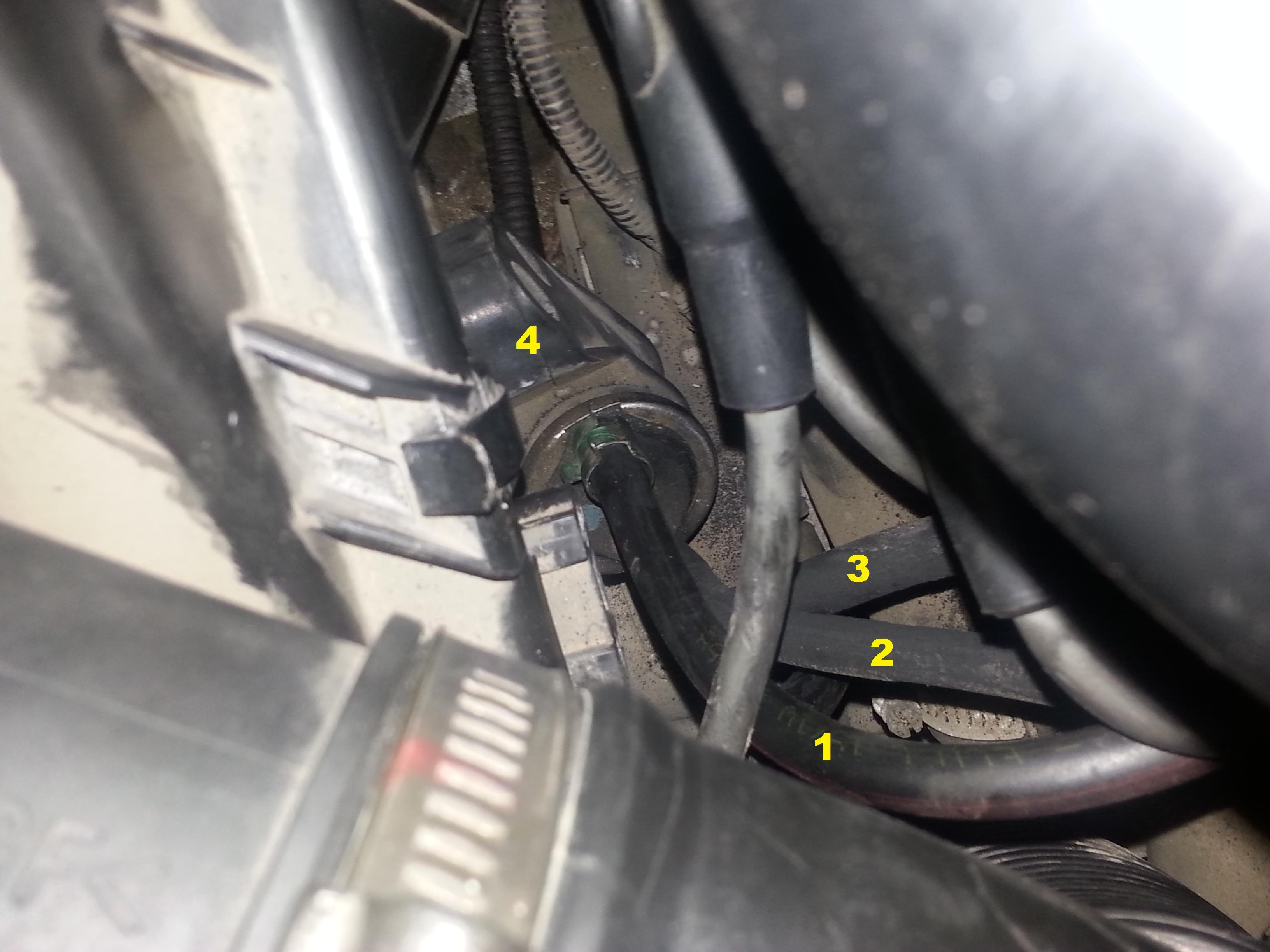

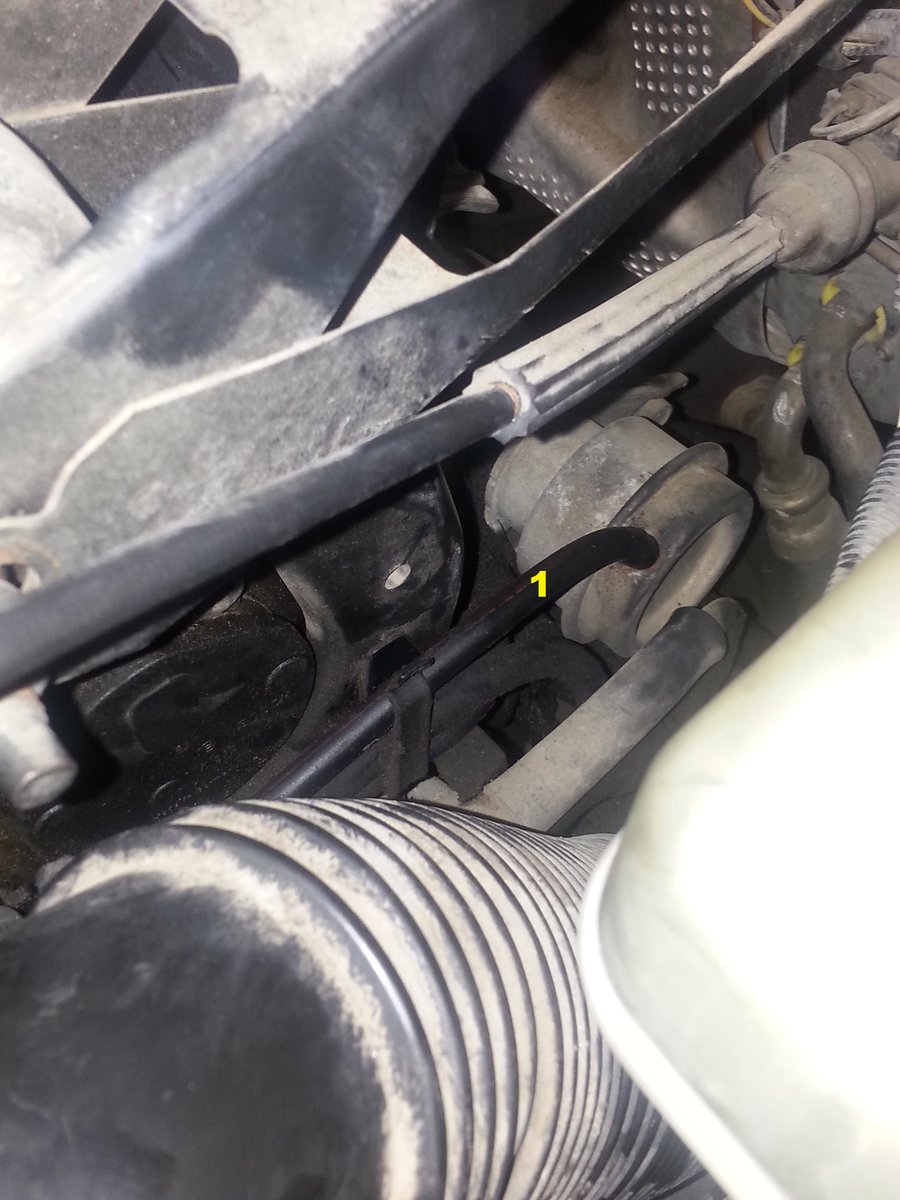

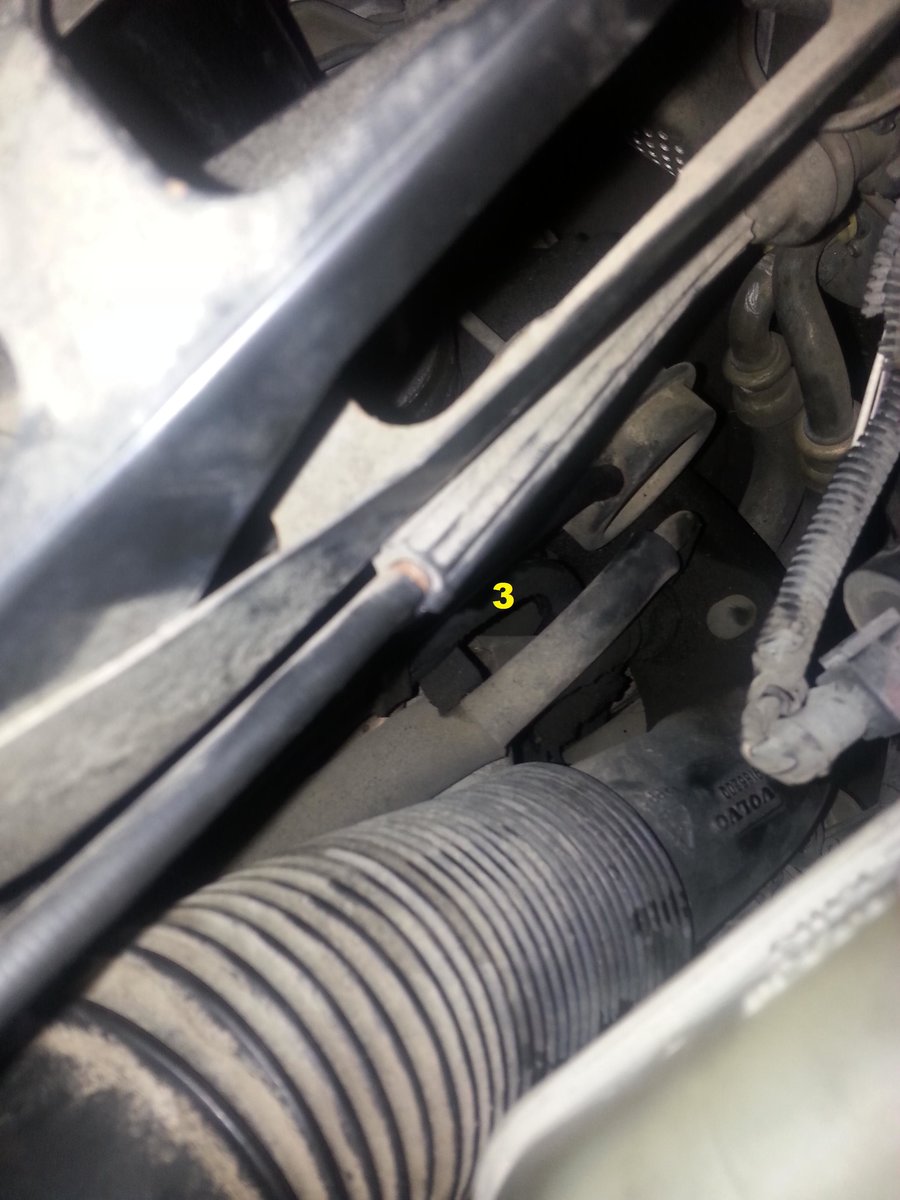

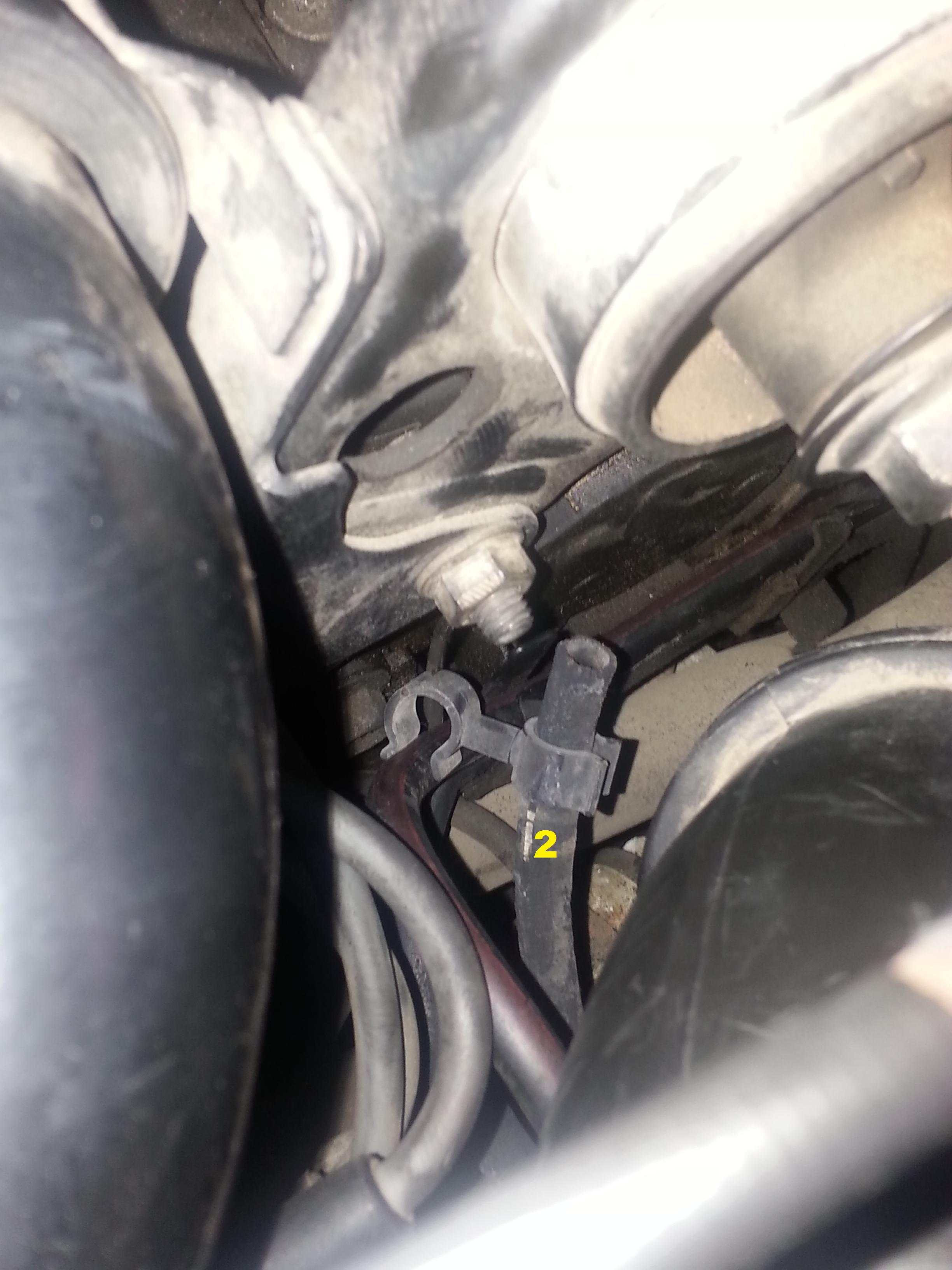

Can you all please help me identify the part #4 please? This thing is not attached to anything, just hanging in there and 3 small diameter hoses are connected as I numbered them 1, 2 and 3. I replaced number 1, number 2 is not connected to anything, is this supposed to be like that? And finally, number 3 goes all the way under the pcv nipple, what is the best way to reach that hose? Under the car?
My other question is, the hose oem part # is 976735 but can't find it to purchase, I need to buy 3-4ft to replace these two hoses, the one I replaced for number 1 was given to me from a friend and it was just enough to replace #1.

Thank you in advance...

Post by **kahl** » 02 Jun 2014, 21:02

that looks like the turbo control valve. it should have an electrical connection the 3 hoses going to the turbo charger.

neworleans · Post by **neworleans** » 02 Jun 2014, 21:06

Thanks for your input, yes it has an electrical connection but what I meant was that it is loose not bolted to anything.

Post by **kahl** » 02 Jun 2014, 21:14

It has a clip, goes or inserted around the air cleaner box.

Post by **Ben850** » 02 Jun 2014, 21:45

kahl wrote:that looks like the turbo control valve. it should have an electrical connection the 3 hoses going to the turbo charger.

Yes. I see the color coded dot next to a fitting.

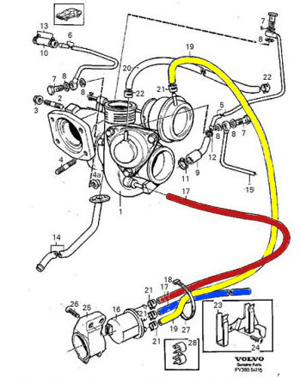

: color coding Dots will be on that module next to each fitting if you are fortunate.; Turbo-proper%20colors.jpg (63.49 KiB) Viewed 668 times

: Some vacuum lines are altered for emission designs.; 1271630_vacuum_lines__86319_1304006801_800_800.jpg (29.5 KiB) Viewed 668 times

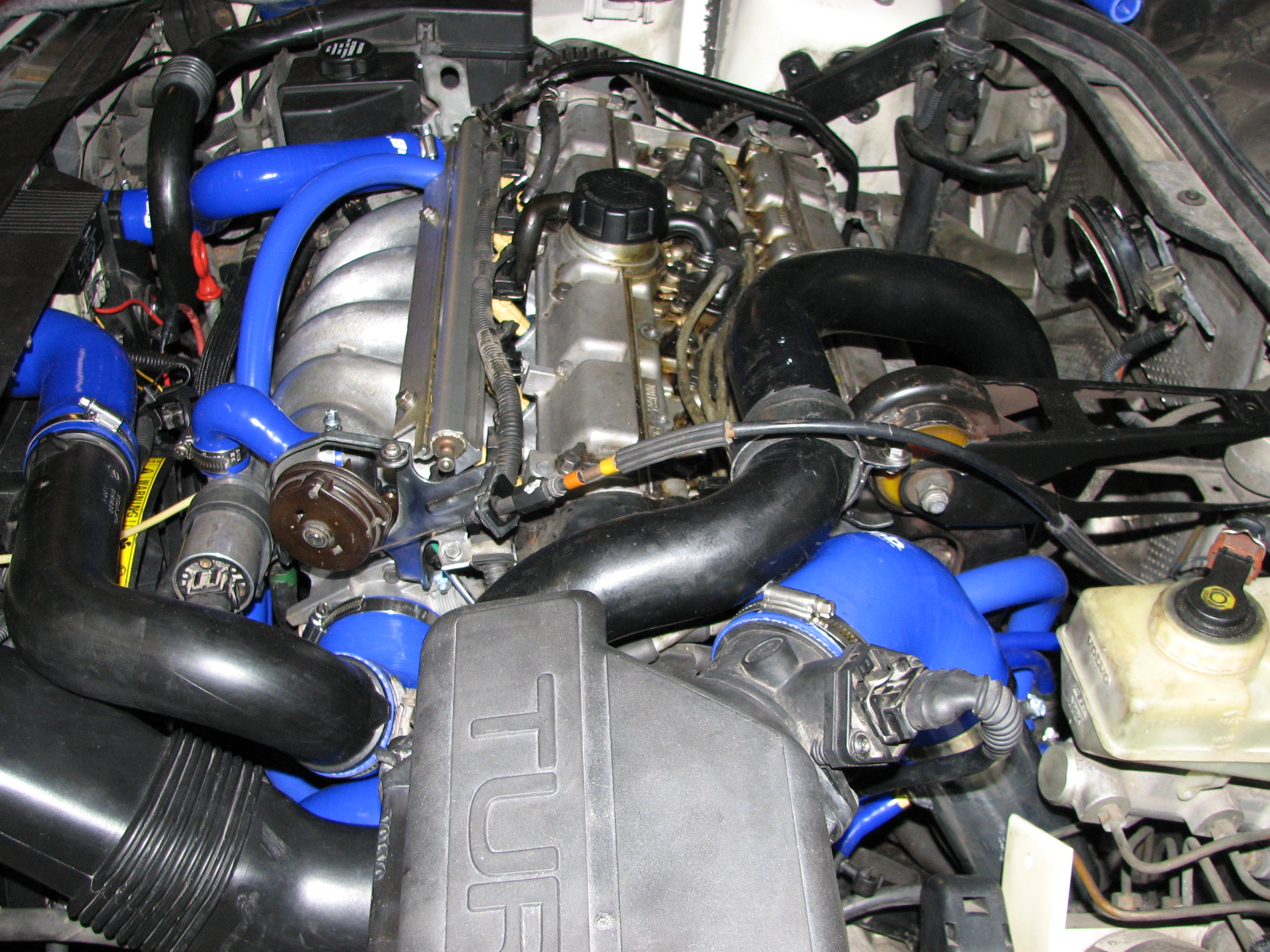

: Gratuitous photo.

All my lines are blue now so I have to pay attention when I unhook things.
