Hy Buddies !
New episode in Blue's history. Here are the codes and issues I've read today after Blue's autopsy. I precise I've checked the kilometers, and the car OBD unit announces 107 016 miles (172 226 kms) and 93 053 miles (149 755 kms) on the combined instrument. I think the speedometer must have been repaired. I've found a process to test all slots before to read codes, but I didn't do it yet. I didn't control any fuses also which should have been the first thing to do. Could it explain mute codes ?
A2 1 - 1 - 1. FUEL SYSTEM ok
A6 3 - 1 - 4. IGNITION. camshaft positon sensor signal absent or faulty (solution : replace the camshaft sensor)
A3 3 - 1 - 2. ABS. RH front wheel sensor open circuit or short circuit
A7 1 - 2 - 2. COMBINED INSTRUMENT (Trip Computer) temperature signal interval too long
B1 nothing. ELECTRONIC CLIMATE CONTROL ?
B5 nothing. SRS ?
B2 1 - 2 - 2. CRUISE CONTROL no speed signal
B6 nothing. ELECTRIC FRONT SEAT ?
What worries me is the missing on certains codes.
For A3, I've replaced the ABS sensors by new ones less than 2 months. It could come from the sensor ring.
For B2, Cruise control don't work yet.
For B6, the motor of the back of the seat doesn't't work, a cable may be out or the wiring.
The car starts well, always. But I smell exhausts gases, like all the gasoline was not burnt. A question of lambda sensor may be ? I see lot of OEM parts on Blue which could explain the presence of an A6 code.

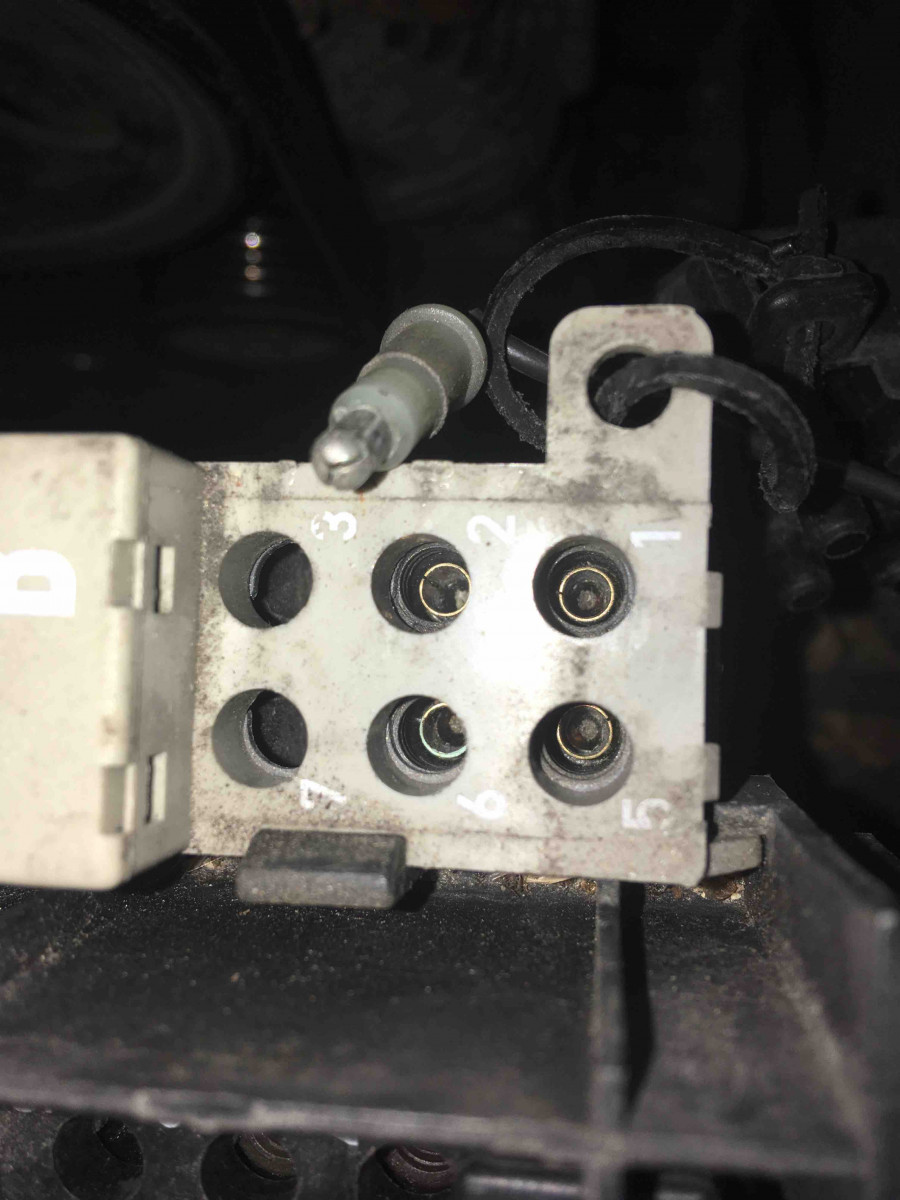

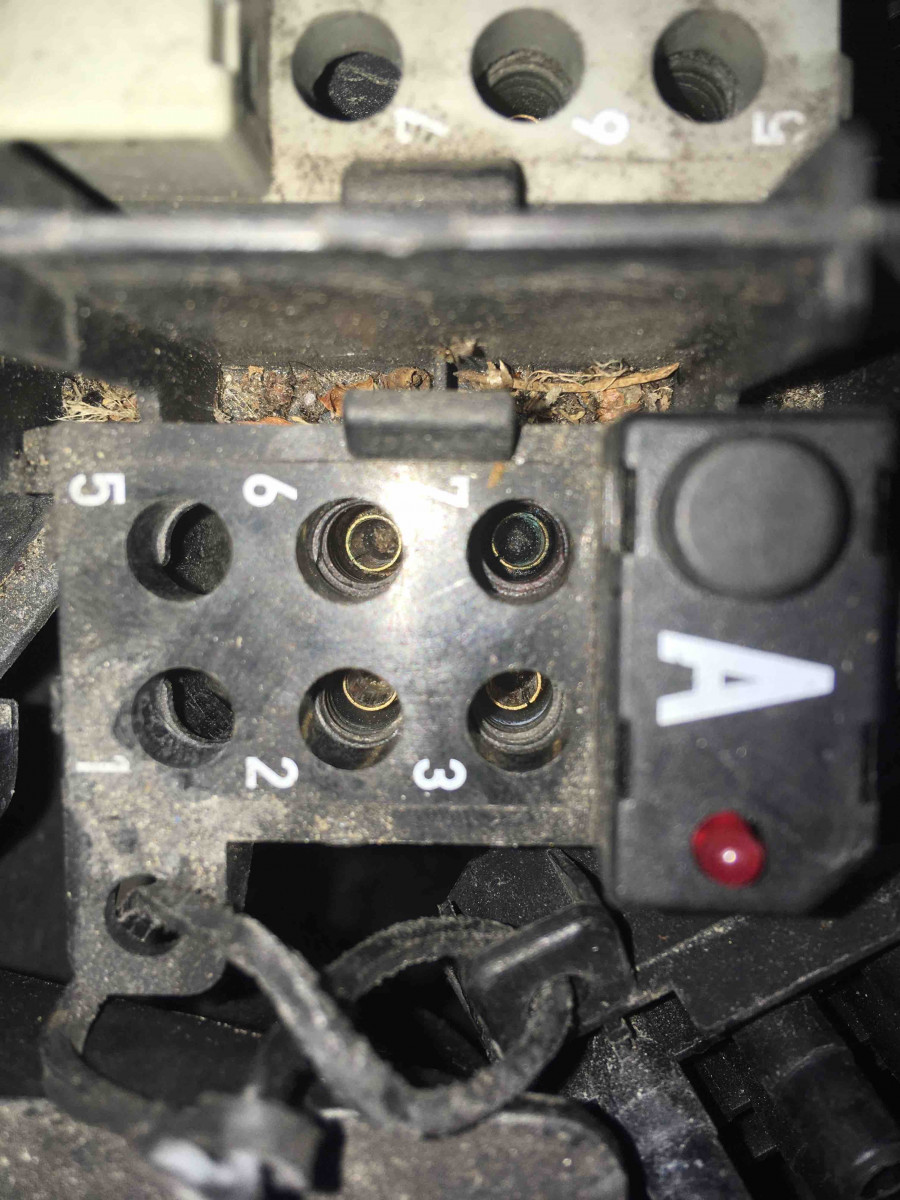

Here are the pics of my OBD unit.
Experts Ones, it's up to you !
Manov
850 OBD Codes read
- manovlov
- Posts: 1180
- Joined: 6 July 2011
- Year and Model: 1995 850 GLT 2.5 170
- Location: Grenoble, France
- Has thanked: 620 times
- Been thanked: 143 times
Hy,

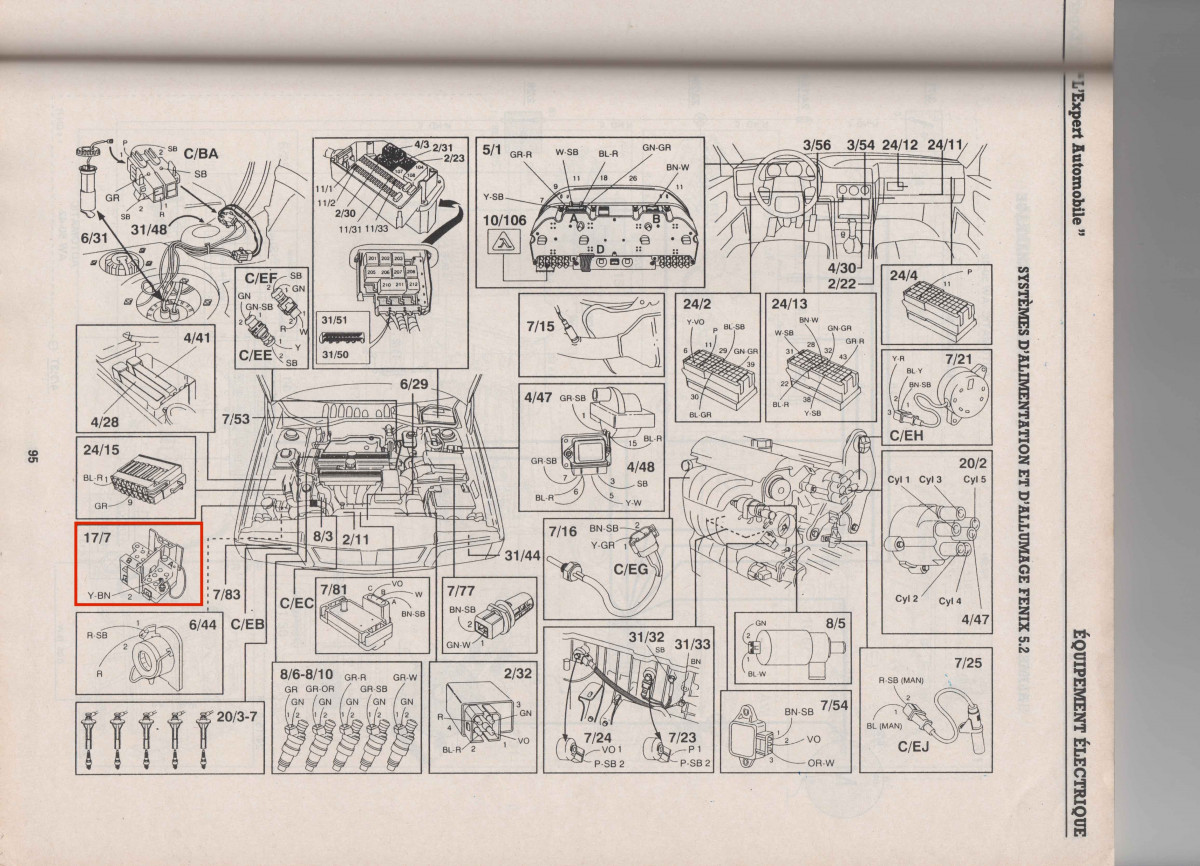

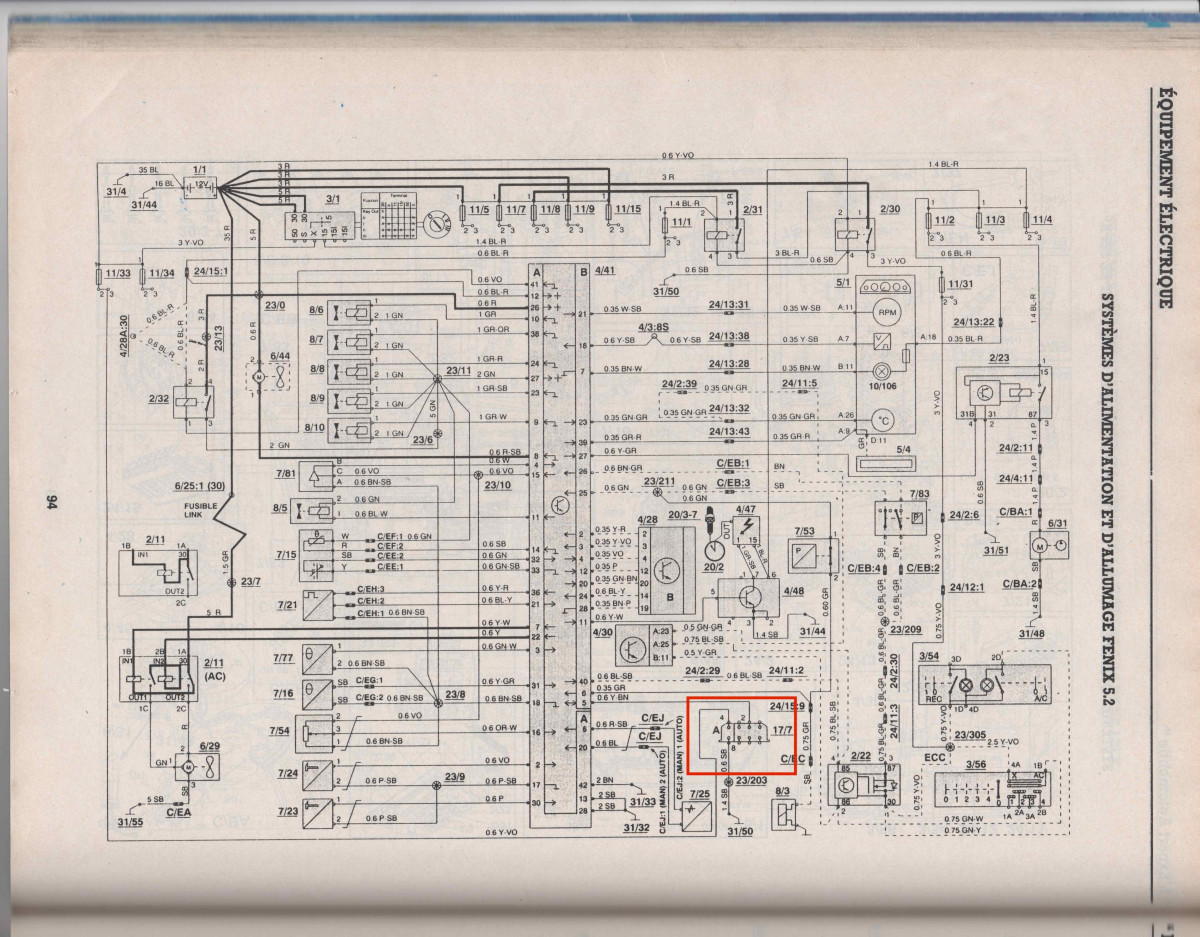

So, I progress in bring help to Blue. Here are 2 boards, extracted from my 850 book. The thing I don't understand is on the "b" board, why I only see the "A" unit and not the "B"one, If I didn't make a mistake.
On the 1rst board is written : 17/7 : diagnostic switch A only.
May someone explain how to proceed ? I would like to test the wiring from the OBD unit. Manov
So, I progress in bring help to Blue. Here are 2 boards, extracted from my 850 book. The thing I don't understand is on the "b" board, why I only see the "A" unit and not the "B"one, If I didn't make a mistake.
On the 1rst board is written : 17/7 : diagnostic switch A only.
May someone explain how to proceed ? I would like to test the wiring from the OBD unit. Manov
1995/02 850 GLT 2.5 170 Petrol M56
- abscate
- MVS Moderator
- Posts: 35298
- Joined: 17 February 2013
- Year and Model: 99: V70s S70s,05 V70
- Location: Port Jefferson Long Island NY
- Has thanked: 1505 times
- Been thanked: 3817 times
A and B are the two sides of the ECU electrical connector, one connector with two sides
ECU 4/41
ECU 4/41
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
- manovlov
- Posts: 1180
- Joined: 6 July 2011
- Year and Model: 1995 850 GLT 2.5 170
- Location: Grenoble, France
- Has thanked: 620 times
- Been thanked: 143 times
Salut abscate,
Thanks for the light... It means that on the two sides of the connector, the power comes only when the pin is plugged so ? And if so, what could be the reason to have non power then ? A cable cut ? Where should I plug the multimeter then ?
I will have a look to this post :
viewtopic.php?f=1&t=89234
Thanks for the light... It means that on the two sides of the connector, the power comes only when the pin is plugged so ? And if so, what could be the reason to have non power then ? A cable cut ? Where should I plug the multimeter then ?
I will have a look to this post :
viewtopic.php?f=1&t=89234
1995/02 850 GLT 2.5 170 Petrol M56
-
theobviousfaker
- Posts: 22
- Joined: 24 September 2013
- Year and Model: V70 P3, 2010
- Location: Germany
- Has thanked: 5 times
- Been thanked: 1 time
Hey, I also have a DTC 3-1-2 on A3, meaning "right front wheel sensor circuit open or short". There is a separate DTC for defective sensor, while circuit is ok. So before I try to replace the sensor, I would like to check the cable but don't know how. Has anyone tried this before?
The most comprehensive documentation about the ABS that I found is this: http://www.volvotips.com/index.php/850- ... ce-manual/
But in order to check the cable resistance, it requires the use of a special diagnostics box. It is to be connected to the ABS-controller. And it says "Do not directly probe control module connector." Any insight into why not?
I would like to directly probe the connector, but theres is no diagram which pins correspond to the front right wheel cable
Maybe it is in the wiring diagram, but its unreadable. Does anyone have the original?
The most comprehensive documentation about the ABS that I found is this: http://www.volvotips.com/index.php/850- ... ce-manual/
But in order to check the cable resistance, it requires the use of a special diagnostics box. It is to be connected to the ABS-controller. And it says "Do not directly probe control module connector." Any insight into why not?
I would like to directly probe the connector, but theres is no diagram which pins correspond to the front right wheel cable
-
