Thanks will try, also since the auto- electrician visit the engine does not boost, could is be for the same reason,

I recently send my S60r to the aoto-elecrician ( car Kept cutting out due to faulty crank sensor ) on returning the heater is on hot, no matter where the knobs are.Anyone know how to fix this.

Thanks all, Looked under a magnifying glass and you can see the pin numbers and a and b connectors marked. (very vaguely)

Thank you FirstV70 at least it seems my confusion is not unfounded, I have tried a few forums with no reply, your help is appreciated. I will use the photo and try and familiarise myself with the pins,

I thought 'A " was one of the rows.

Thanks.

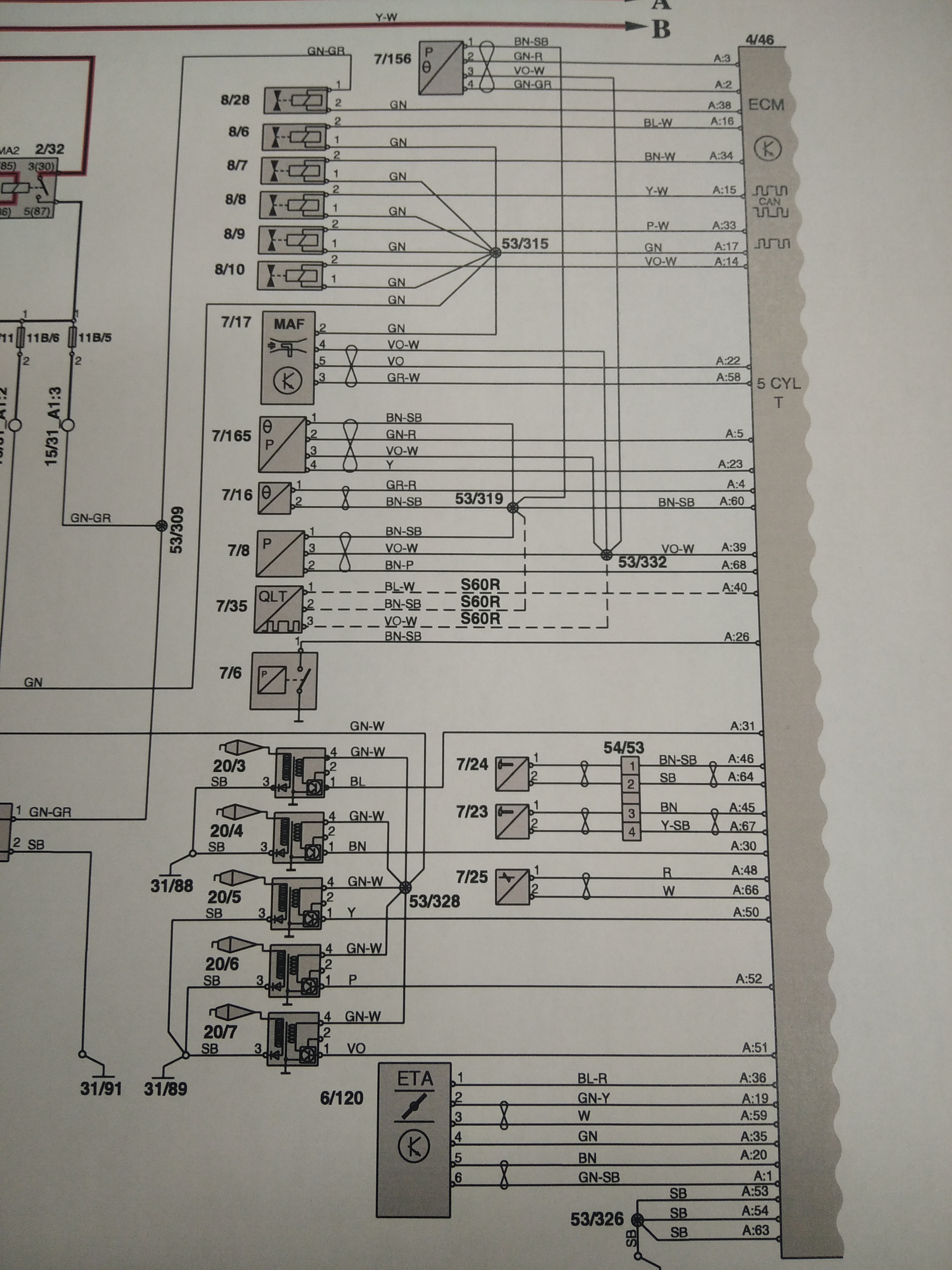

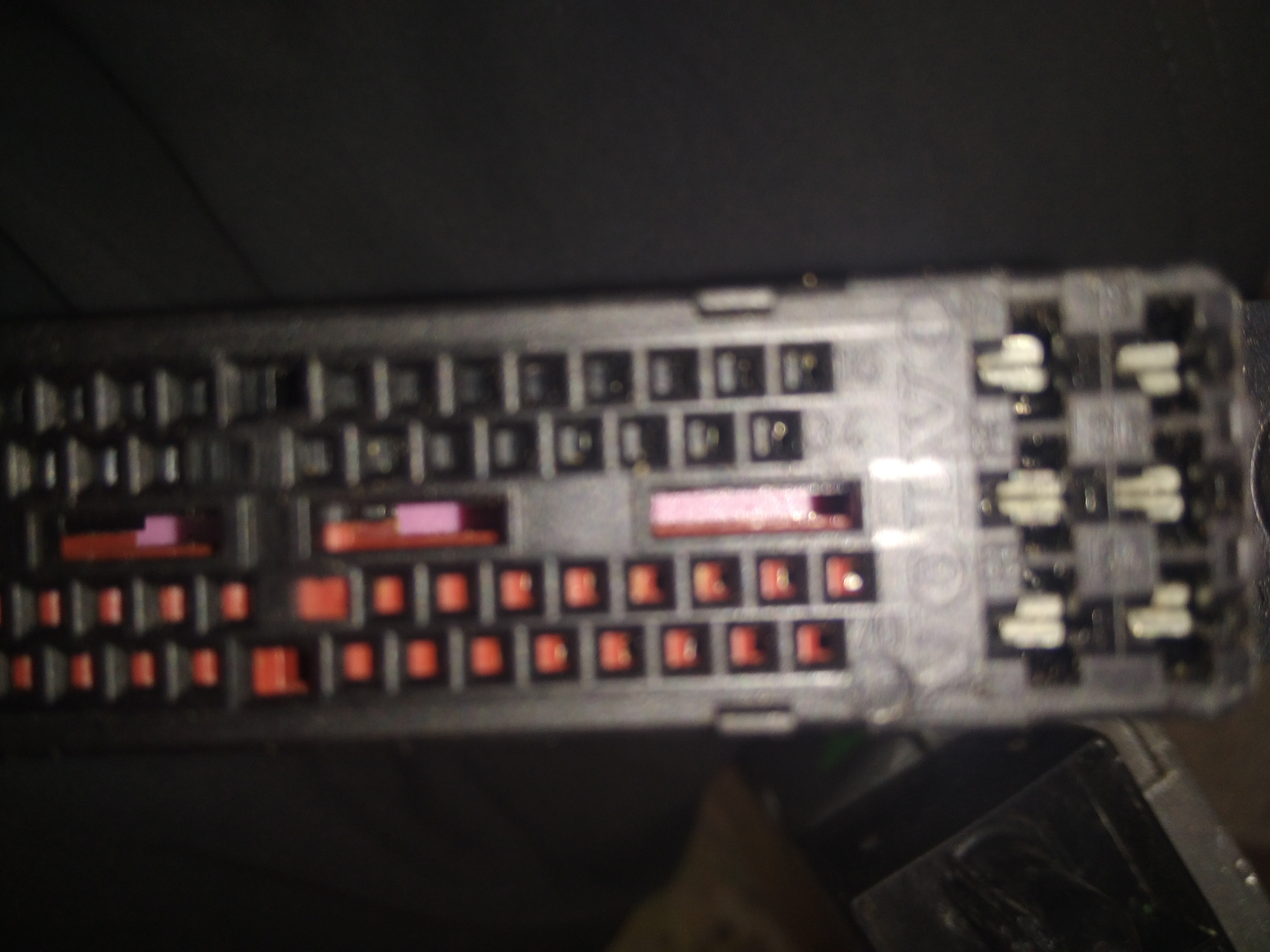

Thank you for your input,as per your attached PDF the pins on the CEM are shown, please see the attached photo, I need to know how to identify they pins on the ECM so I can verify the wiring.

Thanks

I have changed my engine wiring harness on my s60r. The harness from a breaker came from an automatic car and I need to do some changes to the harness to check the wiring to the ECU. But I don't seem to locate the pins and compare them to the wiring diagram. any advise would be appreciated

I am fixing major issues on my 2004 s60R while taking the engine out I had the transfer box out. I checked it and noticed if I turned the output shaft there was no movement on the input bevel gear. After stripping the housing, I noticed both gears where shot I thought this was due to a bearing colla...

Thanks for the image,The previous owner had the head casket blow, and cooked the engine. he ended of by cutting off a few connectors to replace on a project car. thank you for the effort I will try and search the net for more info

Hi, i am rebuilding a S60R 2004 model some of the electric connectors in the engine bay are missing. I down loaded a wiring diagram free from the net but it seems to be missing the pages that identifies the components. and some of the component of the R are also not shown. ( VVT solenoids. Cam senso...

looks good
