2005 V70NAM56 Rear running lightsFuse 5, rear box  Topic is solved

Post by abscate » Sun Nov 15, 2015 7:02 pm

Just have the P2 to Mom to drive and noticed no taillights or front running lights.

DRLs are turned off on this car.

Headlights and high beams work fine
Brake lights, turn flashers, hazards all work

Checked fuse 18 per diagram and its ok.

Away for three days - not critical as Mom only drives daytime but will need to address for next week.

Any hints on troubleshooting modules?
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary

User avatar
abscate
MVS Moderator
Posts: 21088
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 318 times
Been thanked: 982 times
Trinidad & Tobago
abscate

Re: 2005 V70 NA Electrical problem running lights

Post by abscate » Thu Nov 19, 2015 10:23 am

Problem diagnosed in about 5 minutes

Rear driver electrical panel removed, checked fuse 5 for Rear Electronic Control Module. found dark oxidation on fuse pins, cleaned with Swiss Army knife, reinserted.

All lights functioning again.
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary

User avatar
abscate
MVS Moderator
Posts: 21088
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 318 times
Been thanked: 982 times
Trinidad & Tobago
abscate

Re: 2005 V70 NA Rear running lights MVSOLVED Fuse 5, rear box

Post by abscate » Tue Aug 28, 2018 8:37 pm

Lights out again. Police acted as burnt bulb indicator. Will check fuse in morning.
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary

User avatar
abscate
MVS Moderator
Posts: 21088
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 318 times
Been thanked: 982 times
Trinidad & Tobago
abscate

Re: 2005 V70NAM56 Rear running lightsFuse 5, rear box

Post by abscate » Wed Aug 29, 2018 7:00 am

Nailed it. Same problem

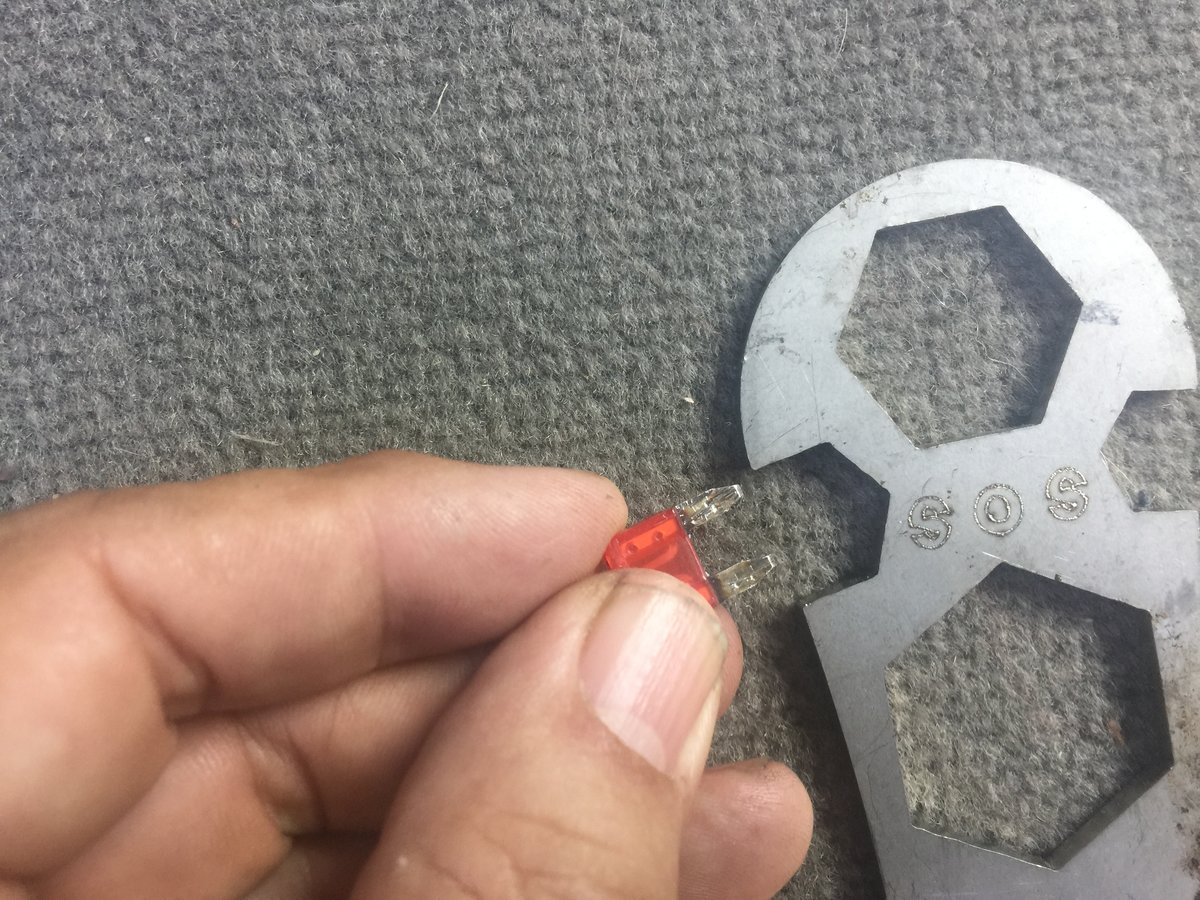

Opening the door to the REM

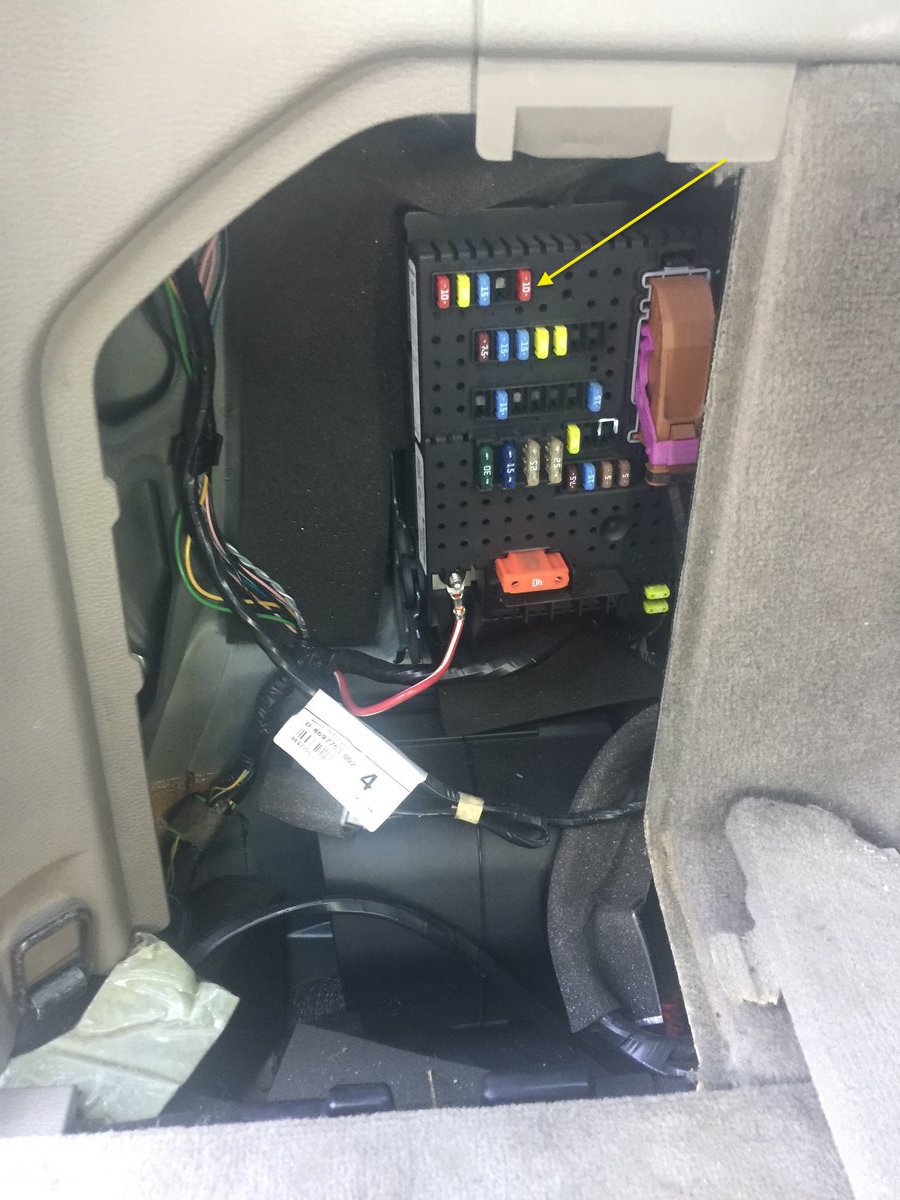

Location of Rear Light Fuse 10 Amp

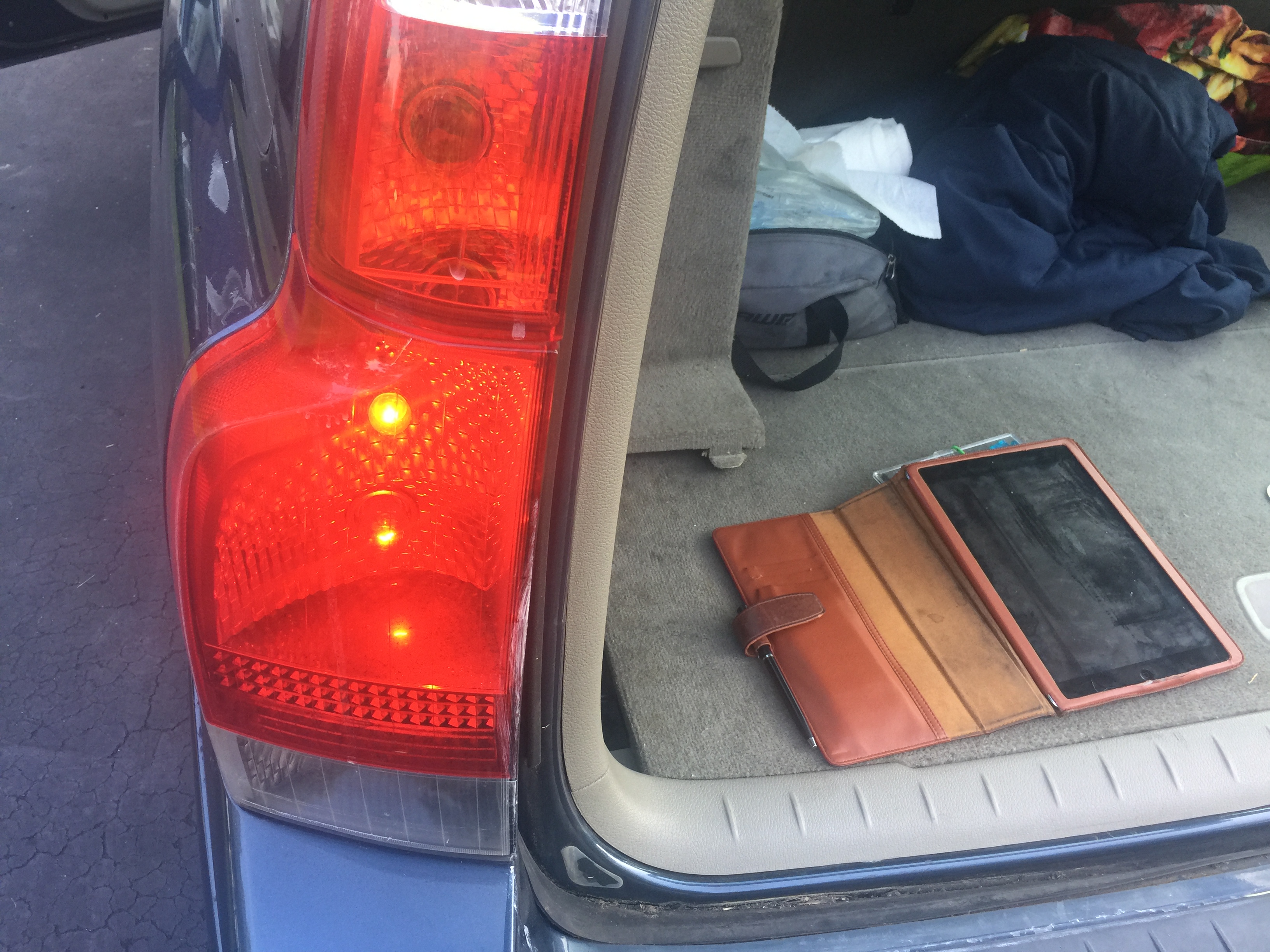

Lights working!
Good cleaned up
Attachments

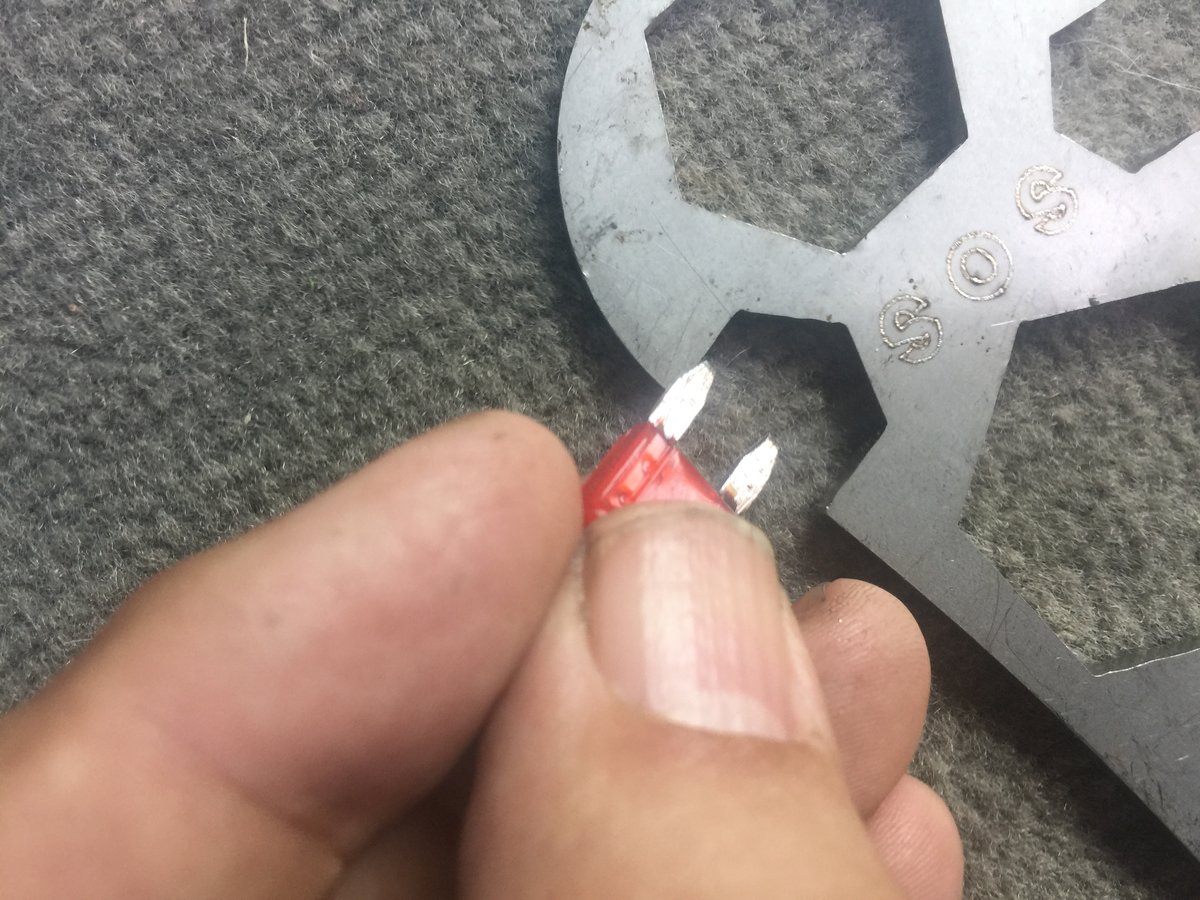

Nasty fuse
