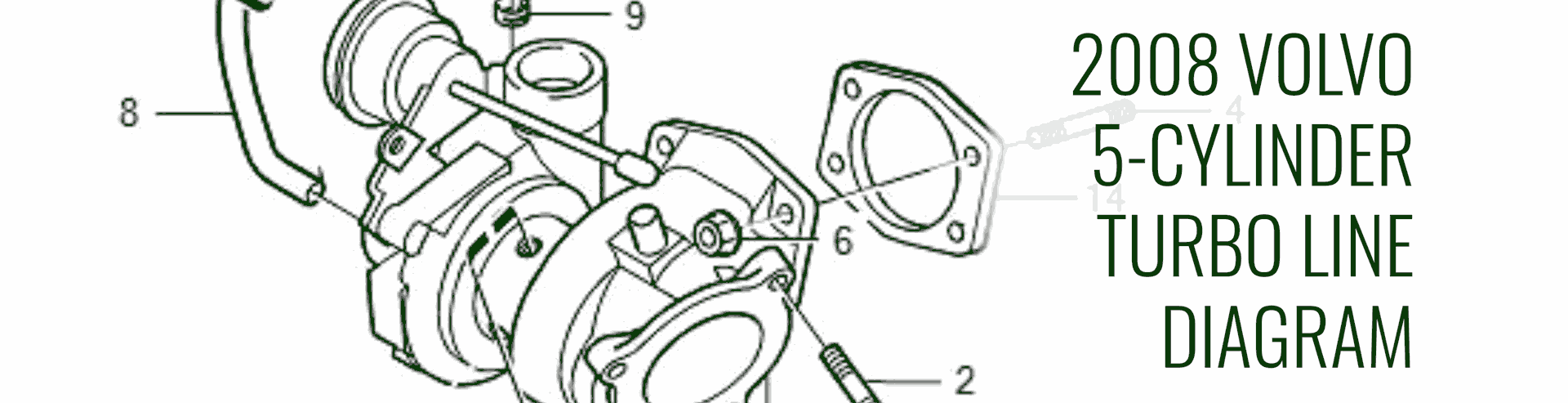

Check out the 2008 Volvo 5-Cylinder Turbo Hose Diagram and Parts Numbers
If you bought all the items in this 2008 5-cylinder turbocharger diagram, and their correct amounts, you’d spend a wallet-vaporizing $9,707.19.
| Quantity | Product | Stock Number | Price EA |
|---|---|---|---|
| 2 | Lock nut | 977209 | $8.25 |
| 1 | Clip | 9155949 | $1.60 |
| 1 | Turbocharger, exch | 8601689 | $832.64 |
| 1 | Turbocharger, exch | 8601691 | $841.44 |
| 1 | Turbocharger, exch | 8601692 | $981.91 |
| 1 | Turbocharger, exch | 8603692 | $981.91 |
| 1 | Turbocharger, exch | 8603298 | $1208.50 |
| 1 | Turbocharger, exch | 8602395 | $981.91 |
| 1 | Turbocharger, exch | 8602396 | $981.91 |
| 1 | Solenoid valve | 30670448 | $70.11 |
| 1 | Solenoid valve | 30670449 | $70.11 |
| 1 | Solenoid valve | 9473212 | $70.11 |
| 1 | Gasket | 8642450 | $4.33 |
| 1 | Hose clamp | 1346542 | $2.10 |
| 1 | Hose clamp | 1389647 | $2.10 |
| 1 | Hose | 8699250 | $24.72 |
| 1 | Hose | 9443861 | $11.93 |
| 2 | Hose | 9443862 | $21.73 |
| 1 | Hose | 9480112 | $25.36 |
| 1 | Hose | 976734 | $19.20 |
| 1 | Stud | 1357769 | $6.83 |
| 1 | Stud | 1336261 | $7.65 |
| 1 | Turbocharger, exch | 36012378 | $981.91 |
The image and data courtesy Lisle Volvo, and the reason for this post, besides making this info searchable/findable, is this Volvo forum topic Help To Identify Hoses in the Volvo V70 & XC-70 2001-2007 S60 2001-2009 forum.
