850 Headlight Disassembly Photos

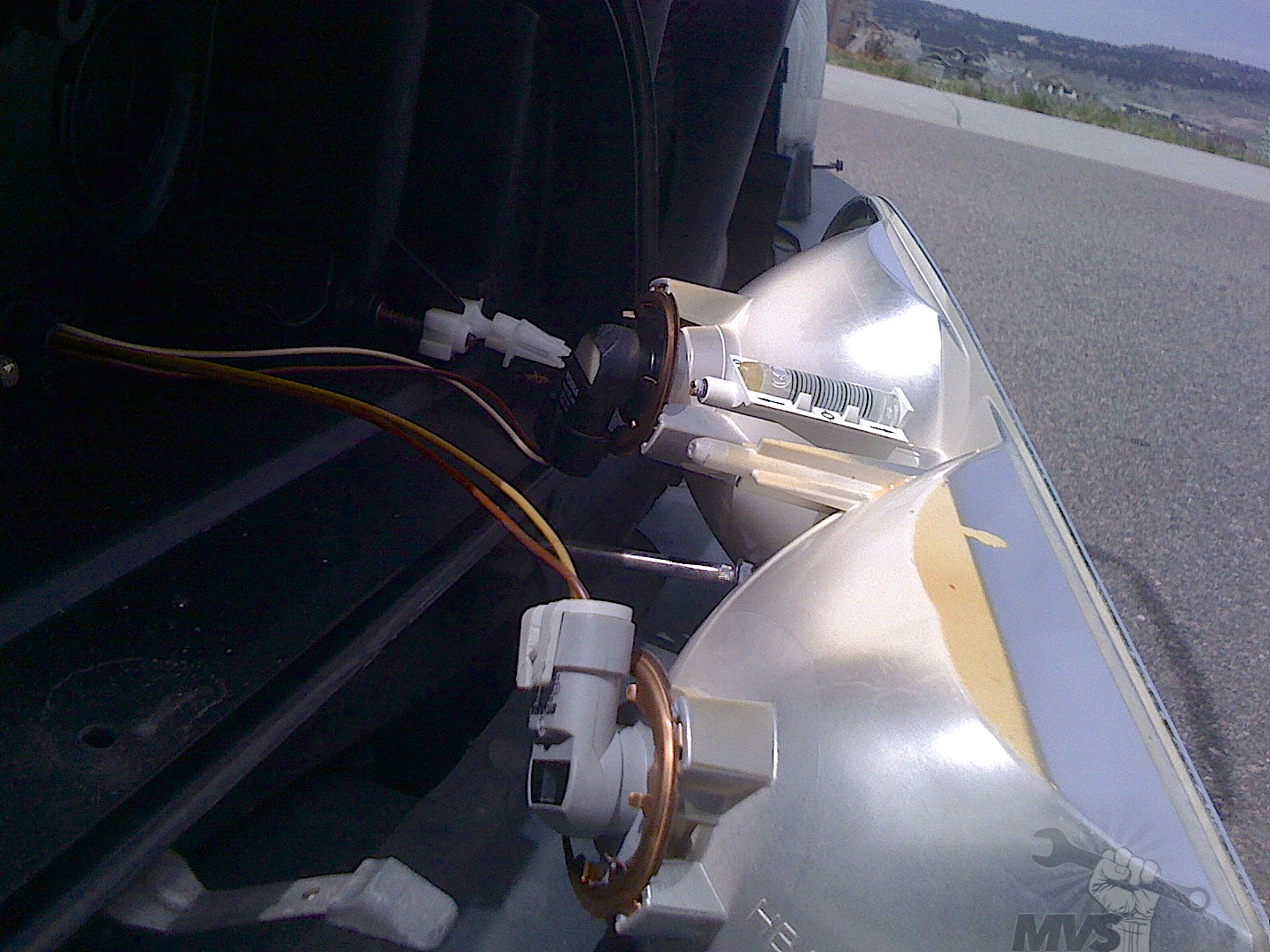

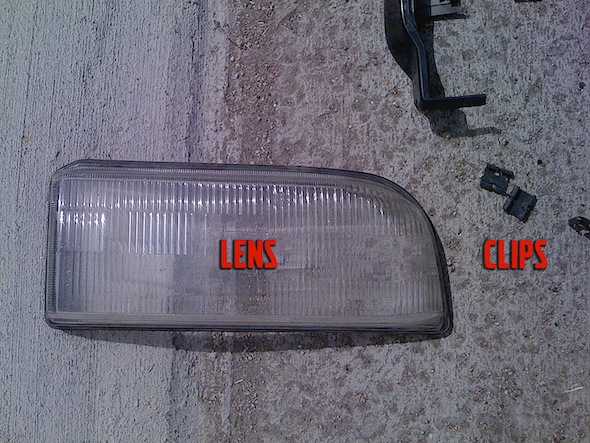

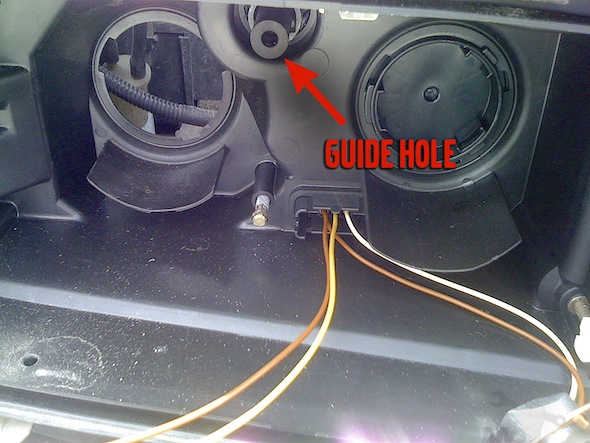

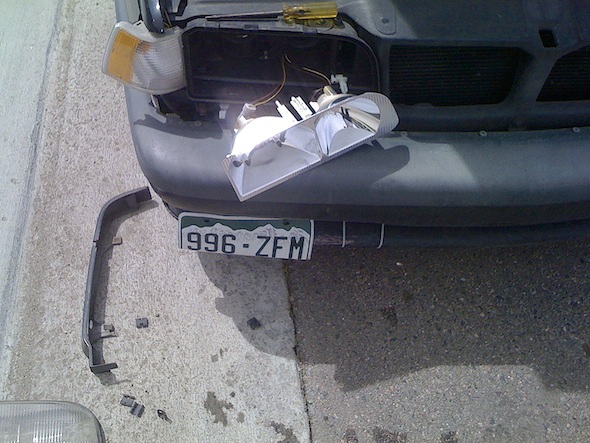

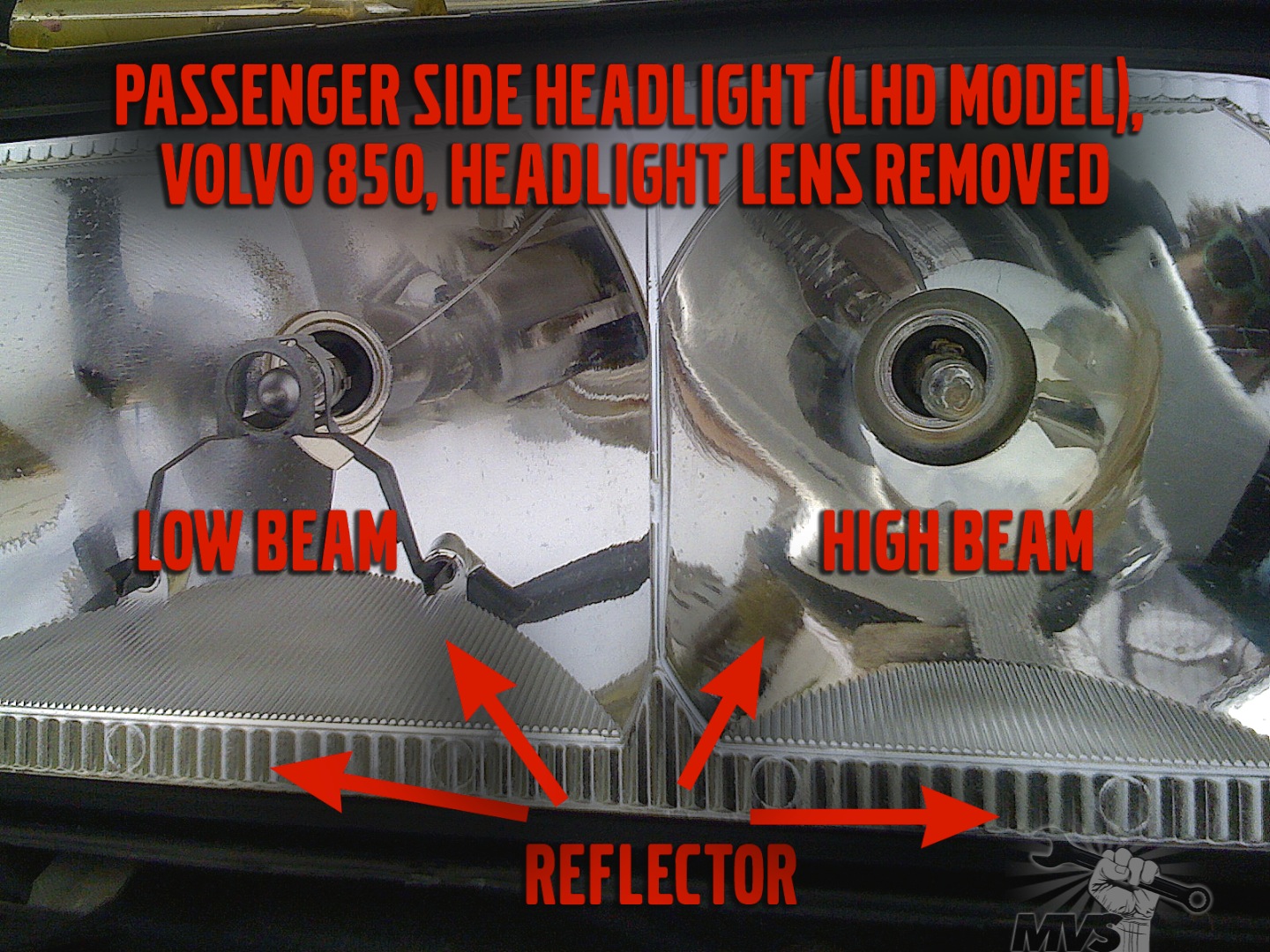

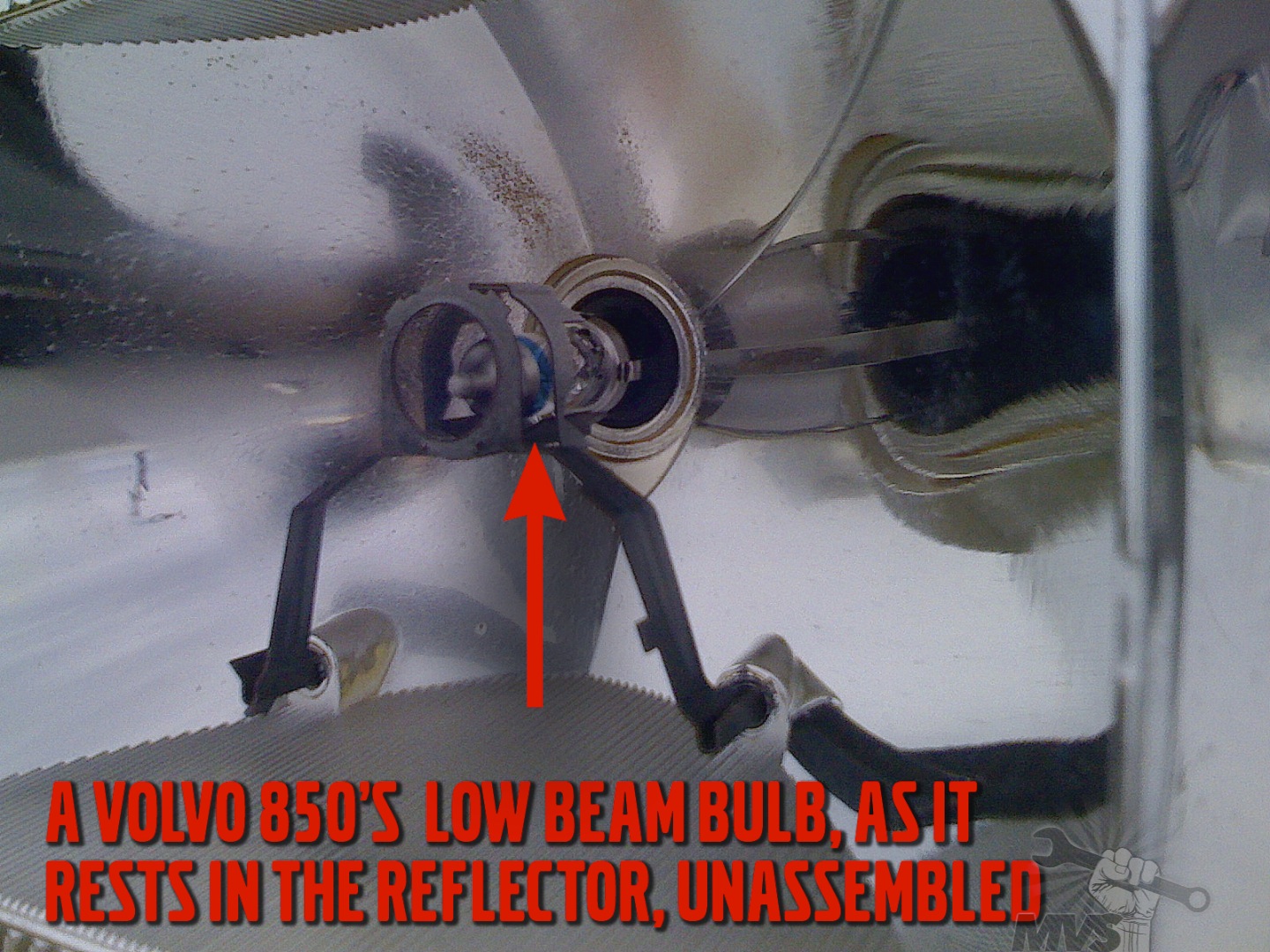

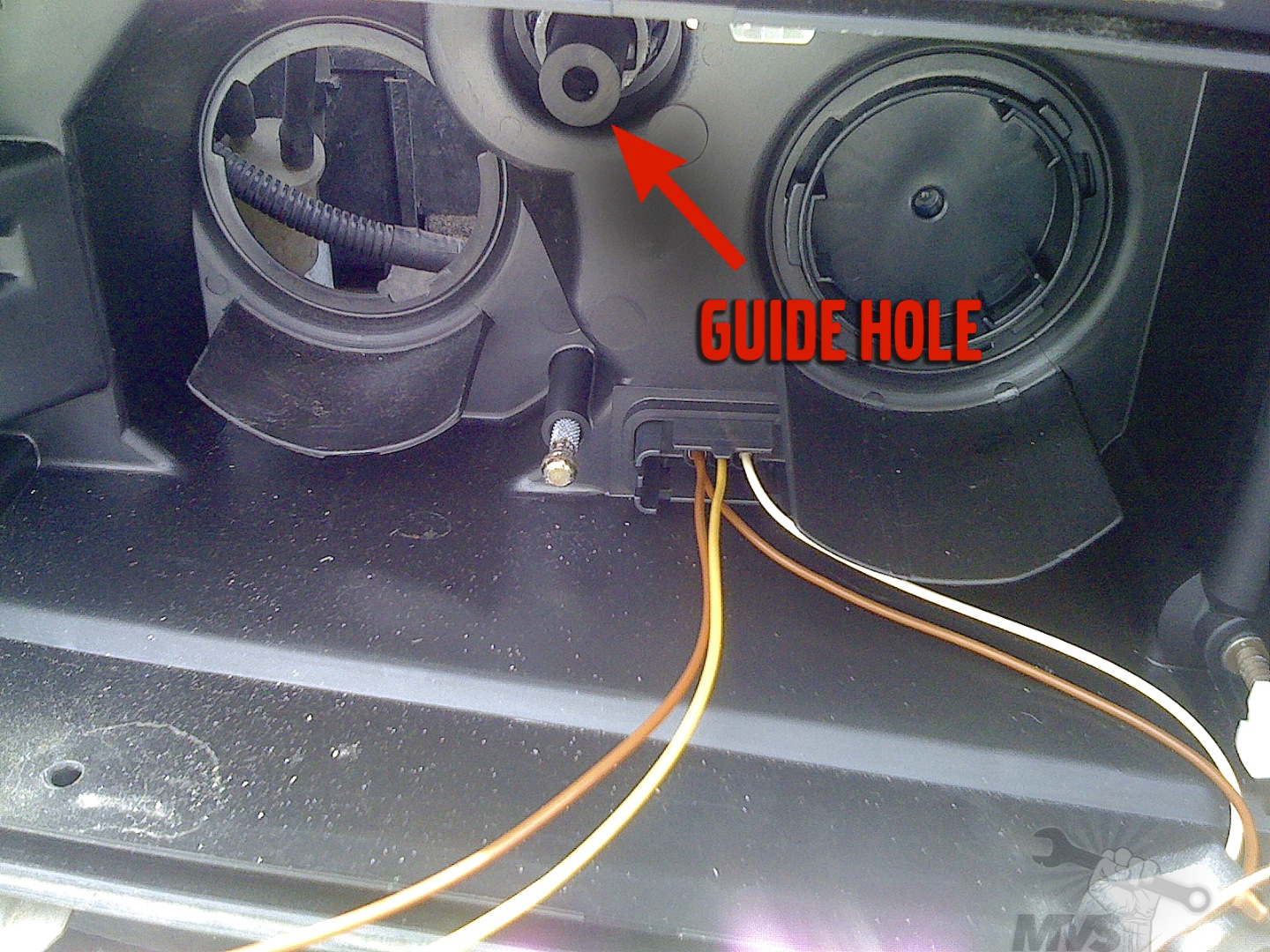

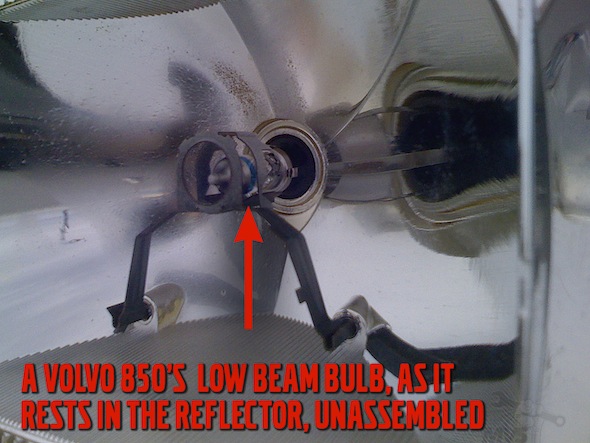

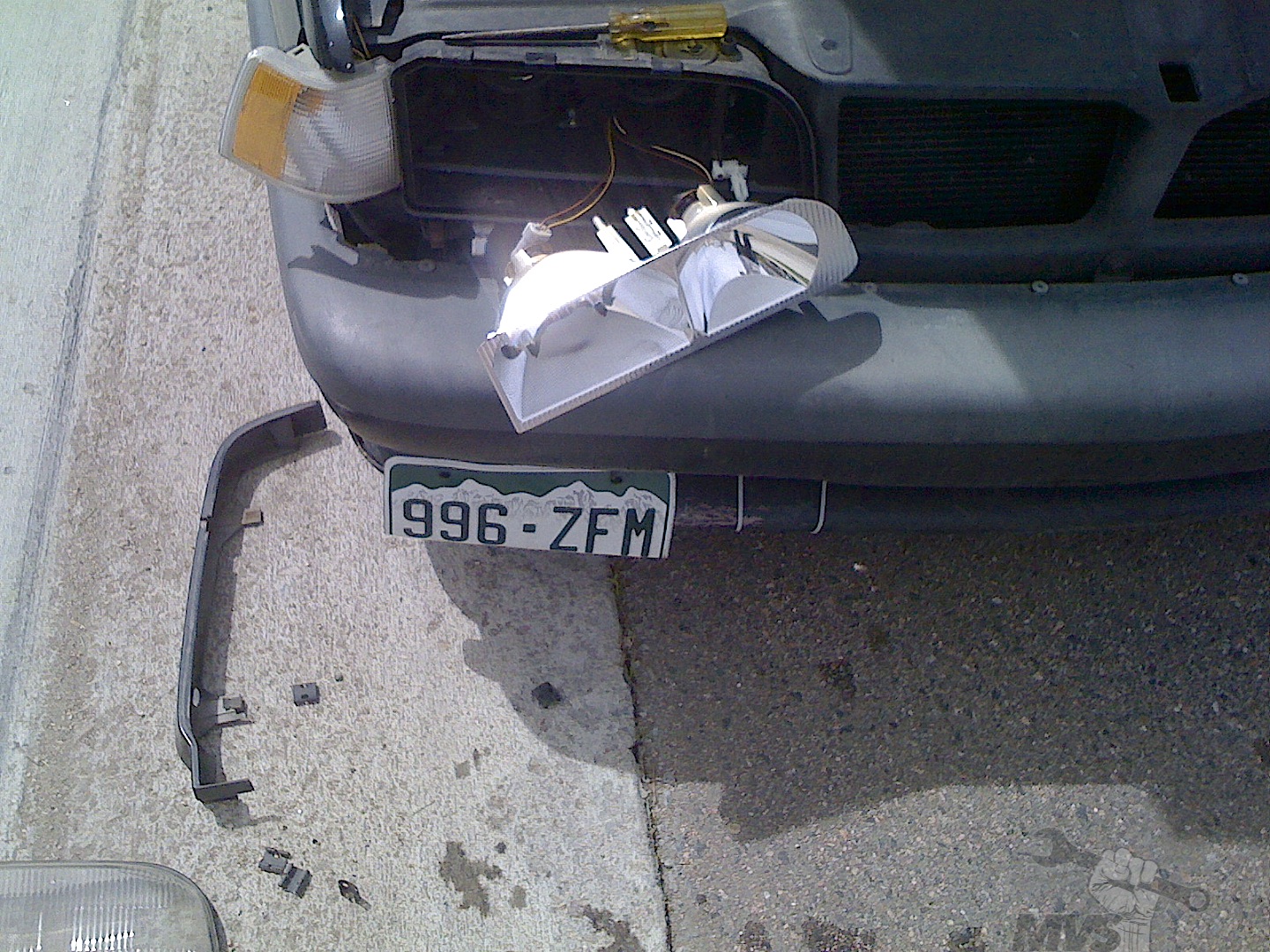

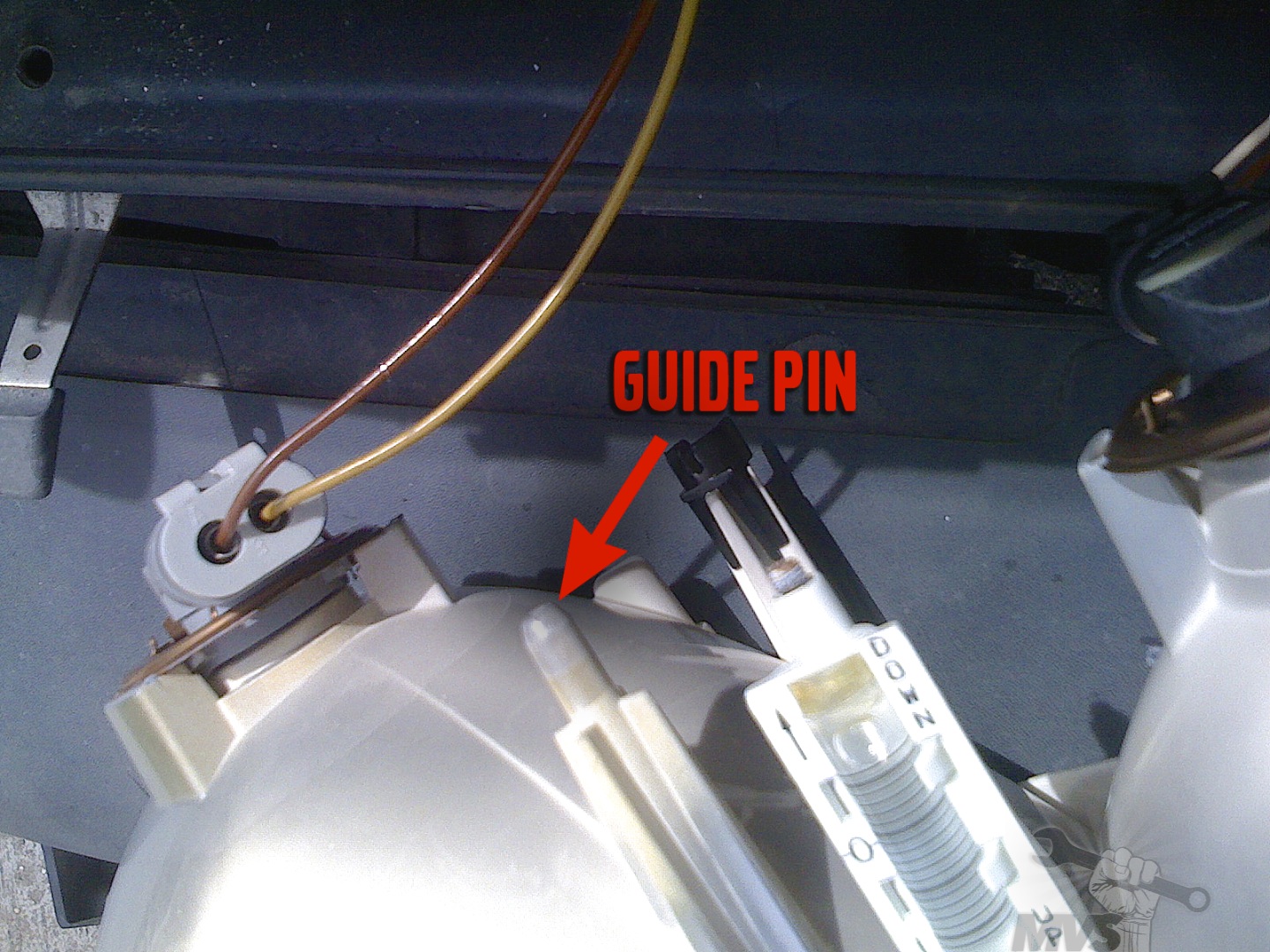

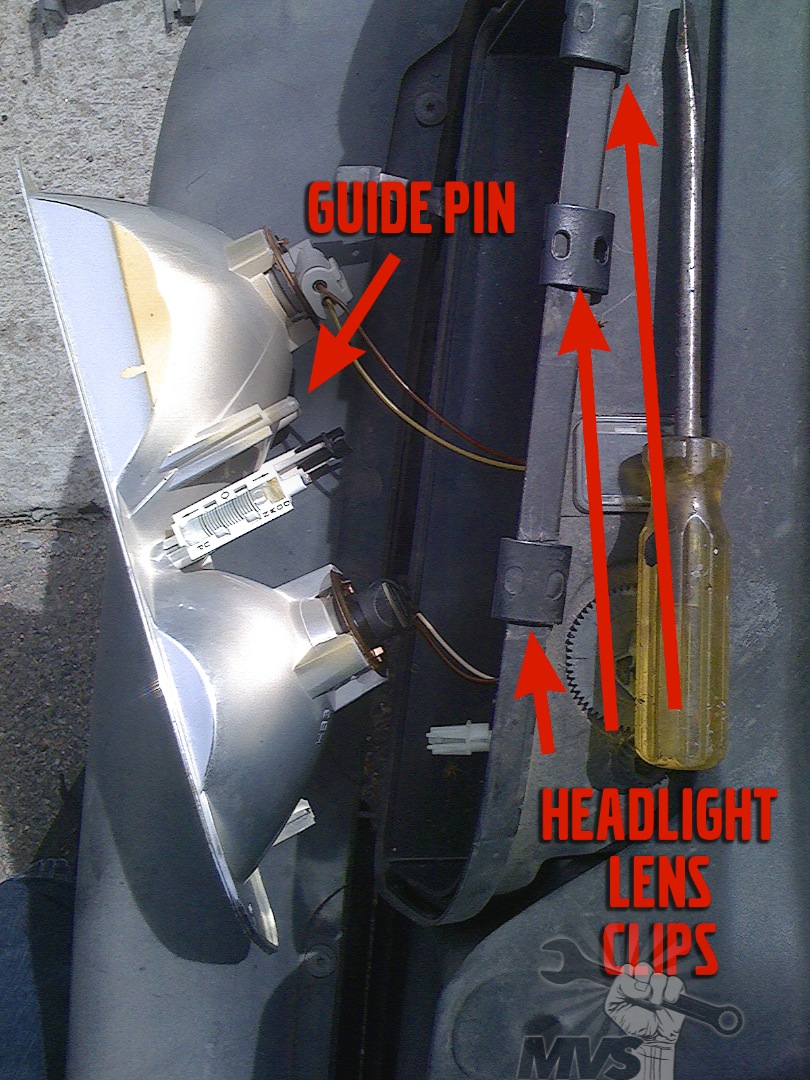

My Volvo 850’s passenger (LHD) headlight, disassembled. Shown are the high and low bulbs, the reflector, clips, wiring, and the reflector guide pin to put it back in the housing correctly.

My Volvo 850’s passenger (LHD) headlight, disassembled. Shown are the high and low bulbs, the reflector, clips, wiring, and the reflector guide pin to put it back in the housing correctly.

Last Updated on August 19, 2020

Post date June 22, 2014
Post author By Matt
Post categories In Lights: Headlights, Tail Lights, Map Light, Signals, Indicators, Bulbs Etc., Volvo 850, Volvo Repair Documentation
Tags headlight, headlight bulbs, hi beam bulb, high beam bulb, low beam bulbs
