timing belt photos Archives - Volvo Forum + Help for Owners

Crank Marks — The EASY Way to Line Them Up for Timing Belt

Yesterday longtime MVS Contributor and Volvo DIY author cn90 posted a method to avoid the headache of lining up crank marks when you’re replacing a timing belt on…

Post categories In Belts, Hoses & Lines, Engine, Timing Belt, Volvo 850, Volvo C30, Volvo C70, Volvo S60, Volvo S60 R 2004-2007, Volvo S70 & V70 1998-2000, Volvo V70 2001-2007, Volvo V70 R 1998-2000, Volvo V70 R 2004-2007, Volvo XC70 & V70XC, Volvo XC90

1998 V70 33-Step Timing Belt Replacement w/Pics

MVS Forums member deepsouth turns the DIY knob to Maximum and shows us how to do a timing belt in 33 steps. As well as each step, he lists tools used, photos and his deepest timing belt thoughts. And if you have any deep timing belt thoughts or questions, please ask!

Post categories In Timing Belt, Volvo Repair Documentation, Volvo S70 & V70 1998-2000, Volvo V70 R 1998-2000, Volvo XC70 & V70XC

S60 Timing Belt Marks

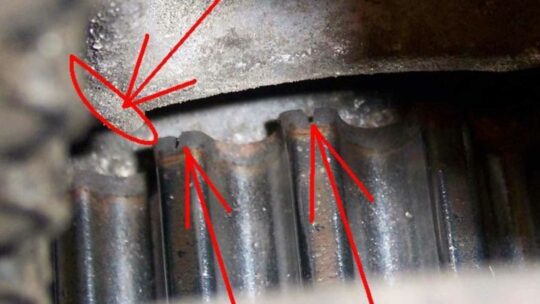

And the barely visible timing marks on the crankshaft gear and engine block – the one on the engine block it’s not visible with the belt on, but can be felt by hand, it’s a small bump. There is also a timing bump on the crankshaft pulley (not visible in the photo).

Post categories In Timing Belt, Volvo Repair Documentation, Volvo S60

Timing Belt Photos

Whether you’re planning to replace your Volvo’s timing belt, have someone else replace it, or just want to know what the terms mean, I’ve got your timing belt photos here. Sent in by MVS user Carl, they’re technically good photos, very large, and each photo is captioned.

Post categories In Timing Belt, Volvo Repair Documentation
